Information Bus: Locations

Data Communication Component Views

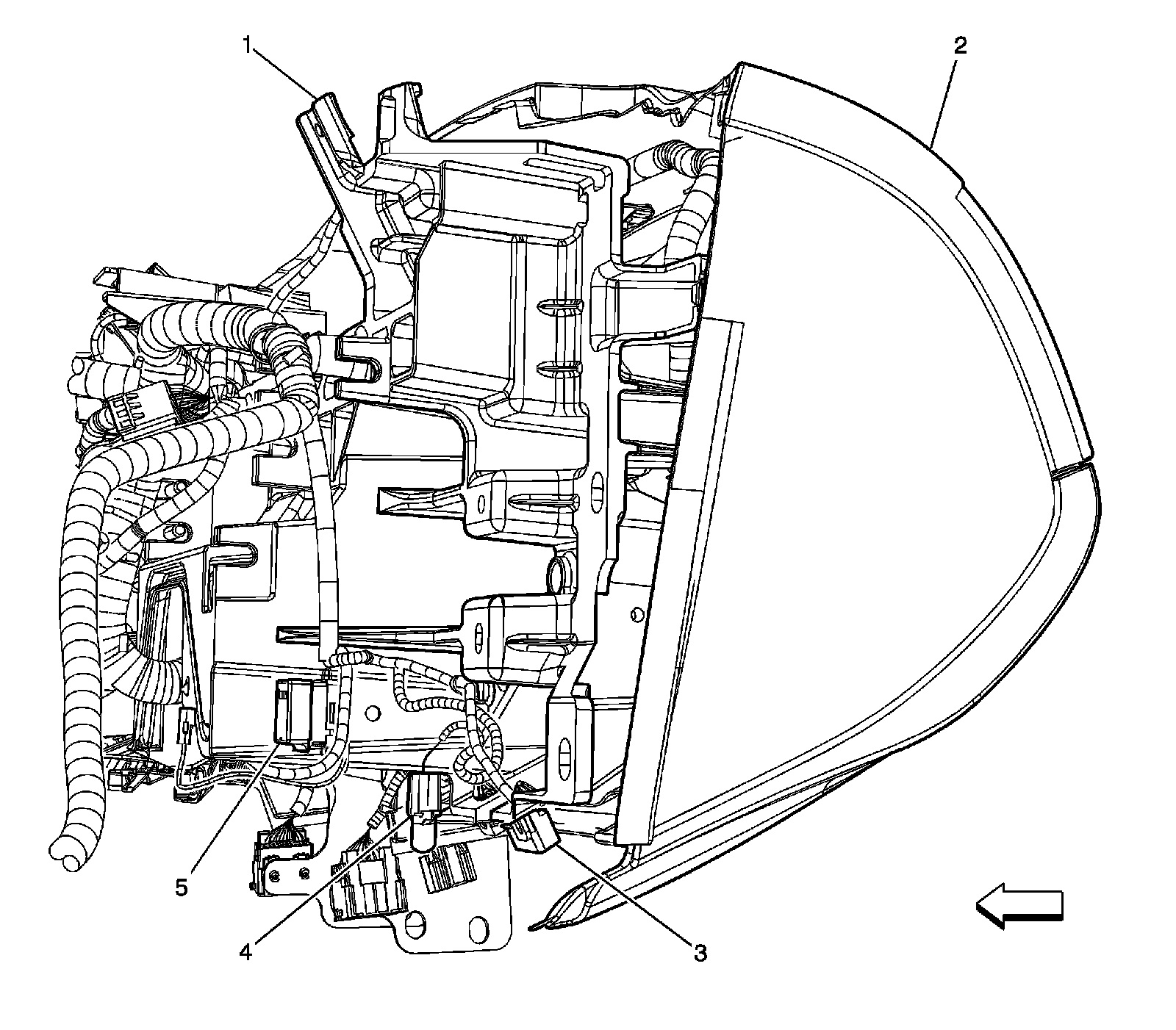

Left Side of the I/P Carrier




1 - I/P Carrier
2 - I/P Side Panel - Left
3 - Data Link Connector (DLC)
4 - Courtesy Lamp - Left Footwell
5 - Steering Column Fuse Box or Holder

Instrument Panel Module (IPM)




1 - I/P Cluster Trim
2 - I/P Carrier Trim
3 - Instrument Panel Module (IPM)
4 - Knee Bolster

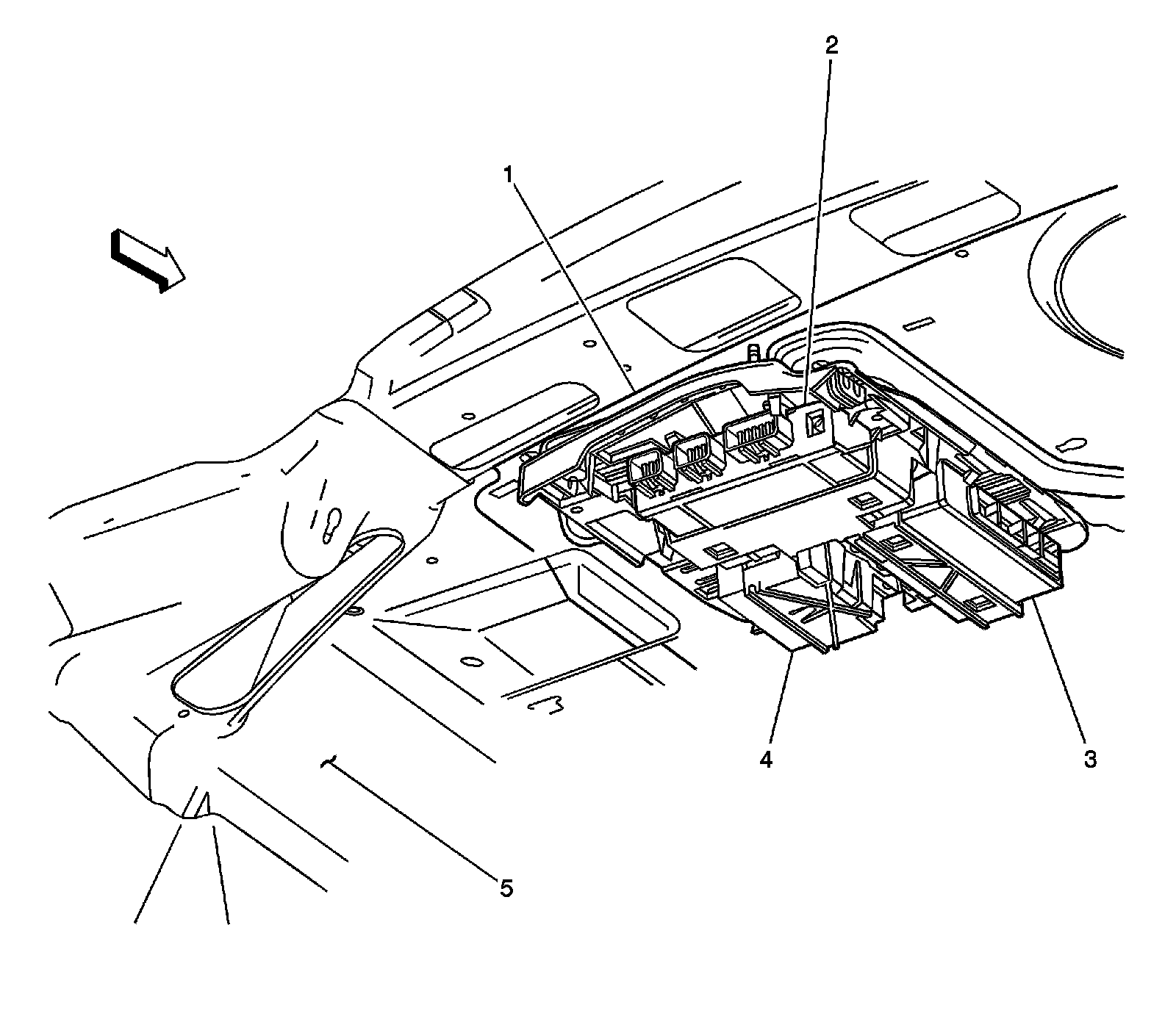

Under the Rear Window Shelf




1 - Module Bracket Assembly
2 - Remote Control Door Lock Receiver (RCDLR)
3 - Rear Integration Module (RIM)
4 - Rear Object Sensor Control Module (UD7)
5 - Rear Window Shelf

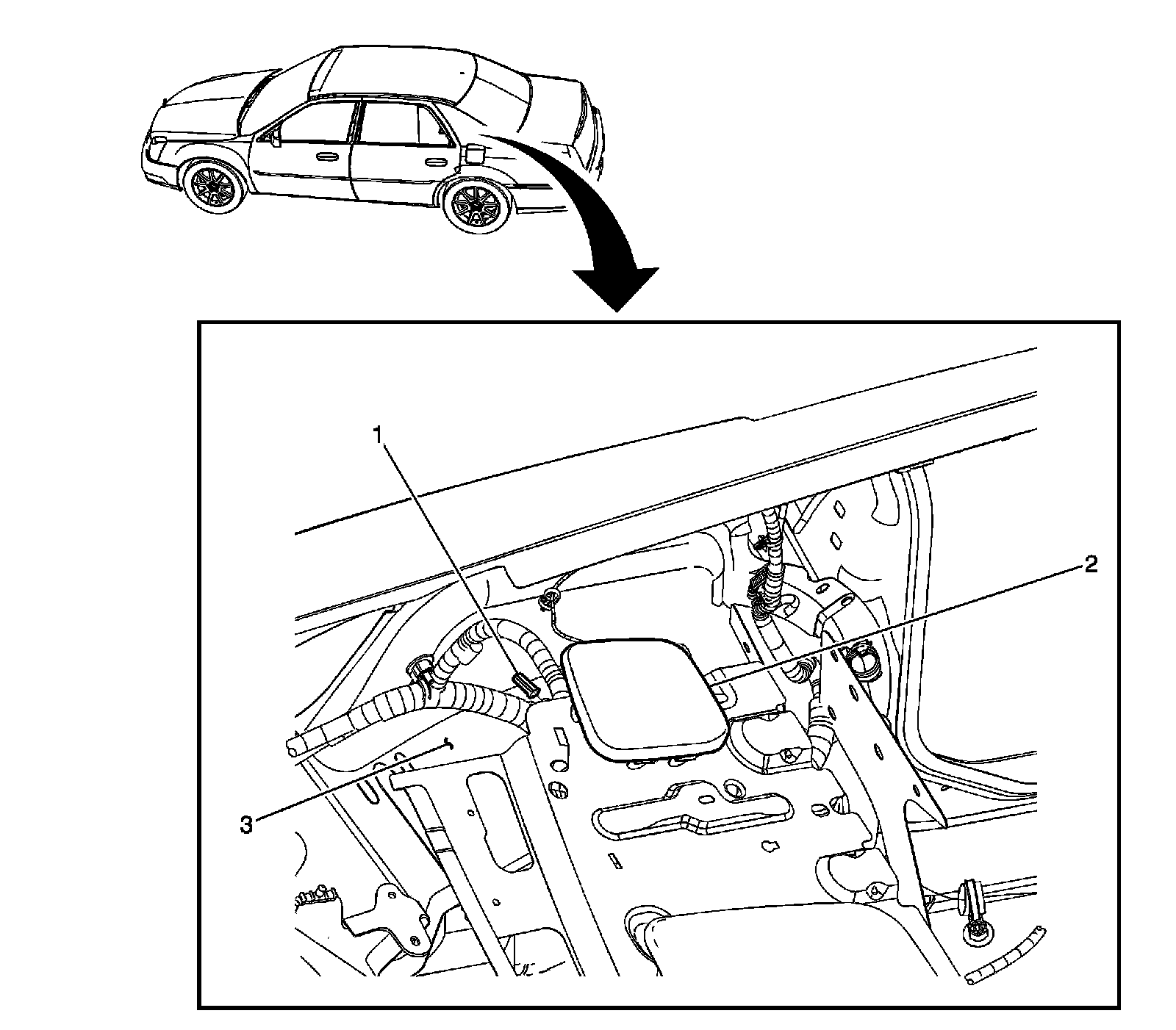

Under Left Rear Window Panel




1 - Rear Parking Assist Diagnostic Connector
2 - Speaker Grille -LR
3 - Wheel Well -LR

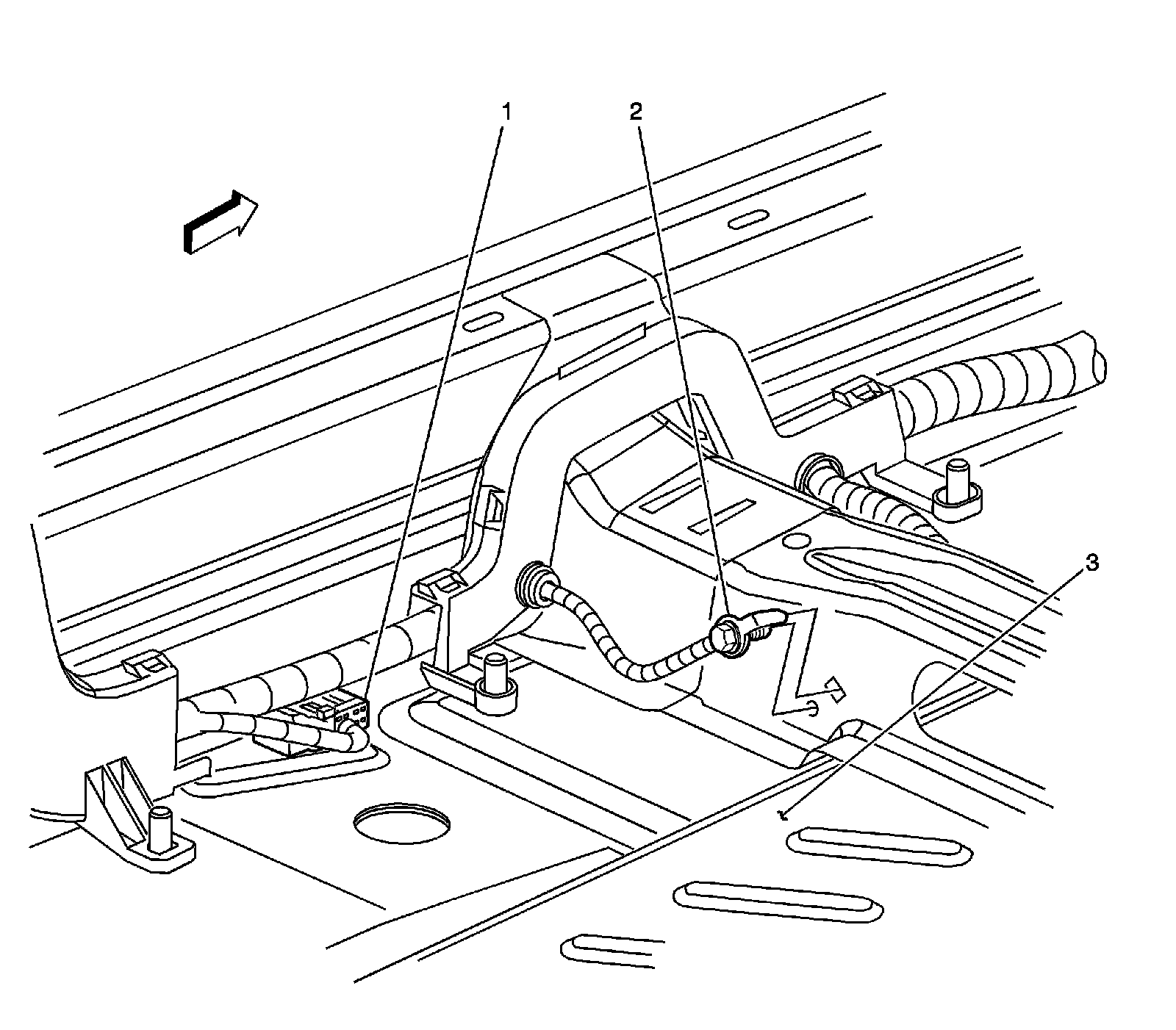

G307 and Splice Pack SP300




1 - Splice Pack SP300
2 - G307
3 - LF Floor Panel
