Front Passenger Door Module (FPDM)

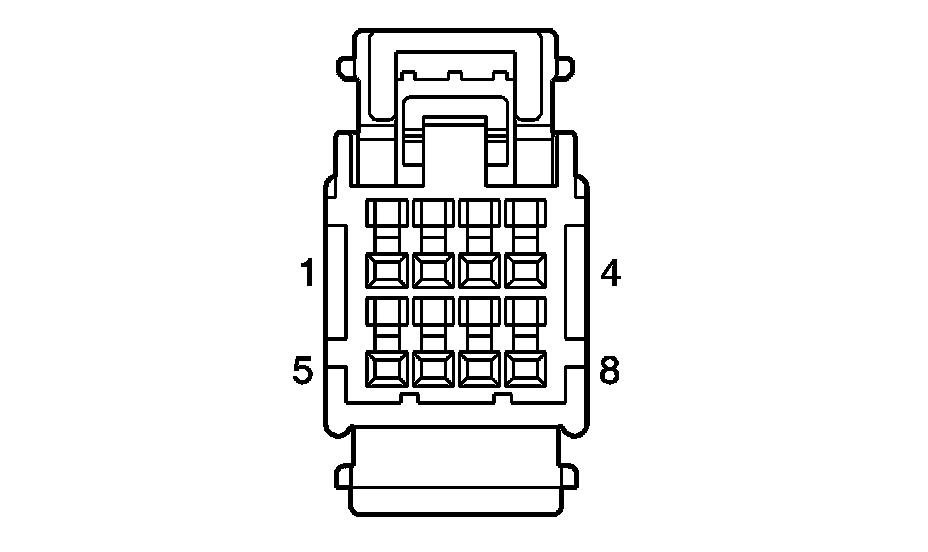

Vehicle Access Connector End Views

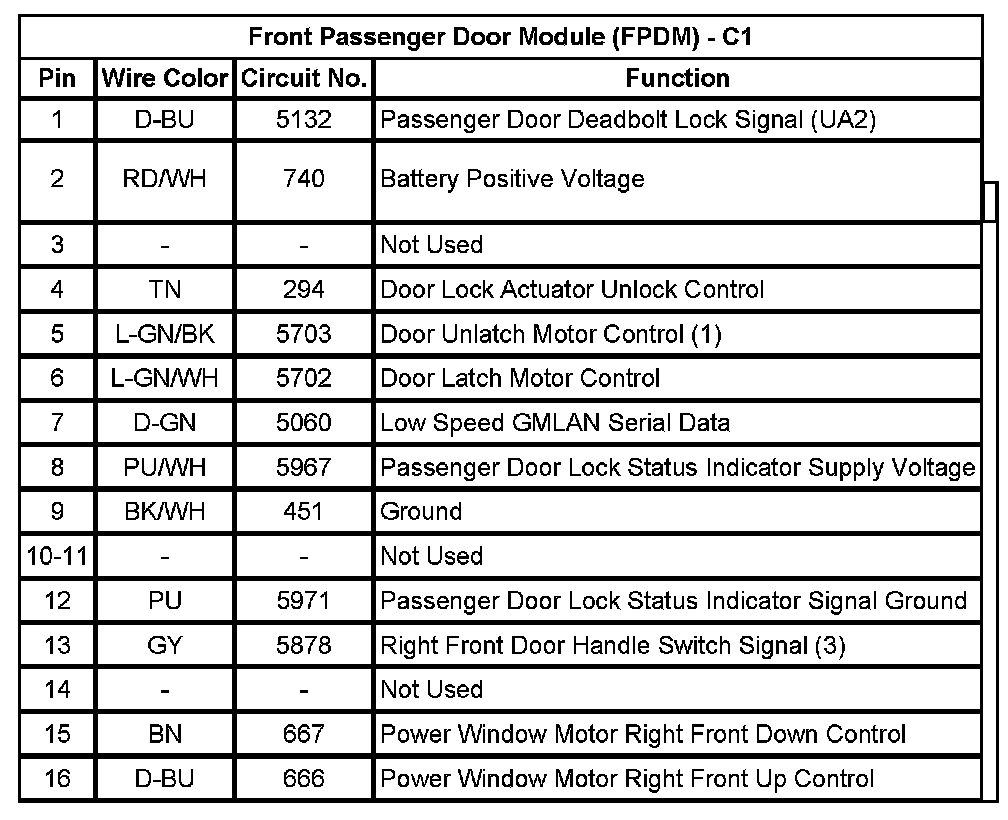

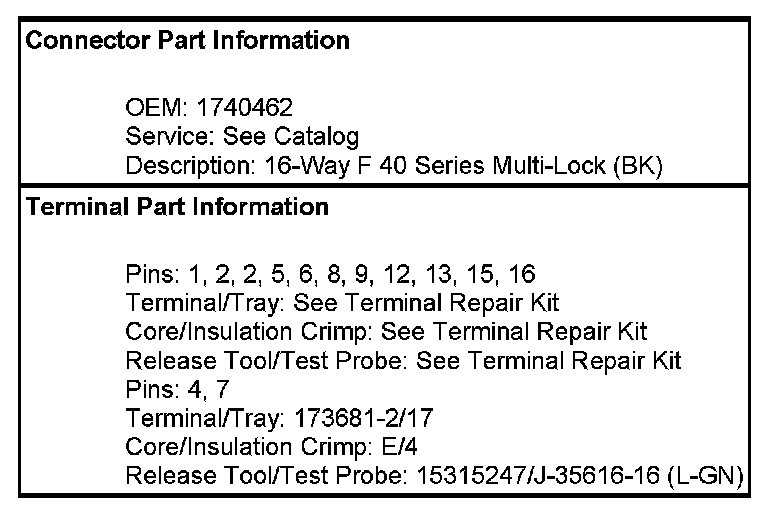

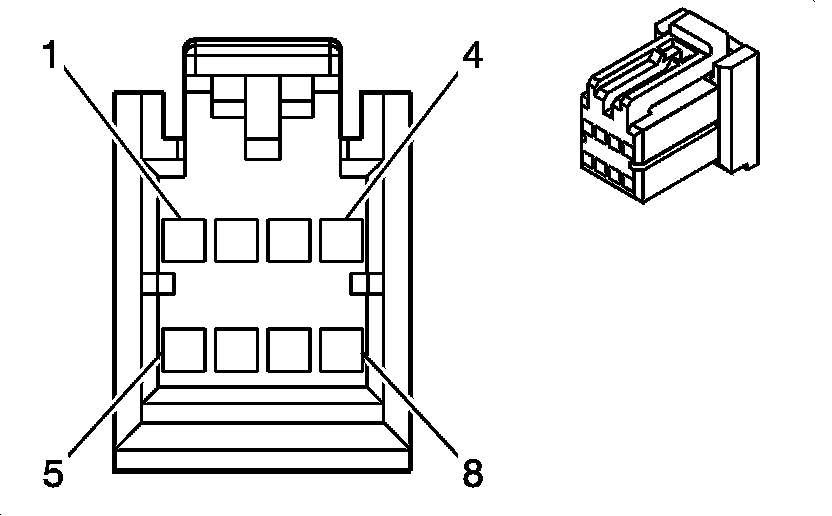

Front Passenger Door Module (FPDM) - C1

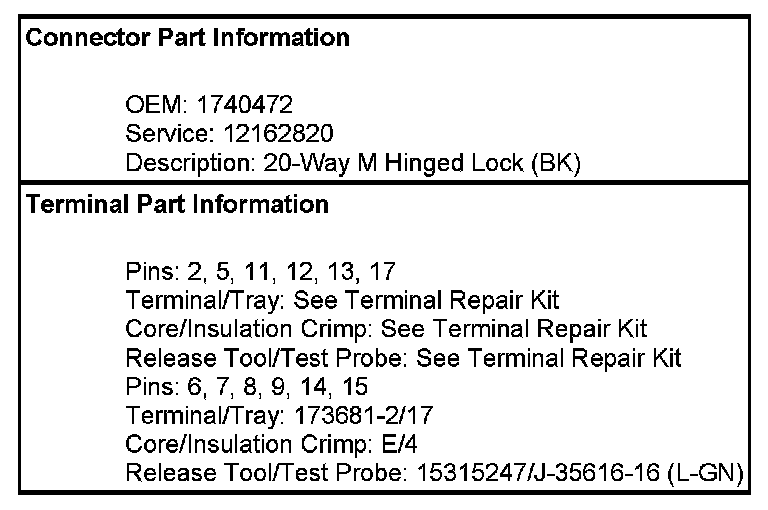

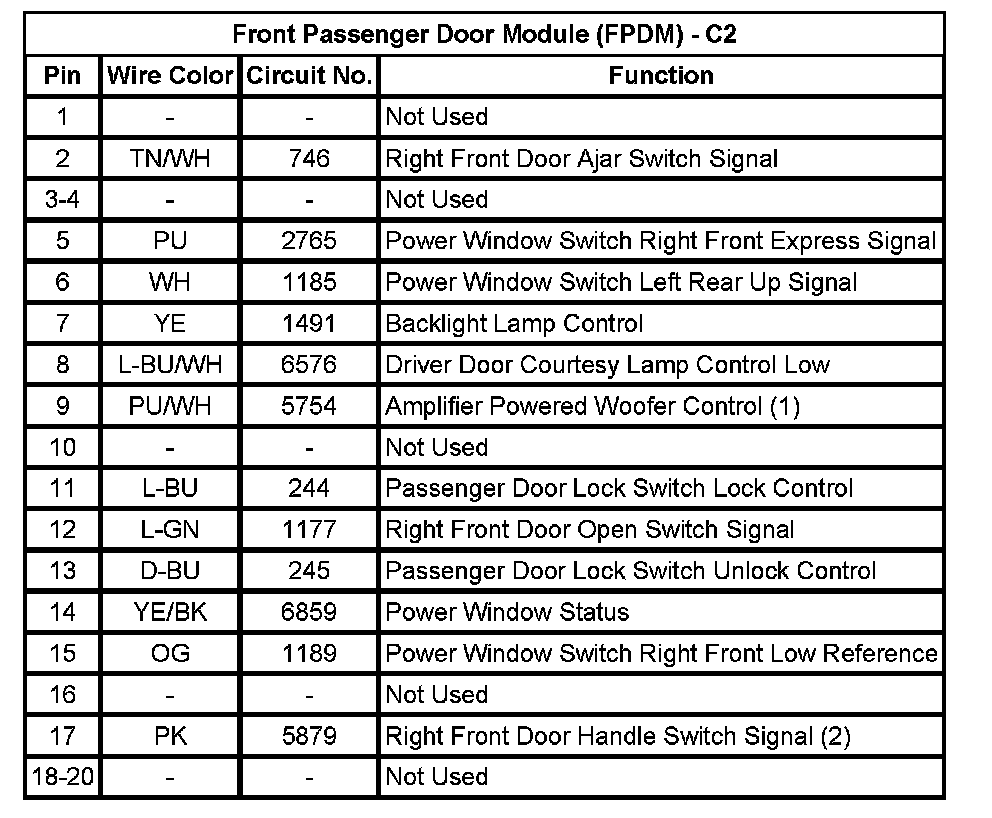

Front Passenger Door Module (FPDM) - C2

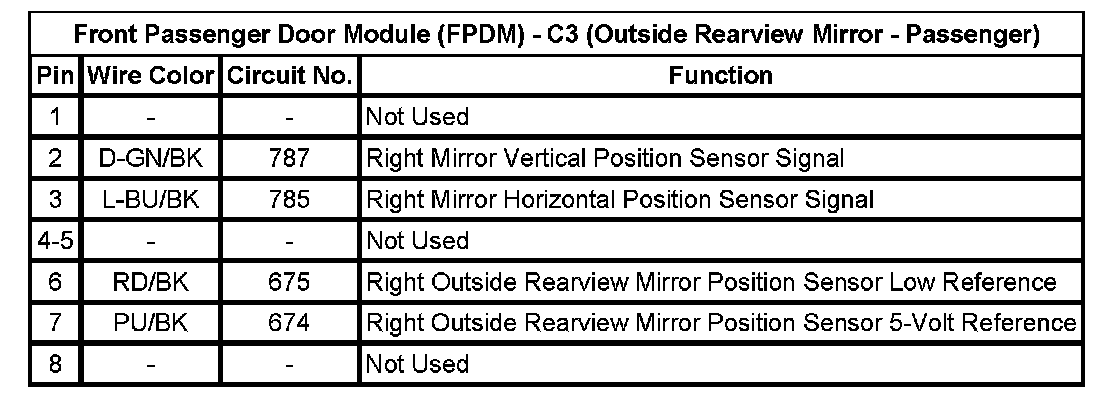

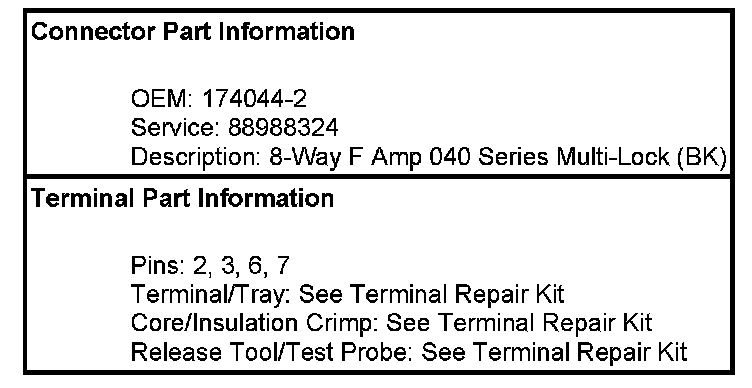

Front Passenger Door Module (FPDM) - C3

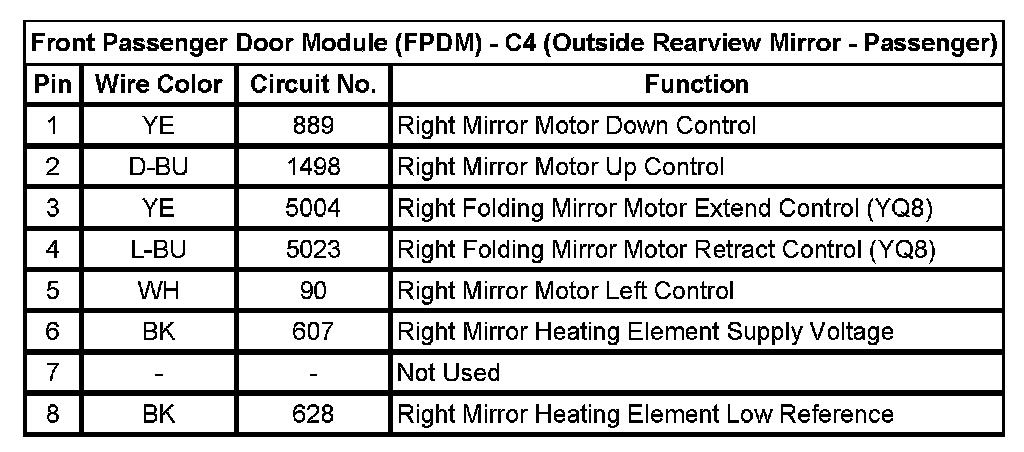

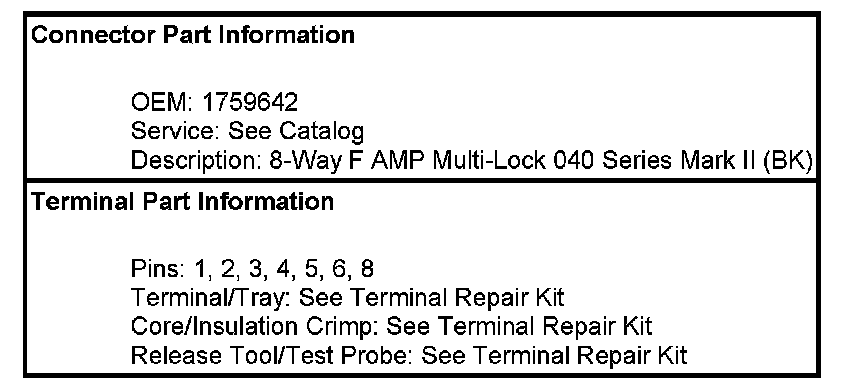

Front Passenger Door Module (FPDM) - C4
