Underhood Fuse Block
Electrical Center Identification Views
Fuse Block - Underhood Top View
Fuse Block - Underhood Bottom View

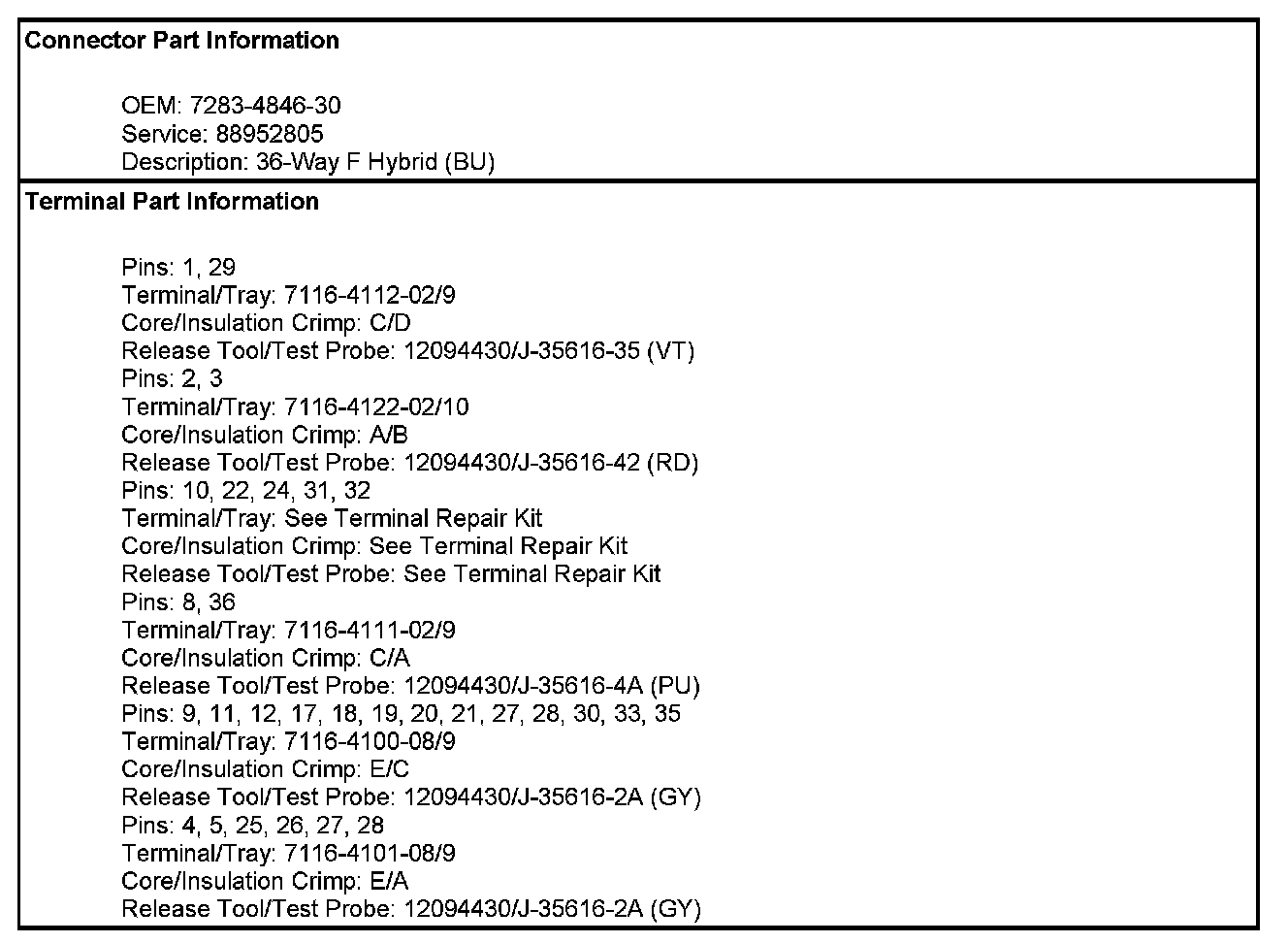

Fuse Block - Underhood C1

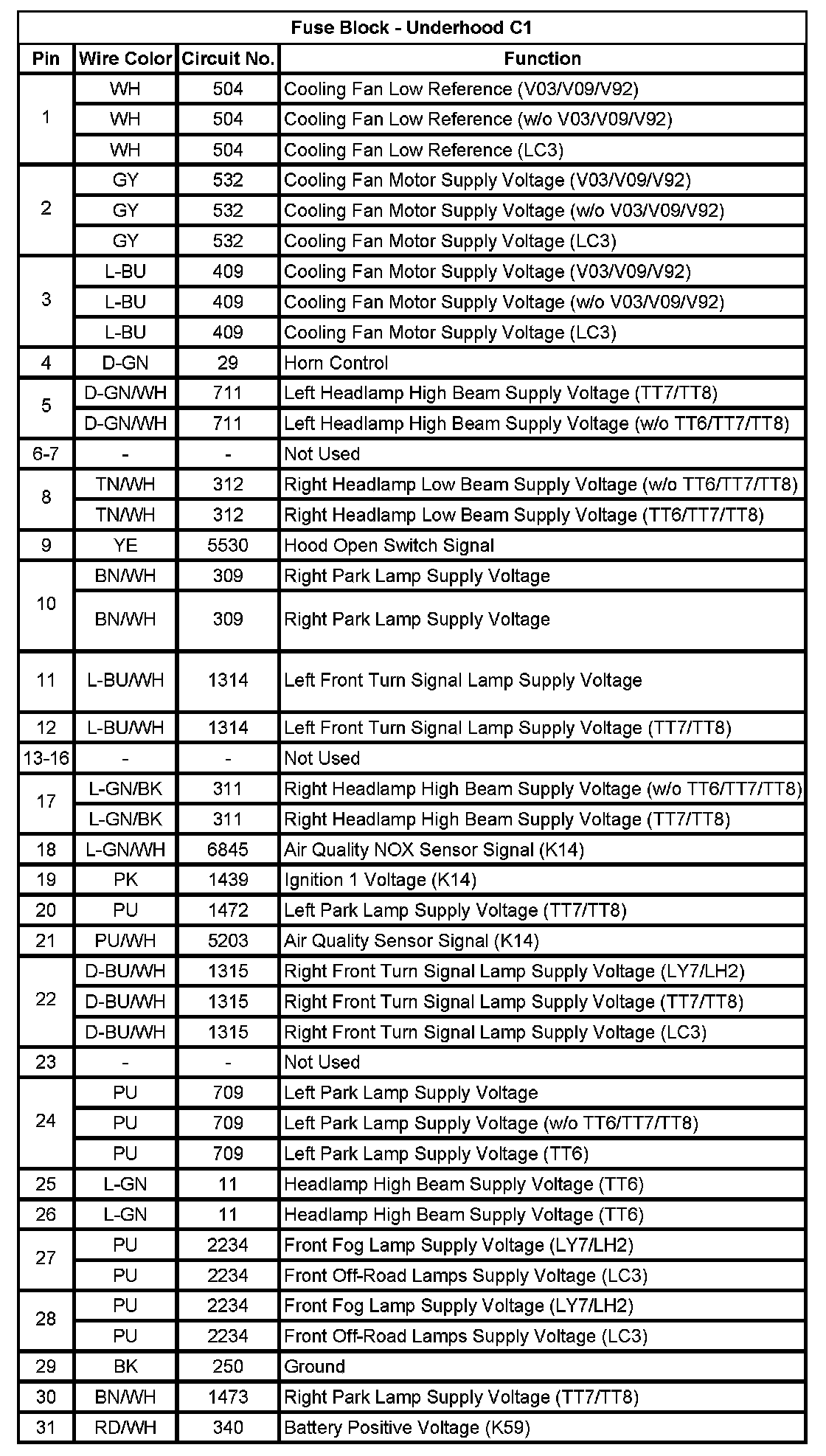

Fuse Block - Underhood C1 (pin 1 To 31):
Fuse Block - Underhood C1 (Pin 32 To 36):
Fuse Block - Underhood C2
Fuse Block - Underhood C3

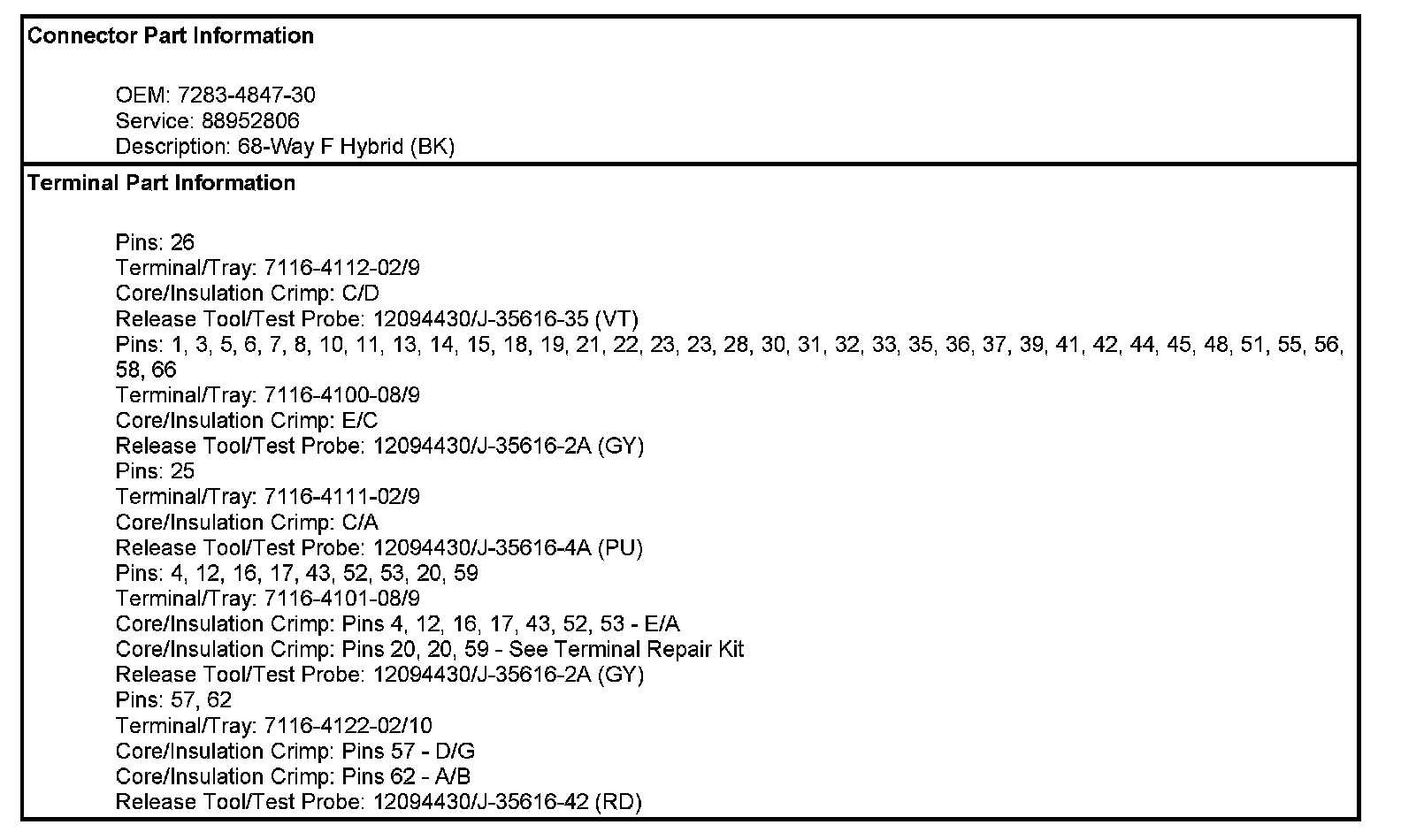

Fuse Block - Underhood C4

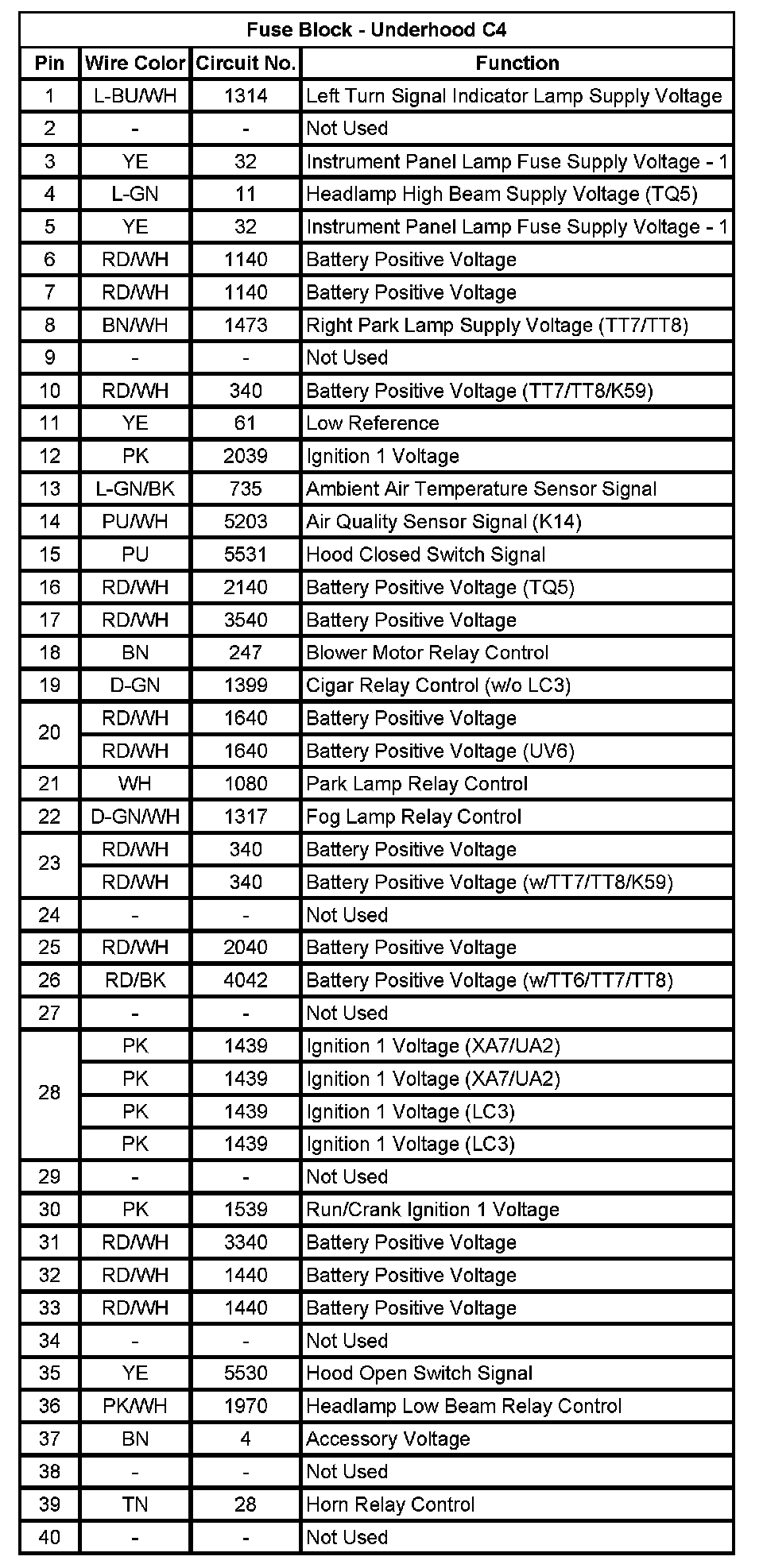

Fuse Block - Underhood C4 (Pin 1 To 40):

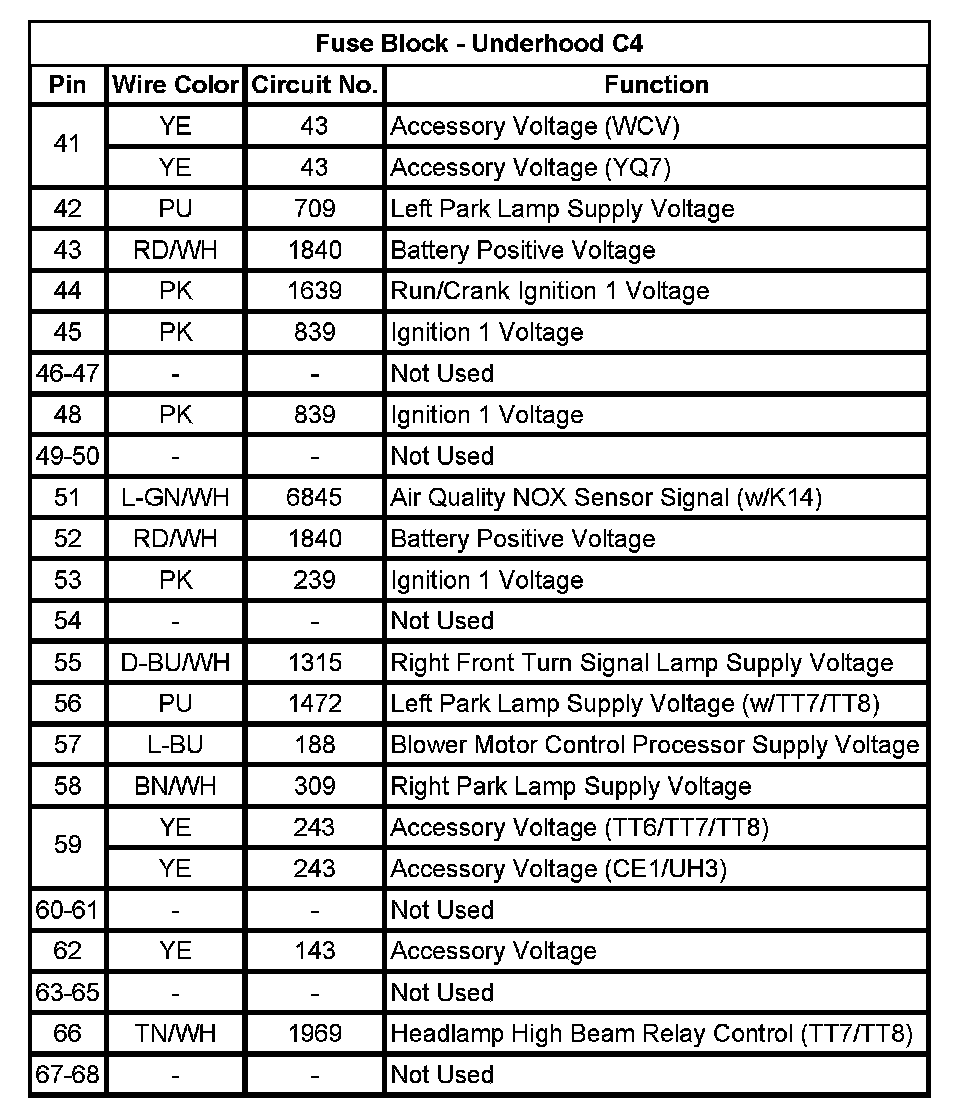

Fuse Block - Underhood C4 (Pin 41 To 68):

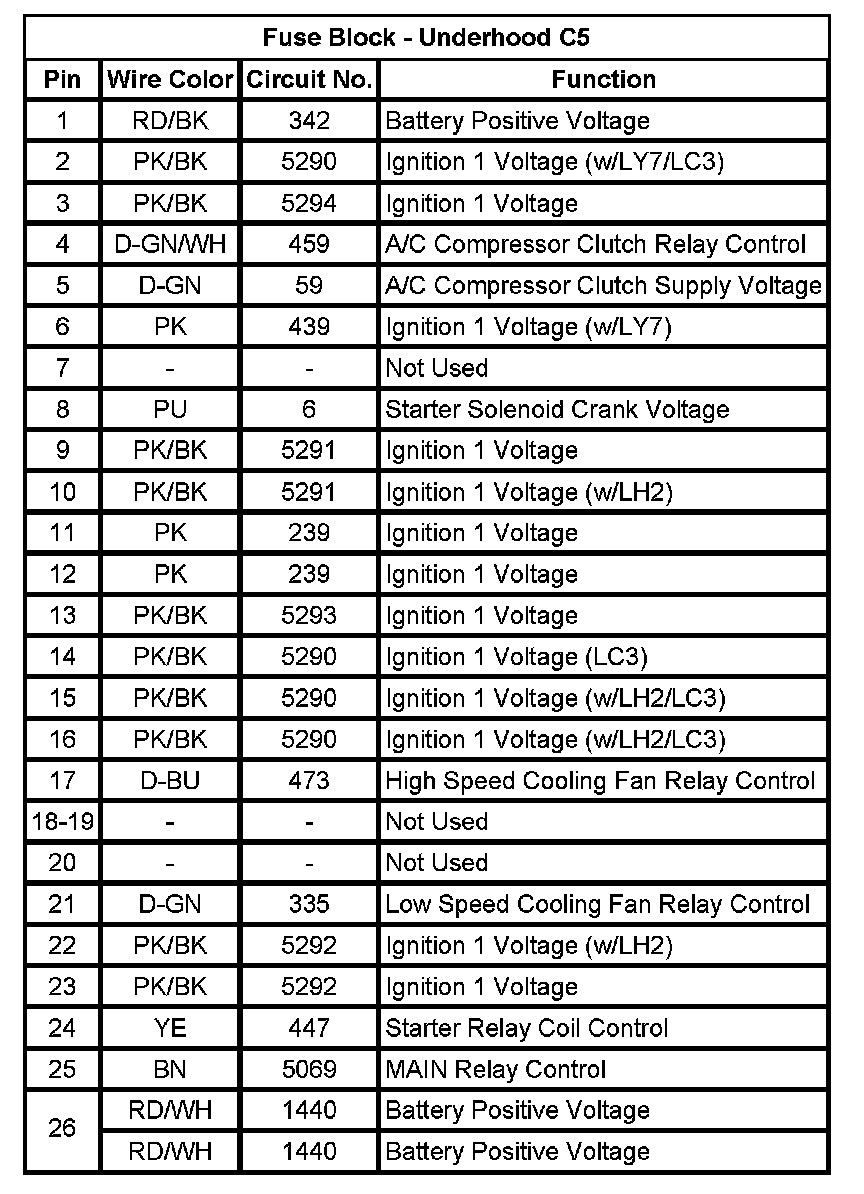

Fuse Block - Underhood C5
