6L50/6L80/6L90 - Automatic Transmission

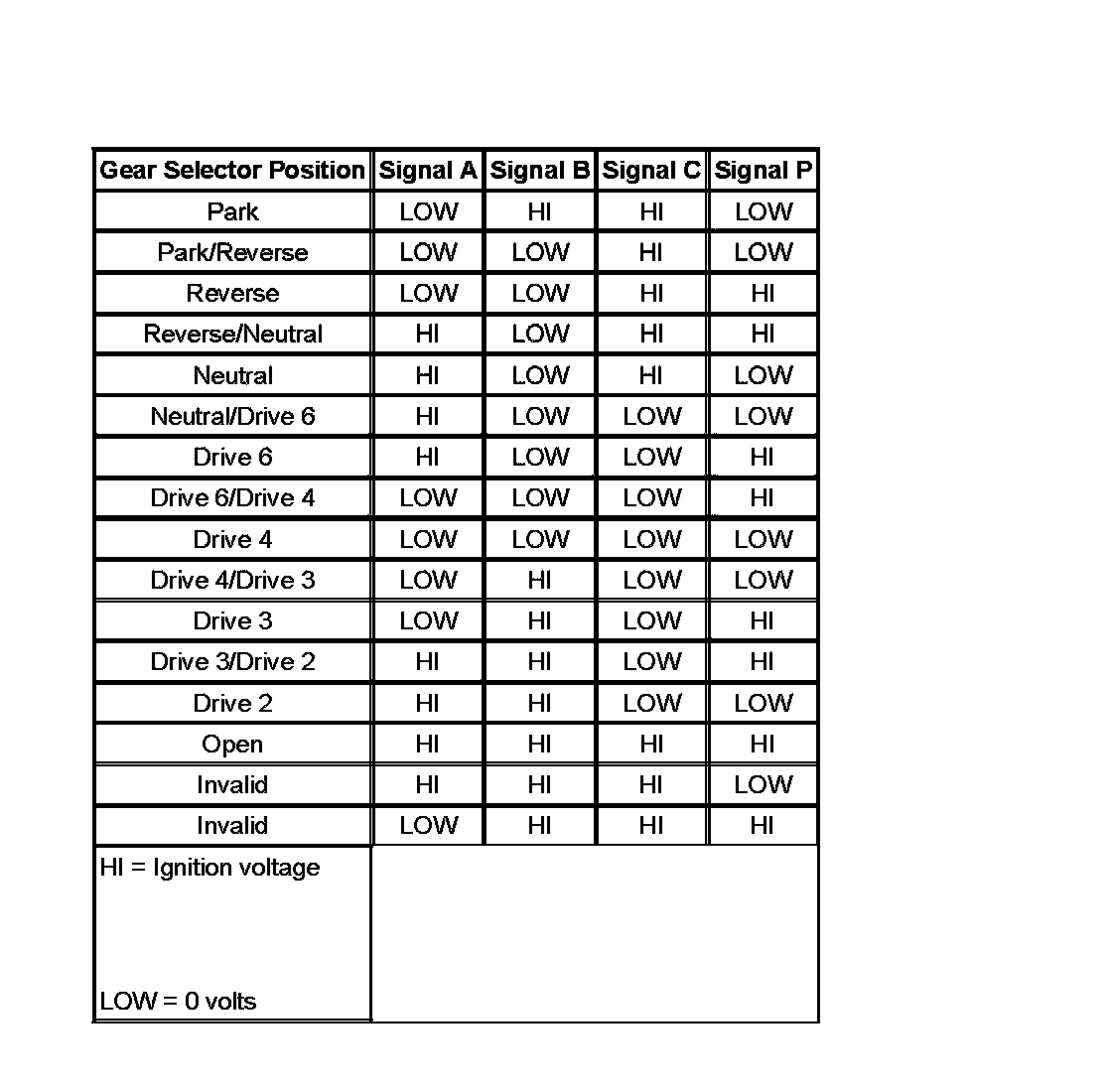

Transmission Internal Mode Switch Logic

Transmission Internal Mode Switch Logic:
