Oil Pump, Engine

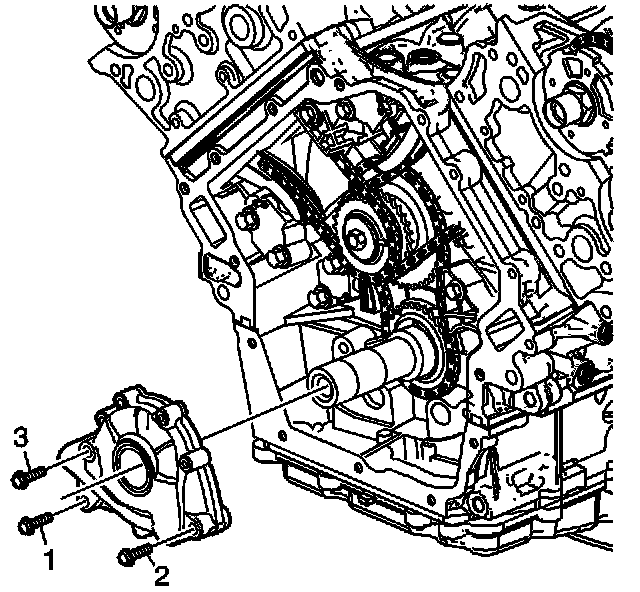

Oil Pump
Cover Bolt 12 N.m (106 lb in)
Mounting Bolt
First Pass 10 N.m (89 lb in)
Final Pass 35 degrees
