Thread Repair Specifications

Thread Repair Specifications

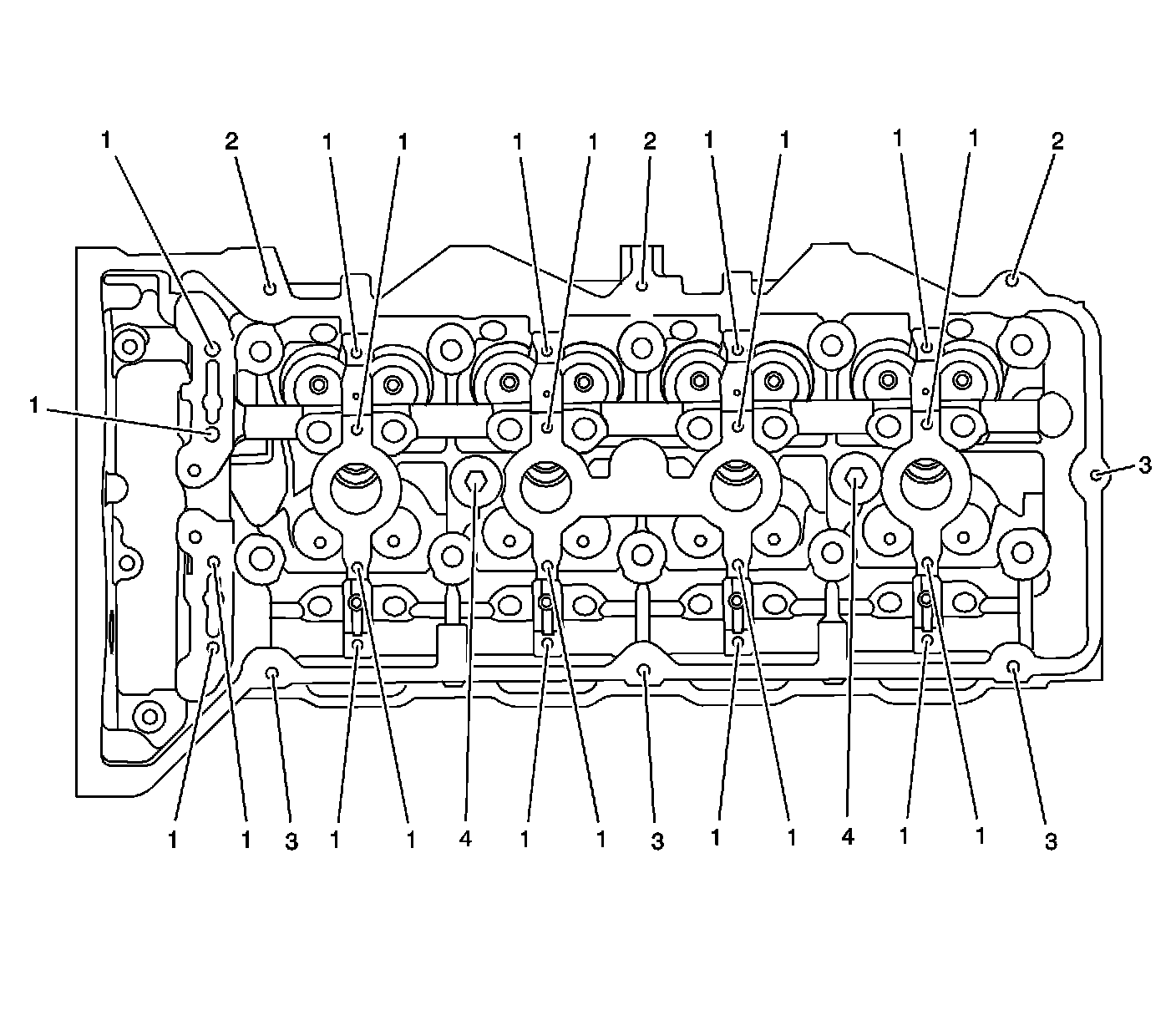

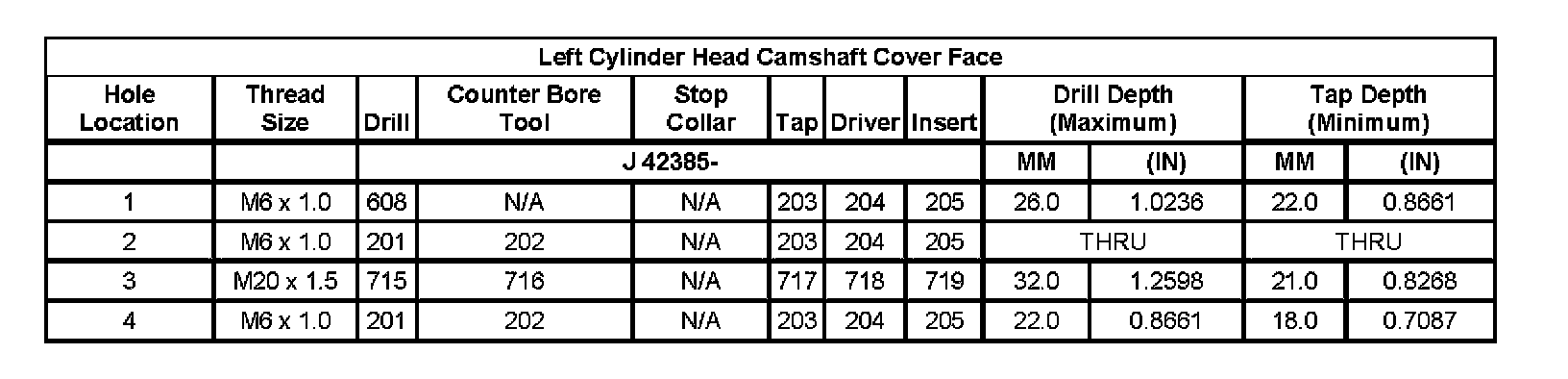

Left Cylinder Head Camshaft Cover Face:

Left Cylinder Head Camshaft Cover Face:

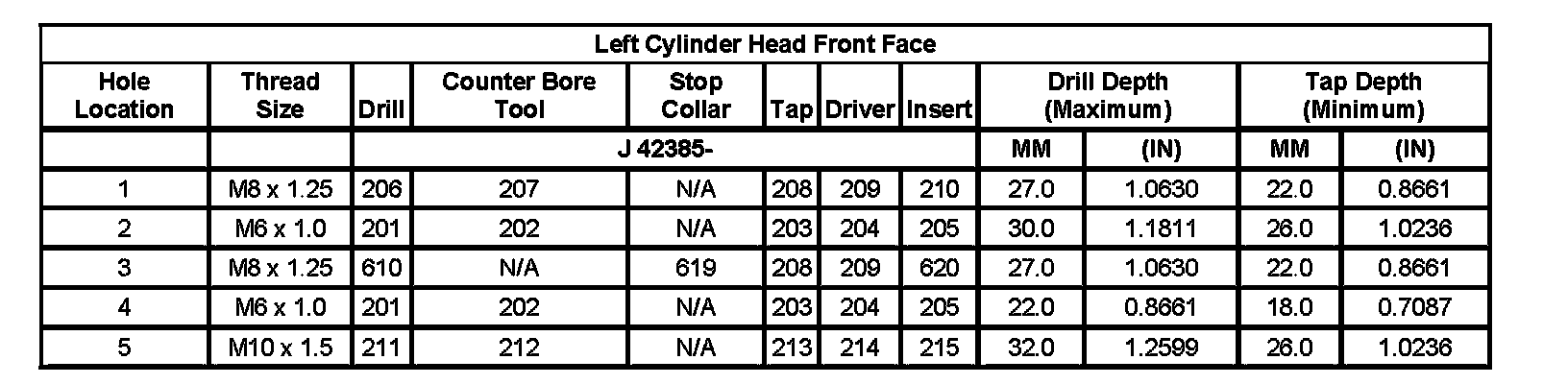

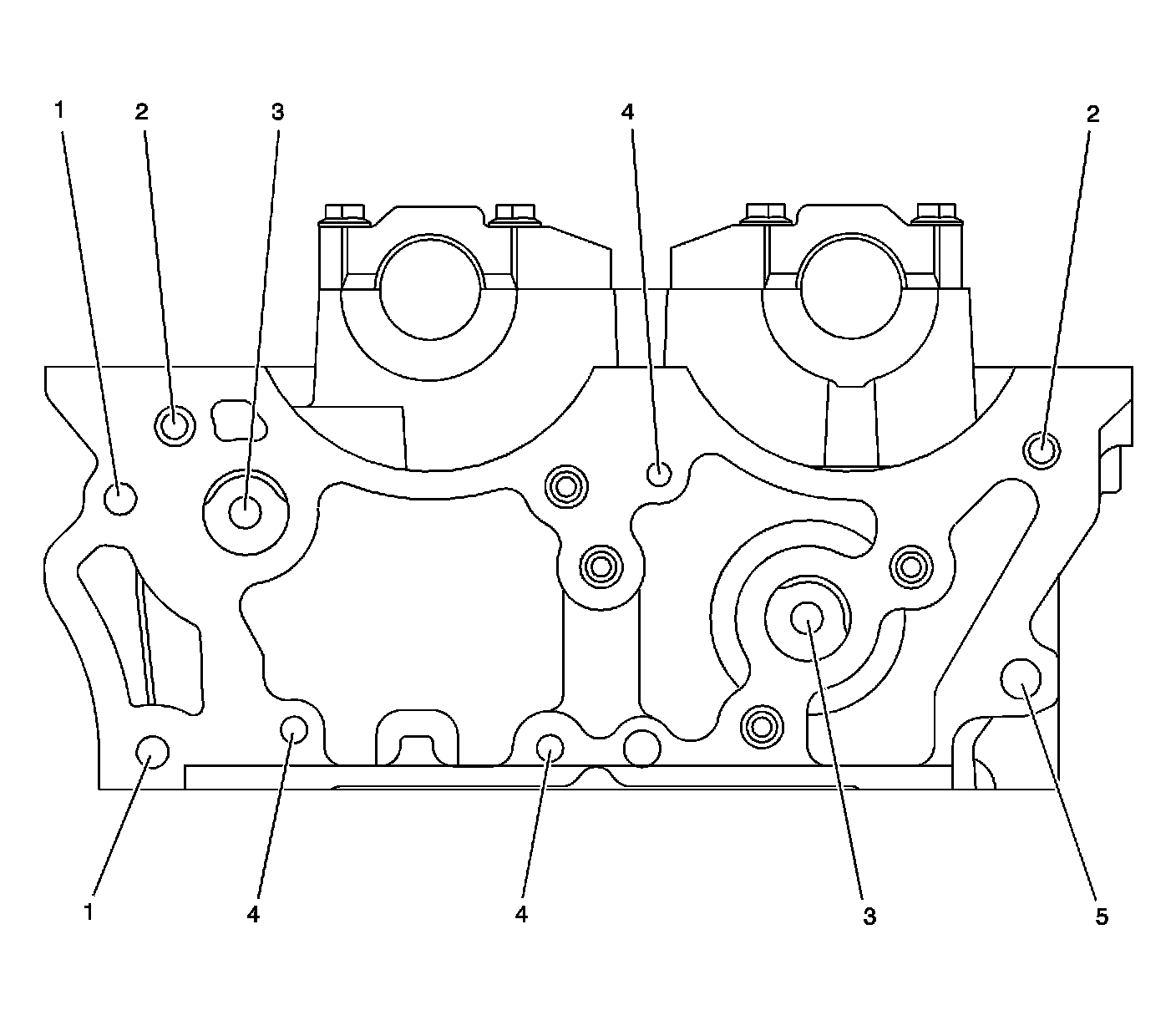

Left Cylinder Head Front Face:

Left Cylinder Head Front Face:

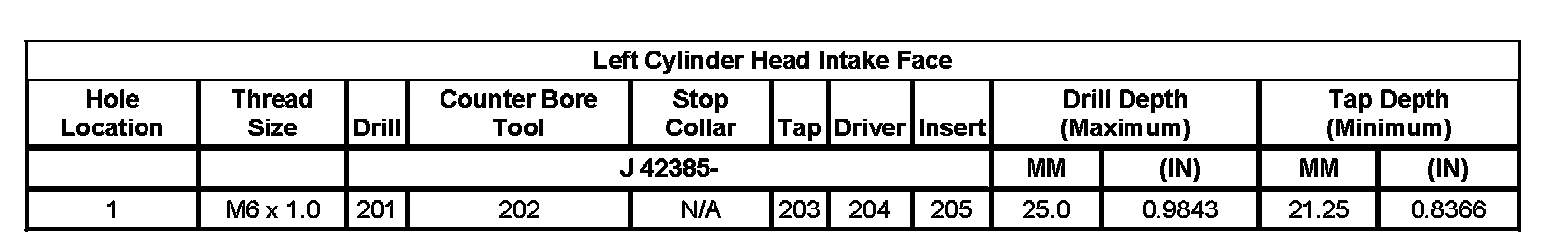

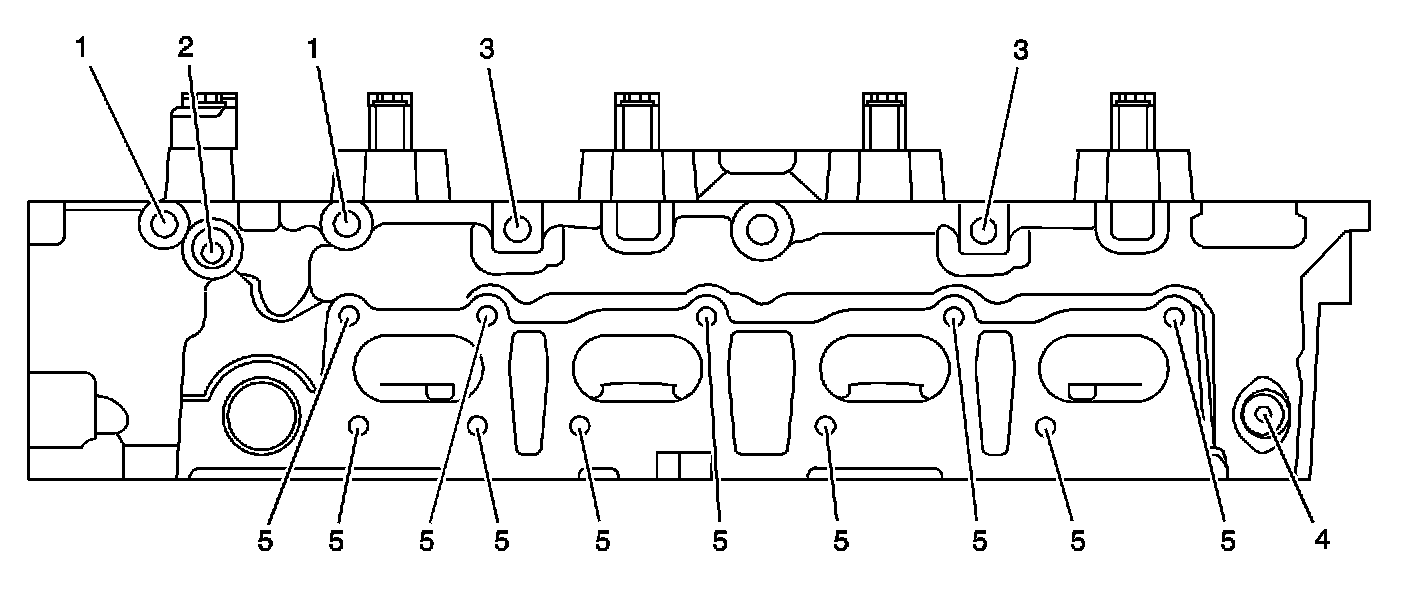

Left Cylinder Head Intake Face:

Left Cylinder Head Intake Face:

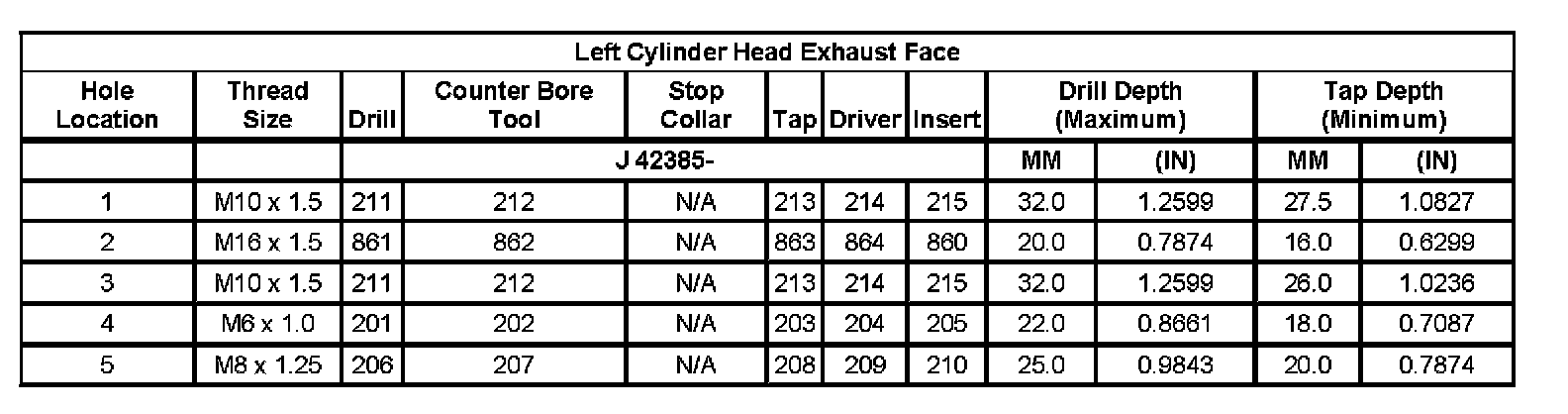

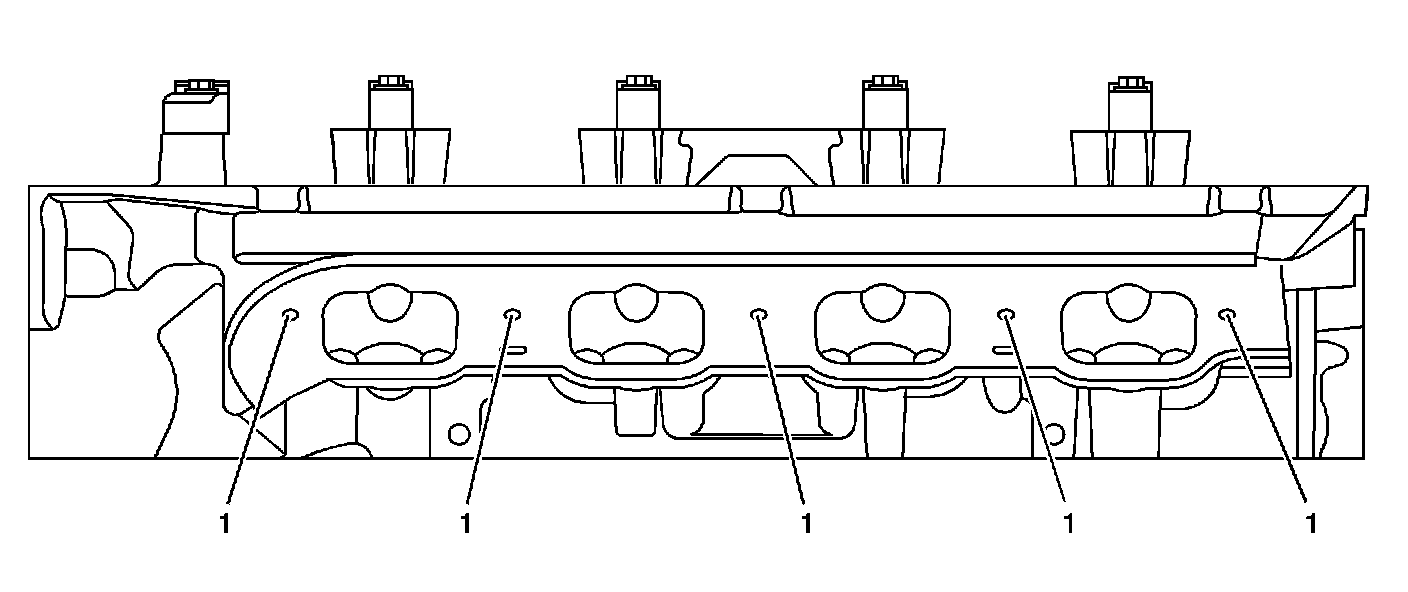

Left Cylinder Head Exhaust Face:

Left Cylinder Head Exhaust Face:

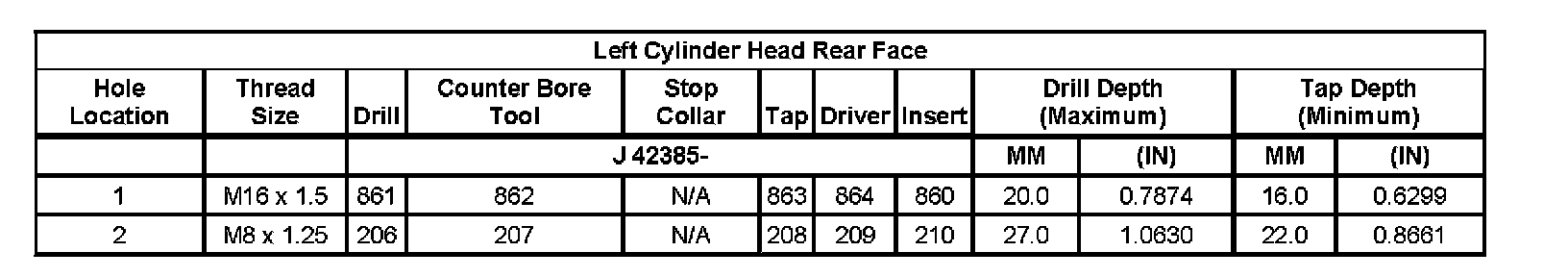

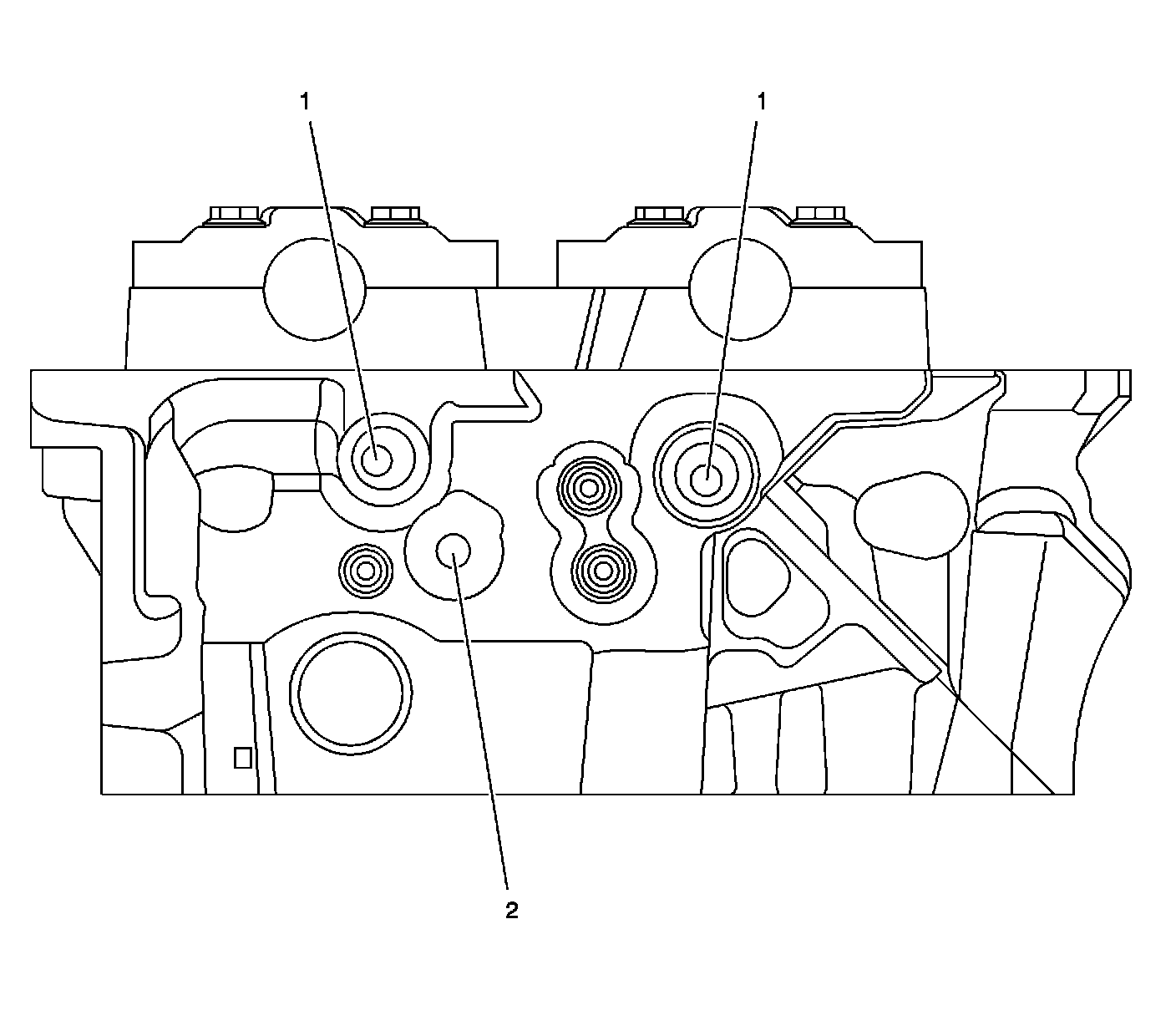

Left Cylinder Head Rear Face:

Left Cylinder Head Rear Face:

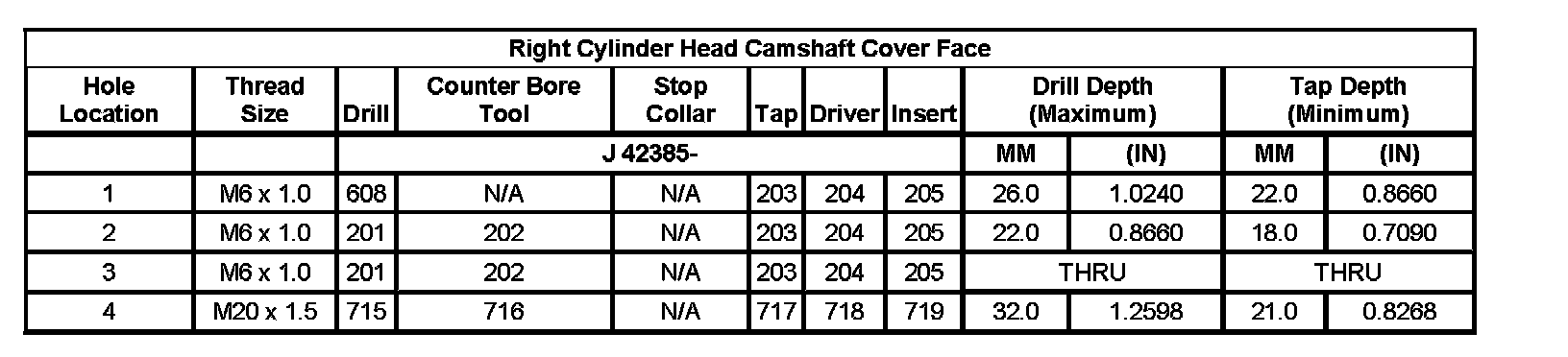

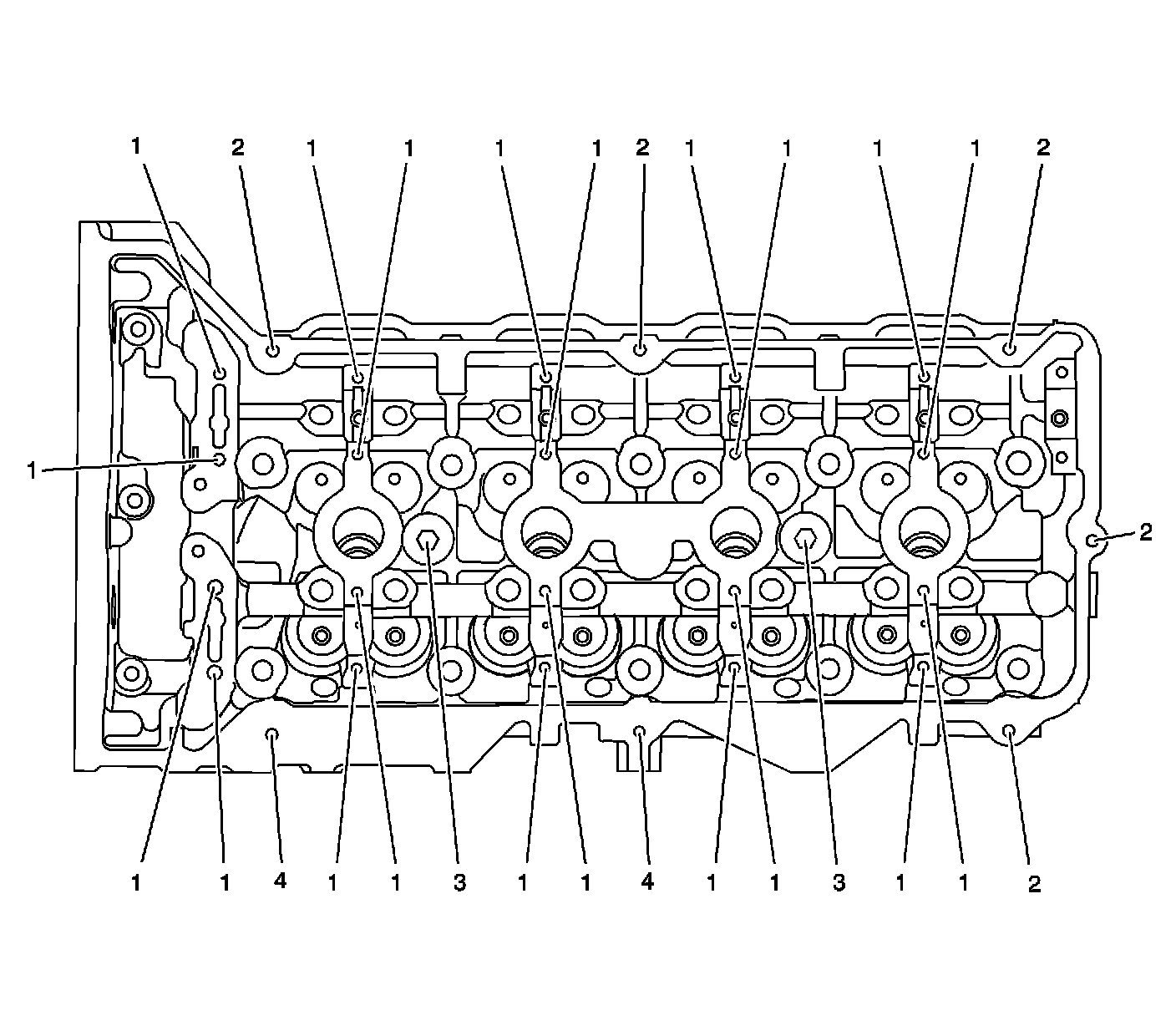

Right Cylinder Head Camshaft Cover Face:

Right Cylinder Head Camshaft Cover Face:

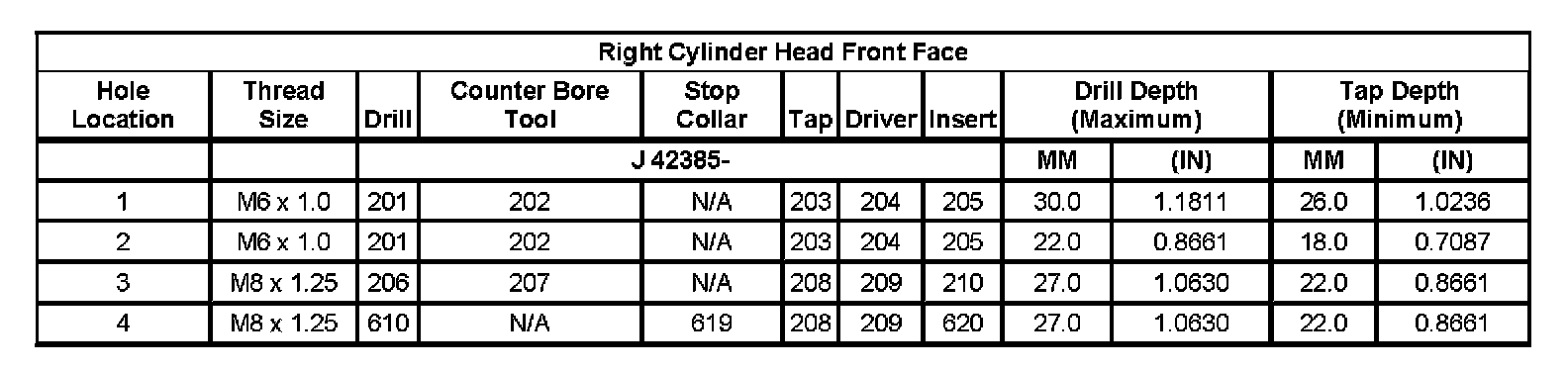

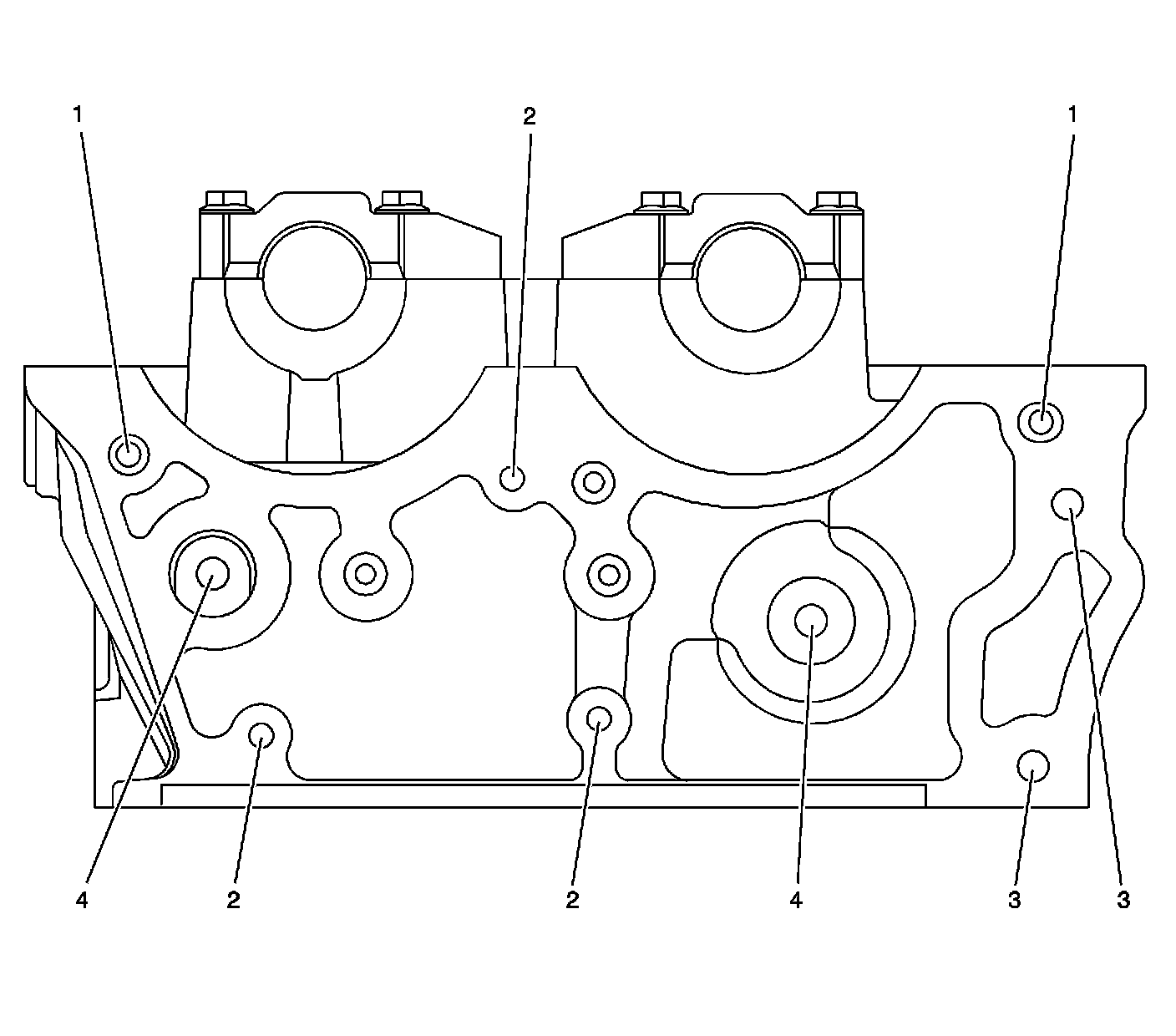

Right Cylinder Head Front Face:

Right Cylinder Head Front Face:

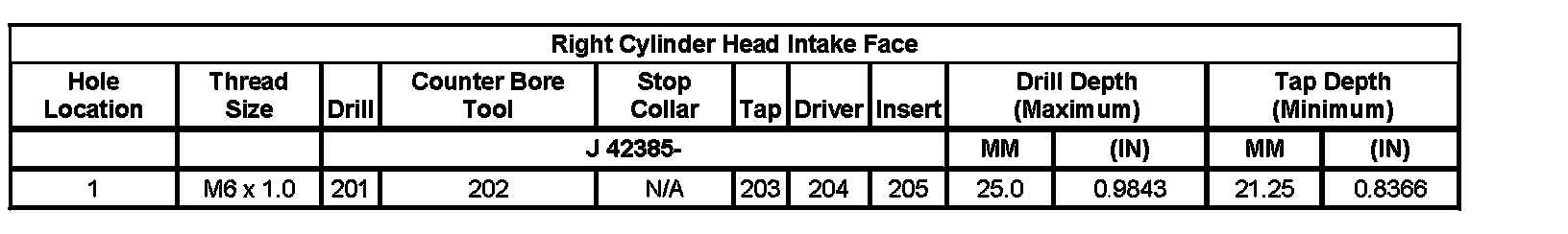

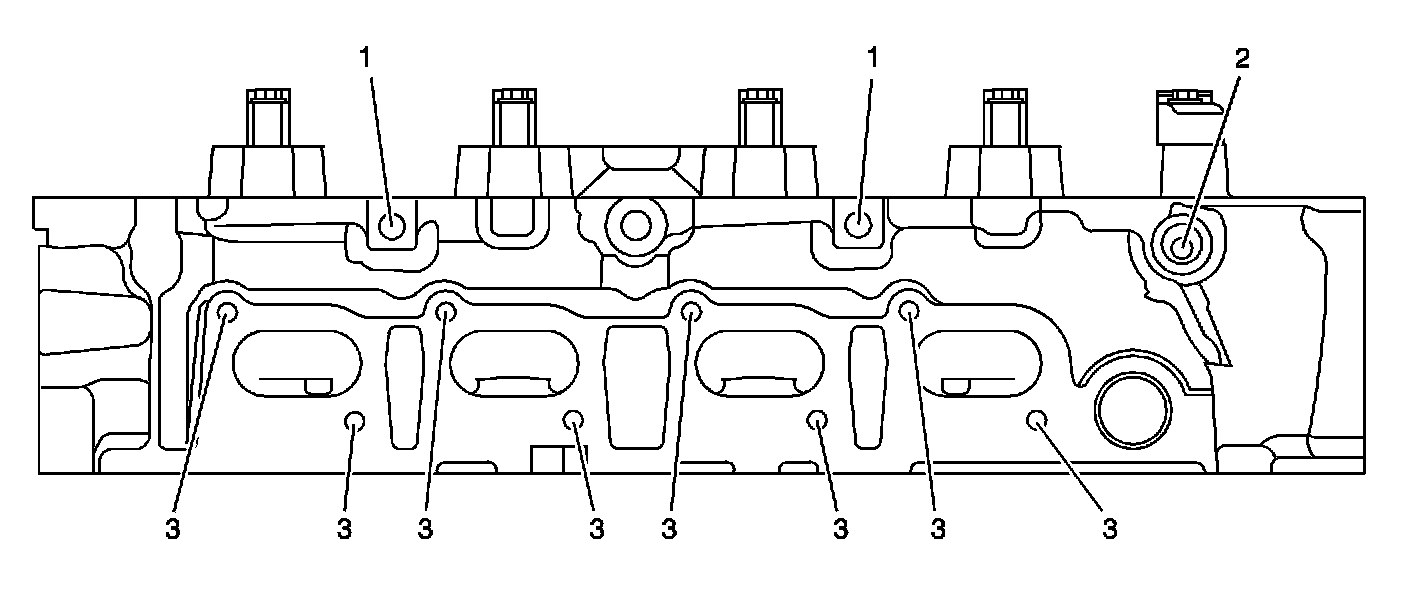

Right Cylinder Head Intake Face:

Right Cylinder Head Intake Face:

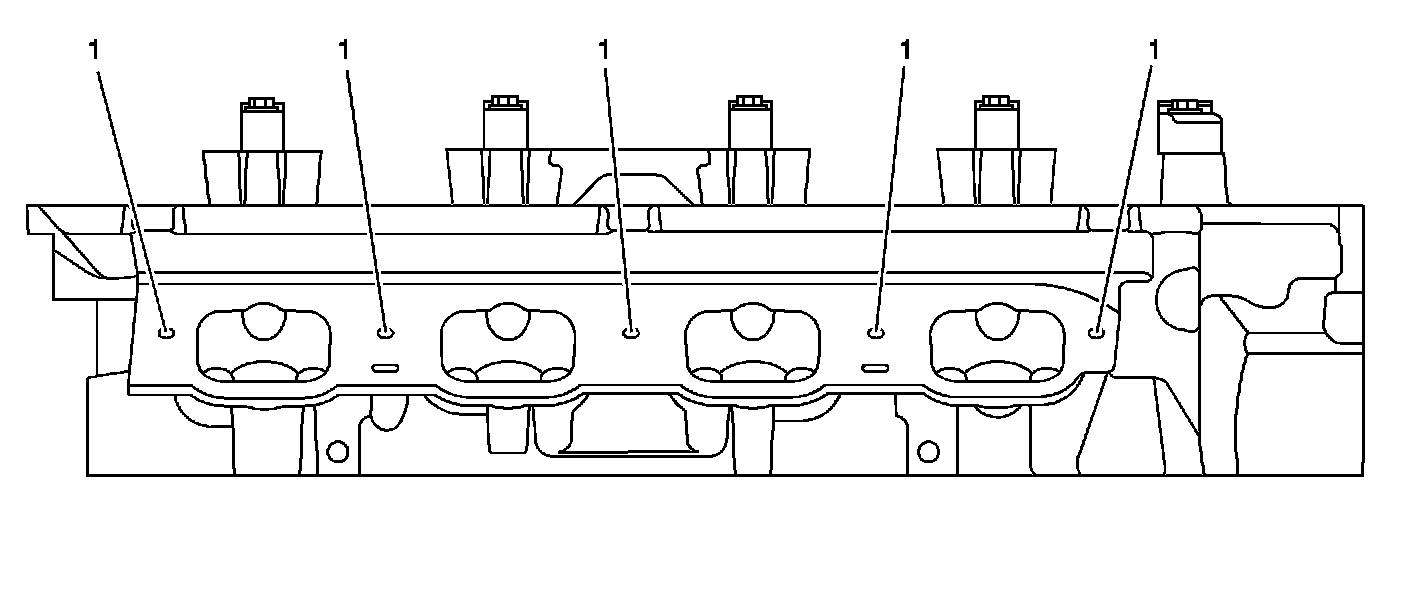

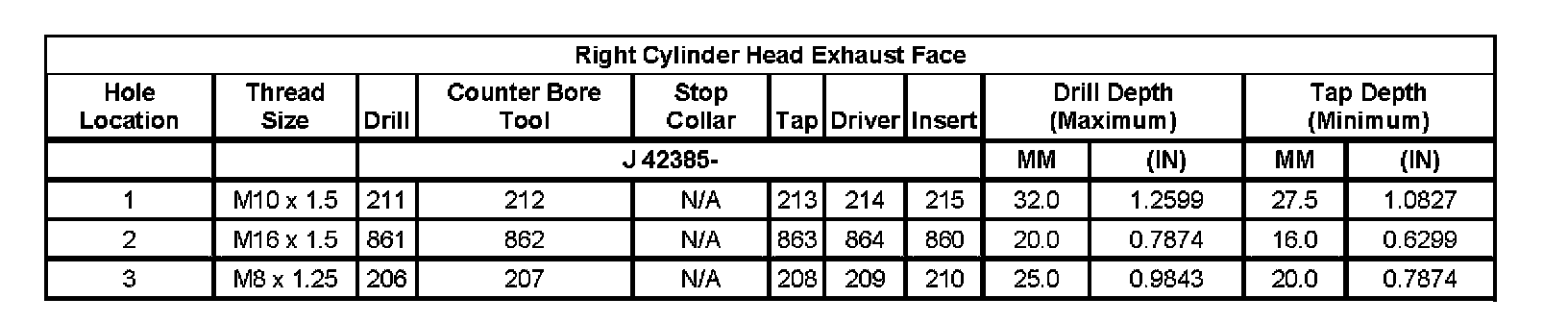

Right Cylinder Head Exhaust Face:

Right Cylinder Head Exhaust Face:

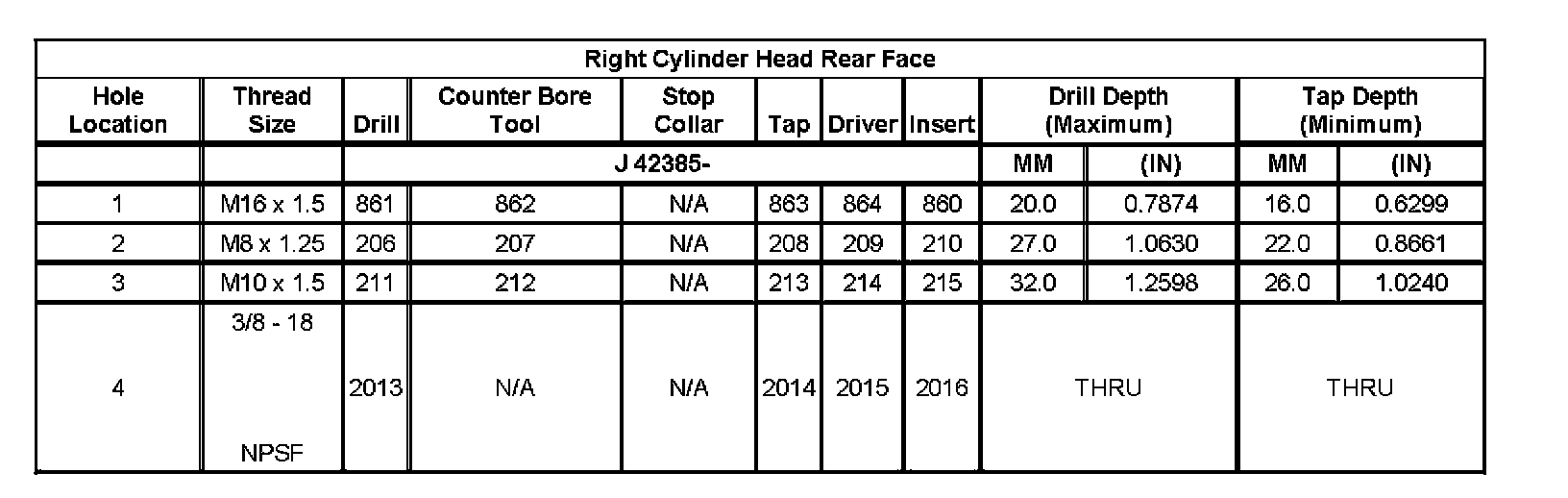

Right Cylinder Head Rear Face:

Right Cylinder Head Rear Face:

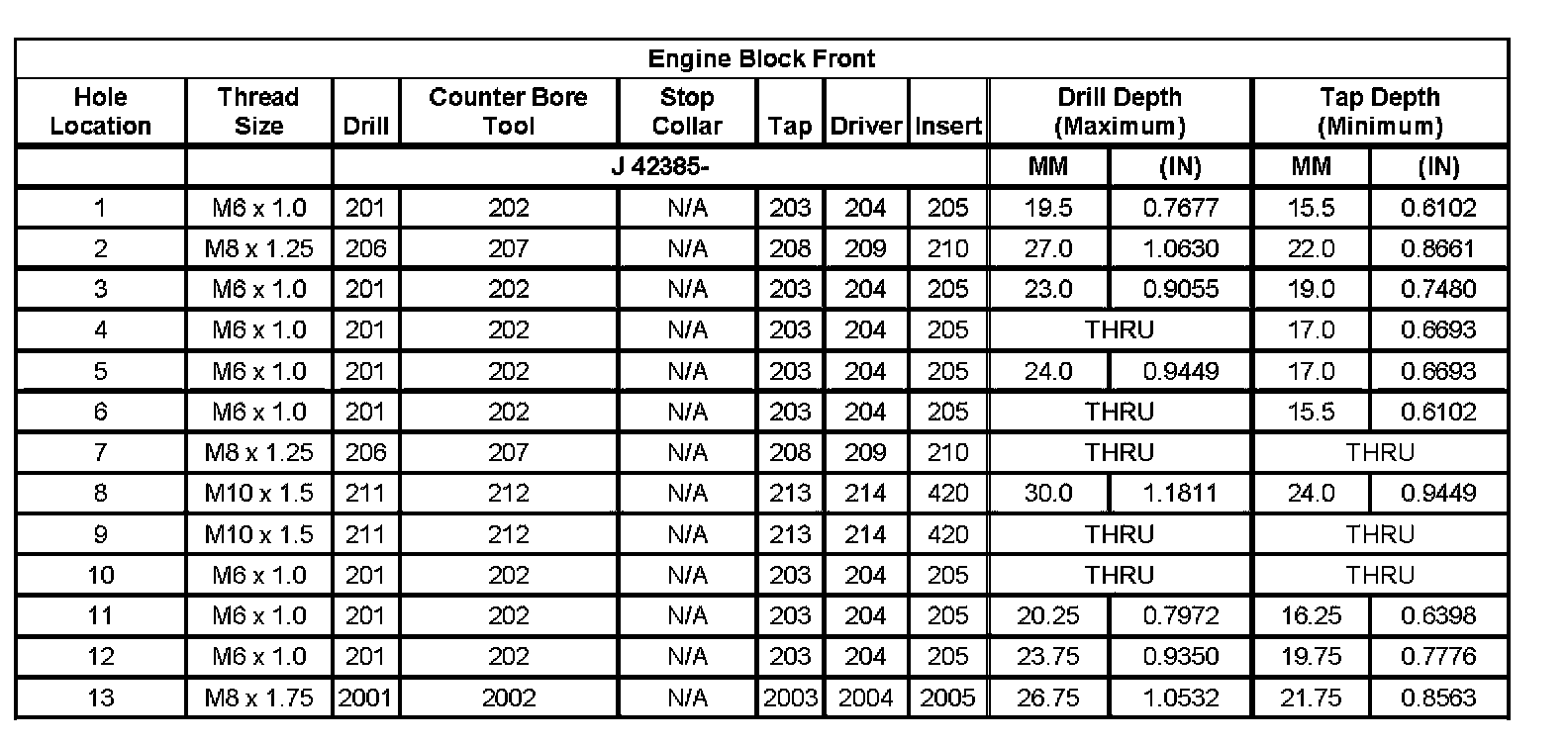

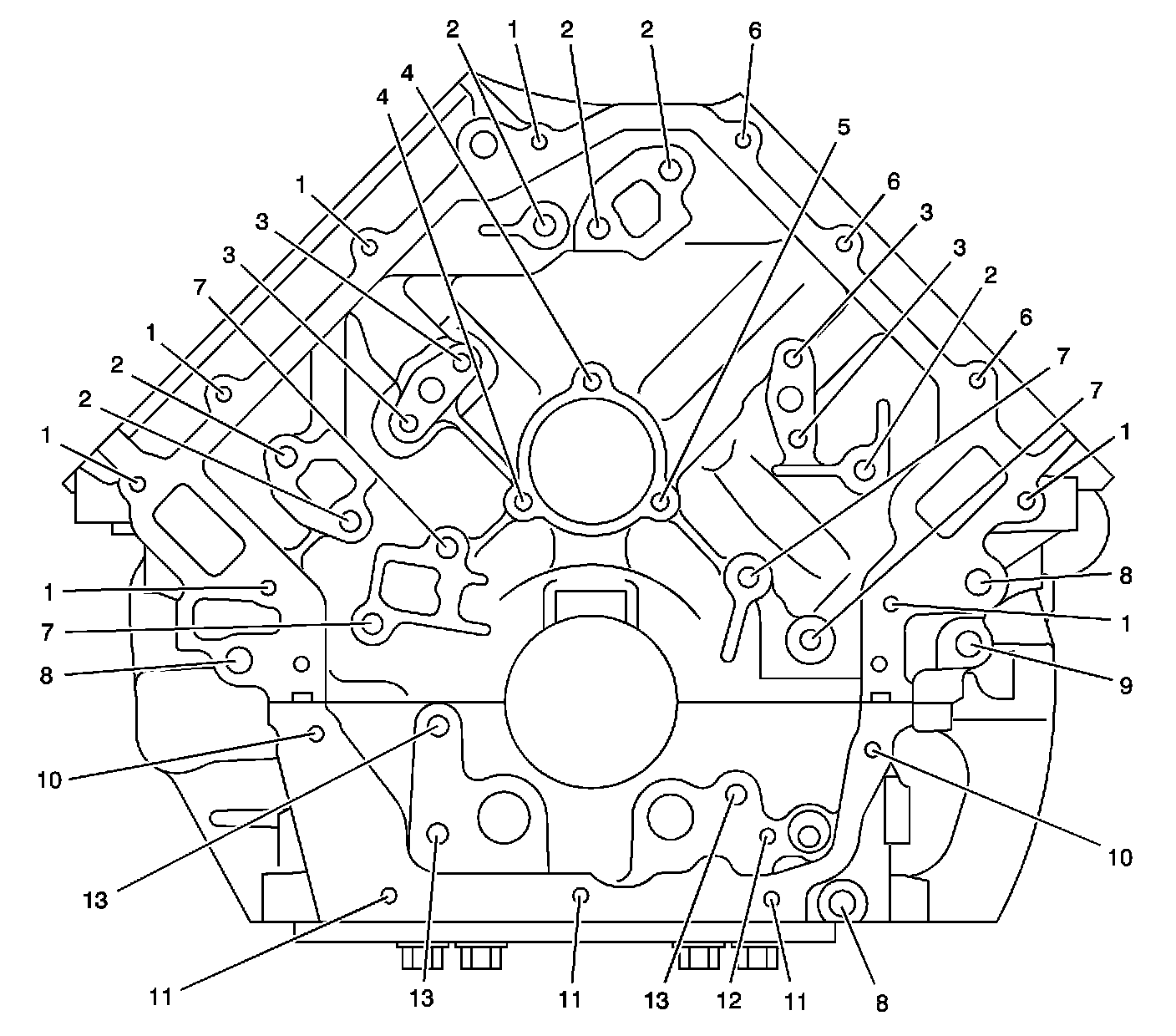

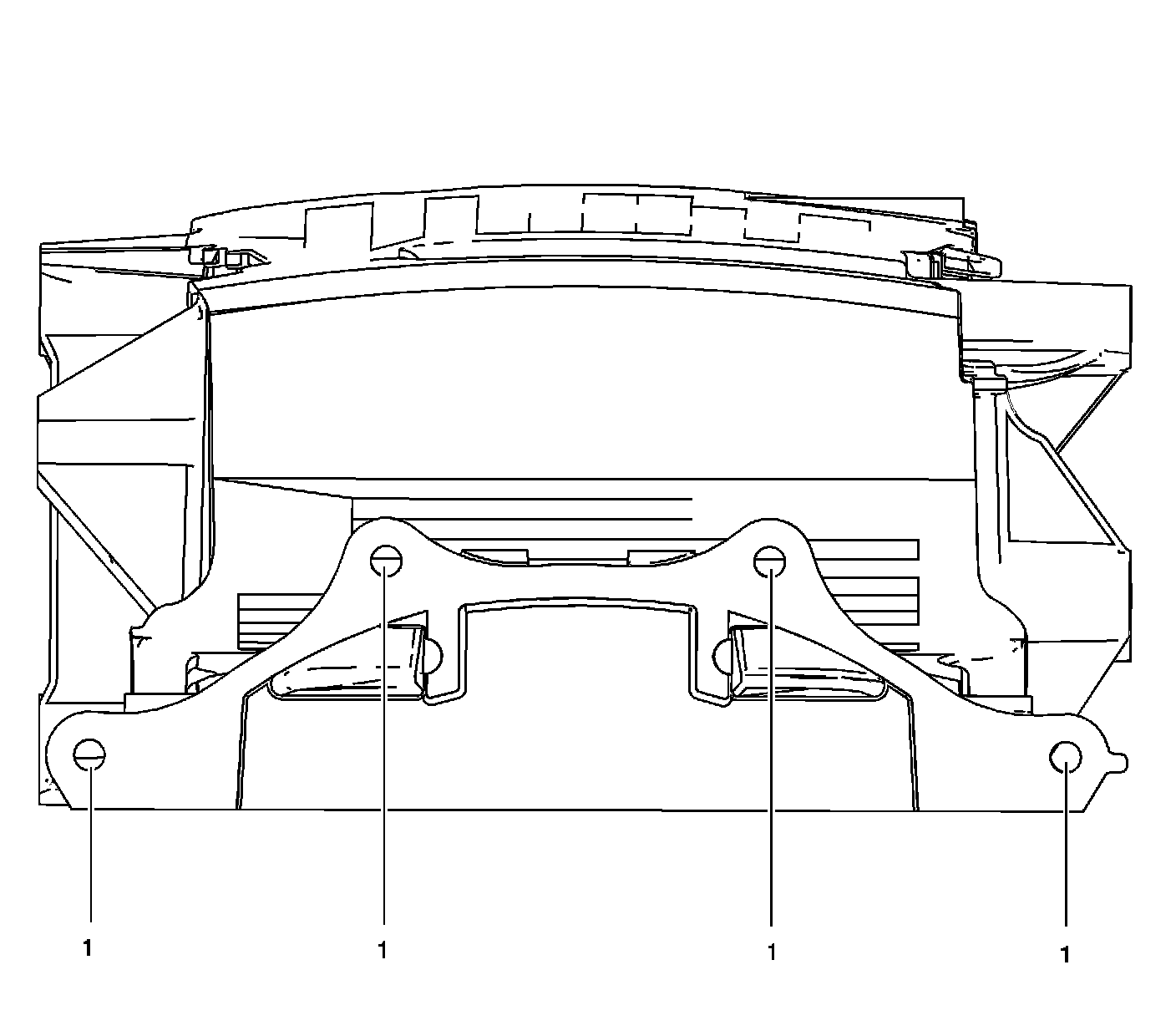

Engine Block Front:

Engine Block Front:

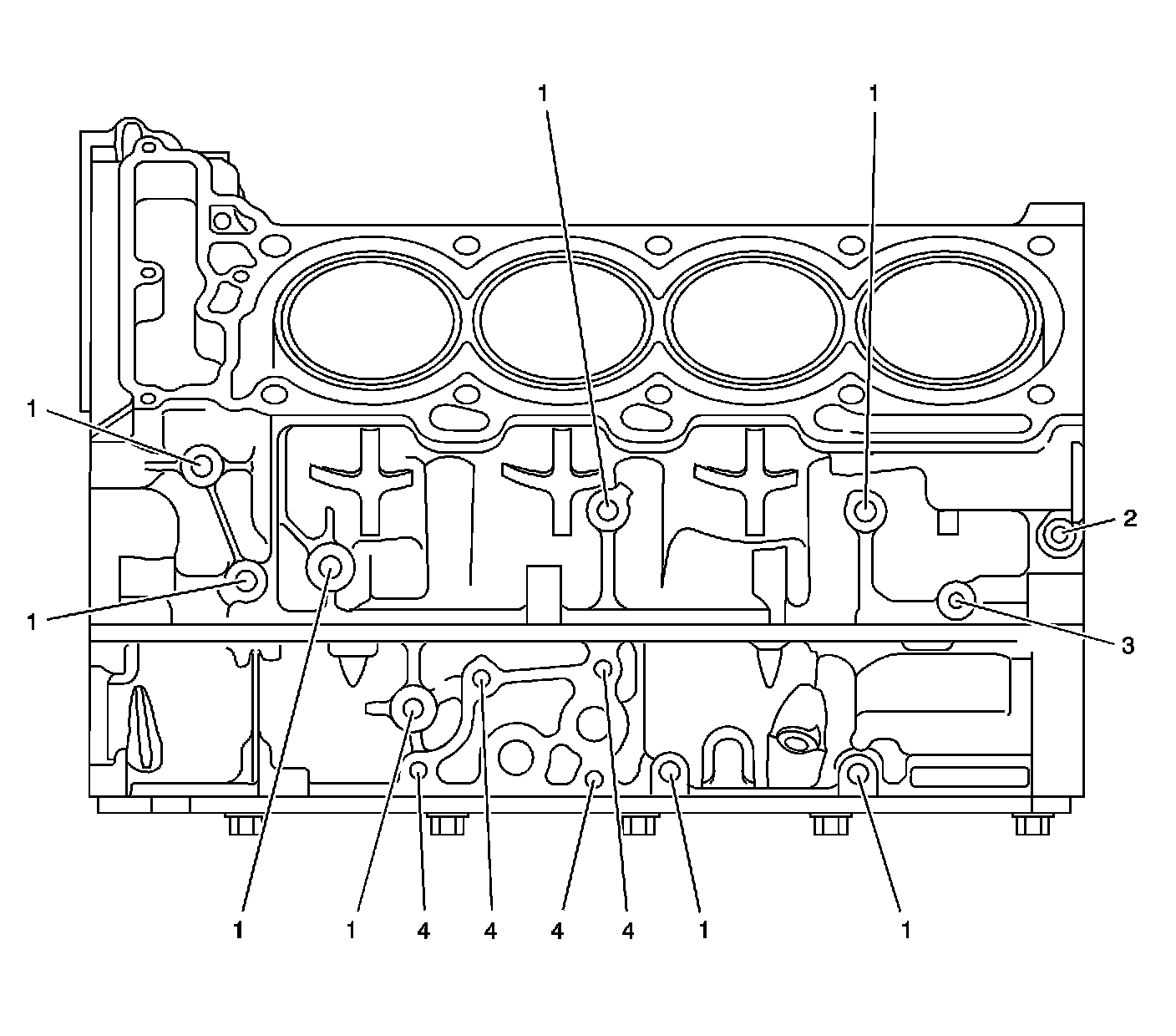

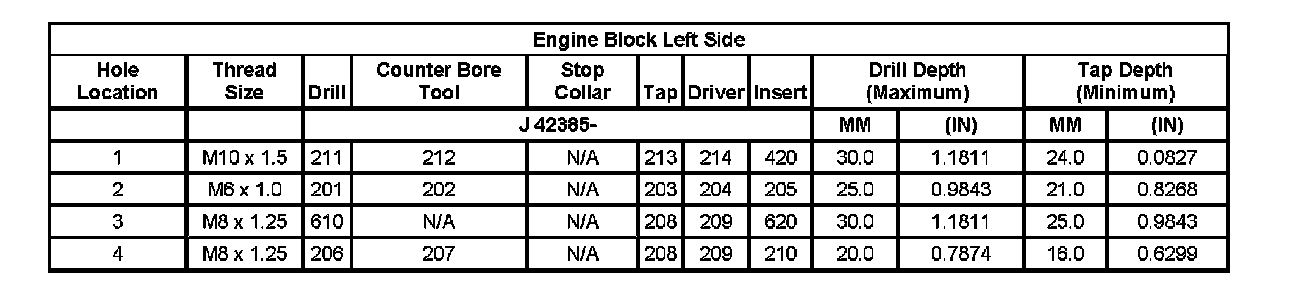

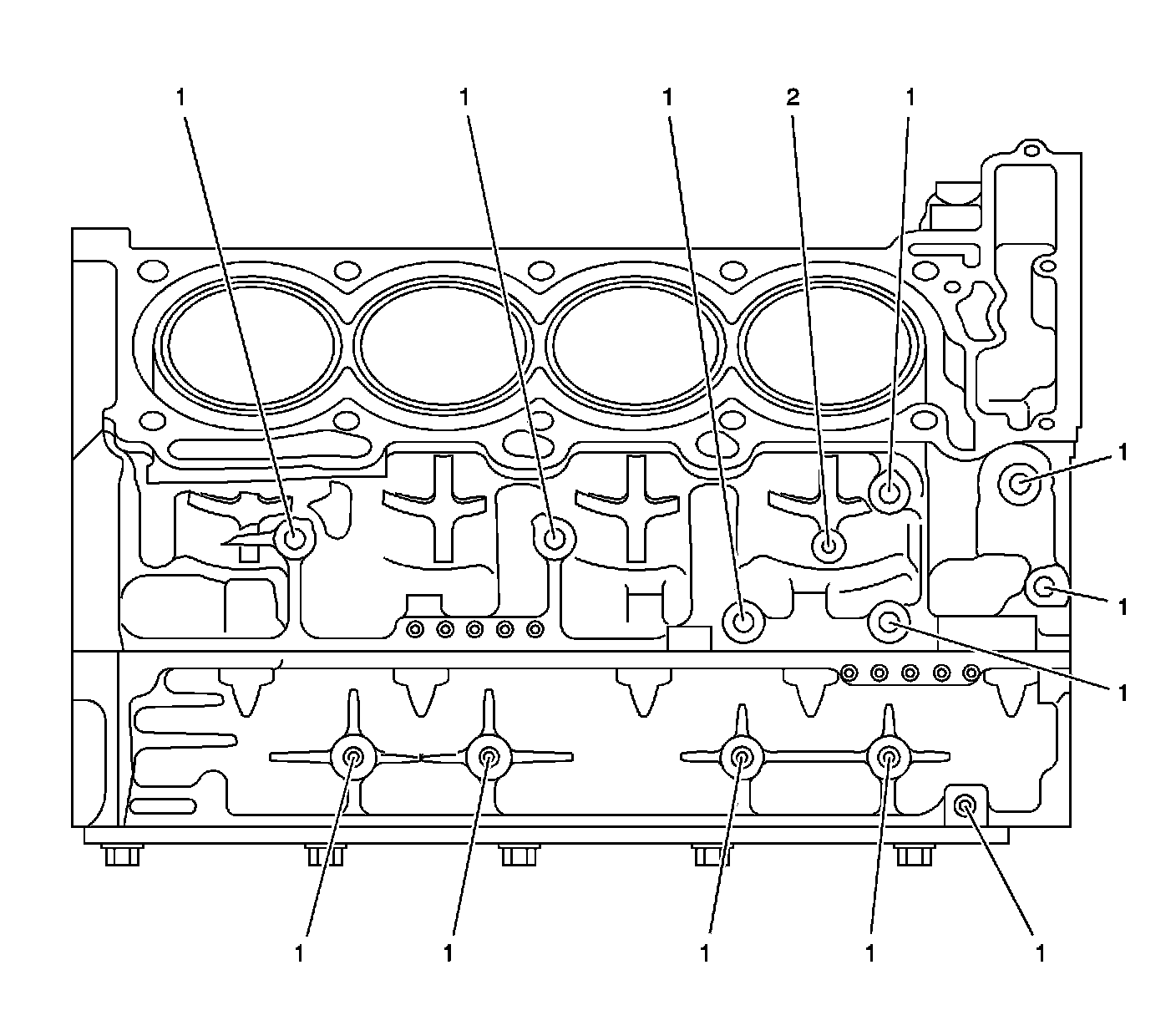

Engine Block Left Side:

Engine Block Left Side:

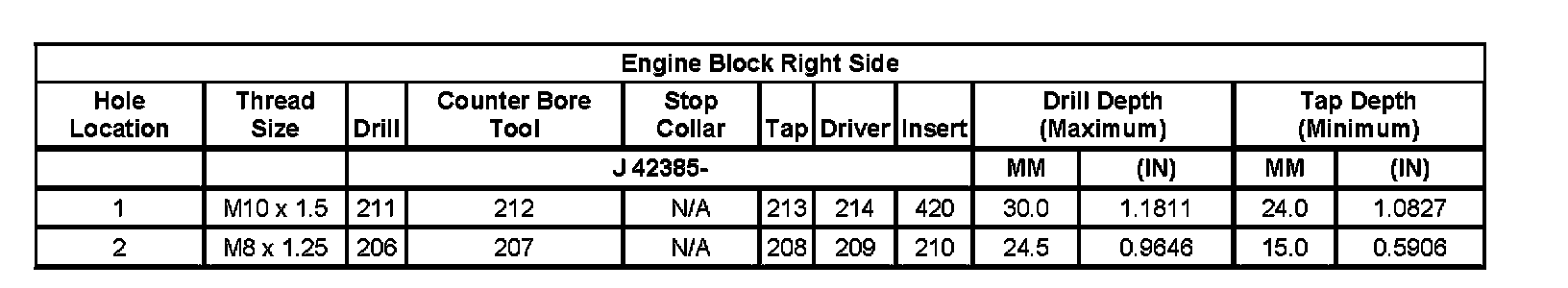

Engine Block Right Side:

Engine Block Right Side:

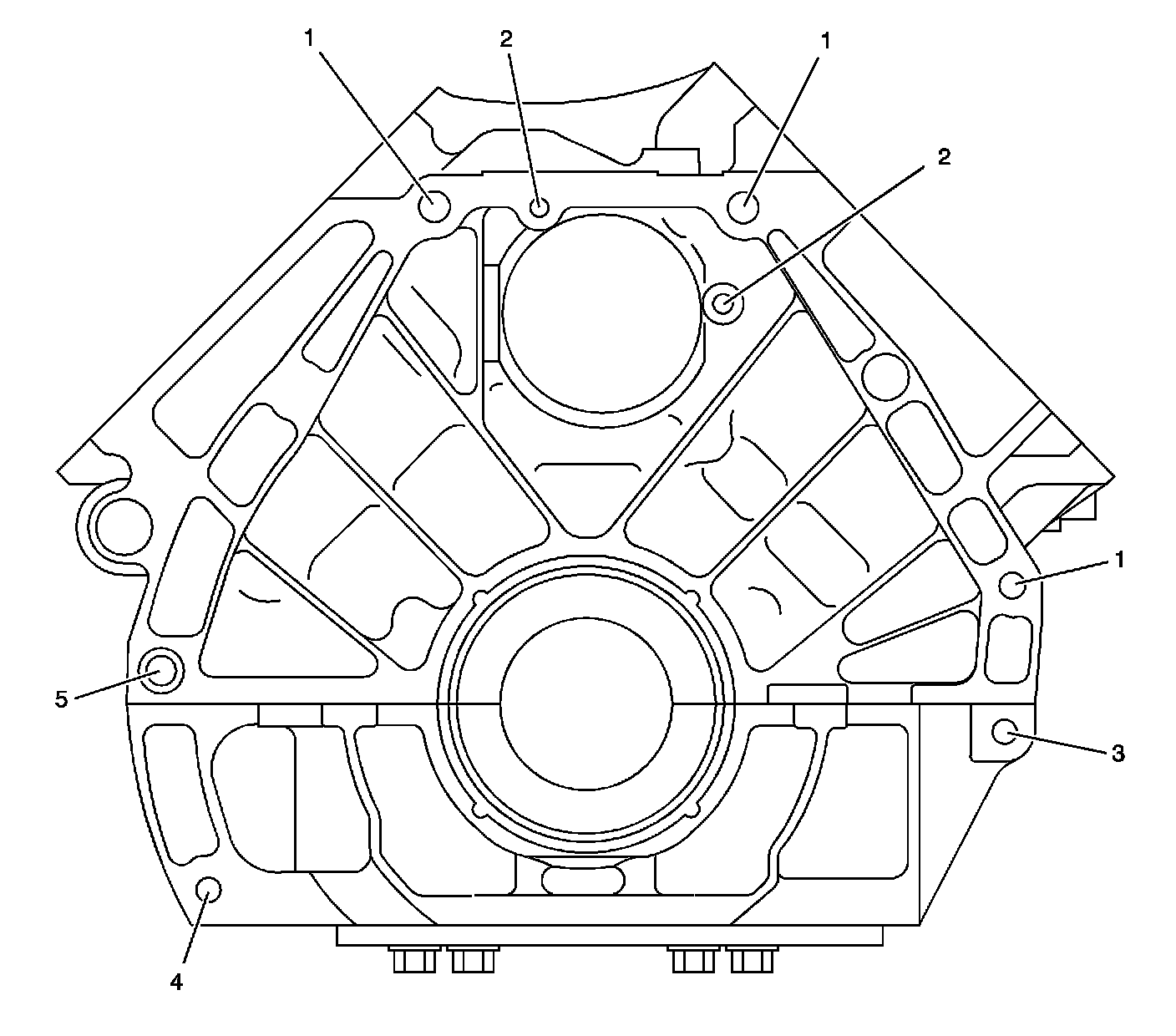

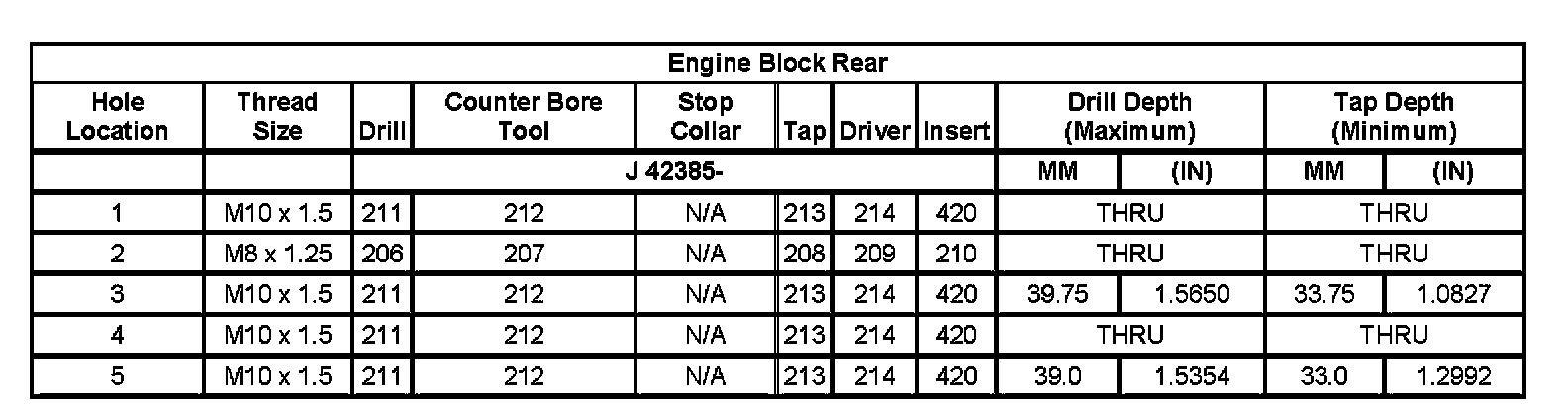

Engine Block Rear:

Engine Block Rear:

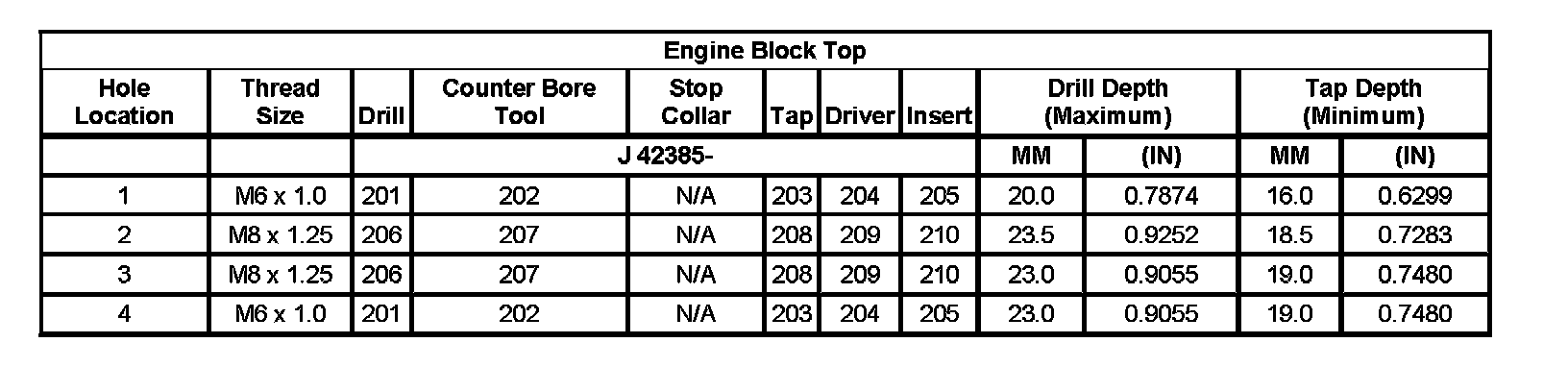

Engine Block Top:

Engine Block Top:

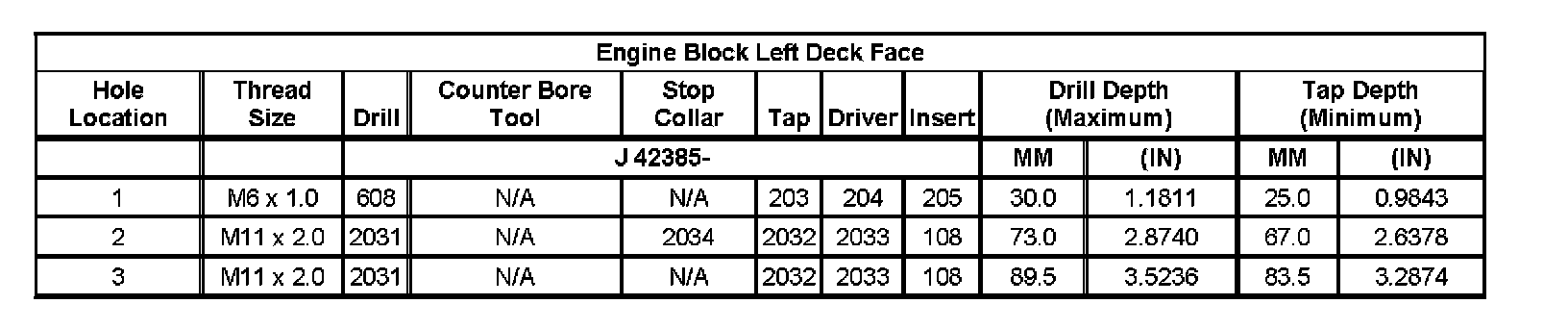

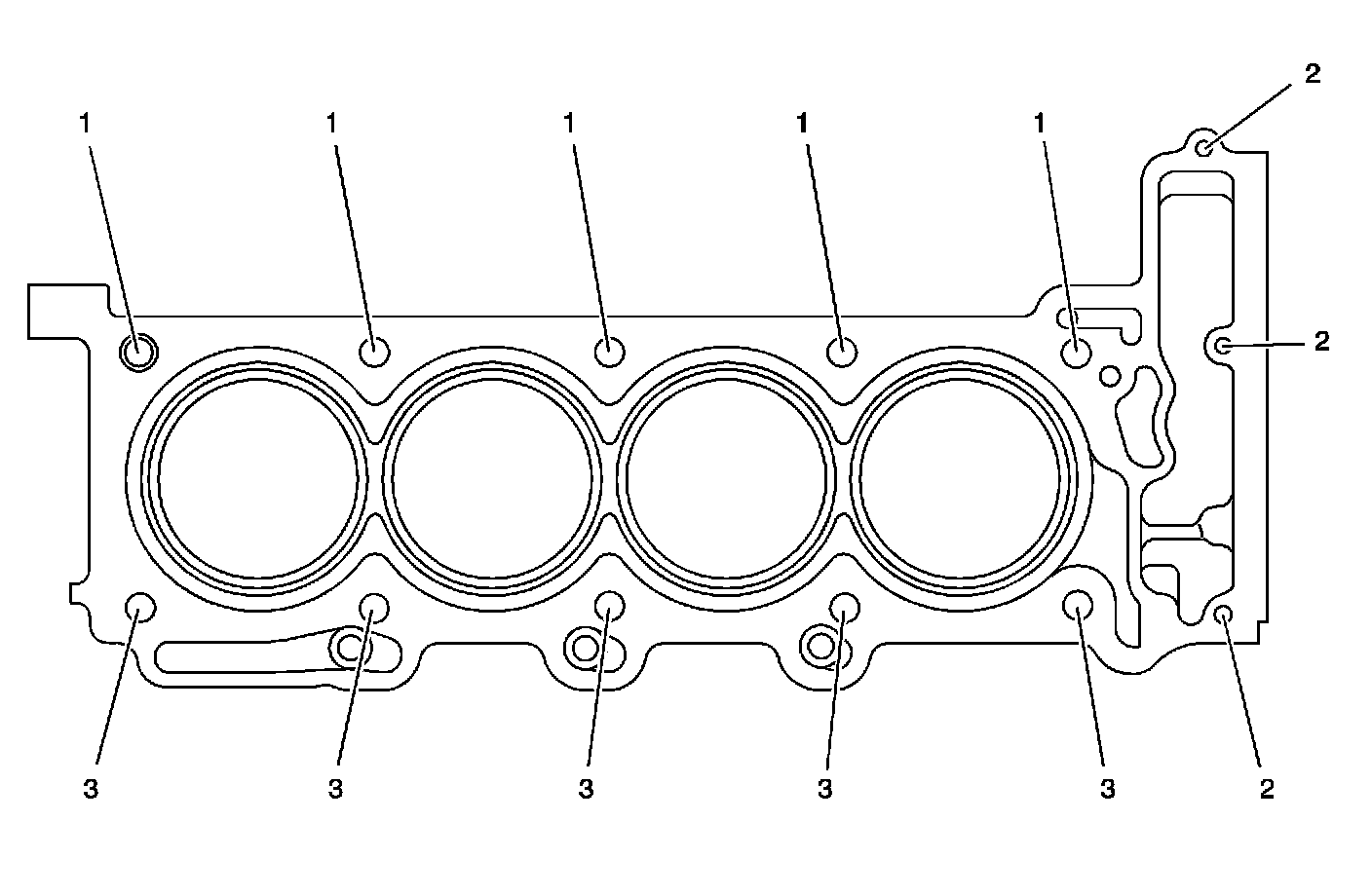

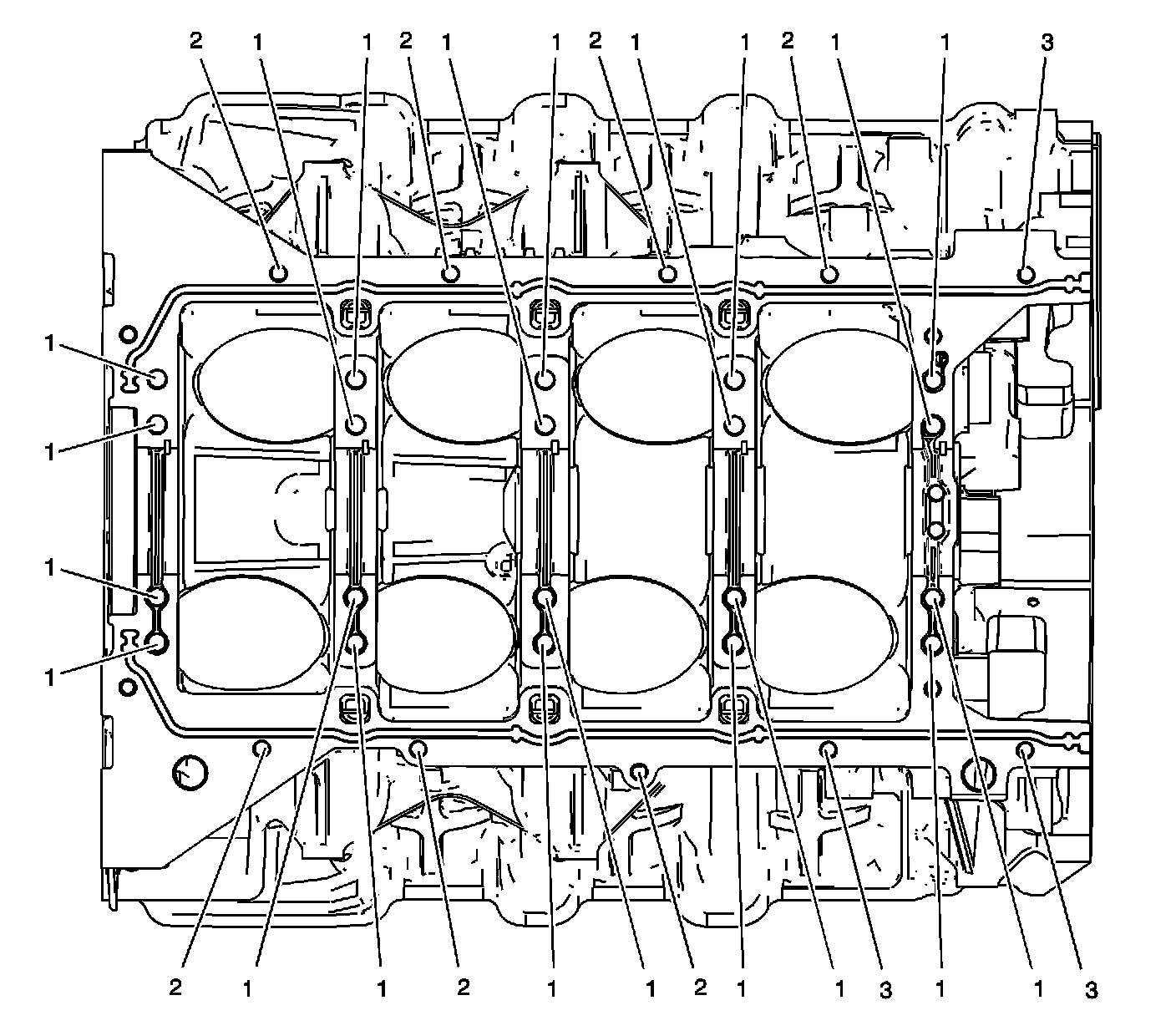

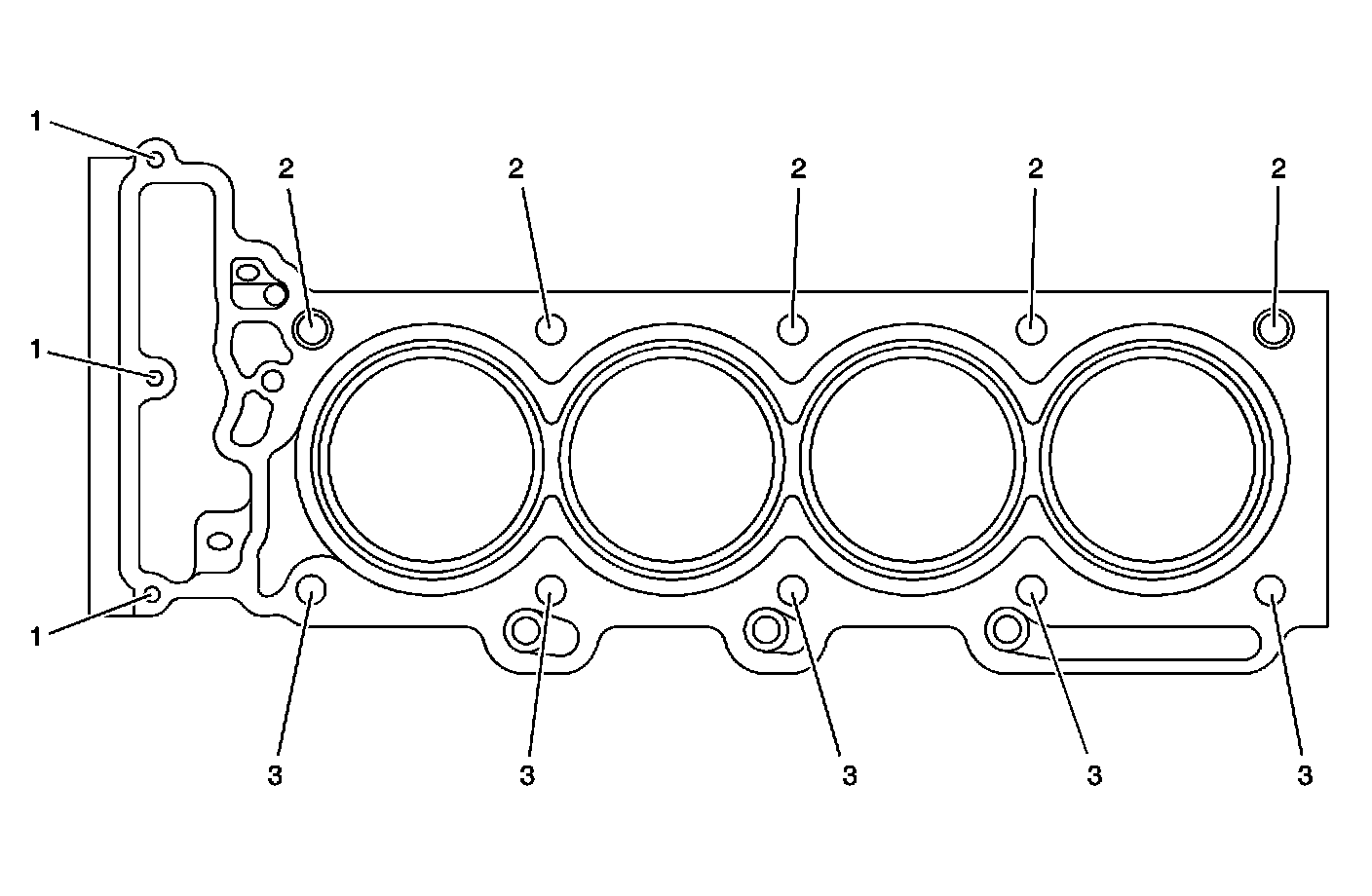

Engine Block Left Deck Face:

Engine Block Left Deck Face:

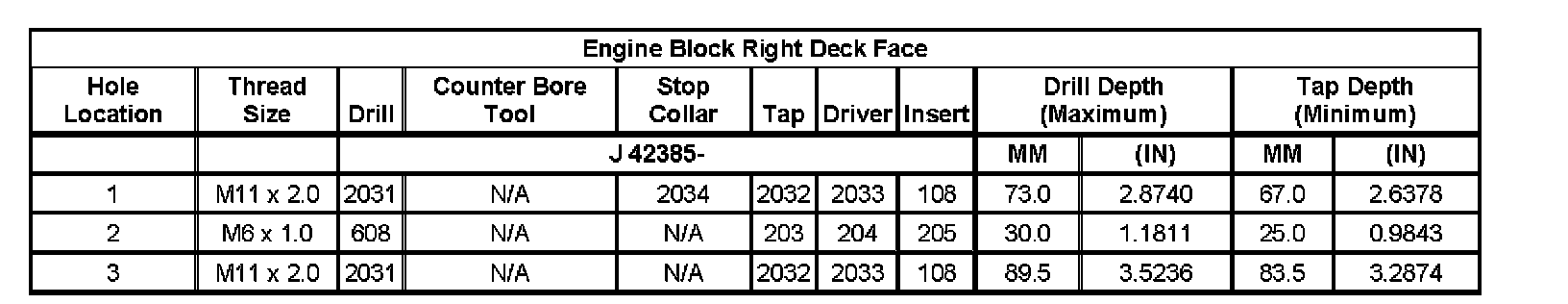

Engine Block Right Deck Face:

Engine Block Right Deck Face:

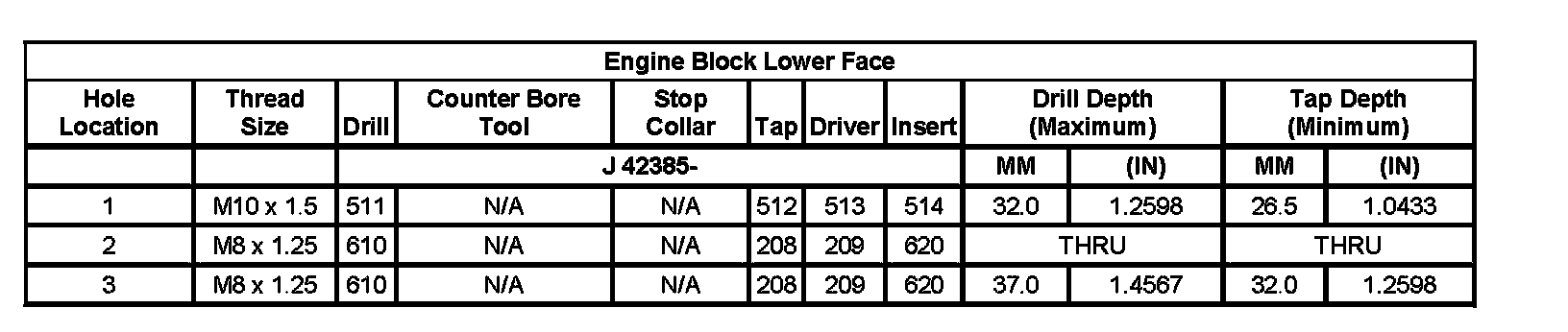

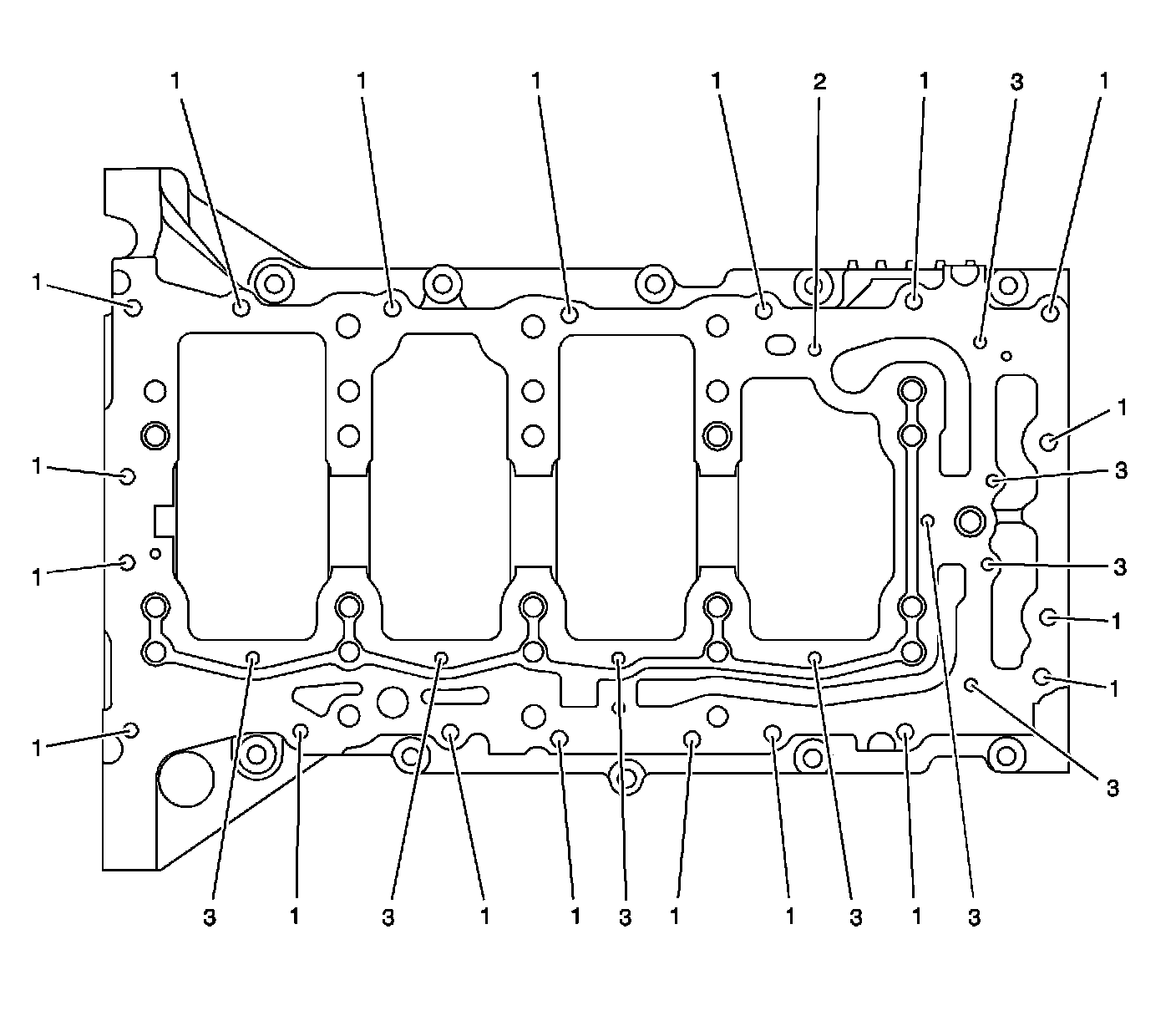

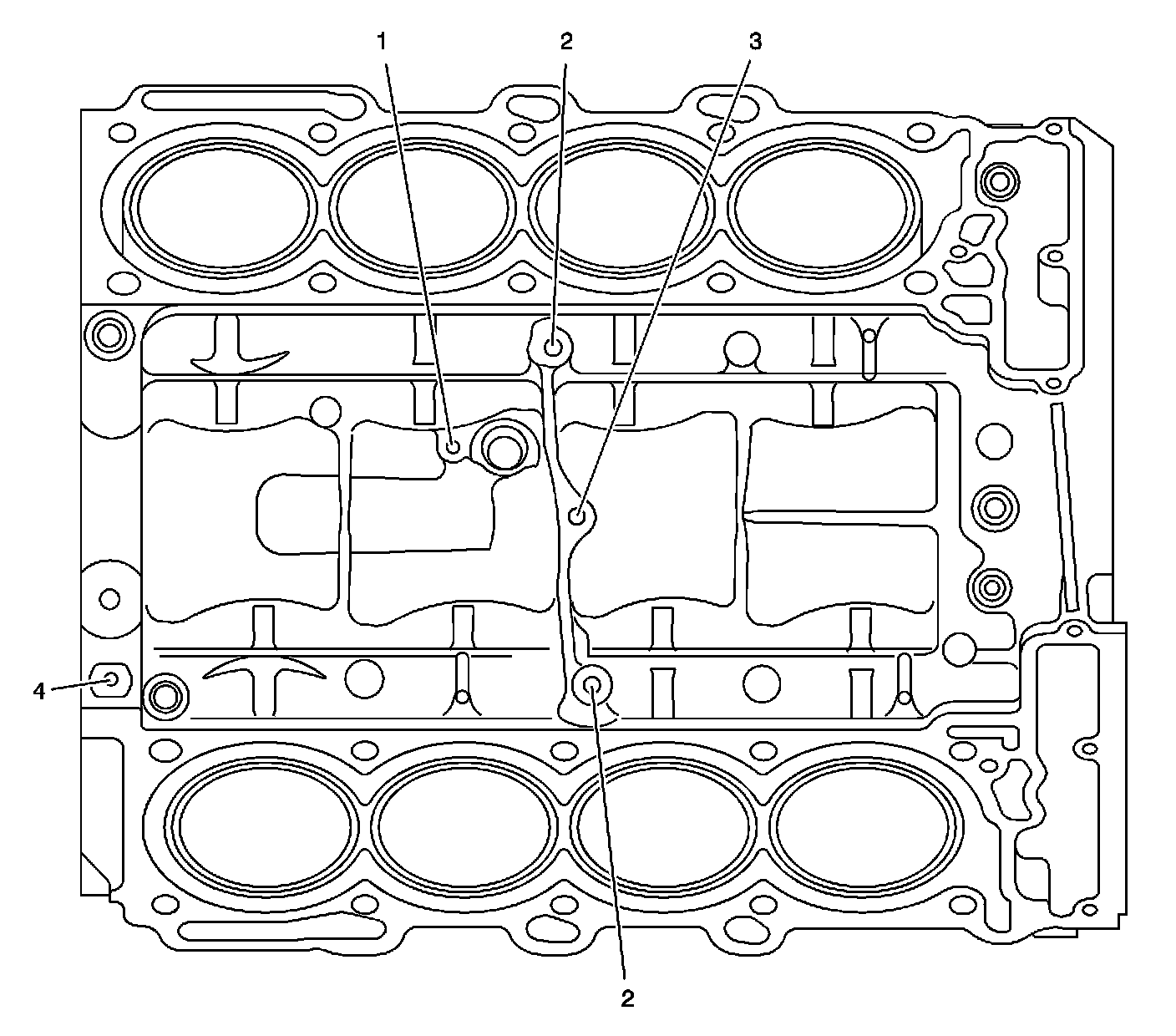

Engine Block Lower Face:

Engine Block Lower Face:

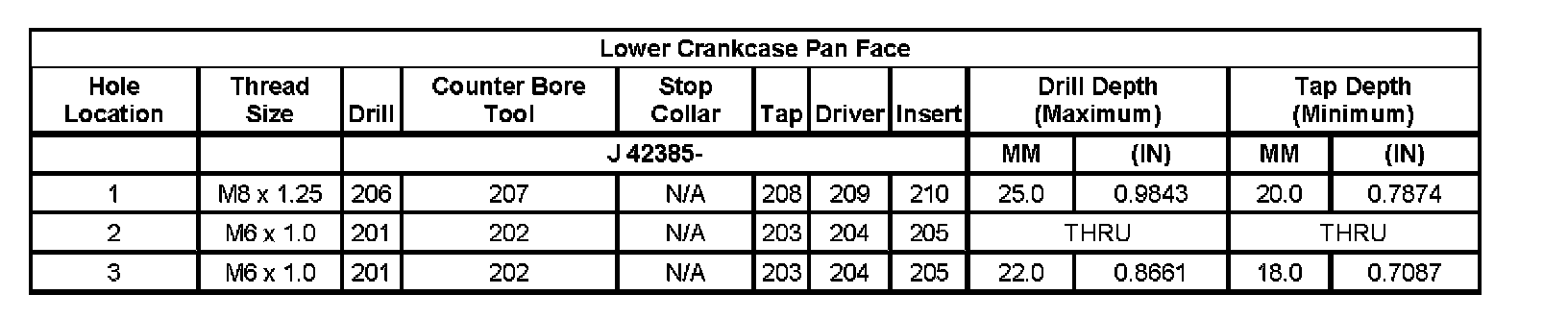

Lower Crankcase Pan Face:

Lower Crankcase Pan Face:

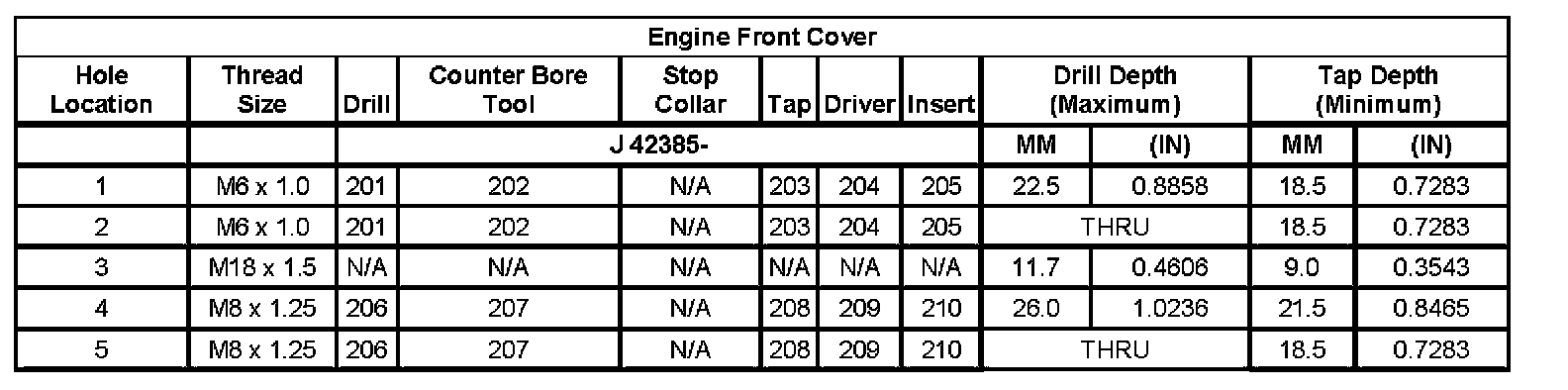

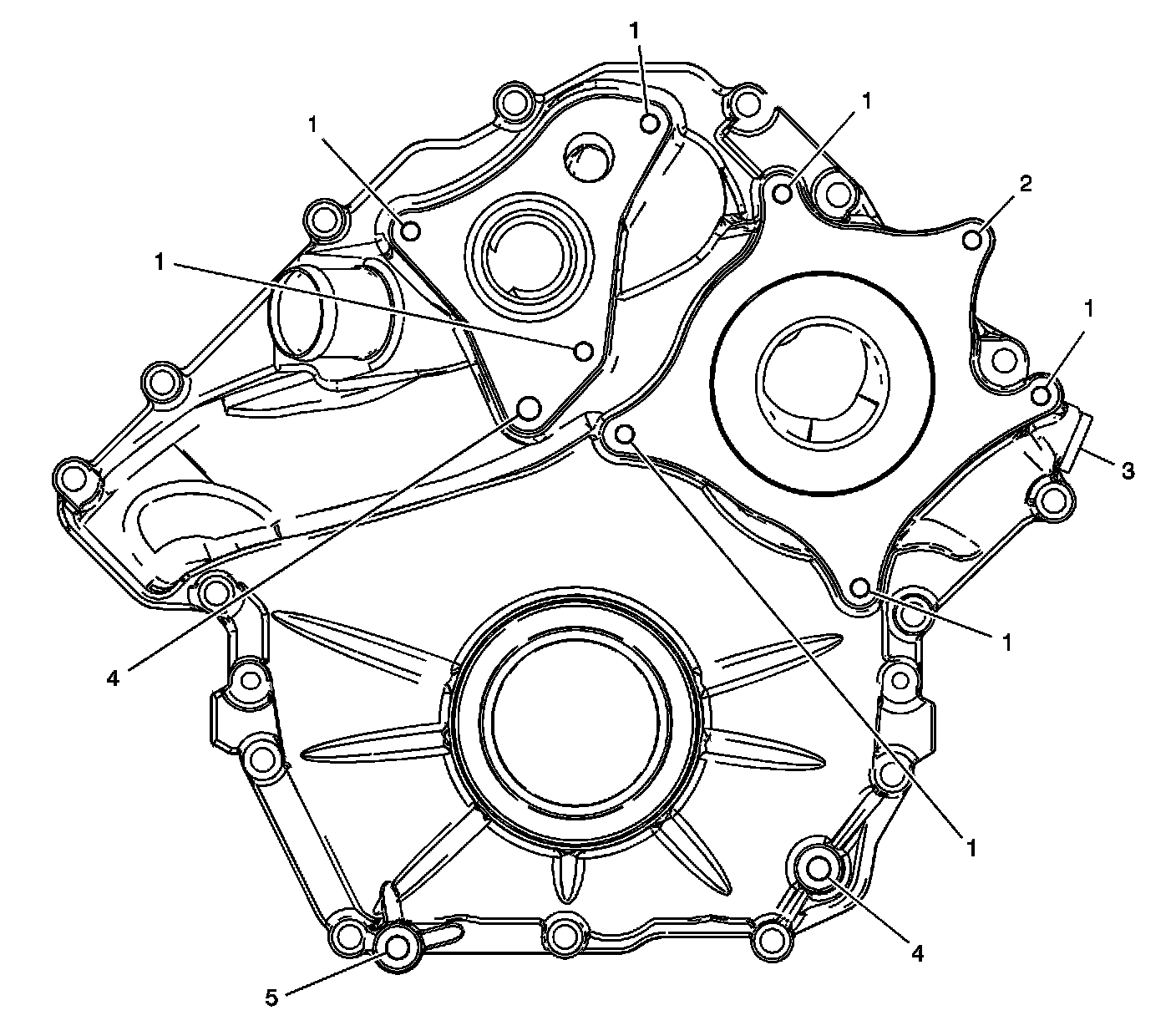

Engine Front Cover:

Engine Front Cover:

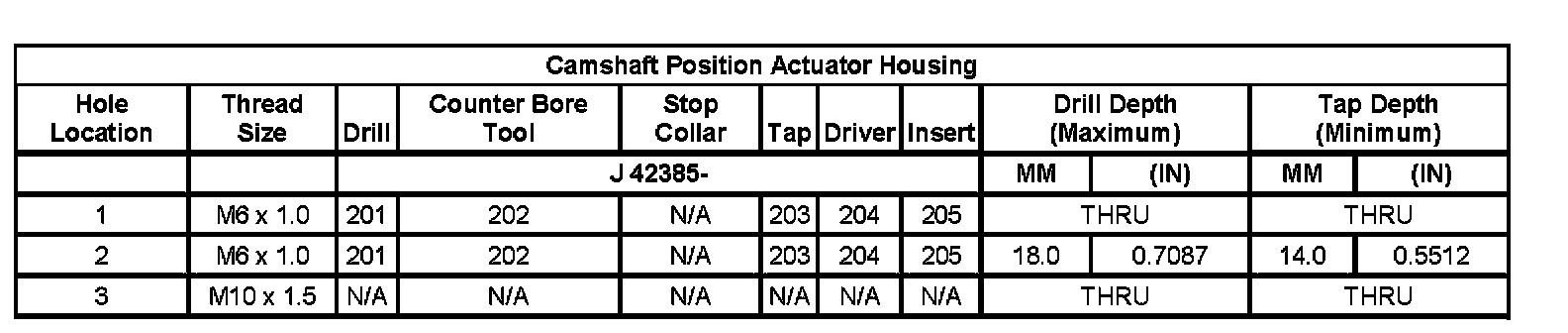

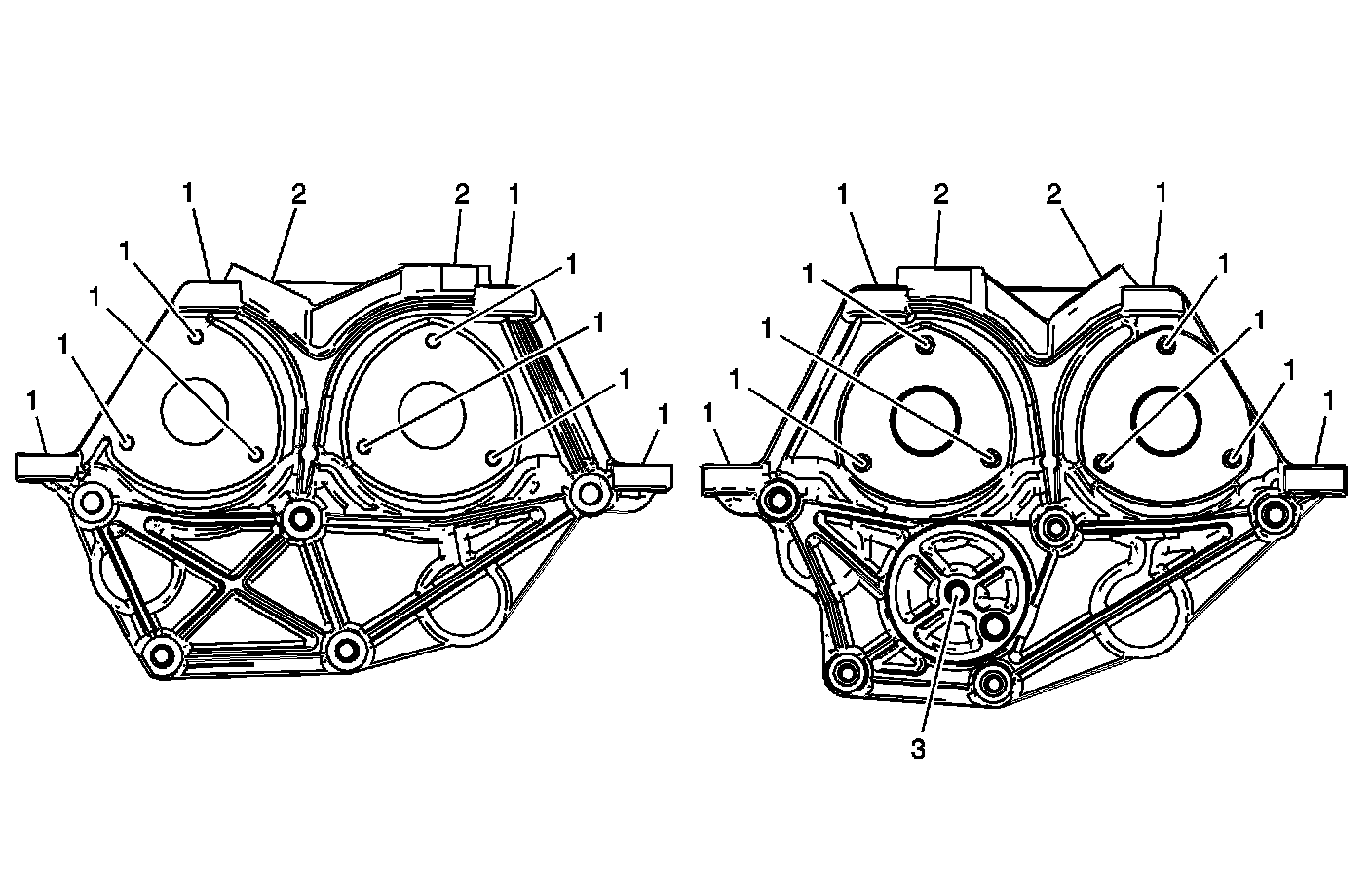

Camshaft Position Actuator Housing:

Camshaft Position Actuator Housing:

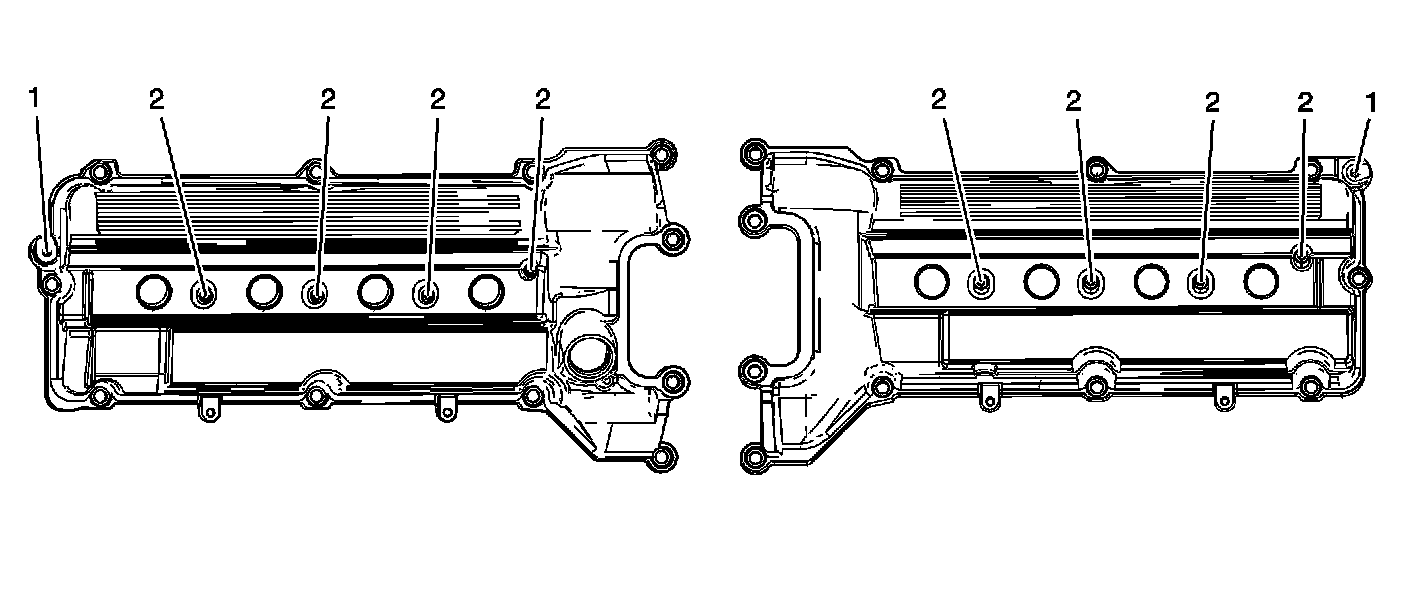

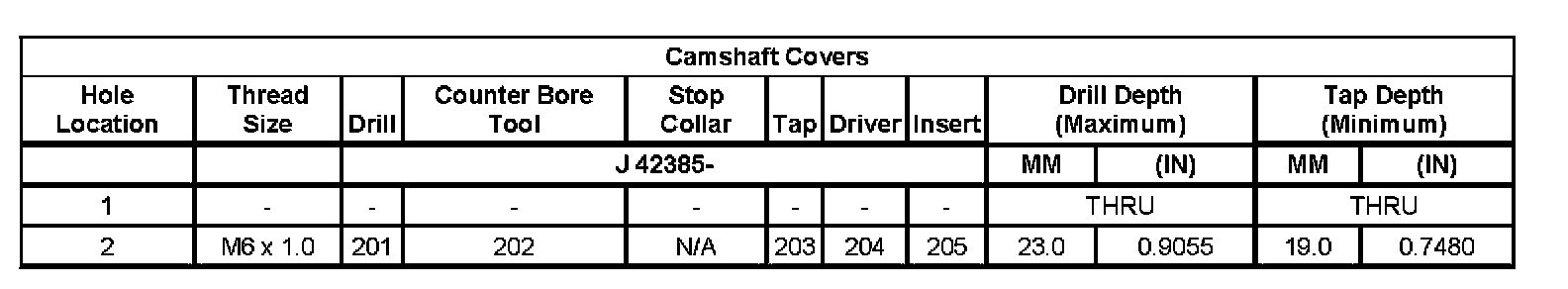

Camshaft Covers:

Camshaft Covers:

#1 Threads are created initially when coil ground strap bolt is installed.

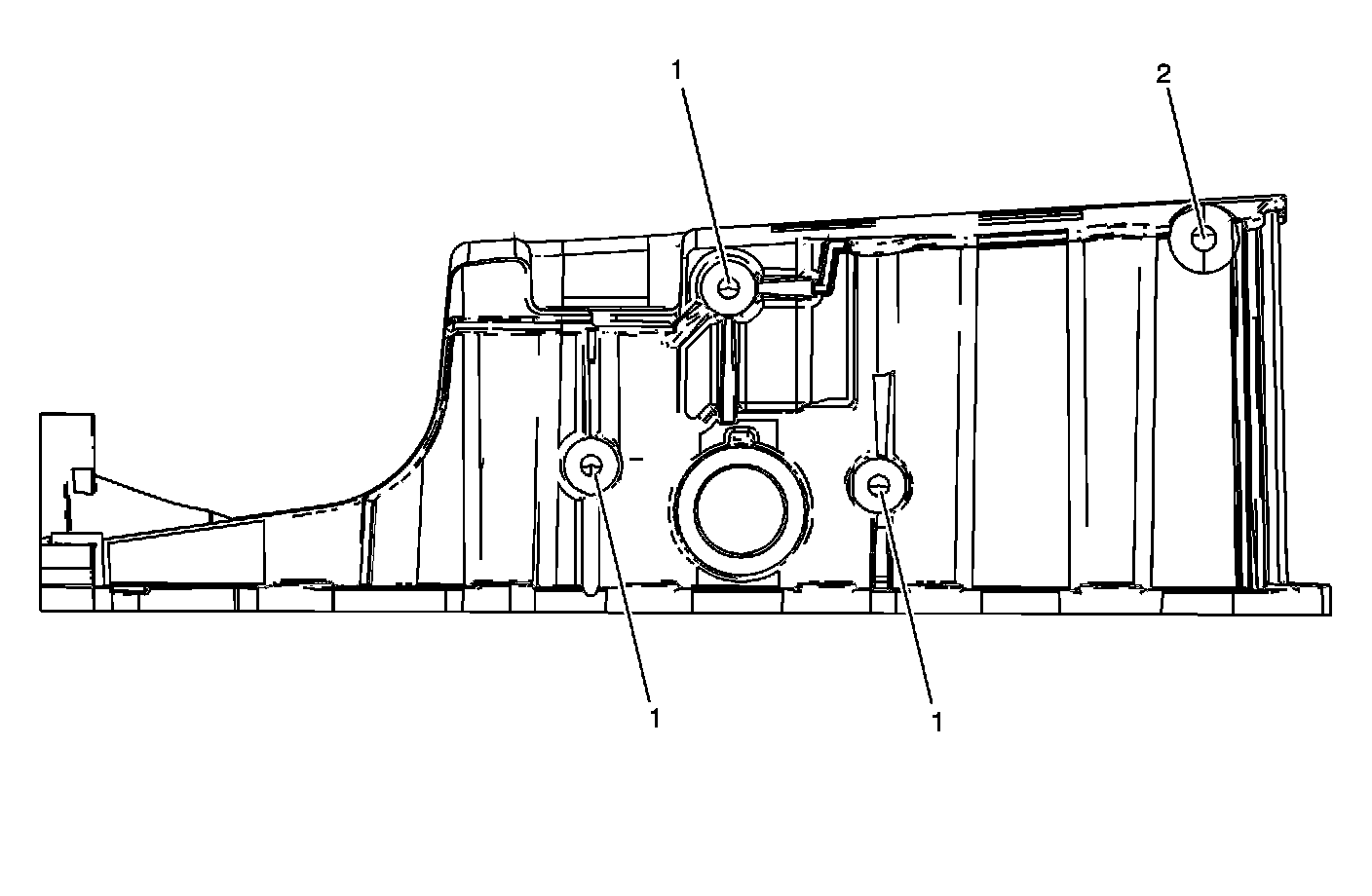

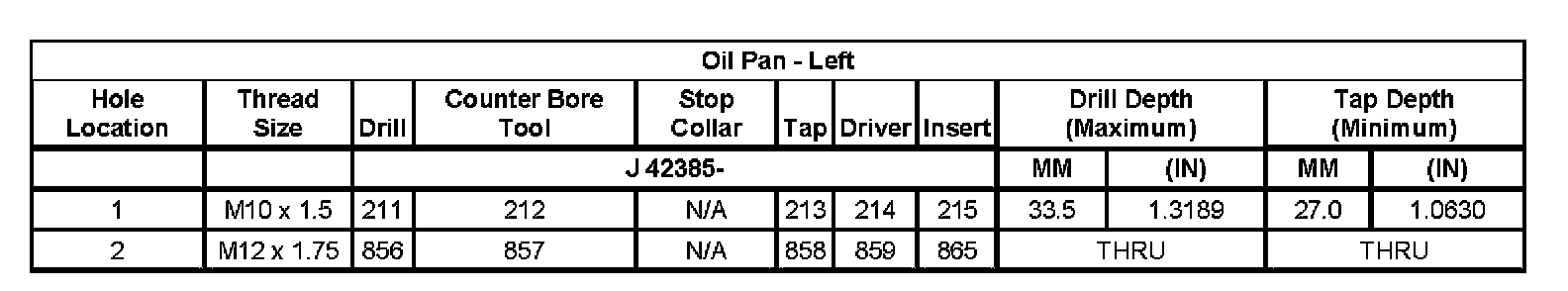

Oil Pan Left:

Oil Pan Left:

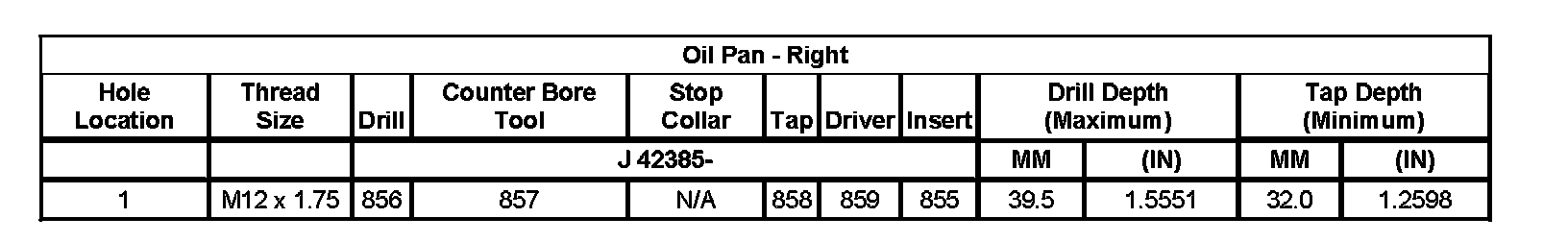

Oil Pan Right:

Oil Pan Right:

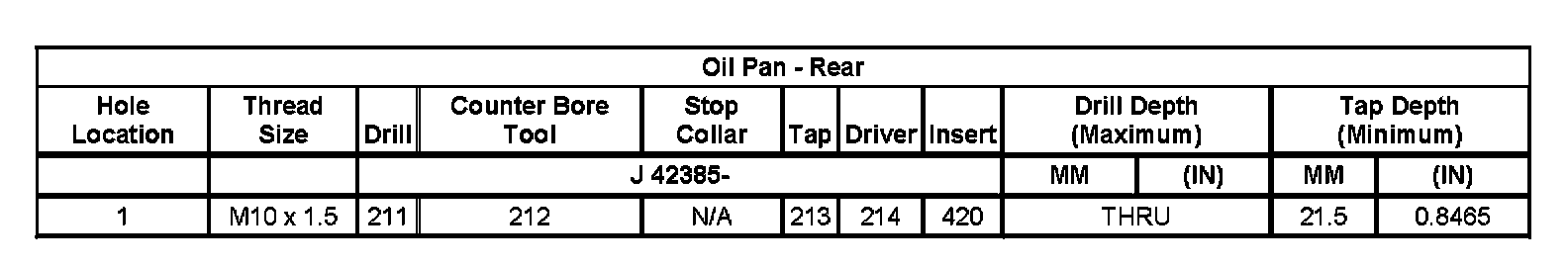

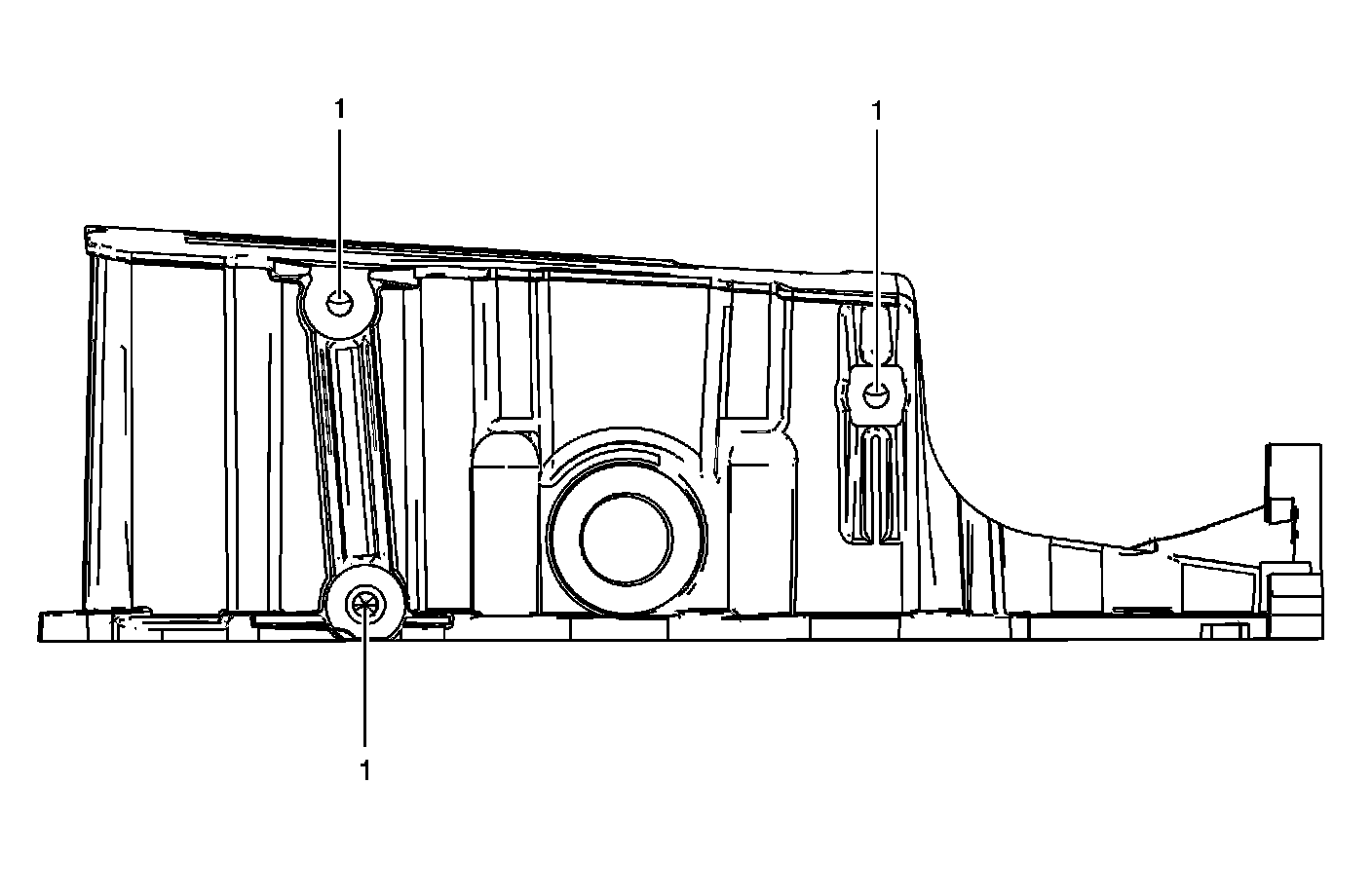

Oil Pan - Rear:

Oil Pan - Rear:
