Remote Function Component Views

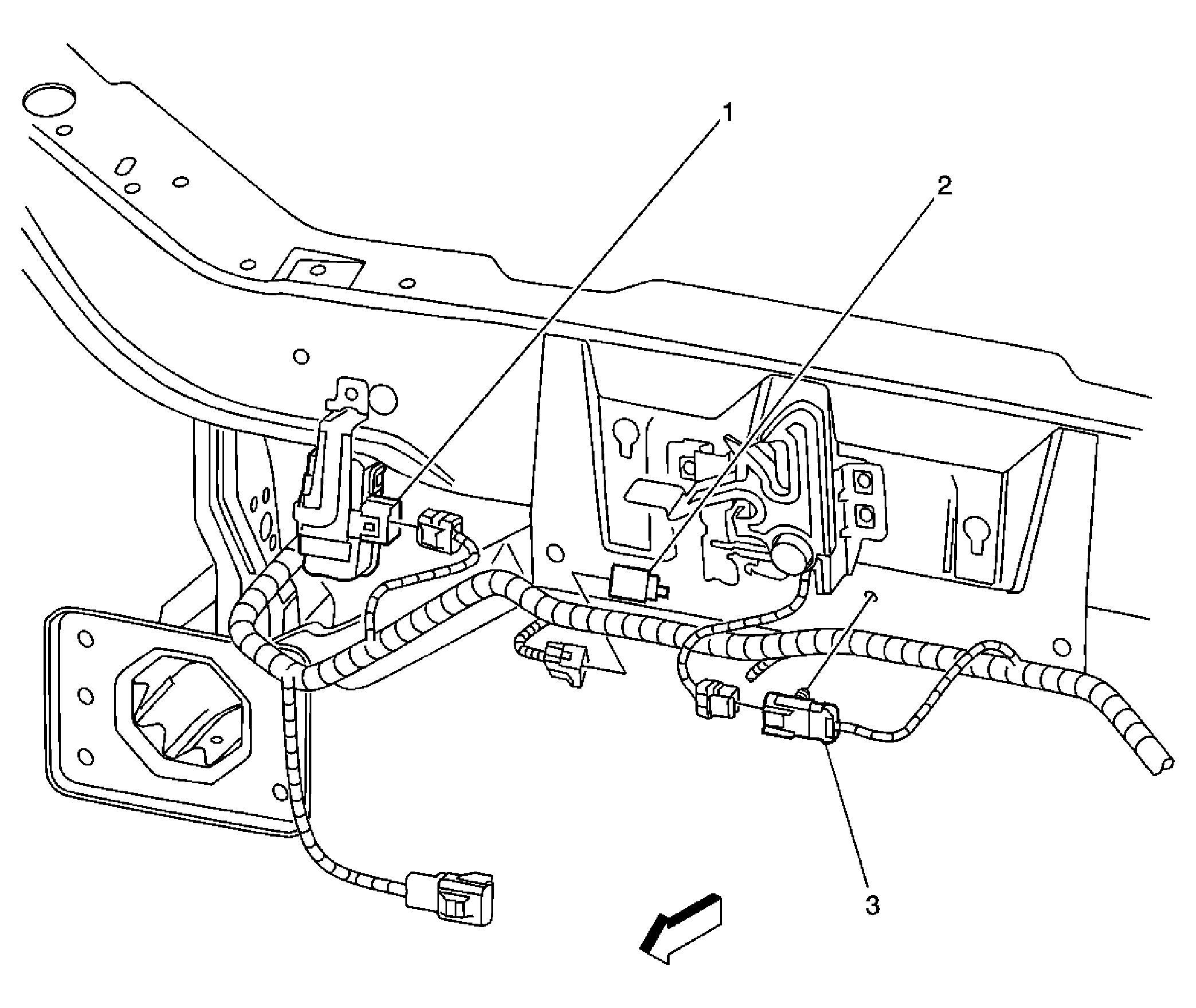

Fig 1: Center of the Core Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Quality Sensor (K14)
2	Ambient Air Temperature Sensor
3	Hood Ajar Switch Connector

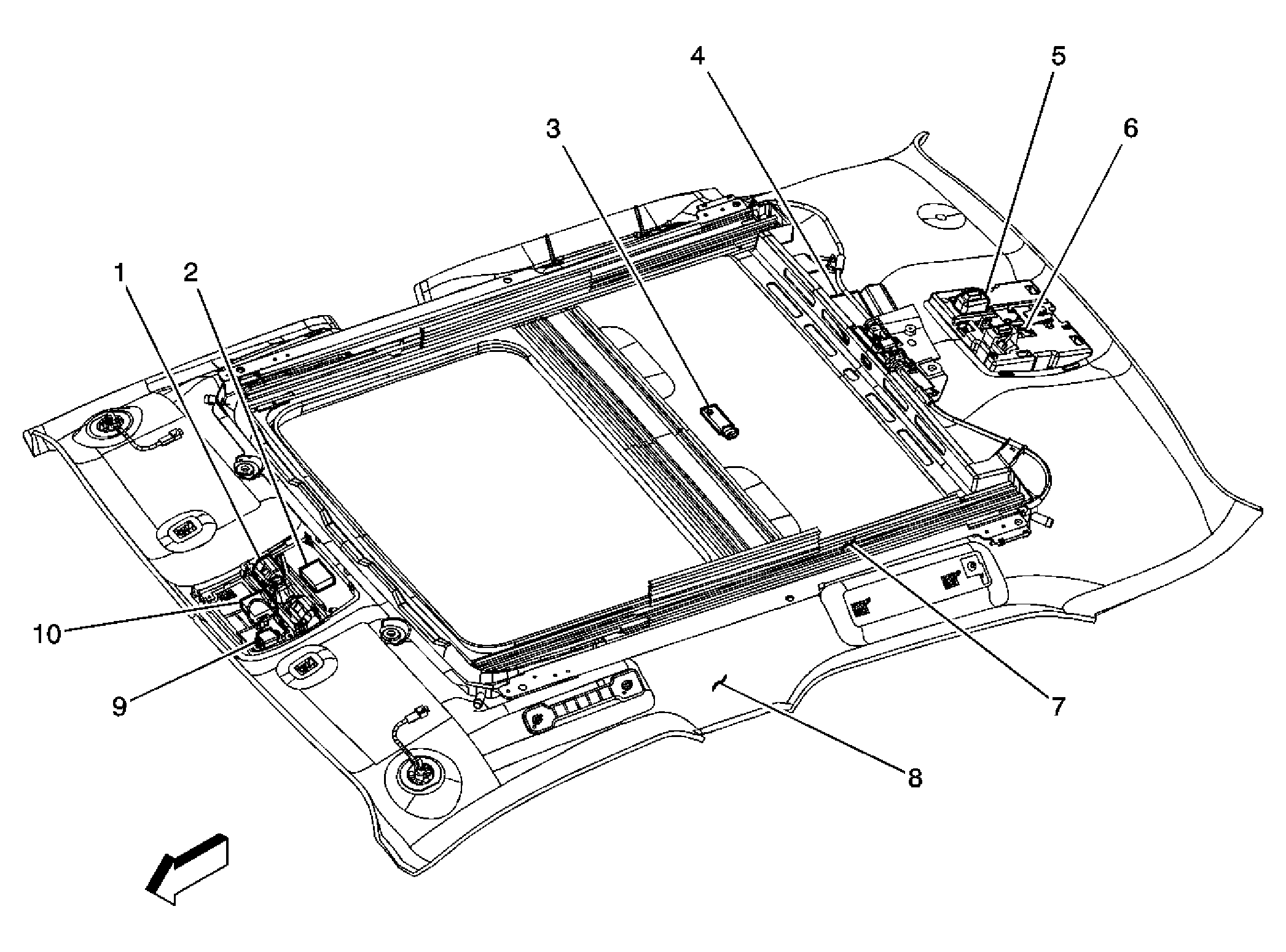

Fig 2: Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Overhead Courtesy/Reading Lamps - Front
2	Garage Door Opener (UG1)
3	Keyless Entry Antenna - Headliner
4	Sunroof Control Module (CF5)
5	Overhead Courtesy/Reading Lamps-Rear
6	Rear Parking Assist (RPA) Display (UD7)
7	Sunroof Assembly (CF5)
8	Top of Headliner
9	Noise Compensation Microphone (UY5)
10	Sunroof Switches (CF5)

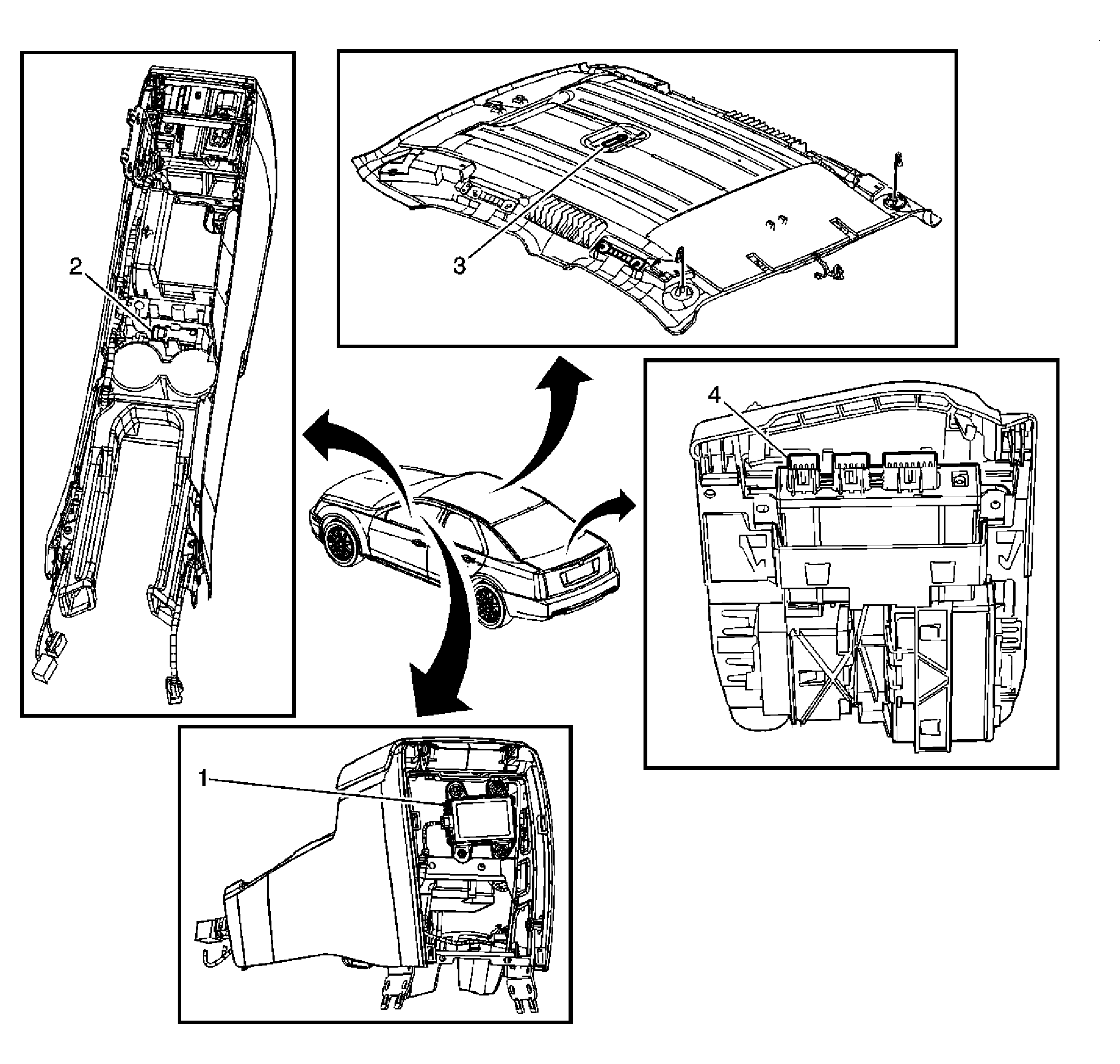

Fig 3: Remote Control Door Lock and Theft Deterrent - Keyless Entry

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Keyless Entry Antenna
2	Keyless Entry Backup Antenna
3	Keyless Entry Antenna Headliner
4	Remote Keyless Entry Receiver Module

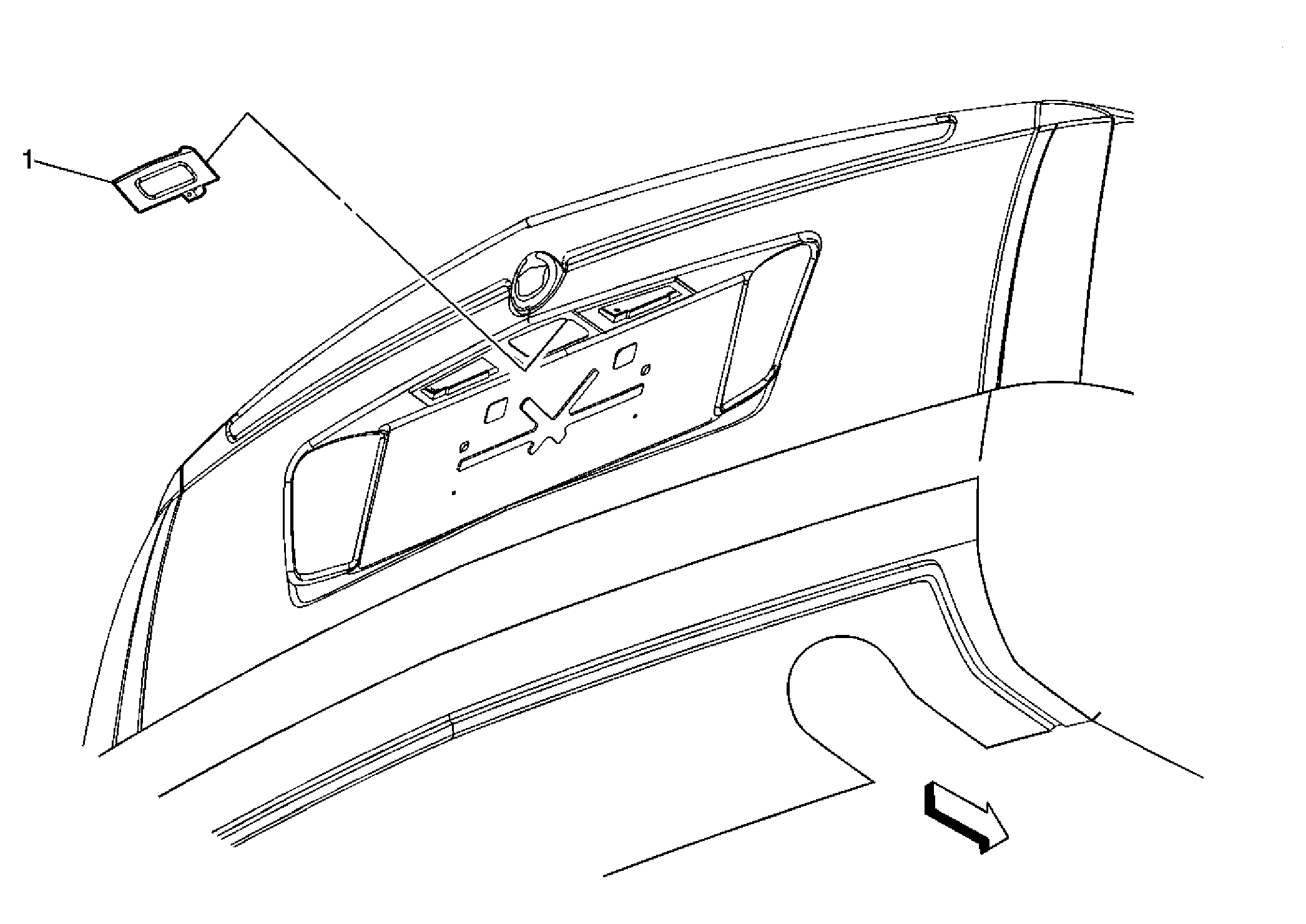

Fig 4: Rear Compartment Lid Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch - Exterior
2	Keyless Entry Antenna - Rear Compartment

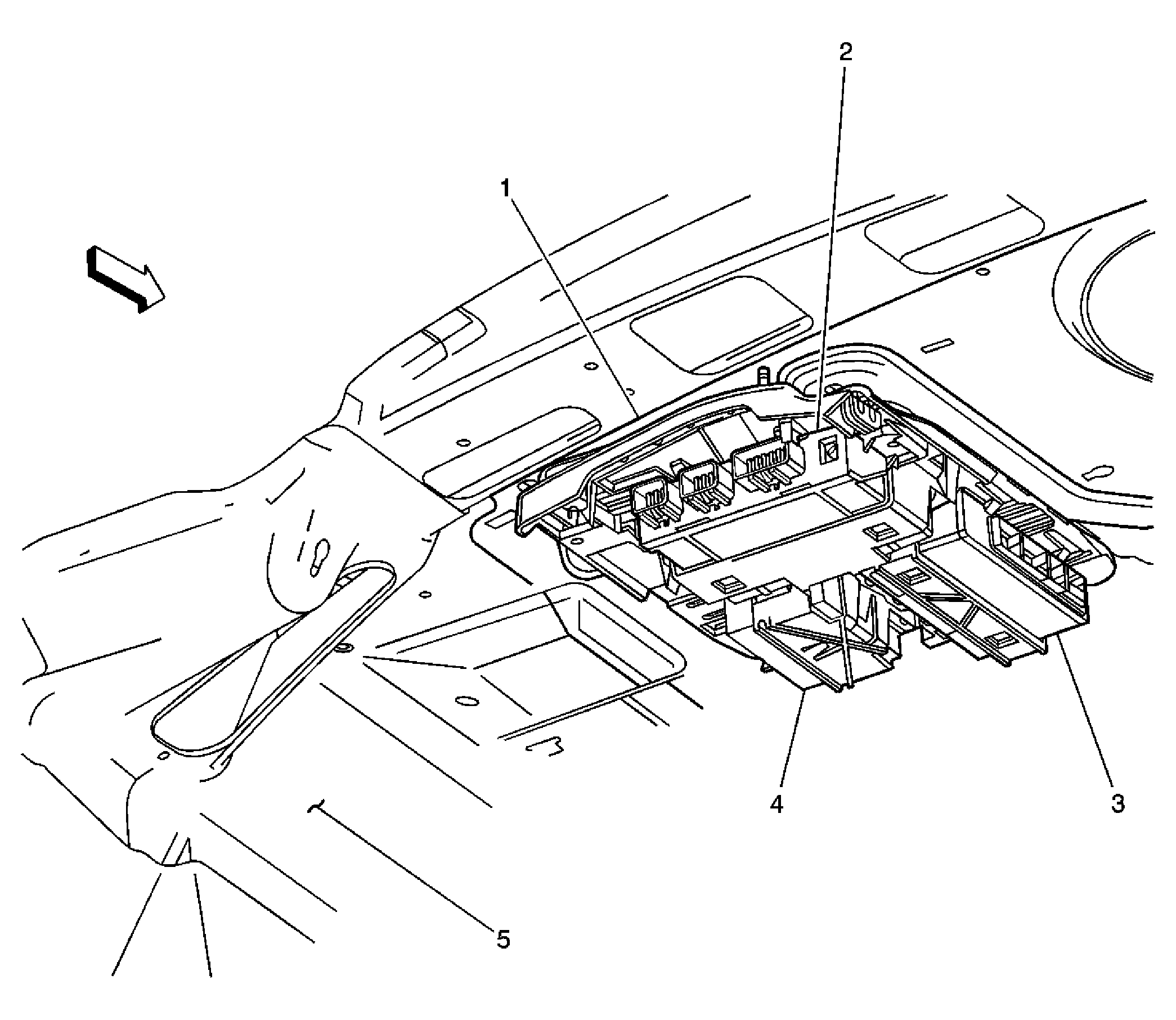

Fig 5: Under the Rear Window Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Module Bracket Assembly
2	Remote Control Door Lock Receiver (RCDLR)
3	Rear Integration Module (RIM)
4	Rear Object Sensor Control Module (UD7)
5	Rear Window Shelf

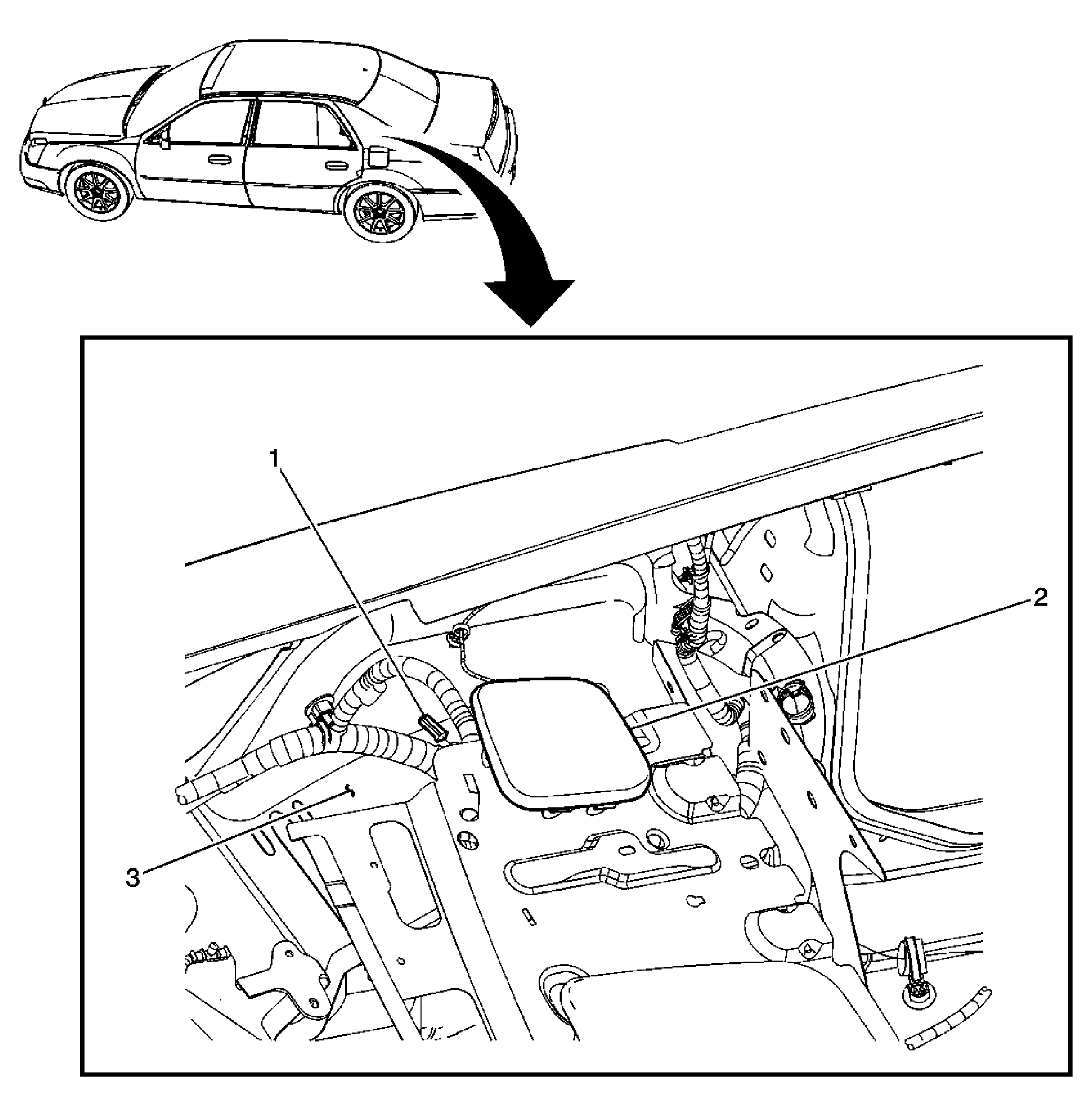

Fig 6: Under Left Rear Window Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Parking Assist Diagnostic Connector
2	Speaker Grille -LR
3	Wheel Well -LR

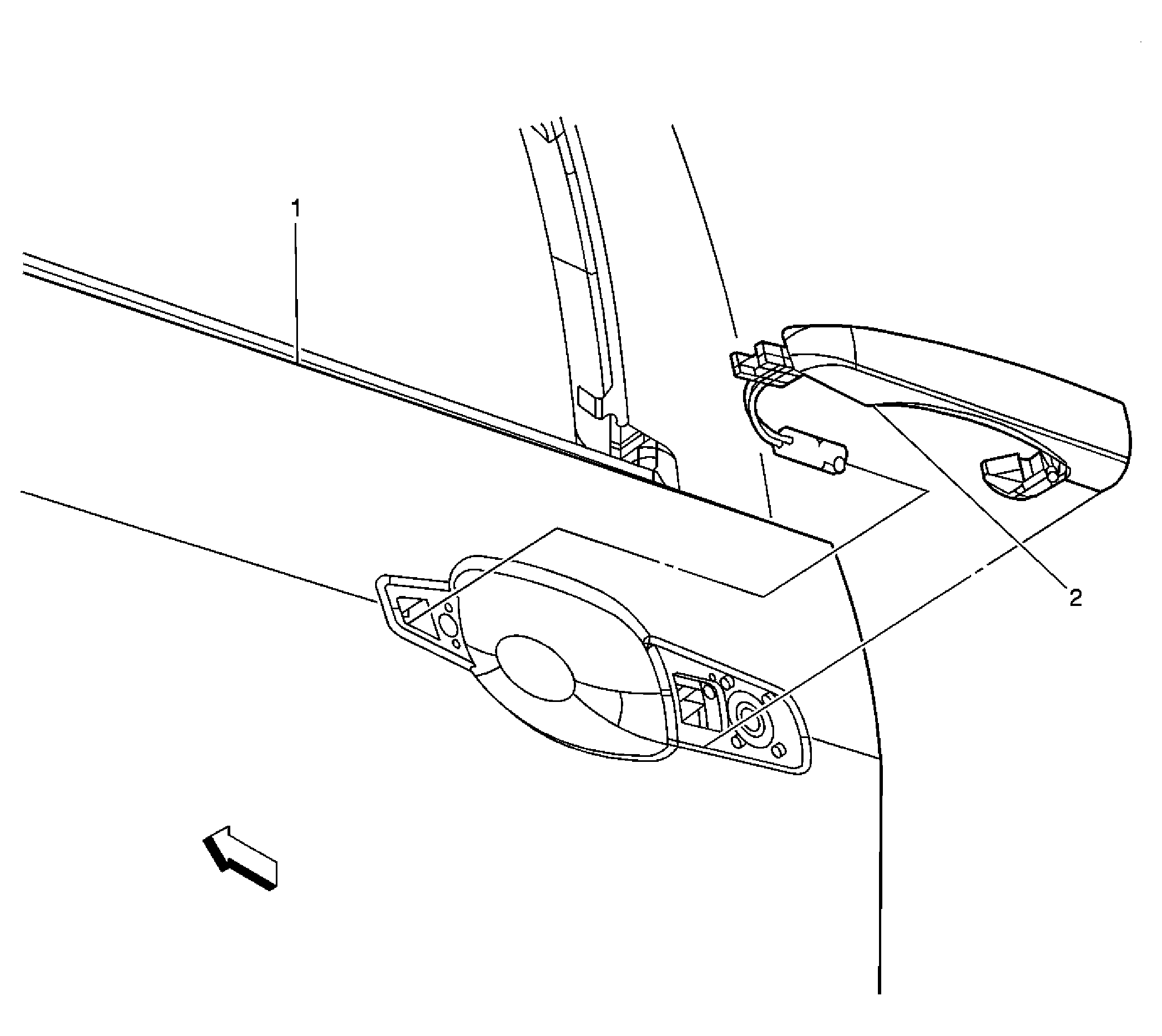

Fig 7: Left and Right Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outer Door Panel
2	Keyless Entry Antenna
