Keyless Entry Antenna

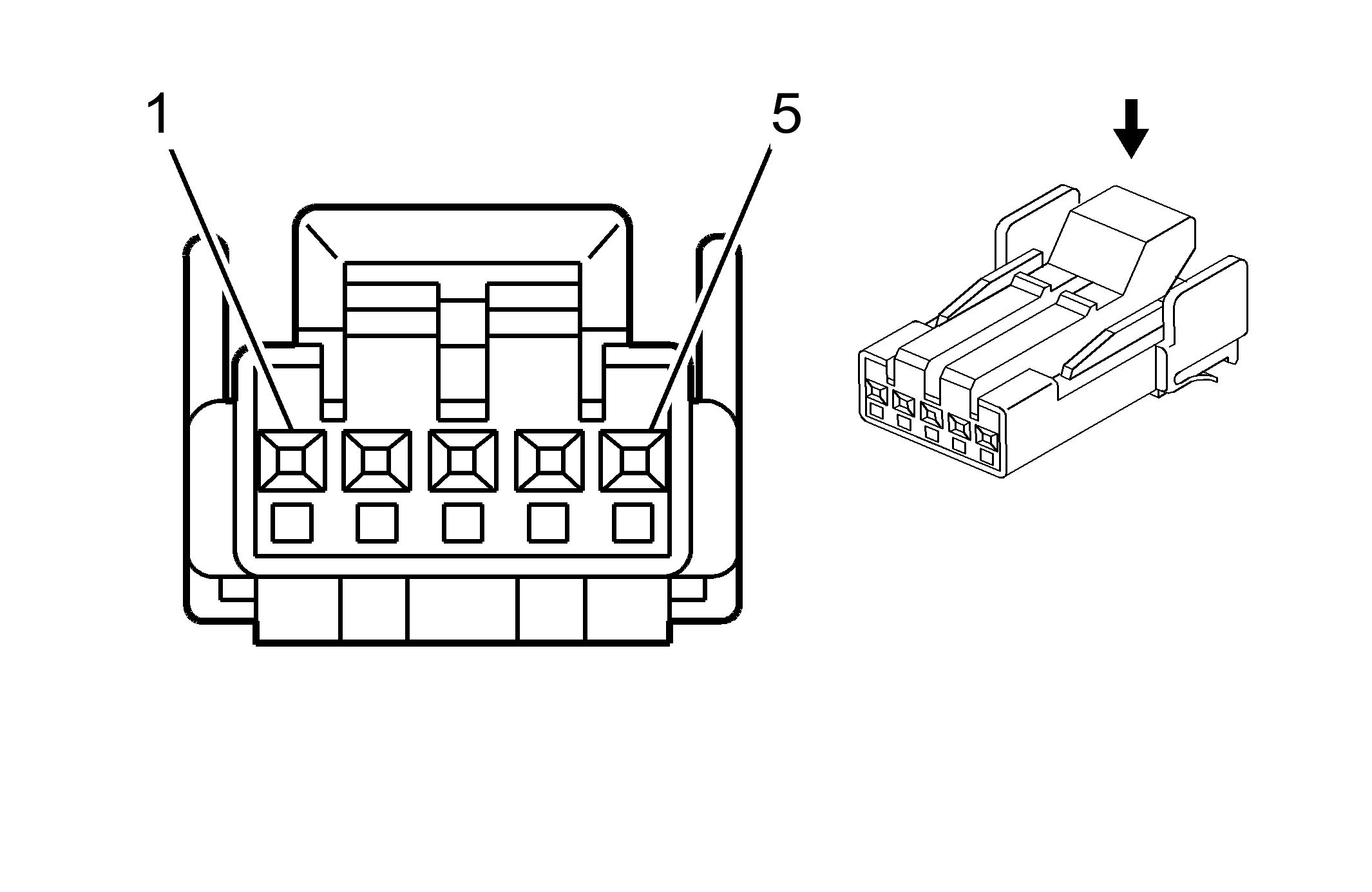

Fig 1: Keyless Entry Antenna Connector End View
GM1470566Courtesy of GENERAL MOTORS CORP.
Keyless Entry Antenna Connector Parts Information

Connector Part Information
  • OEM: IL-AG5-5S-S3C1
  • Service: 88988111
  • Description: 5-Way F IL-AG5 Series (L-GN)
Terminal Part Information
  • Pins: 2, 3, 4, 5
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Keyless Entry Antenna Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 - - Not Used
2 PU/WH 5715 Keyless Entry Active Antenna Supply Voltage
3 GY 5717 Keyless Entry Active Antenna Data Signal
4 L-BU 5716 Keyless Entry Active Antenna Clock Signal
5 OG/BK 5718 Keyless Entry Active Antenna Low Reference
