LF Door Handle
LF Door Handle Connector Parts Information
Connector Part Information
|
Terminal Part Information
|

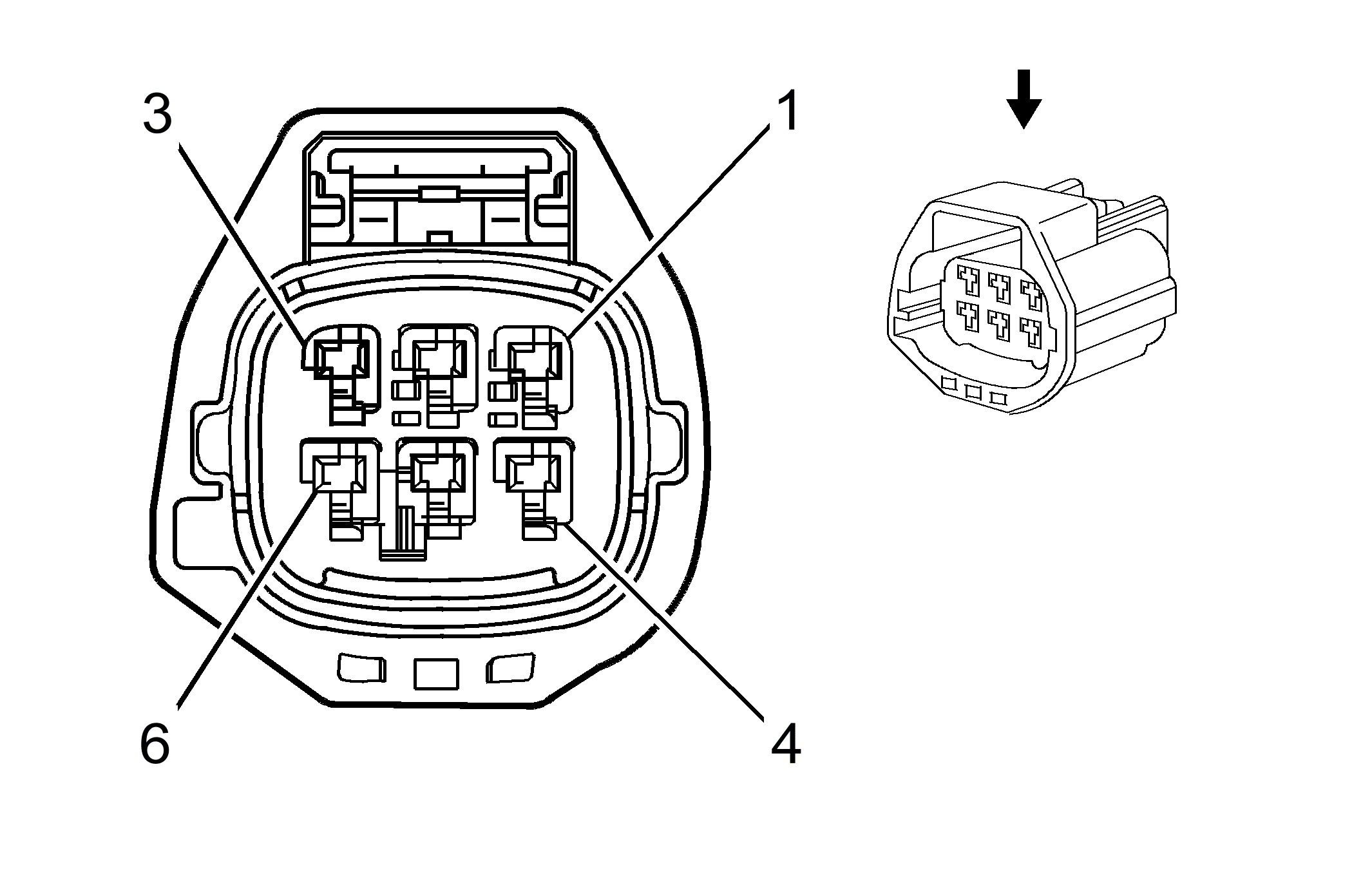

LF Door Handle Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | PK | 5709 | Keyless Entry Antenna Signal (4) |
| 2 | PK/BK | 5713 | Keyless Entry Antenna Low Reference (4) |
| 3 | BK/WH | 351 | Ground |
| 4 | BN | 5881 | Left Front Door Handle Switch Signal (3) |
| 5 | D-BU | 5882 | Left Front Door Handle Switch Signal (2) |
| 6 | BK/WH | 351 | Ground |
