Removal Procedure

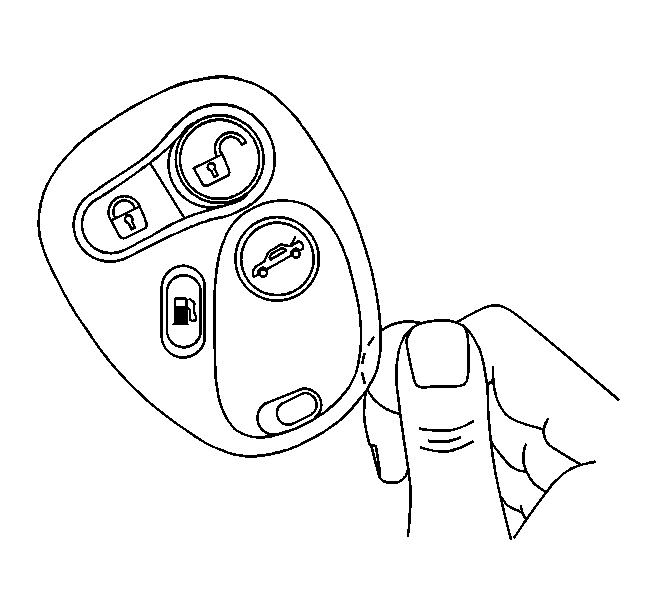

    Fig 1: Inserting A Coin Into The Slot On The Battery Access Cover
    GM439246Courtesy of GENERAL MOTORS CORP.
  1. Insert a coin into the slot on the battery access cover on the back of the transmitter.
    2. Fig 2: View Of Transmitter Battery
    GM439247Courtesy of GENERAL MOTORS CORP.
  2. Turn the coin counterclockwise to remove the transmitter rear cover.
  3. Remove the battery.
