Computer/Integrating Systems Component Views

WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

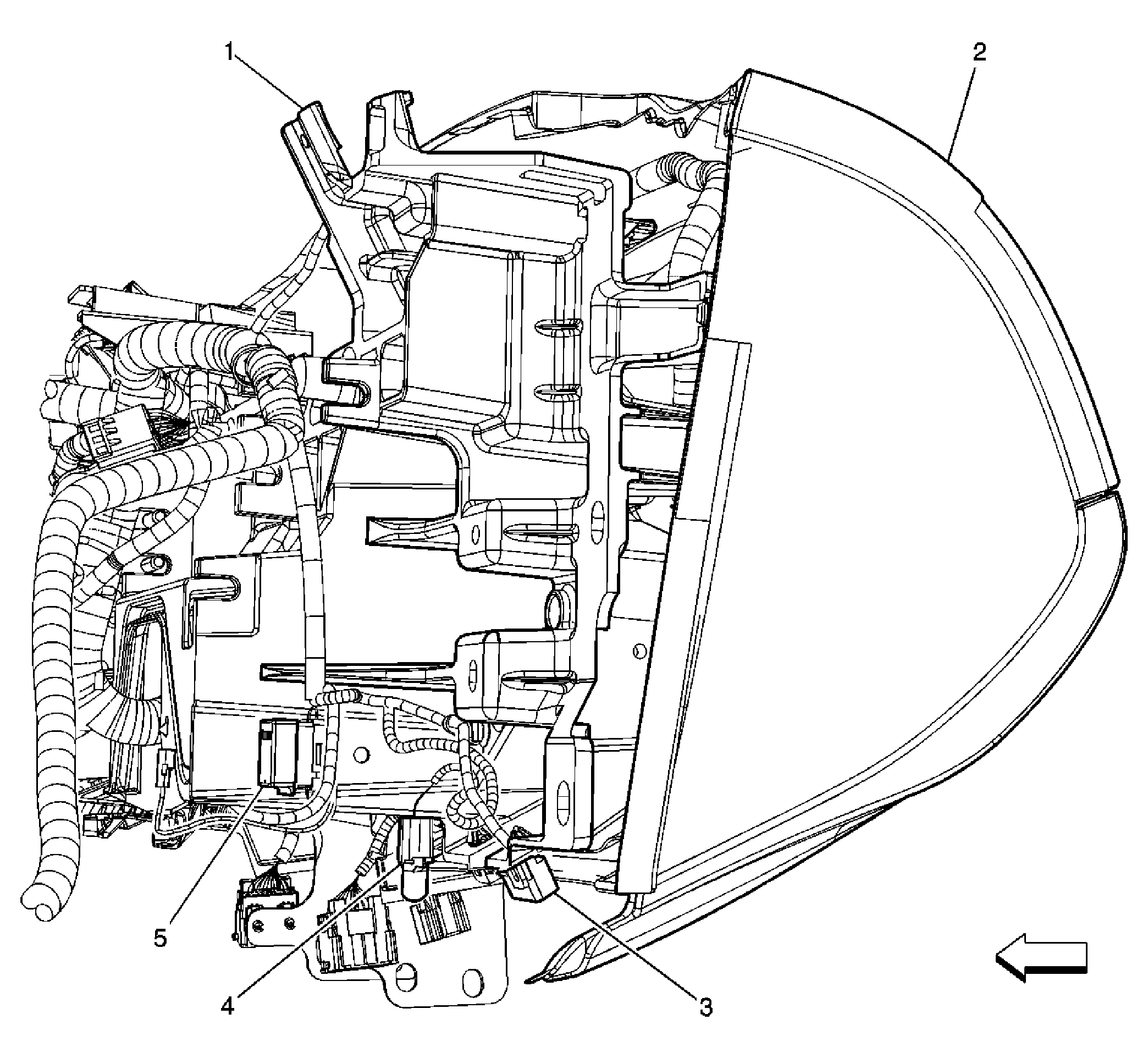

Fig 1: Left Side of the I/P Carrier Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Carrier
2	I/P Side Panel - Left
3	Data Link Connector (DLC)
4	Courtesy Lamp - Left Footwell
5	Steering Column Fuse Box or Holder

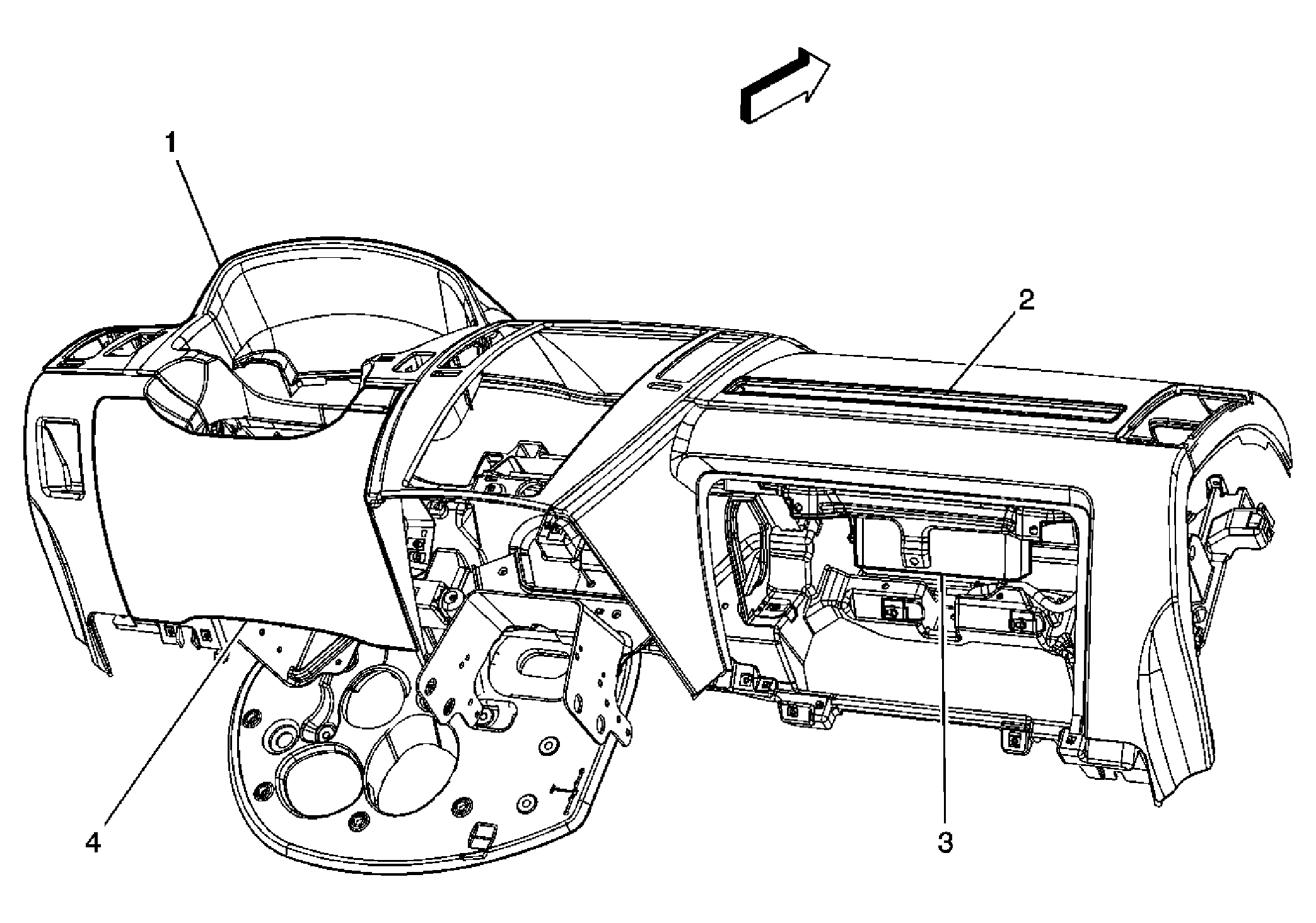

Fig 2: Instrument Panel Module (IPM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Cluster Trim
2	I/P Carrier Trim
3	Instrument Panel Module (IPM)
4	Knee Bolster

Fig 3: Under the Rear Window Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Module Bracket Assembly
2	Remote Control Door Lock Receiver (RCDLR)
3	Rear Integration Module (RIM)
4	Rear Object Sensor Control Module (UD7)
5	Rear Window Shelf

Fig 4: Under Left Rear Window Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Parking Assist Diagnostic Connector
2	Speaker Grille - LR
3	Wheel Well - LR

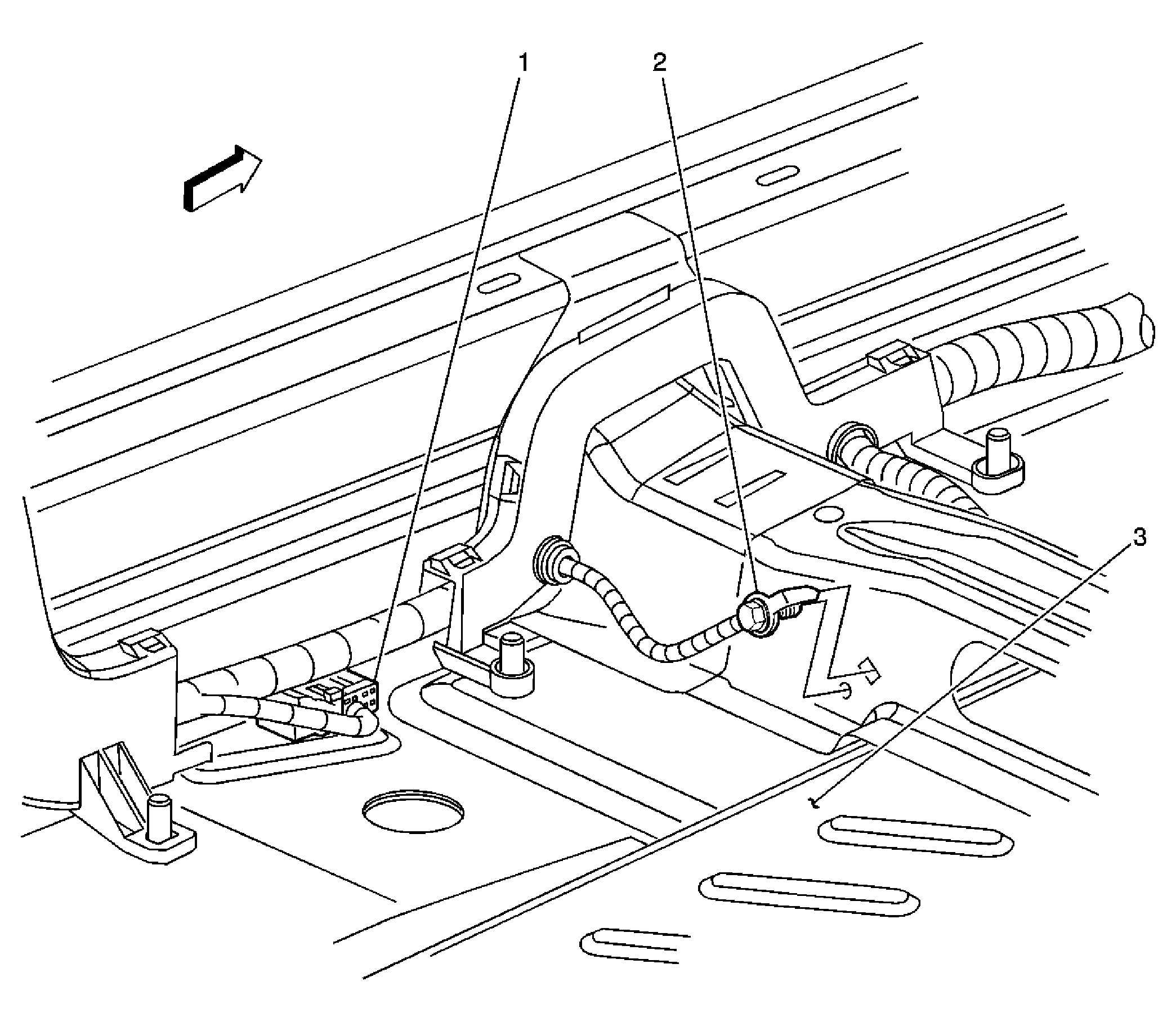

Fig 5: G307 and Splice Pack SP300 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Splice Pack SP300
2	G307
3	LF Floor Panel
