Rear Integration Module (RIM) - C1

WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

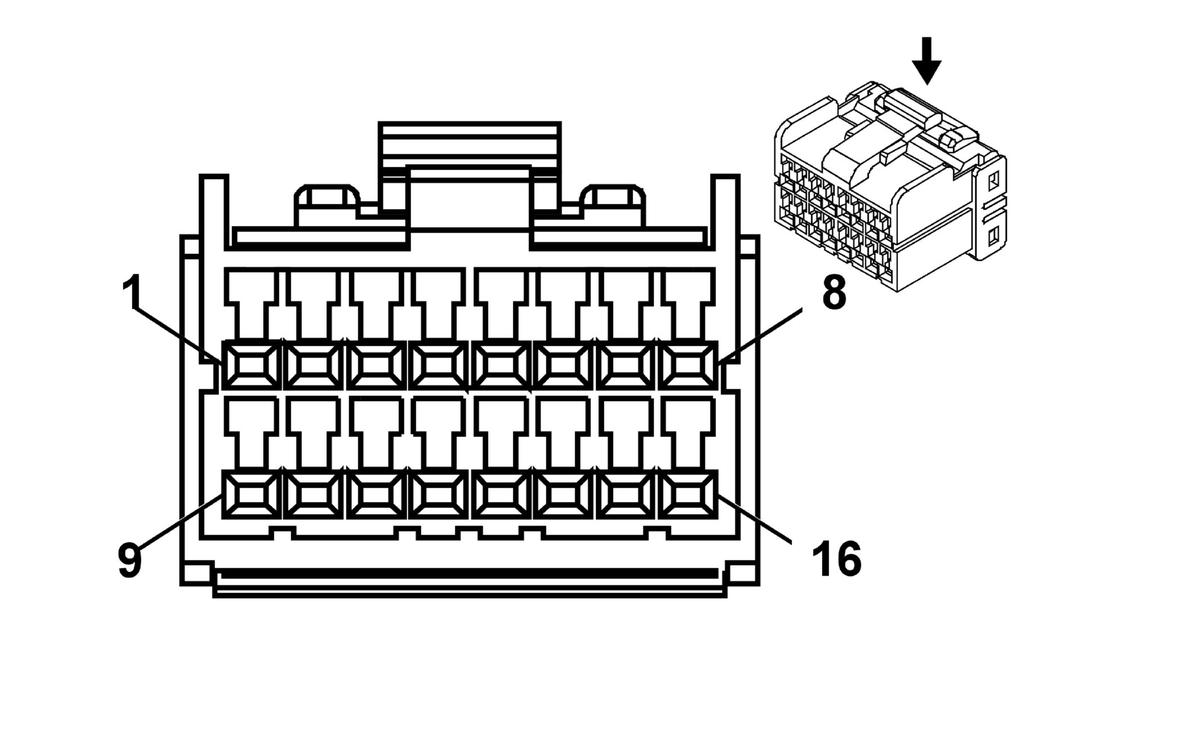

Fig 1: Rear Integration Module (RIM) - C1 Connector
GM1420730Courtesy of GENERAL MOTORS CORP.
Computer/Integrating Systems Connector End Views

Connector Part Information
  • OEM: 174046-2
  • Service: 88987953
  • Description: 16-Way F 40 Series Multi-Lock (BK)
Terminal Part Information
  • Pins: 1, 2, 3, 4, 9, 10, 11, 12
  • Terminal/Tray: 173681-2/17
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)
Rear Integration Module (RIM) - C1

Pin Wire Color Circuit No. Function
1 D-GN 646 Reverse Relay Coil Feed
2 D-BU 1393 Courtesy Lamp Relay Coil Control
3 WH 193 Rear Defog Relay Control
4 TN 755 RAP Relay Coil Control (CF5)
5-8 - - Not Used
9 PU 6722 Windshield Wiper Depressed Park Motor Relay Control (WCV)
10 YE 1977 Rear Fog Lamp Relay Control (Export) (TT7/TT8)
11 L-BU 1344 Trunk Release Relay Output-Coil
12 BN/WH 1429 Standing Lamp Relay Feed (TT7/TT8)
13-16 - - Not Used
