Rear Integration Module (RIM) - C2

WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

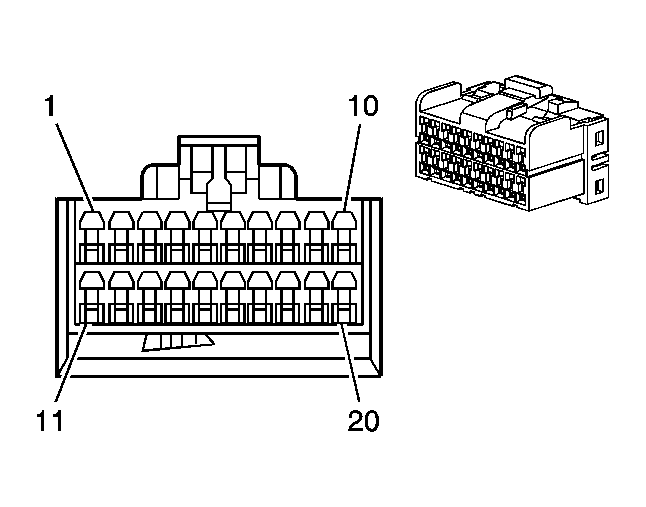

Fig 1: Rear Integration Module (RIM) - C2 Connector
GM750205Courtesy of GENERAL MOTORS CORP.
Computer/Integrating Systems Connector End Views

Connector Part Information
  • OEM: 1740472
  • Service: 12162820
  • Description: 20-Way M Hinged Lock (BK)
Terminal Part Information
  • Pins: 2, 3, 5, 9, 10, 11, 12, 13, 14, 17, 19, 20
  • Terminal/Tray: 173681-2/17
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)
Rear Integration Module (RIM) - C2

Pin Wire Color Circuit No. Function
1 - - Not Used
2 PK 1339 Run/Crank Ignition 1 Voltage
3 YE/BK 1334 Left Rear Turn Signal Lamp Supply Voltage
4 - - Not Used
5 L-BU 2380 Rear Parking Assist Chime Signal
6-8 - - Not Used
9 YE 5530 Hood Open Switch Signal
10 GY 112 Windshield Wiper Switch Low/Pulse Signal (Export) (UA2)
11 YE 5058 Intrusion Sensor Armed Signal (Export) (UA2)
12 TN/BK 5168 Power Sounder Enable Signal (Export) (UA2)
13 D-GN/WH 1335 Right Rear Turn Signal Lamp Supply Voltage
14 PU 5531 Hood Closed Switch Signal
15-16 - - Not Used
17 D-BU/WH 149 Courtesy Lamp Supply Voltage
18 - - Not Used
19 OG/BK 744 Trunk Ajar Switch Signal
20 PU 5059 Intrusion Sensor Alarm On Signal (Export) (UA2)
