Rear Integration Module (RIM) - C3

WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

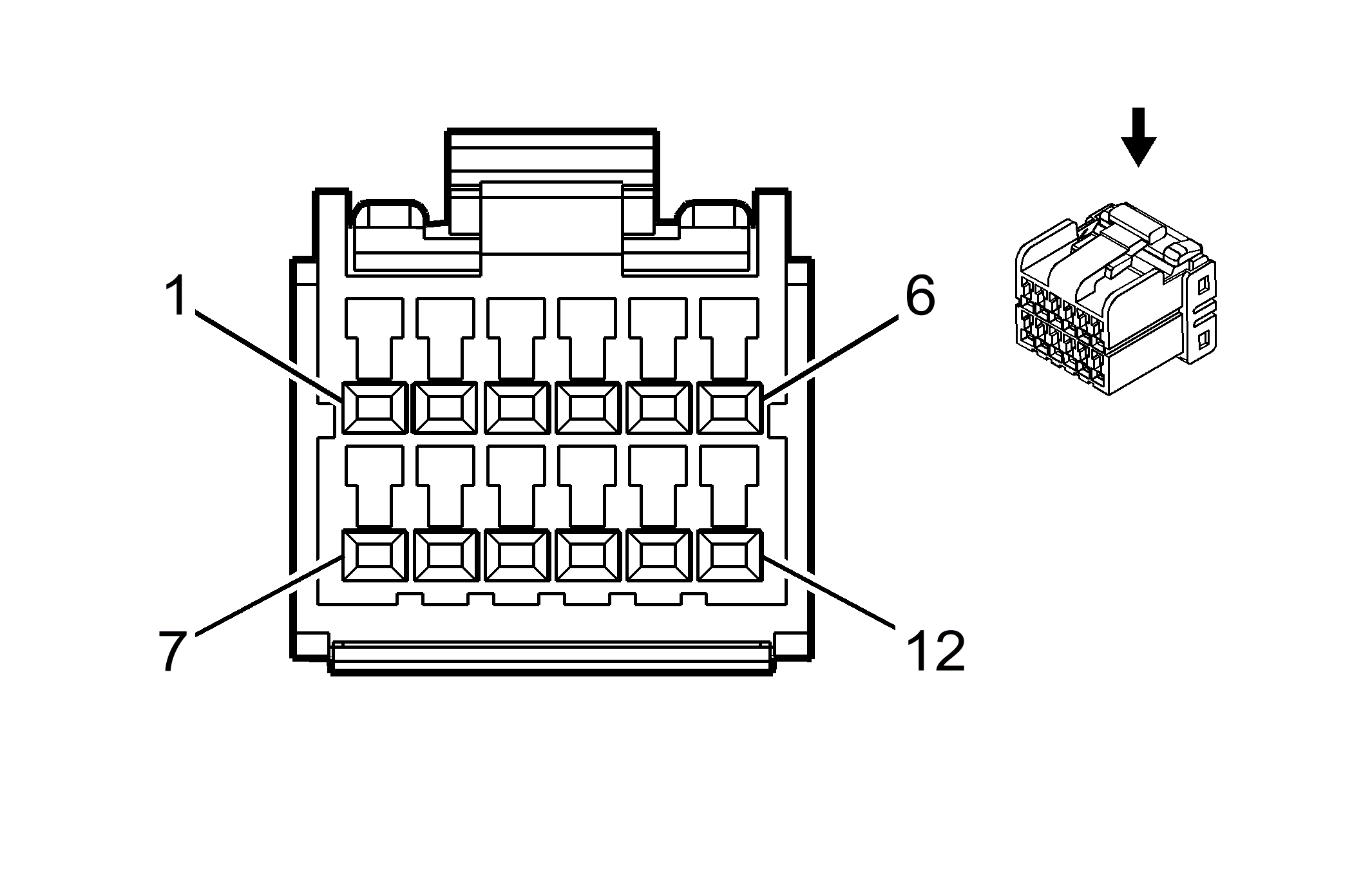

Fig 1: Rear Integration Module (RIM) - C3 Connector
GM1420731Courtesy of GENERAL MOTORS CORP.
Computer/Integrating Systems Connector End Views

Connector Part Information
  • OEM: 174045-2
  • Service: 88987954
  • Description: 12-Way M 40 Series Multi-Lock (BK)
Terminal Part Information
  • Pins: 1, 2, 4, 10, 12
  • Terminal/Tray: 173681-2/17
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)
Rear Integration Module (RIM) - C3

Pin Wire Color Circuit No. Function
1 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
2 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
3 - - Not Used
4 RD/BK 542 Battery Positive Voltage
5-9 - - Not Used
10 D-GN 5060 Low Speed GMLAN Serial Data
11 - - Not Used
12 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
