Shift Lock Control Component Views

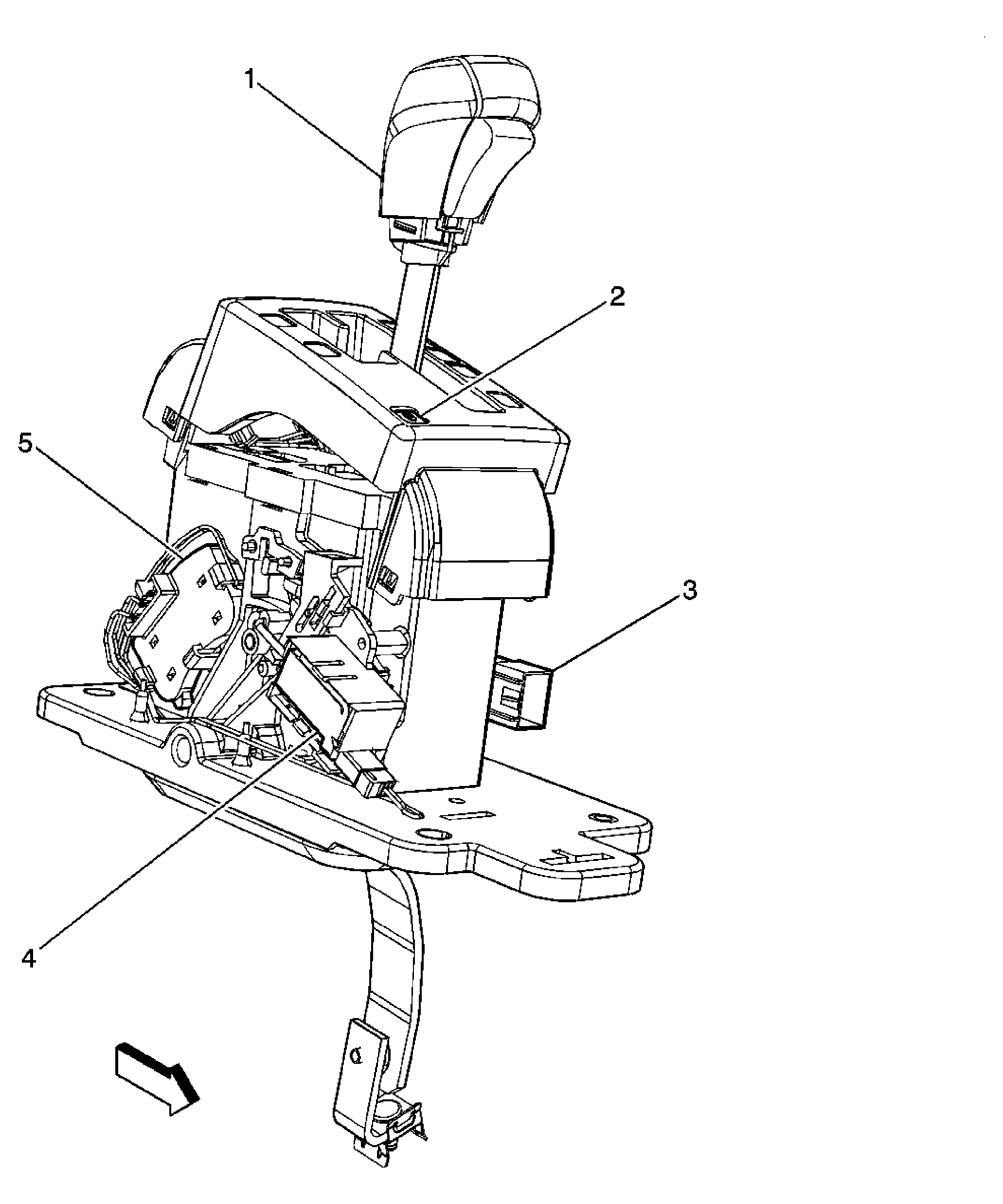

Fig 1: Shift Lever Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Automatic Transmission Shifter Control
2
Tap Up/Tap Down Trans Enable Switch
3
Automatic Transmission Shift Control Connector
4
A/T Shift Lock Control Solenoid
5
Tap Up/Tap Down Switch
