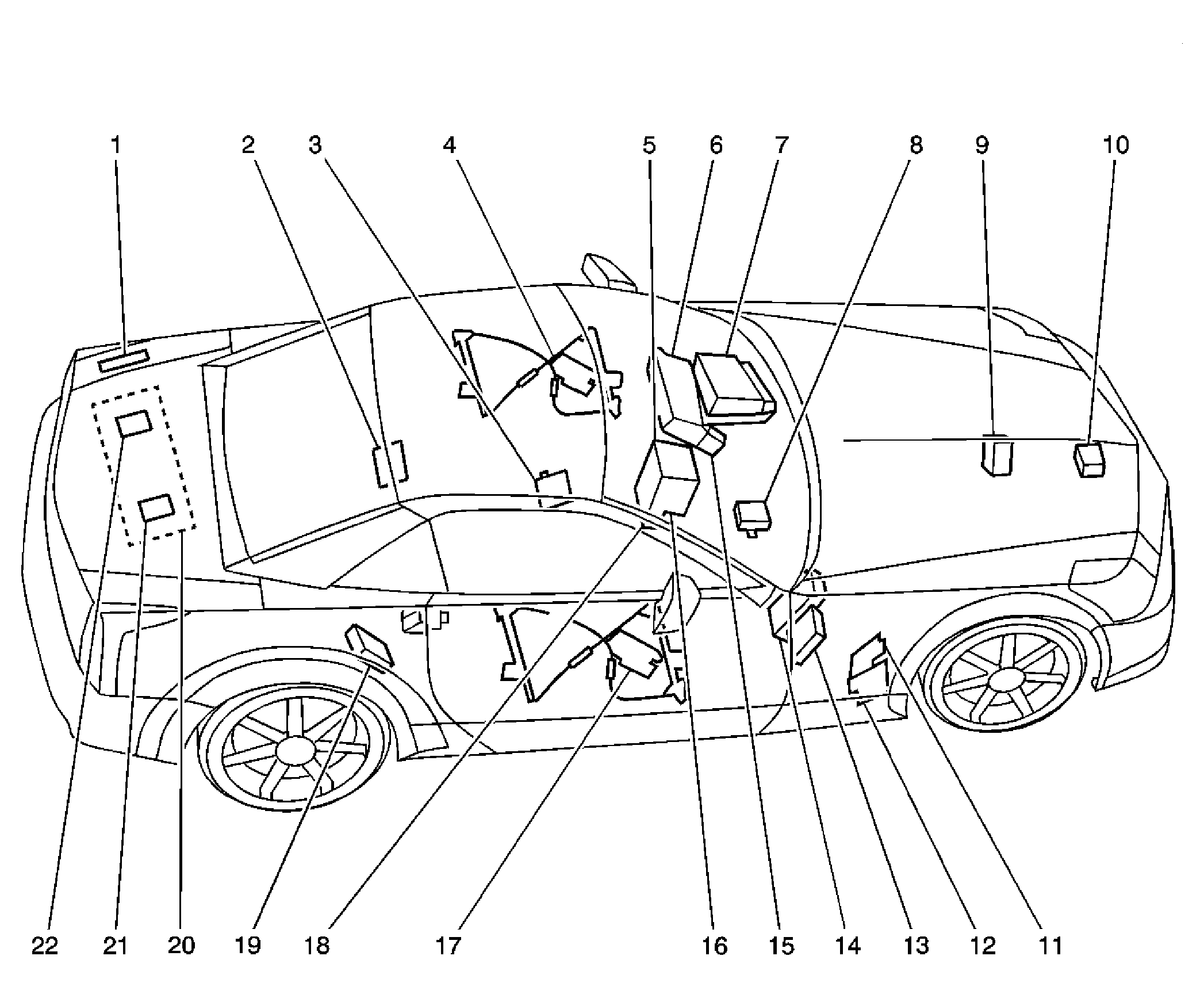

| 1 |
Folding Top Module |
| 2 |
Rear Object Sensor Control Module |
| 3 |
Memory Seat Module |
| 4 |
Driver Door Module (DDM) |
| 5 |
Radio |
| 6 |
Instrument Panel Cluster (IPC) |
| 7 |
Head-Up Display (HUD) |
| 8 |
Remote Control Door Lock Receiver (RCDLR) |
| 9 |
EBCM - BPMV |
| 10 |
Distance Sensing Control Module |
| 11 |
Transmission Control Module (TCM) |
| 12 |
Engine Control Module (ECM) |
| 13 |
Body Control Module (BCM) |
| 14 |
Audio Amplifier |
| 15 |
Steering Column Lock Control Module (Export) |
| 16 |
Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 17 |
Front Passenger Door Module (FPDM) |
| 18 |
HVAC Control Module |
| 19 |
Vehicle Communication Interface Module (VCIM) |
| 20 |
Antenna Ground Plane |
| 21 |
Antenna Module - Right |
| 22 |
Antenna Module - Left |
