Installation Procedure

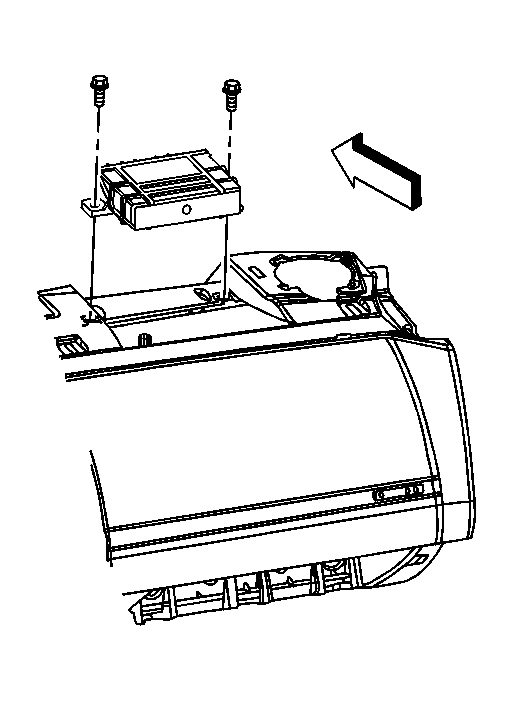

Fig 1: View Of Remote Control Door Lock Receiver & Screws

Courtesy of GENERAL MOTORS CORP.

Connect the receiver connector and route the wire harness through the I/P carrier.
Line up the receiver with the hole on the retainer.

NOTE: Refer to Fastener Notice .

Install the retaining screws to the remote control door lock receiver.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).
Install the I/P trim pad. Refer to Instrument Panel Trim Pad Replacement .
Perform the RCDLR programming and setup procedure. Refer to Control Module References for programming and setup information.
