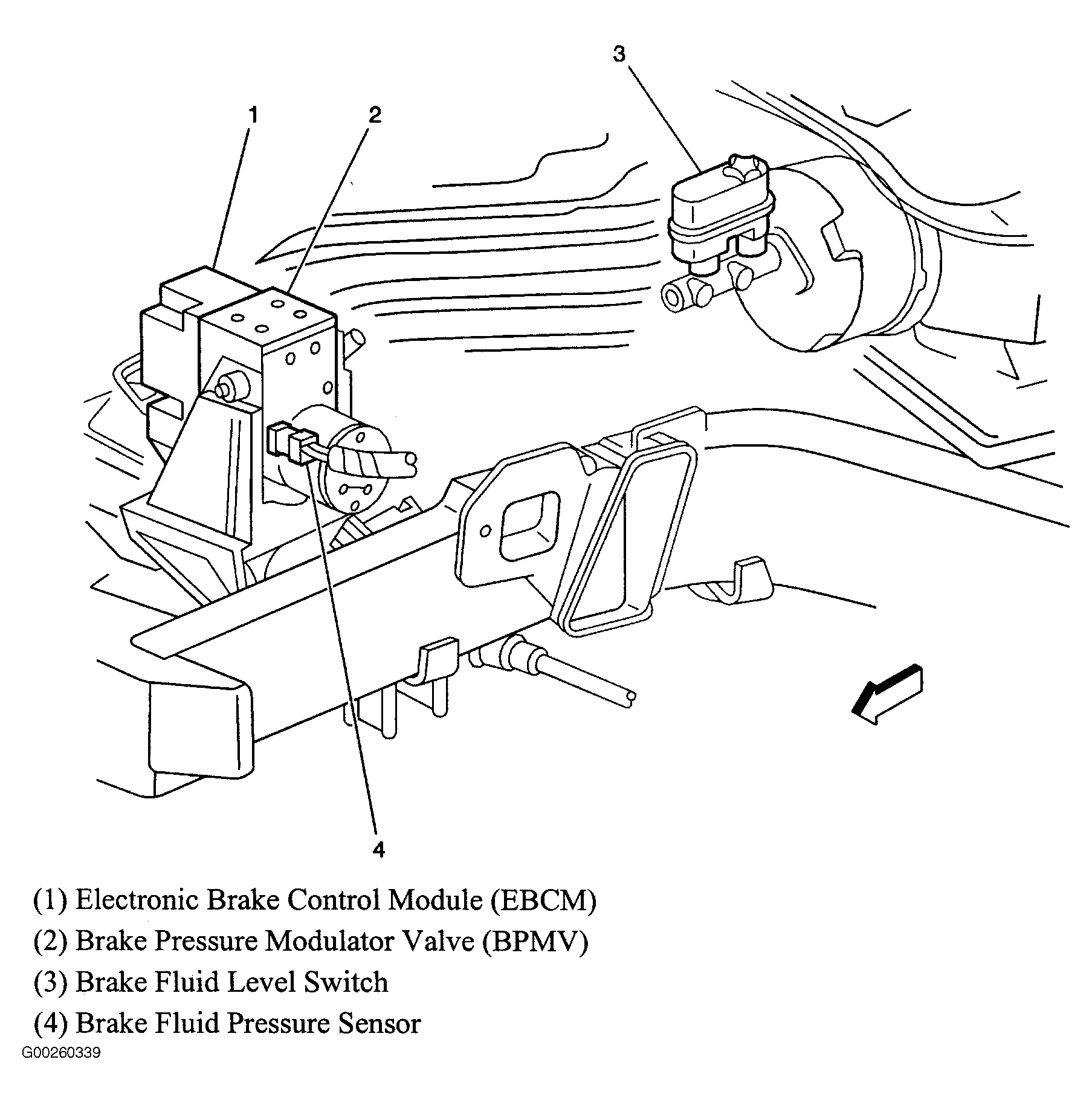

Electrical Component Locator
>>
Component Location Graphics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

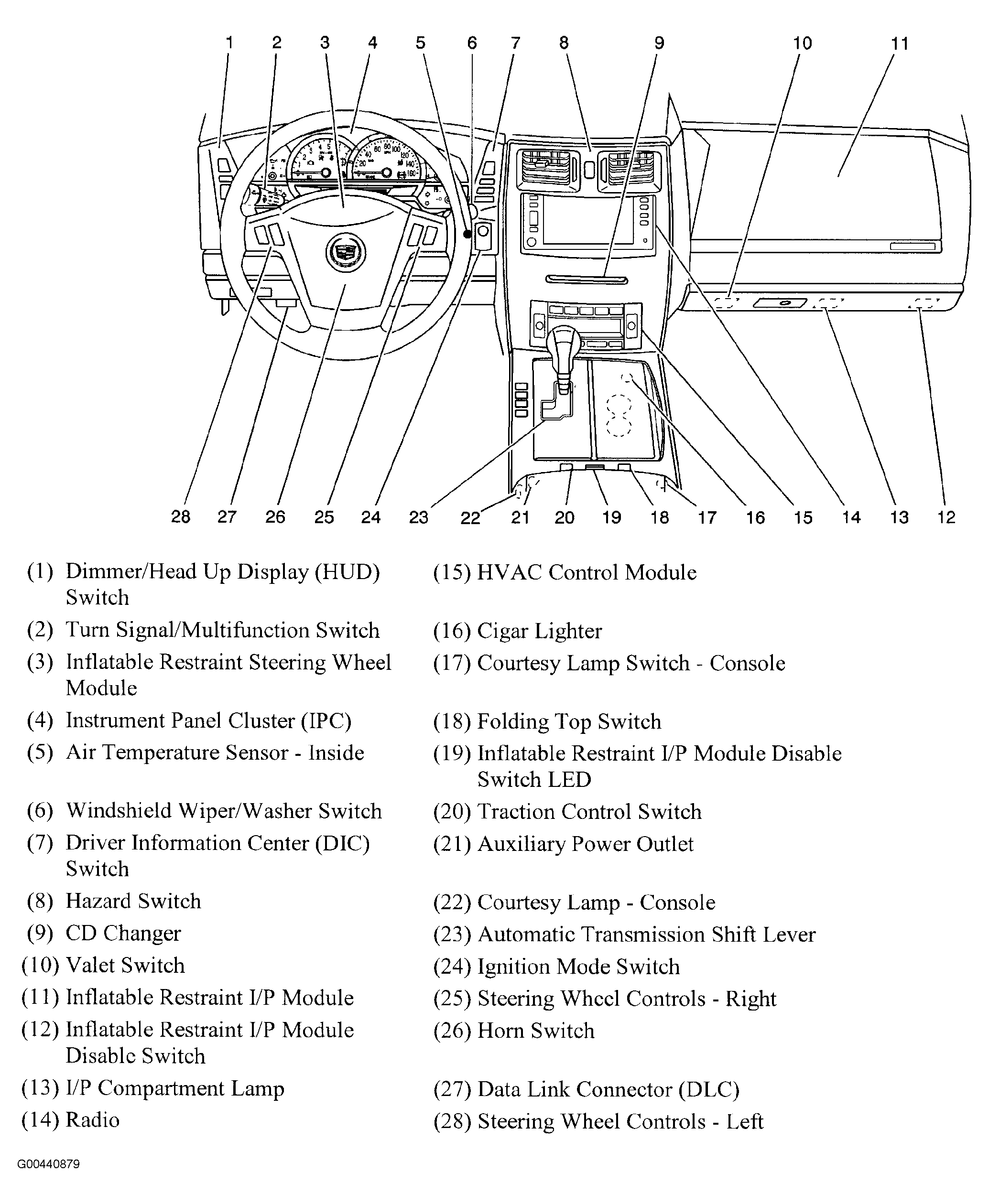

Fig 1: Dash
Courtesy of GENERAL MOTORS CORP.

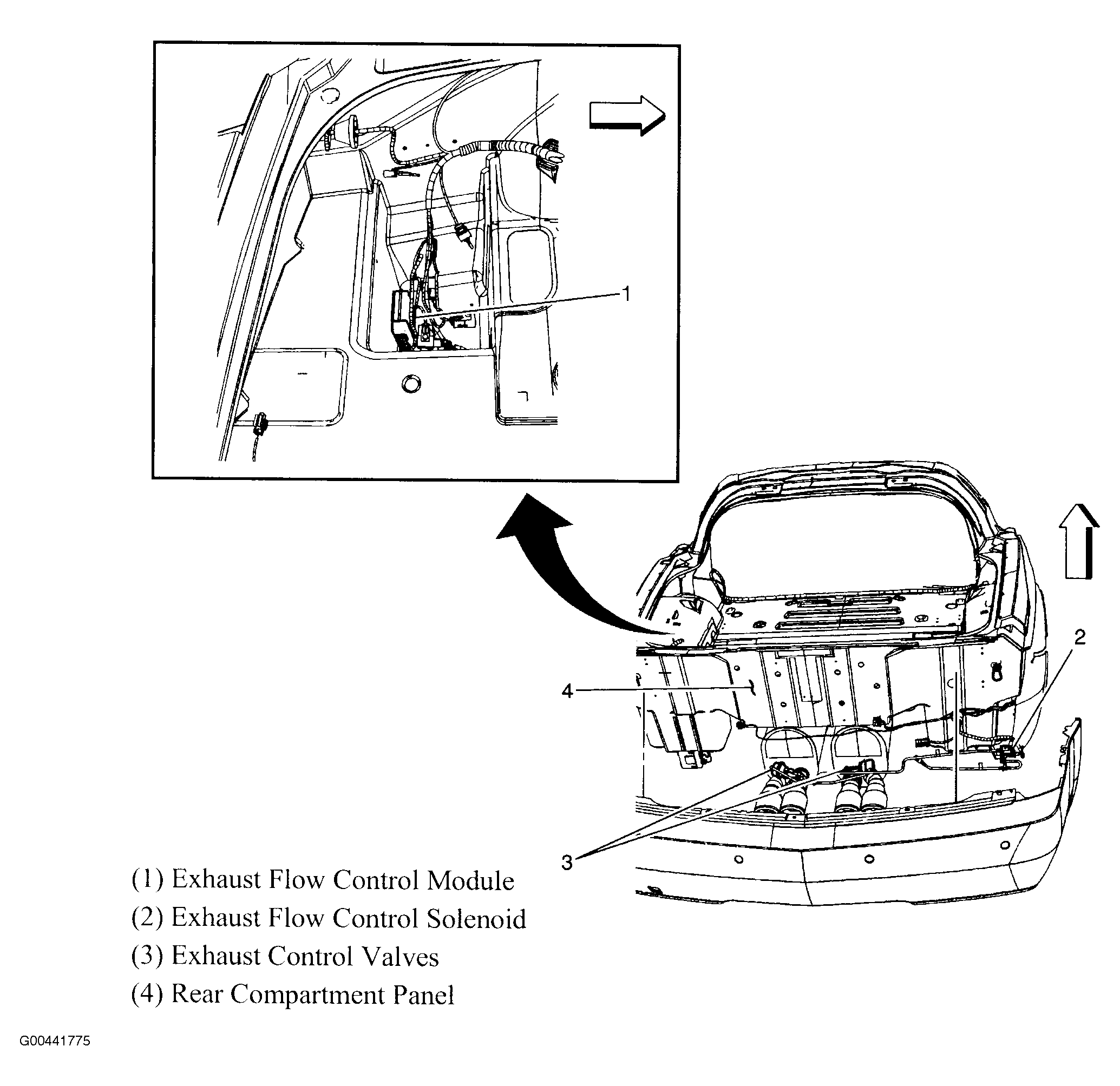

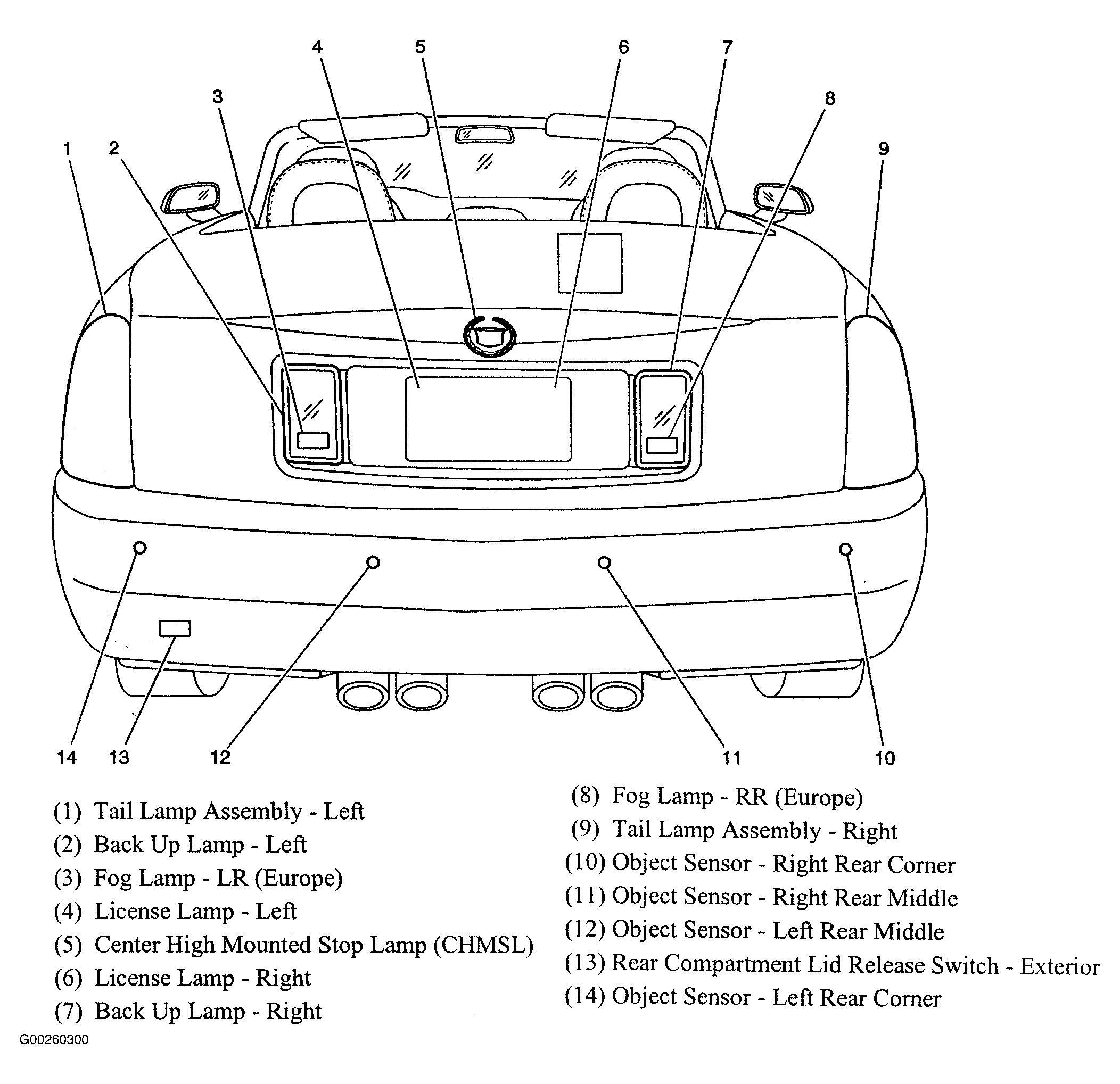

Fig 2: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

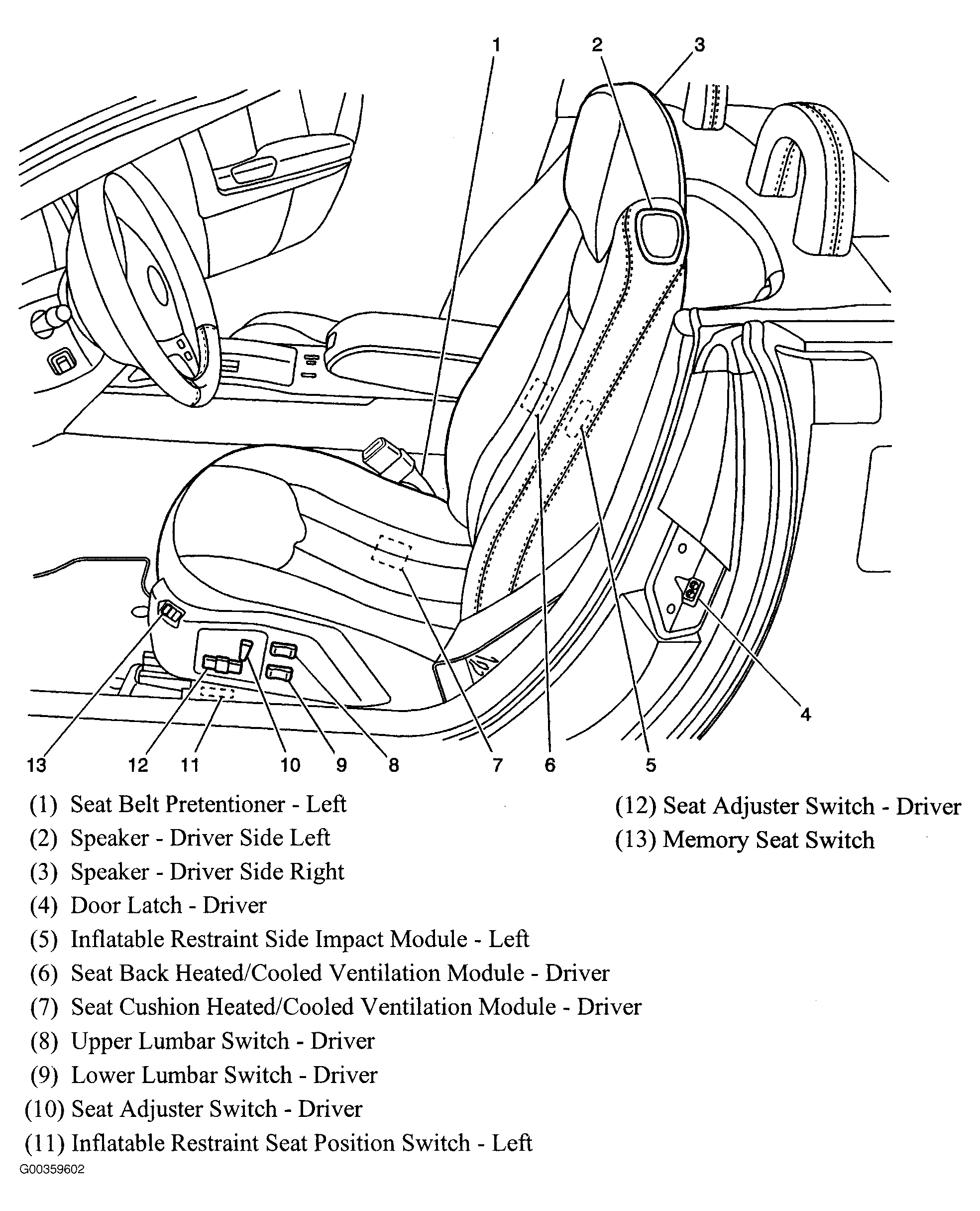

Fig 3: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 4: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 5: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

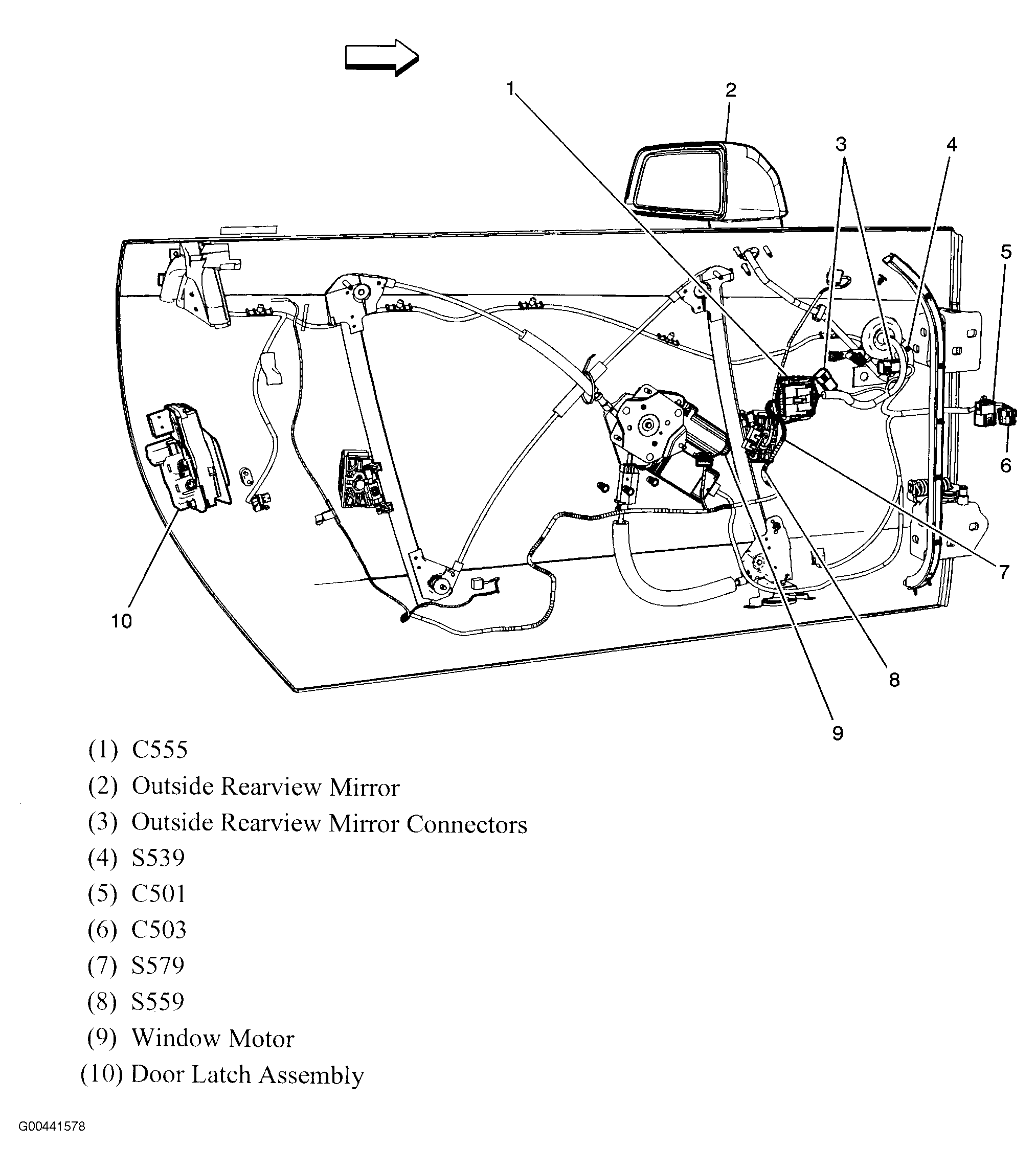

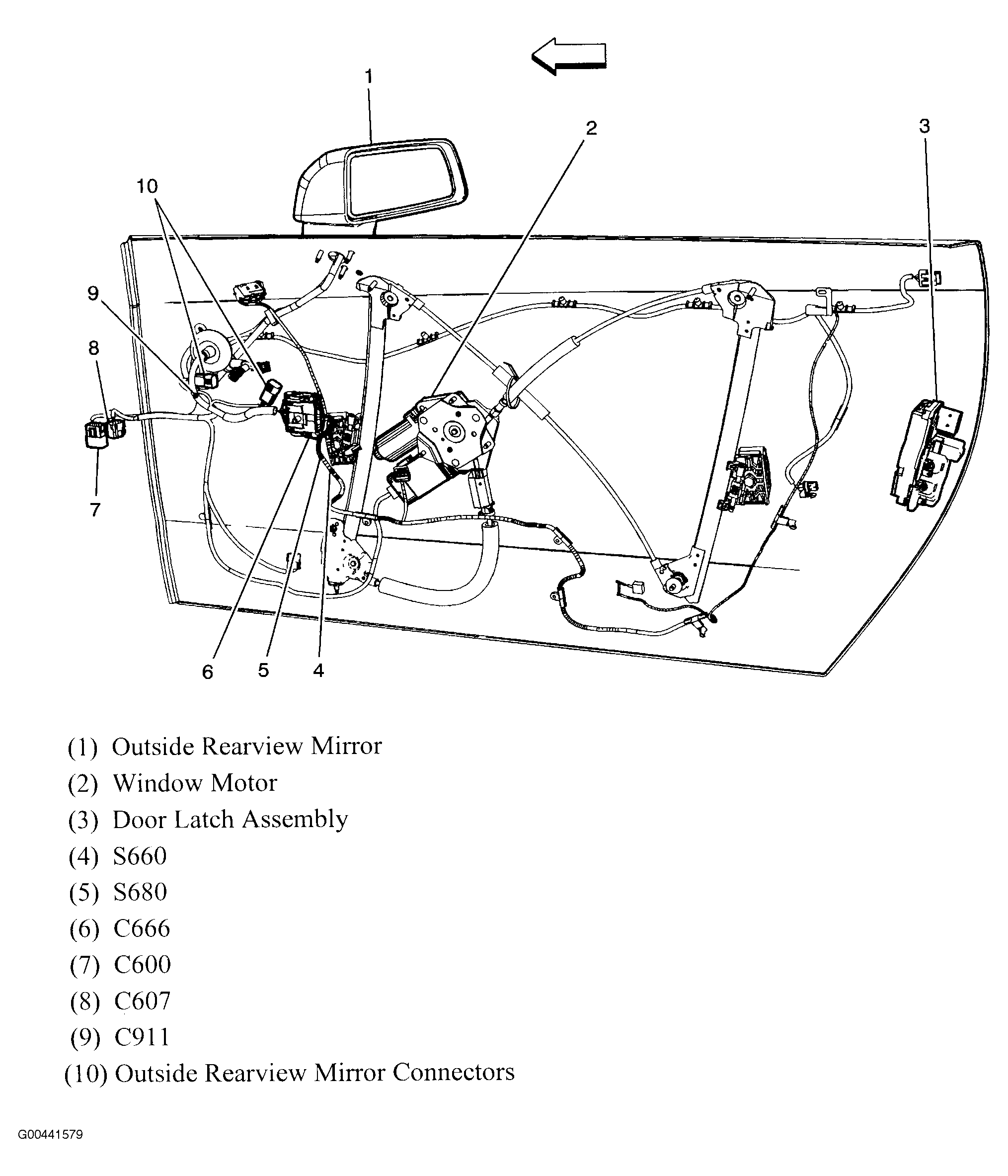

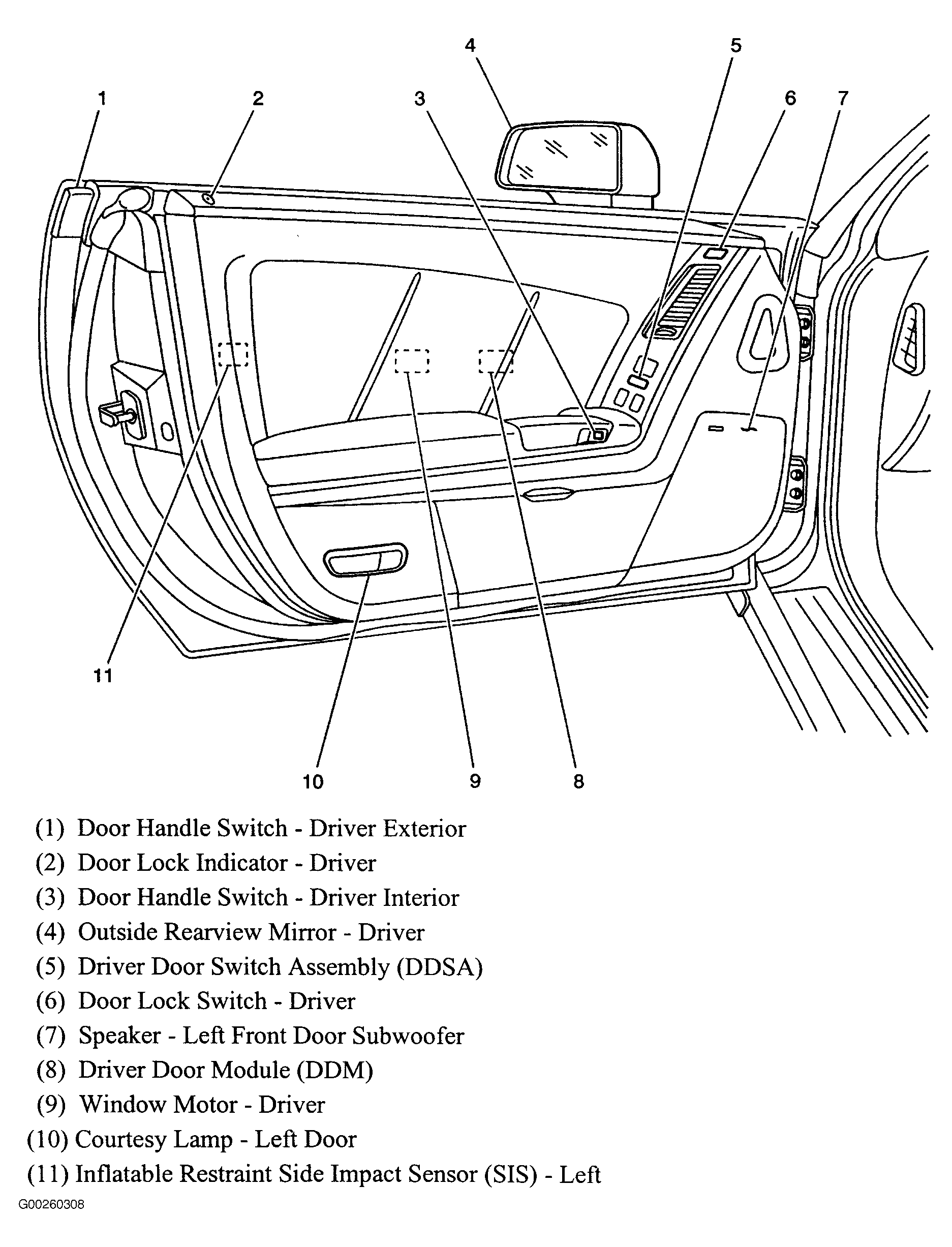

Fig 6: Driver's Door
Courtesy of GENERAL MOTORS CORP.

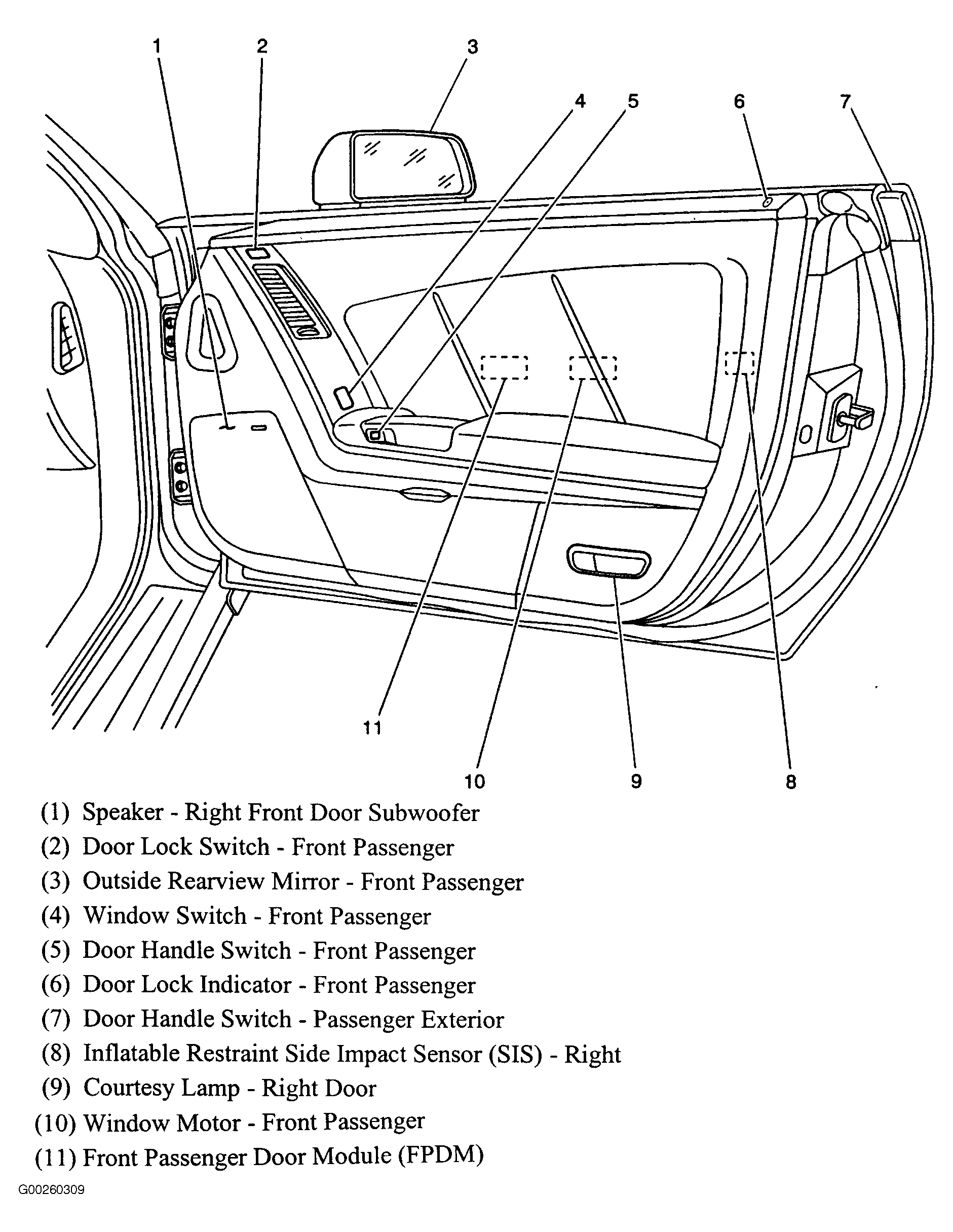

Fig 7: Passenger's Door
Courtesy of GENERAL MOTORS CORP.

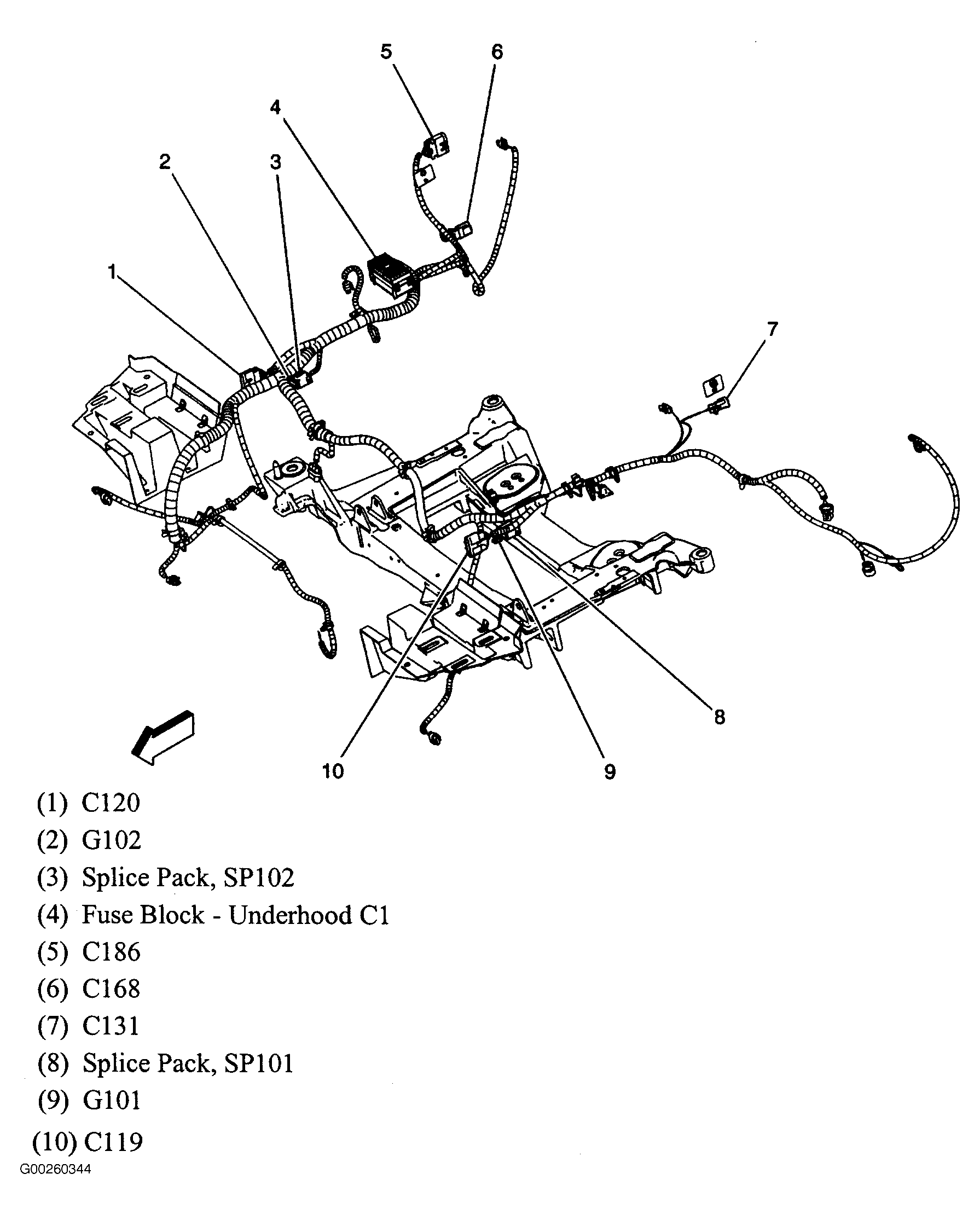

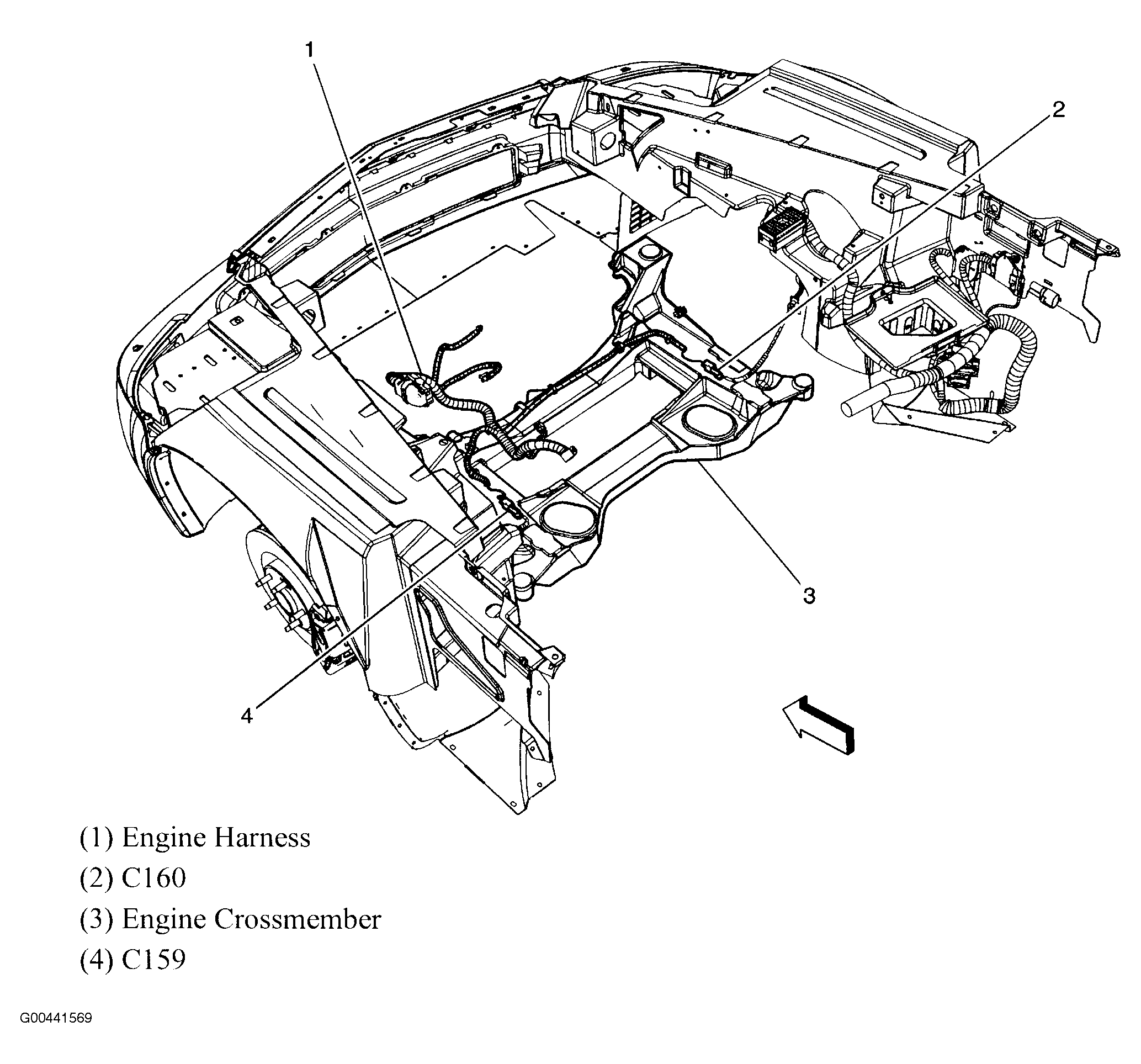

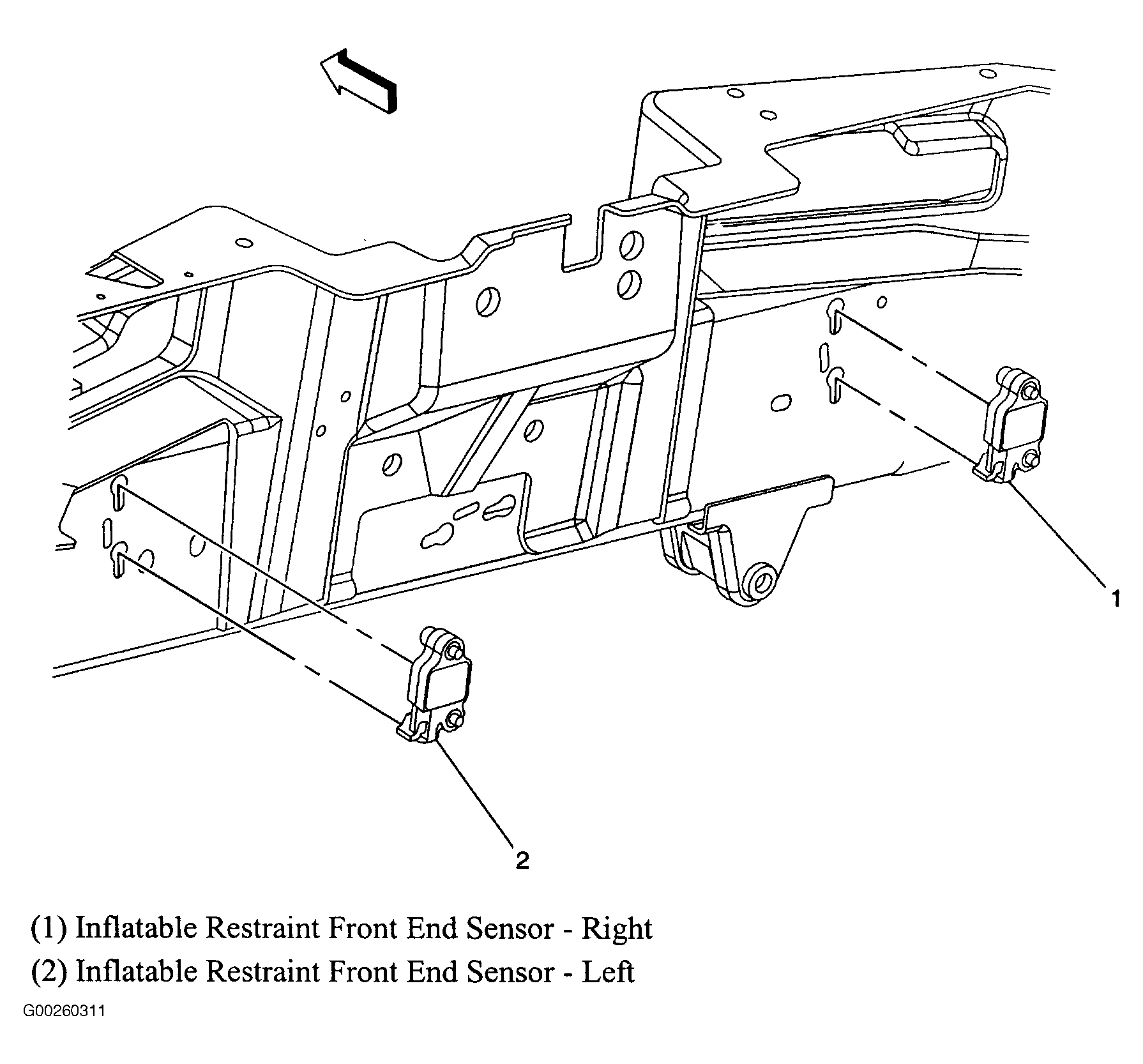

Fig 8: Front Of Vehicle Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 9: Lower Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 10: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

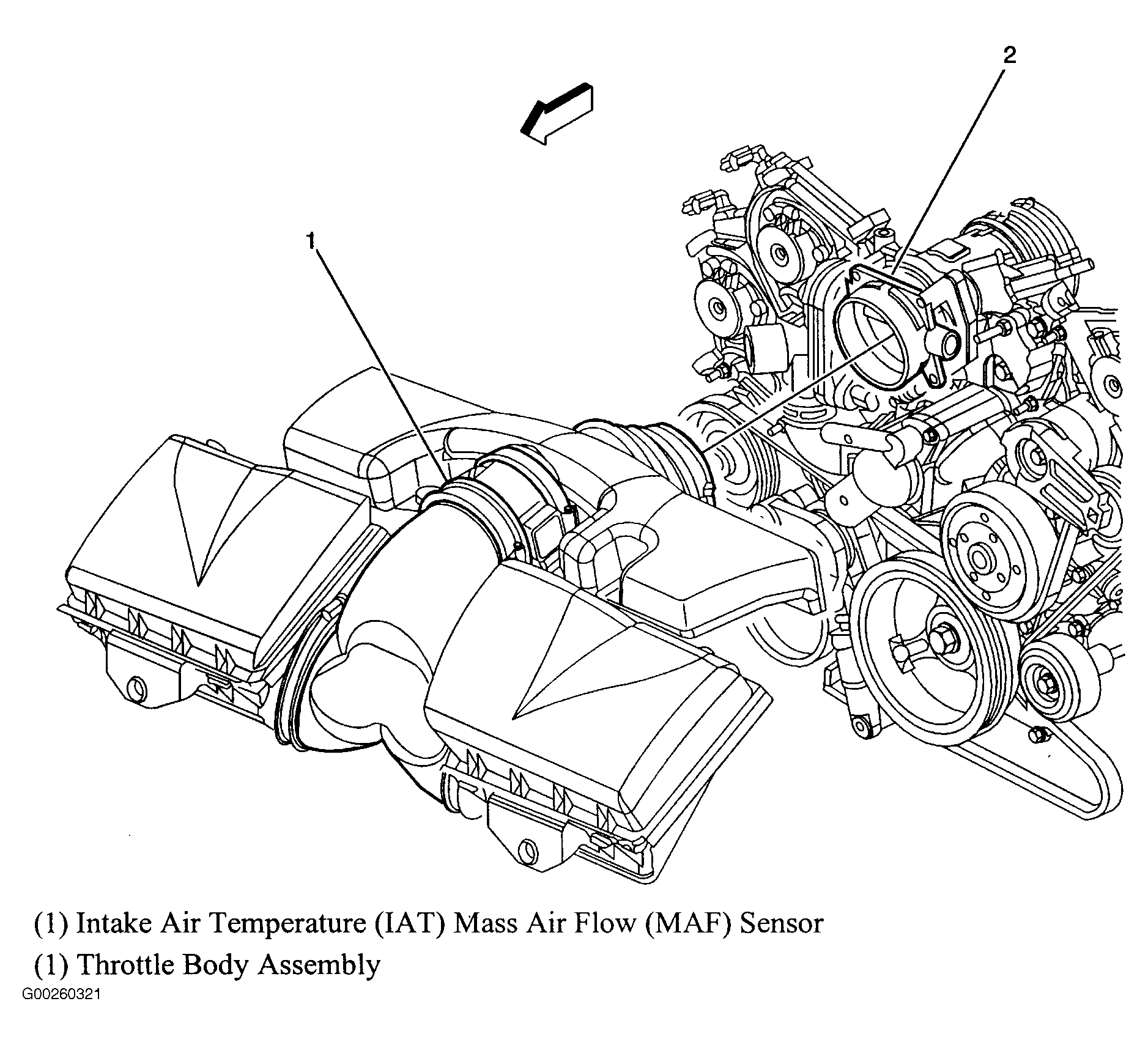

Fig 11: Top Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Exhaust (4.6L)
Courtesy of GENERAL MOTORS CORP.

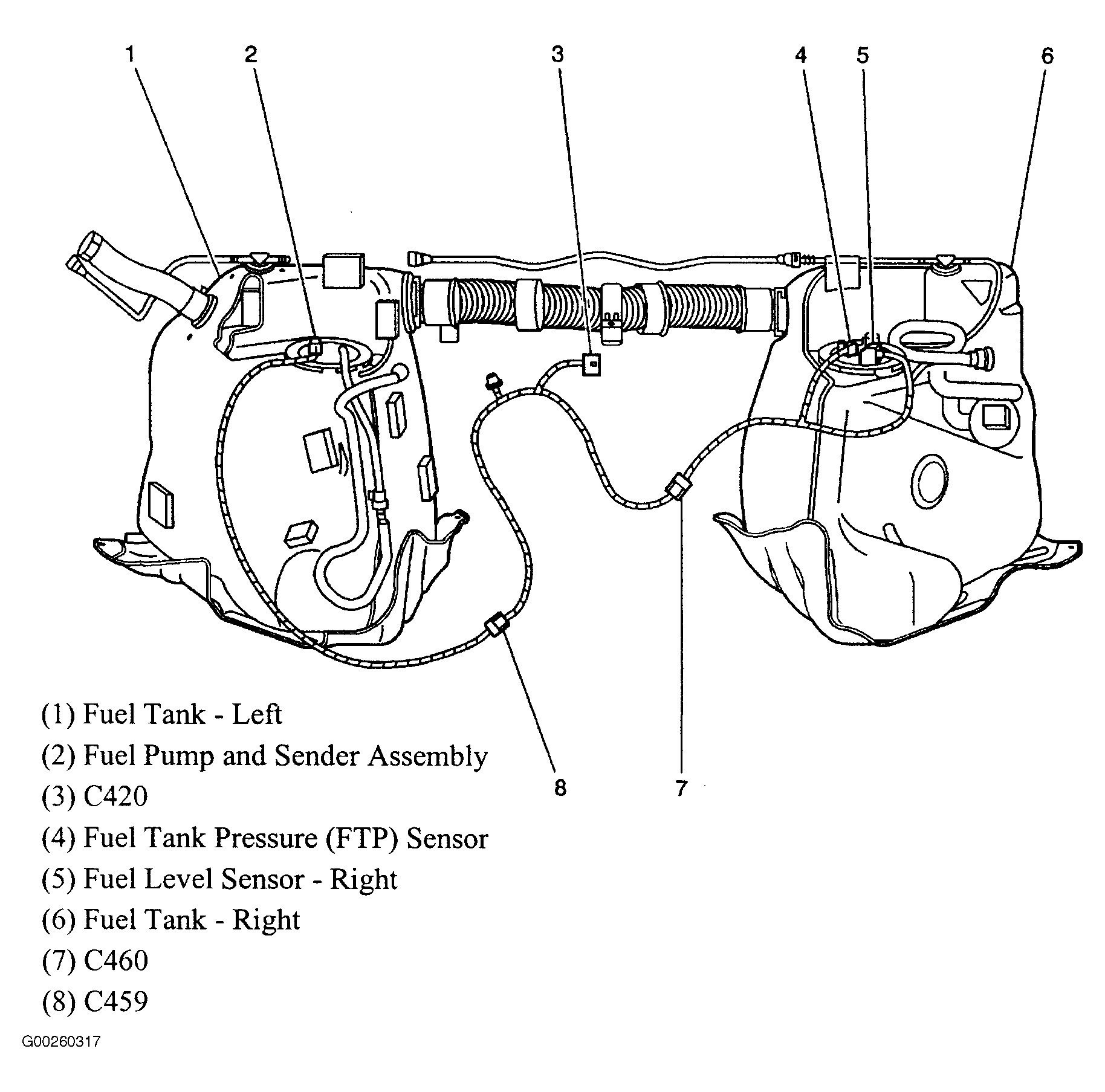

Fig 13: Fuel Tanks
Courtesy of GENERAL MOTORS CORP.

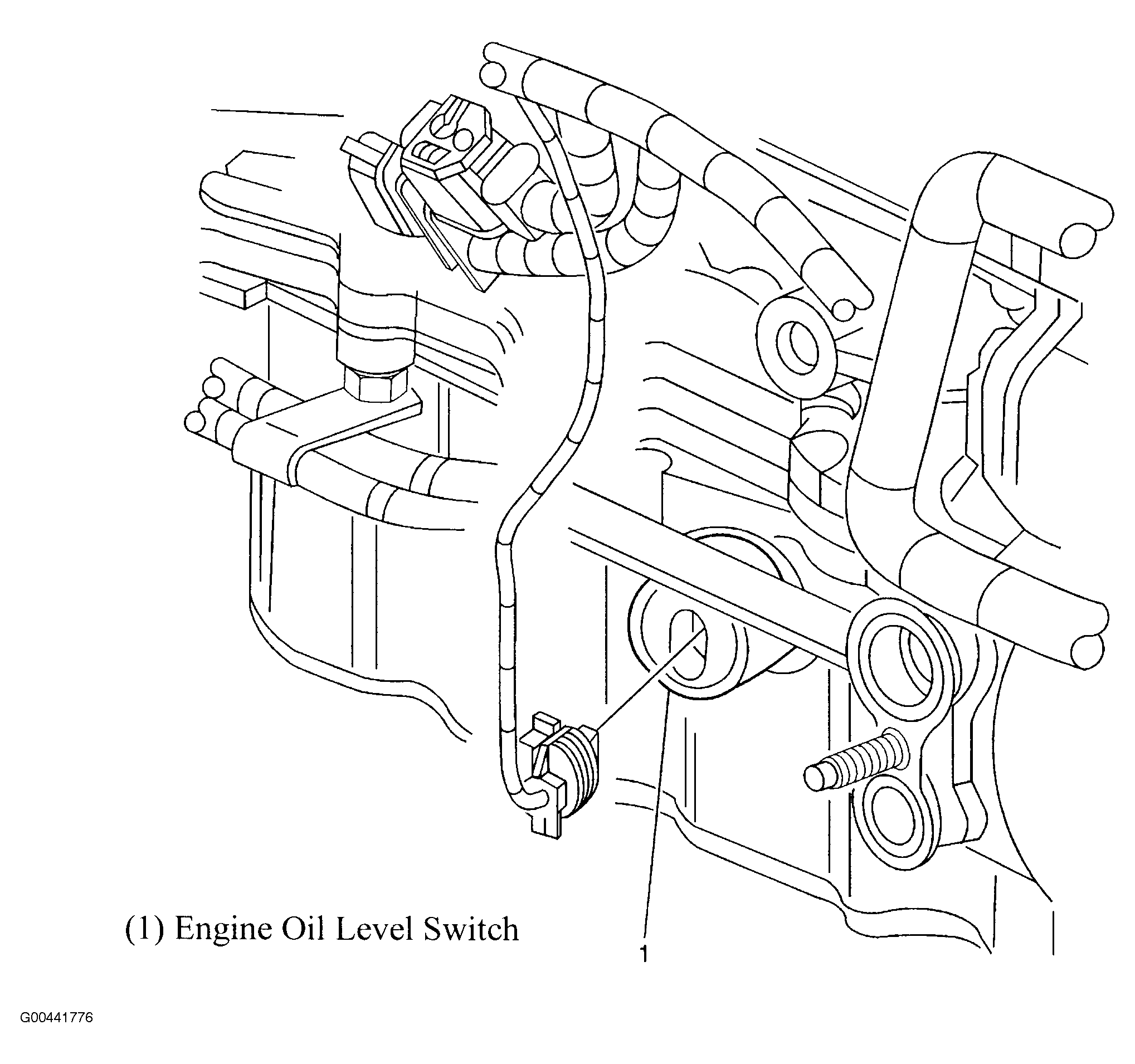

Fig 14: Lower Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

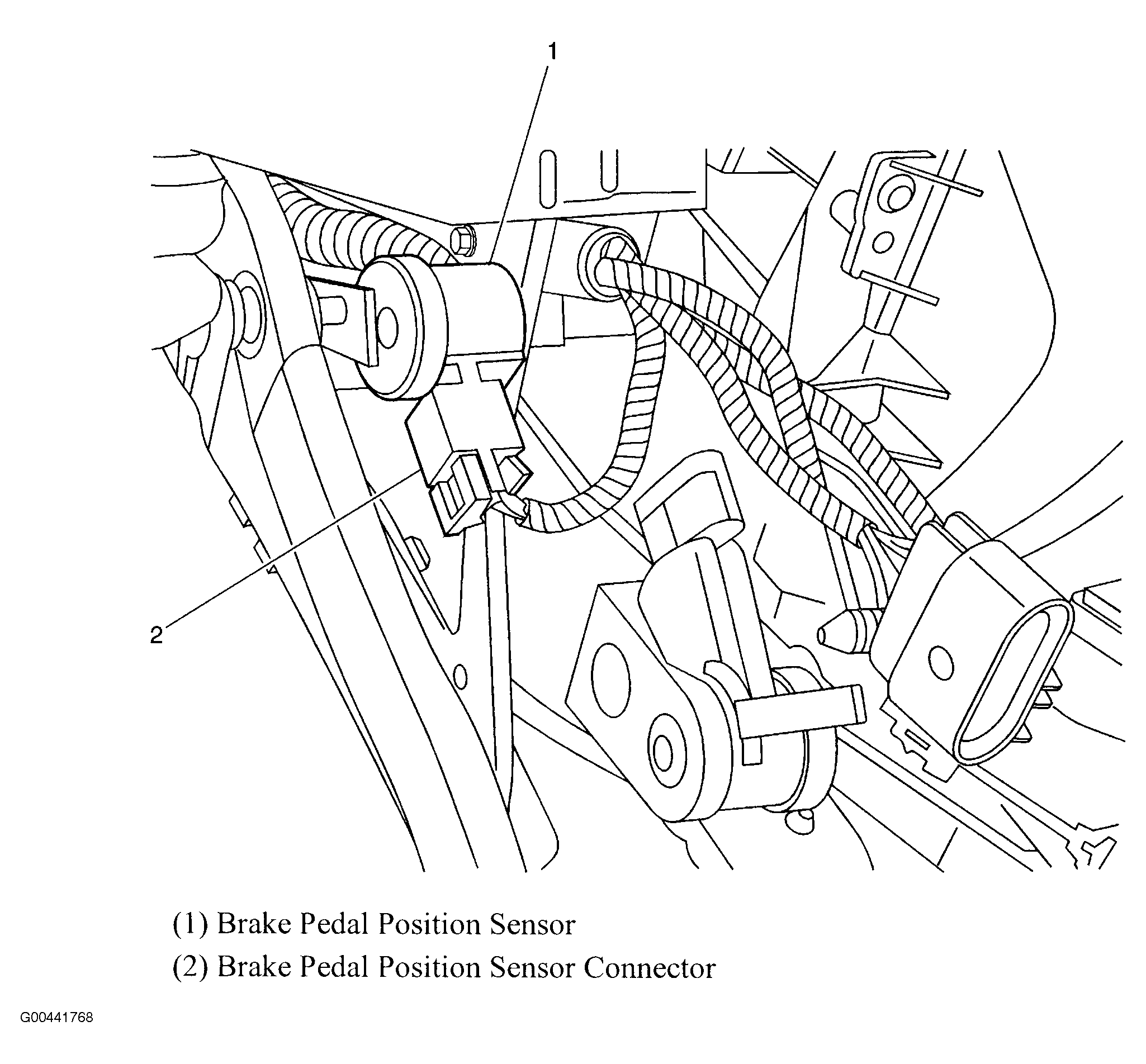

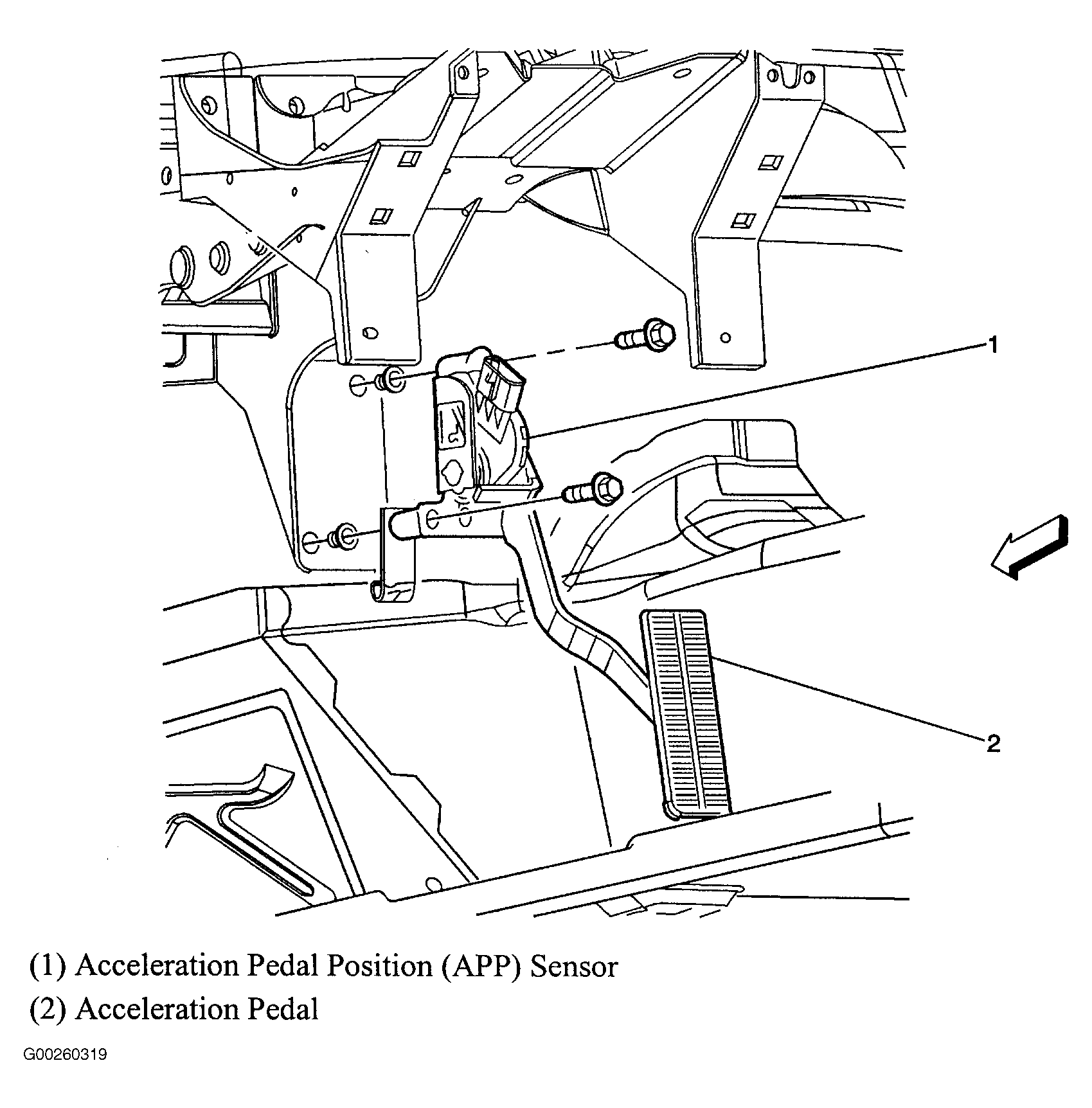

Fig 15: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

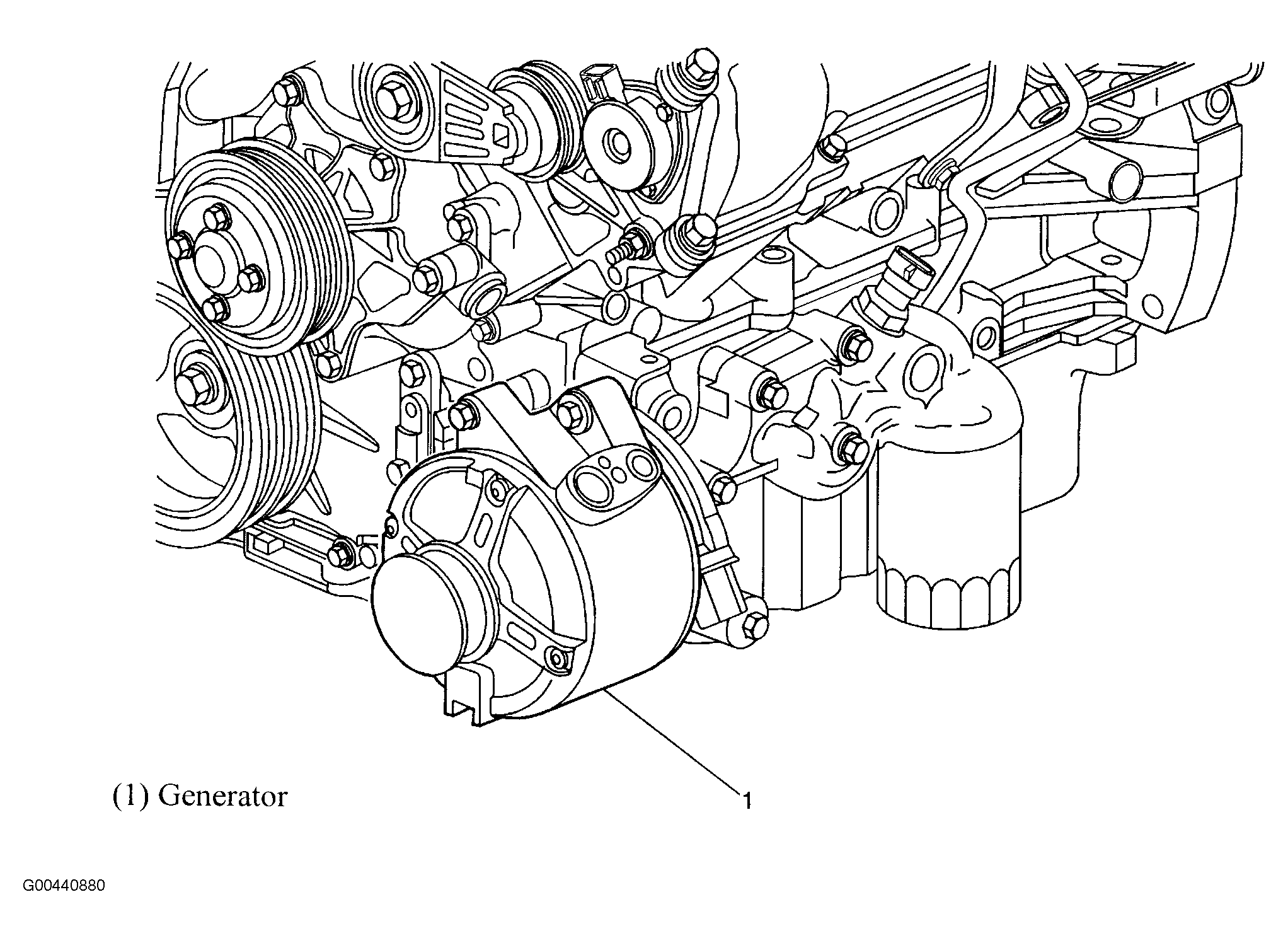

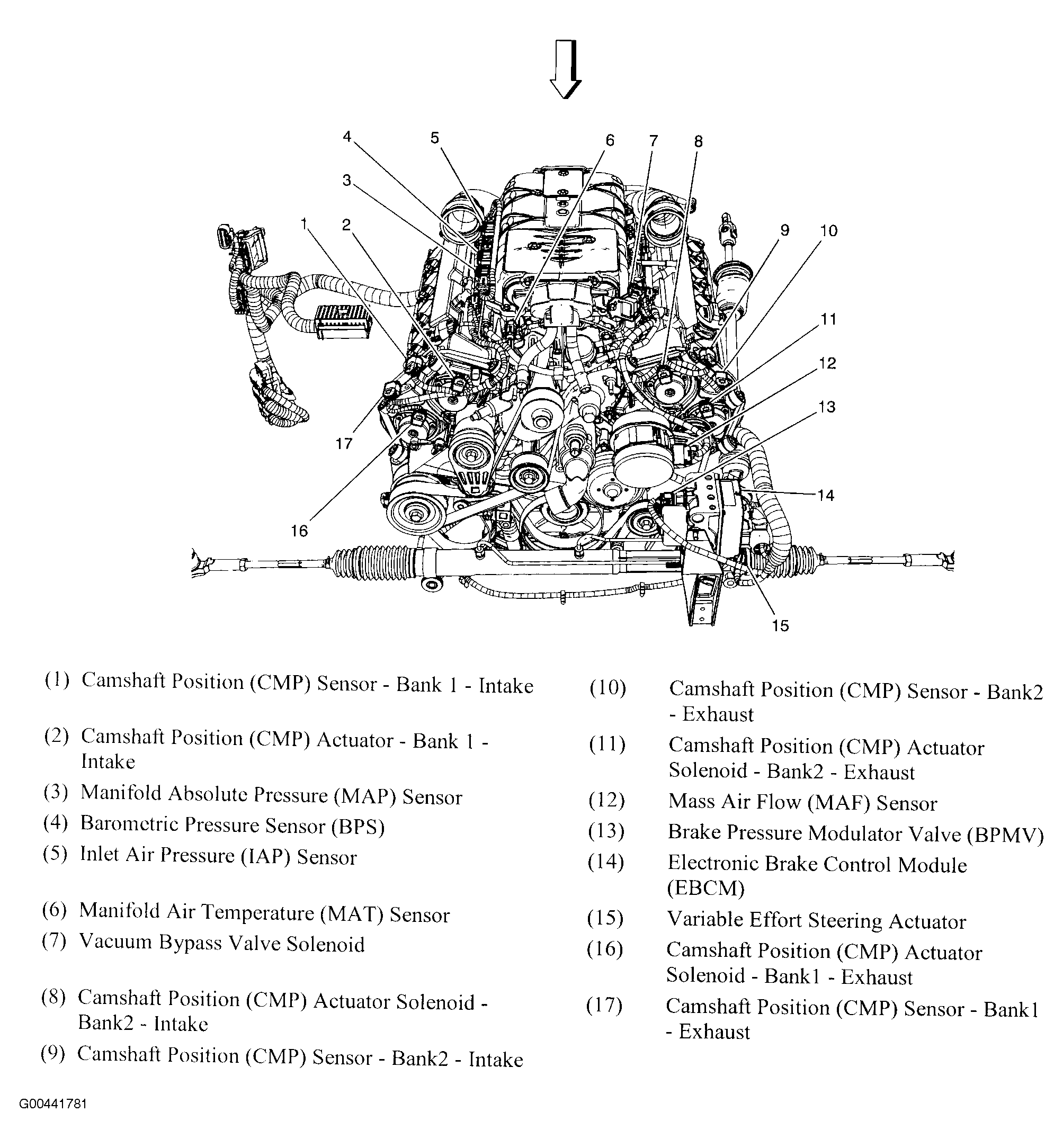

Fig 16: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

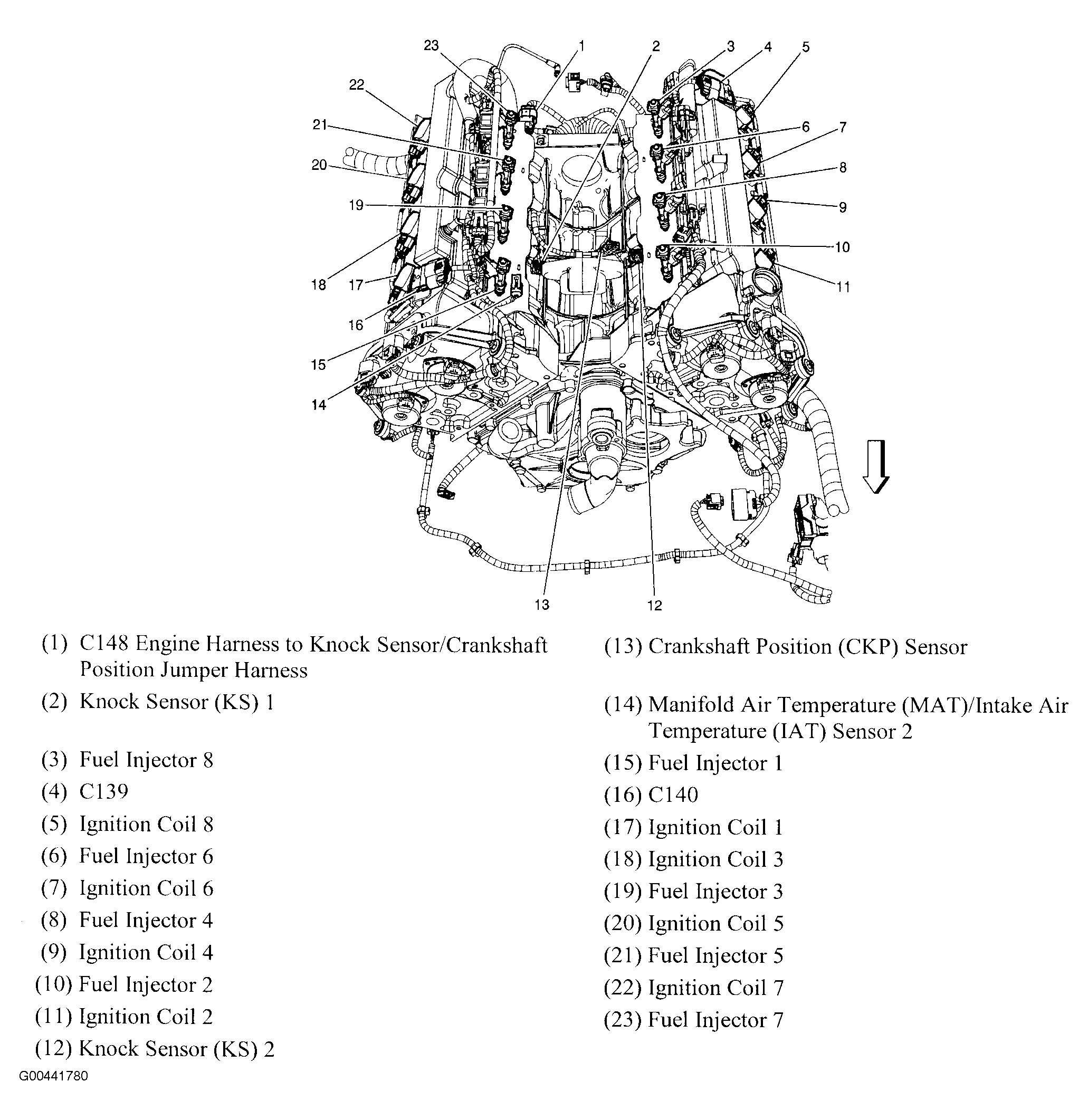

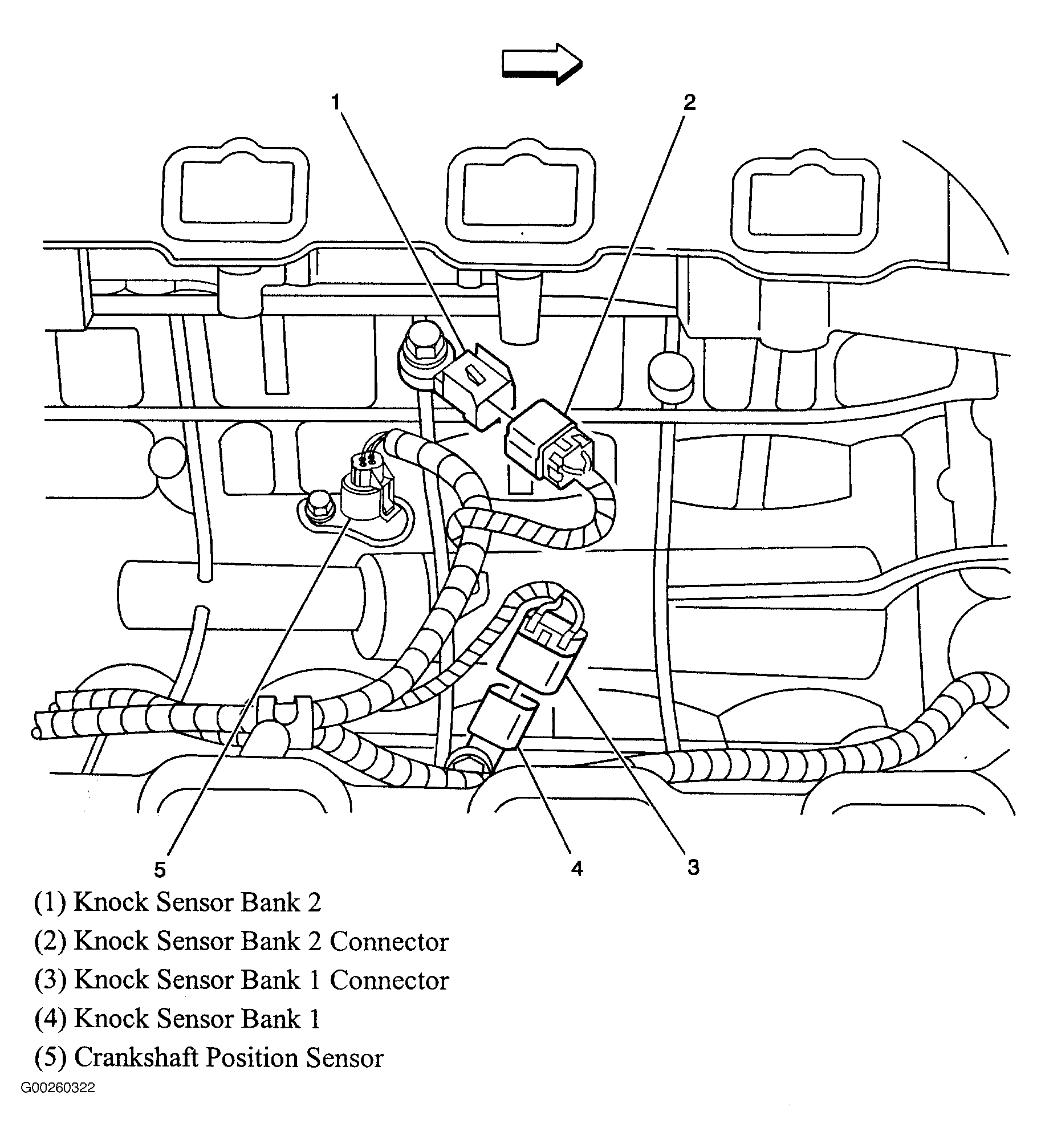

Fig 17: Upper Center Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

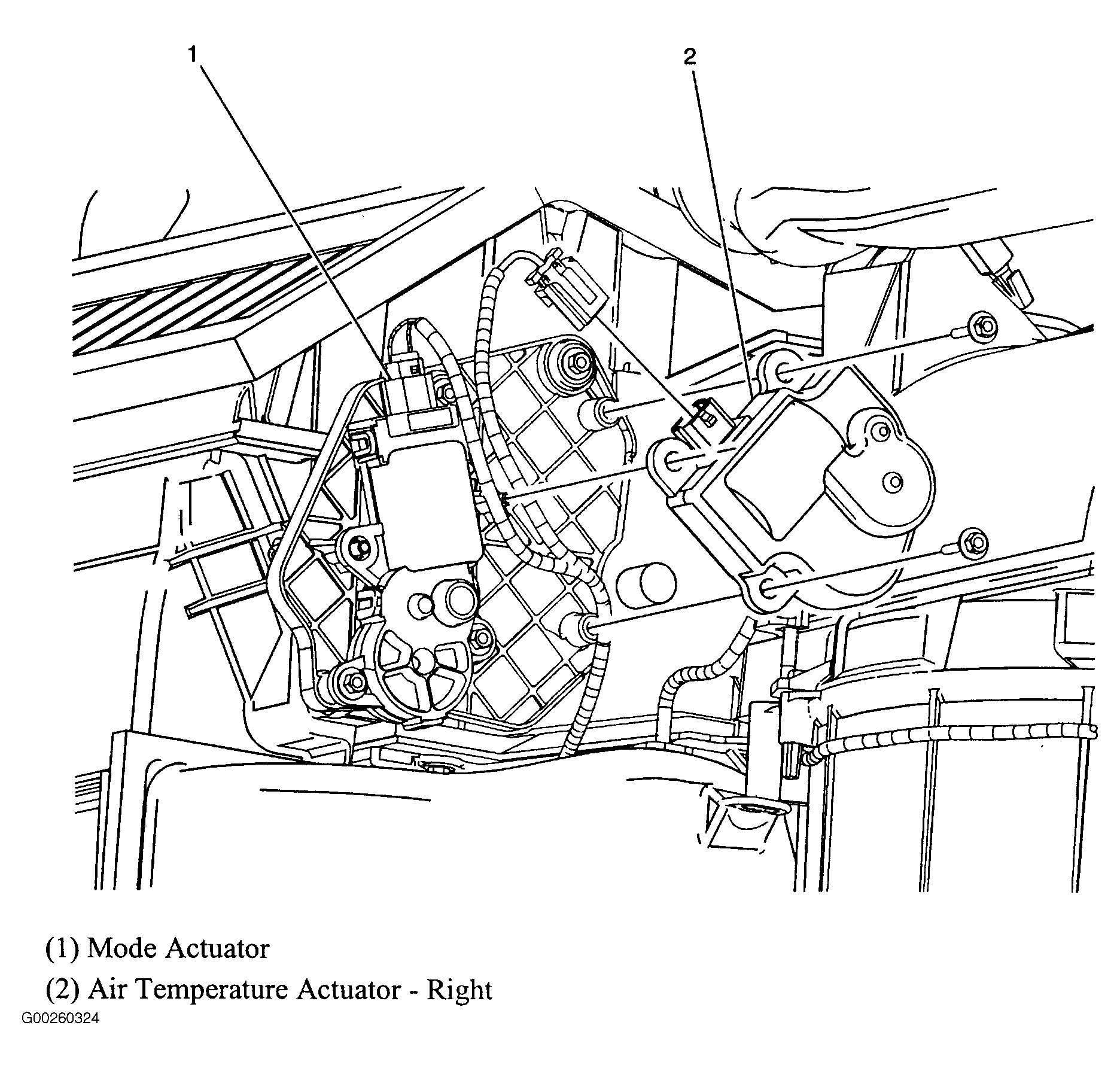

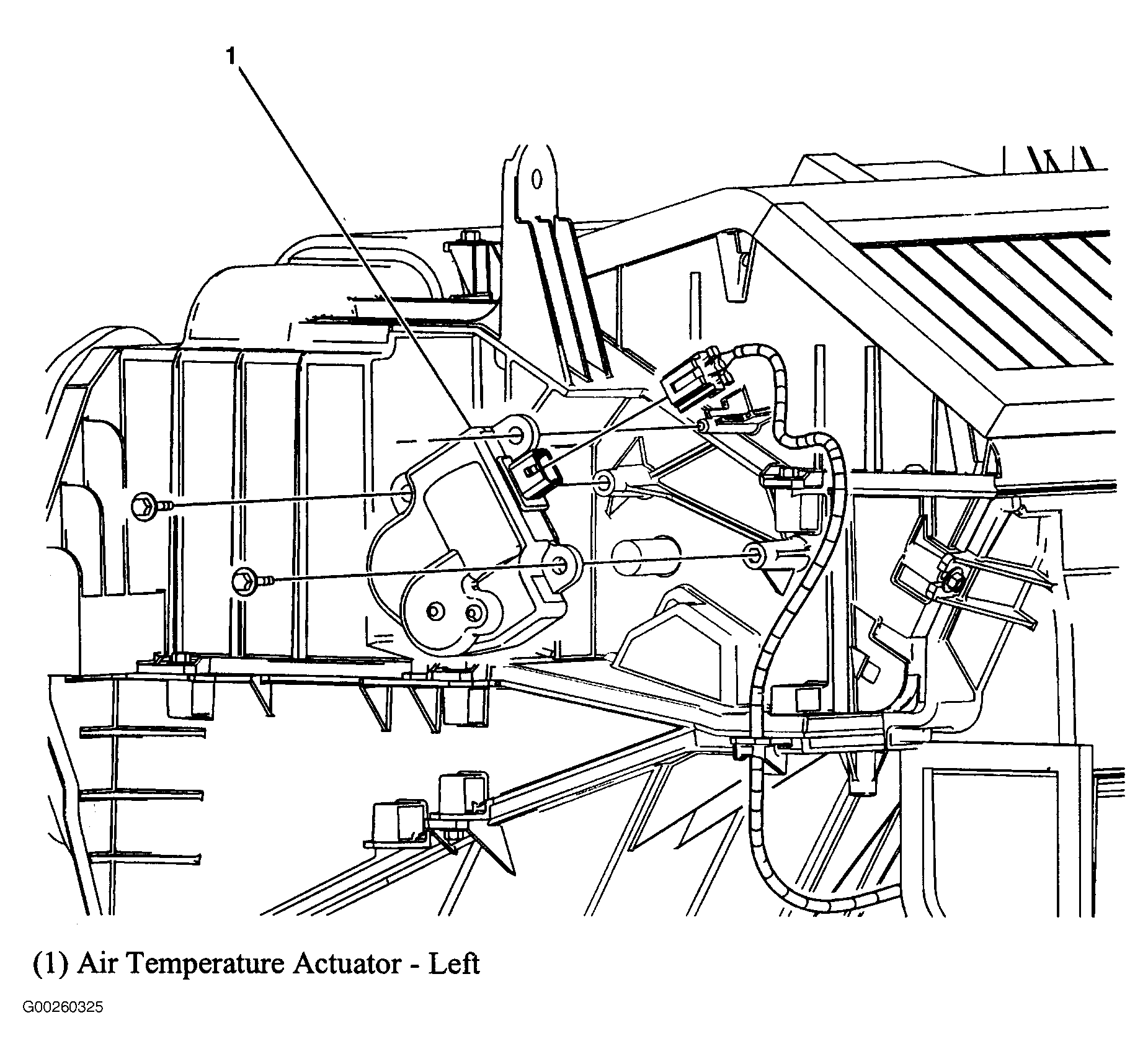

Fig 19: Left Side Of HVAC Module
Courtesy of GENERAL MOTORS CORP.

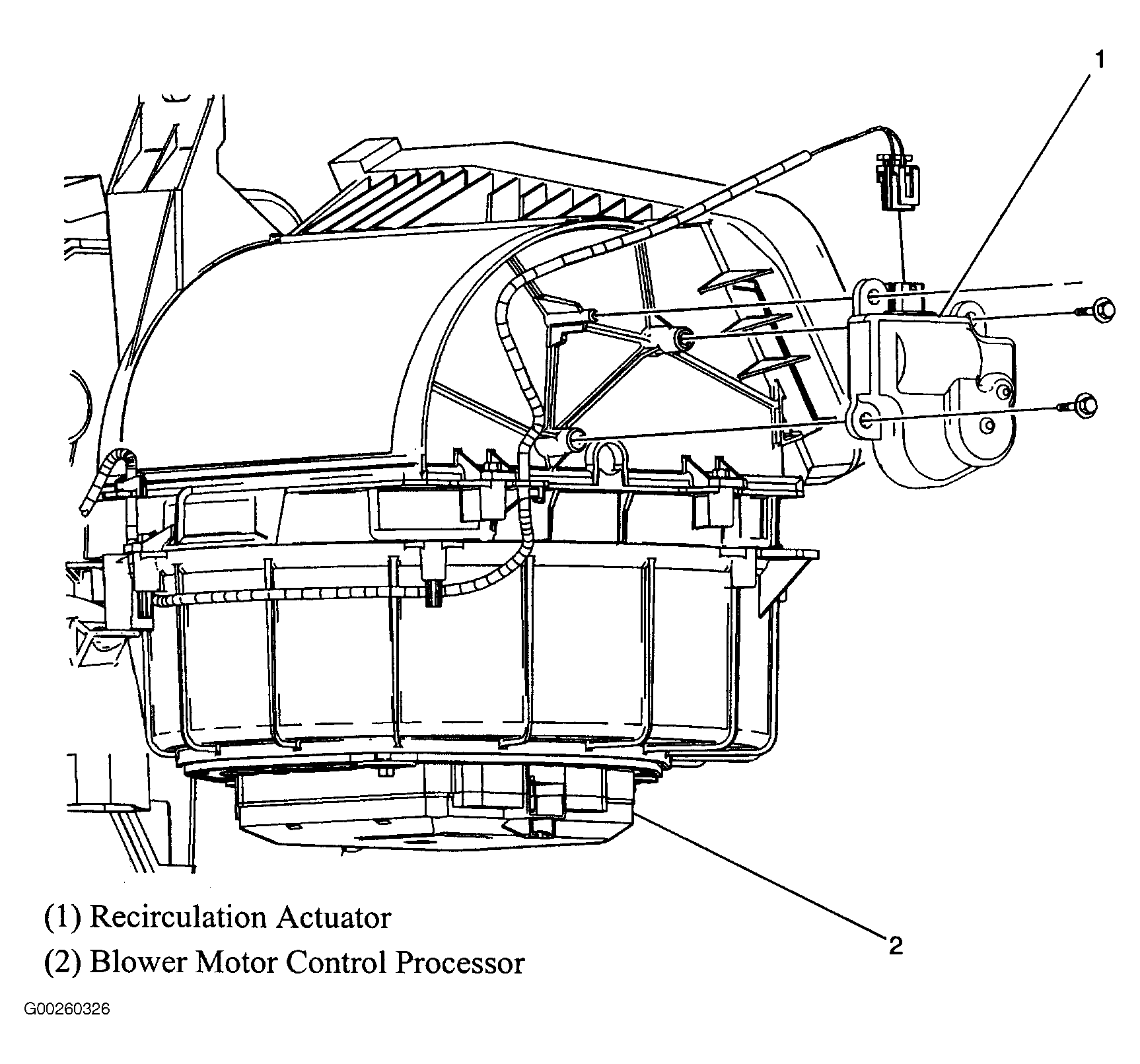

Fig 20: Right Side Of Blower Motor
Courtesy of GENERAL MOTORS CORP.

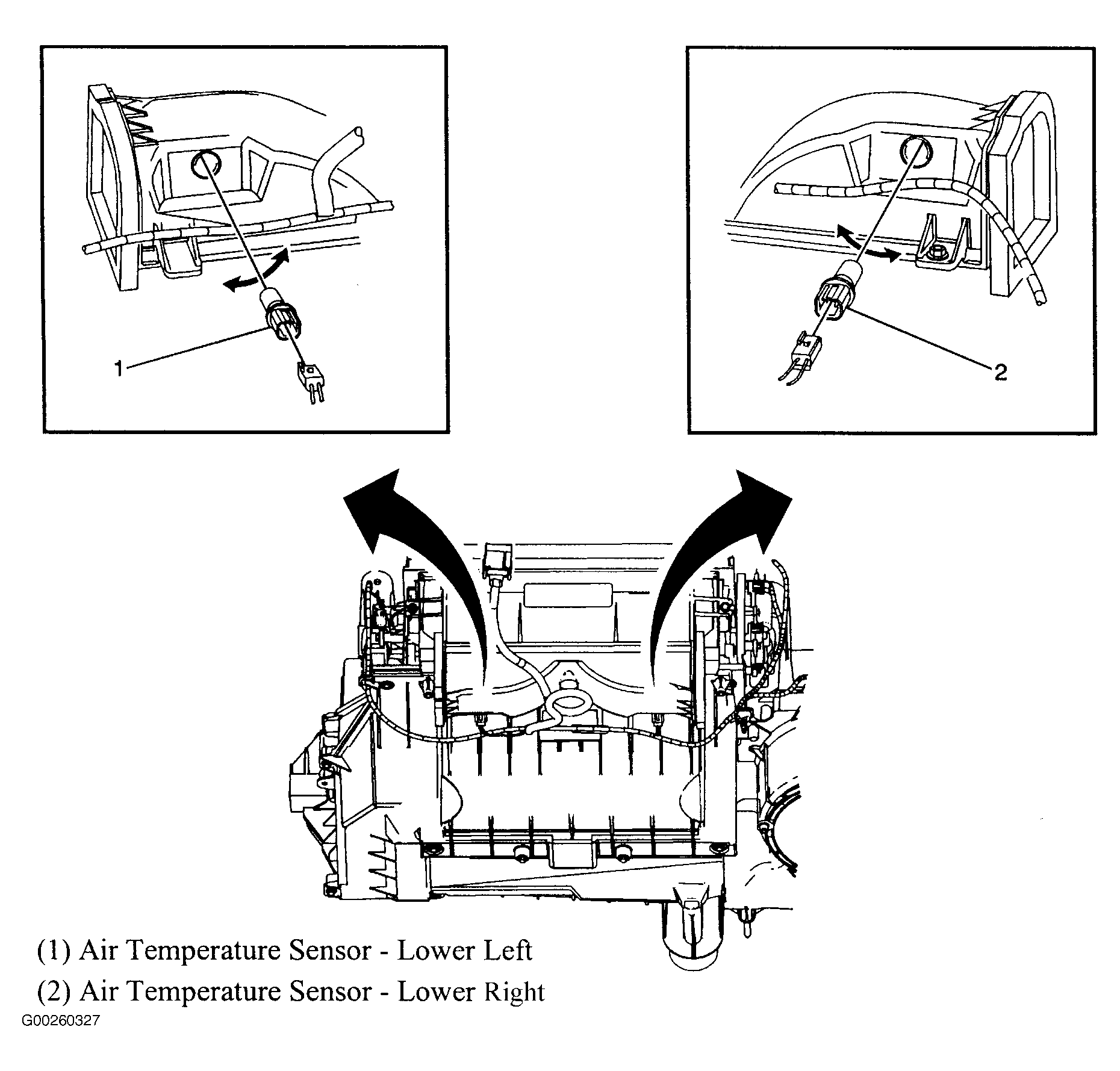

Fig 21: Center Of HVAC Assembly
Courtesy of GENERAL MOTORS CORP.

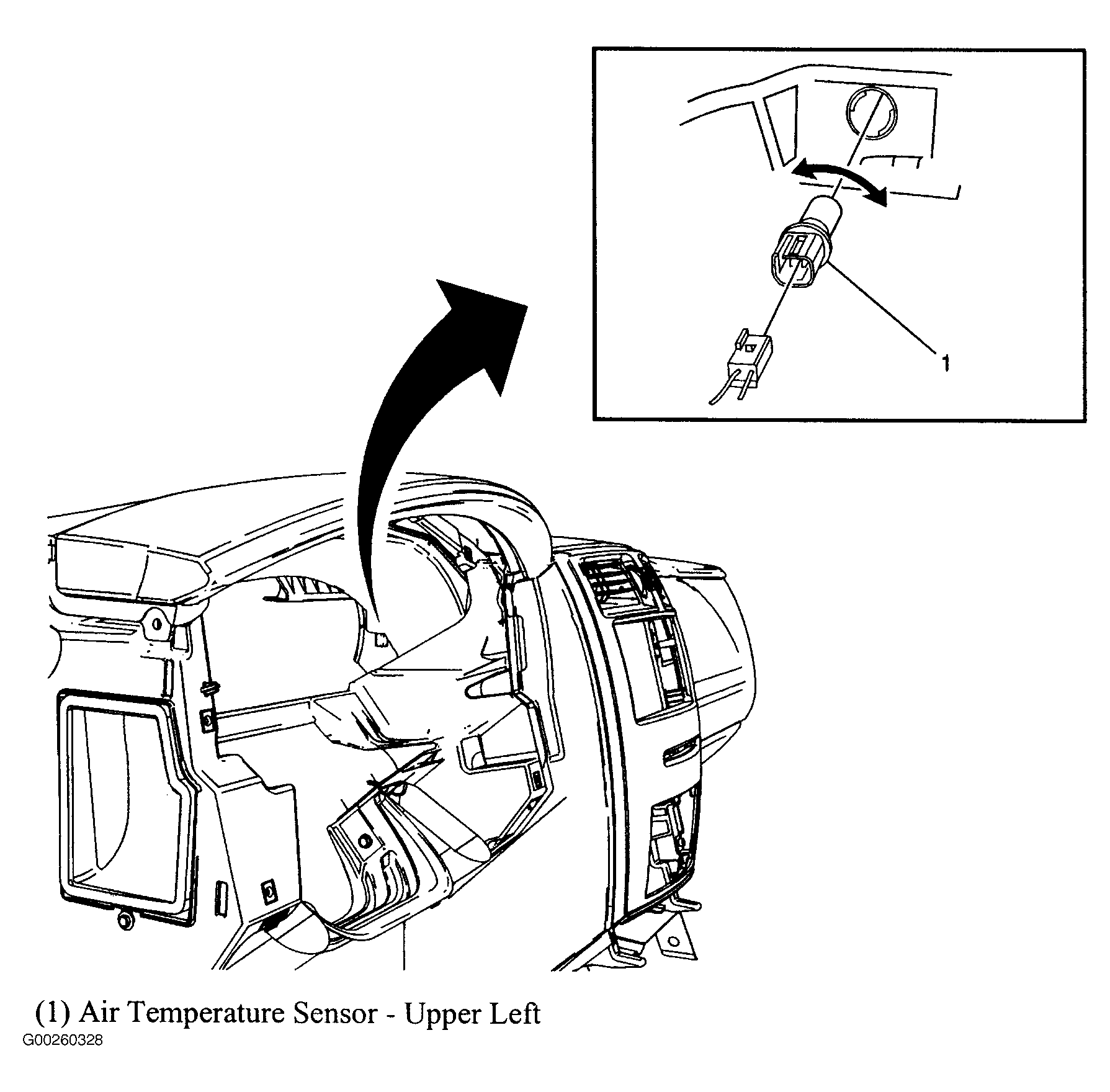

Fig 22: Left Center Of Dash
Courtesy of GENERAL MOTORS CORP.

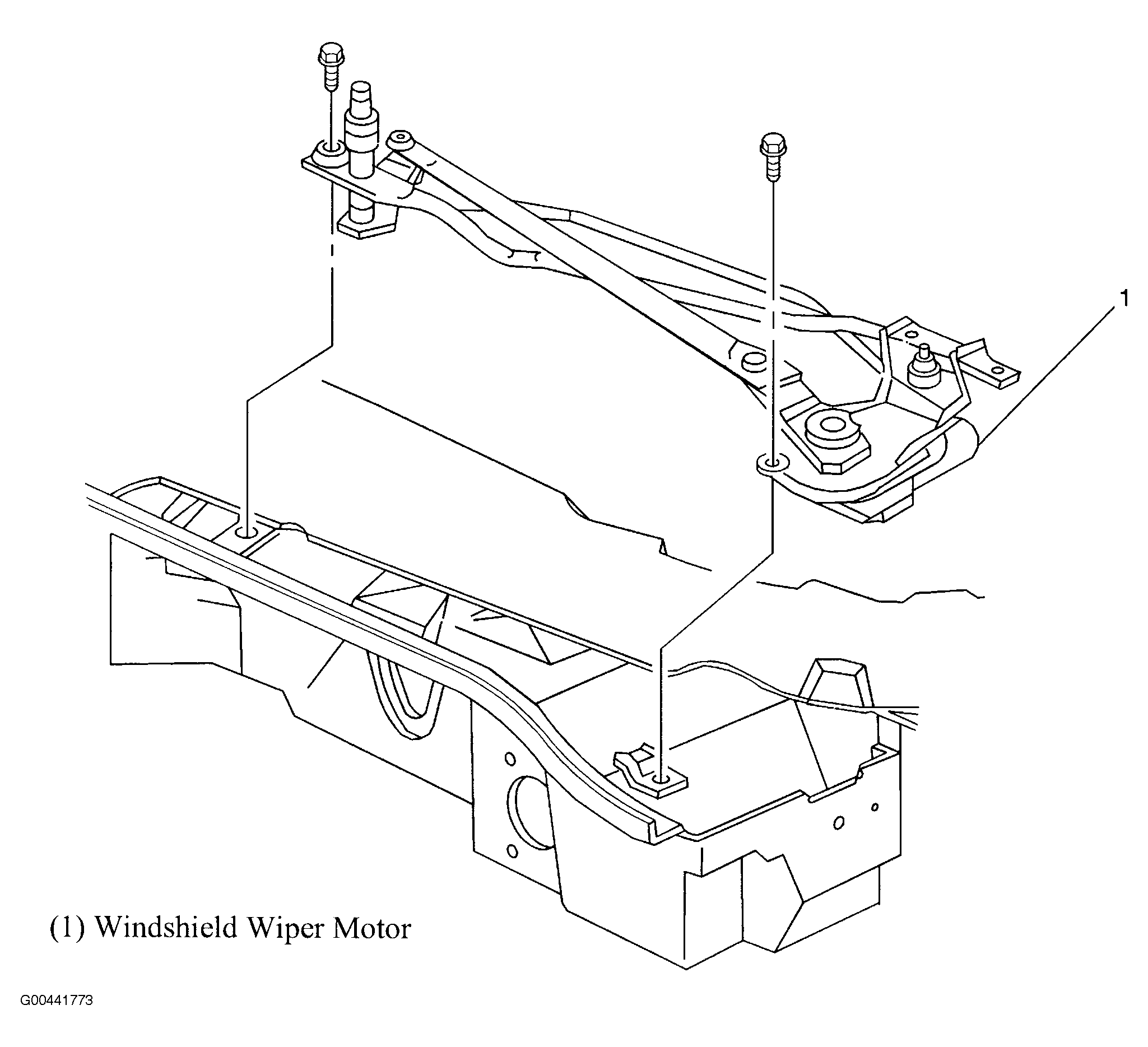

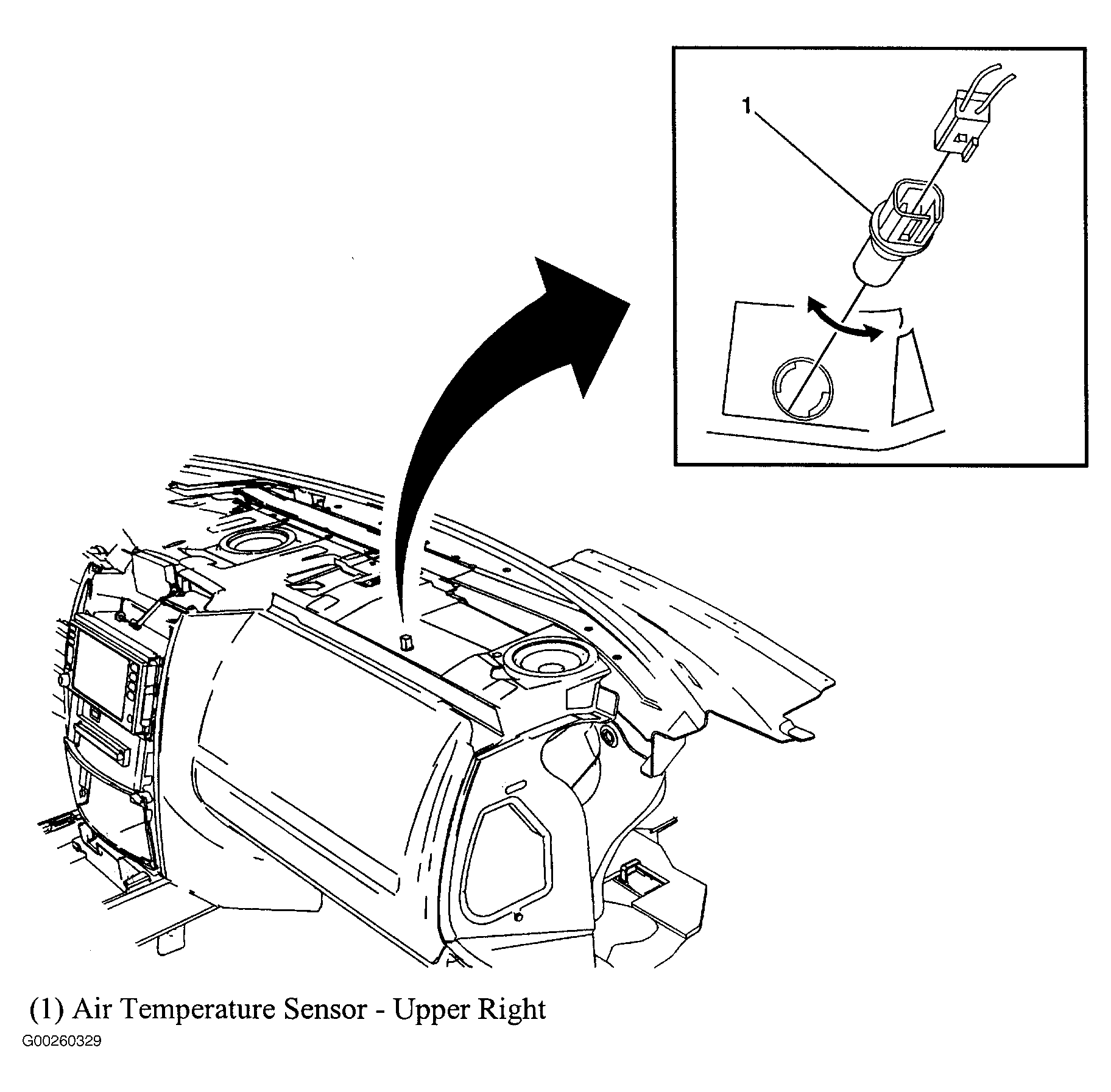

Fig 23: Upper Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 24: Upper Center Of Dash
Courtesy of GENERAL MOTORS CORP.

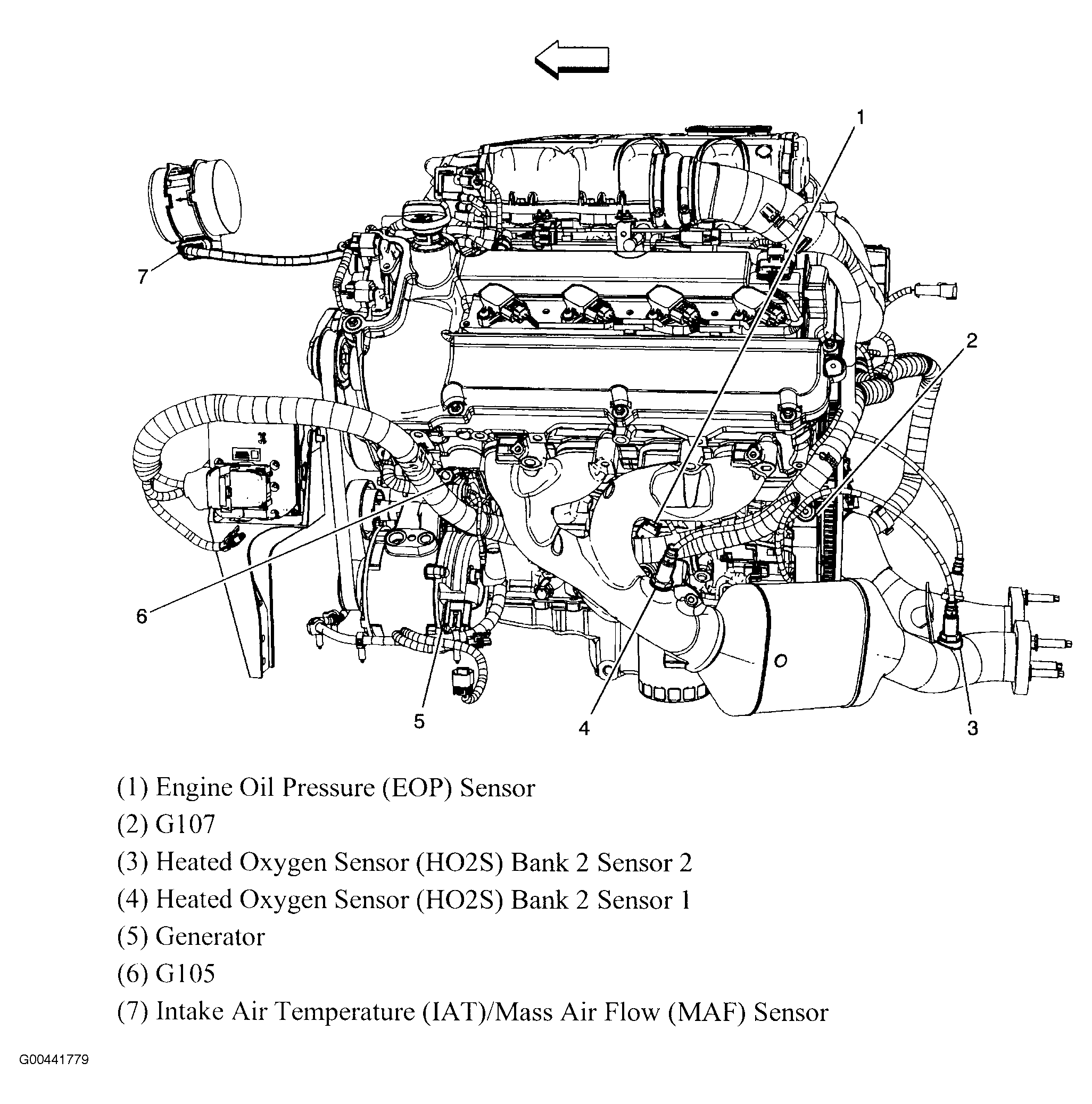

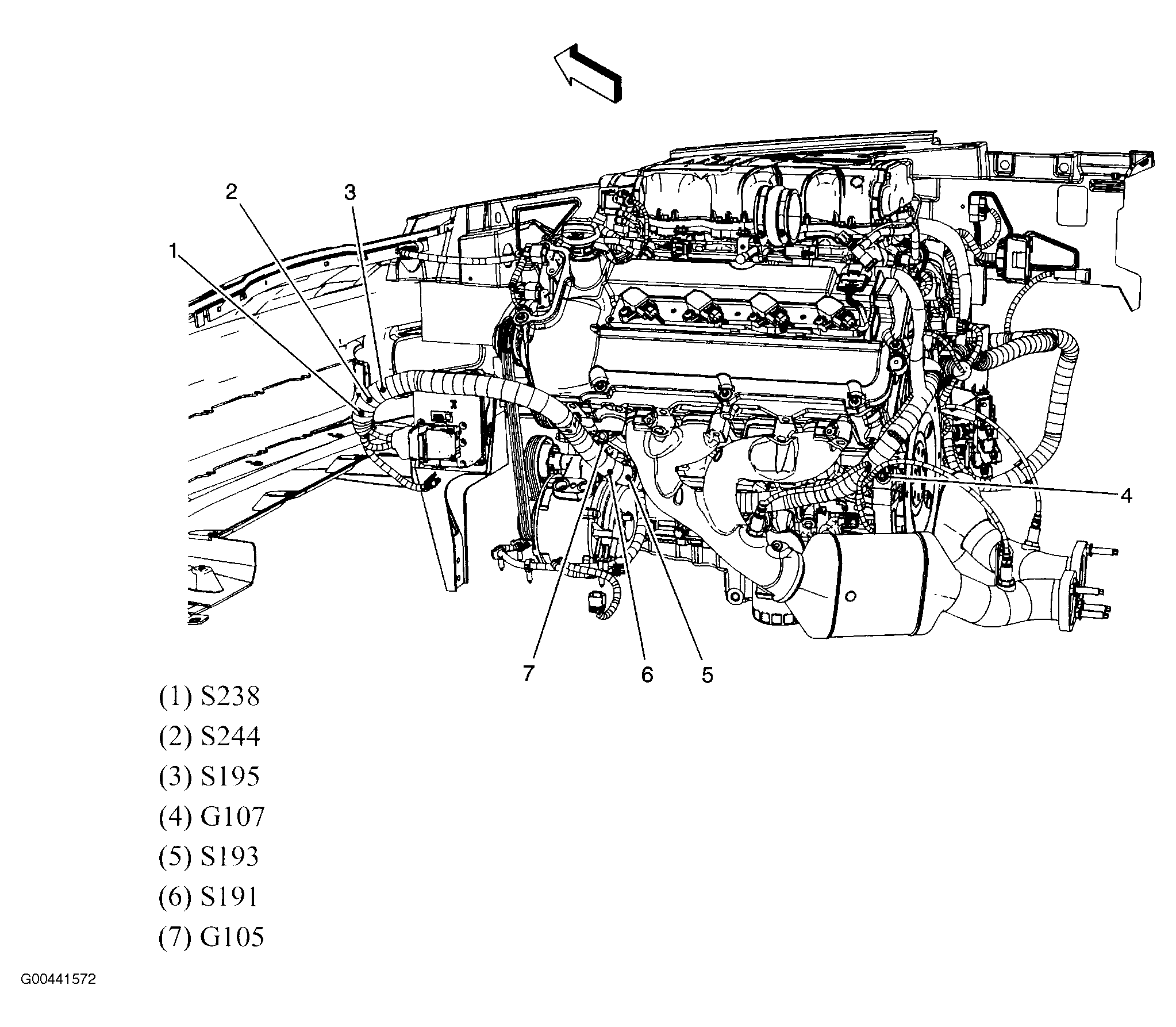

Fig 25: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 26: Lower Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

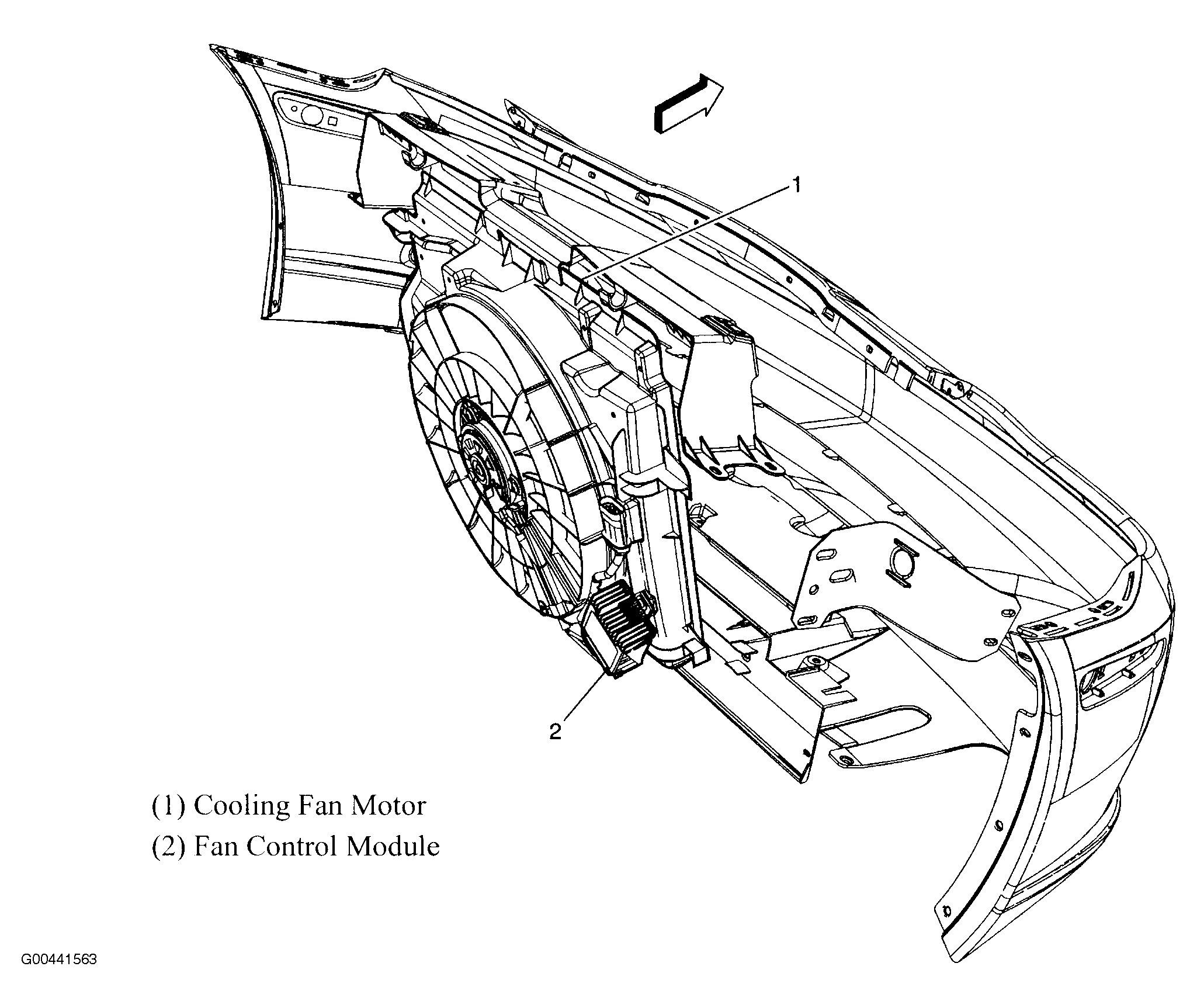

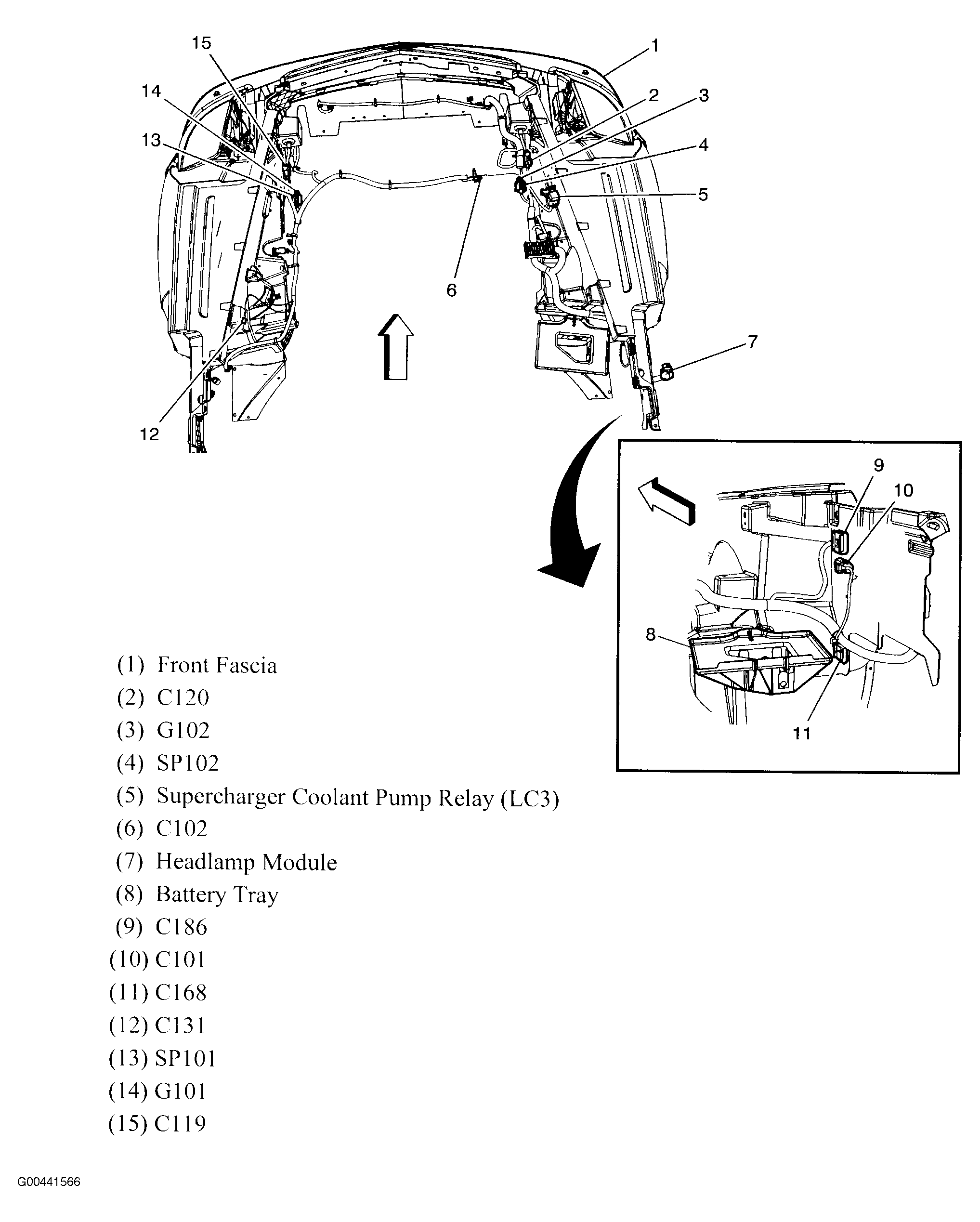

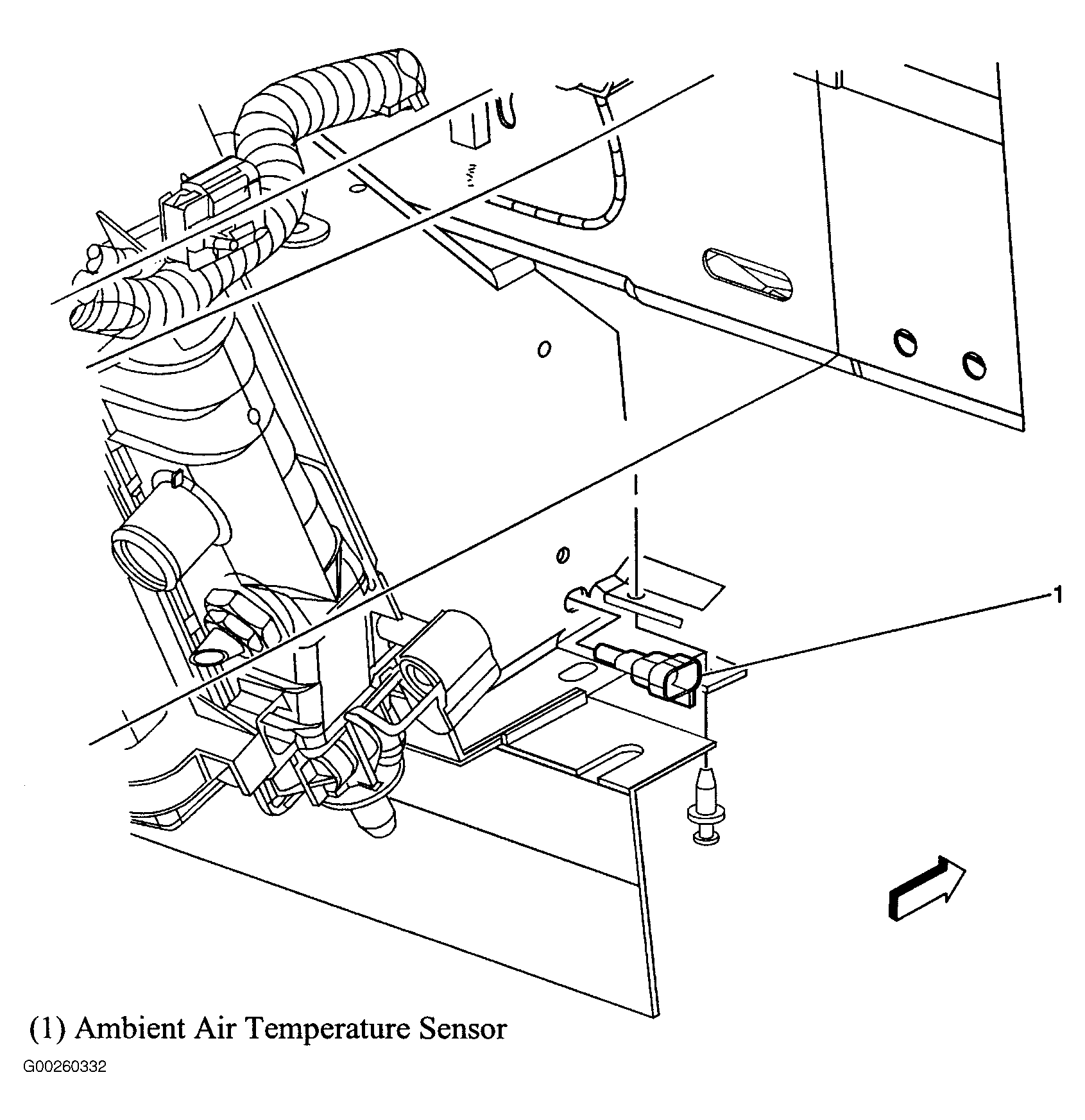

Fig 27: Lower Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

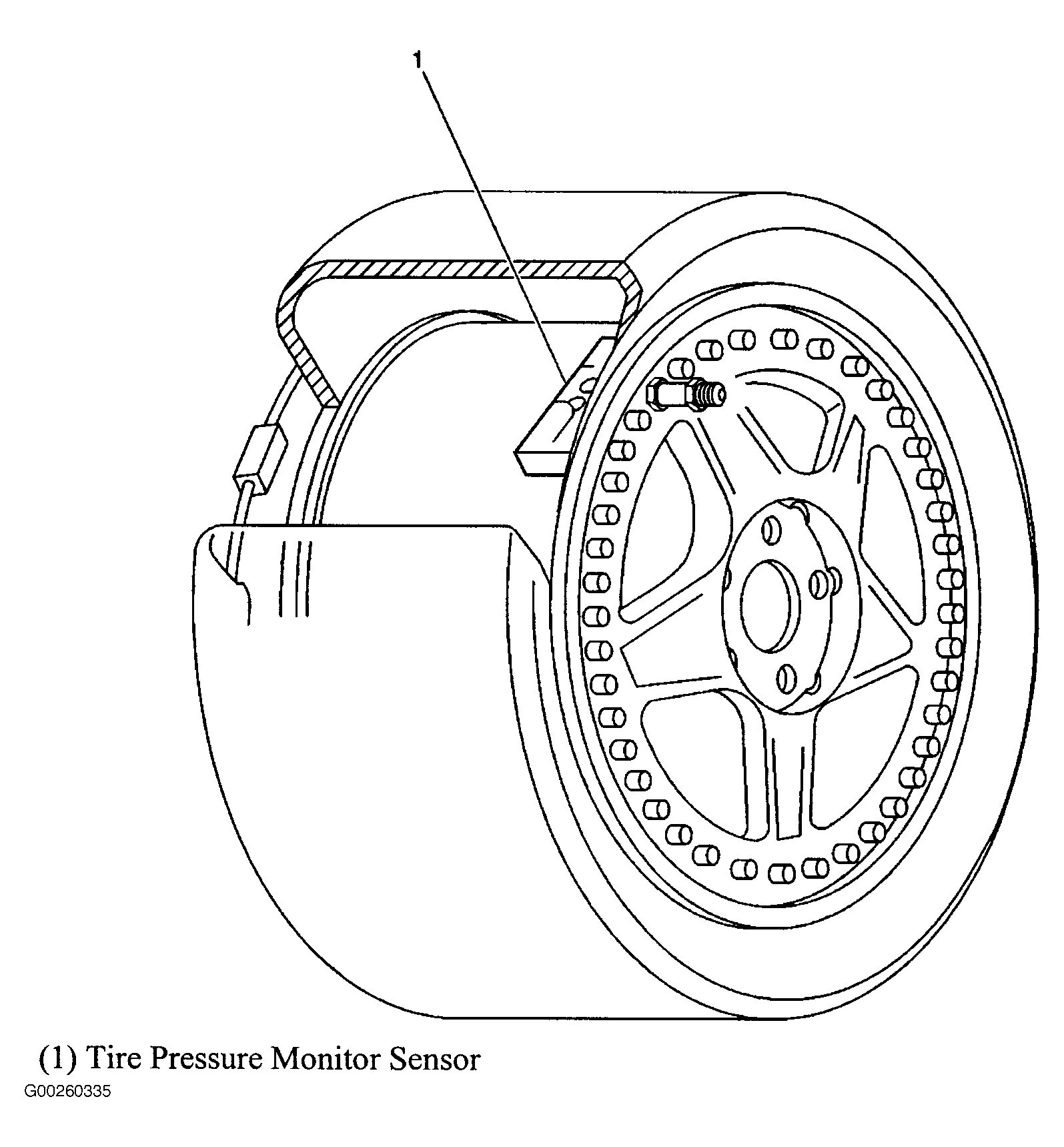

Fig 28: Tire Pressure Monitor Sensor
Courtesy of GENERAL MOTORS CORP.

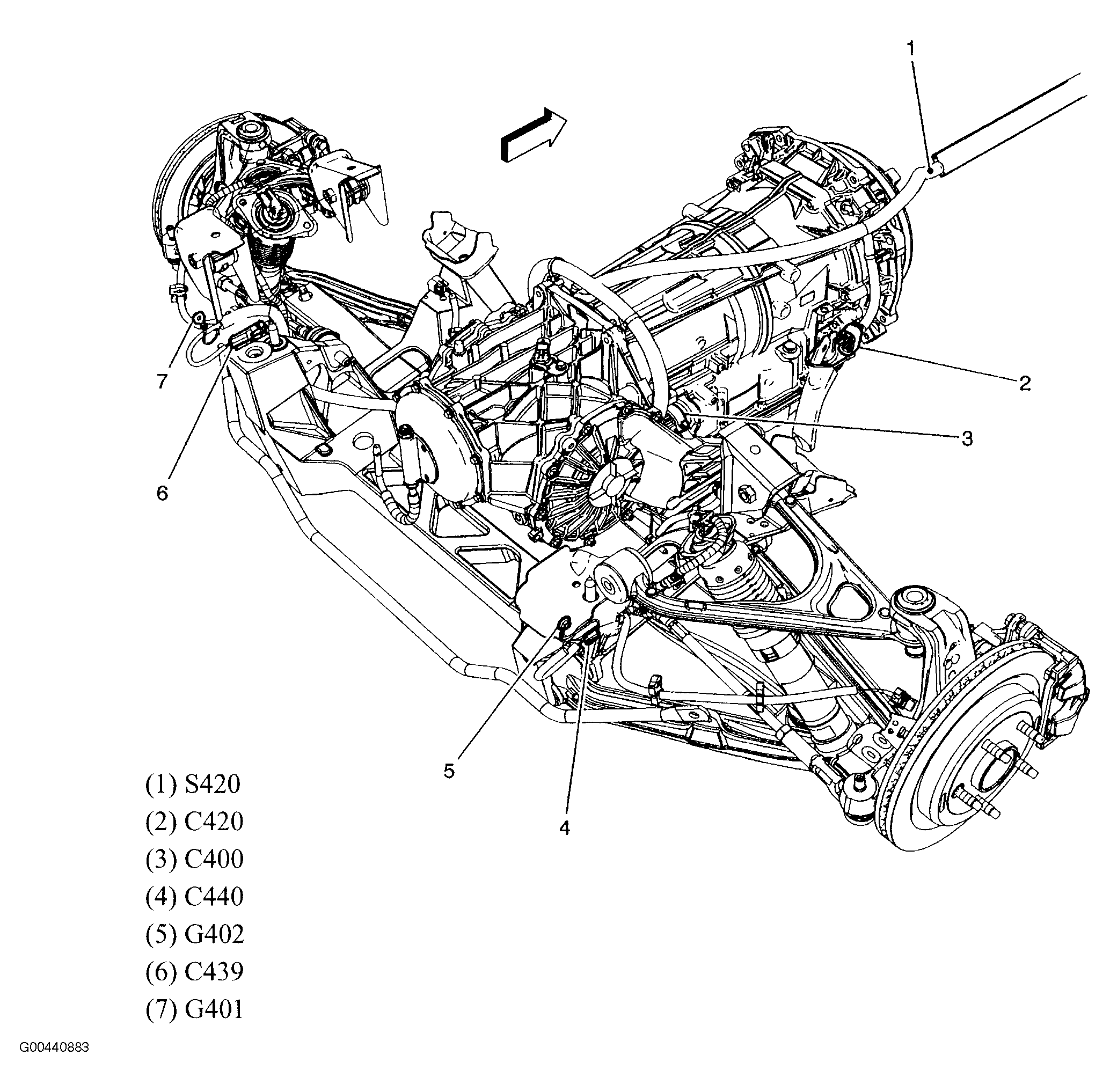

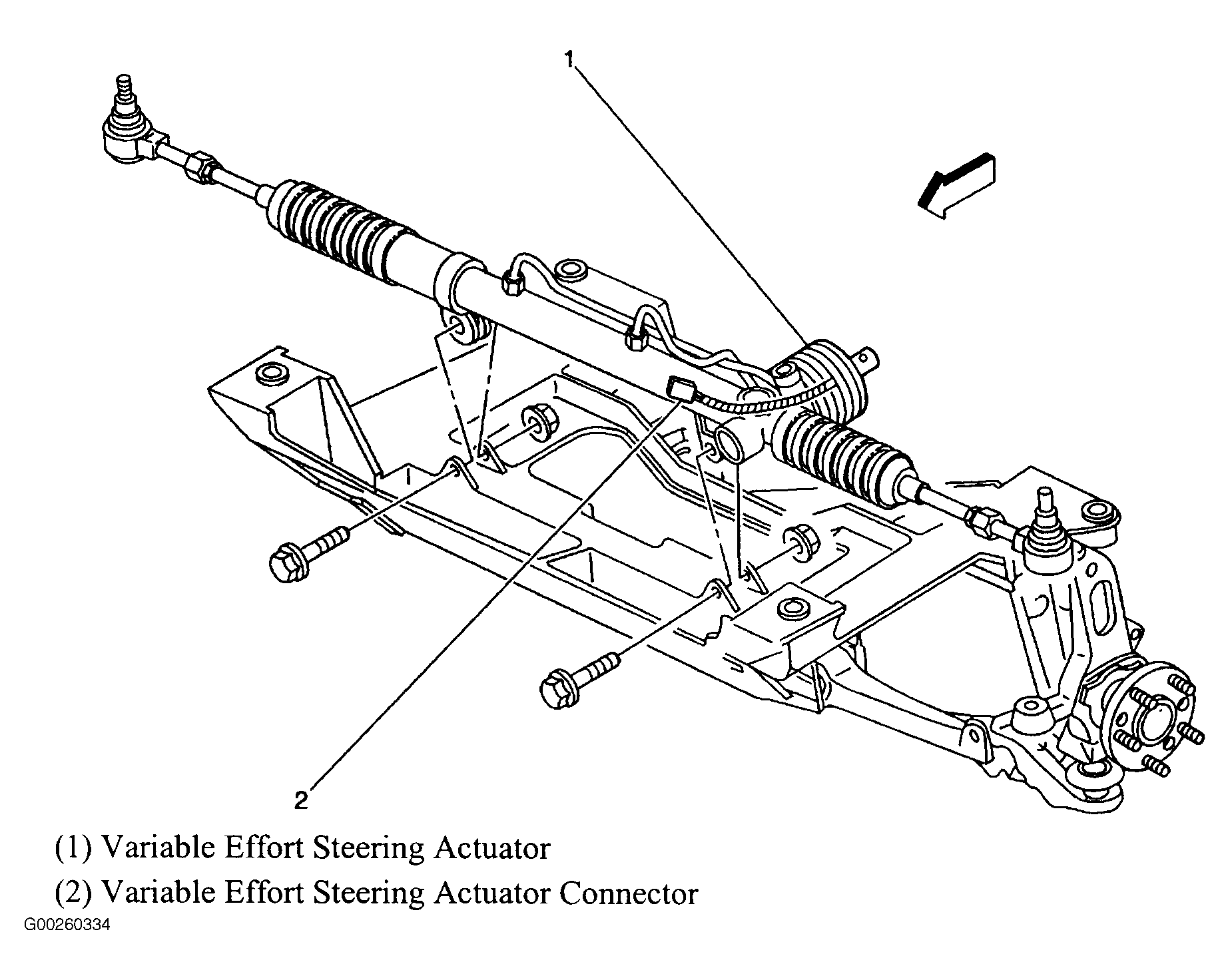

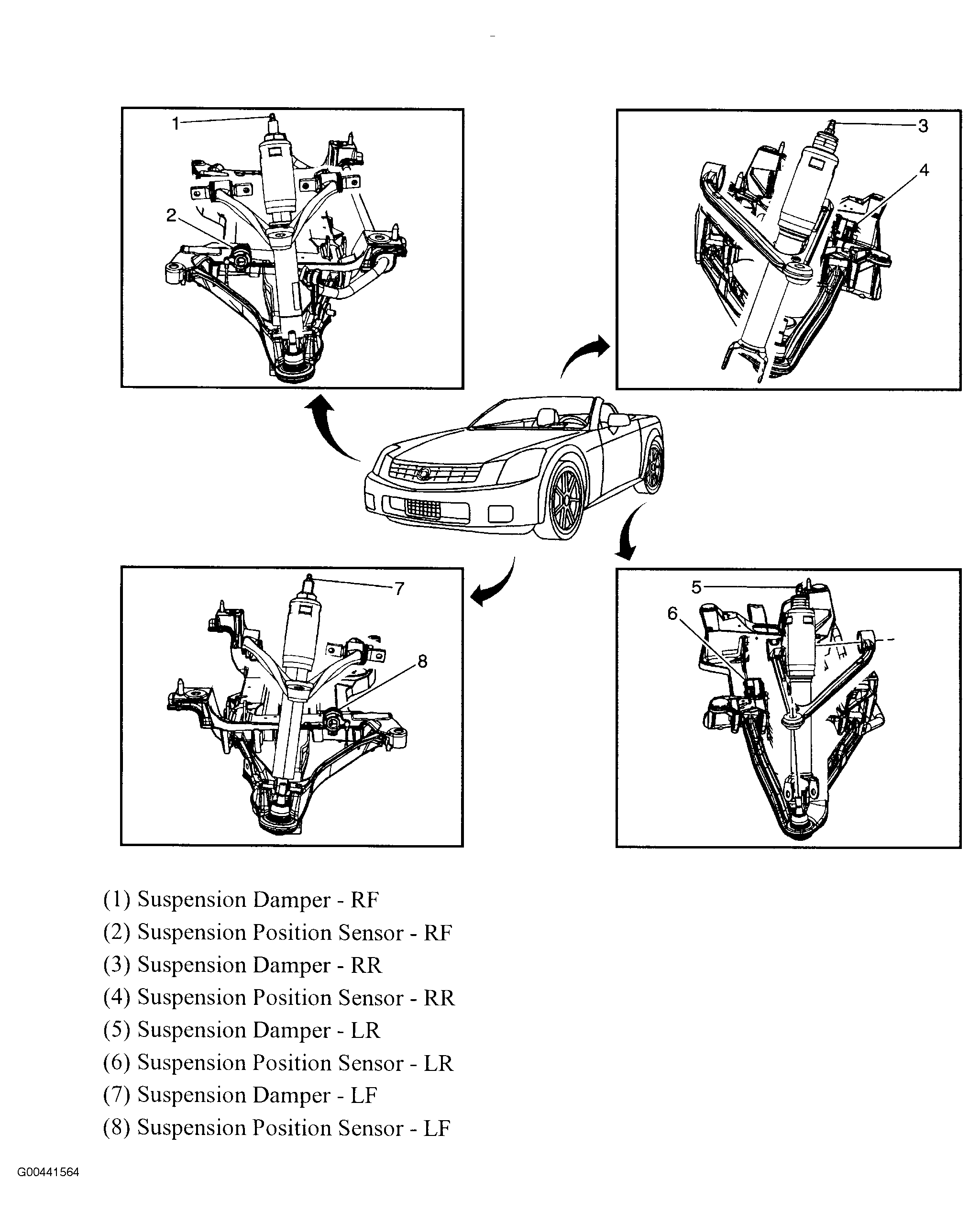

Fig 29: Suspension Components
Courtesy of GENERAL MOTORS CORP.

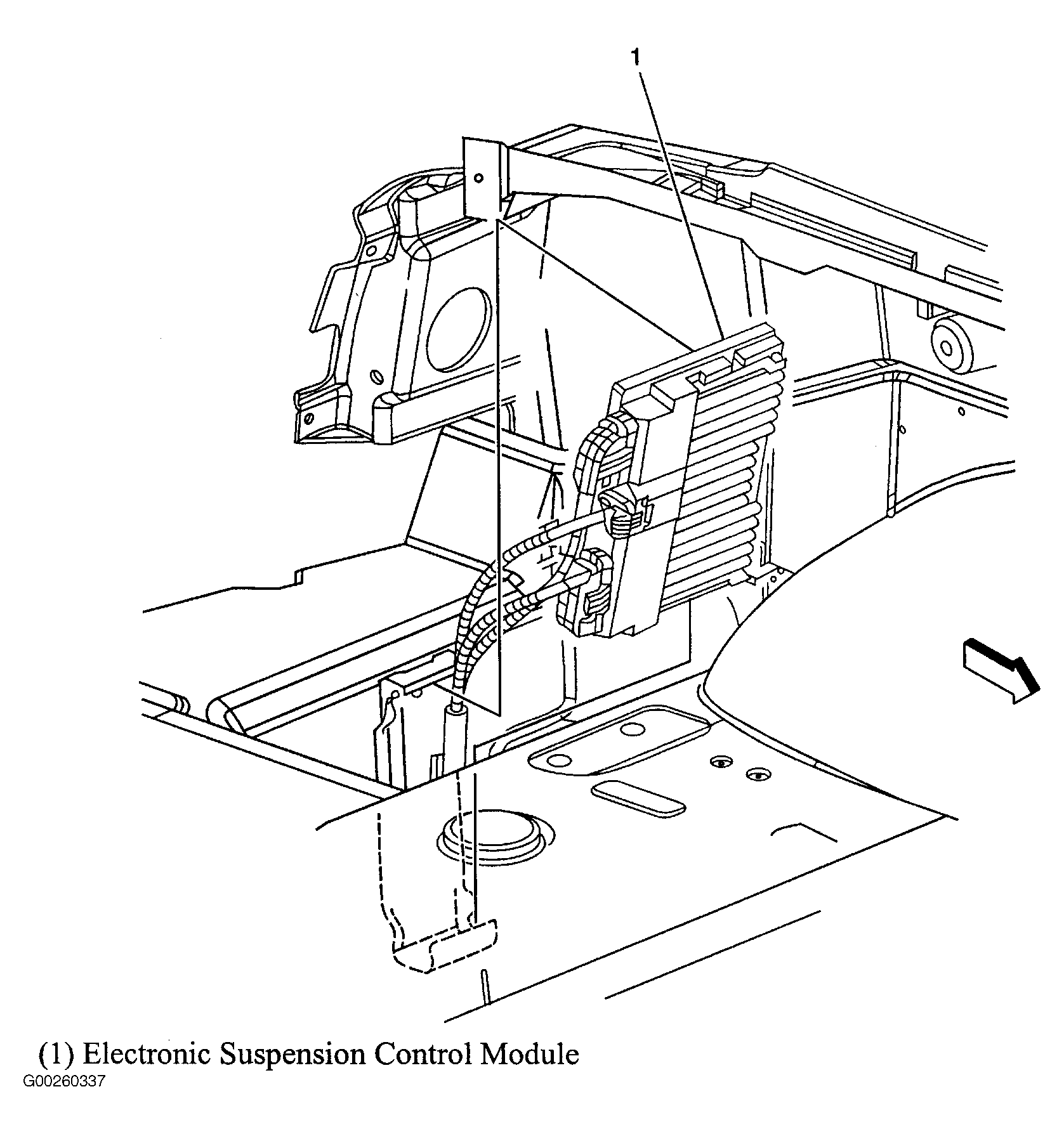

Fig 30: Left Rear Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

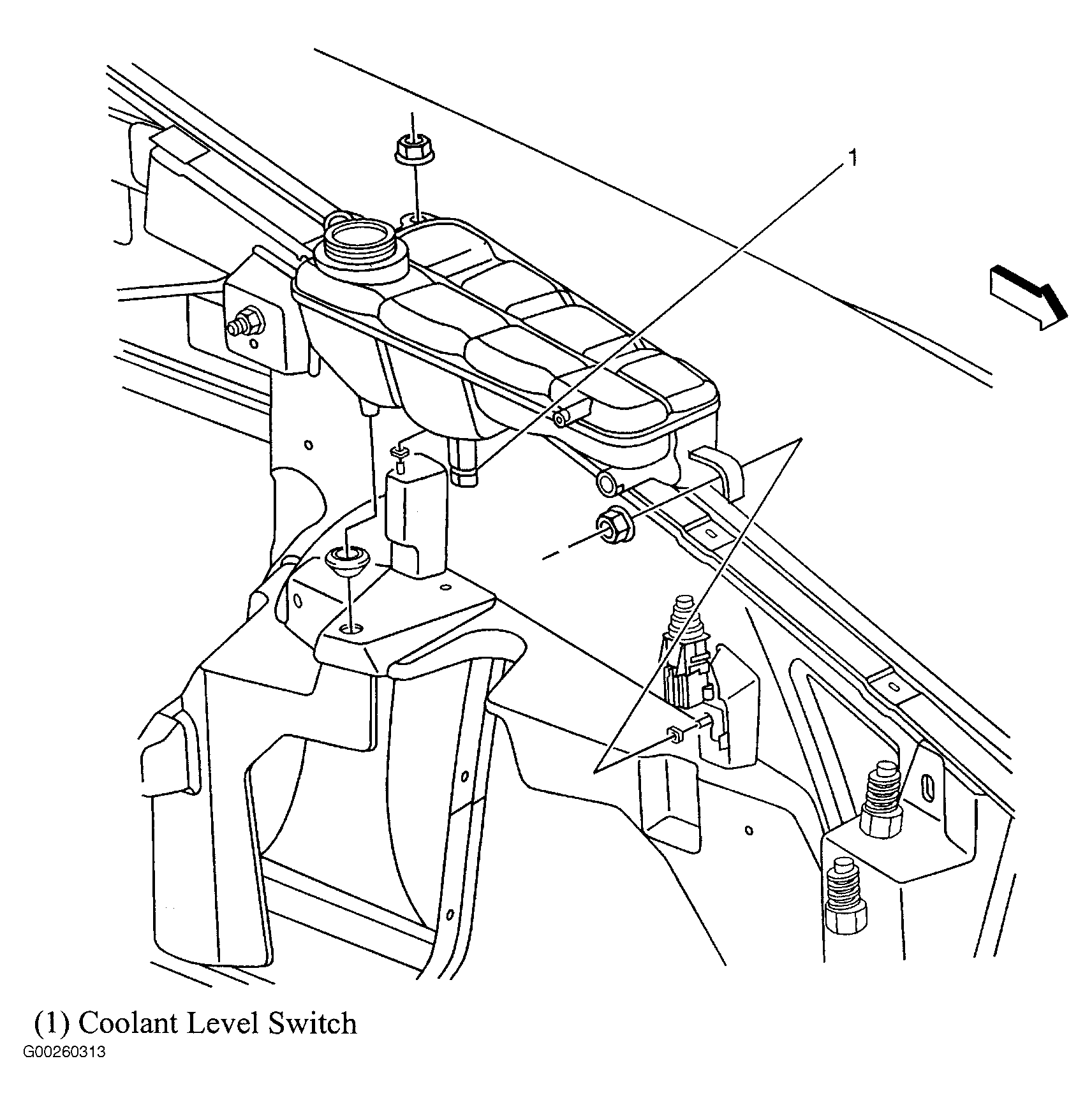

Fig 31: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

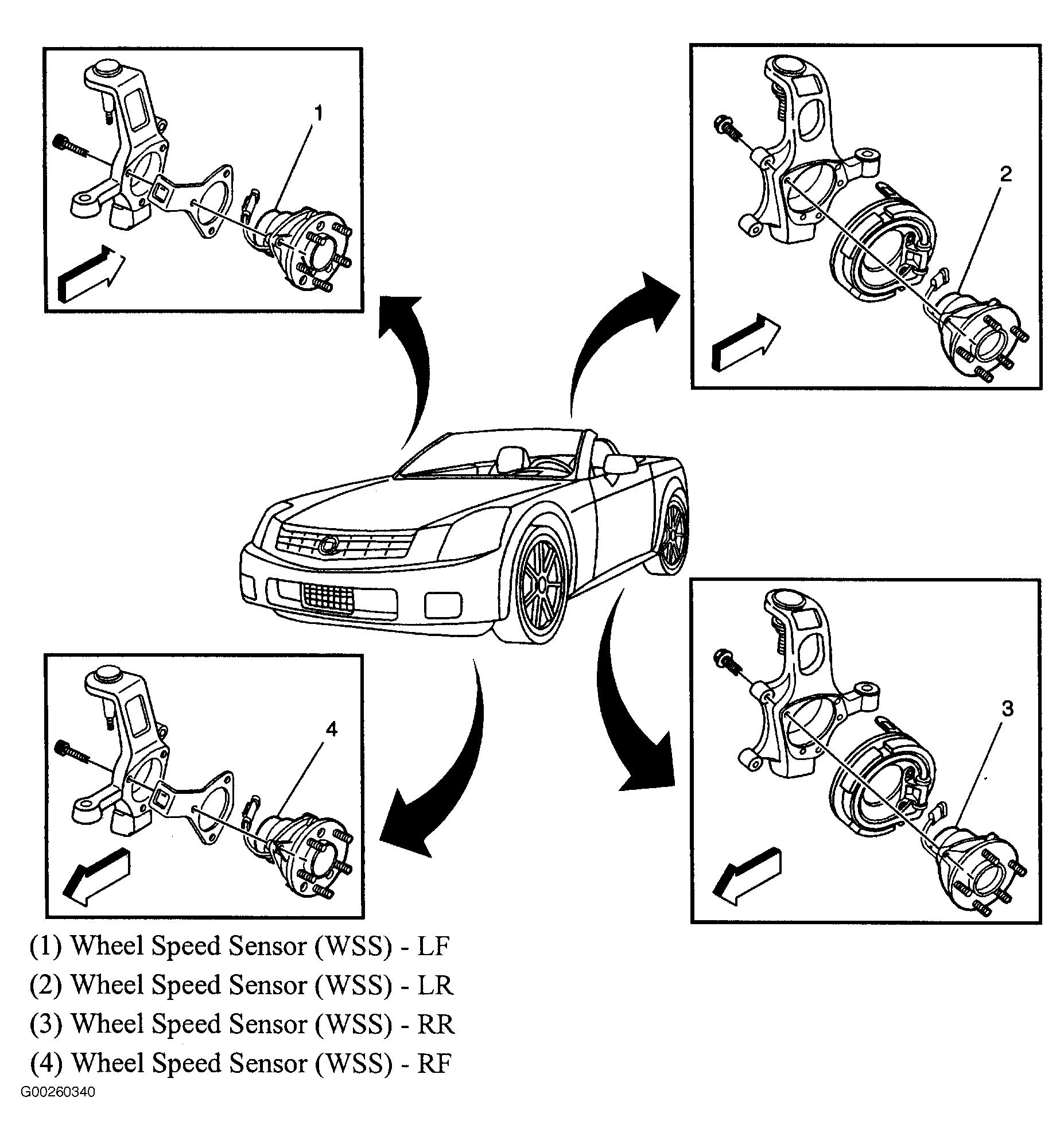

Fig 32: Wheel Hub Assemblies
Courtesy of GENERAL MOTORS CORP.

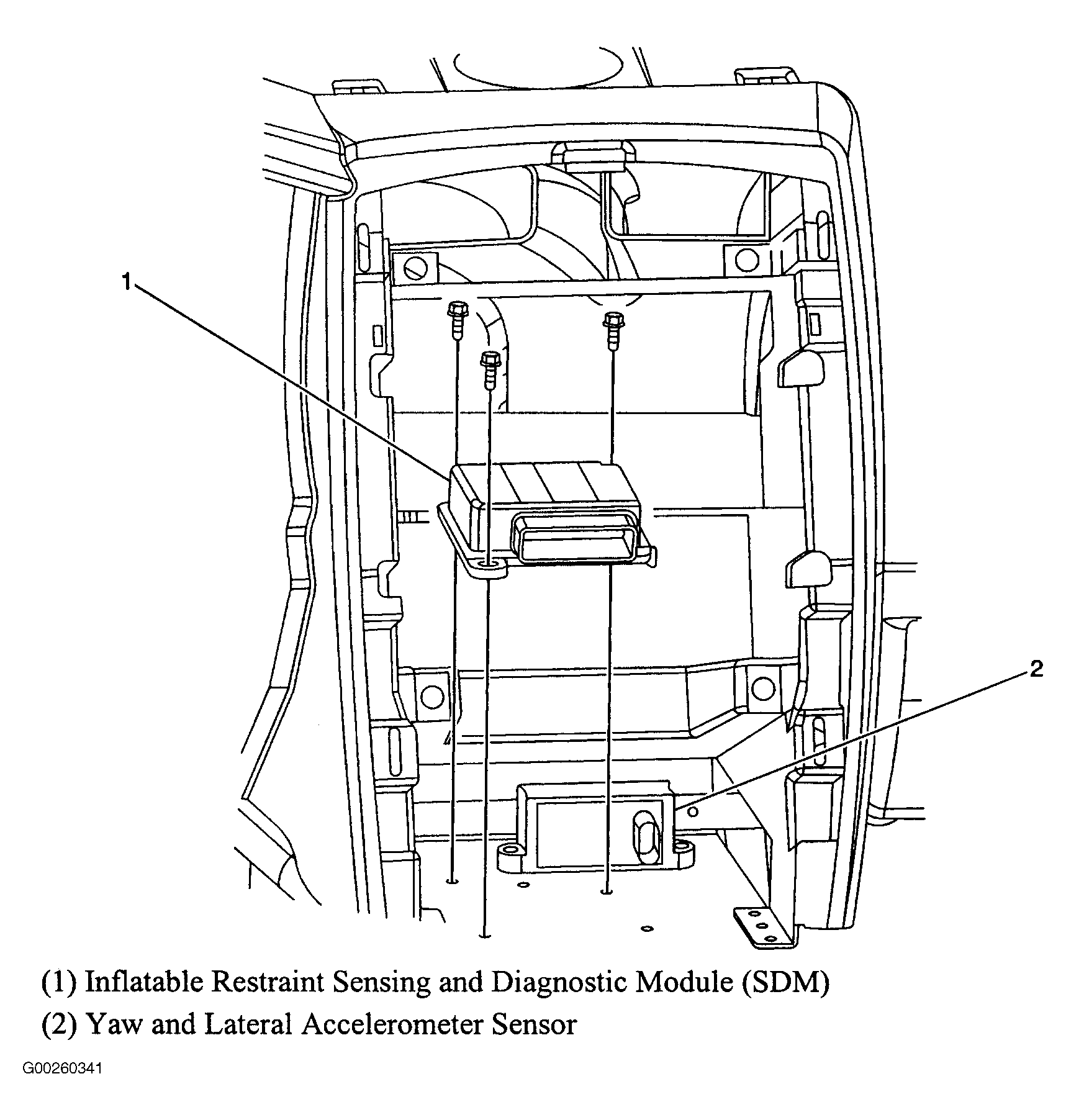

Fig 33: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

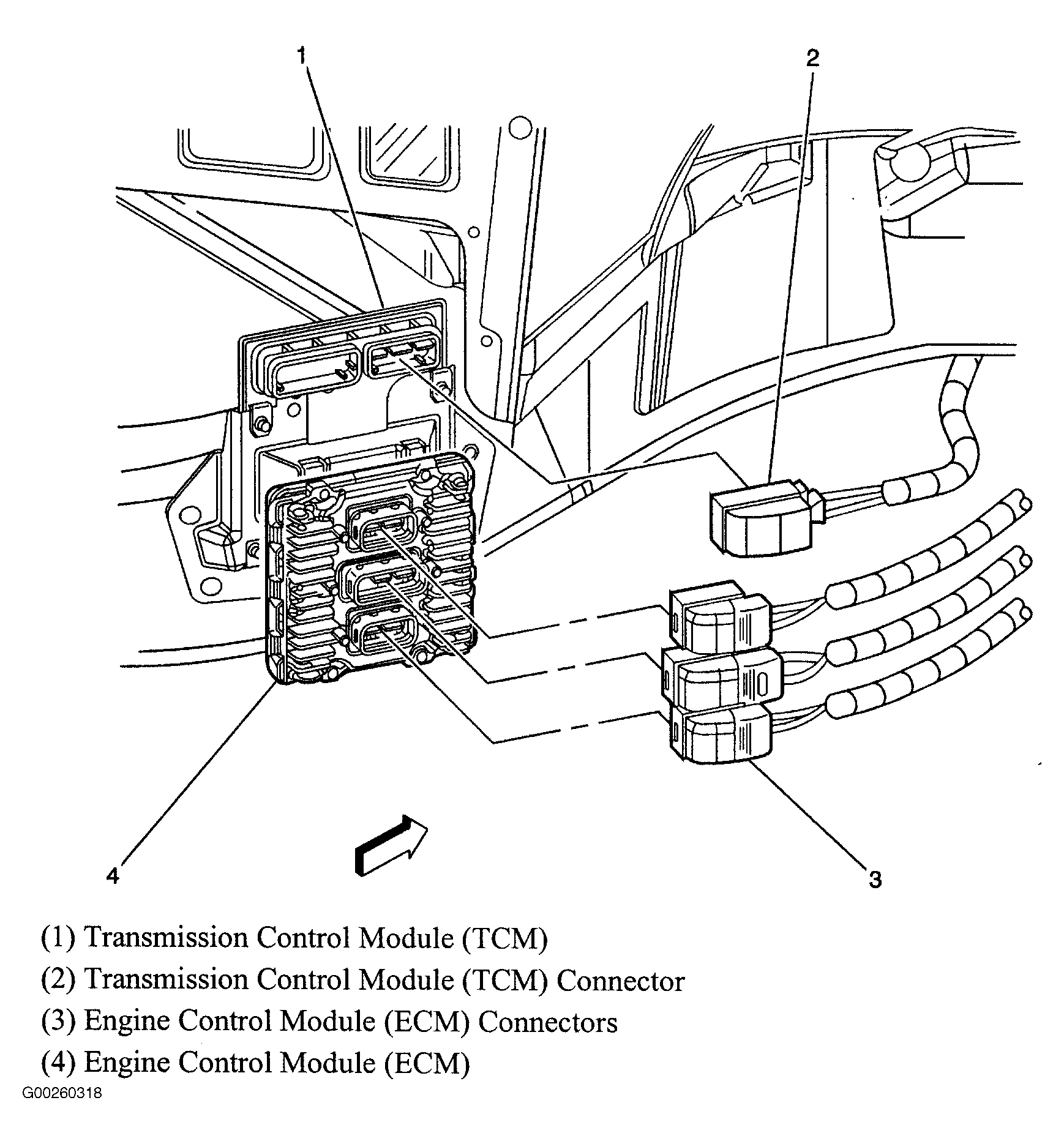

Fig 34: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

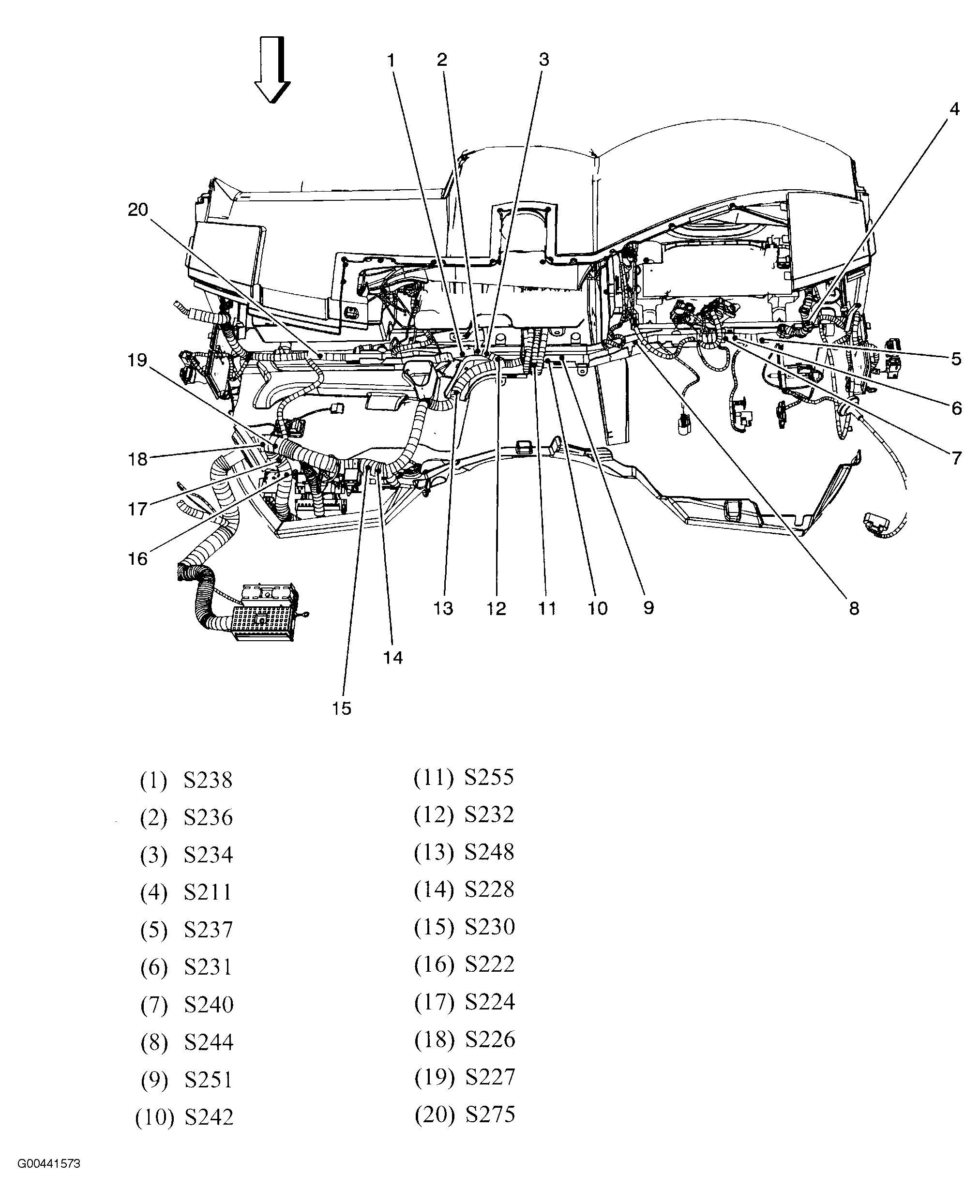

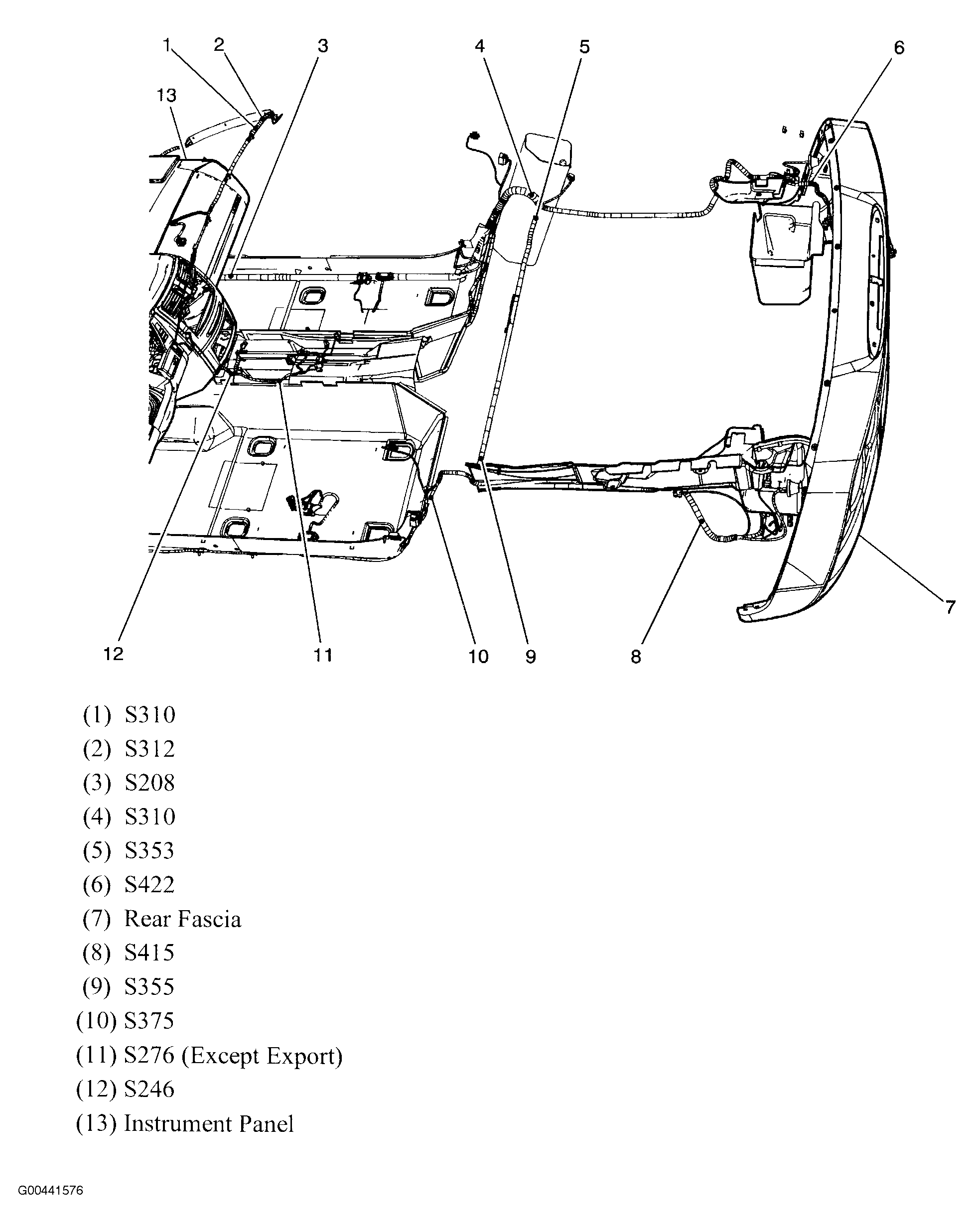

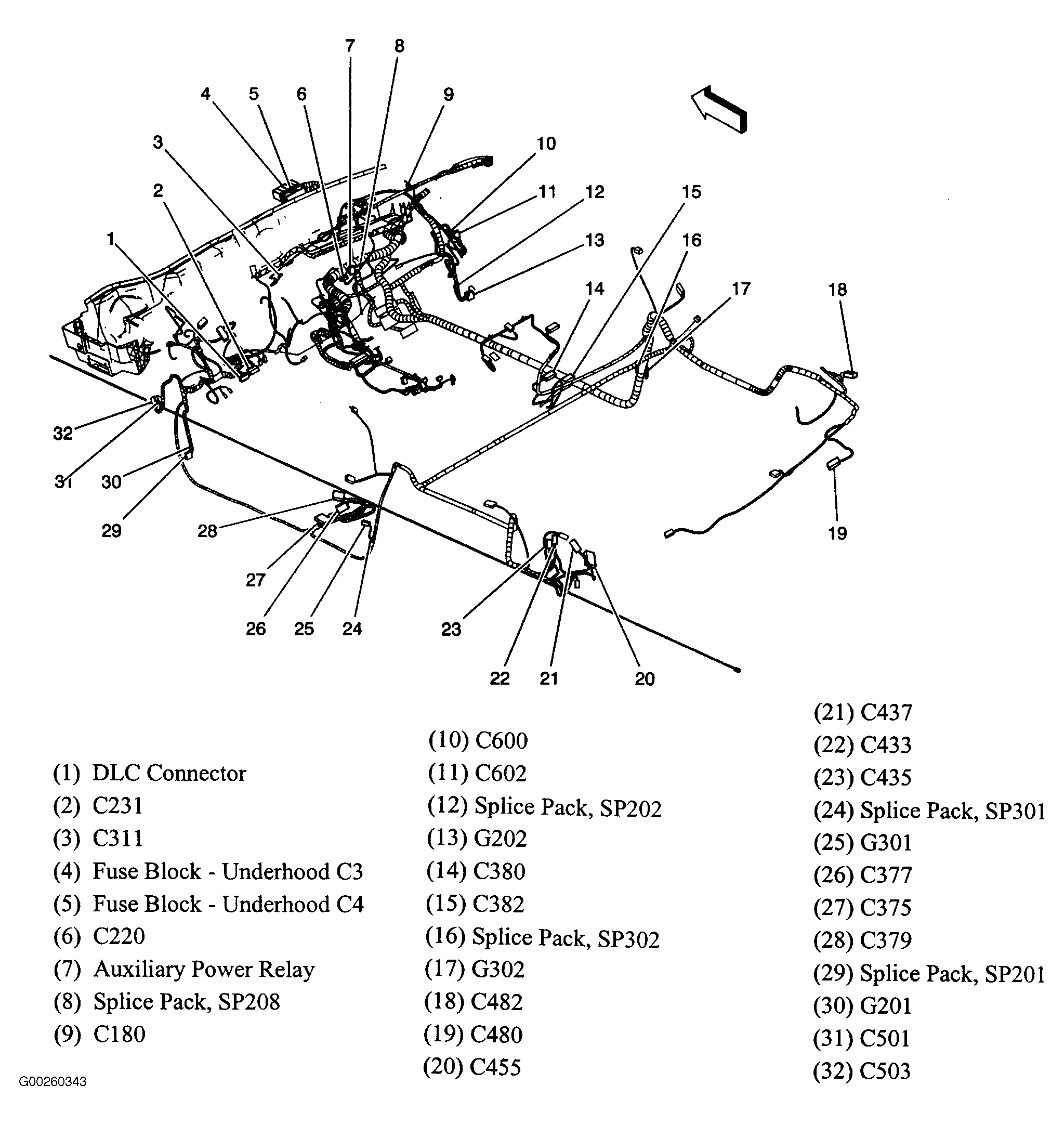

Fig 35: Harness Overview
Courtesy of GENERAL MOTORS CORP.
Fig 36: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

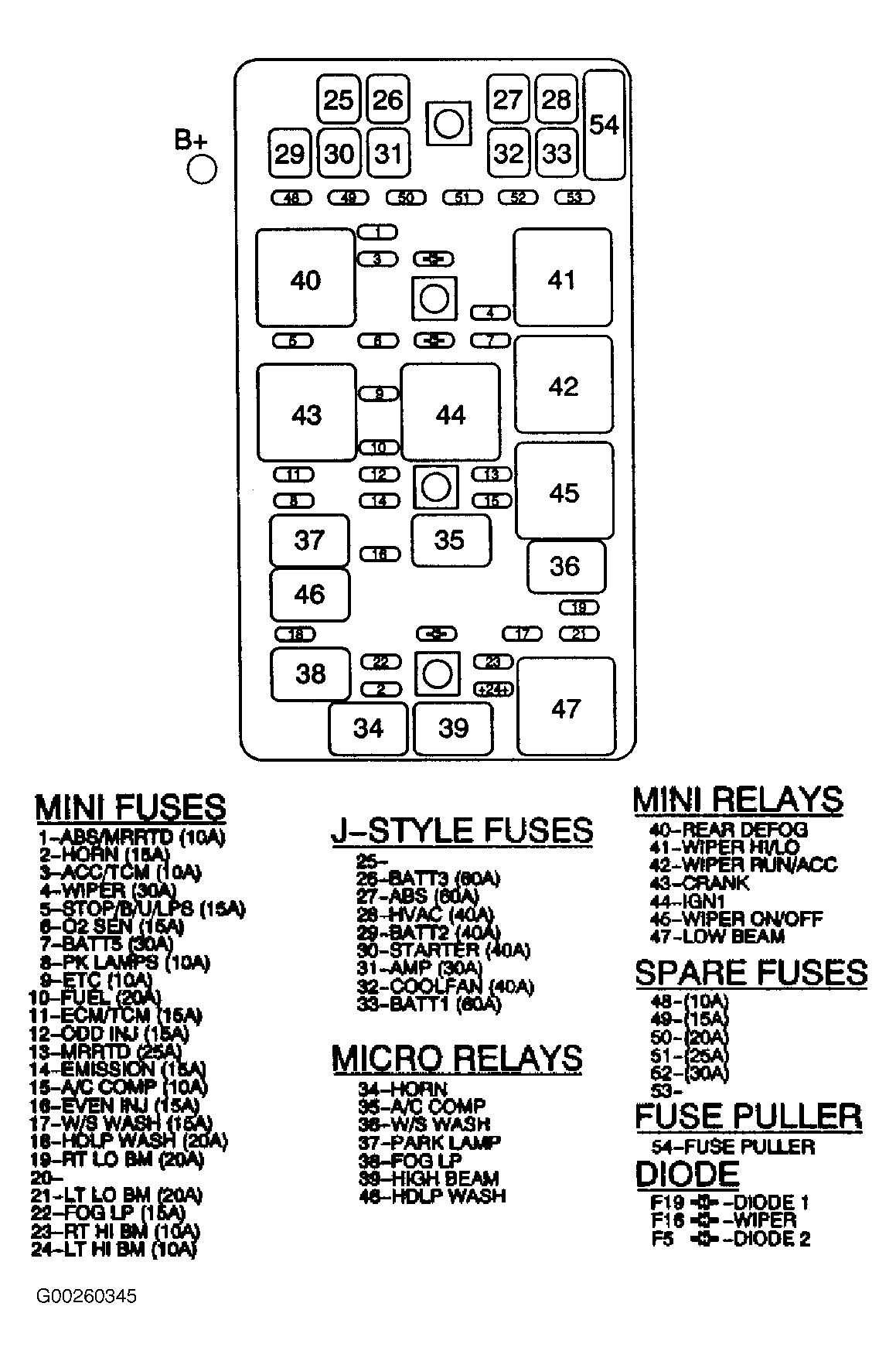

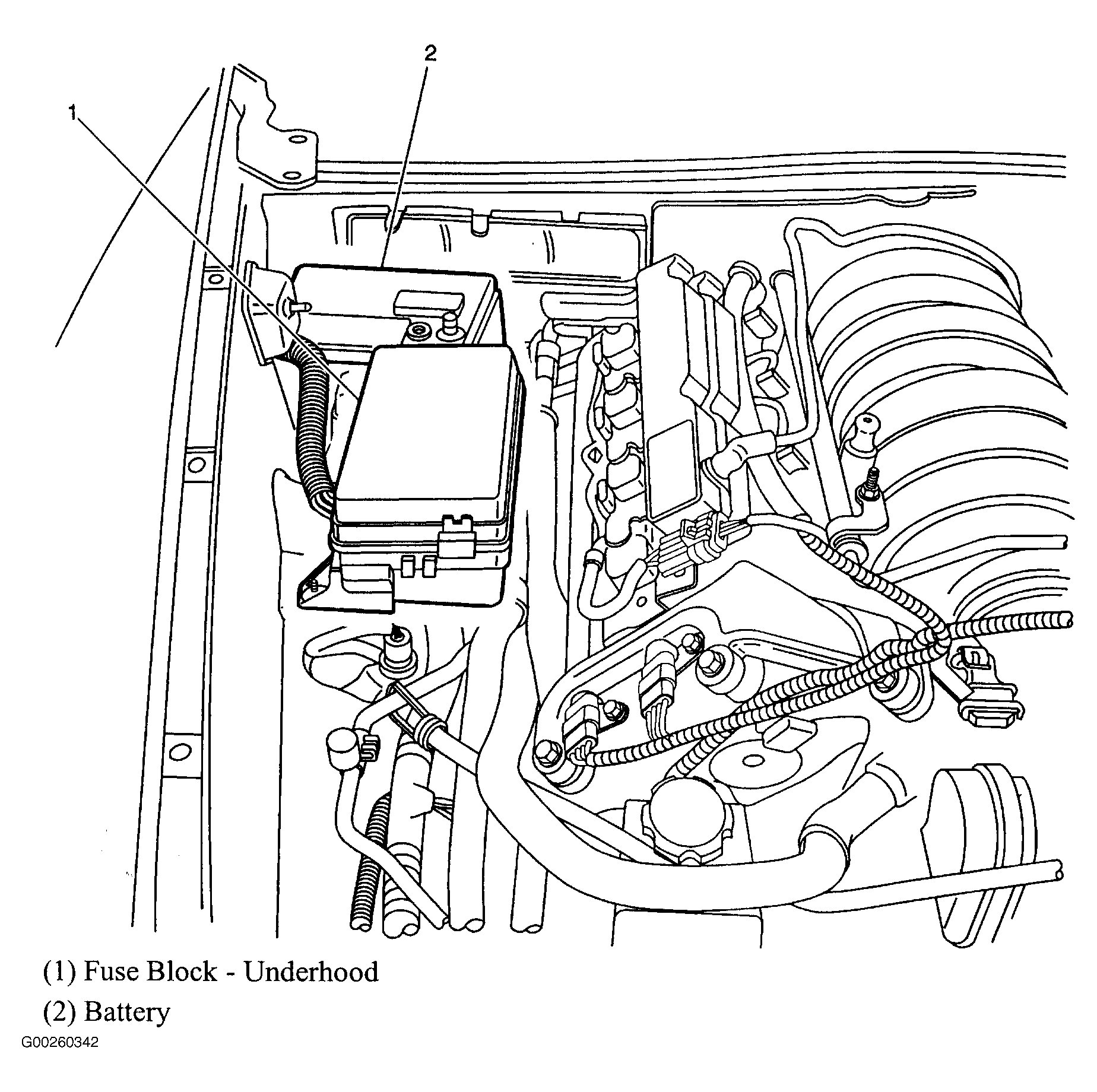

Fig 37: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

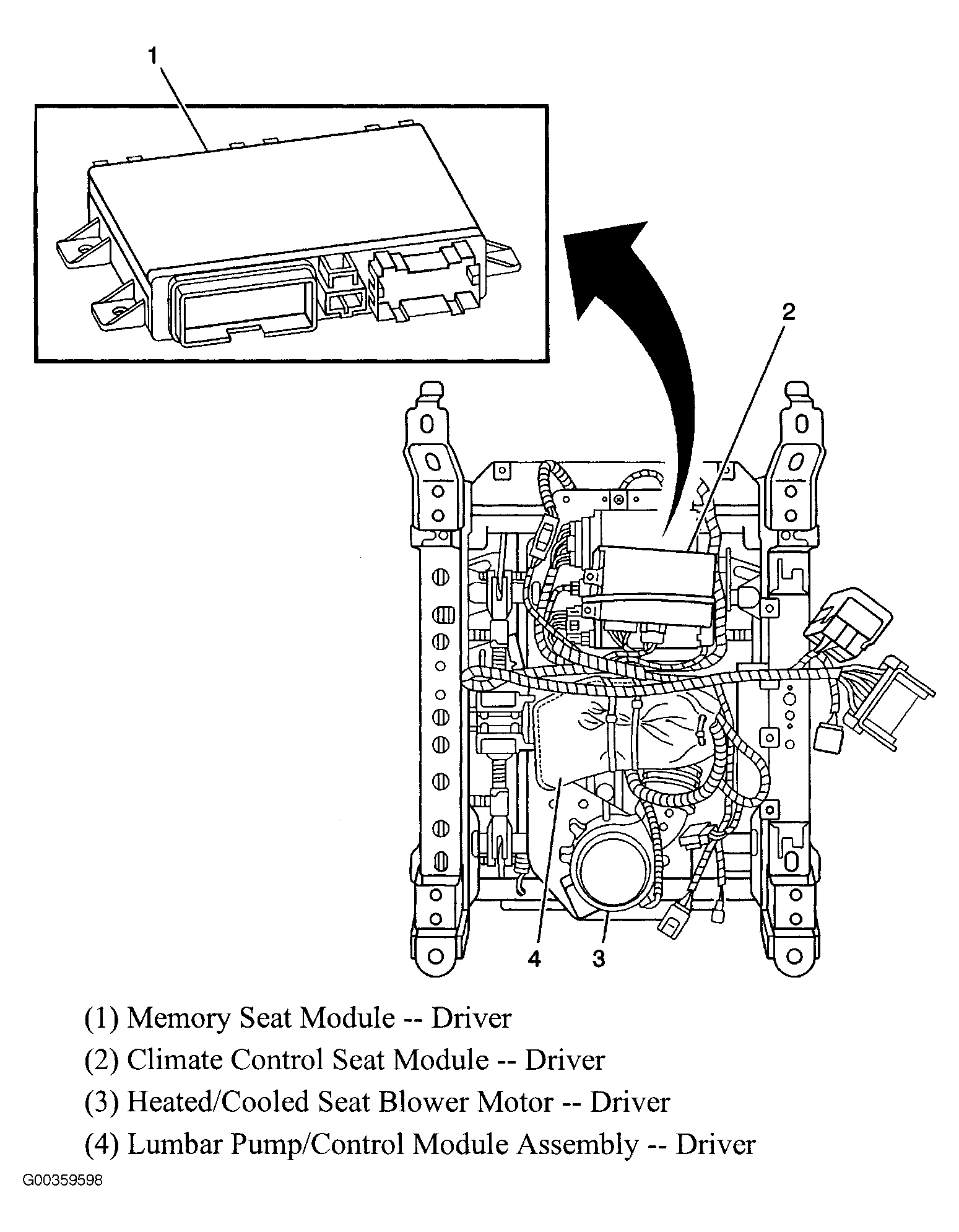

Fig 38: Bottom Of Driver Seat
Courtesy of GENERAL MOTORS CORP.

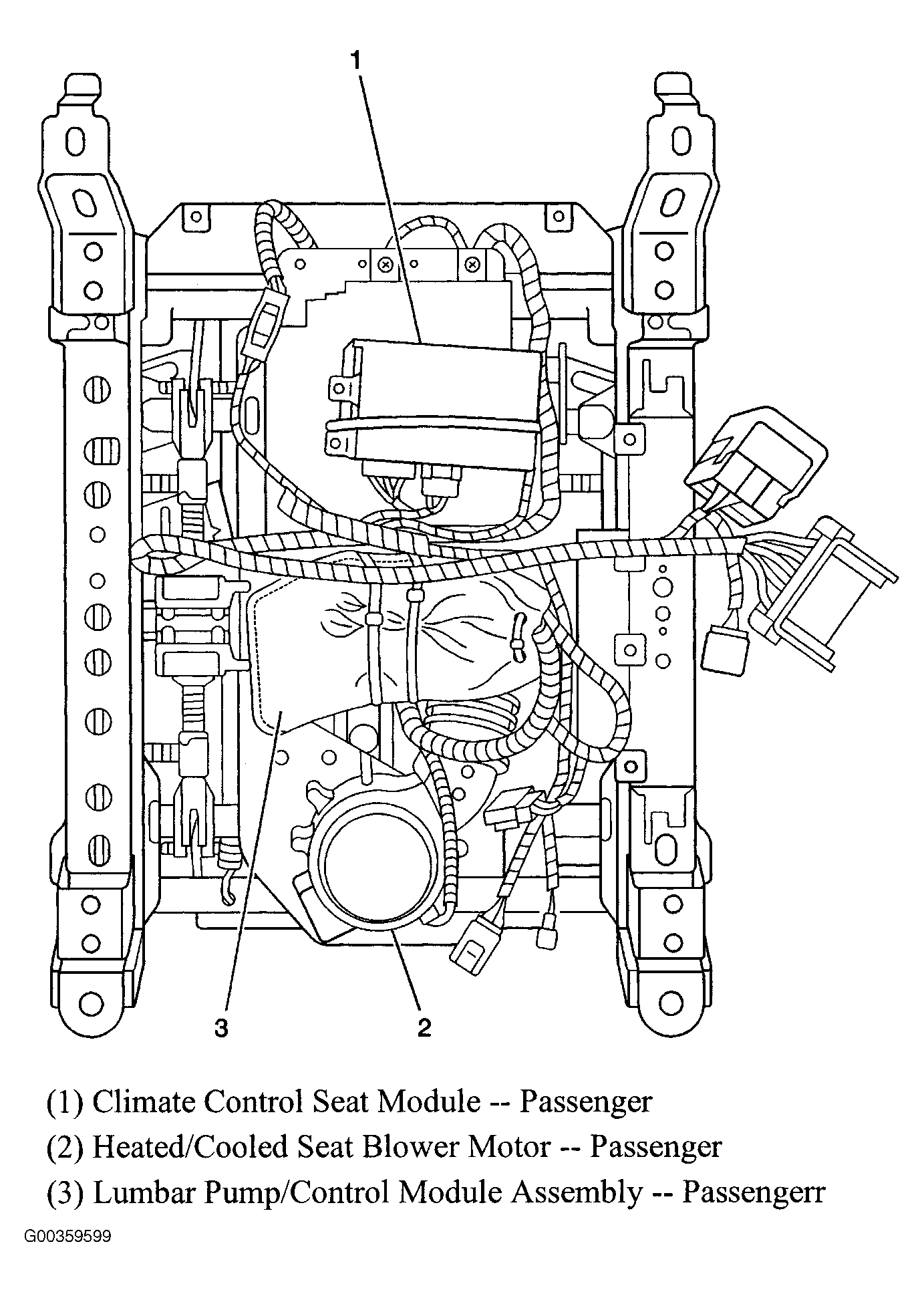

Fig 39: Bottom Of Passenger Seat
Courtesy of GENERAL MOTORS CORP.

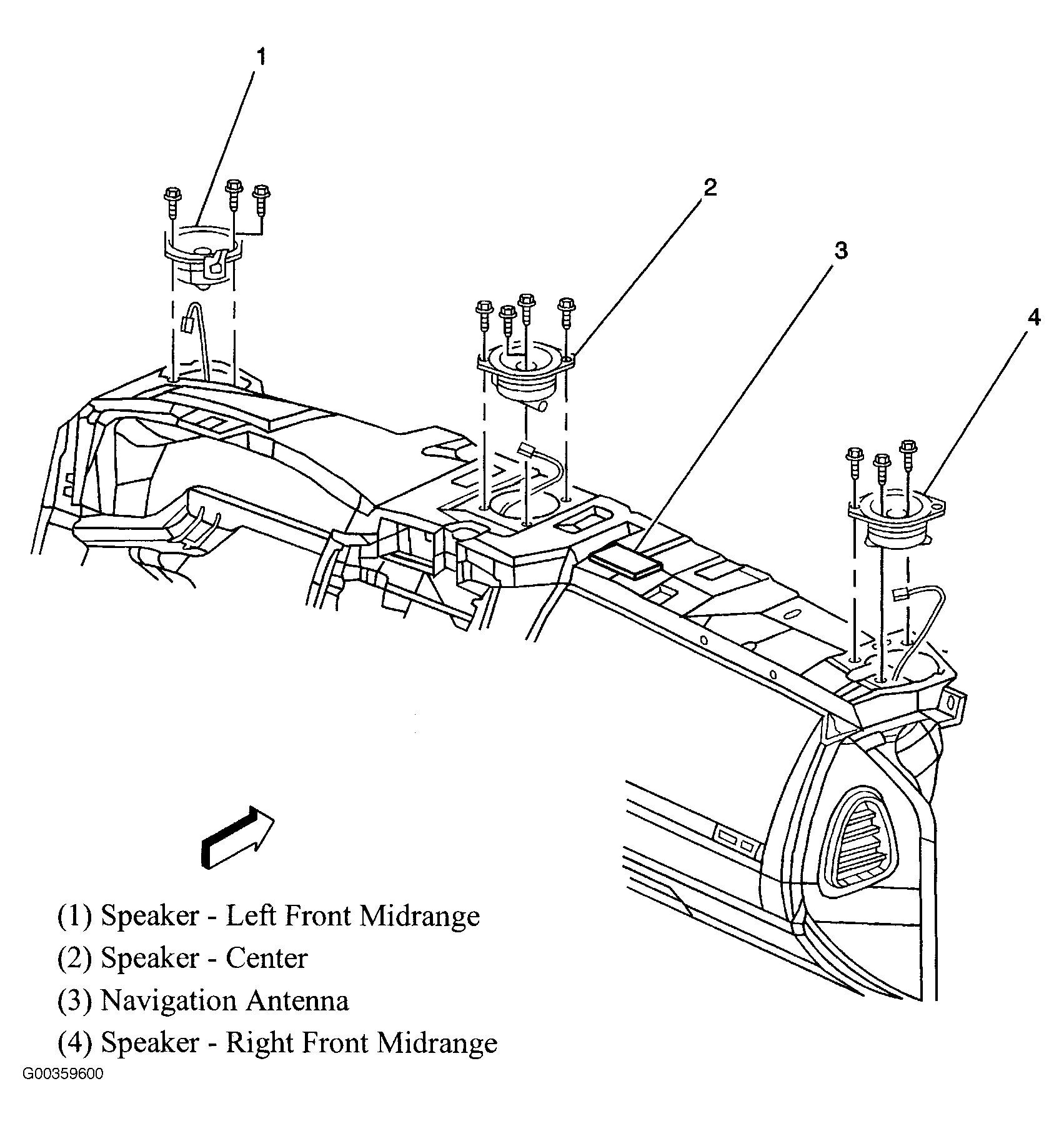

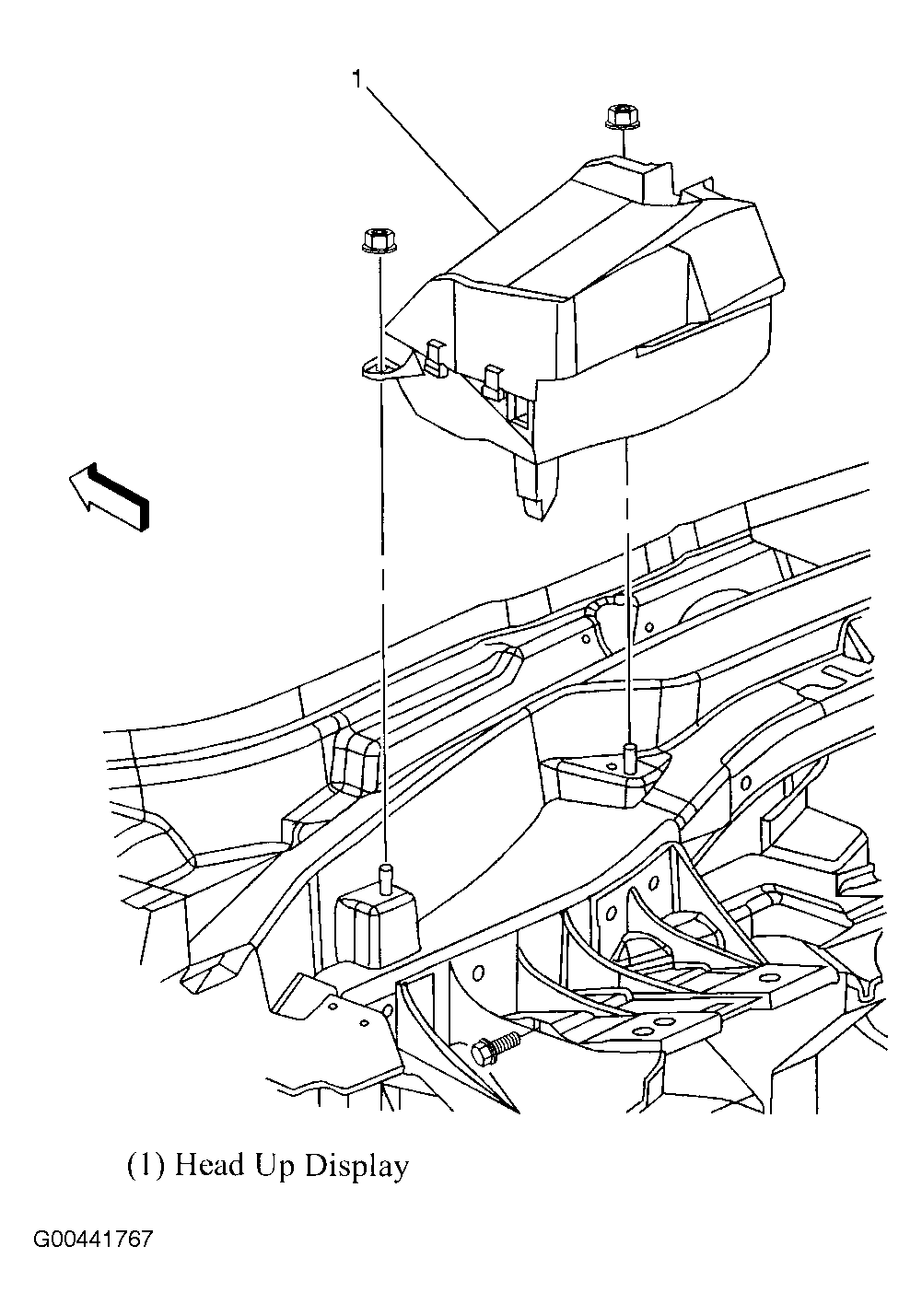

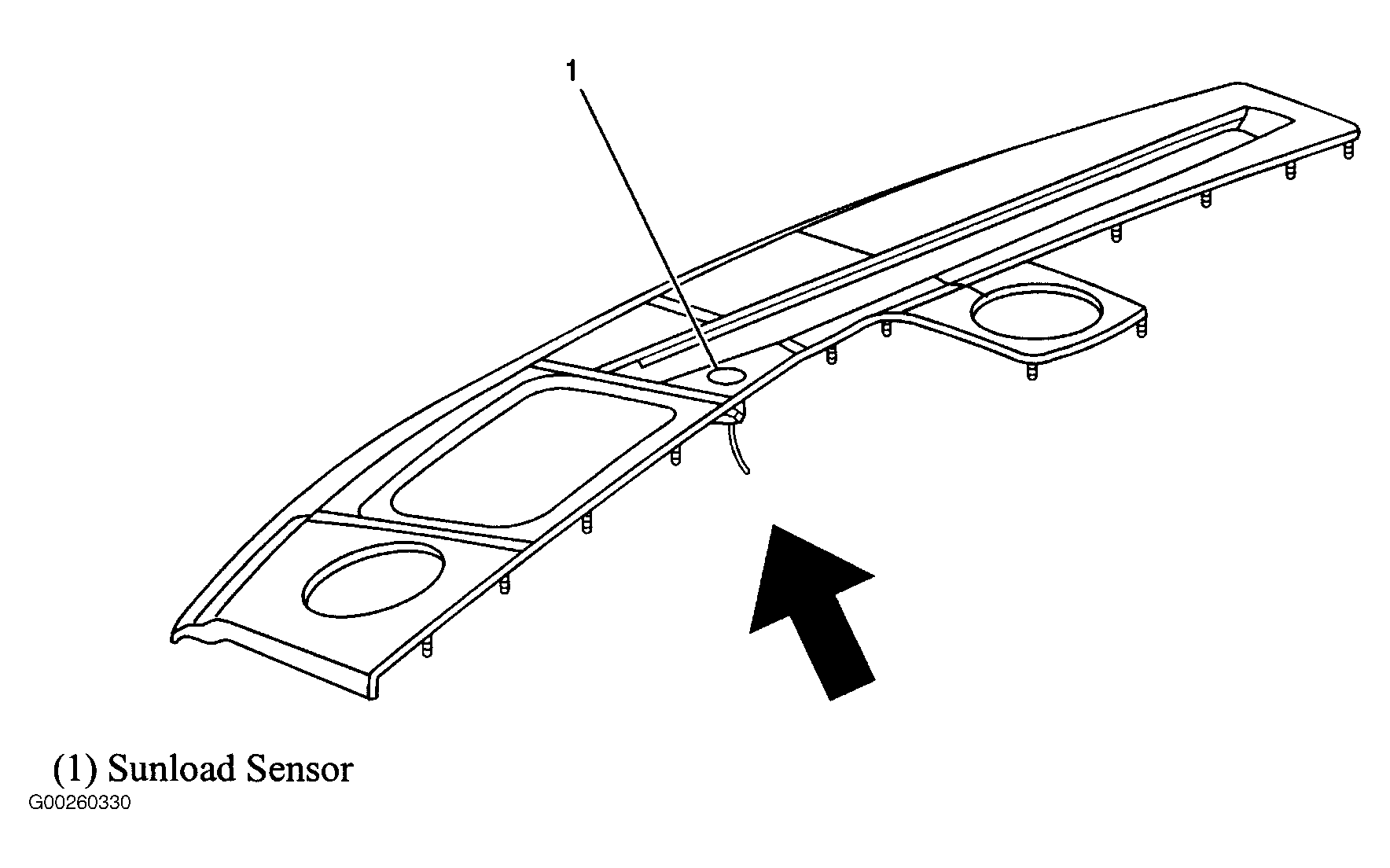

Fig 40: Upper Dash
Courtesy of GENERAL MOTORS CORP.

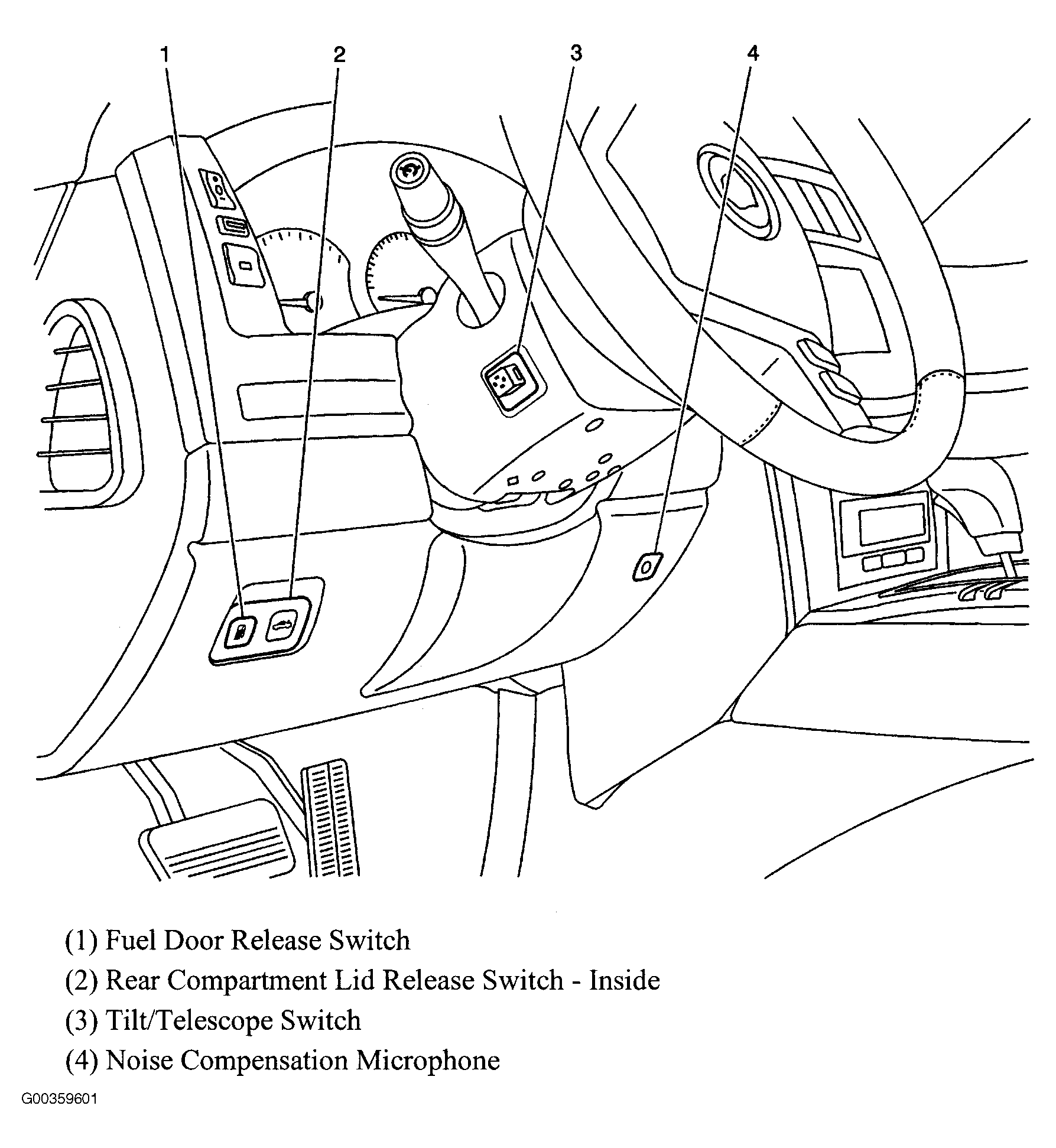

Fig 41: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 42: Left Side Of Steering Column
Courtesy of GENERAL MOTORS CORP.

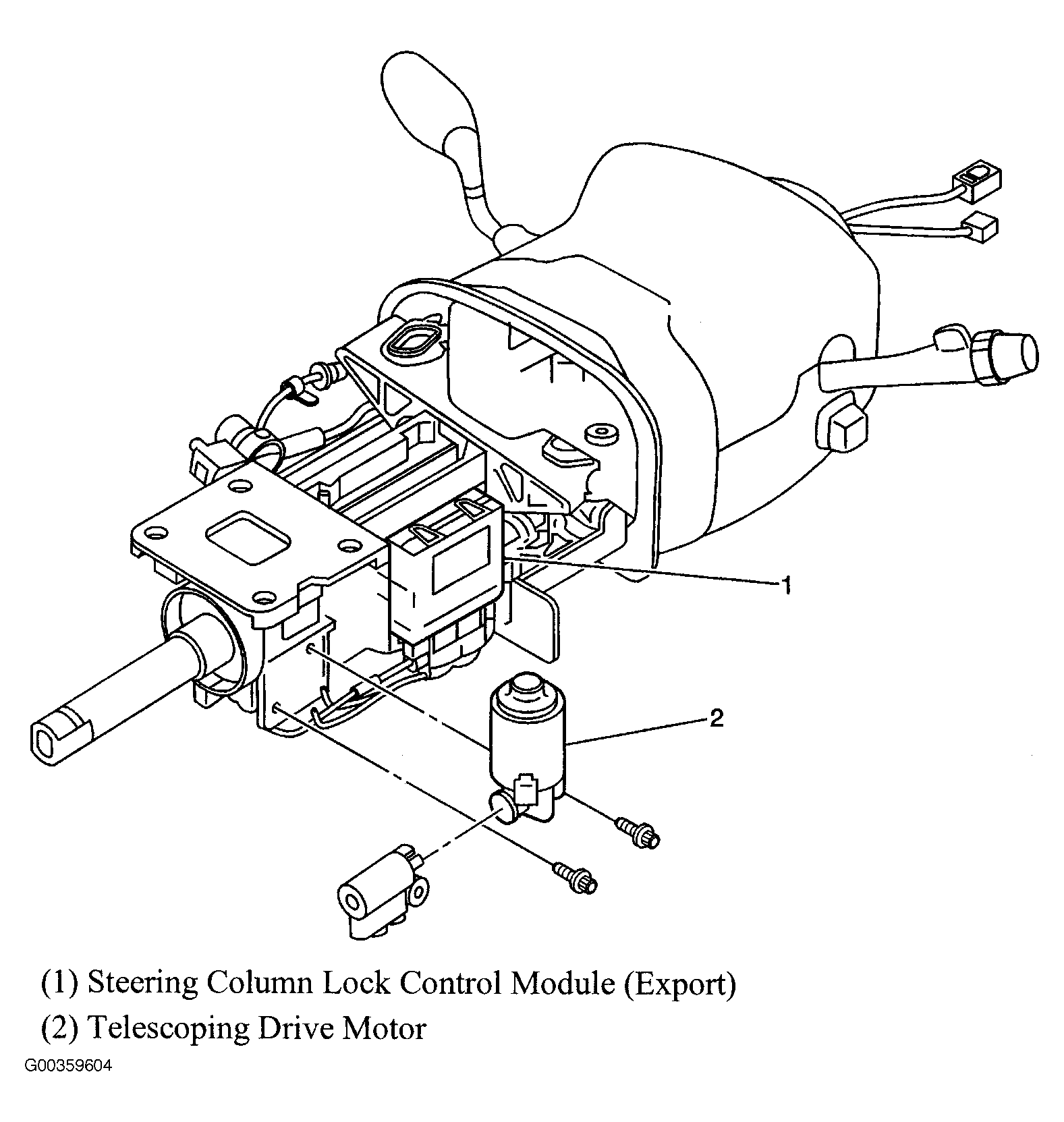

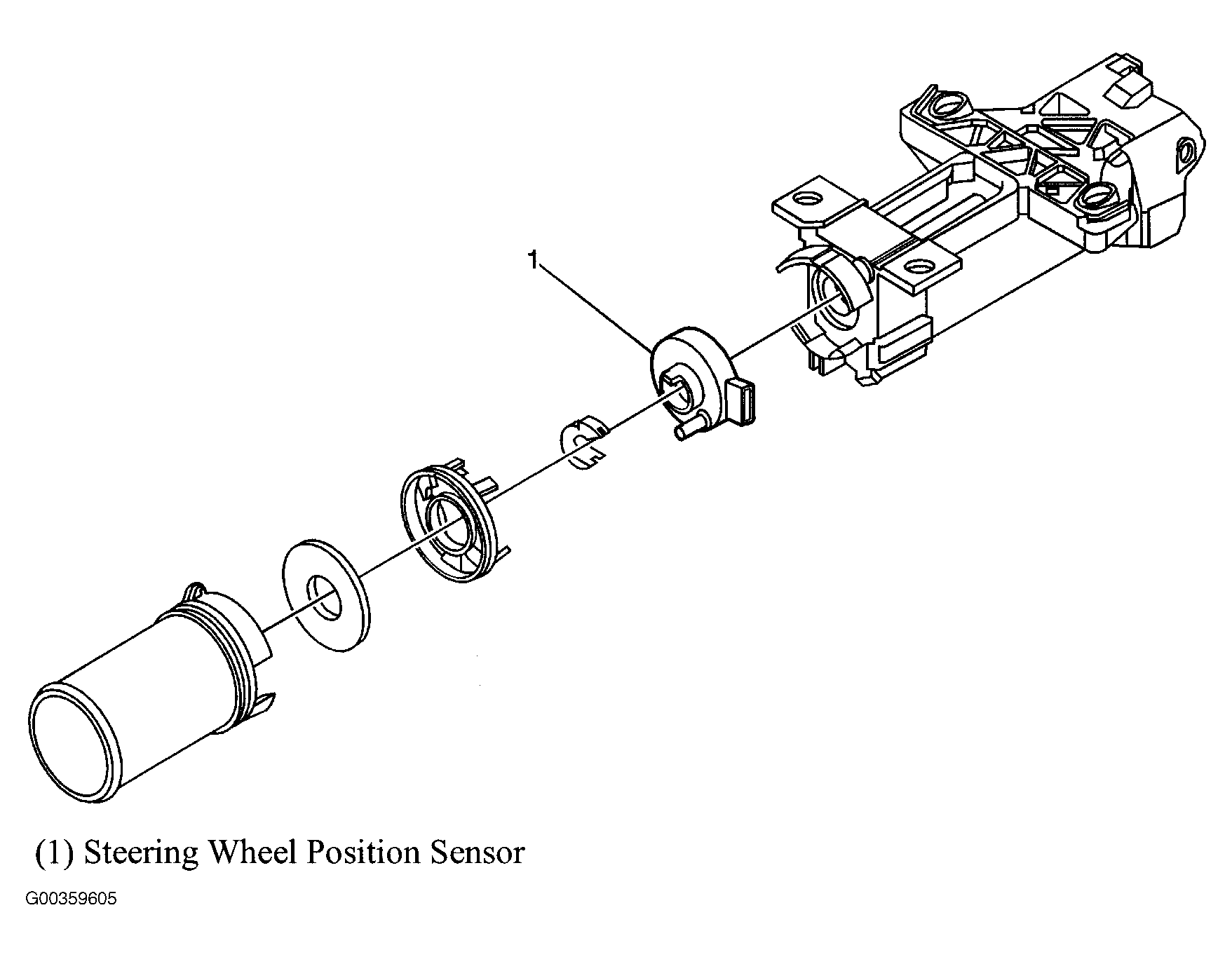

Fig 43: Lower Center Of Steering Column
Courtesy of GENERAL MOTORS CORP.

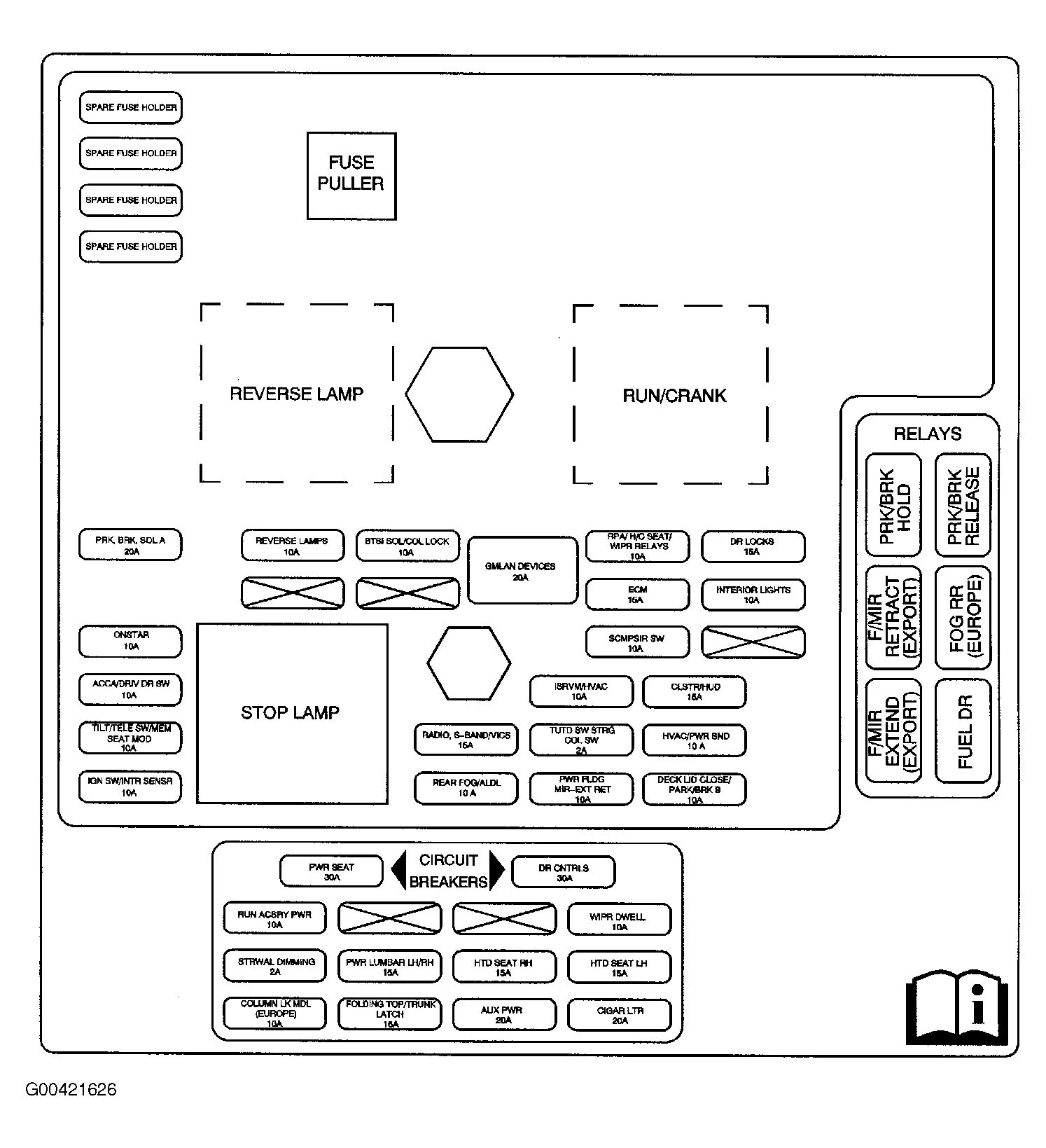

Fig 44: I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.

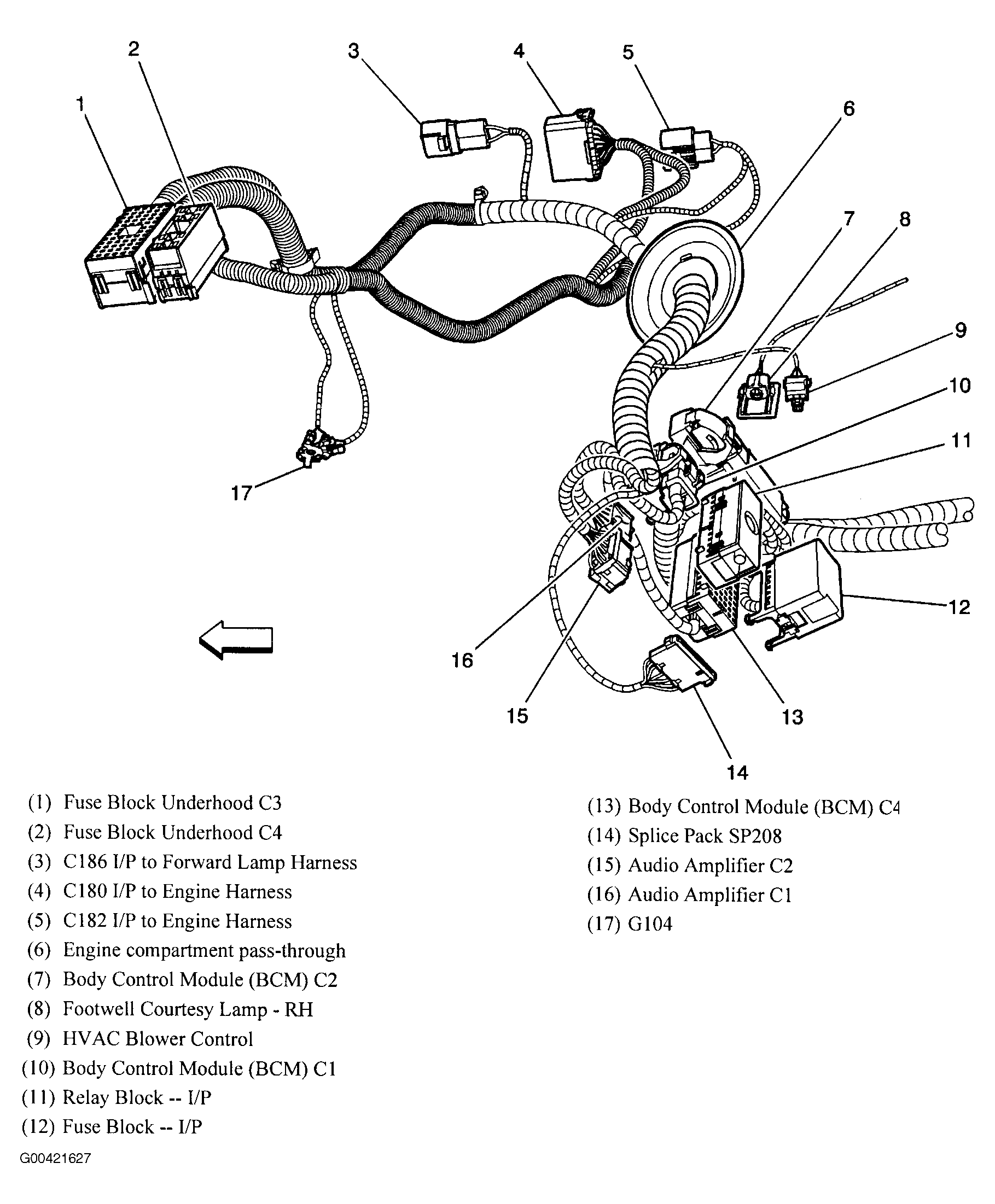

Fig 45: Right Rear Of Engine Compartment & Under Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

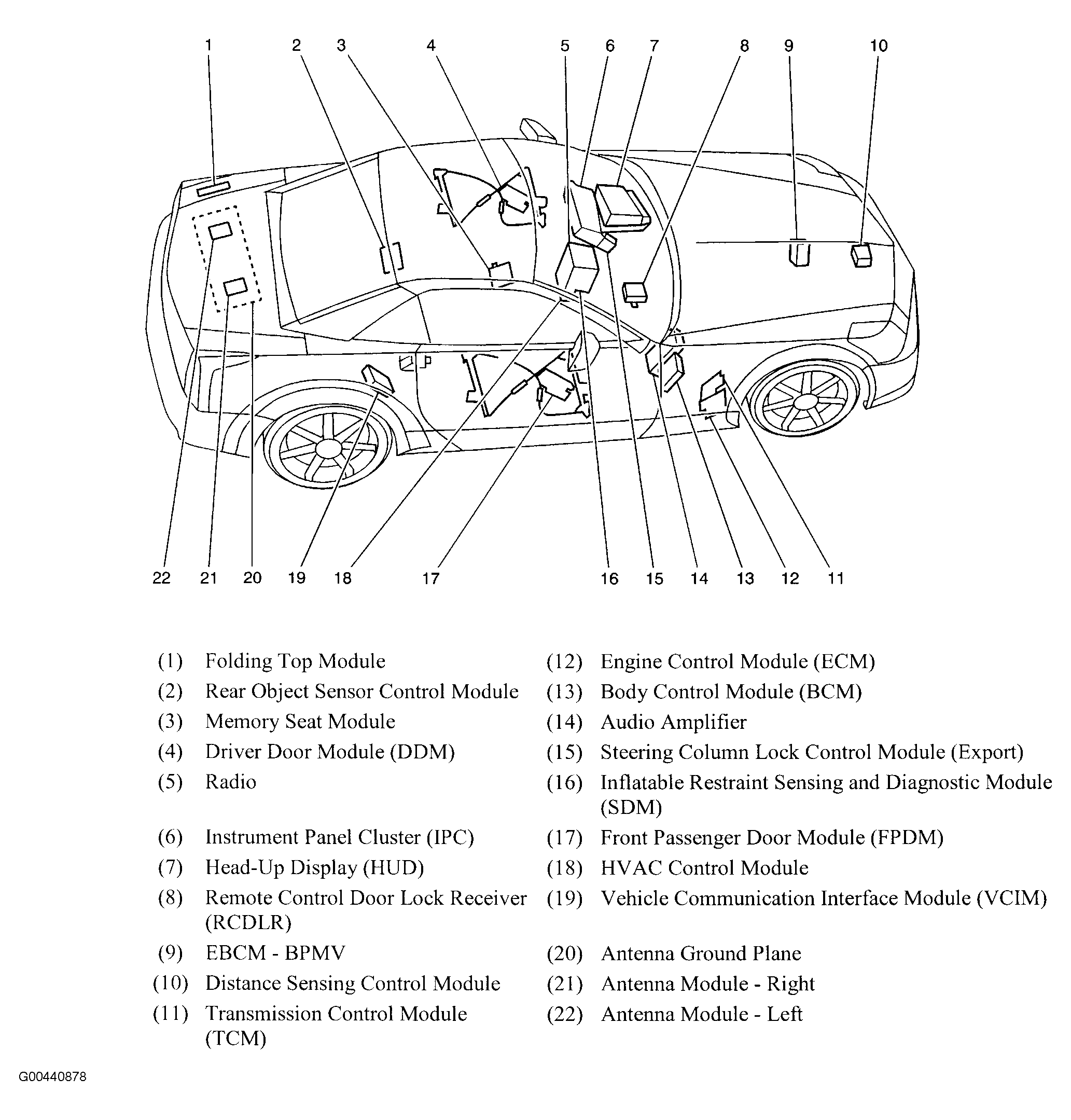

Fig 46: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

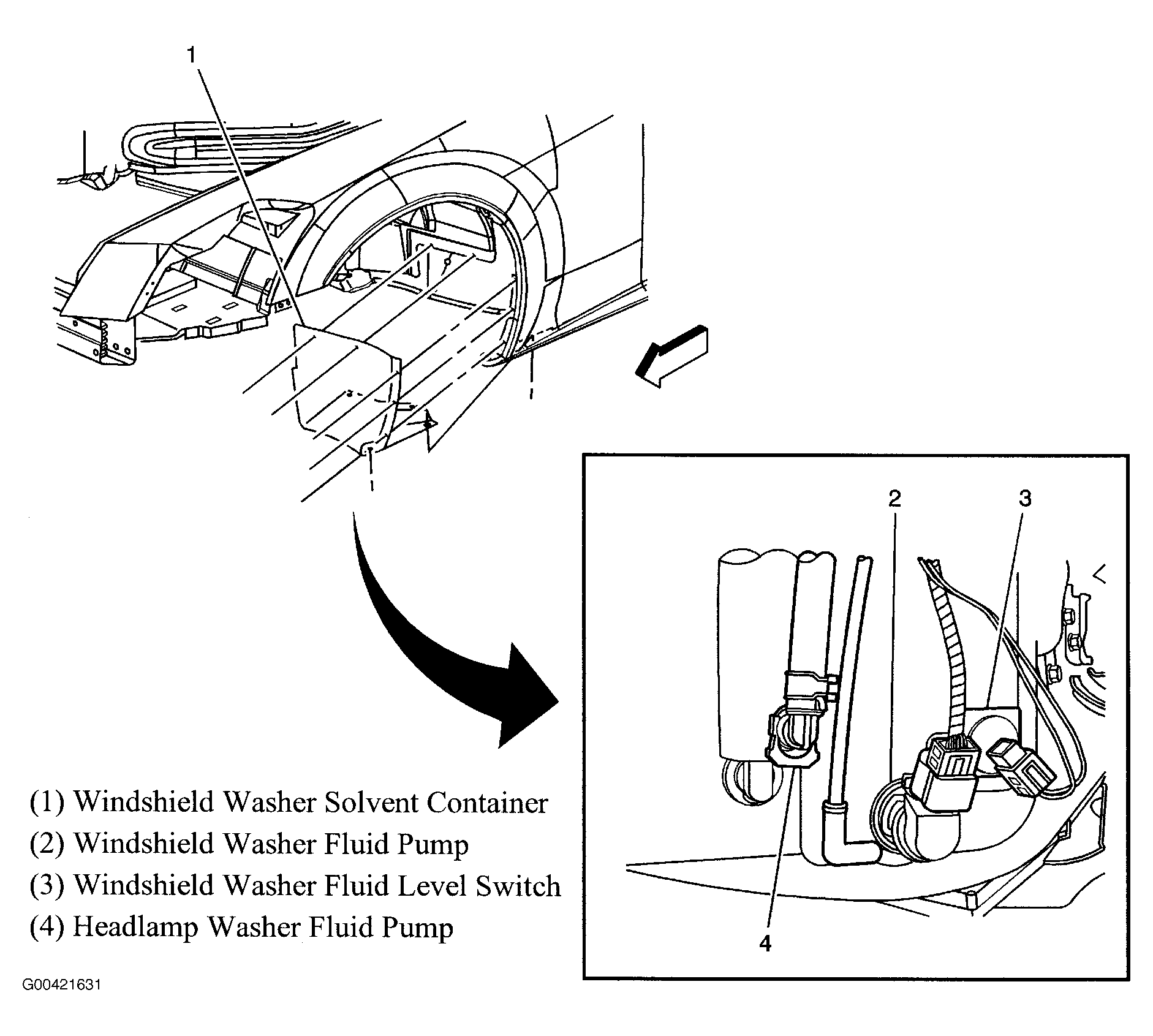

Fig 47: Rear Of Left Front Wheelwell
Courtesy of GENERAL MOTORS CORP.

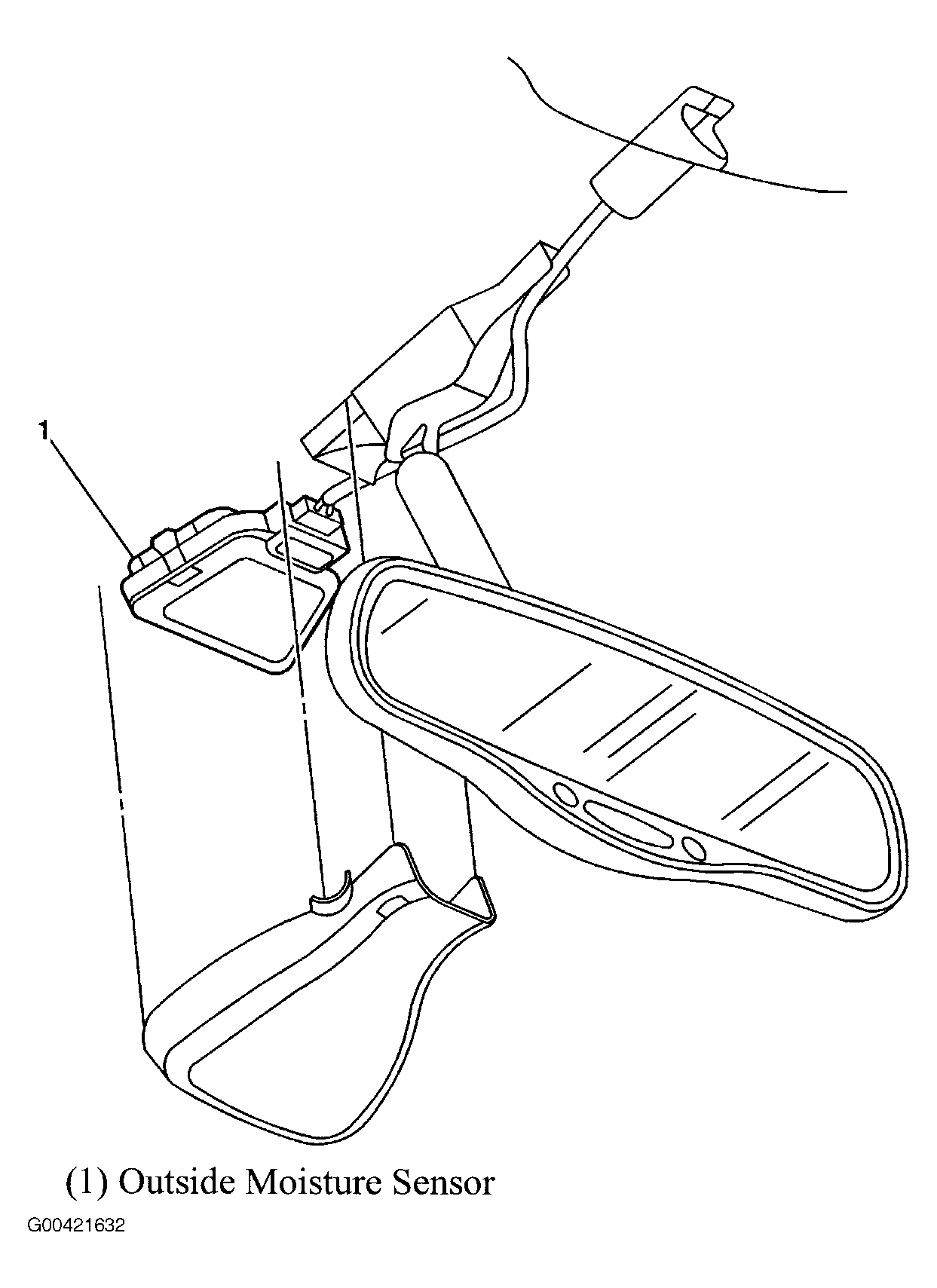

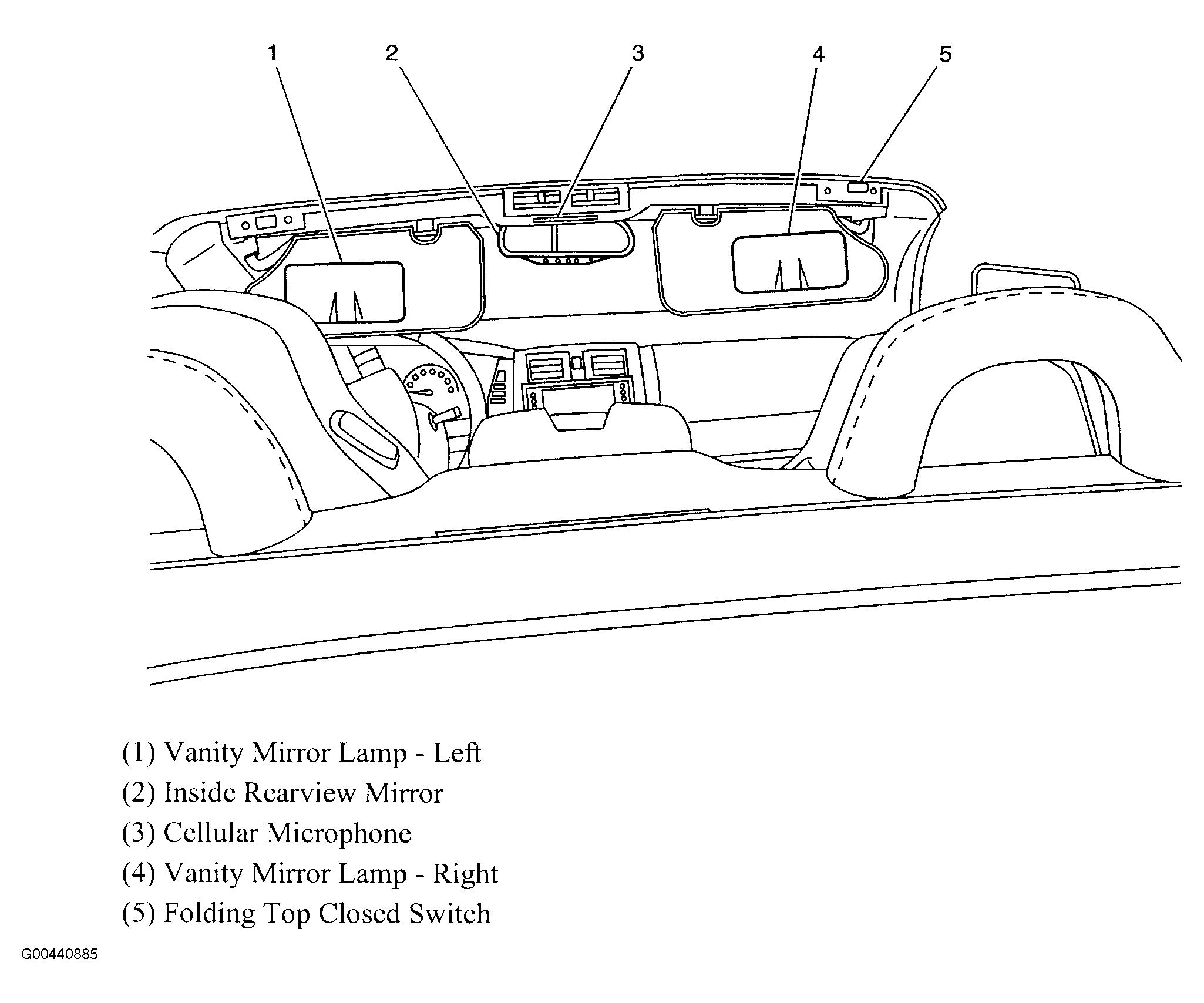

Fig 48: Upper Center Of Windshield
Courtesy of GENERAL MOTORS CORP.

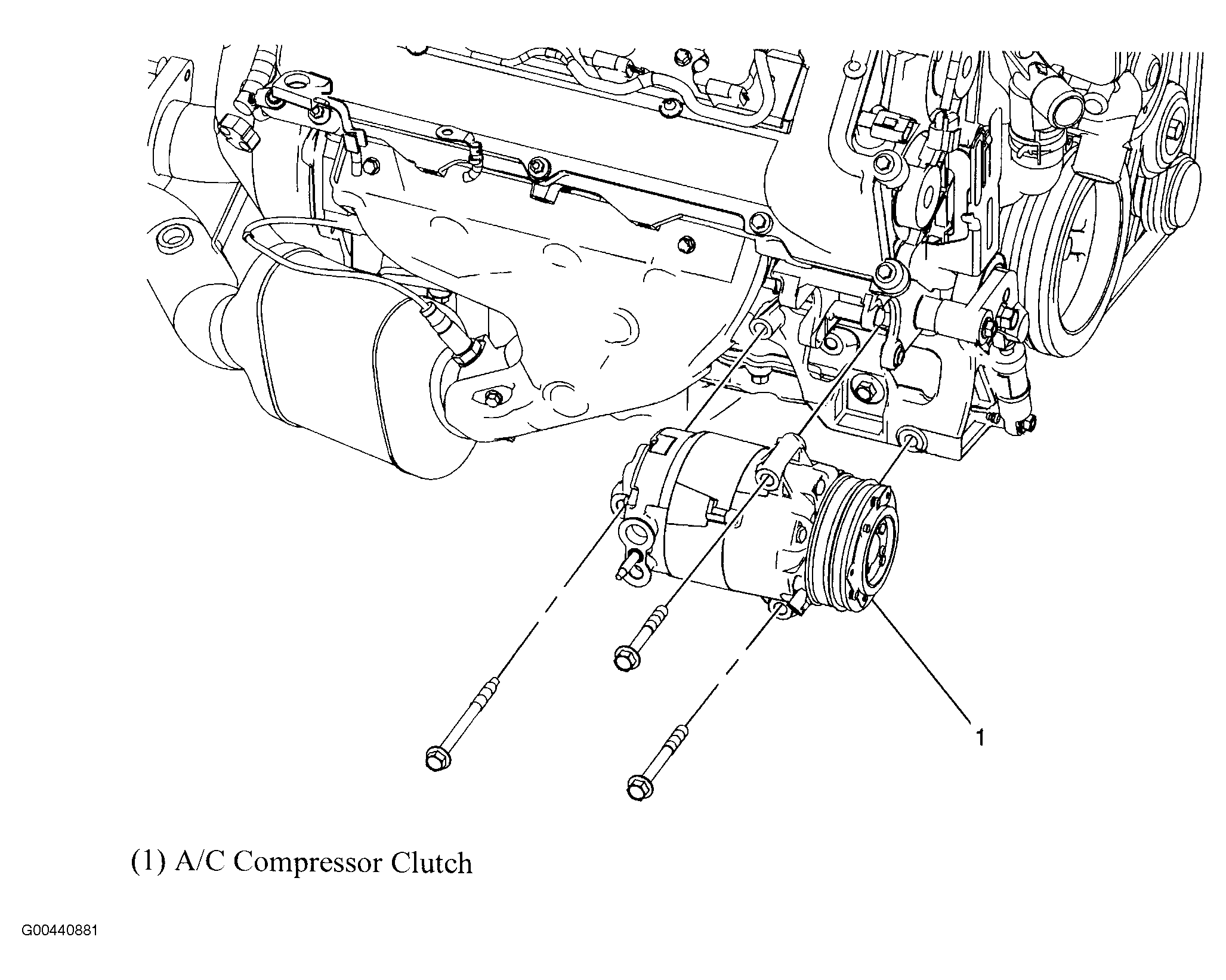

Fig 49: Left Side Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Side Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Engine Assembly (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Transaxle Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 53: Center Of Vehicle
Courtesy of GENERAL MOTORS CORP.

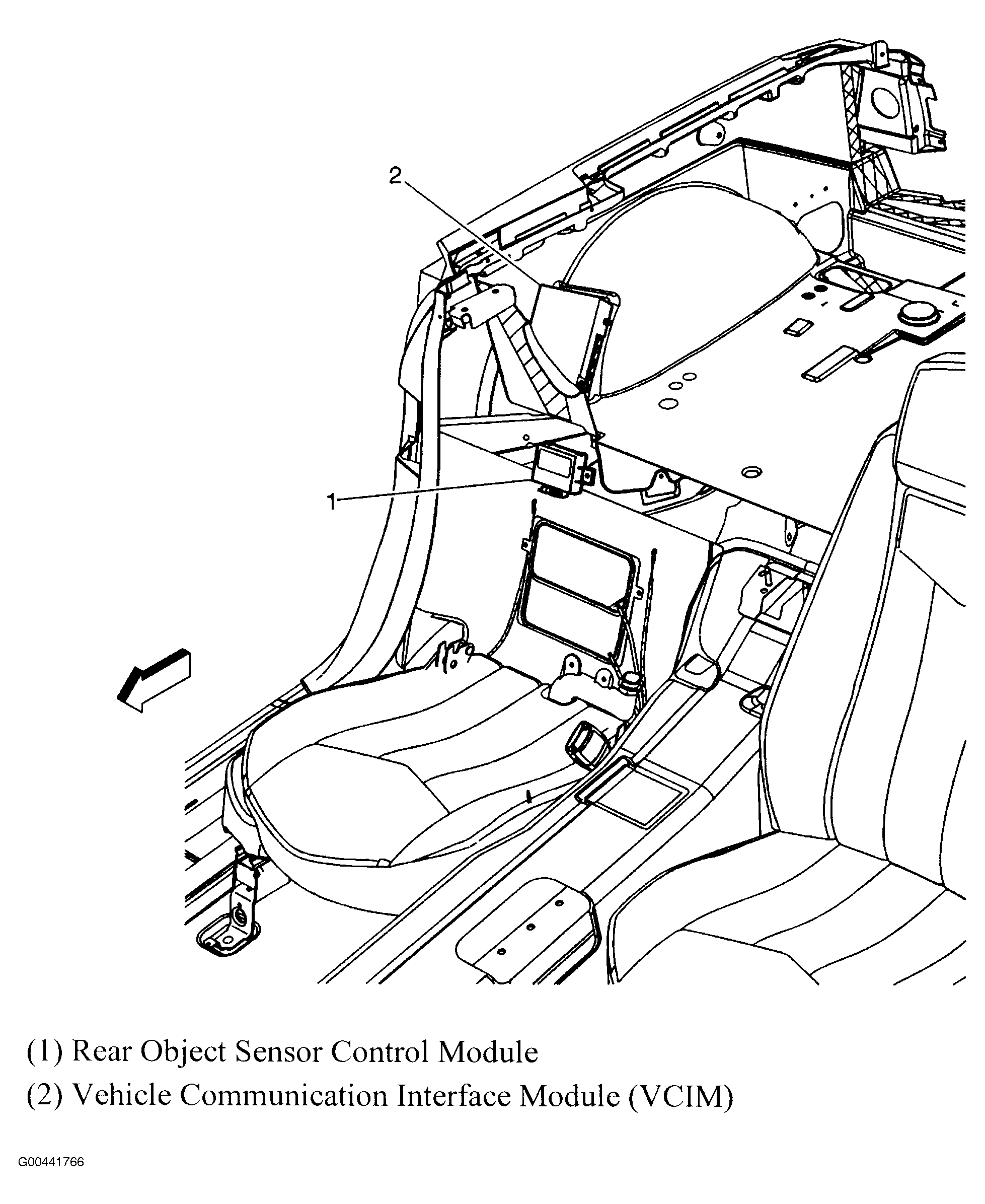

Fig 54: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 55: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 57: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

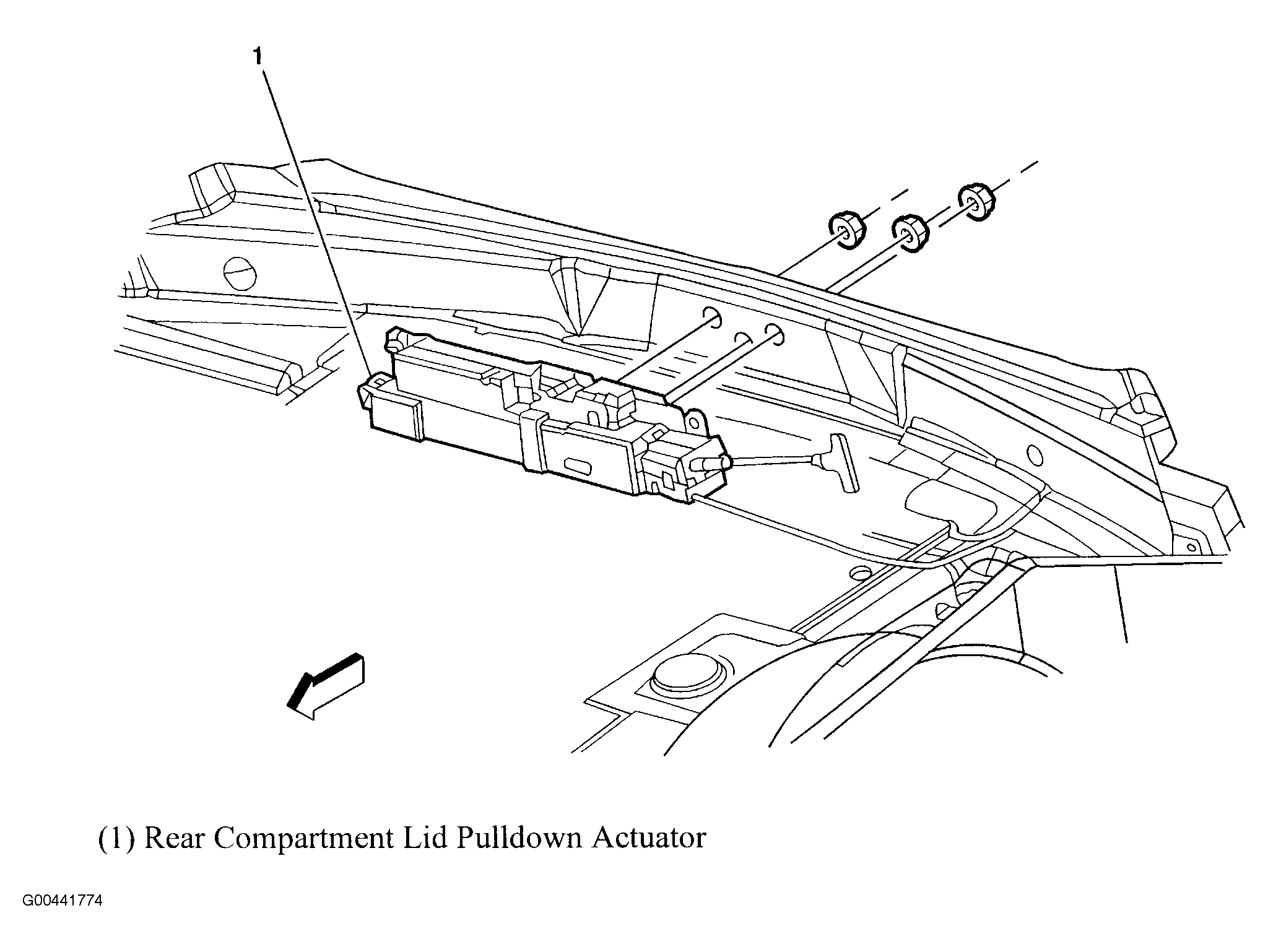

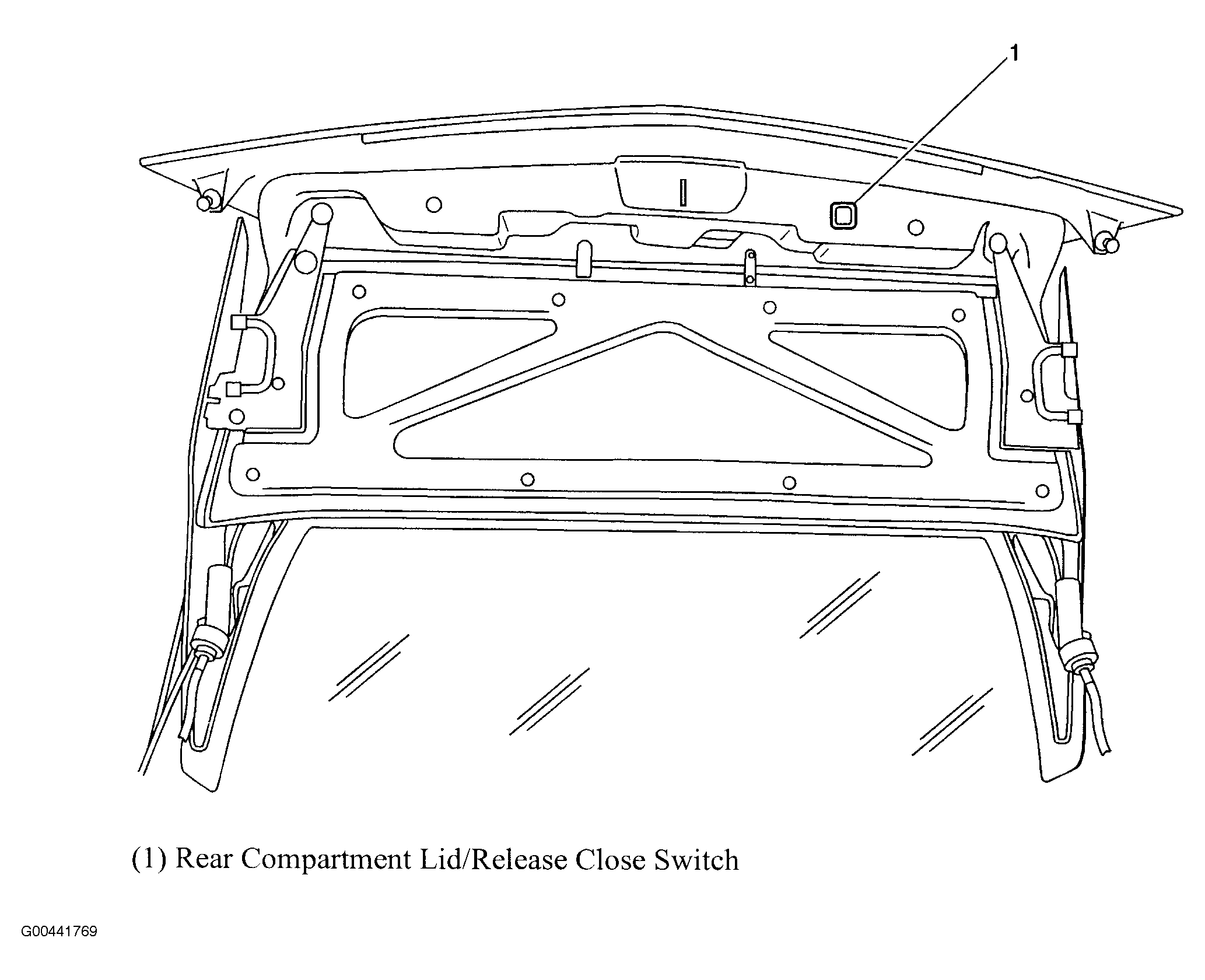

Fig 58: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.

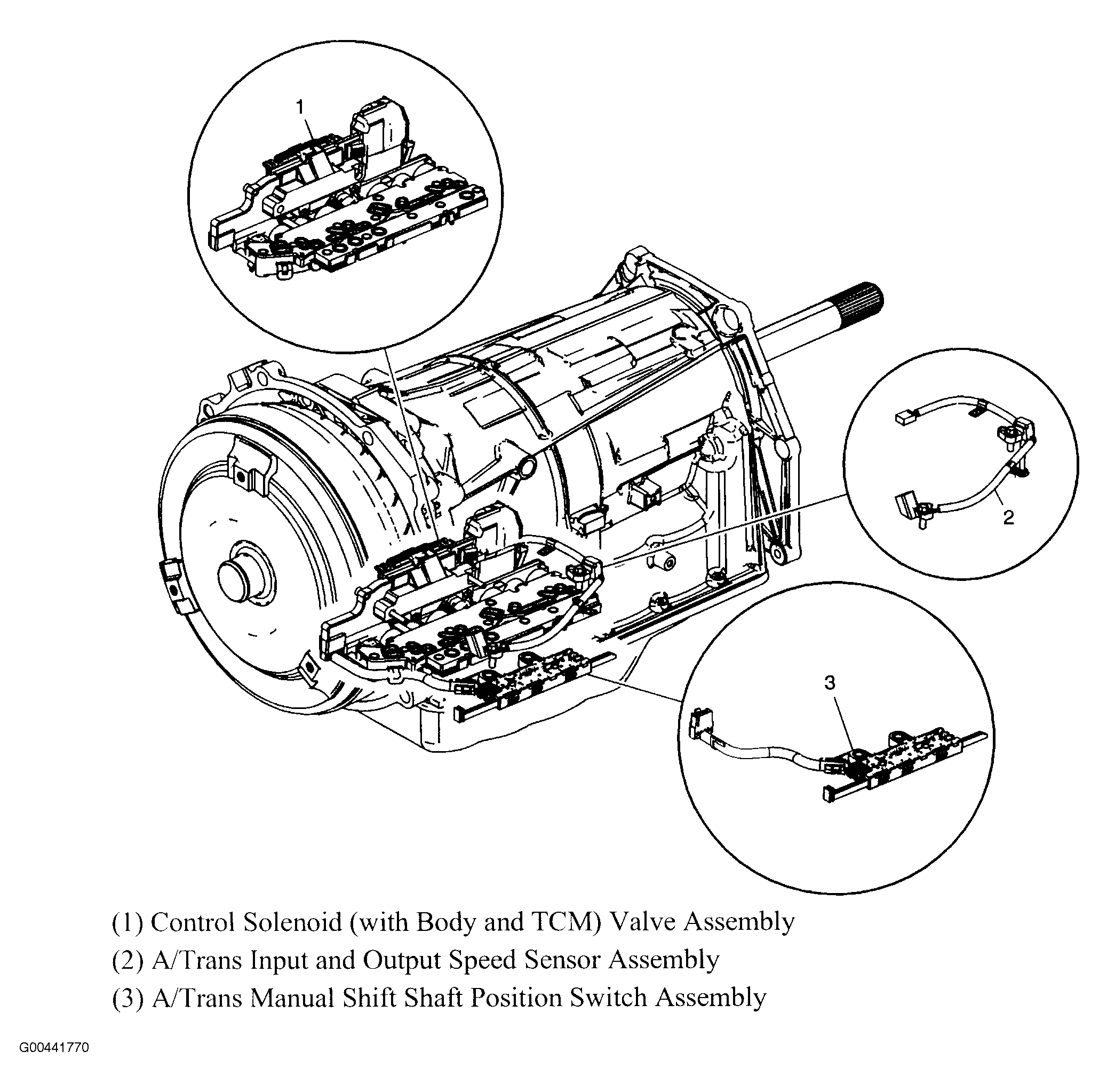

Fig 59: Automatic Transmission Overview
Courtesy of GENERAL MOTORS CORP.

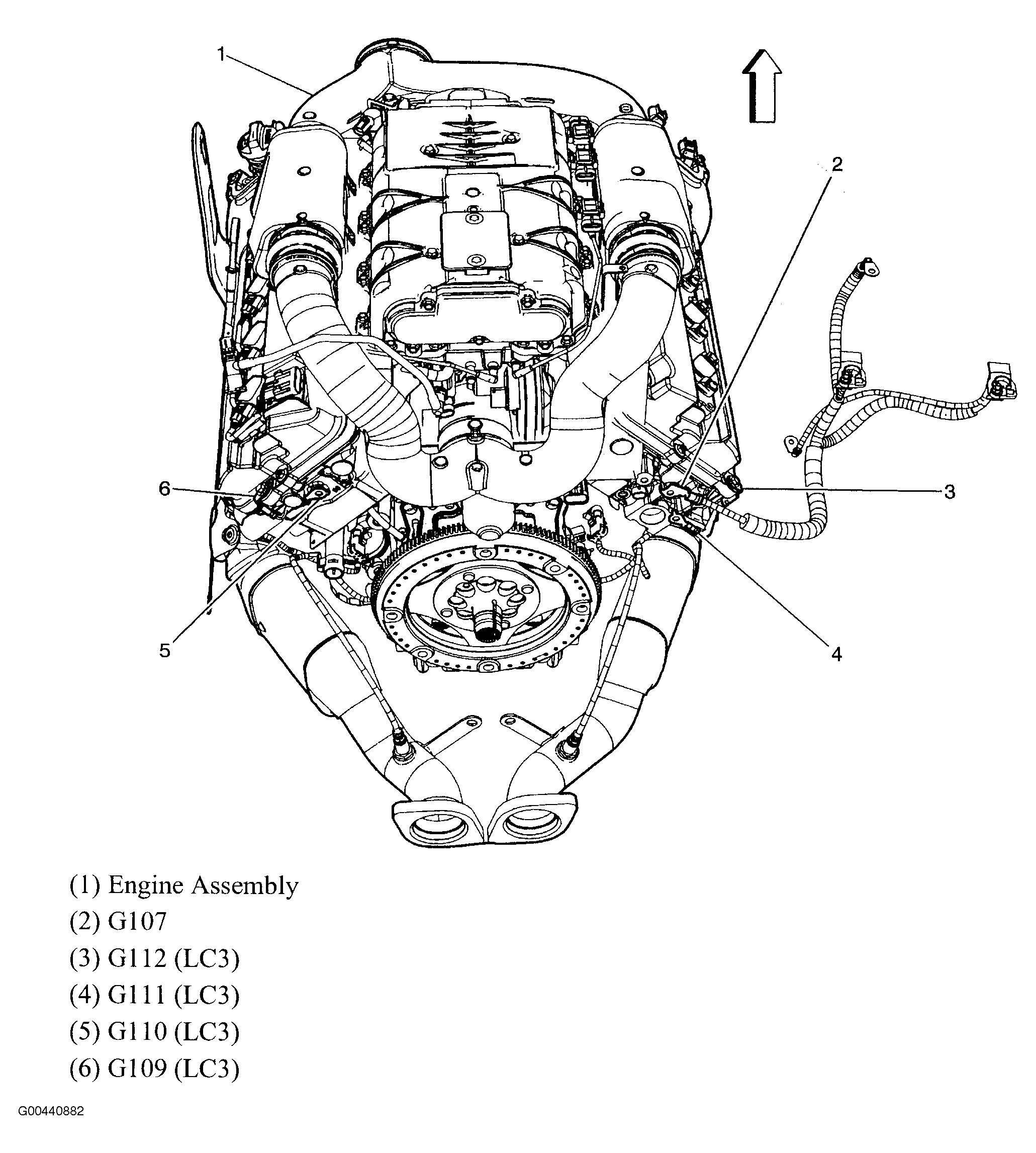

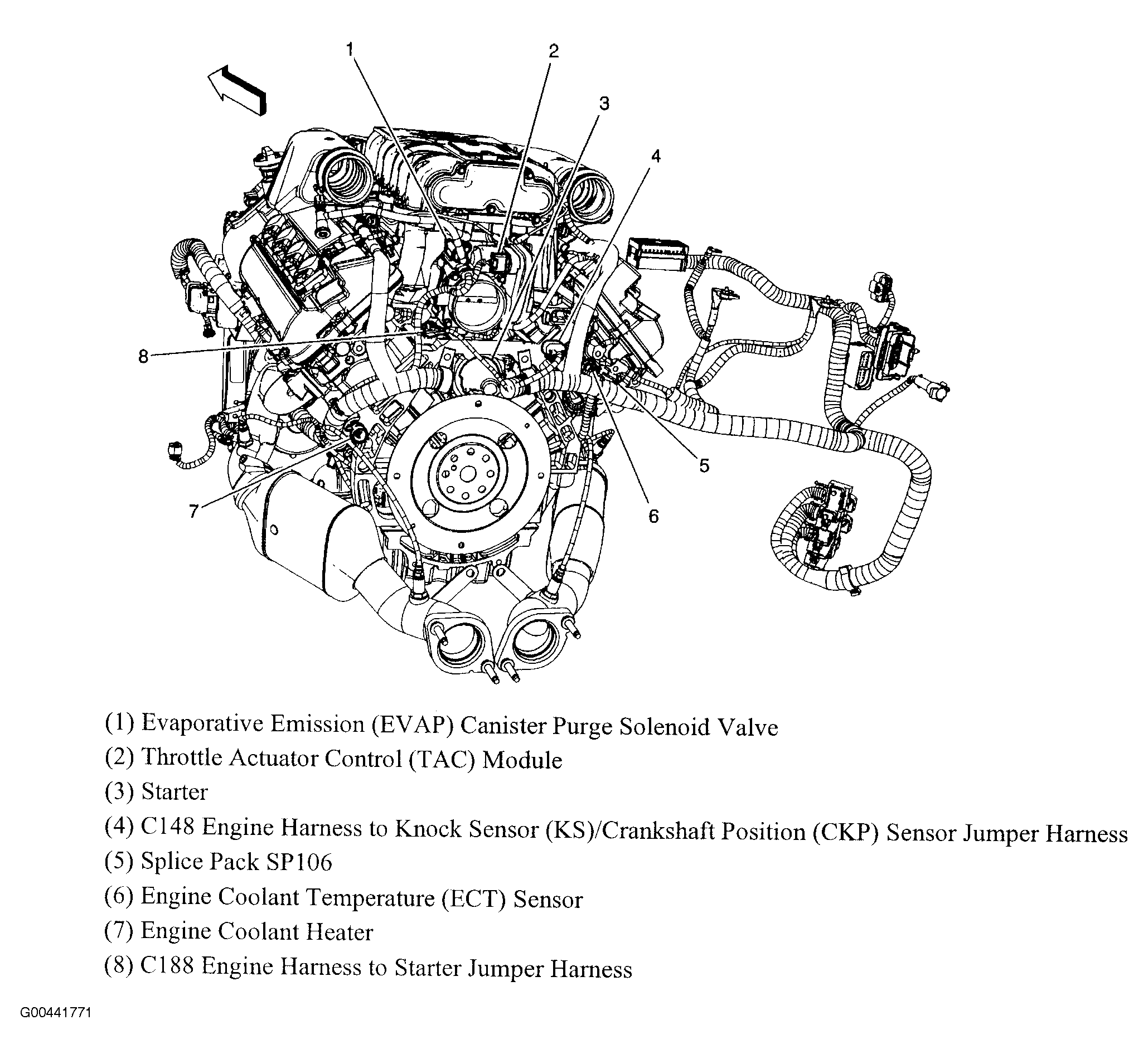

Fig 60: Rear Of Engine Assembly (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 61: Front Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 63: Center Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

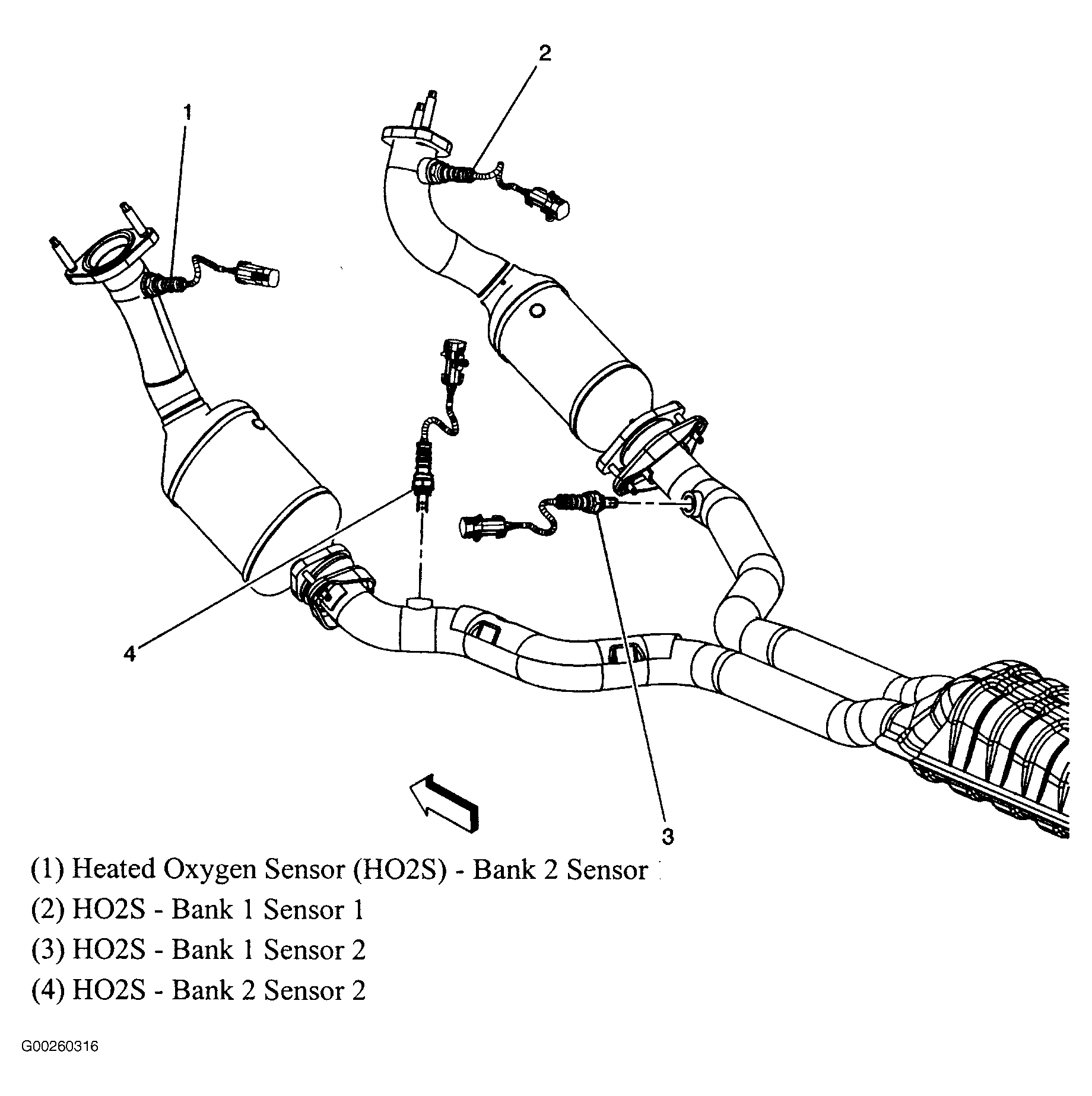

Fig 64: Exhaust System Component Views (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right Side Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 66: Left Side Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.

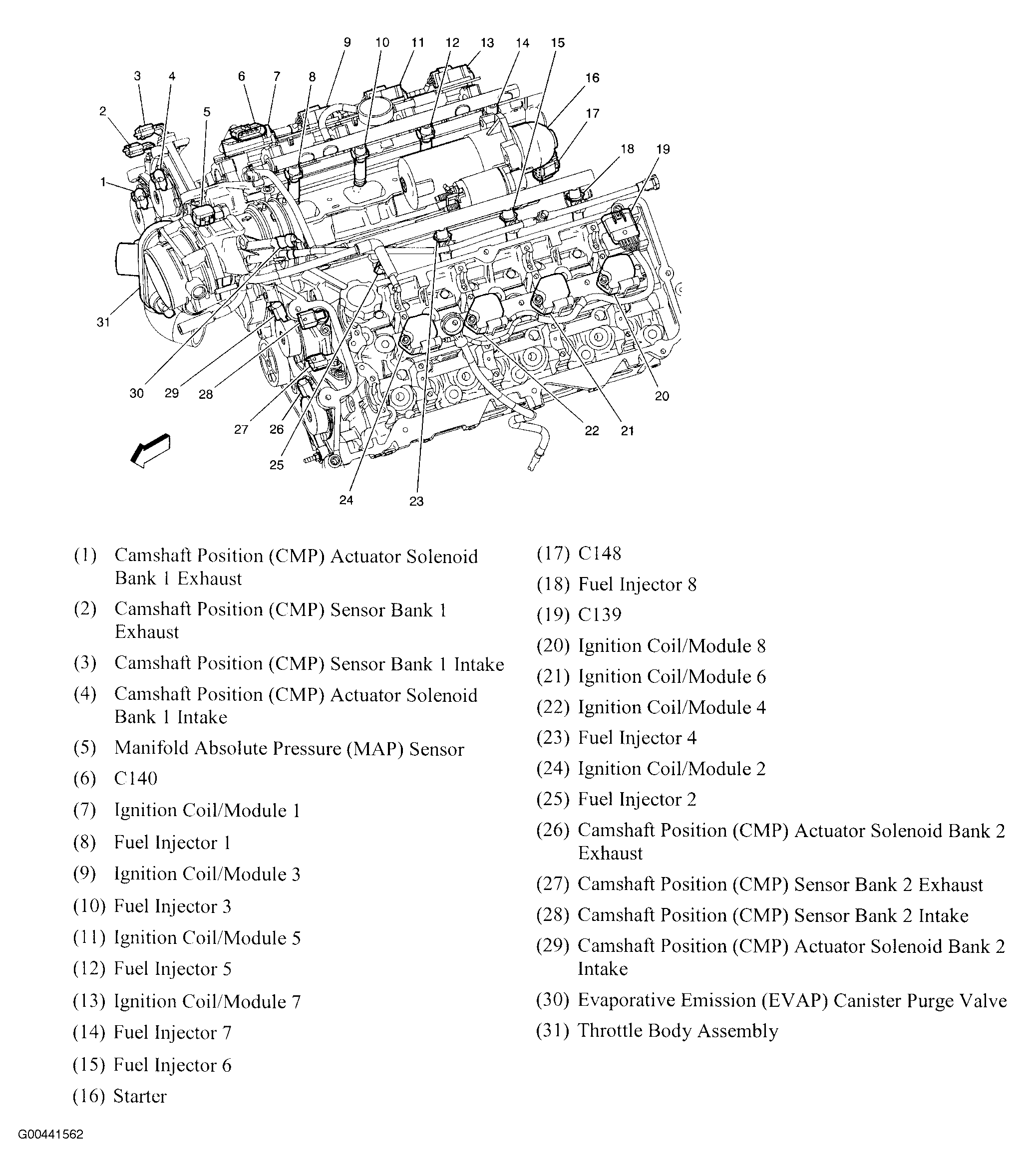

Fig 67: Top Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Top Of Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.

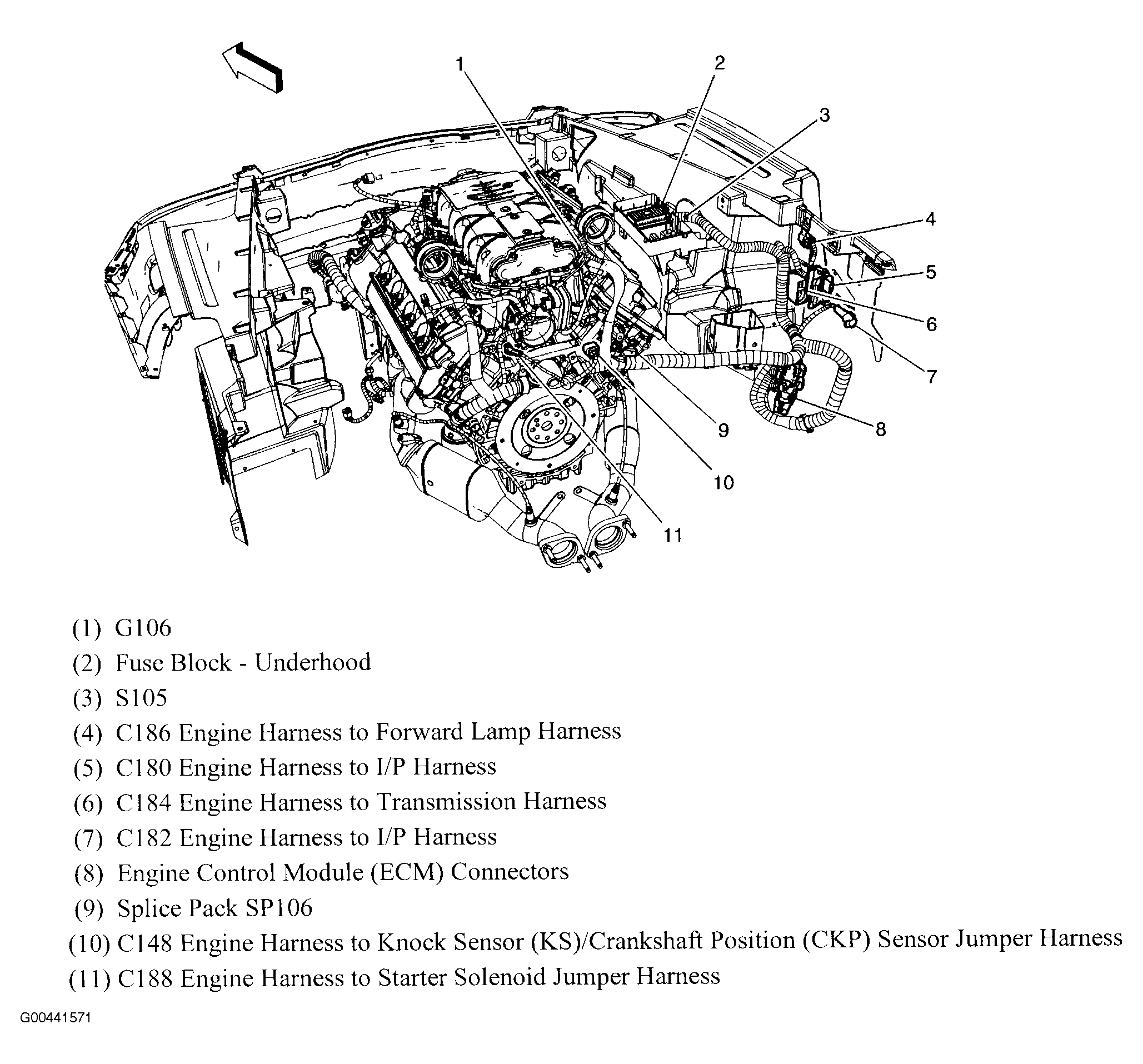

Fig 69: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

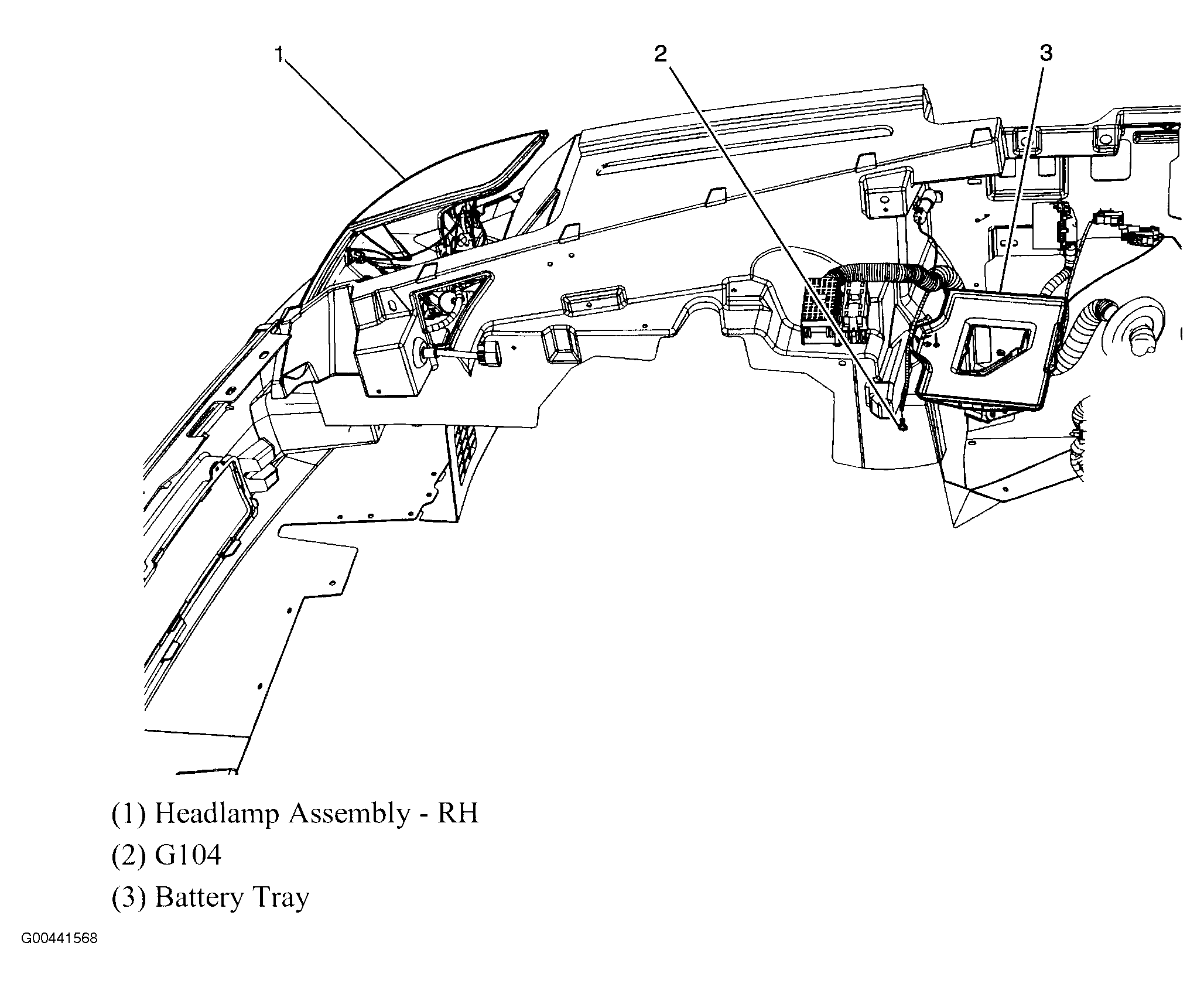

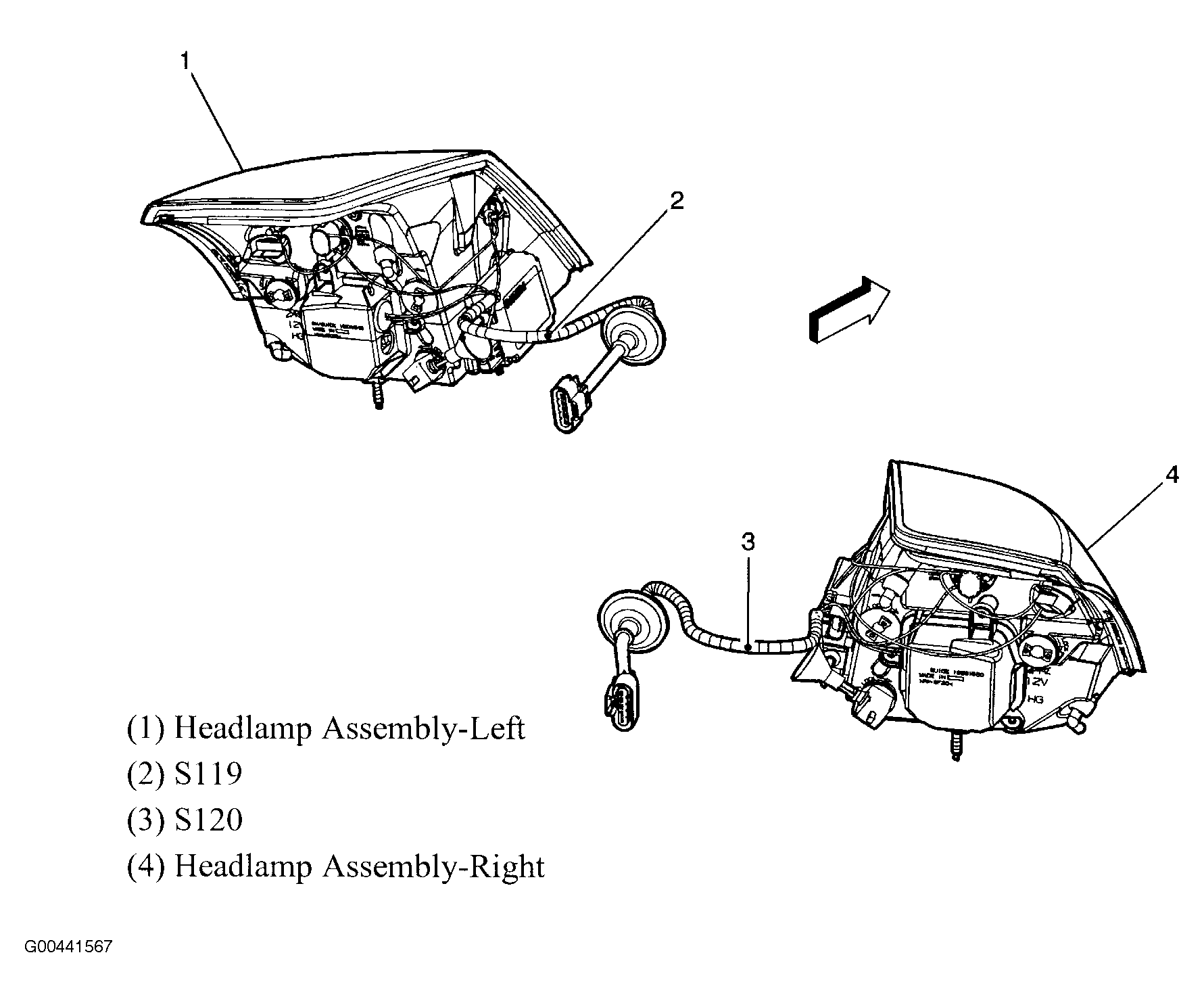

Fig 70: Behind Headlight Assemblies
Courtesy of GENERAL MOTORS CORP.
Fig 71: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

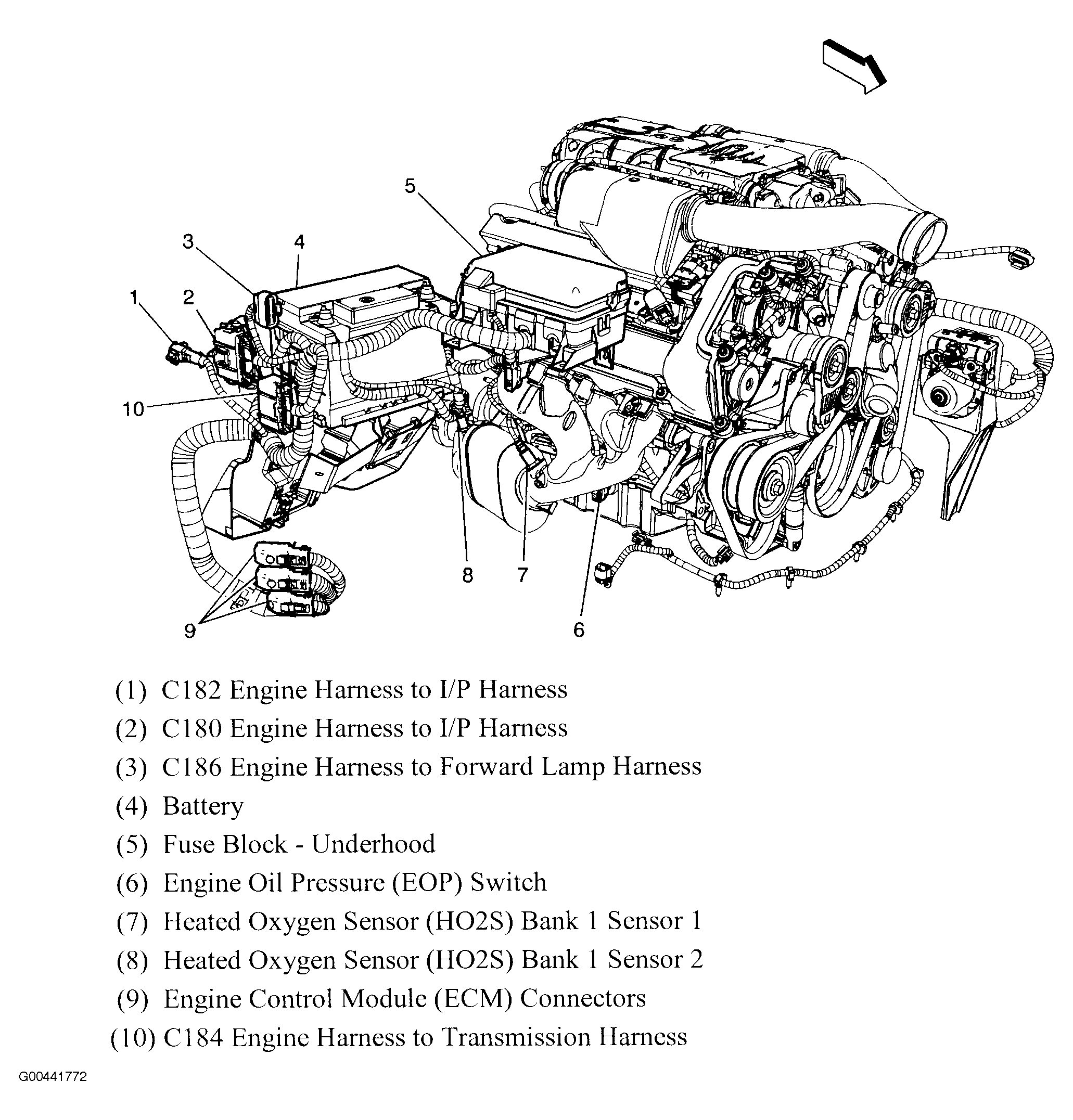

Fig 72: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

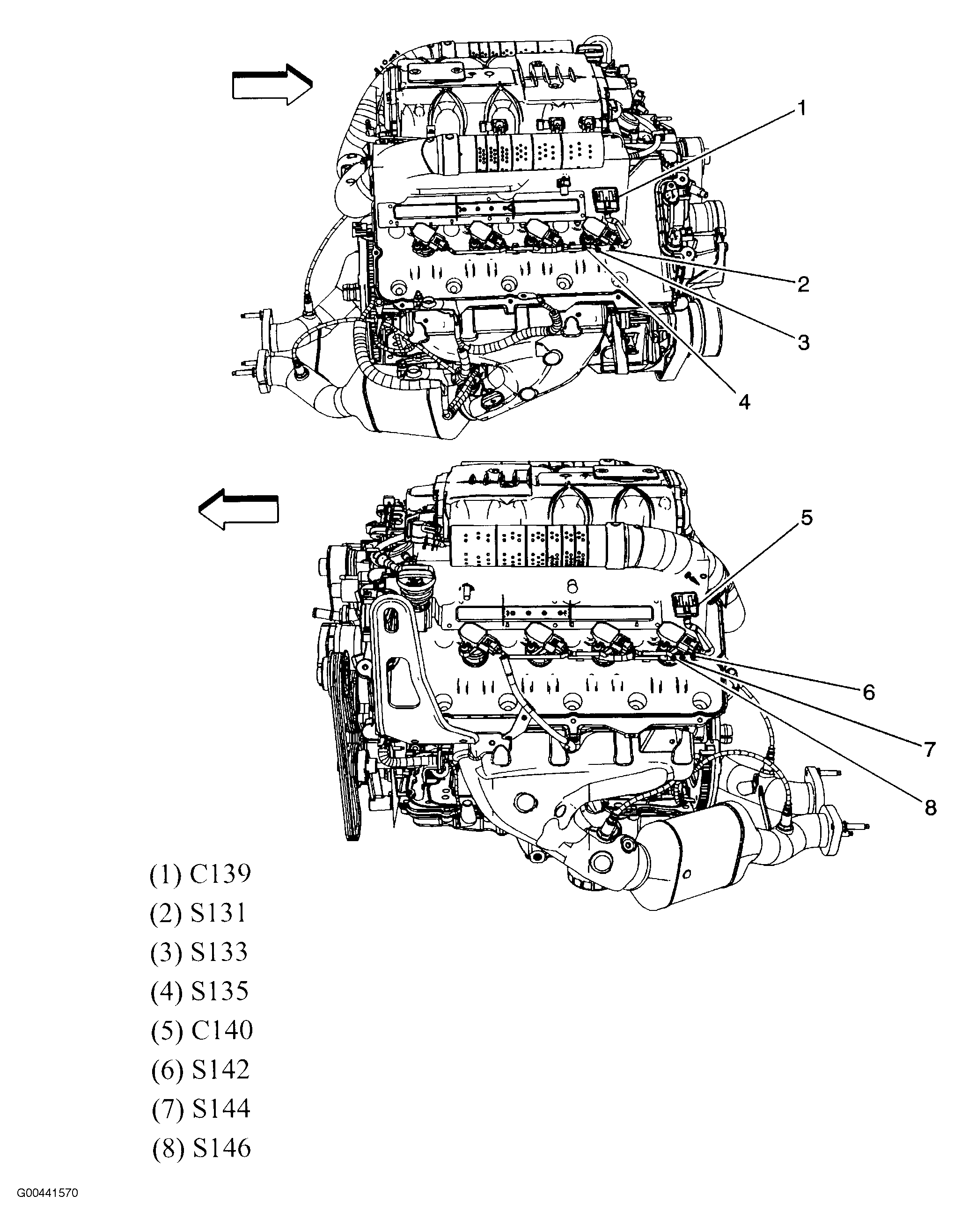

Fig 73: Engine (4.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 74: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 75: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 76: Dash
Courtesy of GENERAL MOTORS CORP.

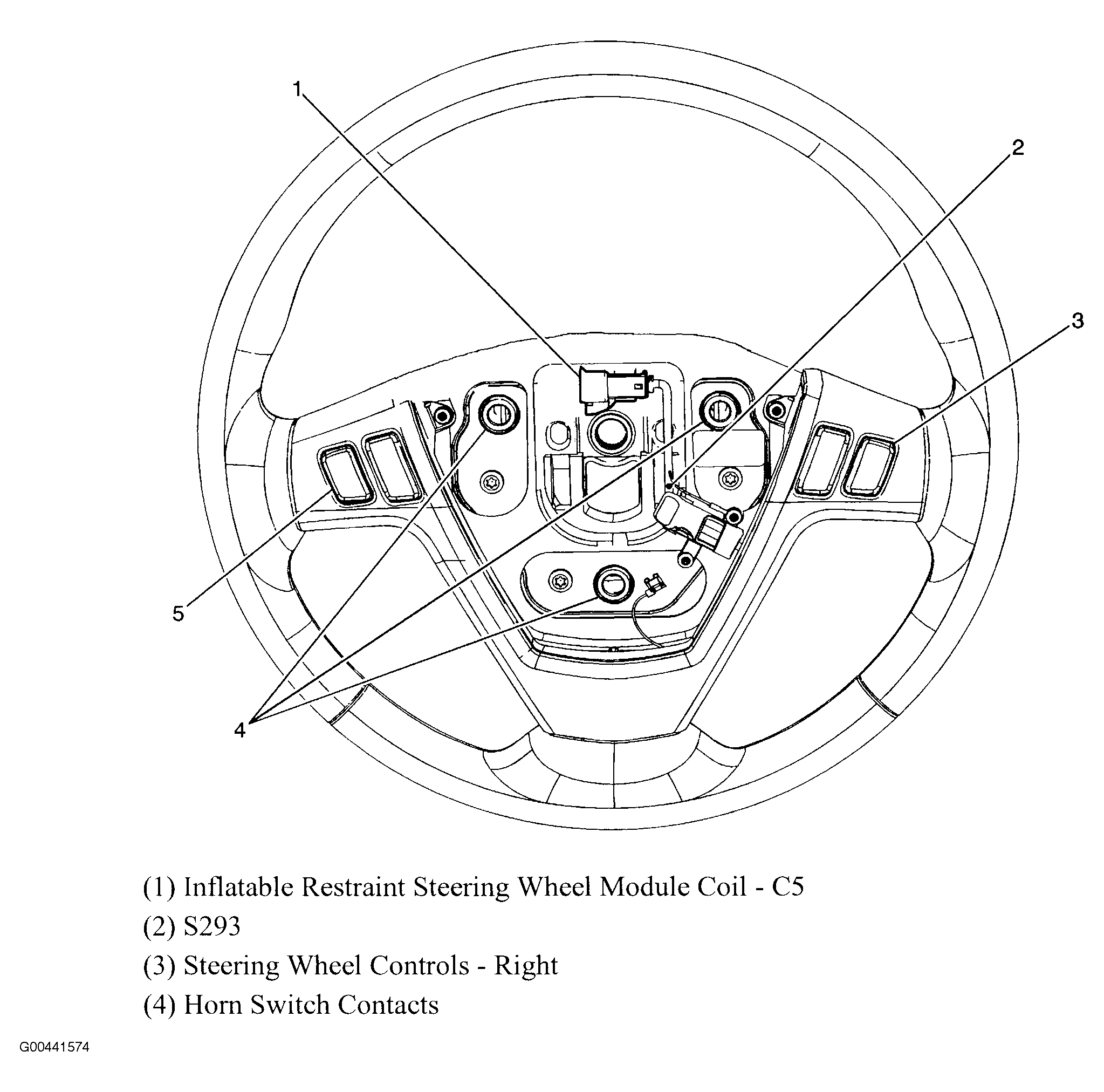

Fig 77: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 78: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 79: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 80: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 81: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 82: Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 83: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

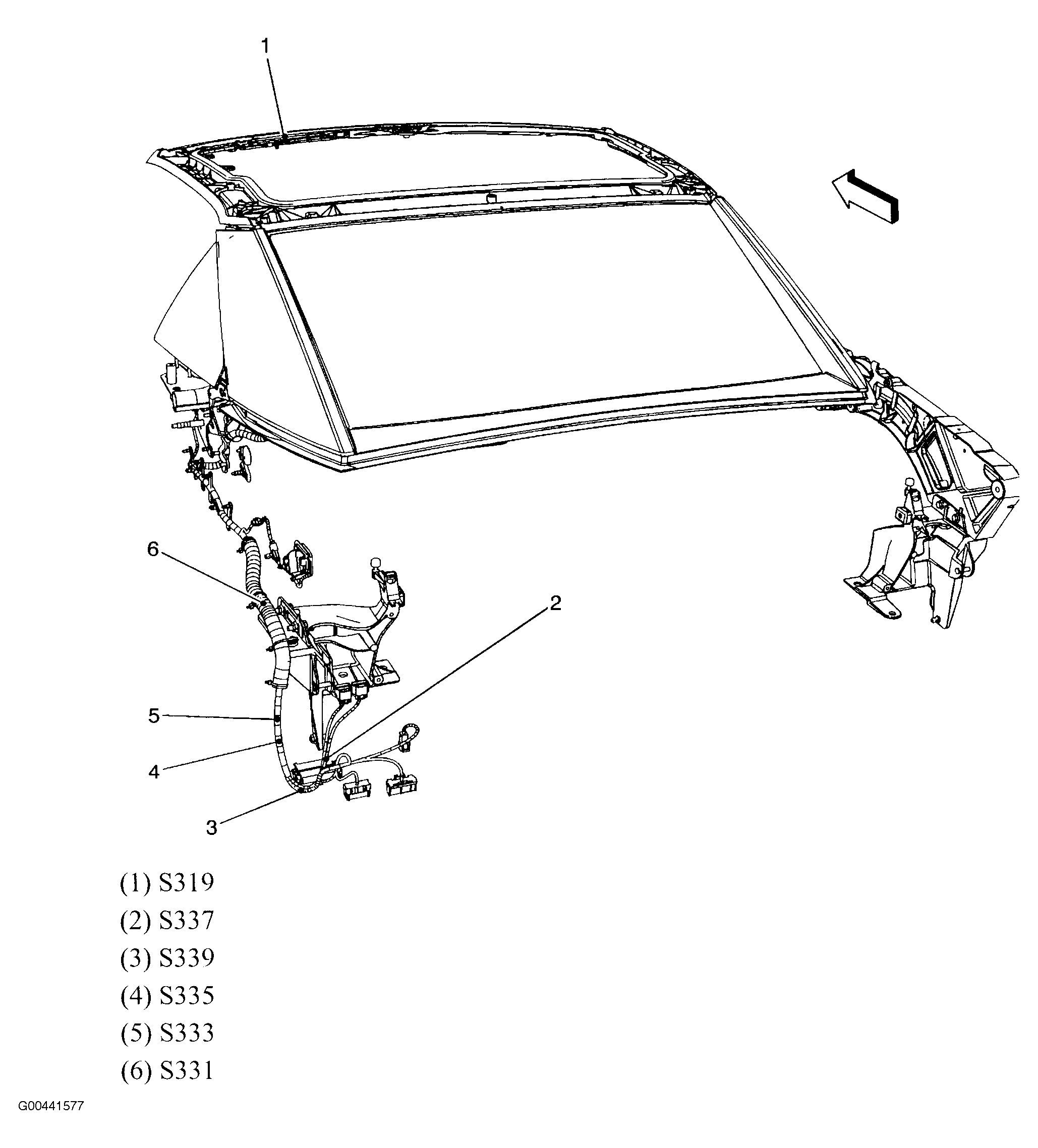

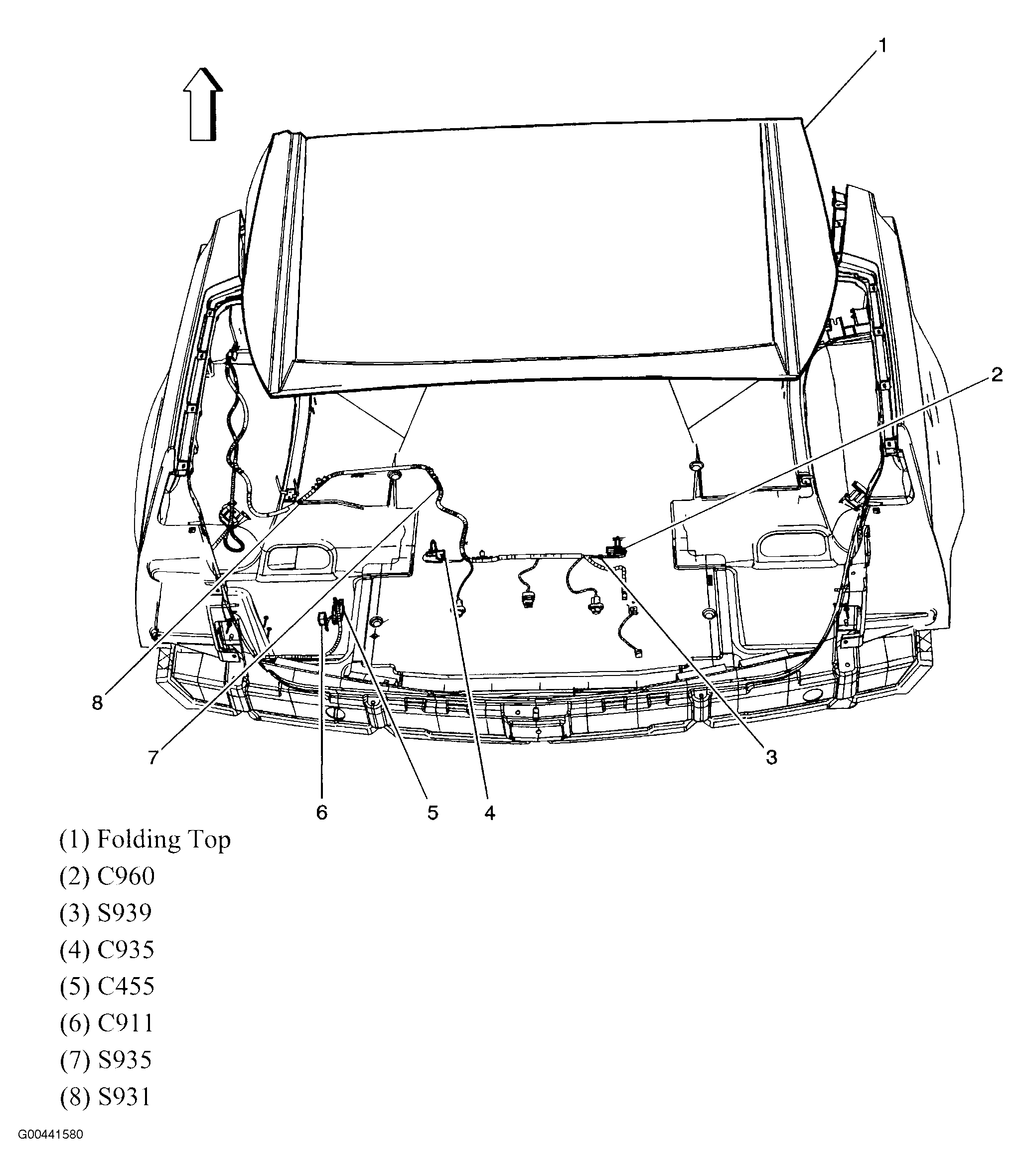

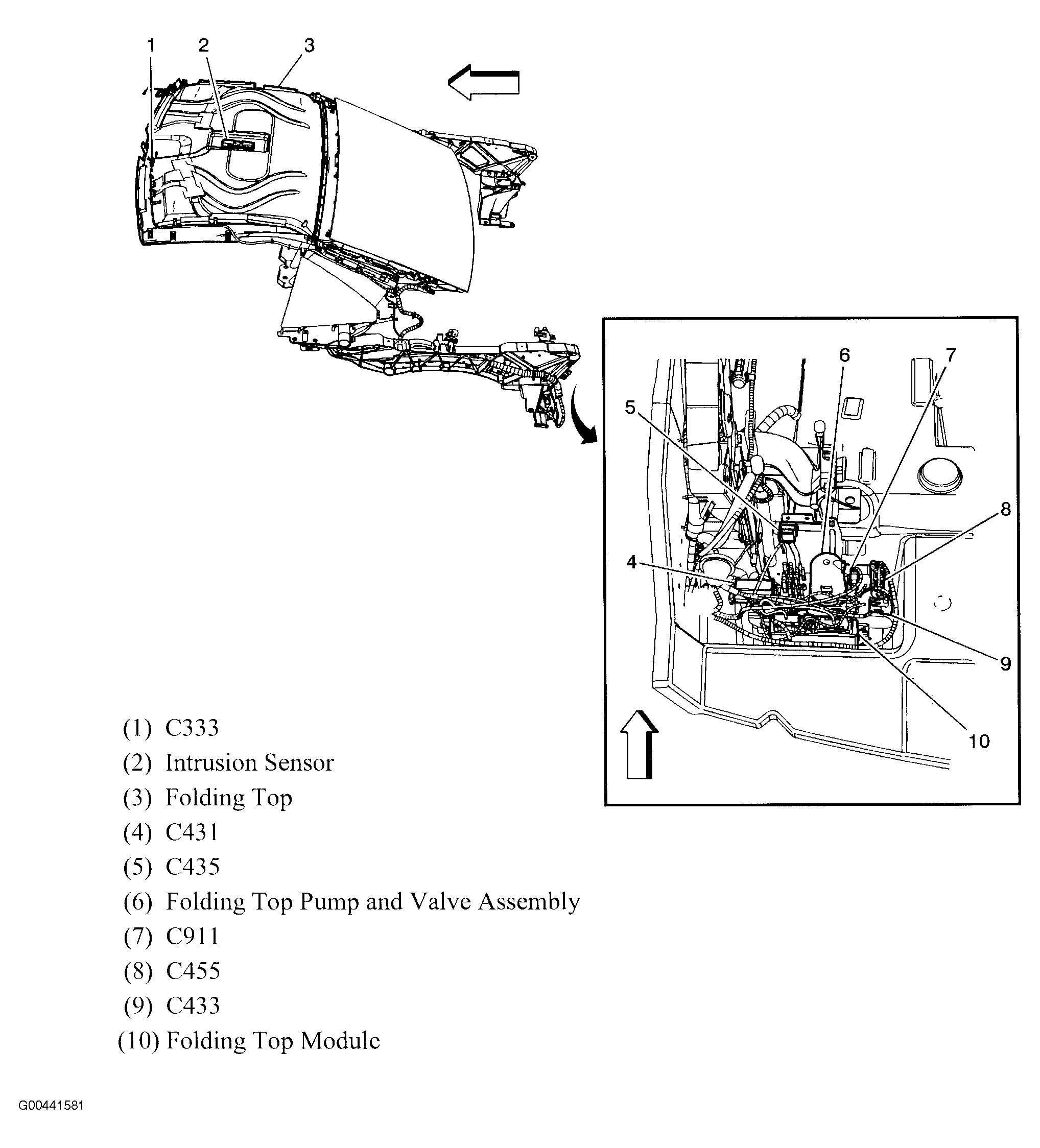

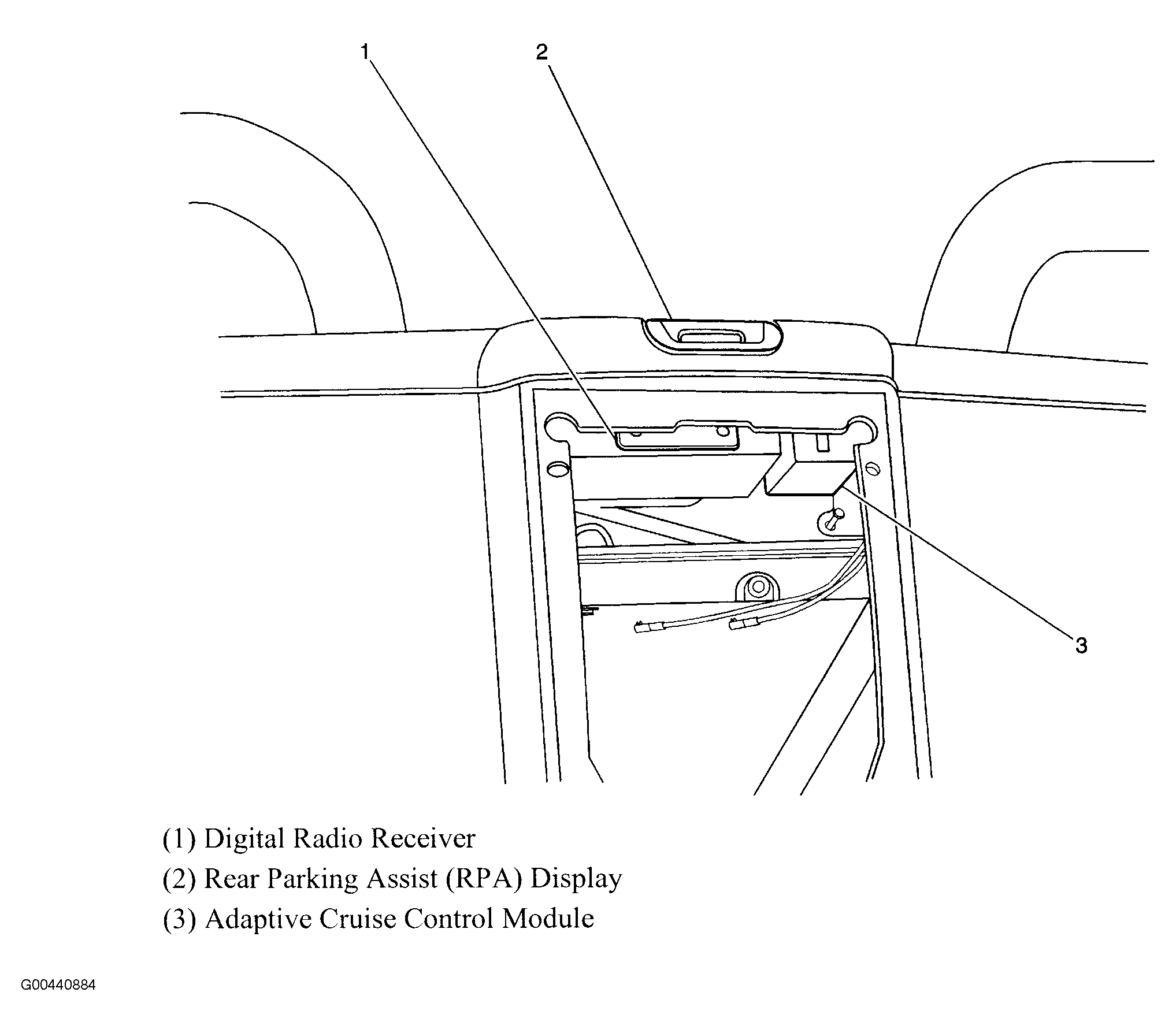

Fig 84: Folding Top
Courtesy of GENERAL MOTORS CORP.

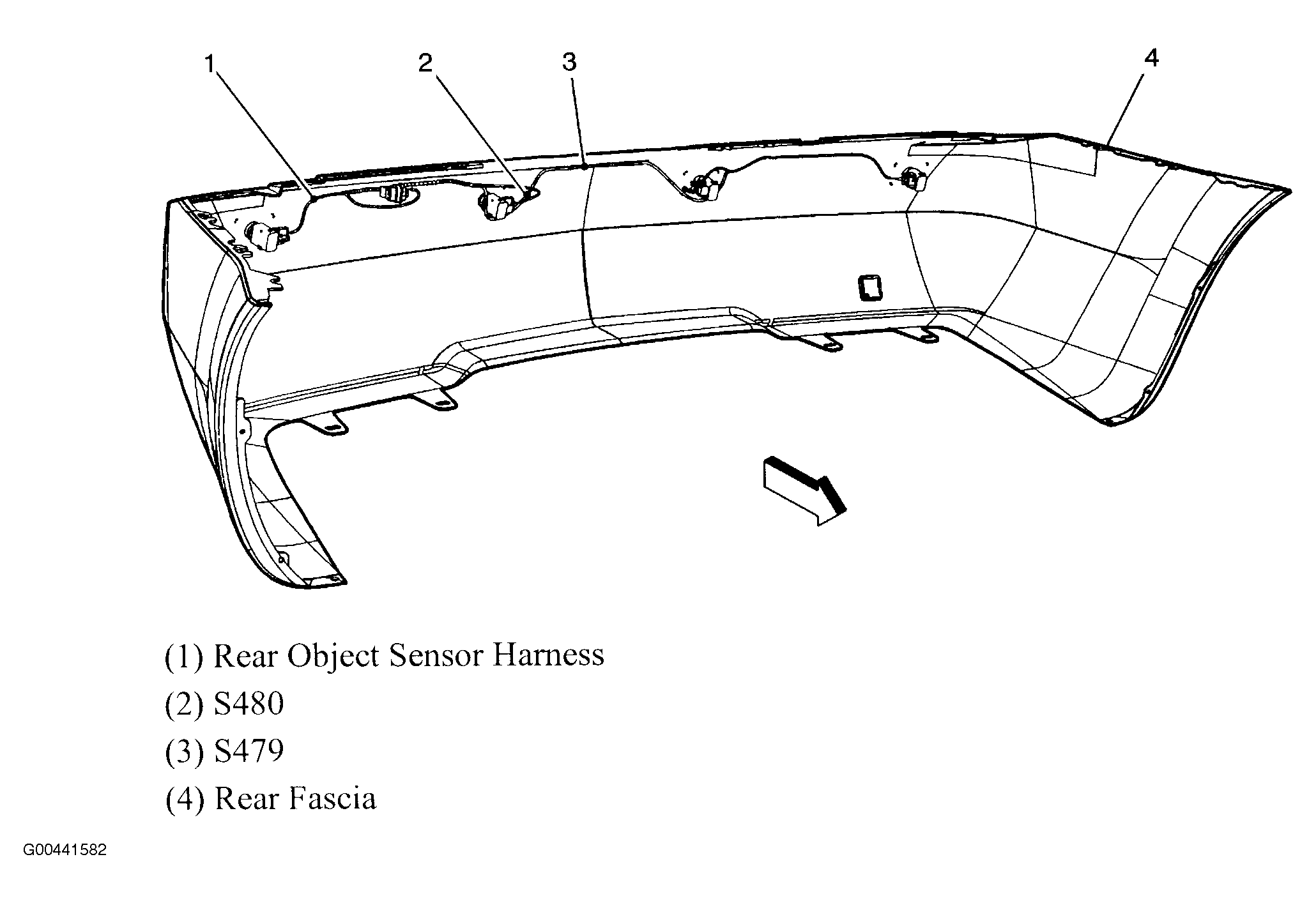

Fig 85: Rear Fascia
Courtesy of GENERAL MOTORS CORP.
