Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C Compressor Clutch | Lower right front of engine. See Figure. |
| Audio Amplifier | Behind left rear seat back. See Figure. |
| Battery | Right rear of engine compartment. See Figure. |
| Cellular Microphone | Above rear view mirror. See Figure. |
| Data Link Connector (DLC) | Under left side of dash. See Figure. |
| Engine Coolant Heater | Lower left rear of engine. See Figure. |
| Generator | At lower left side of engine. See Figure. |
| Heads Up Display | Top left side of dash. See Figure. |

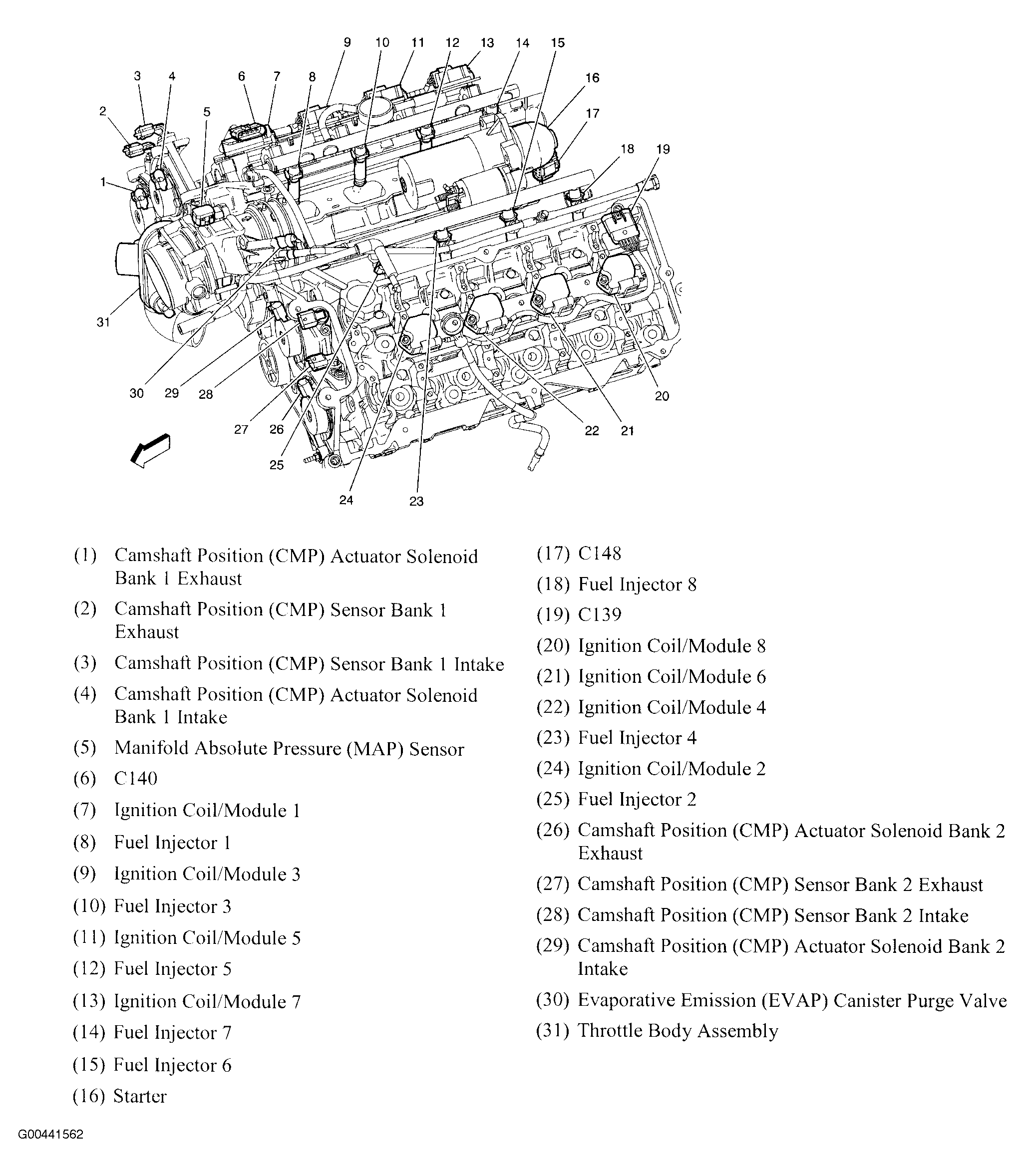

| Ignition Coil/Module 1 | Top of right cylinder head. See Figure. |
| Ignition Coil/Module 2 | Top of left cylinder head. See Figure. |
| Ignition Coil/Module 3 | Top of right cylinder head. See Figure. |
| Ignition Coil/Module 4 | Top of left cylinder head. See Figure. |
| Ignition Coil/Module 5 | Top of right cylinder head. See Figure. |
| Ignition Coil/Module 6 | Top of left cylinder head. See Figure. |
| Ignition Coil/Module 7 | Top of right cylinder head. See Figure. |
| Ignition Coil/Module 8 | Top of left cylinder head. See Figure. |

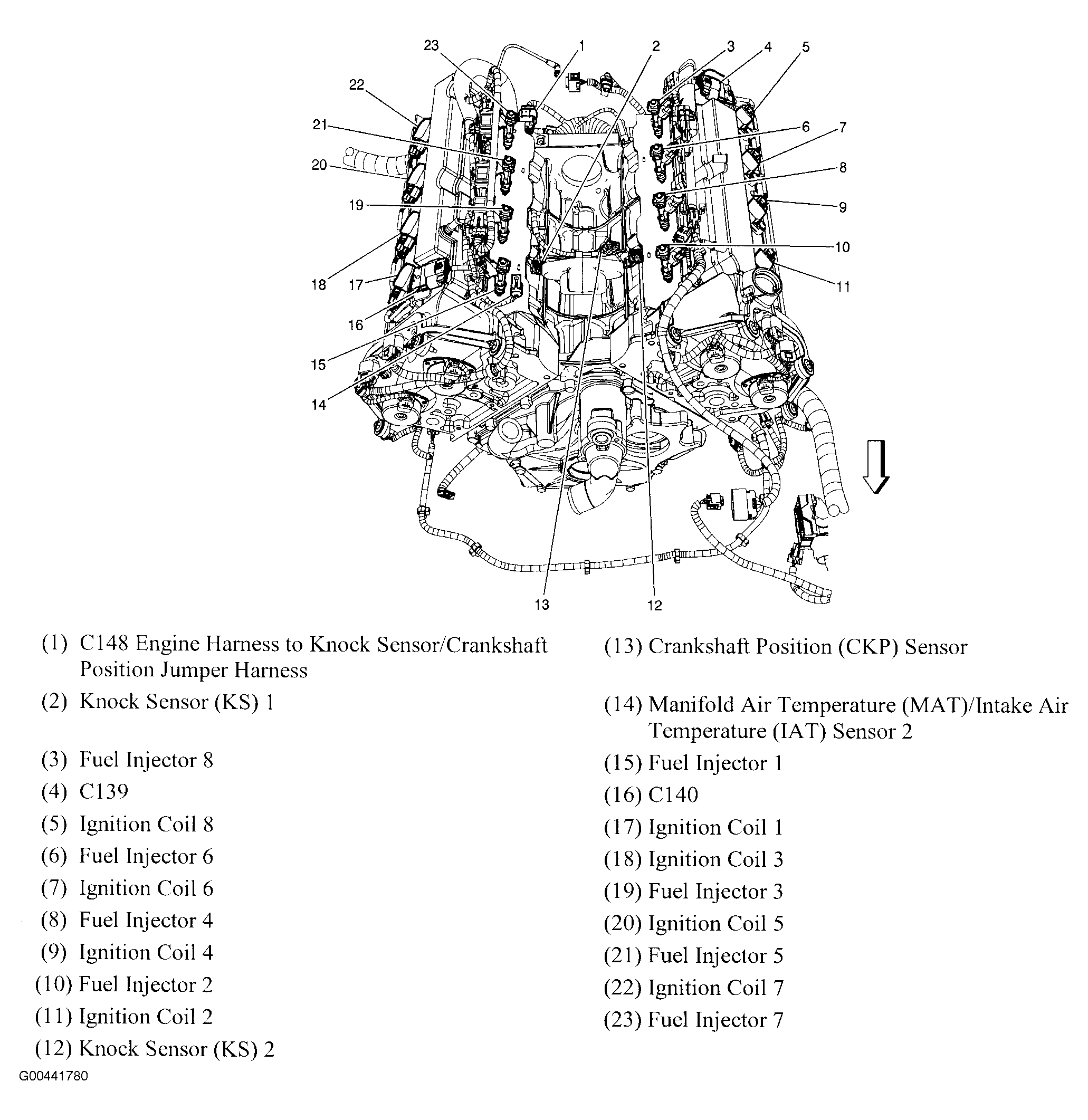

| Ignition Coil 1 | Top of right cylinder head. See Figure. |
| Ignition Coil 2 | Top of left cylinder head. See Figure. |
| Ignition Coil 3 | Top of right cylinder head. See Figure. |
| Ignition Coil 4 | Top of left cylinder head. See Figure. |
| Ignition Coil 5 | Top of right cylinder head. See Figure. |
| Ignition Coil 6 | Top of left cylinder head. See Figure. |
| Ignition Coil 7 | Top of right cylinder head. See Figure. |
| Ignition Coil 8 | Top of left cylinder head. See Figure. |
| Inflatable Restraint Steering Wheel Module Coil | In steering wheel. See Figure. |
| Keyless Entry Antenna - Back-Up | Upper right side of the dash. |
| Keyless Entry Antenna - Left | Top of left "B" pillar, under tonneau cover. |
| Keyless Entry Antenna - Rear Compartment | Left side of rear compartment pull down actuator. |
| Keyless Entry Antenna - Right | Top of right "B" pillar, under tonneau cover. |
| Navigation Antenna | Right center of dash. See Figure. |
| Noise Cancellation Microphone | Right side of driver's knee bolster. See Figure. |
| Seat Belt Pretensioner - Left | On inboard side of driver's seat. See Figure. |
| Seat Belt Pretensioner - Right | On inboard side of passenger's seat. See Figure. |
