Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| Splice Pack SP101 | In forward lamp harness, in engine compartment, on upper left frame rail, grounded to G101. See Figure. |
| Splice Pack SP102 | In forward lamp harness, in engine compartment, on upper right frame rail, grounded to G102. See Figure. |
| Splice Pack SP106 | In engine harness, right rear of engine compartment by battery, grounded to G106. See Figure. |

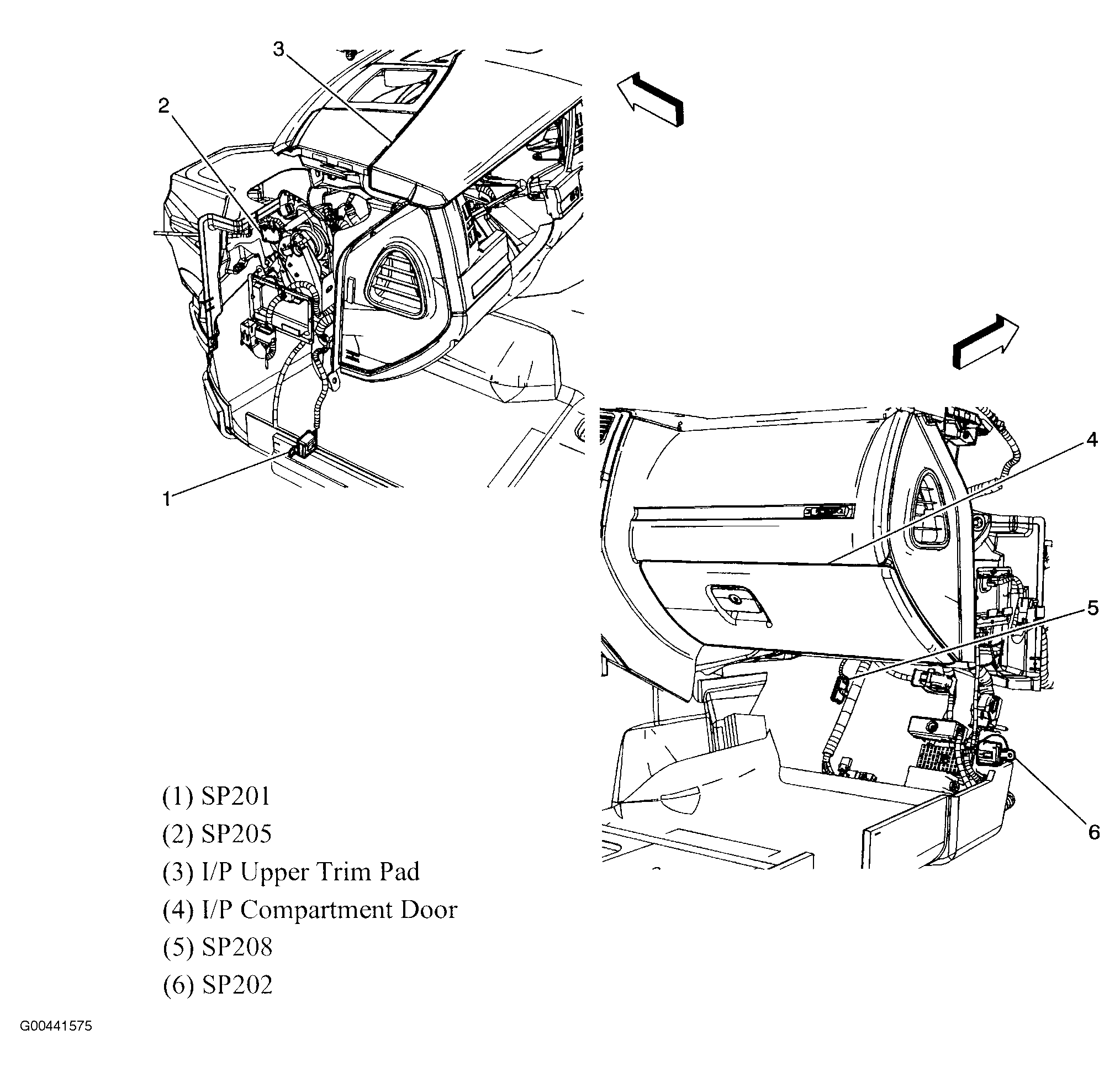

| Splice Pack SP201 | In instrument panel harness, at base of left A pillar behind trim panel, grounded to G201. See Figure. |
| Splice Pack SP202 | In instrument panel harness, at base of right A pillar behind trim panel, grounded to G202. See Figure. |
| Splice Pack SP205 | In instrument panel harness, near park brake assembly. See Figure. |
| Splice Pack SP208 | In instrument panel harness, behind right side of instrument panel, near auxiliary power relay. See Figure. |
| Splice Pack SP301 | In instrument panel harness, on left "B" pillar behind trim panel, grounded to G301. See Figure. |
| Splice Pack SP302 | In instrument panel harness, on right "B" pillar behind trim panel, grounded to G302. See Figure. |
| S105 | In engine harness, approximately 20 cm from underhood fuse block. See Figure. |

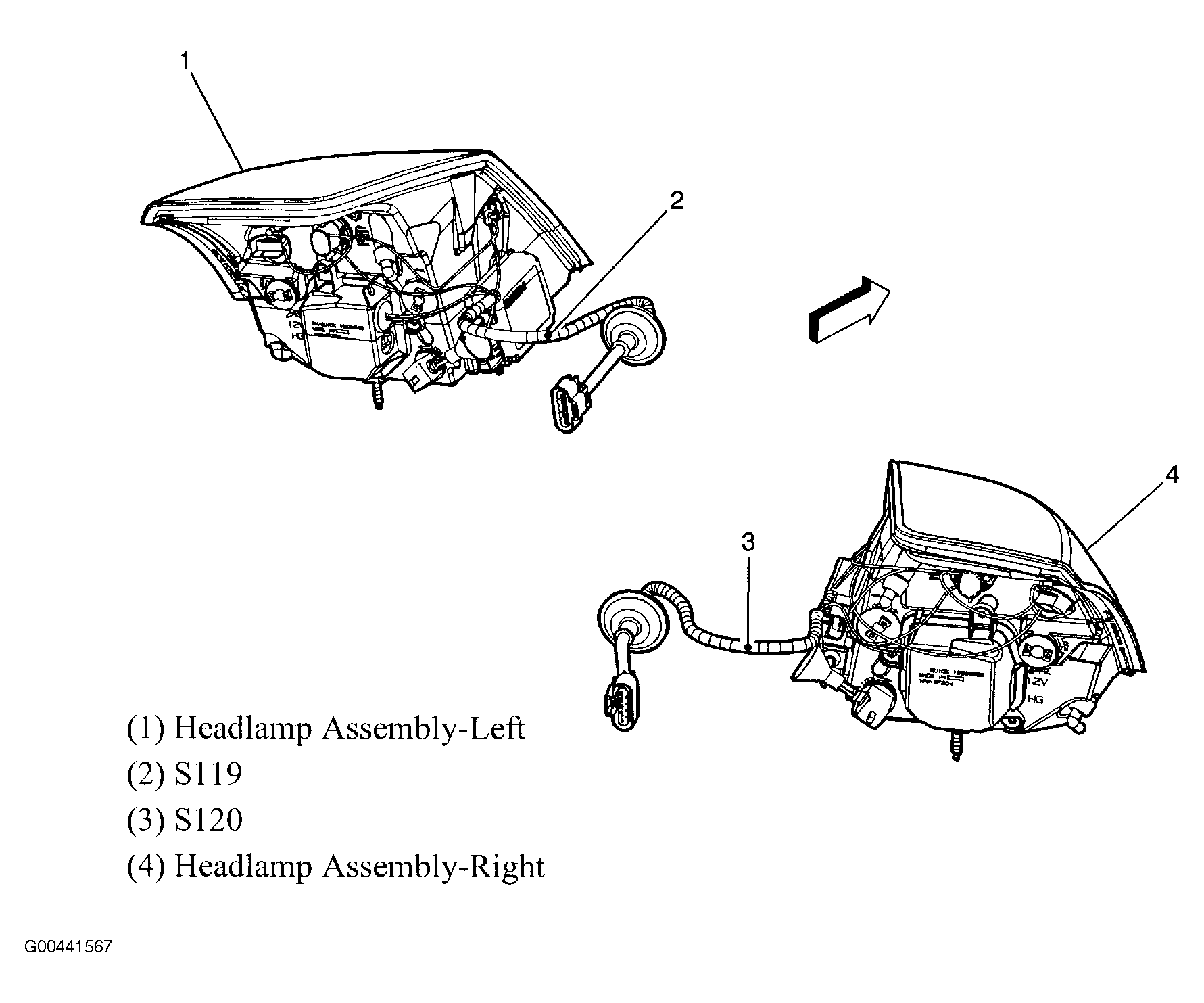

| S119 | In left front headlight assembly harness, near headlight. See Figure. |
| S120 | In right front headlight assembly harness, near headlight. See Figure. |

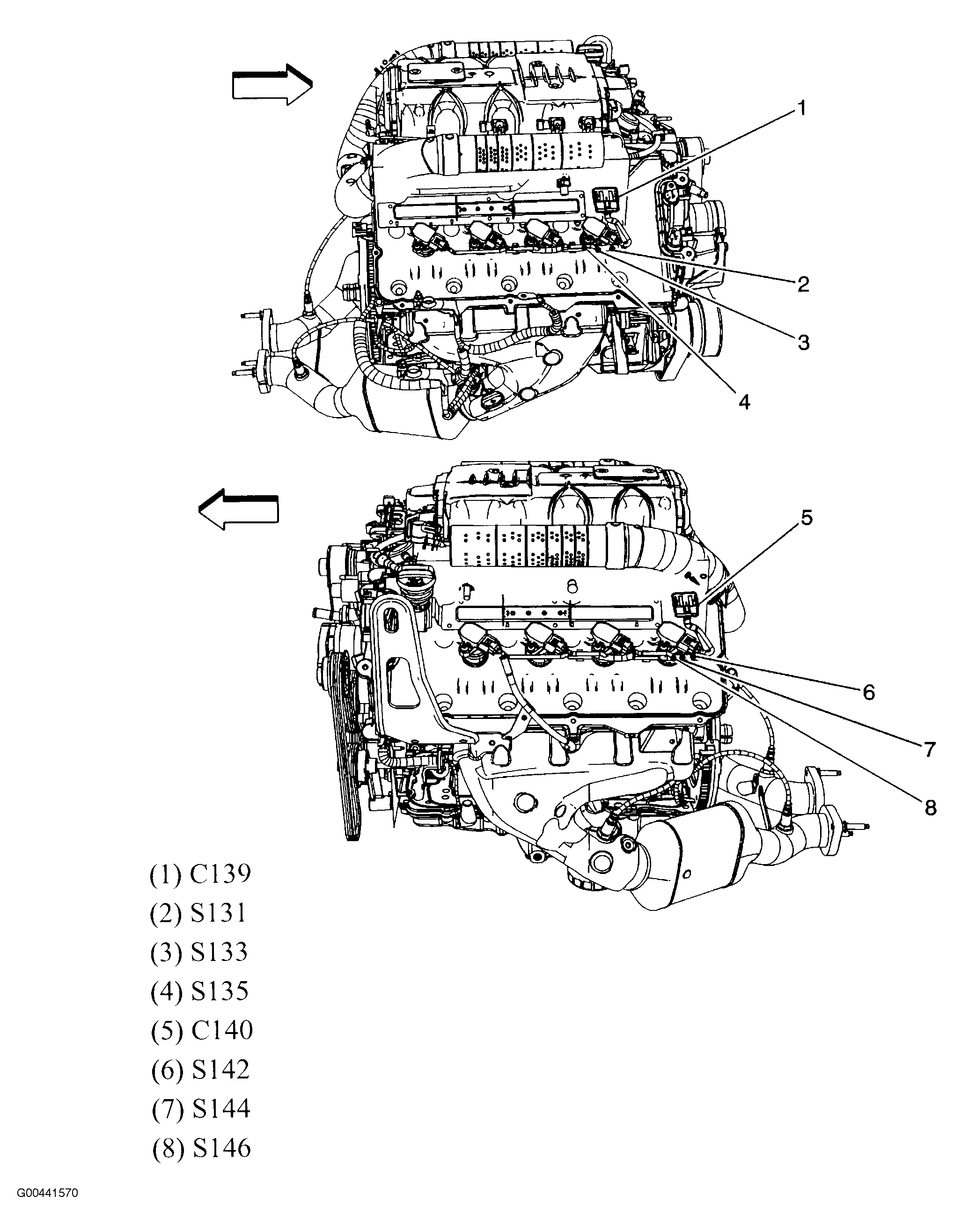

| S131 | In ignition coil harness, approximately 3 cm from breakout for ignition coil 4. See Figure. |
| S133 | In ignition coil harness, approximately 4.5 cm from breakout for ignition coil 4. See Figure. |
| S135 | In ignition coil harness, approximately 7 cm from breakout for ignition coil 4. See Figure. |
| S142 | In ignition coil harness, approximately 3 cm from breakout for ignition coil 3. See Figure. |
| S144 | In ignition coil harness, approximately 4.5 cm from breakout for ignition coil 3. See Figure. |
| S146 | In ignition coil harness, approximately 7 cm from breakout for ignition coil 3. See Figure. |

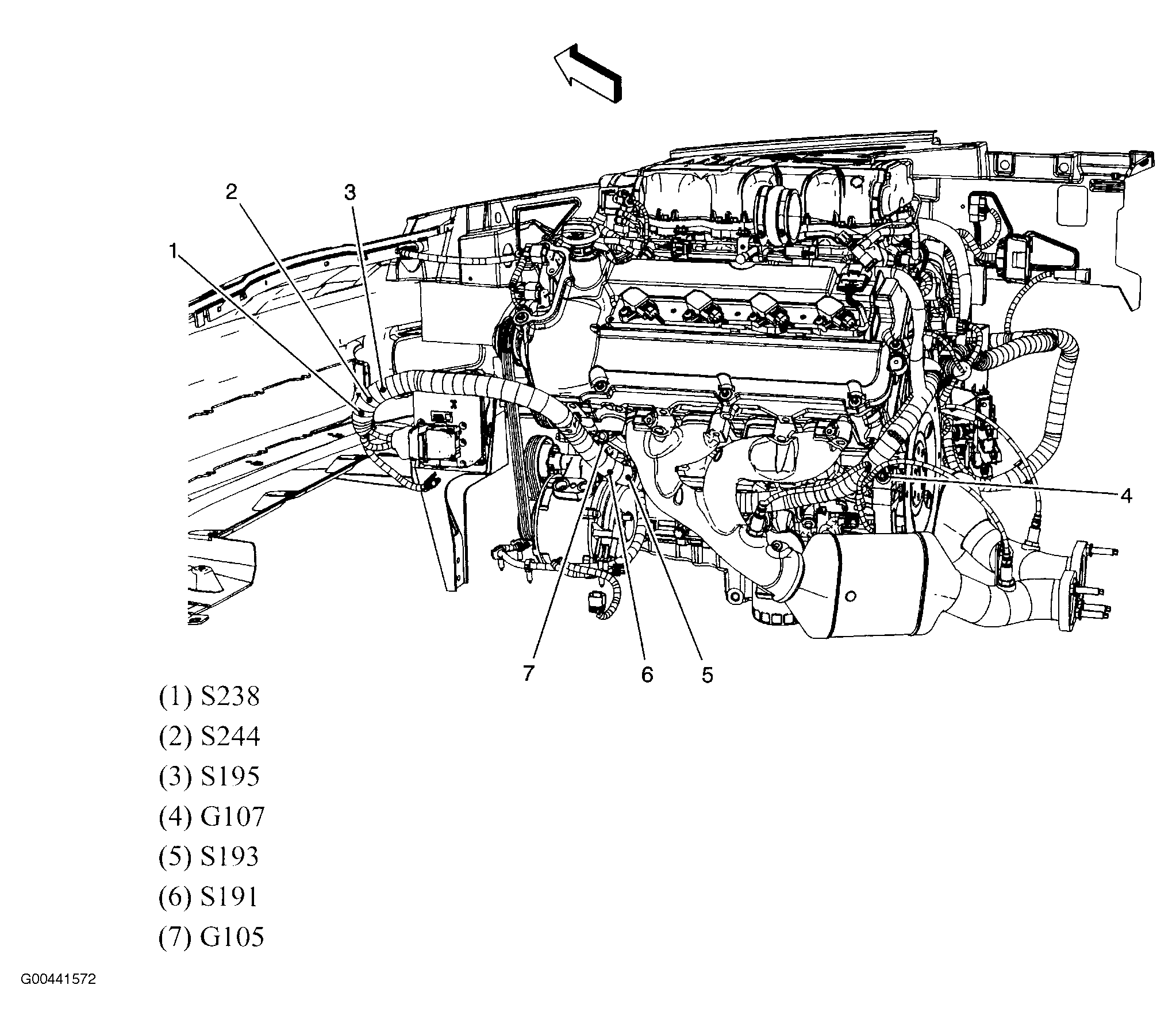

| S191 | In engine harness, approximately 12.0 cm from EBCM breakout. See Figure. |
| S193 | In engine harness, approximately 10.5 cm from EBCM breakout. See Figure. |
| S195 | In engine harness, approximately 23.5 cm from EBCM breakout. See Figure. |
| S208 | In instrument panel harness, approximately 39 cm from blower motor processor breakout. See Figure. |
| S211 | In instrument panel harness, approximately 25 cm from park brake pedal assembly breakout. See Figure. |

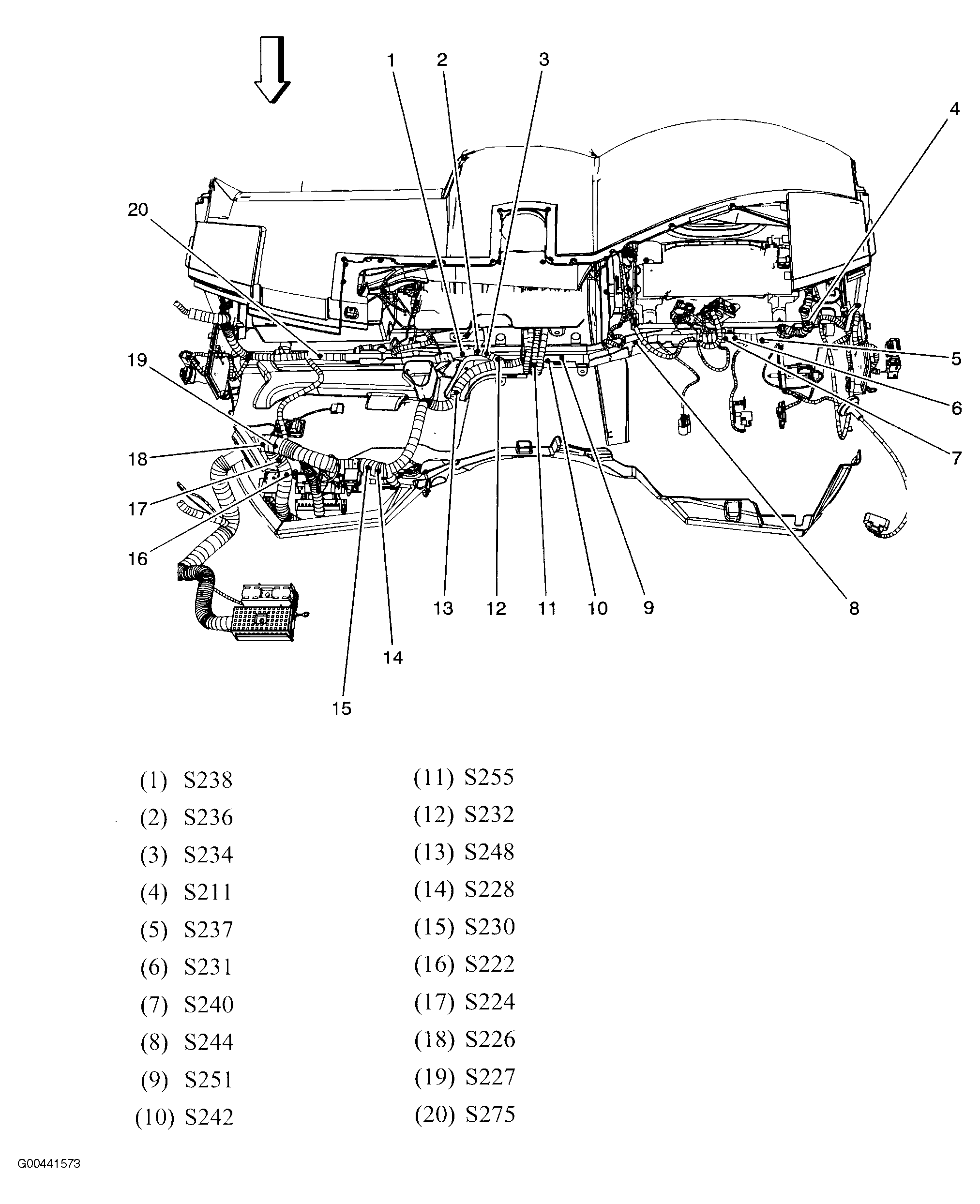

| S222 | In instrument panel harness, approximately 10.5 cm from BCM breakout. See Figure. |
| S224 | In instrument panel harness, approximately 14.5 cm from BCM breakout. See Figure. |
| S226 | In instrument panel harness, approximately 4.0 cm from auxiliary power relay breakout. See Figure. |
| S228 | In instrument panel harness, approximately 4.0 cm from BCM breakout. See Figure. |
| S230 | In instrument panel harness, approximately 4.0 cm from BCM breakout. See Figure. |
| S231 | In instrument panel harness, approximately 4.0 cm from data link breakout. See Figure. |
| S232 | In instrument panel harness, approximately 4.0 cm from BCM breakout. See Figure. |
| S234 | In instrument panel harness, approximately 10.5 cm from BCM breakout. See Figure. |
| S236 | In instrument panel harness, approximately 17.5 cm from BCM breakout. See Figure. |
| S237 | In instrument panel harness, approximately 11.5 cm from main brake pedal position sensor breakout. See Figure. |
| S238 | In instrument panel harness, approximately 10.5 cm from breakout to yaw & lateral acceleration sensor. See Figure. |
| S240 | In instrument panel harness, approximately 4.0 cm from breakout to accelerator pedal position sensor. See Figure. |
| S242 | In instrument panel harness, approximately 11.5 cm from inflatable restraint sensing & diagnostic module. See Figure. |
| S244 | In instrument panel harness, approximately 6.5 cm from breakout to accelerator pedal position sensor. See Figure. |
| S246 | In instrument panel harness, approximately 8.5 cm from traction control switch breakout. See Figure. |
| S248 | In instrument panel harness, approximately 39.5 cm from inside rearview mirror breakout. See Figure. |
| S251 | In instrument panel harness, approximately 6.0 cm from breakout for inflatable restraint sensing & diagnostic module. See Figure. |
| S255 | In instrument panel harness, approximately 4.0 cm from yaw & acceleration sensor. See Figure. |
| S275 | In instrument panel harness, approximately 5.0 cm from blower motor control module breakout. See Figure. |
| S276 | In instrument panel harness, approximately 14.5 cm from breakout to automatic transmission shift lever. See Figure. |

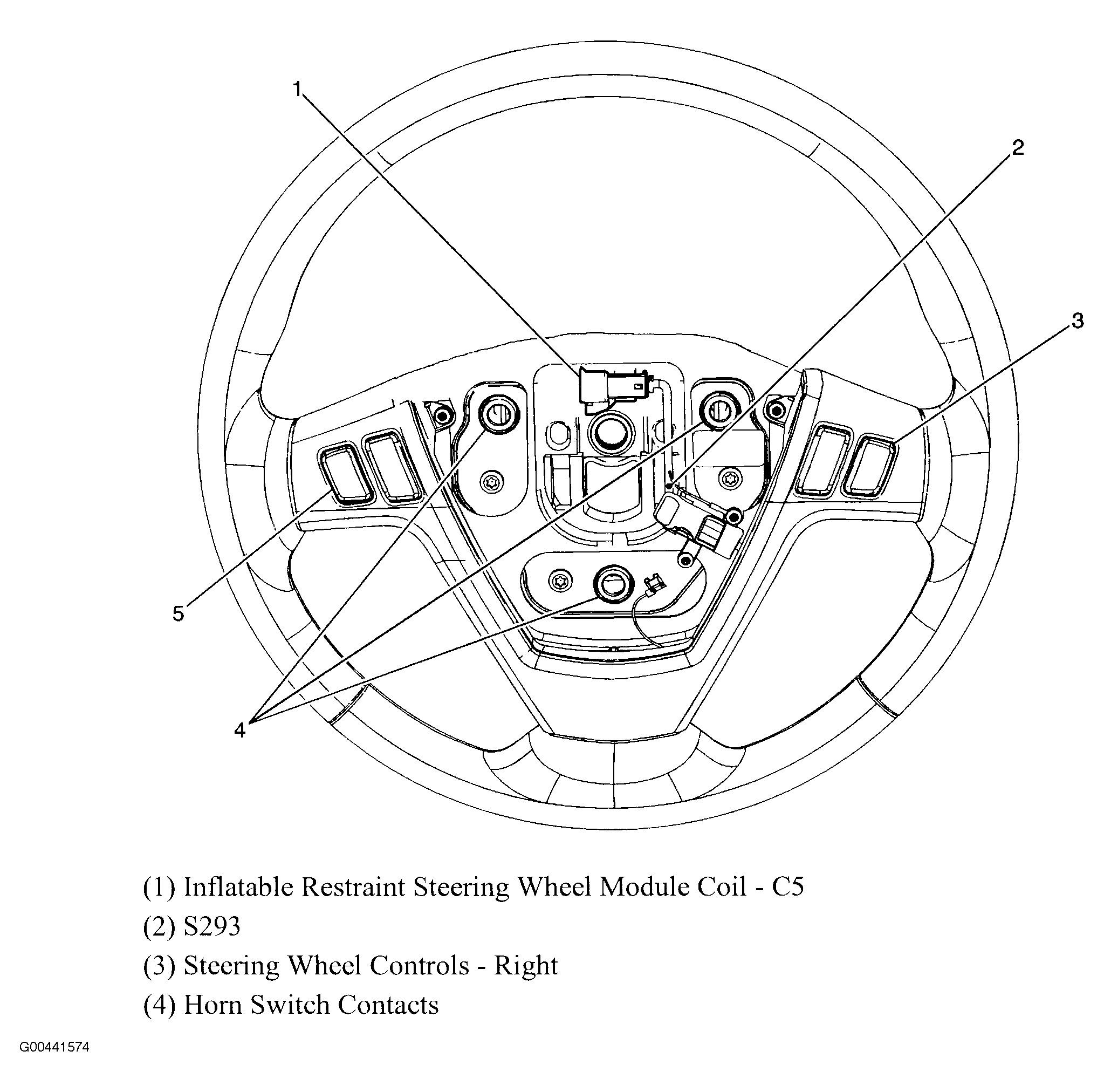

| S293 | In steering wheel harness, approximately 14 cm from steering wheel module coil. See Figure. |

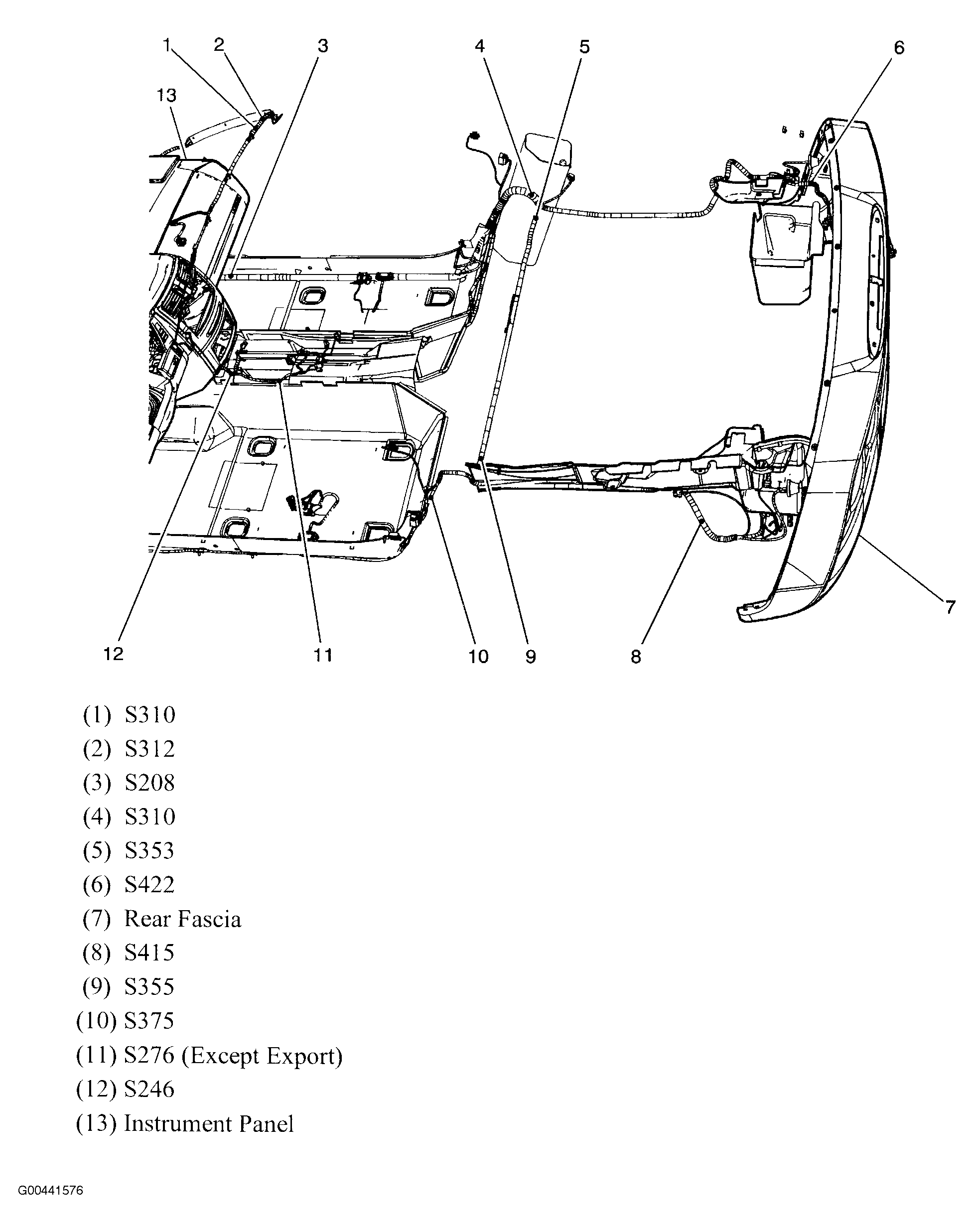

| S310 | In instrument panel harness, approximately 26.5 cm from right vanity mirror light breakout. See Figure. |
| S312 | In instrument panel harness, approximately 20 cm from right vanity mirror light breakout. See Figure. |

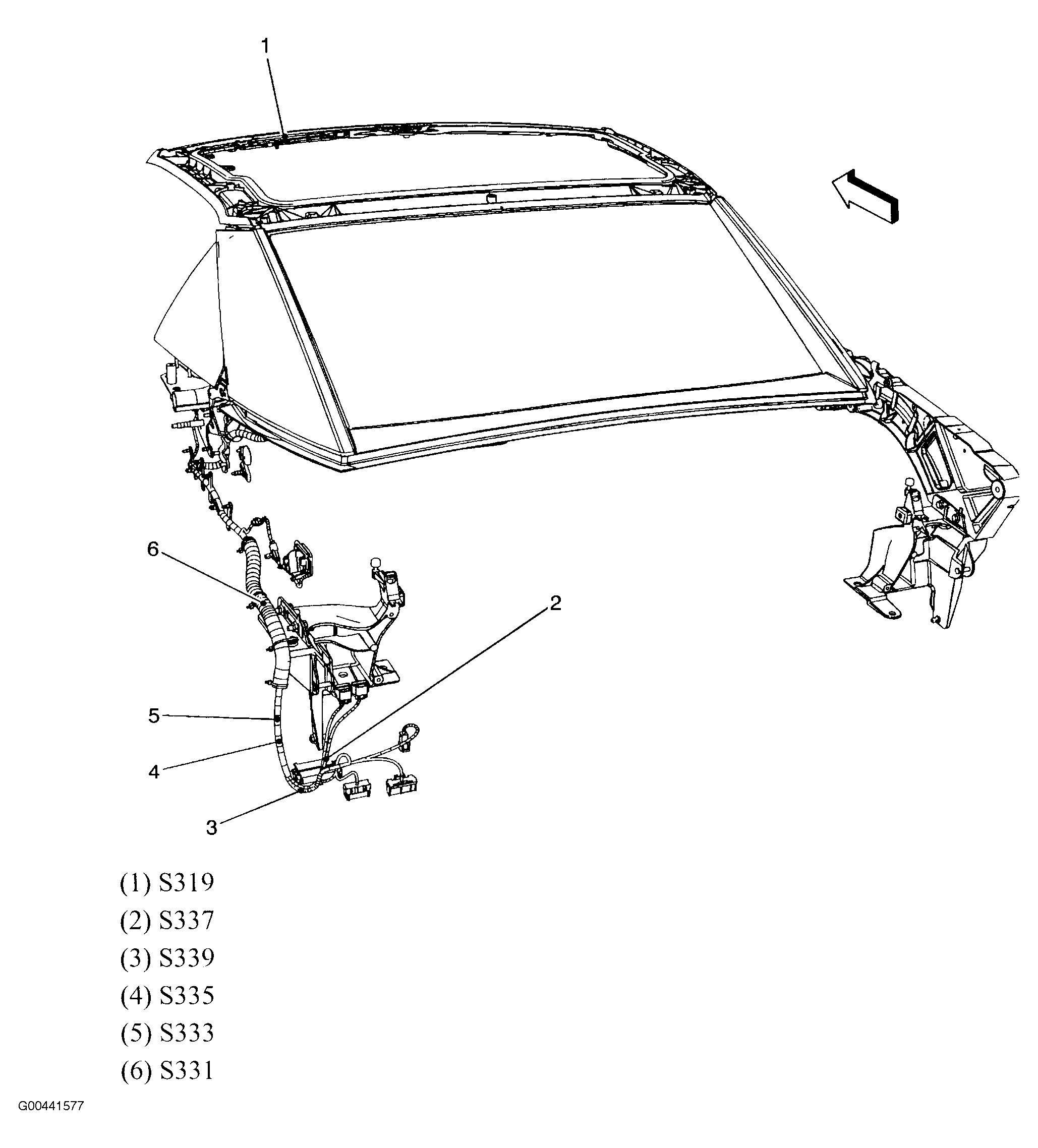

| S319 | In folding top harness, approximately 35 cm from header latched switch. See Figure. |
| S331 | In folding top harness, approximately 9.6 cm from rear compartment lid open switch breakout. See Figure. |
| S333 | In folding top harness, approximately 20 cm from breakout for C433. See Figure. |
| S335 | In folding top harness, approximately 41 cm from C911 breakout. See Figure. |
| S337 | In folding top harness, approximately 5 cm from breakout for C435. See Figure. |
| S339 | In folding top harness, approximately 5 cm from C431 breakout. See Figure. |
| S351 | In instrument panel harness, approximately 4.0 cm from S353. |
| S353 | In instrument panel harness, approximately 20 cm from rear park assist diagnostic connector breakout. See Figure. |
| S355 | In instrument panel harness, approximately 12.0 cm from passenger's rear speaker breakout. See Figure. |
| S375 | In instrument panel harness, approximately 11 cm from driver's door latch switch breakout. See Figure. |
| S379 | In instrument panel harness, approximately 15.0 cm from passenger's rear speaker breakout. |
| S380 | In passenger's seat harness, approximately 20.5 cm from lumbar switch. |
| S382 | In passenger's seat harness, approximately 4 cm from breakout for passenger's lumbar pump/control module assembly. |
| S391 | Din driver's seat harness, approximately 4.0 cm from inflatable restraint seat position switch breakout. |
| S393 | In driver's seat harness, approximately 19 cm from memory seat switch. |
| S395 | In driver's seat harness, approximately 22.5 cm from passenger's rear speaker breakout. |
| S397 | In driver's seat harness, approximately 4.0 cm from seat adjuster motor assembly breakout. |
| S399 | In driver's seat harness, approximately 20.5 cm from lumbar switch. |
| S415 | In instrument panel harness, approximately 24.0 cm from left taillight assembly breakout. See Figure. |

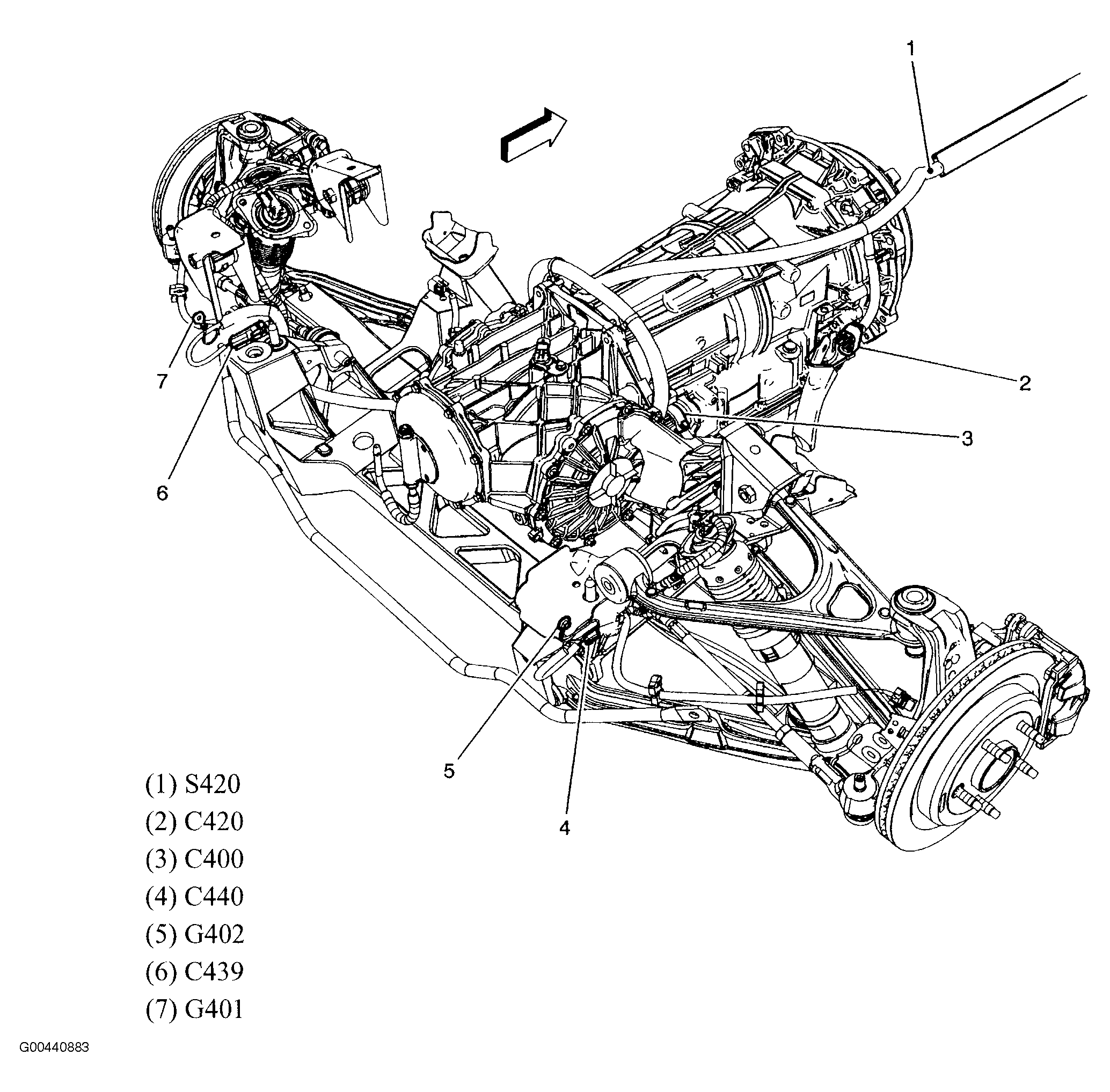

| S420 | In transmission harness, 10 cm from breakout to C420. See Figure. |
| S420 | In transmission harness, approximately 10 cm from breakout for C420. |
| S422 | In instrument panel harness, approximately 20 cm from SP302 breakout. See Figure. |
| S460 | In fuel tank harness, approximately 6 cm from C420 breakout. |
| S462 | In driver's power seat harness, under seat base. |

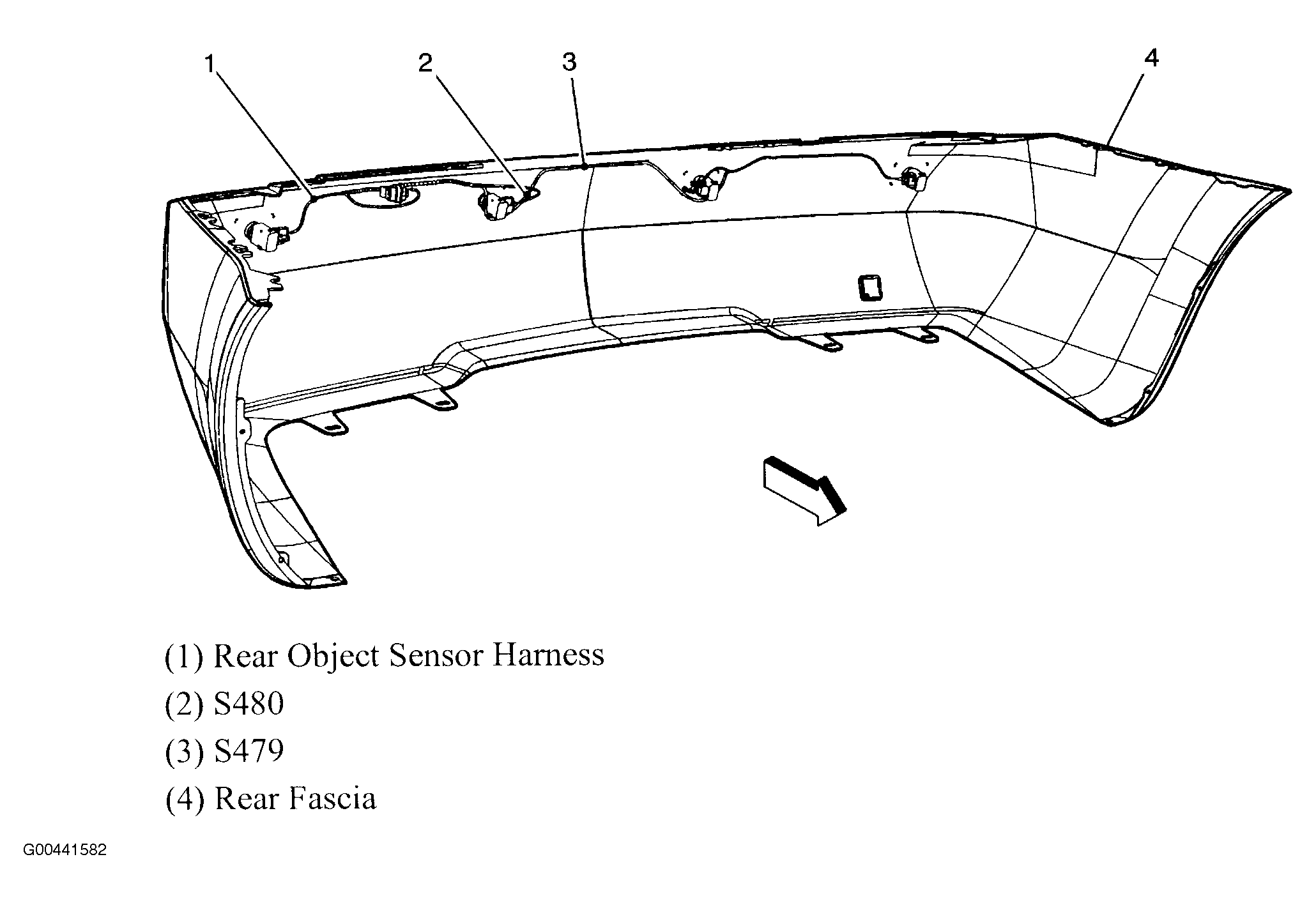

| S479 | In rear parking aid harness, approximately 10 cm from left rear middle object sensor breakout. See Figure. |
| S480 | In rear parking aid harness, approximately 10 cm from right rear middle object sensor breakout. See Figure. |

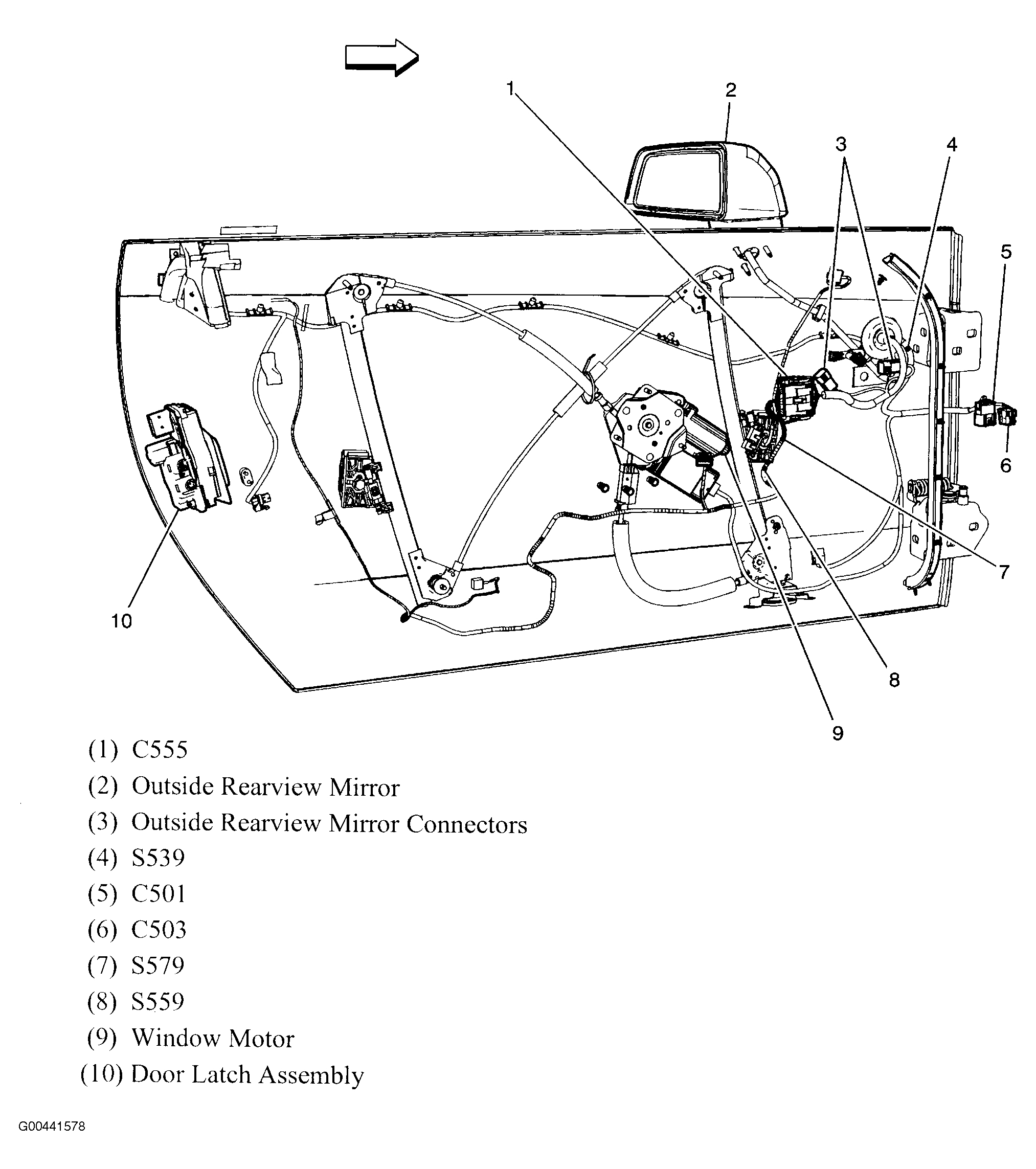

| S539 | In door harness, approximately 15 cm from inflatable restraint side impact sensor breakout. See Figure. |
| S559 | In driver's door trim harness, approximately 25.0 cm from driver's door lock switch. See Figure. |
| S579 | In driver's door trim harness, approximately 14.0 cm from C555. See Figure. |
| S640 | In door harness, approximately 15 cm from inflatable restraint side impact sensor breakout. |

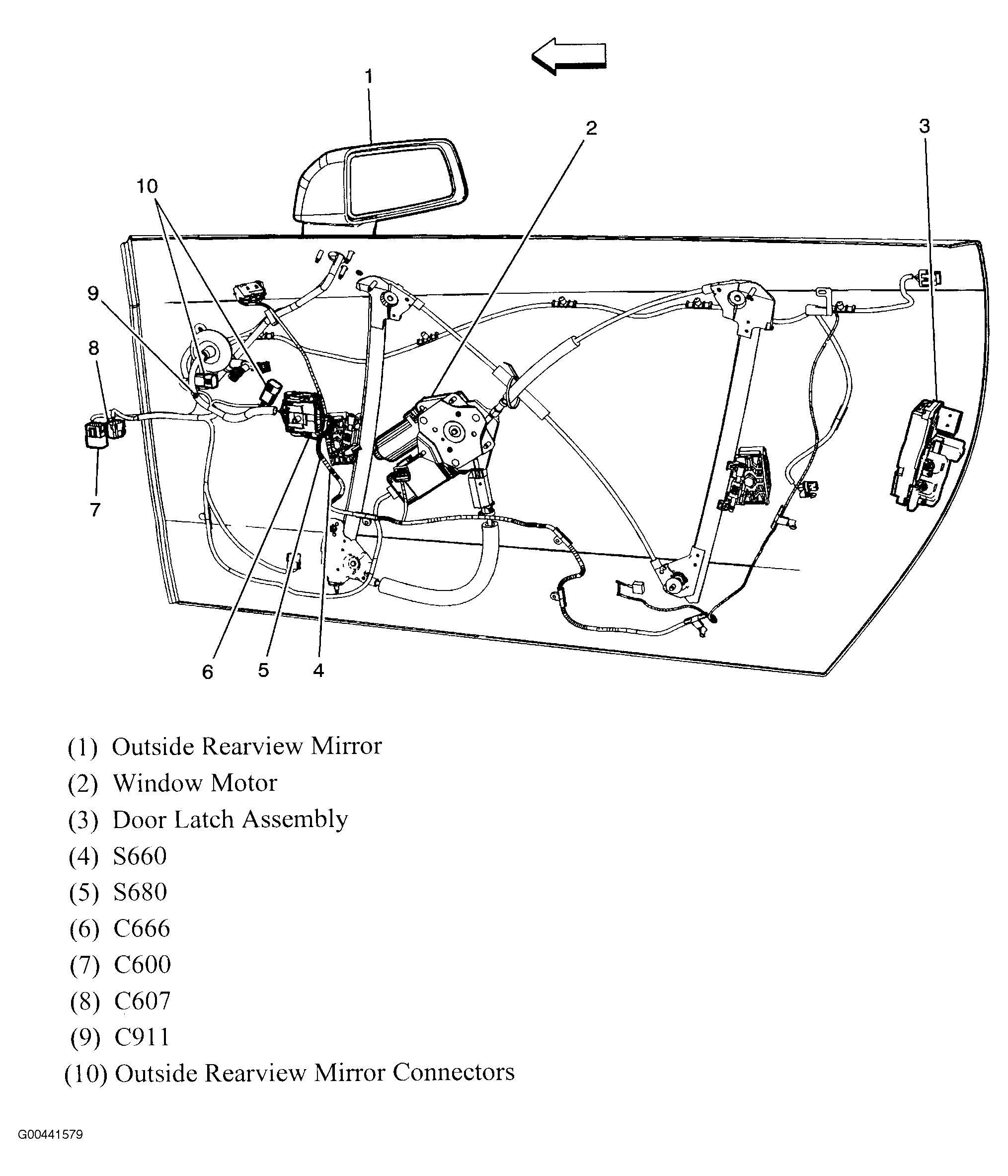

| S660 | In passenger's door trim harness, approximately 25 cm from passenger's door lock switch. See Figure. |
| S680 | In passenger's door trim harness, approximately 14 cm from C666. See Figure. |

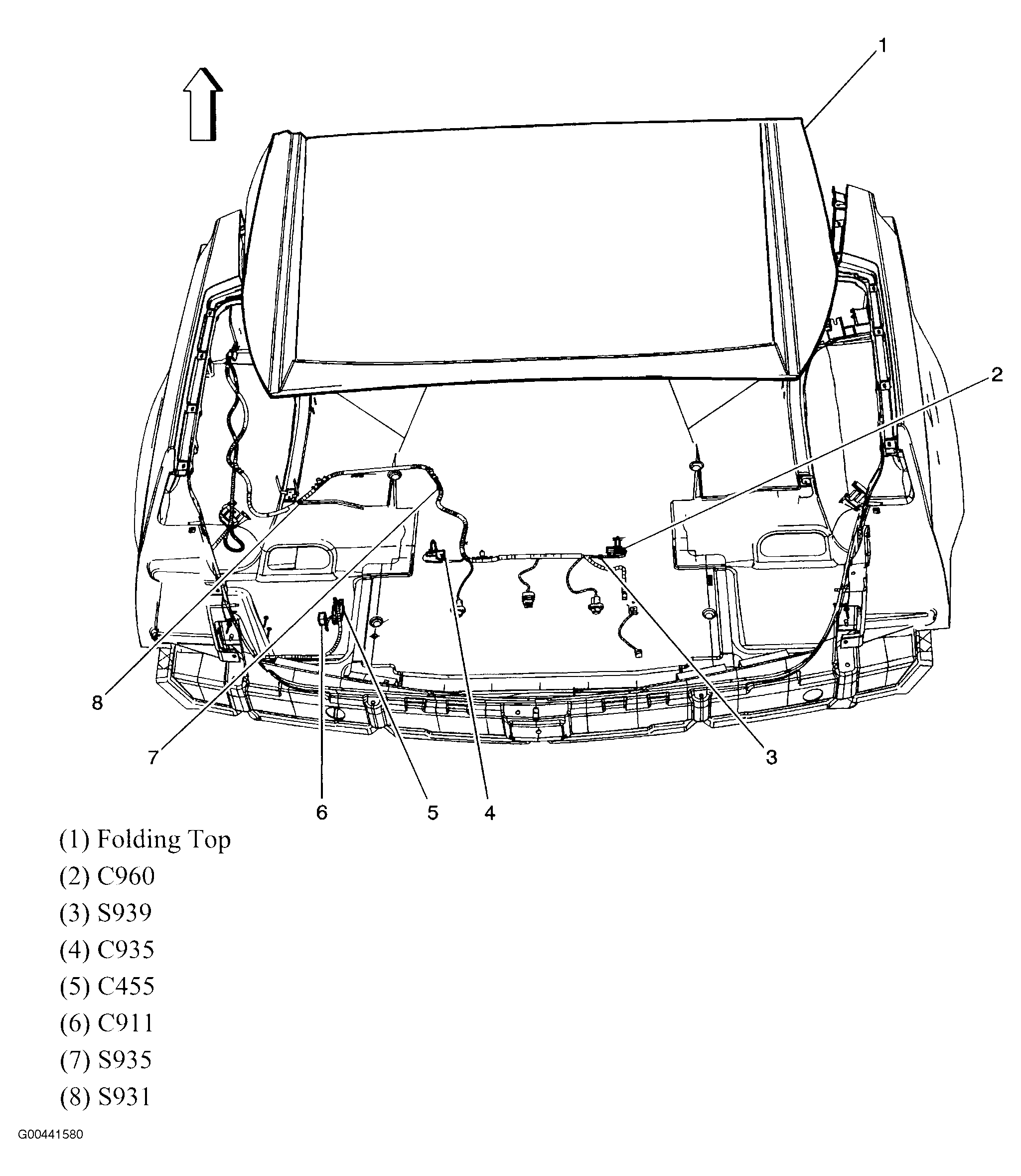

| S931 | In decklid harness, approximately 77 cm from tonneau sensor assembly. See Figure. |
| S935 | In decklid harness, approximately 42.5 cm from left license light. See Figure. |
| S939 | In decklid harness, approximately 6.5 cm from breakout to right license light. See Figure. |
