Seat Belt Component Views

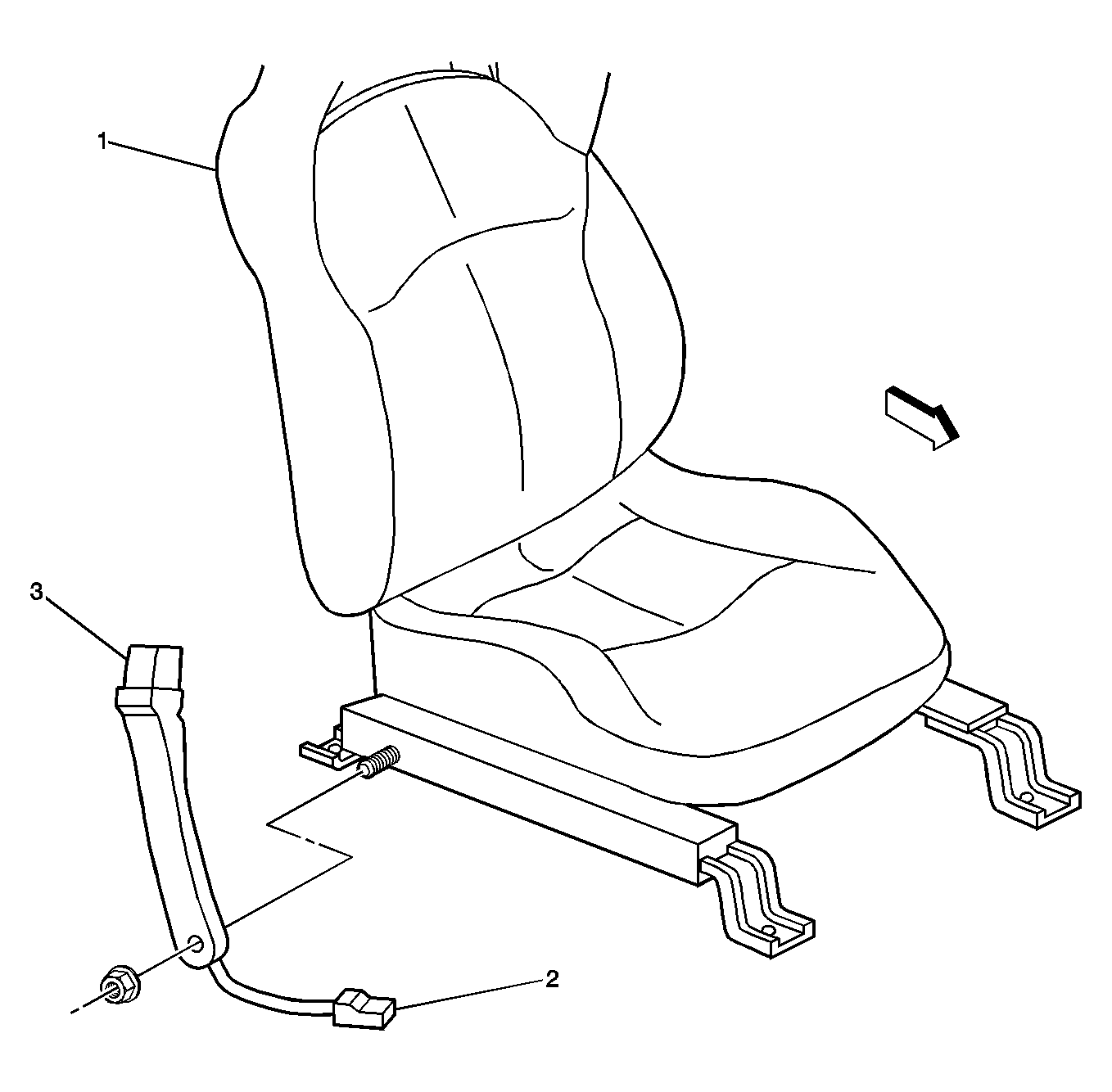

Fig 1: Drivers Seat Belt Component View
GM812160Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Drivers Seat
2 Seat Belt Switch-Driver Connector
3 Seat Belt Buckle-Driver
