Steering Wheel Control Switch Assembly Replacement

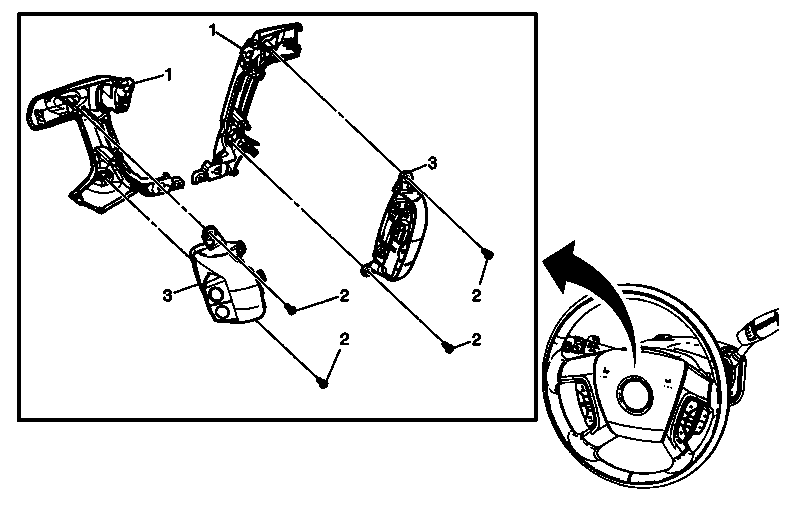

Fig 1: View Of Steering Wheel Control Switch Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . Preliminary Procedure Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the horn switch. Refer to Steering Wheel Horn Switch Replacement .
1	Steering Wheel Trim Cover (Qty: 2) Procedure: Remove the 4 horn contact screws.
2	Steering Wheel Control Switch Assembly Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tip: Quantity may vary with vehicle options. Tighten: 1 N.m (9 lb in)
3	Steering Wheel Control Switch Assembly (Qty: 2) Tip: Quantity may vary with vehicle options. Ensure the steering wheel control switch(es) are properly seated to the steering wheel shroud during installation.
