Installation Procedure

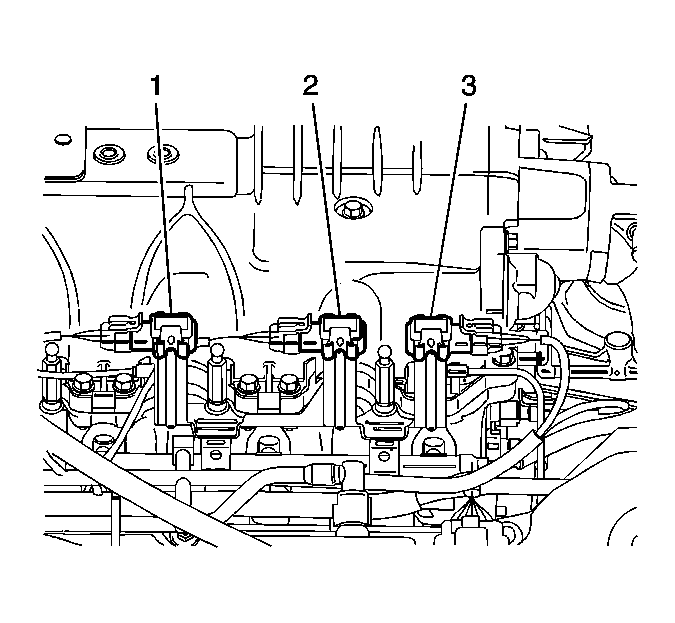

    Fig 1: Identifying BARO, MAP & SCIAP Sensors
    GM1613998Courtesy of GENERAL MOTORS CORP.
  1. Install the BARO sensor (2) to the bracket.
  2. Connect the BARO sensor electrical connector.
  3. Install the engine sight shield. Refer to Intake Manifold Sight Shield Replacement .
