Installation Procedure

  1. Install the wire harness to the steering wheel control switch assembly.

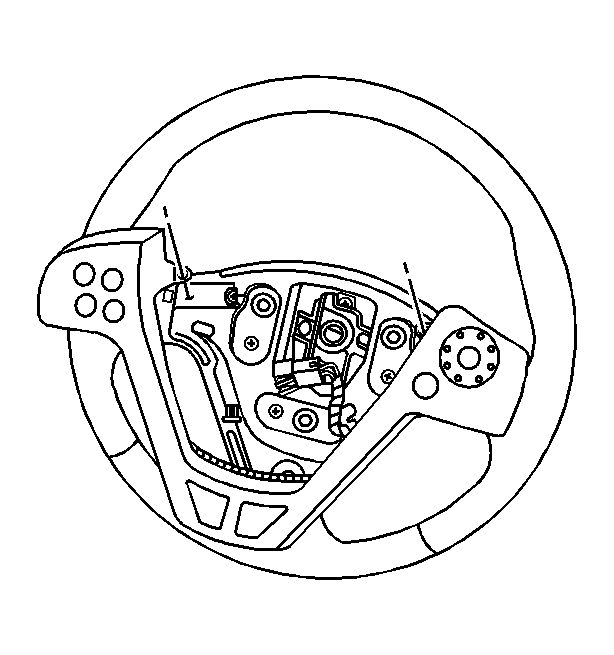

    2. Fig 1: Identifying Engagement Tabs For Steering Wheel Control Switch Assembly
    GM803005Courtesy of GENERAL MOTORS CORP.
  2. Align the steering control switch assembly engagement tabs to the steering wheel.

    Push in on the steering wheel control switch assembly in order to secure the control switch assembly to the steering wheel.

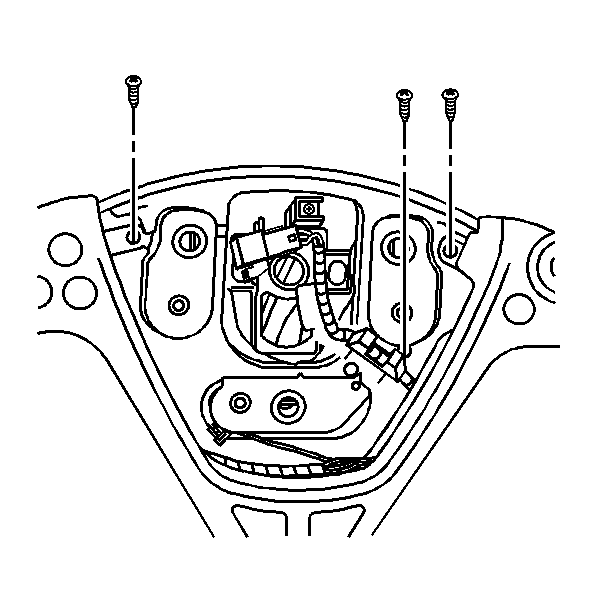

    3. Fig 2: View Of Steering Wheel Control Switch Retaining Screws
    GM803006Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the steering wheel control harness retainer and screw.

    Tighten:  Tighten the screw to 2.3 N.m (20 lb in).

  4. Install the steering wheel control switch assembly screws.

    Tighten:  Tighten the screws to 2.3 N.m (20 lb in).

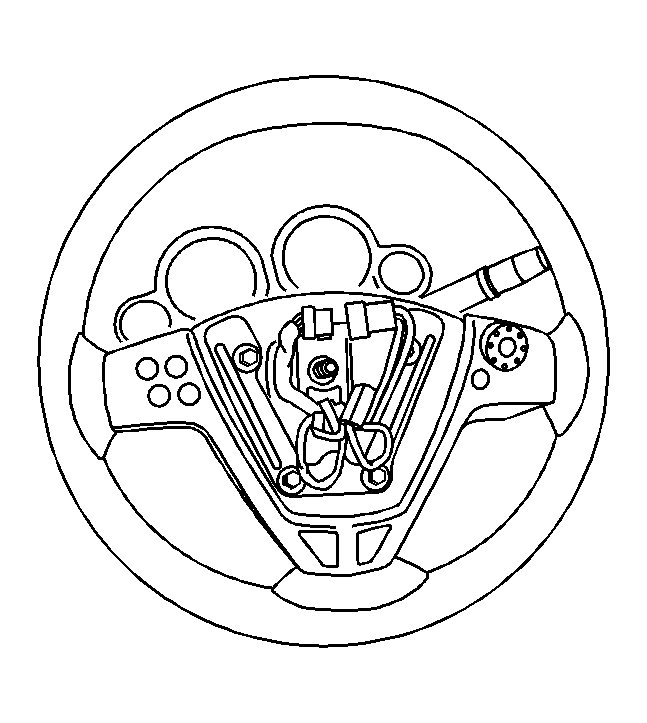

    5. Fig 3: View Of Steering Wheel Control Switch Electrical Connector
    GM754855Courtesy of GENERAL MOTORS CORP.
  5. Connect the steering wheel control electrical connector.
  6. Secure the connector to the retaining clip.
  7. Install the steering wheel inflatable restraint module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
  8. Enable the SIR. Refer to SIR Disabling and Enabling .
