Body Control System Schematics

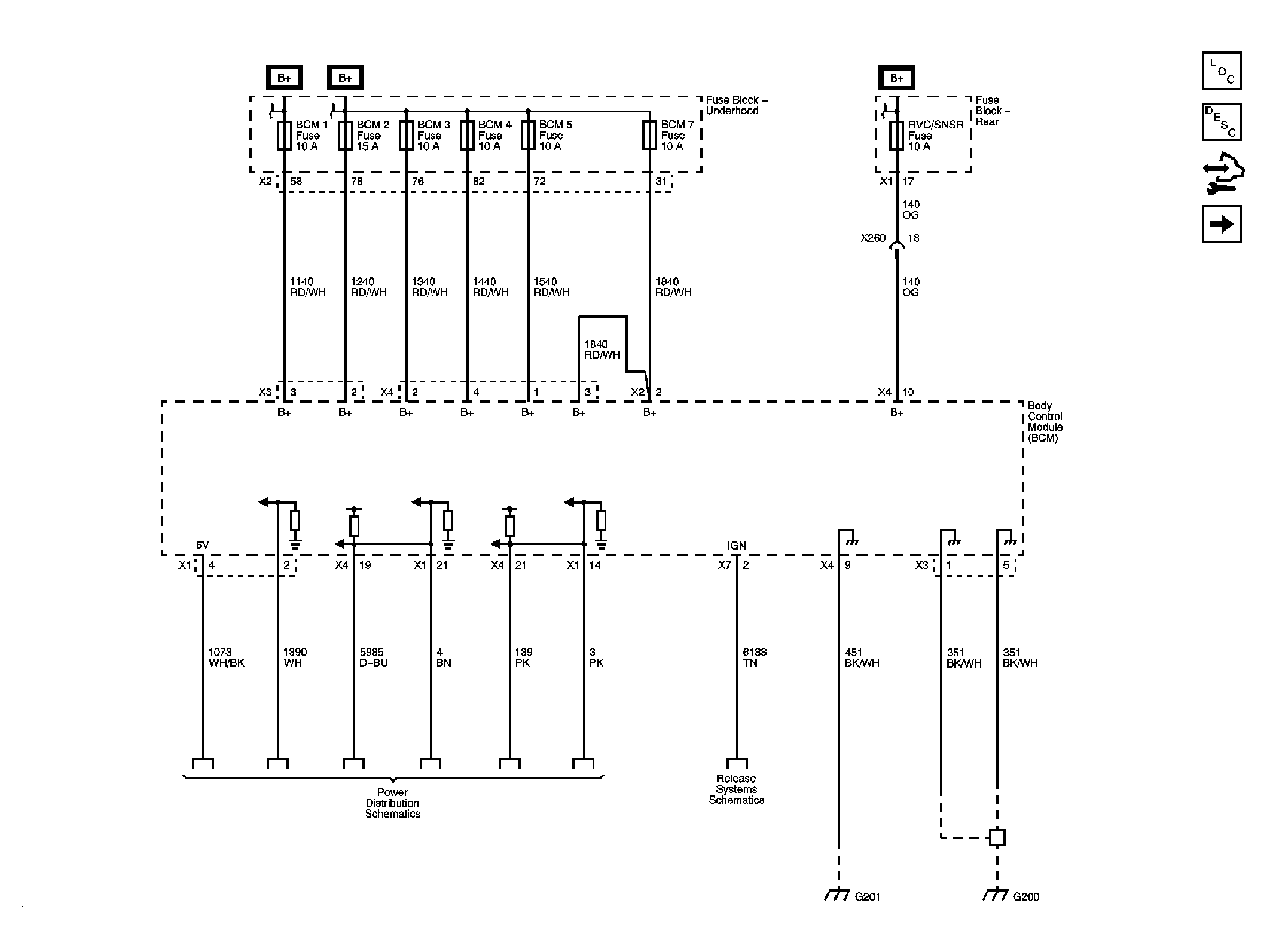

Fig 1: Body Control Module (BCM) Power, Grounds

Courtesy of GENERAL MOTORS CORP.

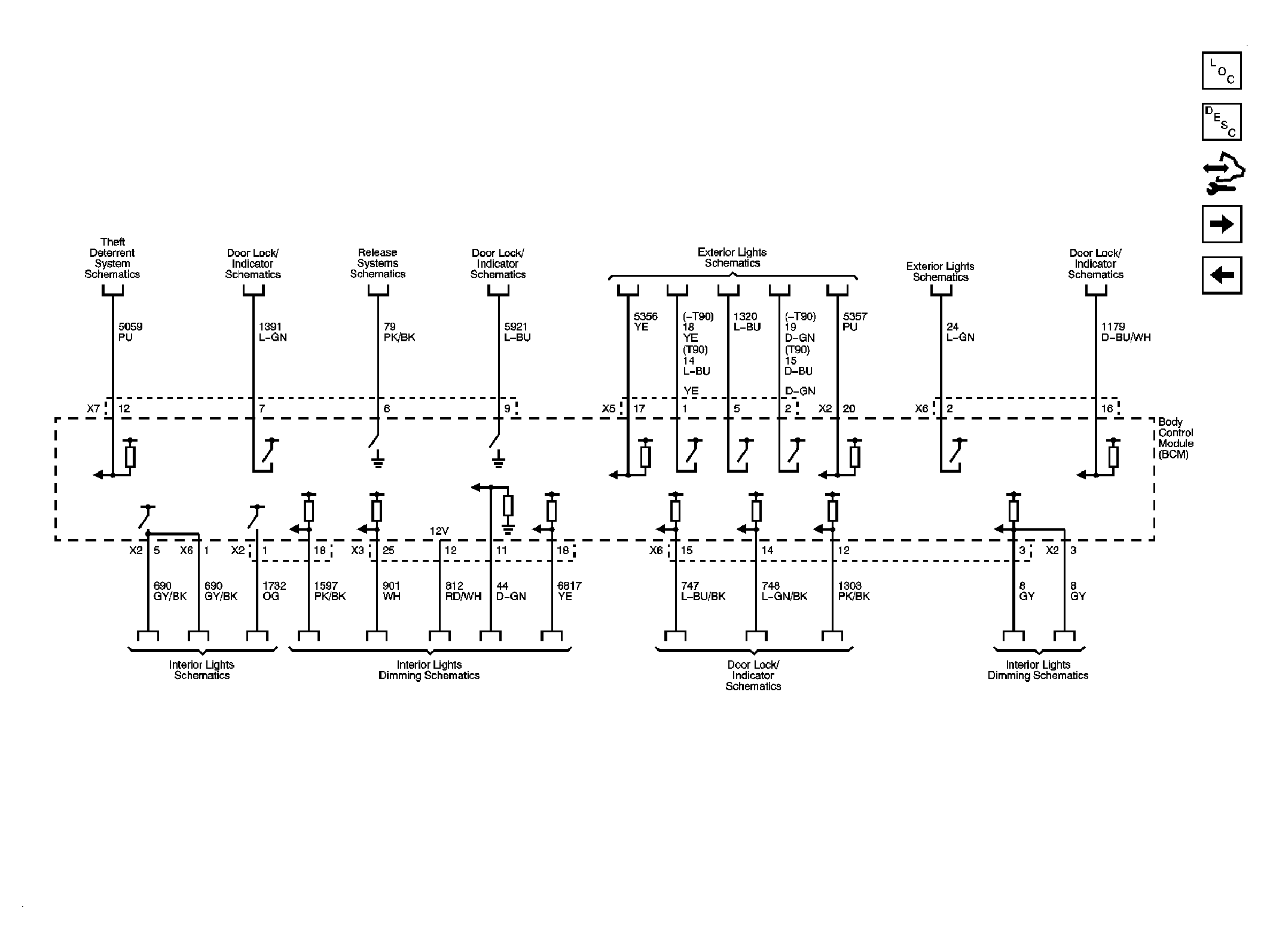

Fig 2: Subsystem References 1 of 3

Courtesy of GENERAL MOTORS CORP.

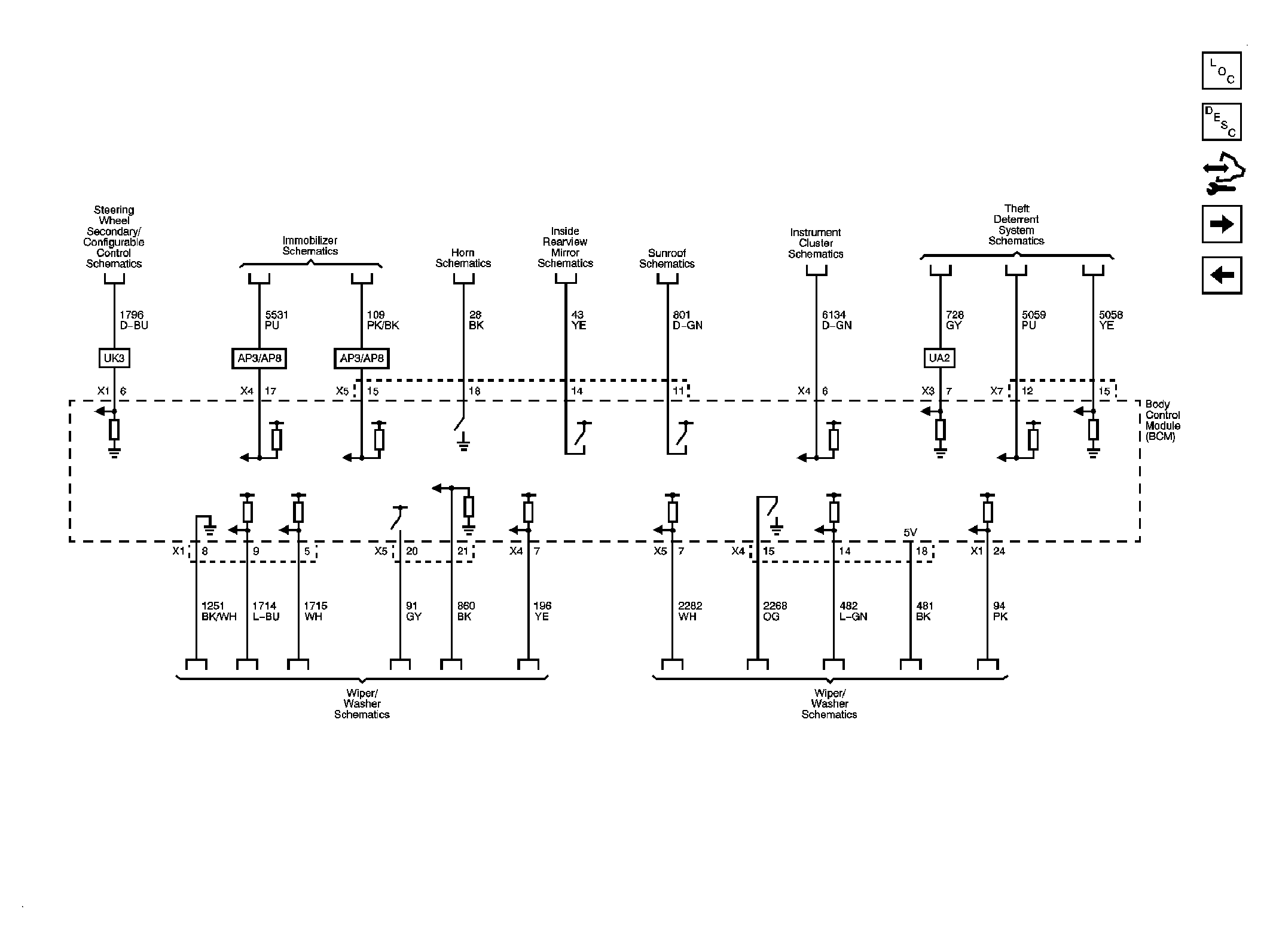

Fig 3: Subsystem References 2 of 3

Courtesy of GENERAL MOTORS CORP.

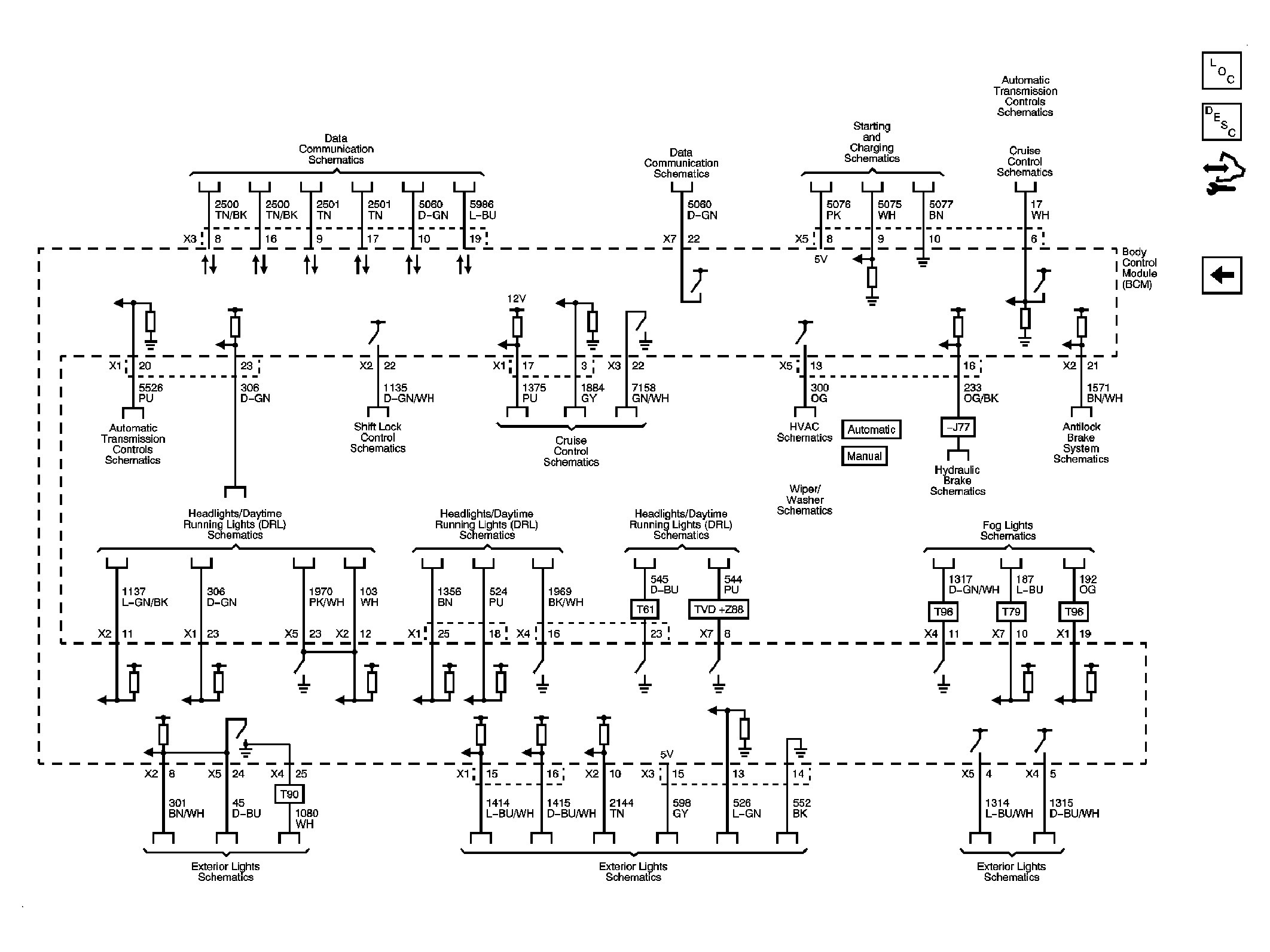

Fig 4: Subsystem References 3 of 3

Courtesy of GENERAL MOTORS CORP.
