Console Views




Harness Routing Views

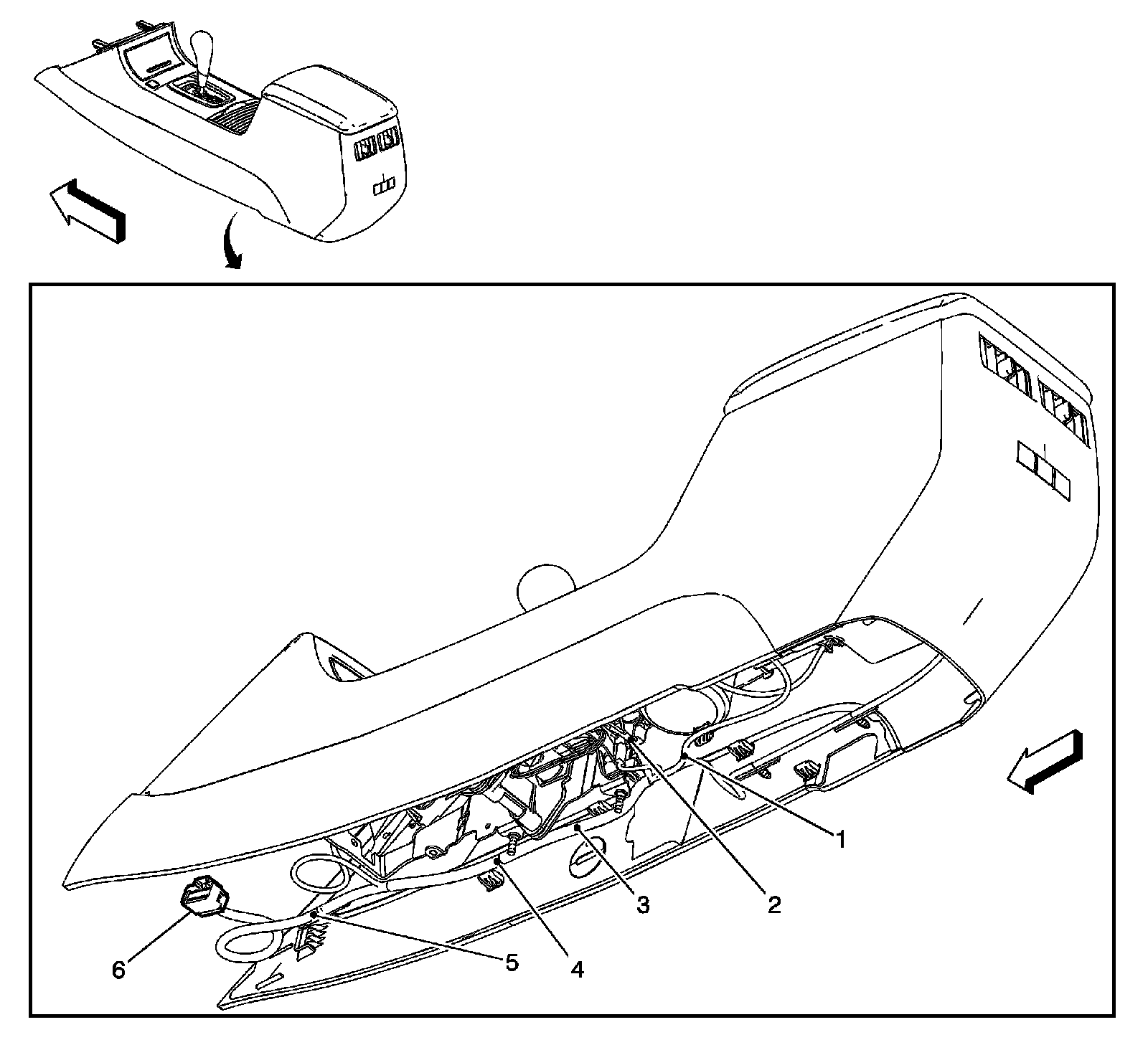

Console Harness




1 - J307
2 - J383
3 - J315
4 - J381
5 - J369
6 - X340 (AQ9)
