Side Object Sensor Bracket Replacement

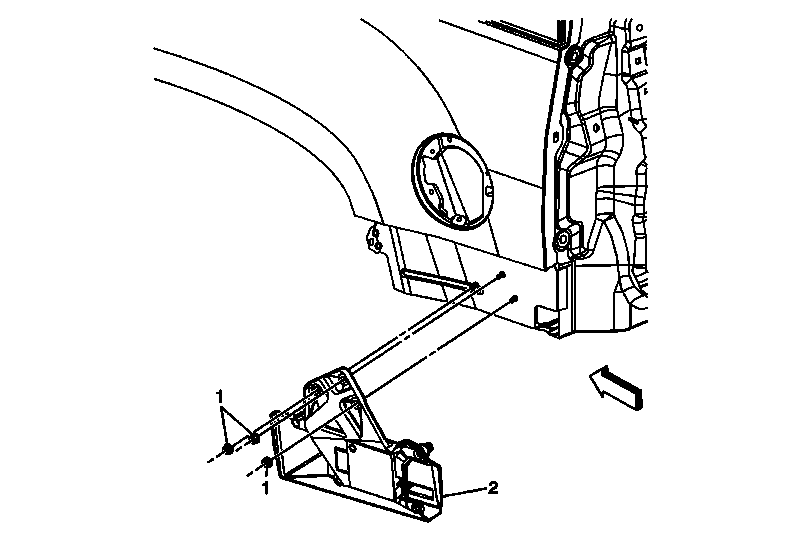

Fig 1: Side Object Sensor Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise the Vehicle. Refer to Lifting and Jacking the Vehicle Remove the bumper fascia. Refer to Rear Bumper Fascia Replacement (Avalanche, Cadillac EXT) or Rear Bumper Fascia Replacement (All Utility, Cadillac ESV) .
1	Side Object Sensor Bracket Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten:: 6 N.m(53 lb in)
2	Side Object Sensor Bracket Procedure: Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure

Side Object Sensor Bracket Nuts (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten:: 6 N.m(53 lb in)

Side Object Sensor Bracket
Procedure:
Disconnect the electrical connectors.
