Object Detection Schematics

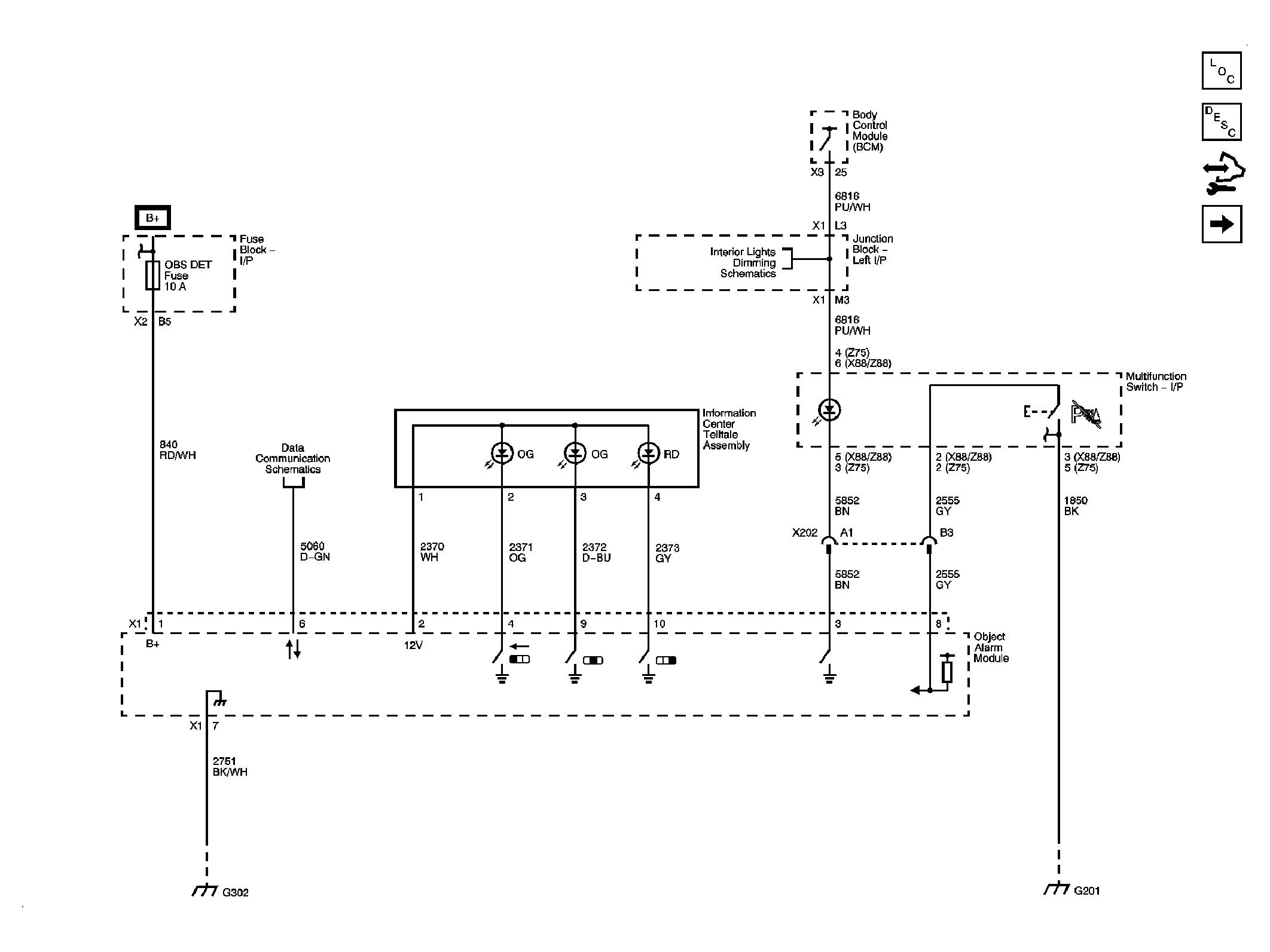

Fig 1: Rear Object Sensing (UD7)

GM2075496

Courtesy of GENERAL MOTORS CORP.

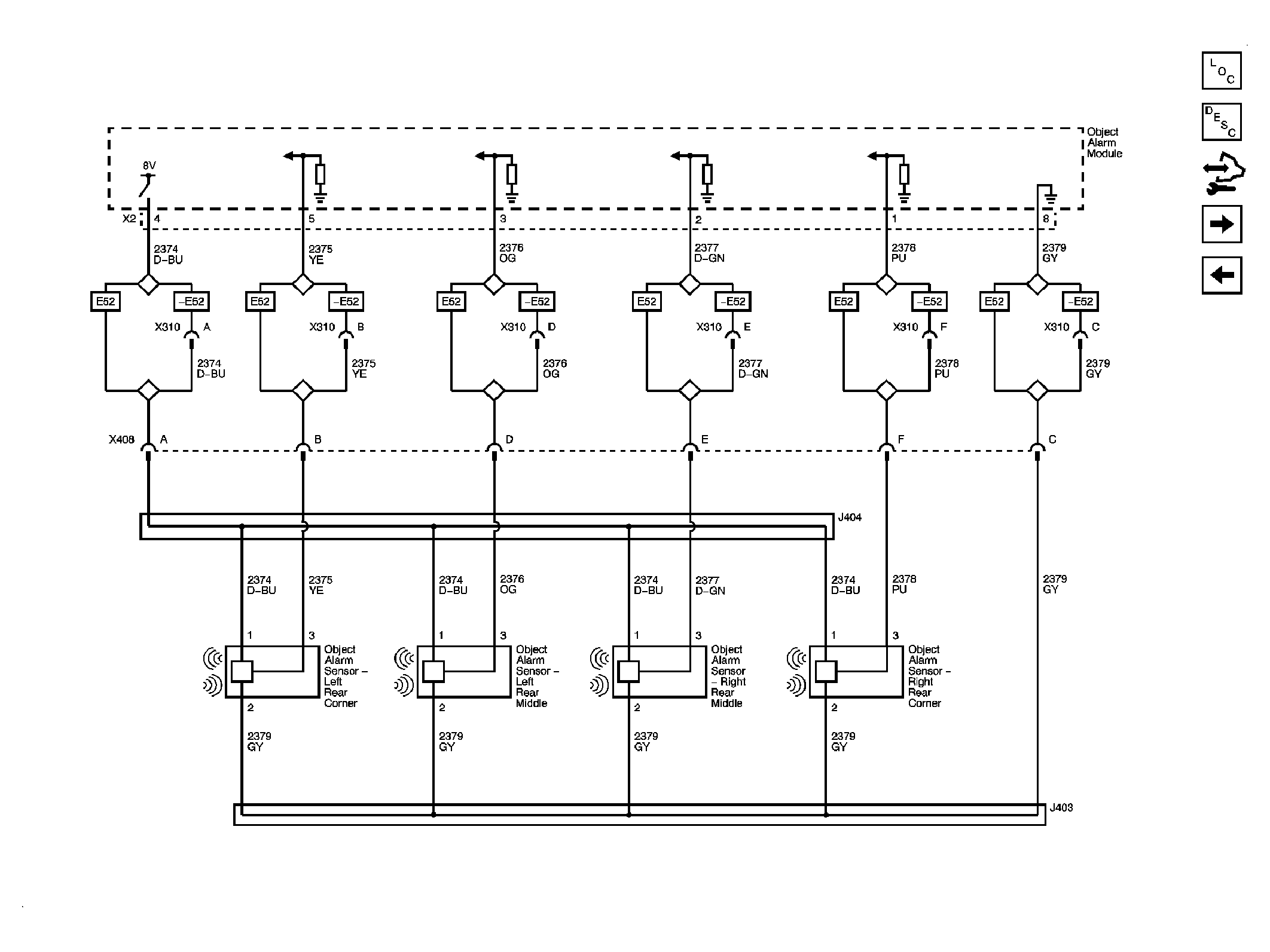

Fig 2: Rear Object Sensors (UD7)

GM2075498

Courtesy of GENERAL MOTORS CORP.

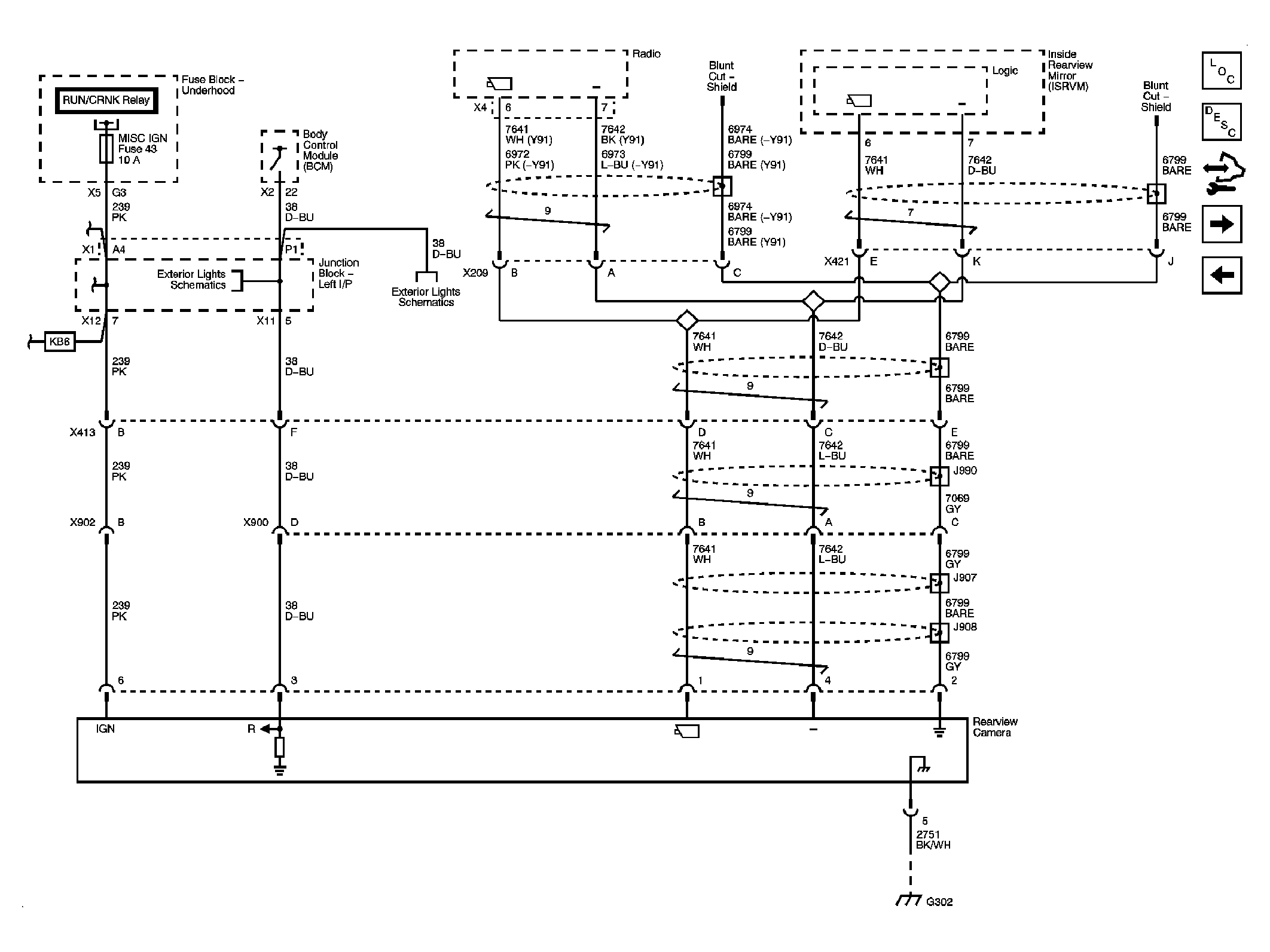

Fig 3: Rear Video Camera - 1 of 2 (UVC)

GM2075500

Courtesy of GENERAL MOTORS CORP.

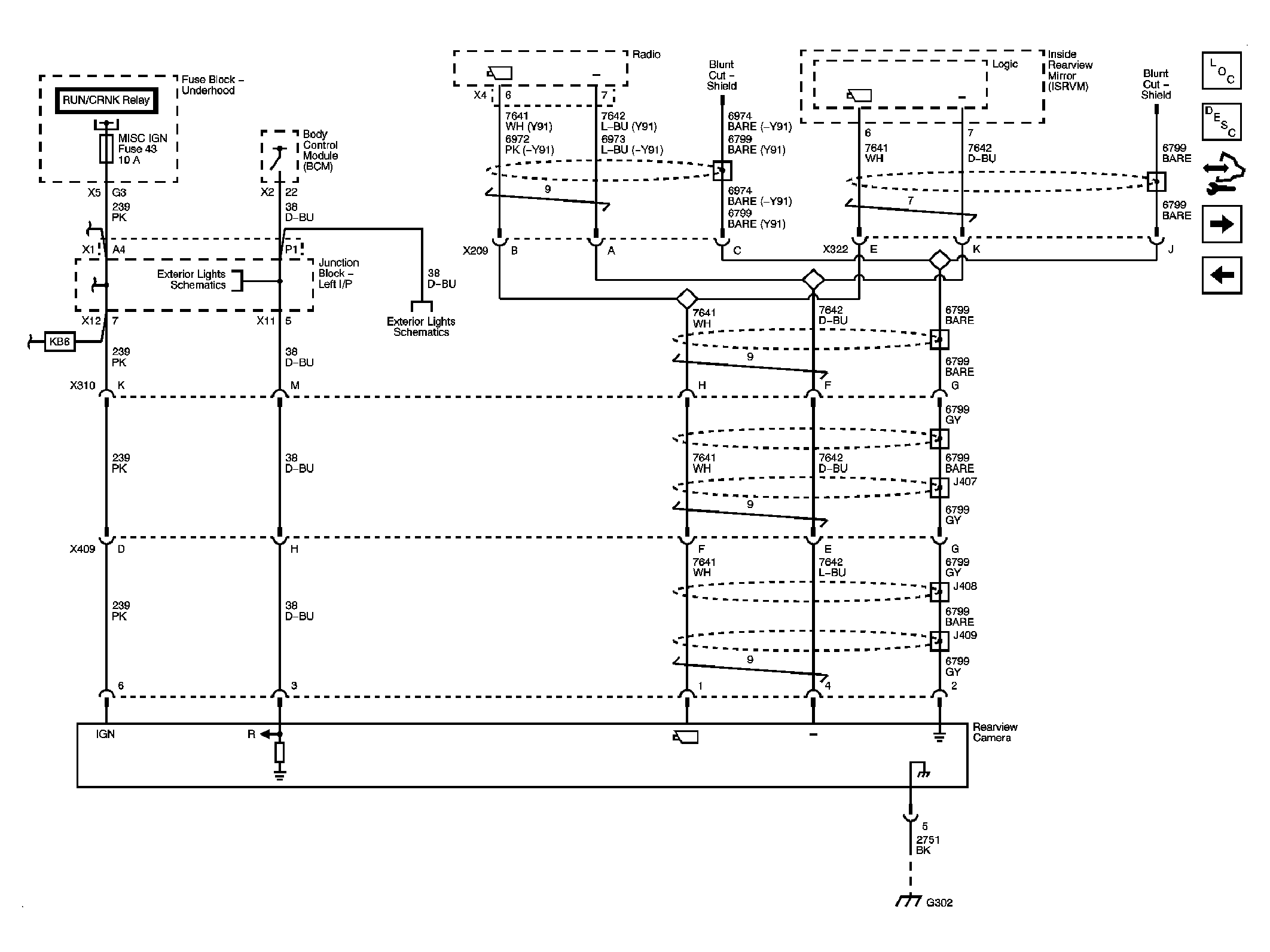

Fig 4: Rear Video Camera 2 of 2 (UVC)

GM2075503

Courtesy of GENERAL MOTORS CORP.

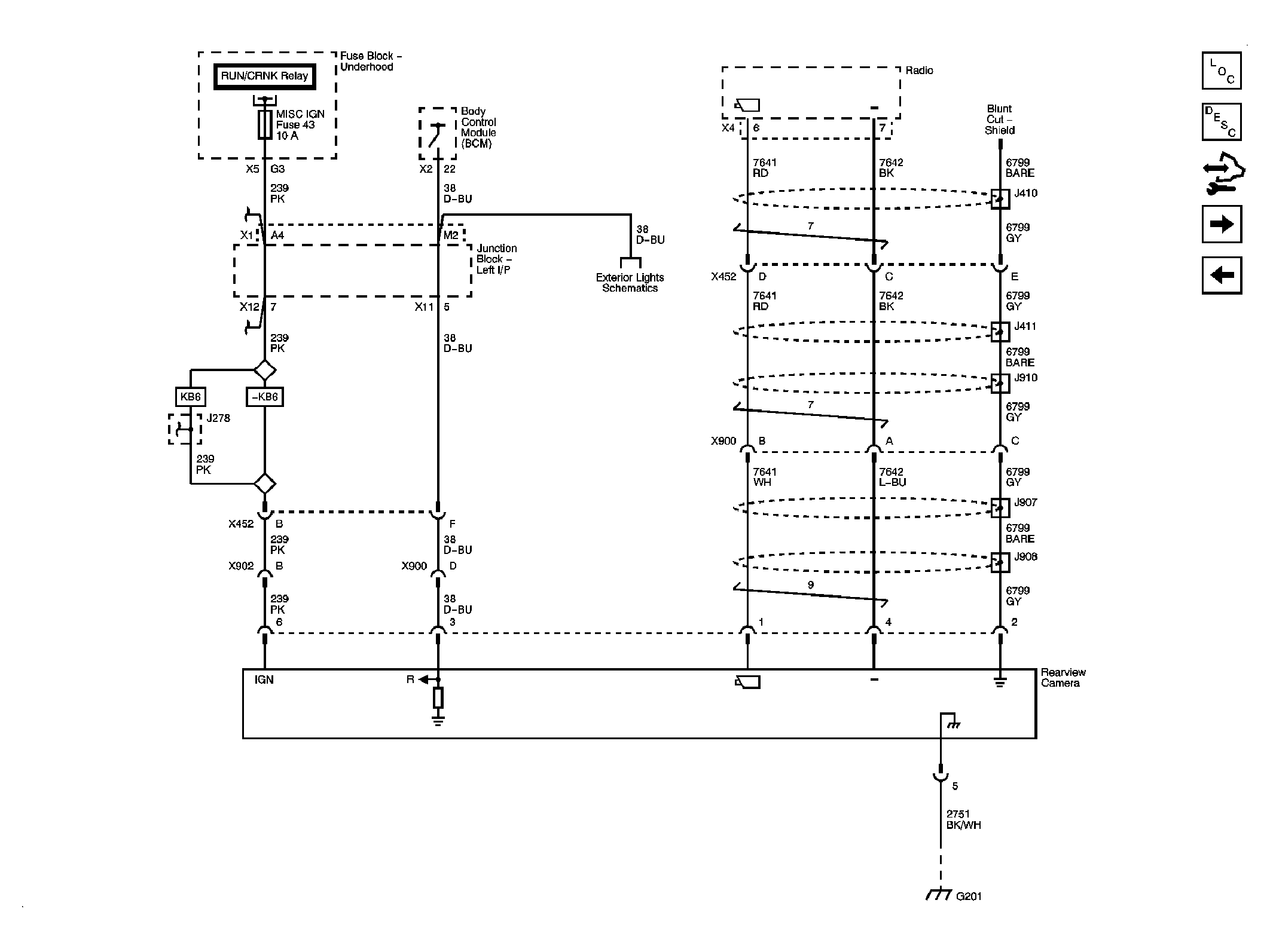

Fig 5: SPO Accessory Rear Vision Camera

GM2156148

Courtesy of GENERAL MOTORS CORP.

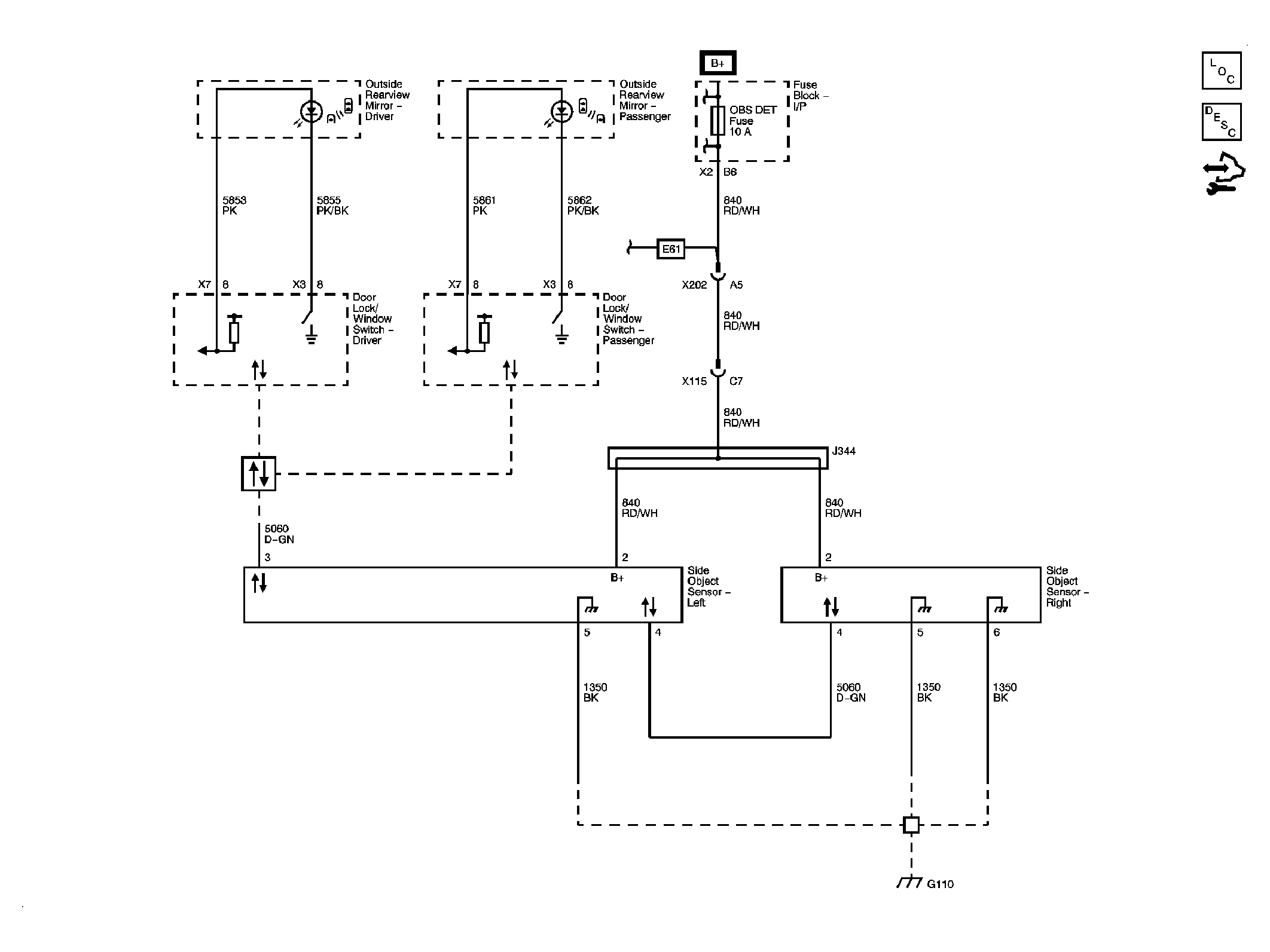

Fig 6: Side Object Detection - UFT

GM2097067

Courtesy of GENERAL MOTORS CORP.
