Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Front Of Dash (Except Tahoe & Escalade)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 3: Front Of Dash (Tahoe & Escalade)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 5: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 6: Right Front Floor Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 7: Front Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 8: Left Front Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 9: Left Rear Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 10: Left Side Of Frame Rail Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 11: Rear Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 13: Automatic Transmission (4L60-E, 4L65-E & 4L70-E)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Left Side Of Automatic Transmission (4L60-E, 4L65-E & 4L70-E)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 16: Automatic Transmission (4L80-E & 4L85-E)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Automatic Transmission (6L50, 6L80 & 6L90)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 19: Top Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 20: Left Front Floor & Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 21: Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 22: Top Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 23: Left Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 24: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 25: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 26: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 27: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 28: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 29: Dash & Kick Panels (Base)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Rear Chassis (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Rear Chassis (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 33: Rear Chassis (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Rear Chassis (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Rear Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 36: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 37: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 38: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 39: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 40: Heated Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 41: Rear Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 42: Center Underside Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 43: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 44: Top Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 45: Front HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 46: Above Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 47: Rear HVAC Module (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Rear HVAC Module (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Center Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 50: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 51: Under Left End Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 52: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 53: Rear Of Vehicle (Avalanche, Suburban & Tahoe W/One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Rear Of Vehicle (Avalanche, Suburban & Tahoe W/Tailgate)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Rear Of Vehicle (Tahoe & Escalade W/One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Rear Of Vehicle (Tahoe & Escalade W/Tailgate)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Rear Of Vehicle (Yukon W/One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.
Fig 58: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 59: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 60: Left "D" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 61: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 62: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 63: Rear Seats
Courtesy of GENERAL MOTORS CORP.
Fig 64: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 65: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 66: Front Axle
Courtesy of GENERAL MOTORS CORP.
Fig 67: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 68: Liftgate (One Piece Liftgate W/Lift Glass)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 71: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 72: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 73: Top Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 75: Front Left Side Of Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 76: Vehicle Floor
Courtesy of GENERAL MOTORS CORP.
Fig 77: Rear Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 78: Rear Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 79: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 80: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 81: Front Fascia (Avalanche, Suburban & Tahoe)
Courtesy of GENERAL MOTORS CORP.
Fig 82: Front Fascia (Escalade)
Courtesy of GENERAL MOTORS CORP.
Fig 83: Front Fascia (Yukon)
Courtesy of GENERAL MOTORS CORP.
Fig 84: Engine
Courtesy of GENERAL MOTORS CORP.
Fig 85: Engine
Courtesy of GENERAL MOTORS CORP.
Fig 86: Engine
Courtesy of GENERAL MOTORS CORP.
Fig 87: Left Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 88: Dash & Kick Panels (Escalade)
Courtesy of GENERAL MOTORS CORP.
Fig 89: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 90: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 91: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 92: Roof (Except One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.
Fig 93: Roof (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 94: Roof (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 95: Passenger Compartment (Except One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.
Fig 96: Front Passenger Compartment (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 97: Rear Passenger Compartment (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 98: Front Passenger Compartment (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 99: Rear Passenger Compartment (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 100: Chassis (Except One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.
Fig 101: Chassis (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 102: Chassis (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 103: Liftgate (One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.
Fig 104: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 105: Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.

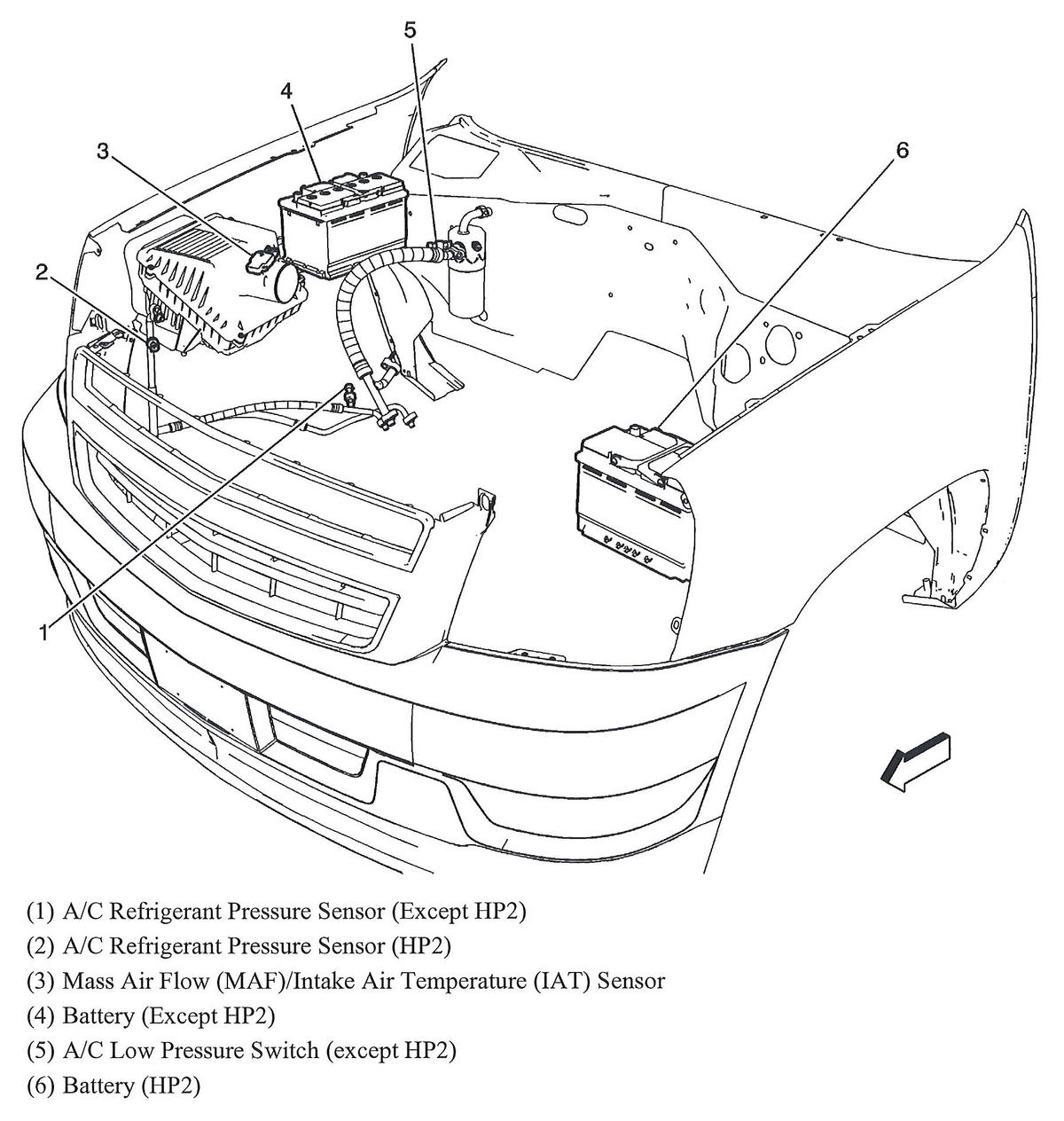

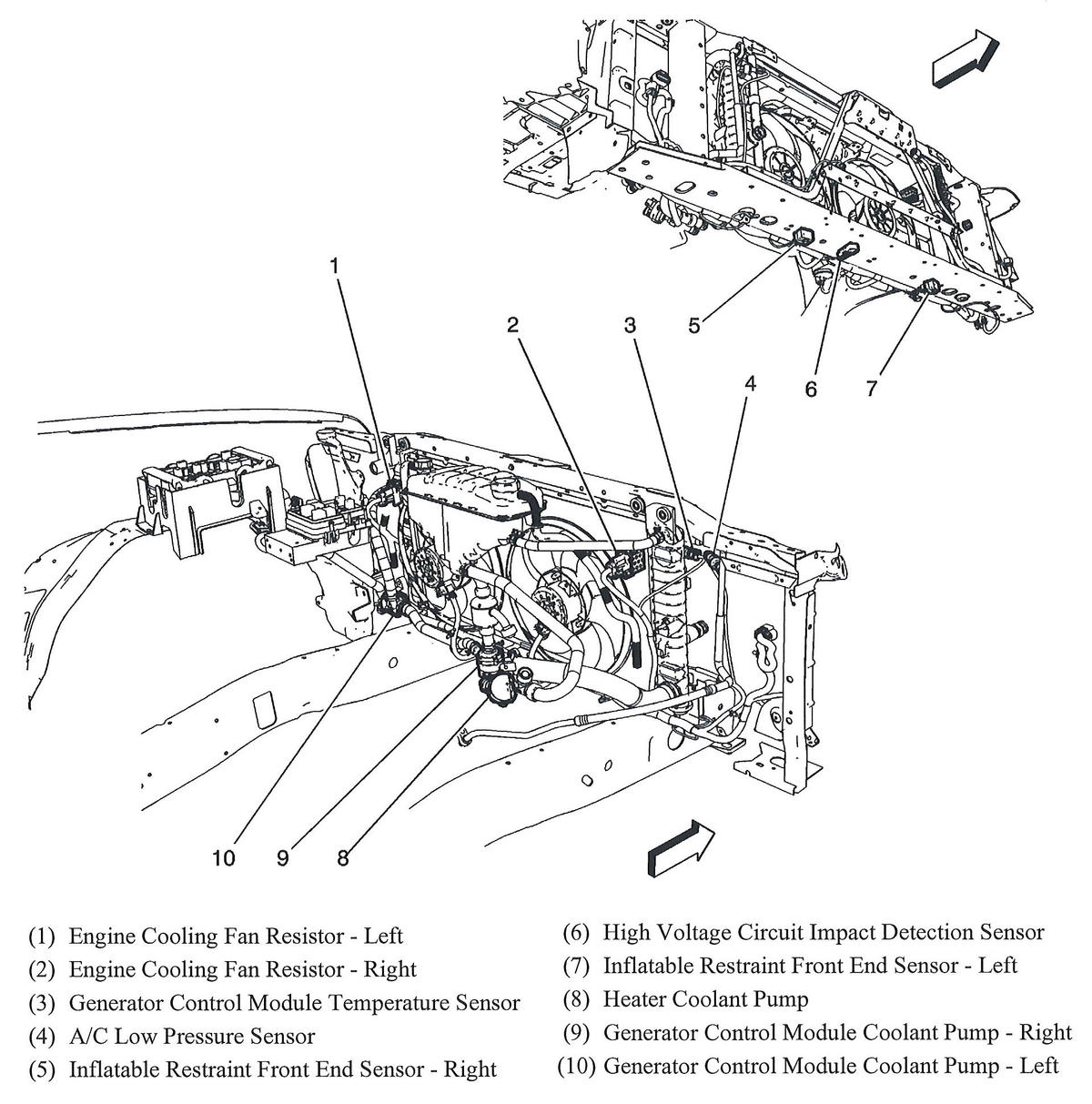

Fig 106: Front Of Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 107: Engine & Transmission Electronic Controls (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 108: Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 109: Right Side Of Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.

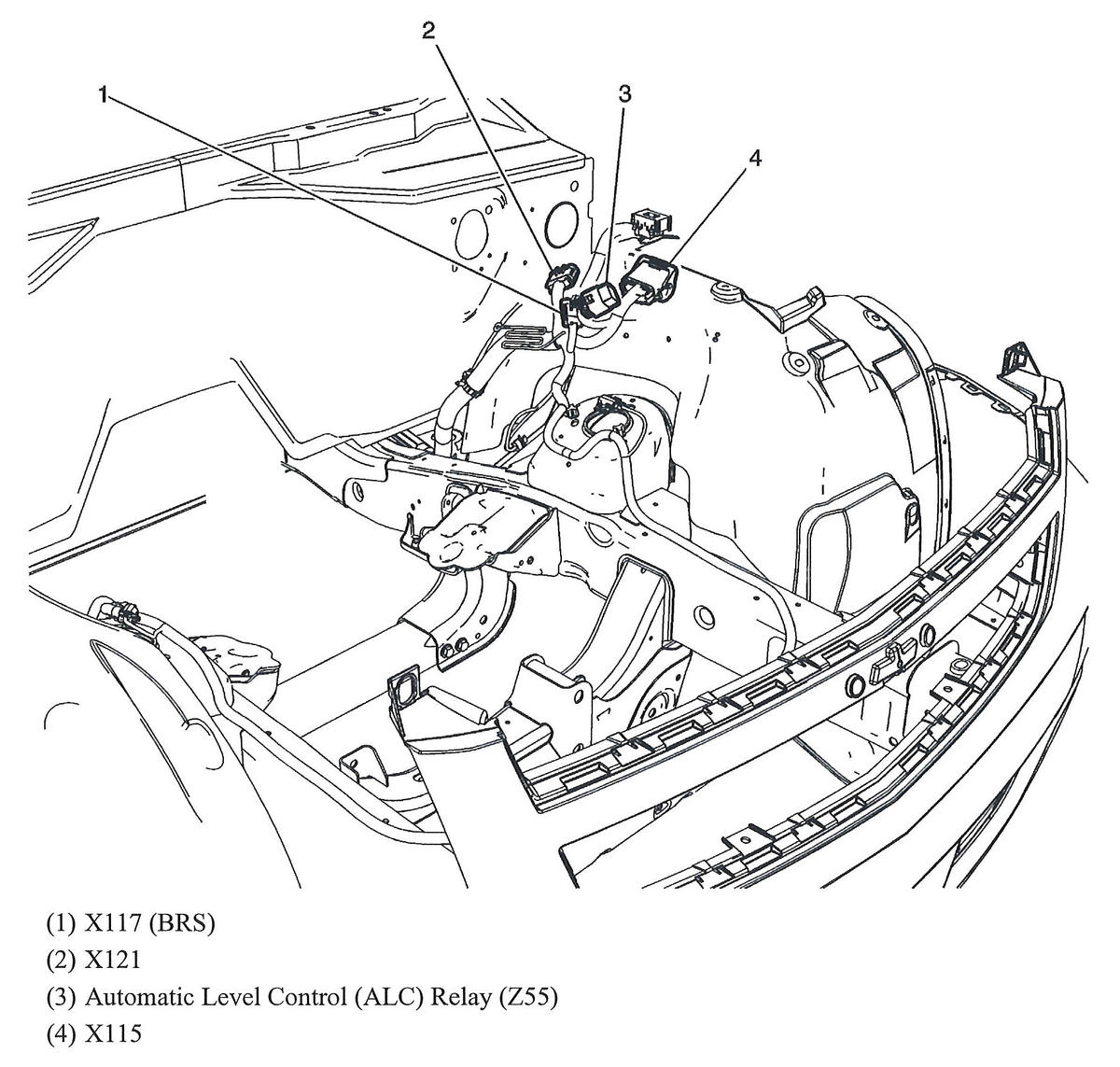

Fig 110: Left Front Of Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 111: Left Side Of Cargo Area (Hybrid)
Courtesy of GENERAL MOTORS CORP.

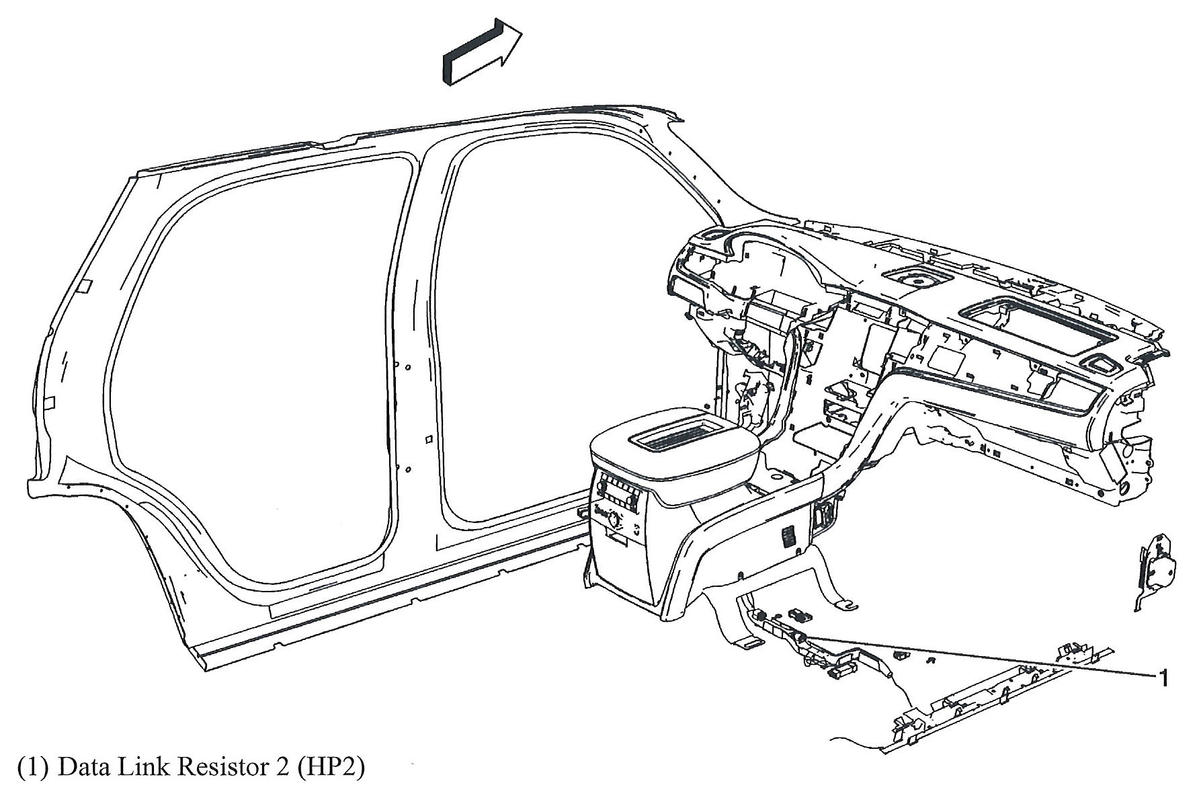

Fig 112: Right Front Floor (Hybrid)
Courtesy of GENERAL MOTORS CORP.

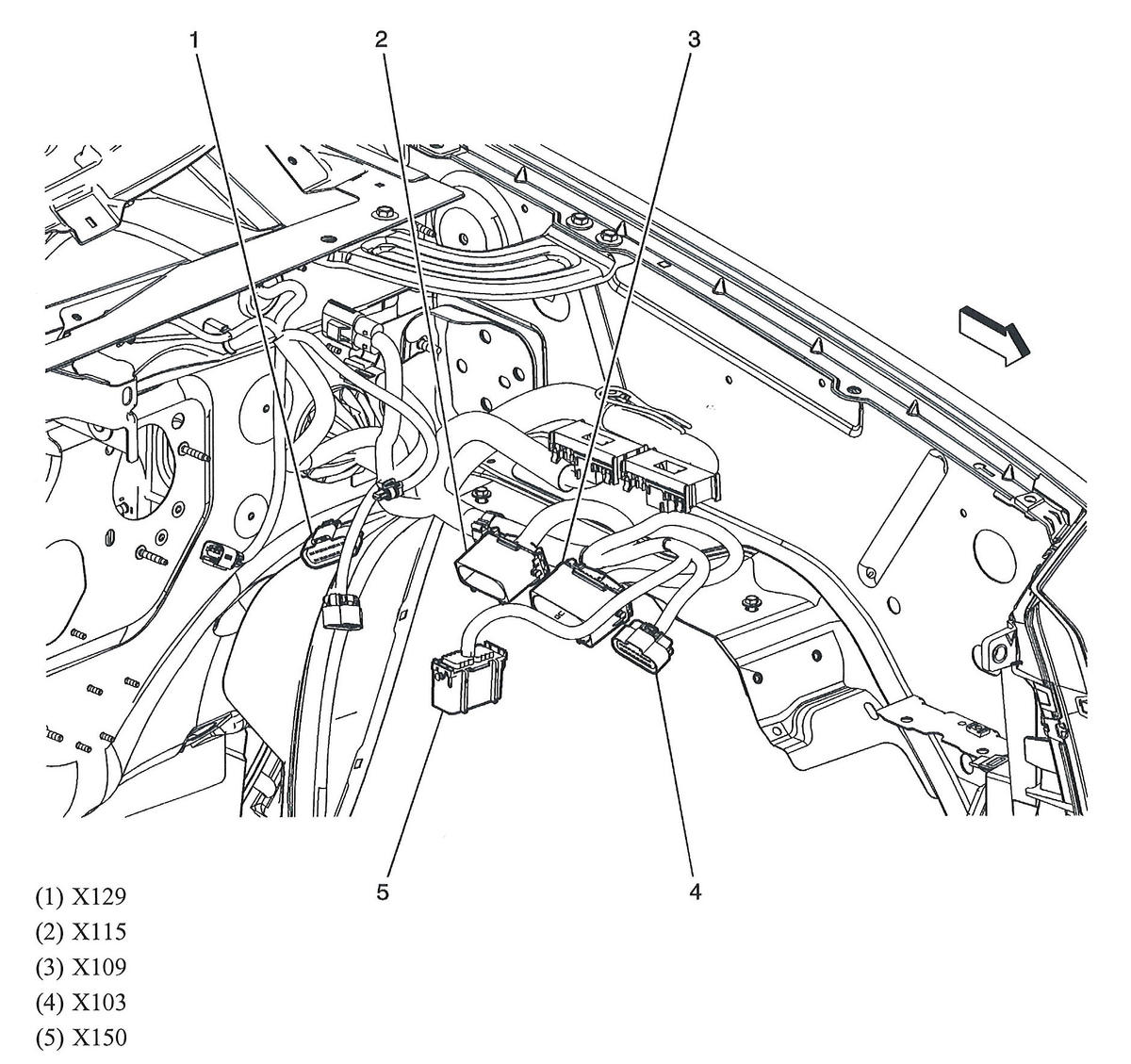

Fig 113: Left Side Of Dash (Hybrid)
Courtesy of GENERAL MOTORS CORP.

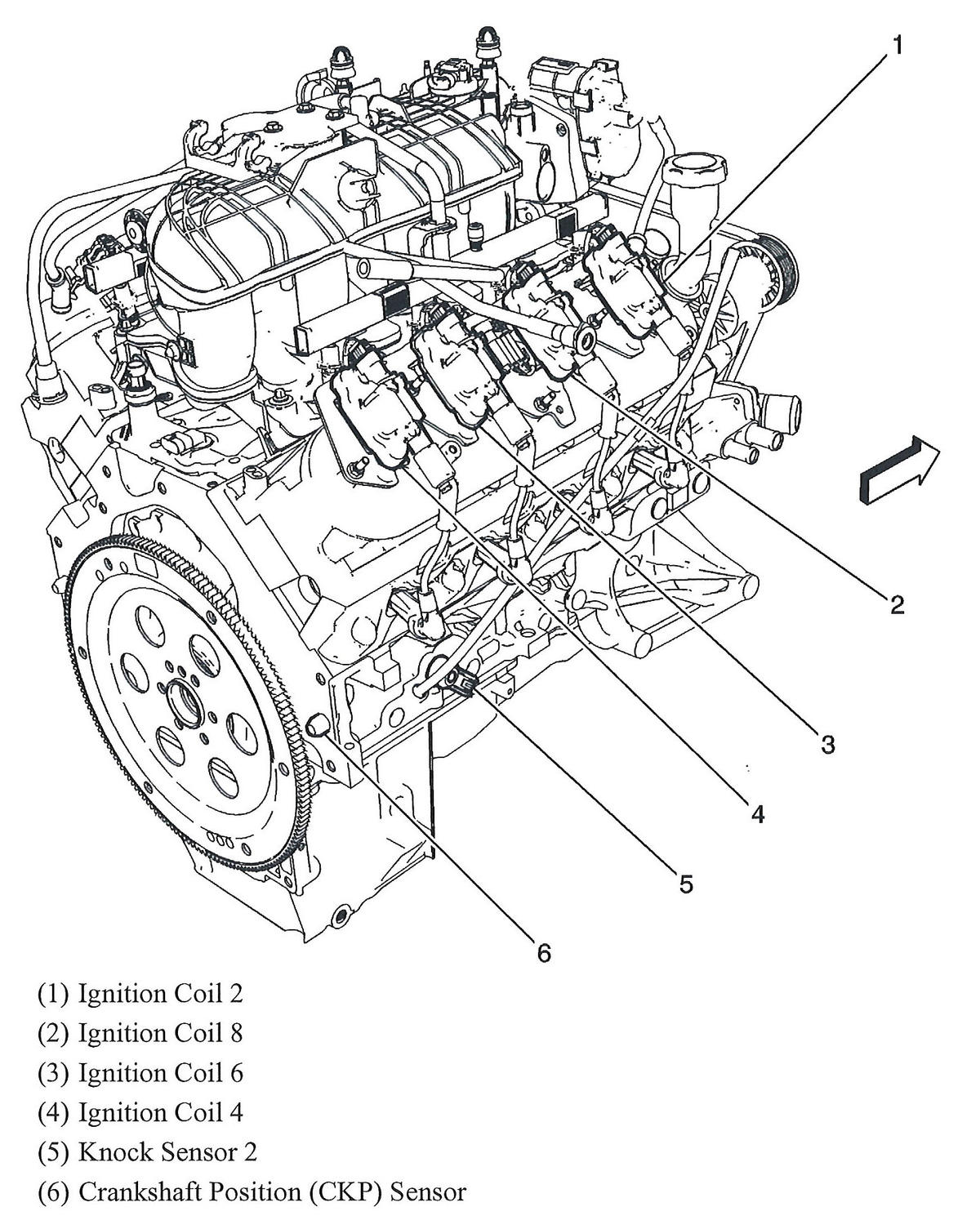

Fig 114: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

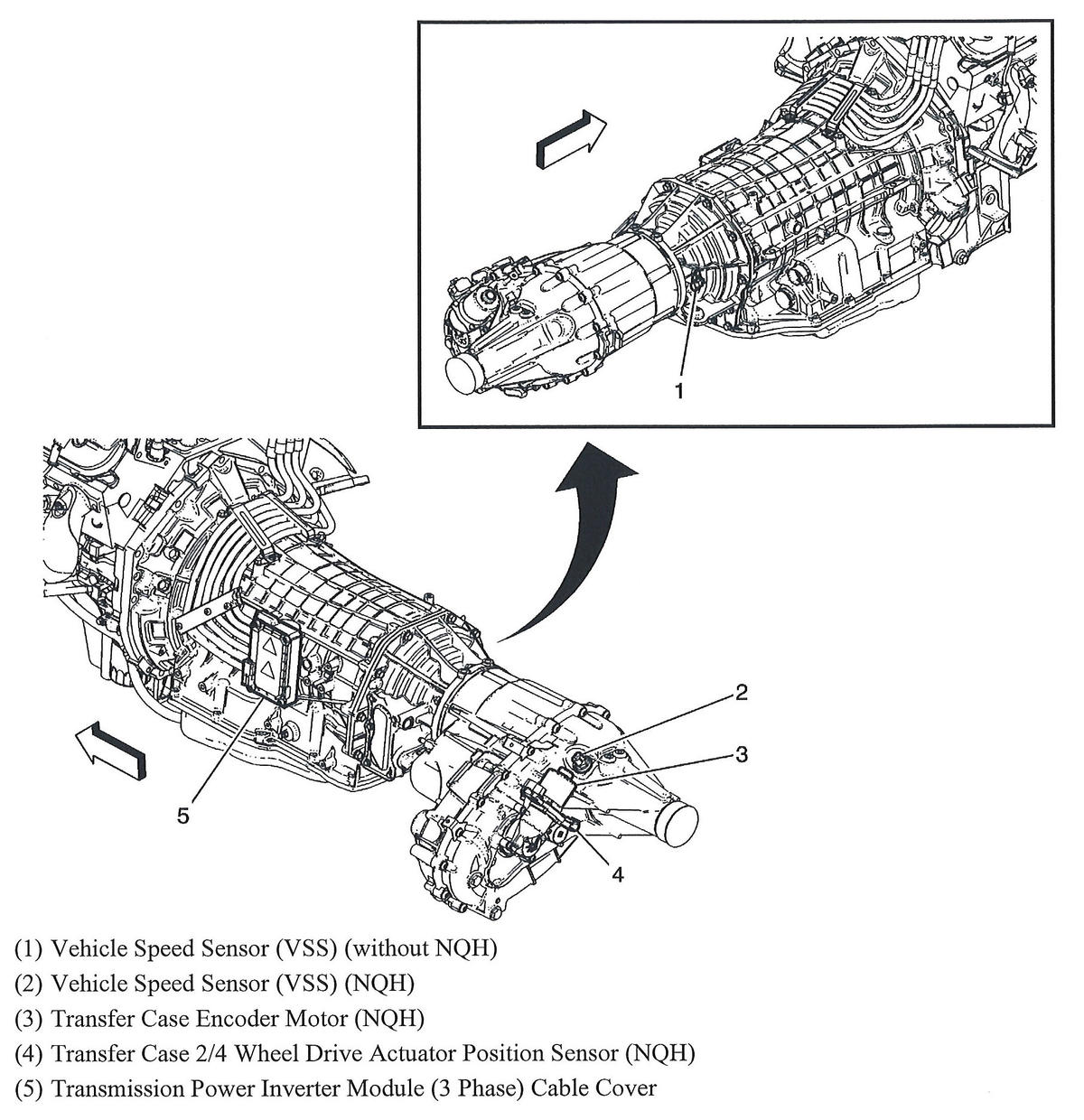

Fig 115: Transmission & Transfer Case (Hybrid)
Courtesy of GENERAL MOTORS CORP.

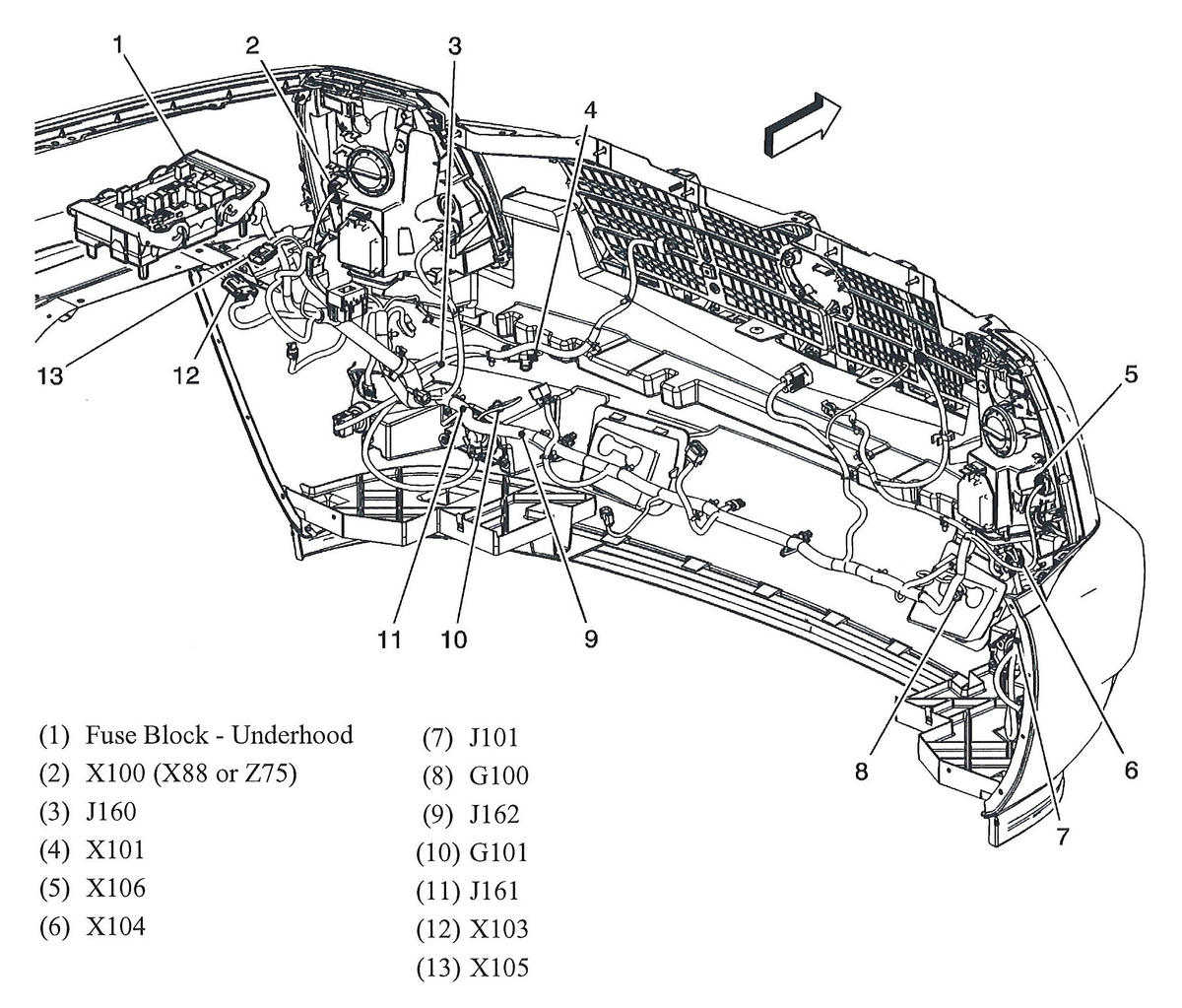

Fig 116: Front Of Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 117: Left Side Of Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.

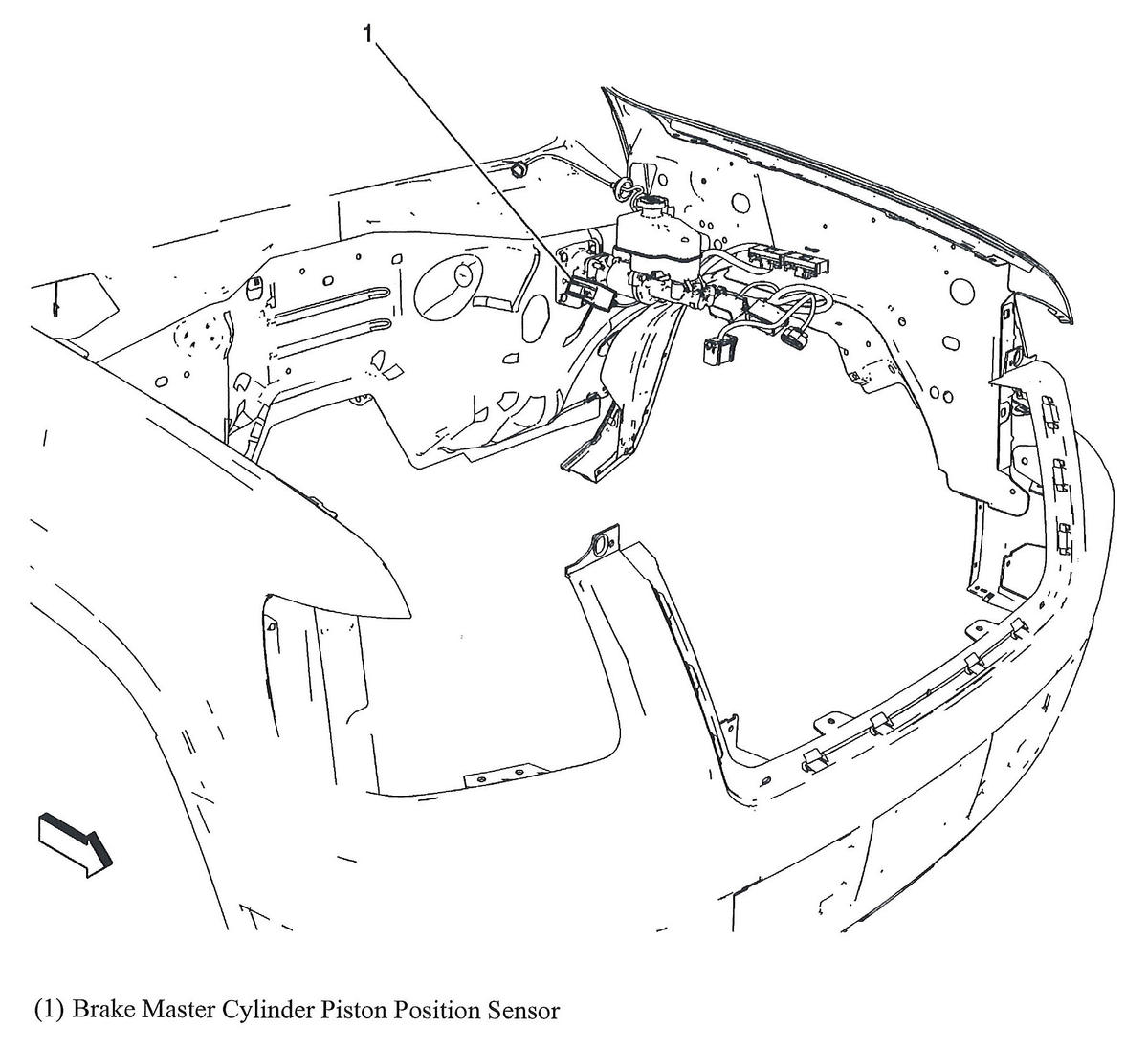

Fig 118: Left Rear Of Engine Compartment (Hybrid)
Courtesy of GENERAL MOTORS CORP.

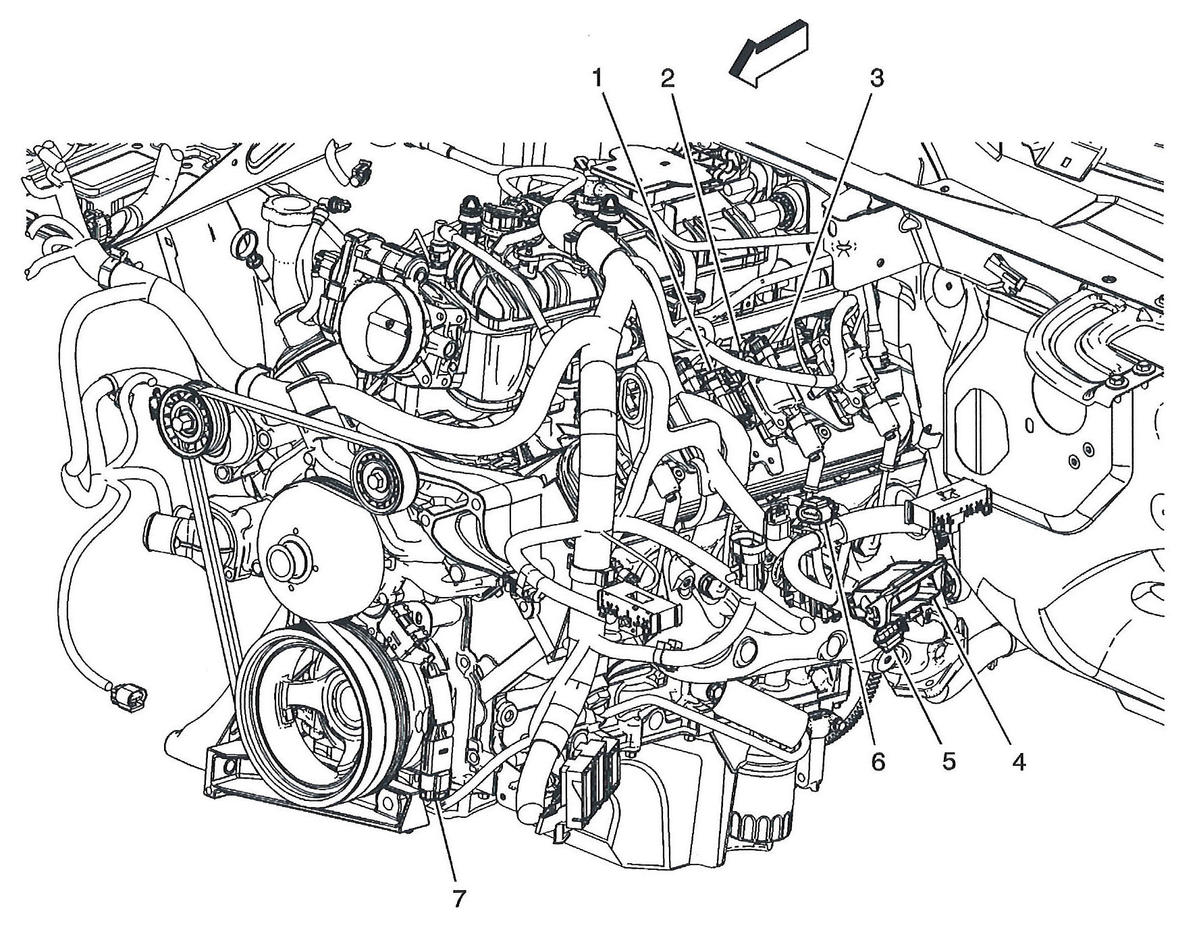

Fig 119: Left Side Of Engine (Hybrid)
Courtesy of GENERAL MOTORS CORP.

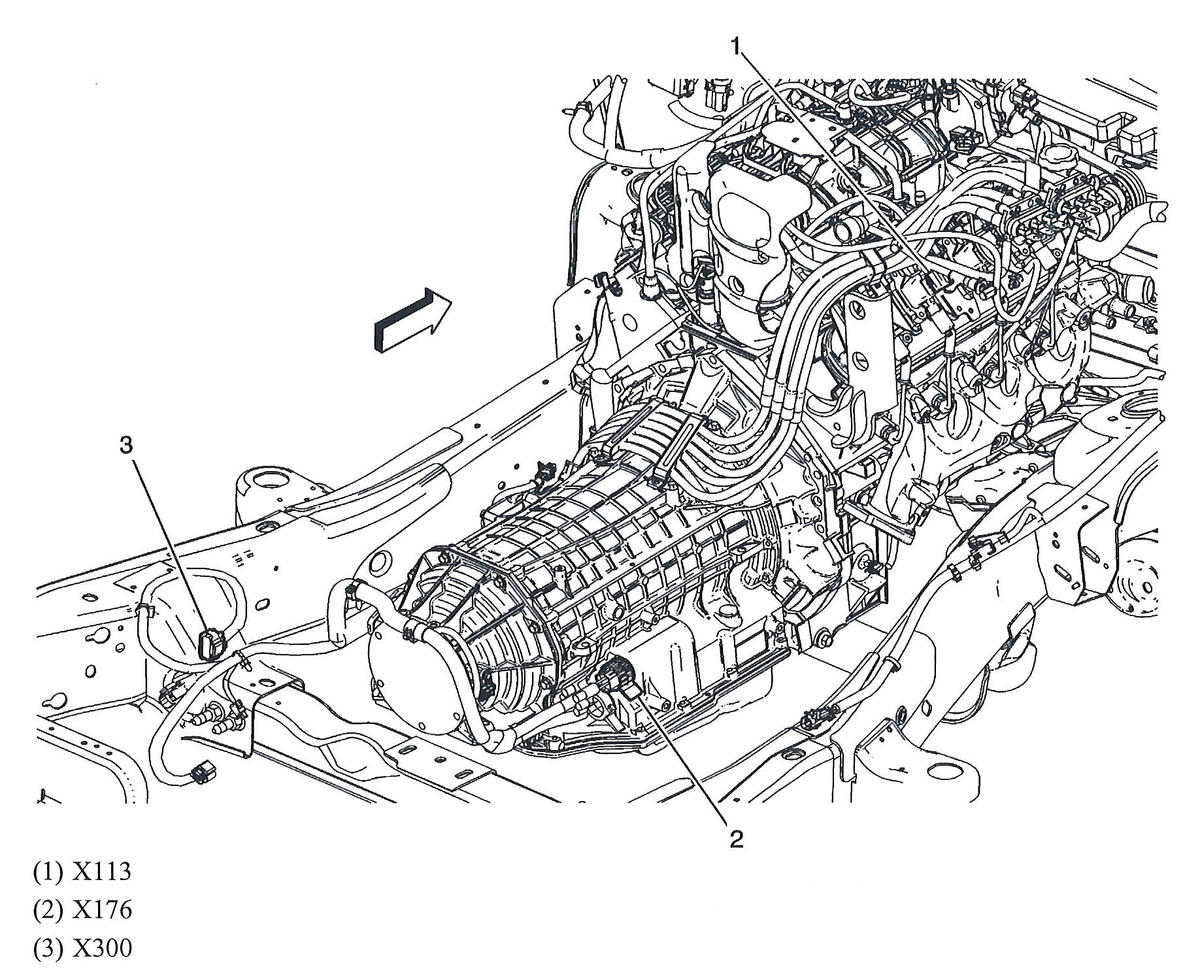

Fig 120: Engine & Transmission (Hybrid)
Courtesy of GENERAL MOTORS CORP.

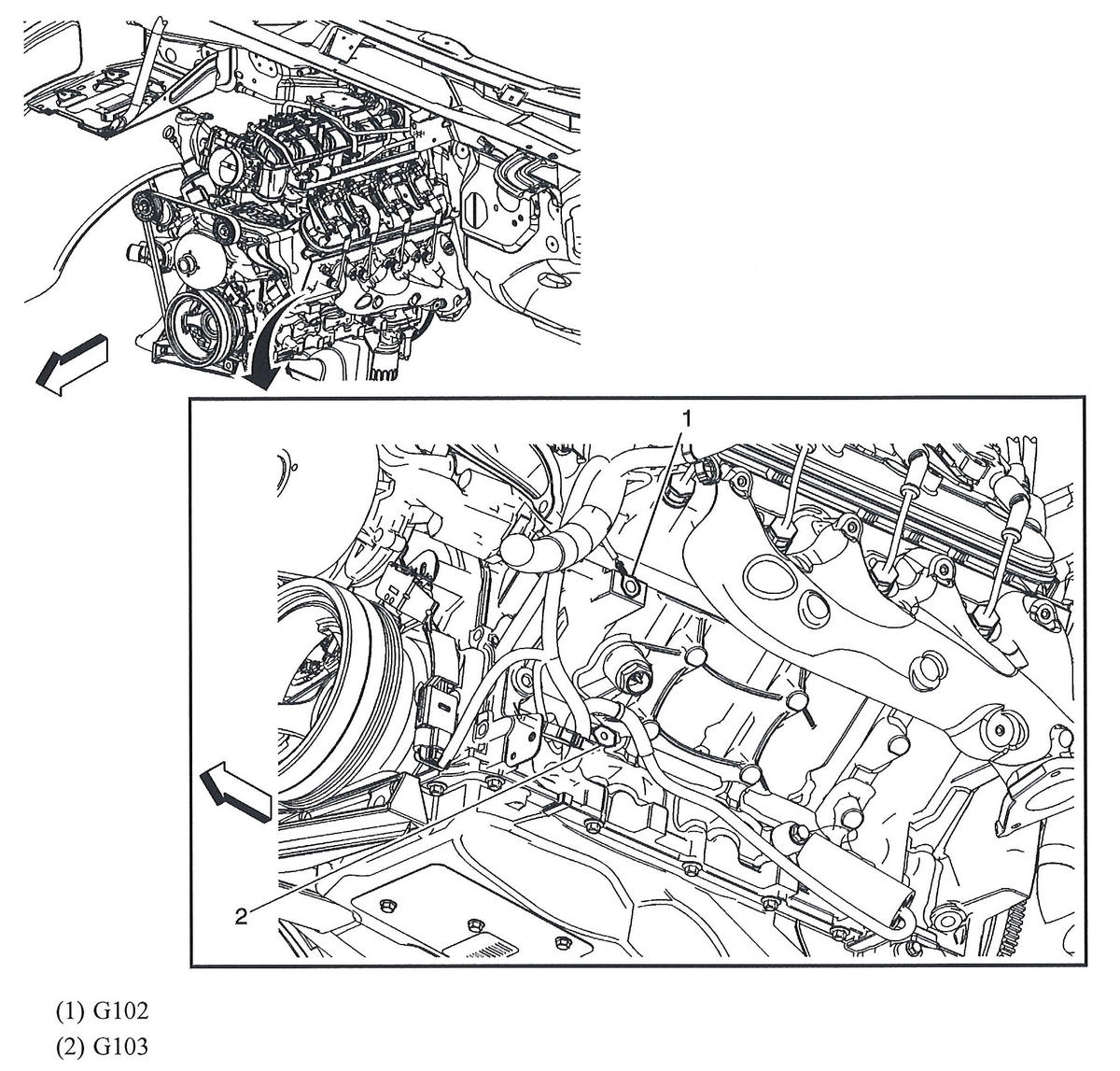

Fig 121: Left Side Of Engine (Hybrid)
Courtesy of GENERAL MOTORS CORP.

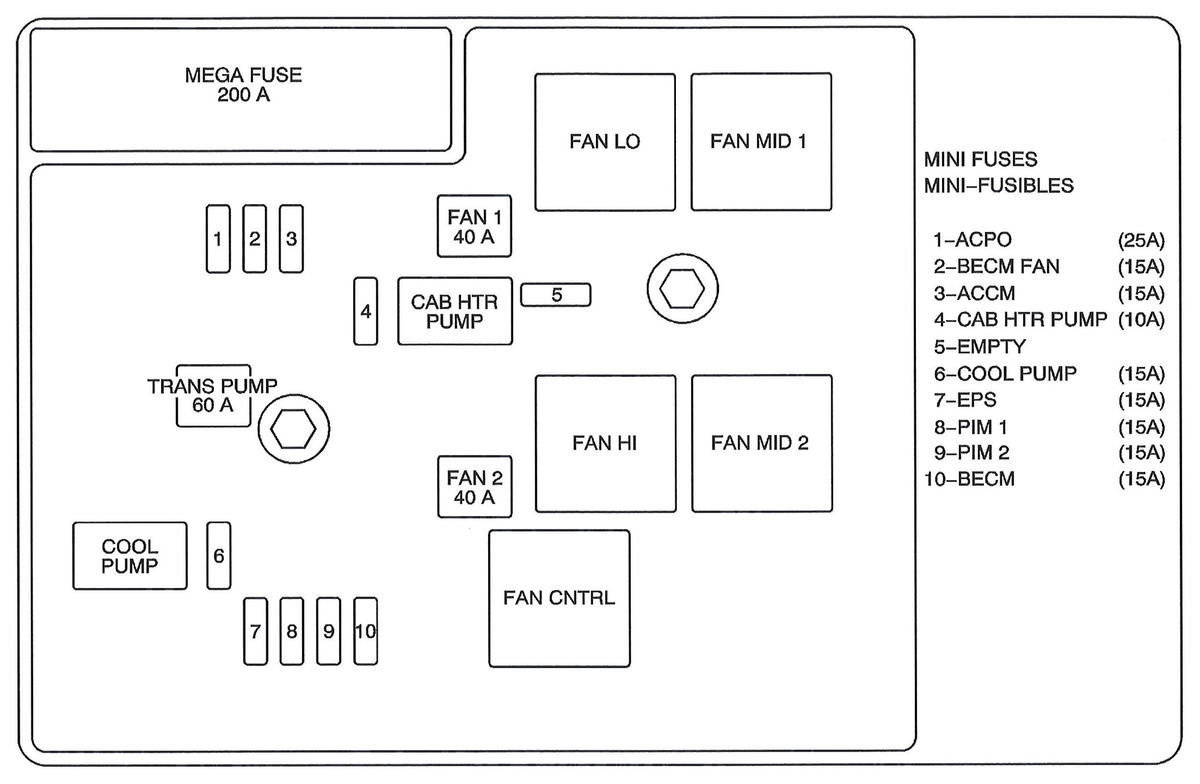

Fig 122: Auxiliary Fuse Block (Hybrid)
Courtesy of GENERAL MOTORS CORP.
