Side Object Sensor Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

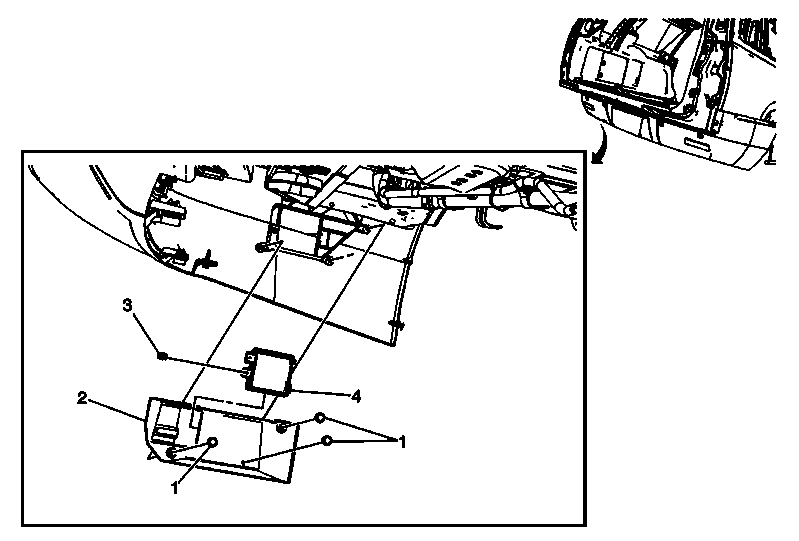

Fig 1: Side Object Sensor Replacement
GM2136063Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Side Object Sensor Push Pins (Qty:3)

Procedure

  1. Disconnect electrical connector.
  2. Use a flat tool to pry out push pins.
2 Side Object Sensor Shield
3 Side Object Sensor Bolt
CAUTION: Refer to Fastener Caution .

Tighten:  9 N.m 80 lb in
4 Side Object Sensor
Procedure:
Unsnap side sensor out of the side sensor bracket.
