Installation Procedure

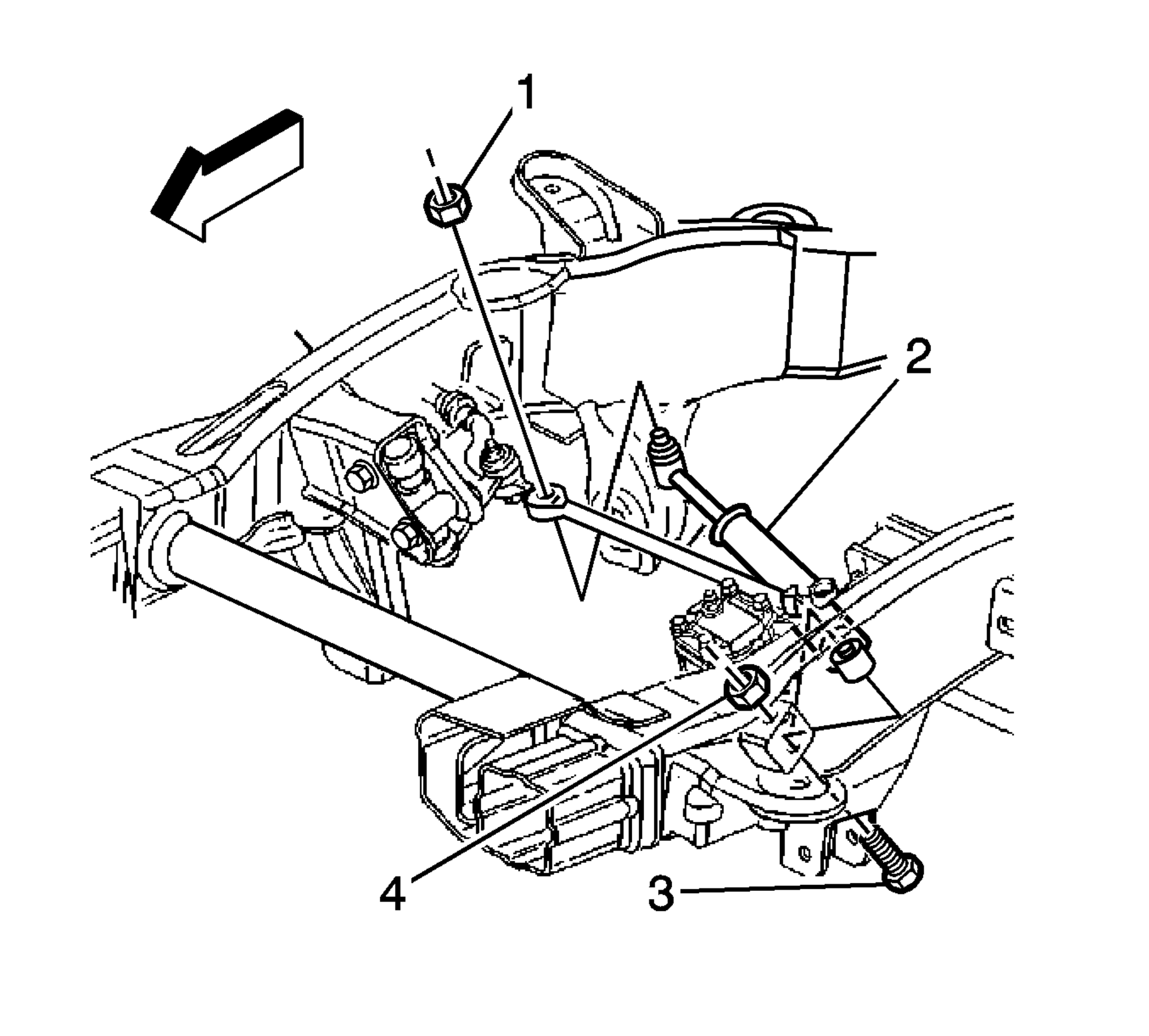

    Fig 1: View Of Linkage Shock Absorber
    GM1862841Courtesy of GENERAL MOTORS CORP.
    NOTE: Use new steering linkage shock absorber nuts.
  1. Install the steering linkage shock absorber (2) to the vehicle.
  2. Install the steering linkage shock absorber (4) and nuts (1, 3).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the steering linkage shock absorber nuts (1, 3) and tighten to 40 N.m (30 lb ft).
  4. Install the engine shield, if equipped. Refer to Engine Shield Replacement .
