Fuel Injector




Component Connector End Views

Fuel Injector 1 (LLT)

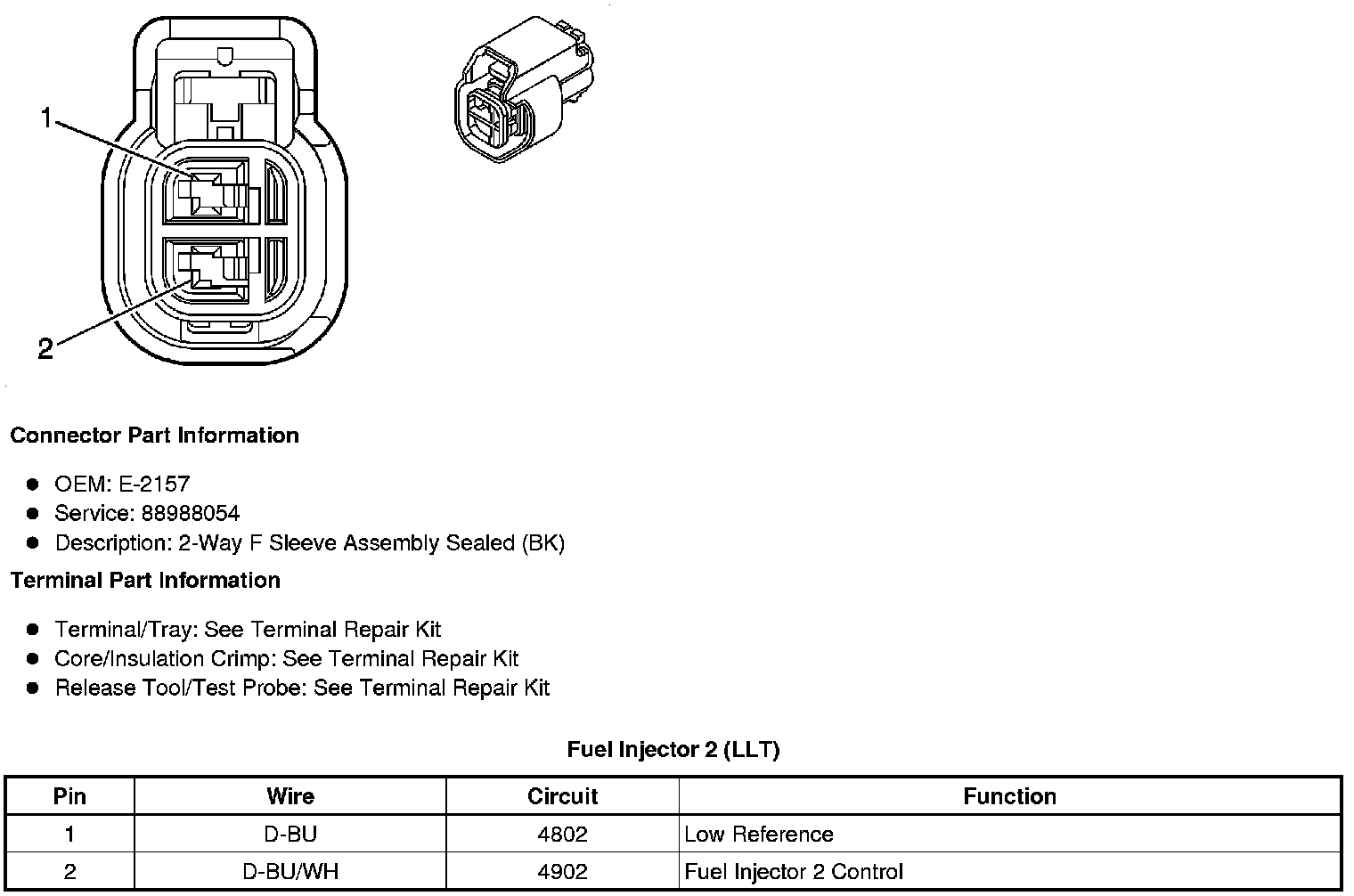

Fuel Injector 2 (LLT)






Fuel Injector 3 (LLT)






Fuel Injector 4 (LLT)






Fuel Injector 5 (LLT)

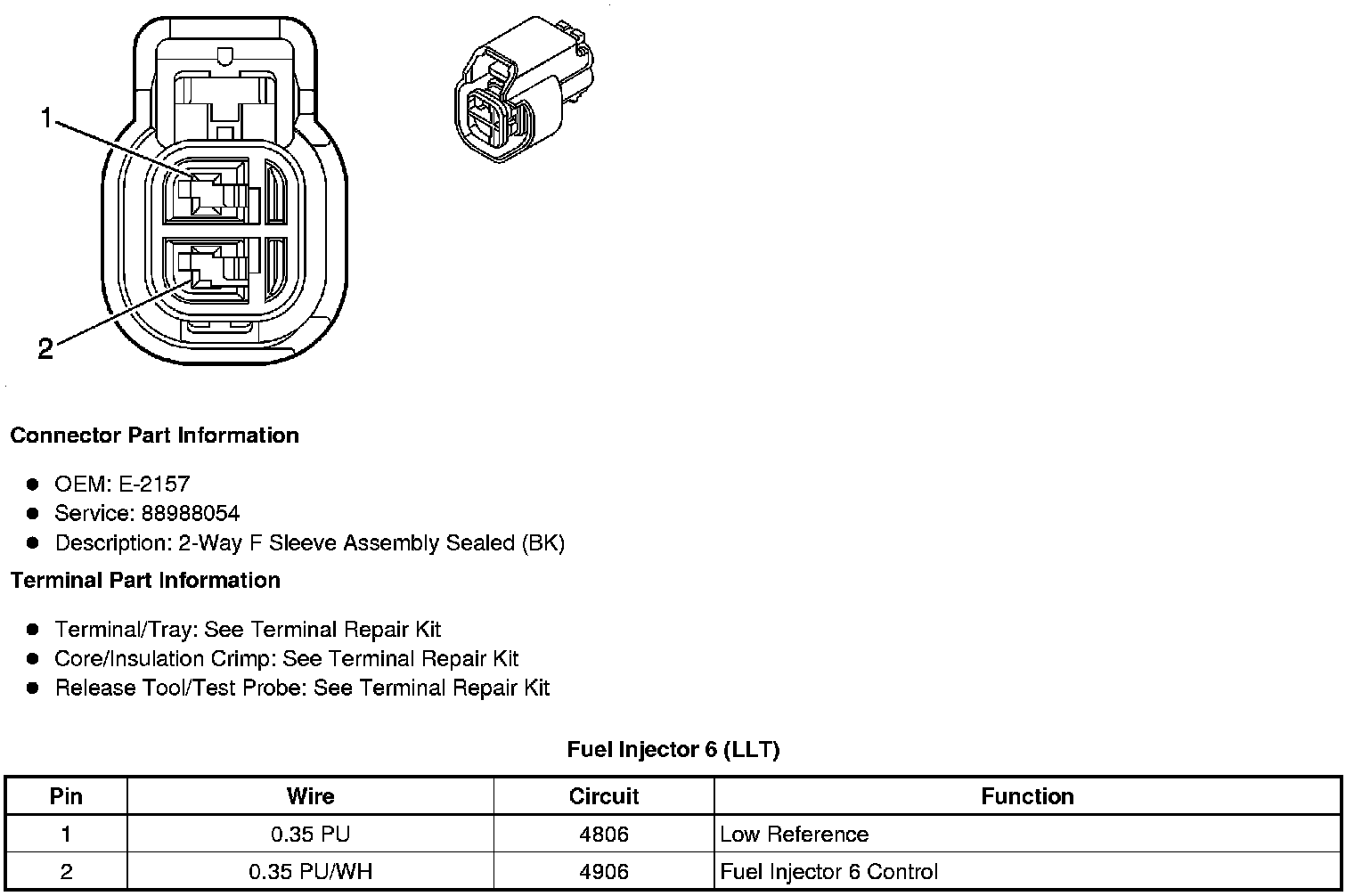

Fuel Injector 6 (LLT)
