Body Control System Schematics

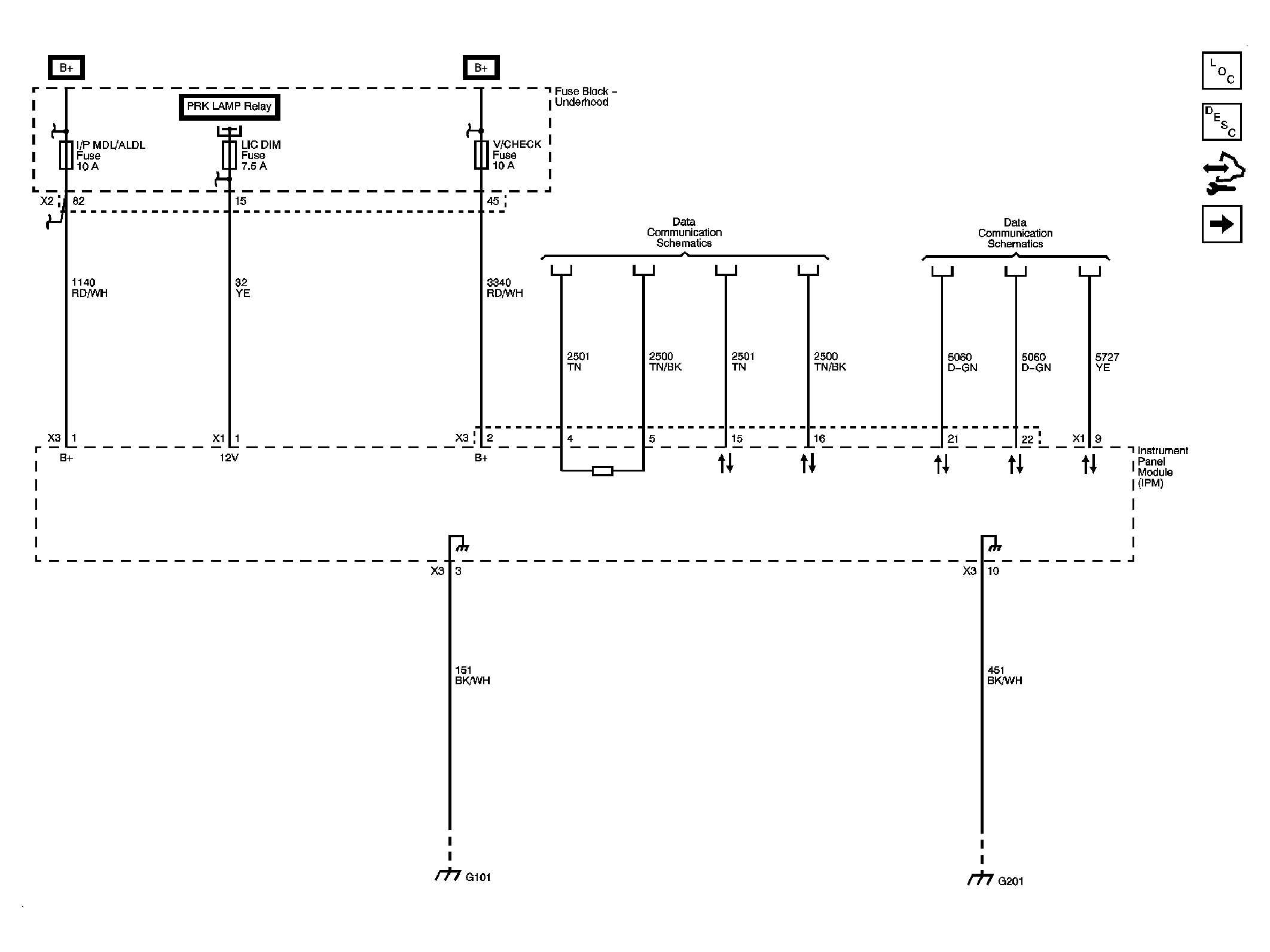

Fig 1: IPM Power, Grounds and DLC
Courtesy of GENERAL MOTORS CORP.

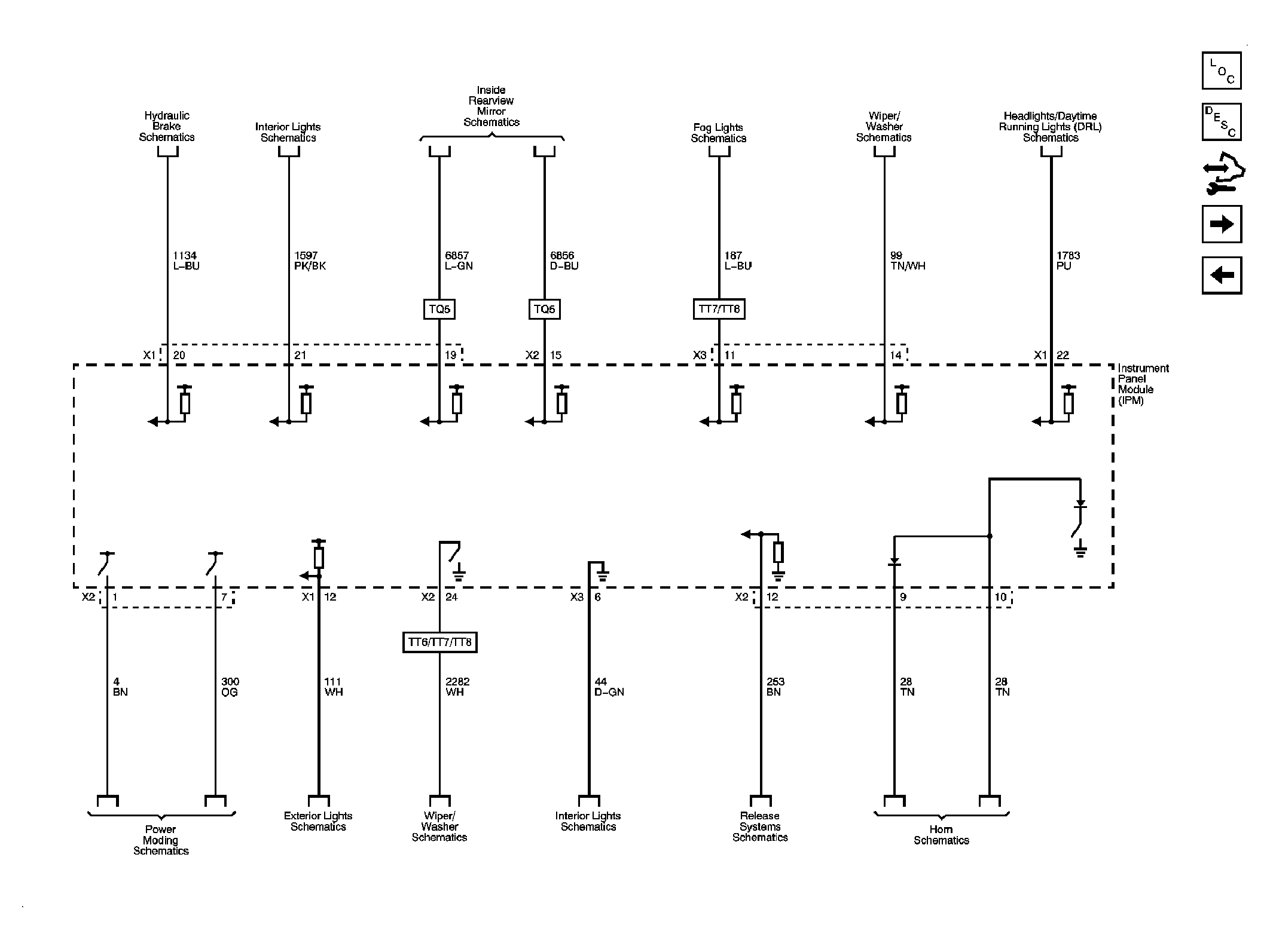

Fig 2: IPM Inputs and Outputs 1 of 3
Courtesy of GENERAL MOTORS CORP.

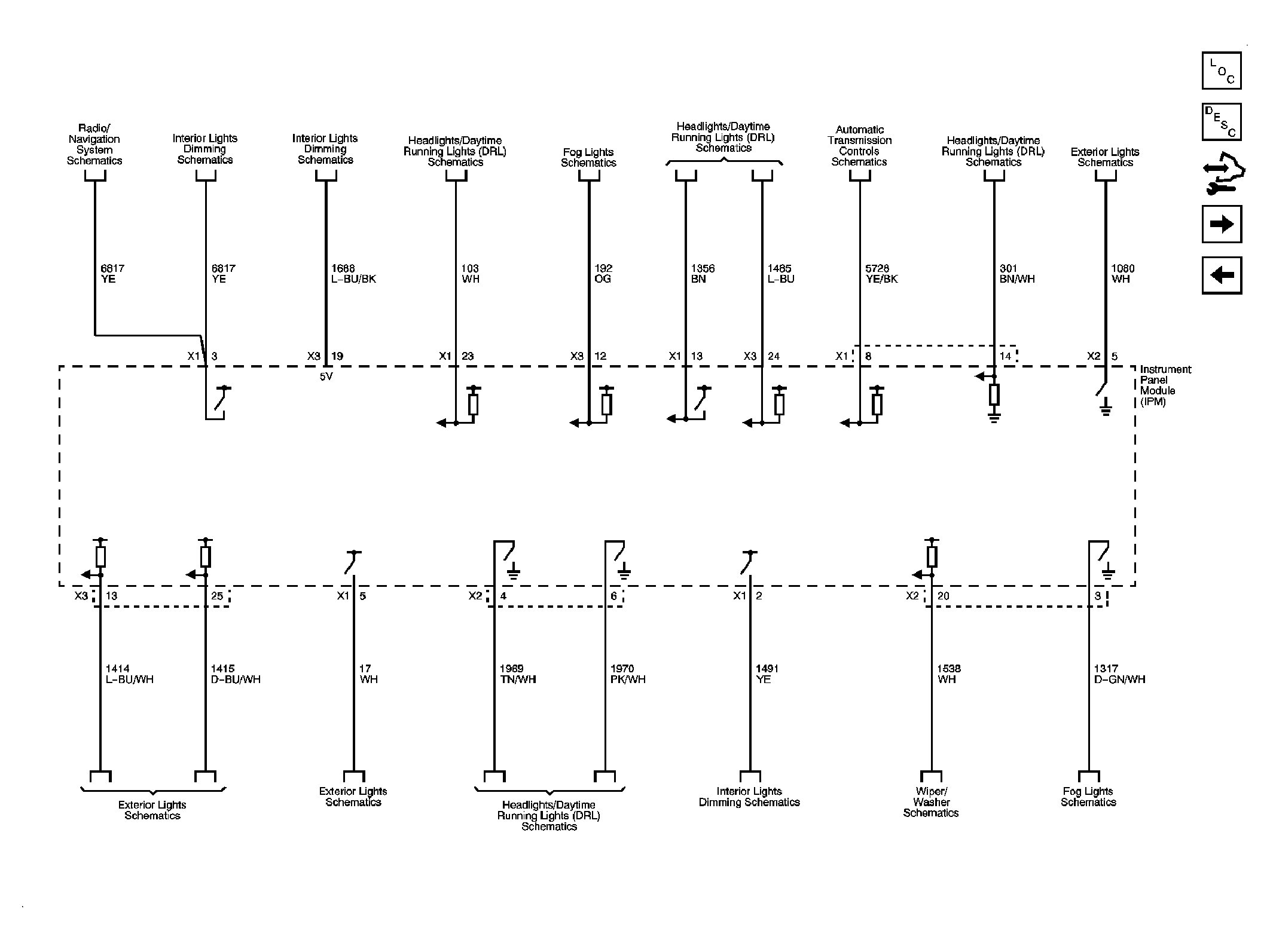

Fig 3: IPM Inputs and Outputs 2 of 3
Courtesy of GENERAL MOTORS CORP.

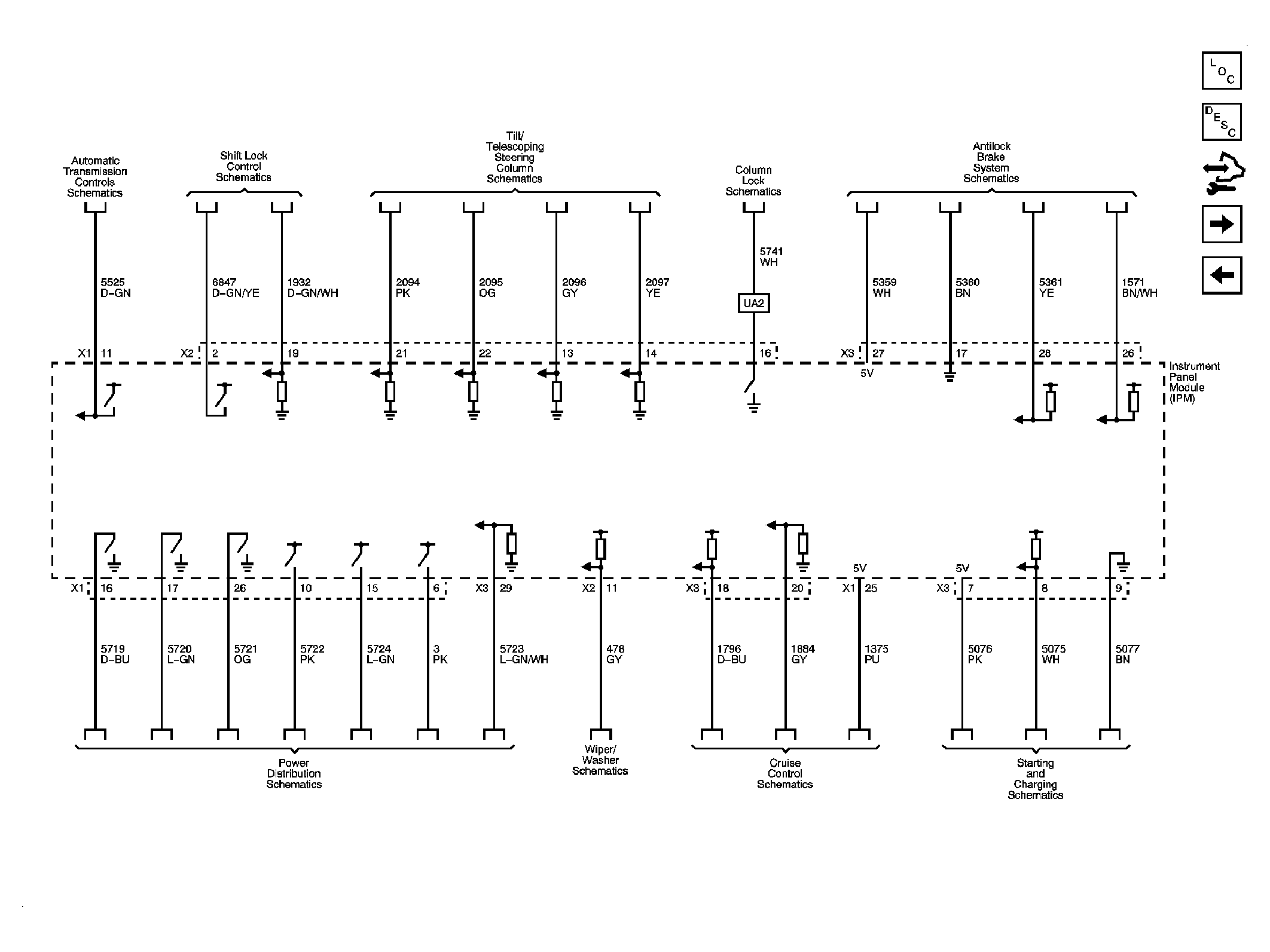

Fig 4: IPM Inputs and Outputs 3 of 3
Courtesy of GENERAL MOTORS CORP.

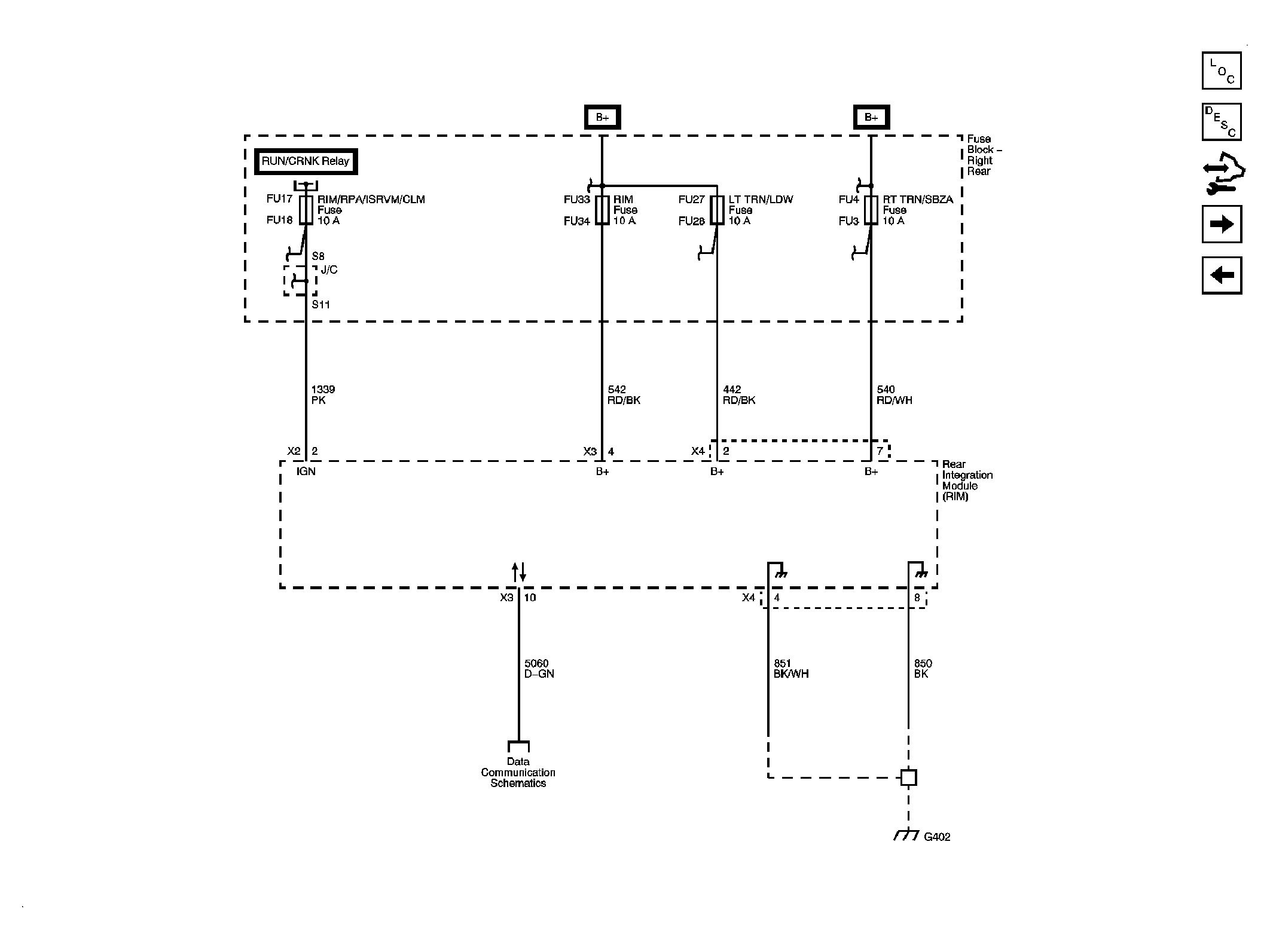

Fig 5: RIM Power, Grounds and DLC
Courtesy of GENERAL MOTORS CORP.

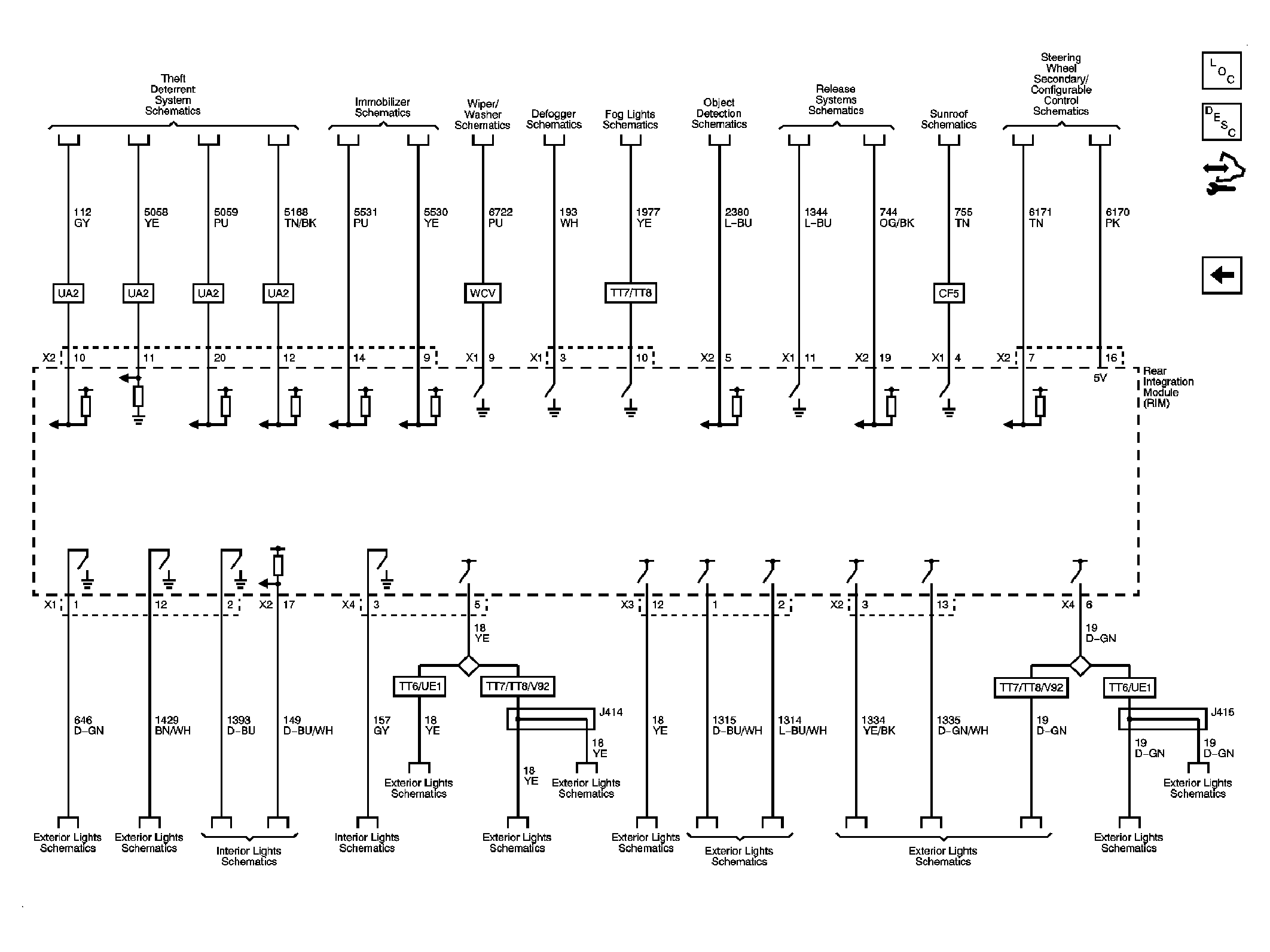

Fig 6: RIM Inputs and Outputs
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
