Data Communication Schematics

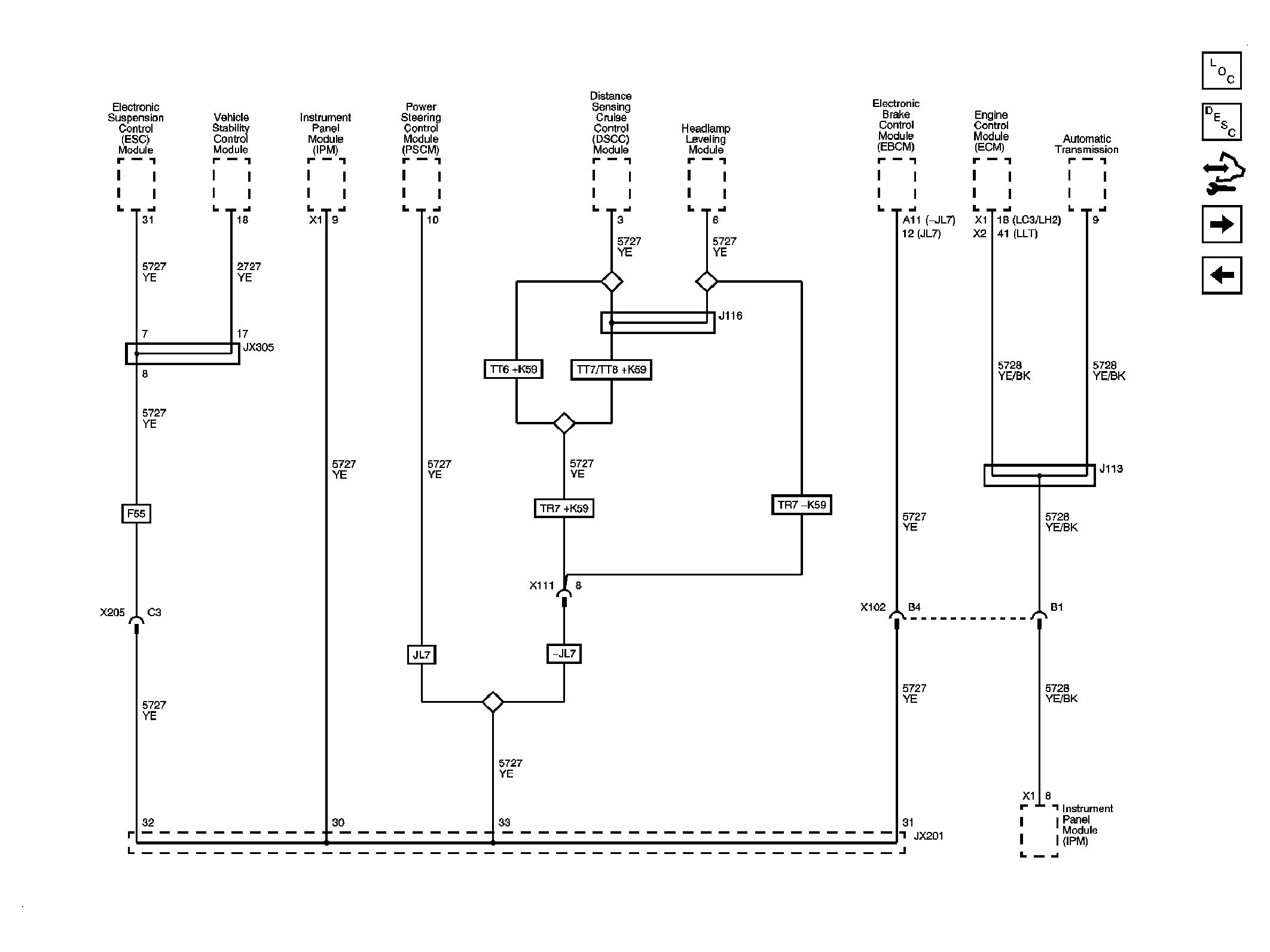

Fig 1: Power, Ground, and Low Speed GMLAN Serial Data

Courtesy of GENERAL MOTORS CORP.

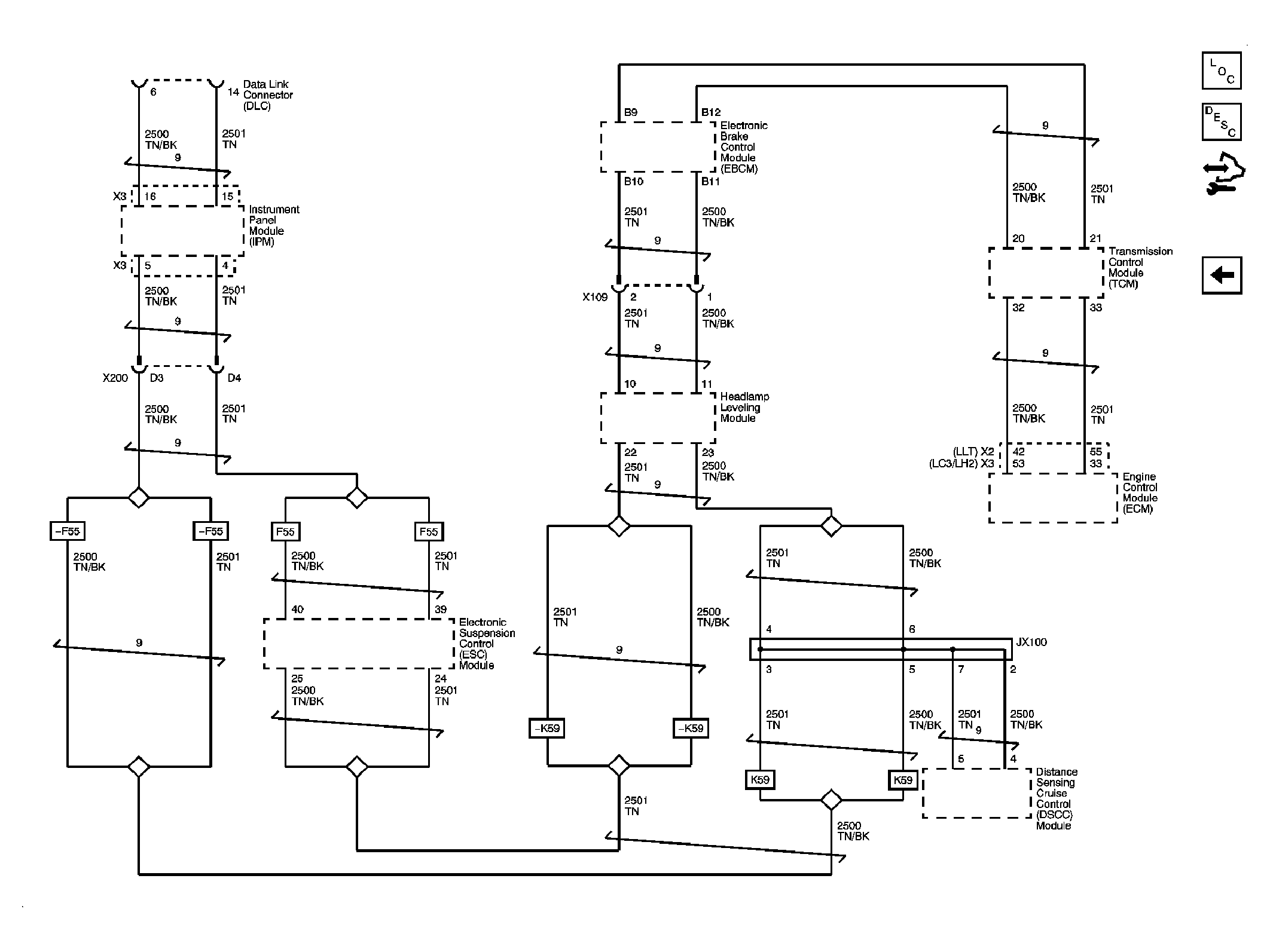

Fig 2: GMLAN - High Speed Serial Data Wake Up

Courtesy of GENERAL MOTORS CORP.

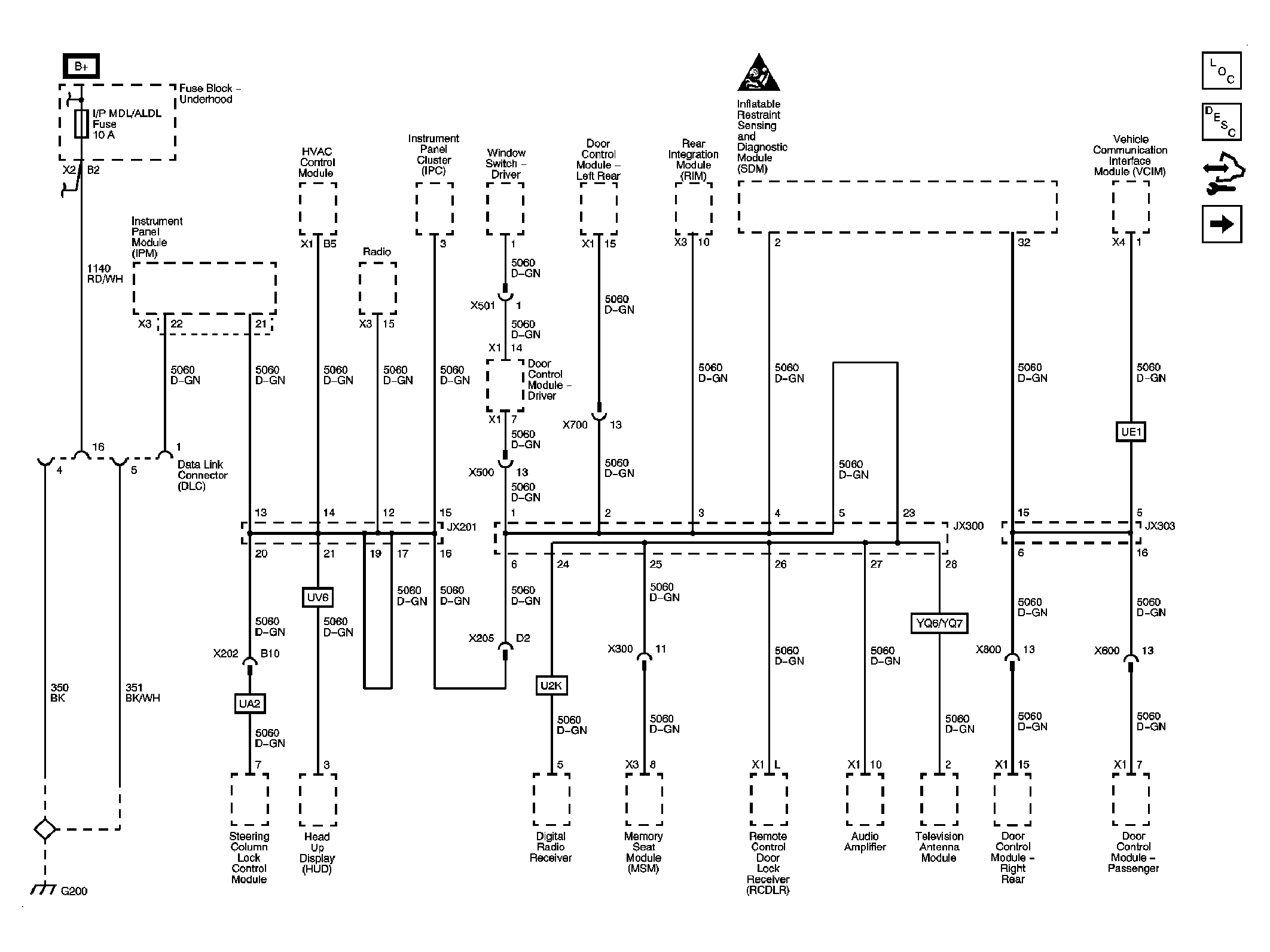

Fig 3: GMLAN High Speed Serial Data (LH2 with LHD)

Courtesy of GENERAL MOTORS CORP.

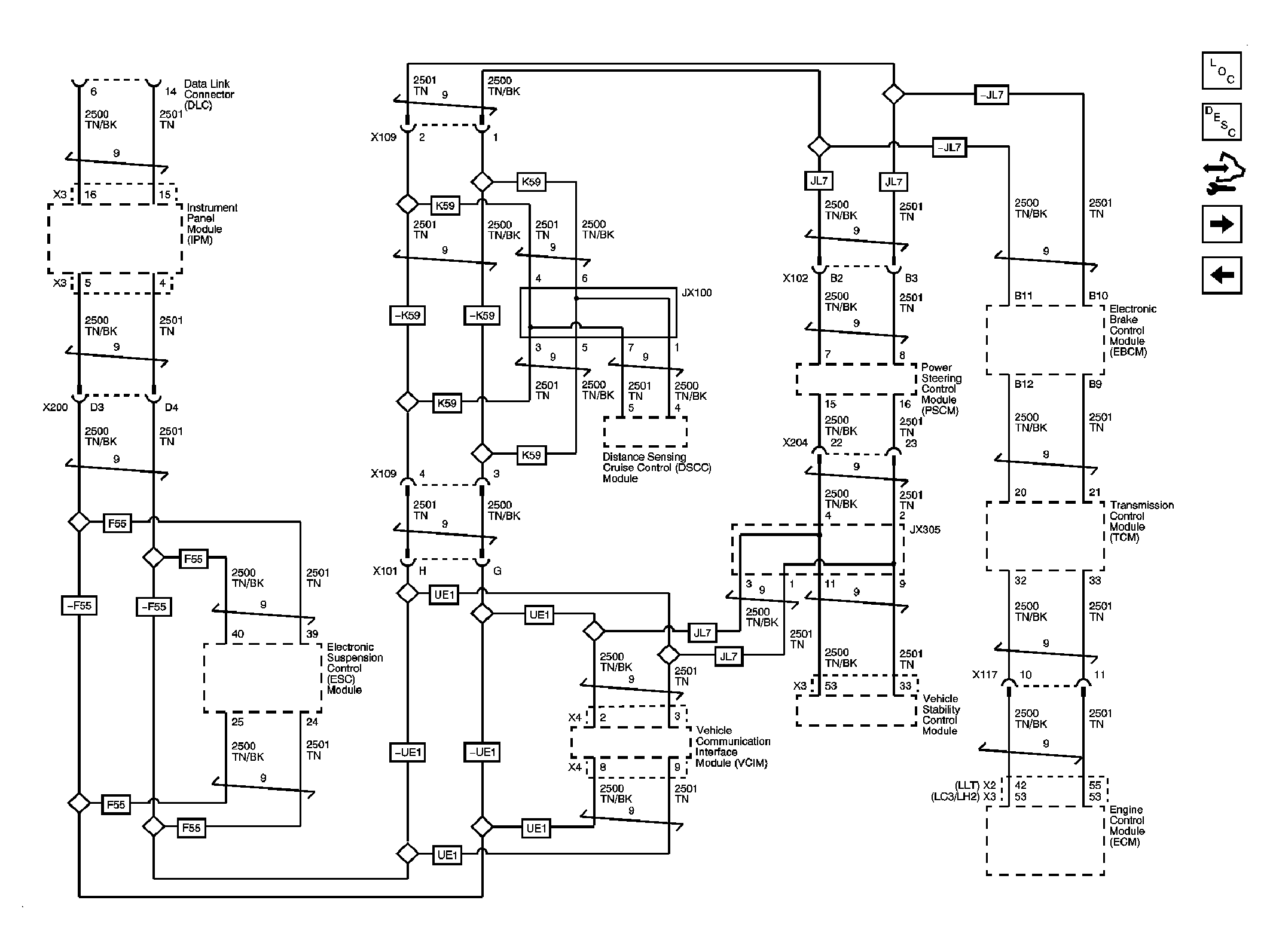

Fig 4: GMLAN High Speed Serial Data (LC3 or LLT or LH2 with RHD)

Courtesy of GENERAL MOTORS CORP.
