Installation Procedure

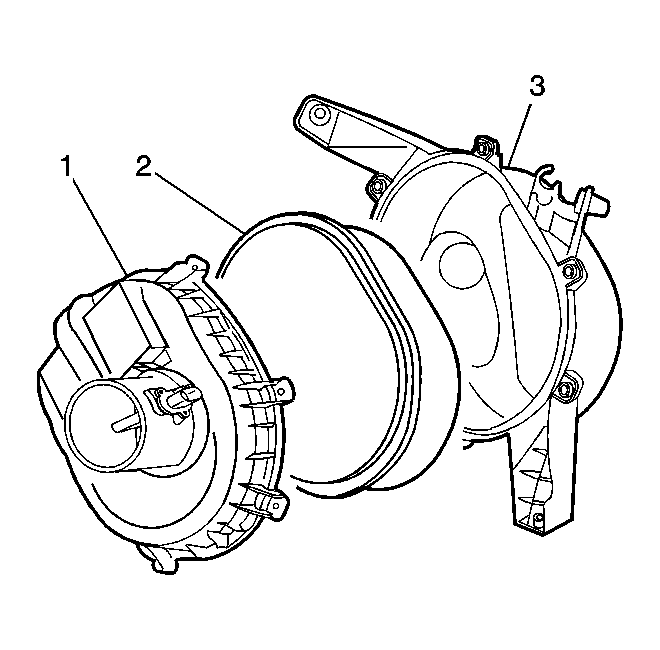

    Fig 1: Identifying Air Cleaner Housing Cover
    GM1614076Courtesy of GENERAL MOTORS CORP.
  1. Install the new air filter element (2).
  2. Assemble the air cleaner cover (1) to the air cleaner housing (3).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the air cleaner housing cover screws and tighten to 3 N.m (27 lb in).

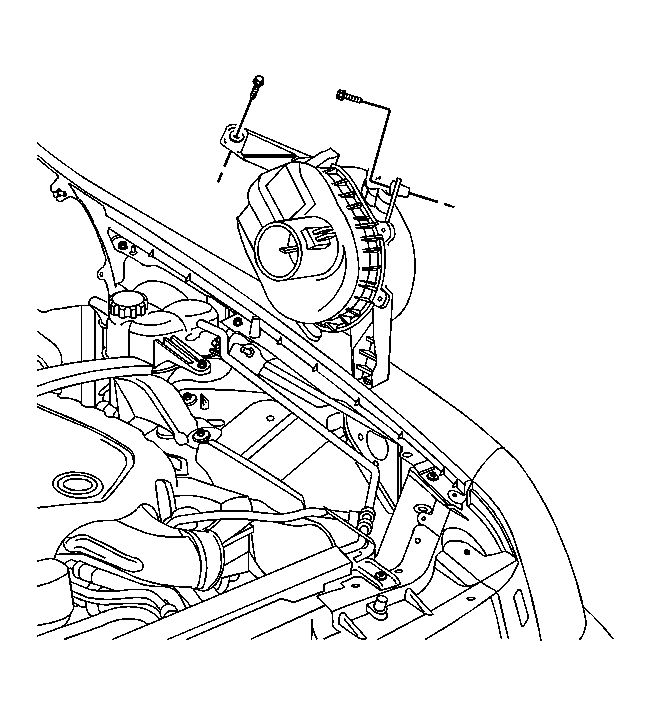

    4. Fig 2: Identifying Air Cleaner Housing Assembly
    GM1614072Courtesy of GENERAL MOTORS CORP.
  4. Install the air cleaner housing to the vehicle. Refer to Air Cleaner Assembly Replacement .
