Remote Function Schematics

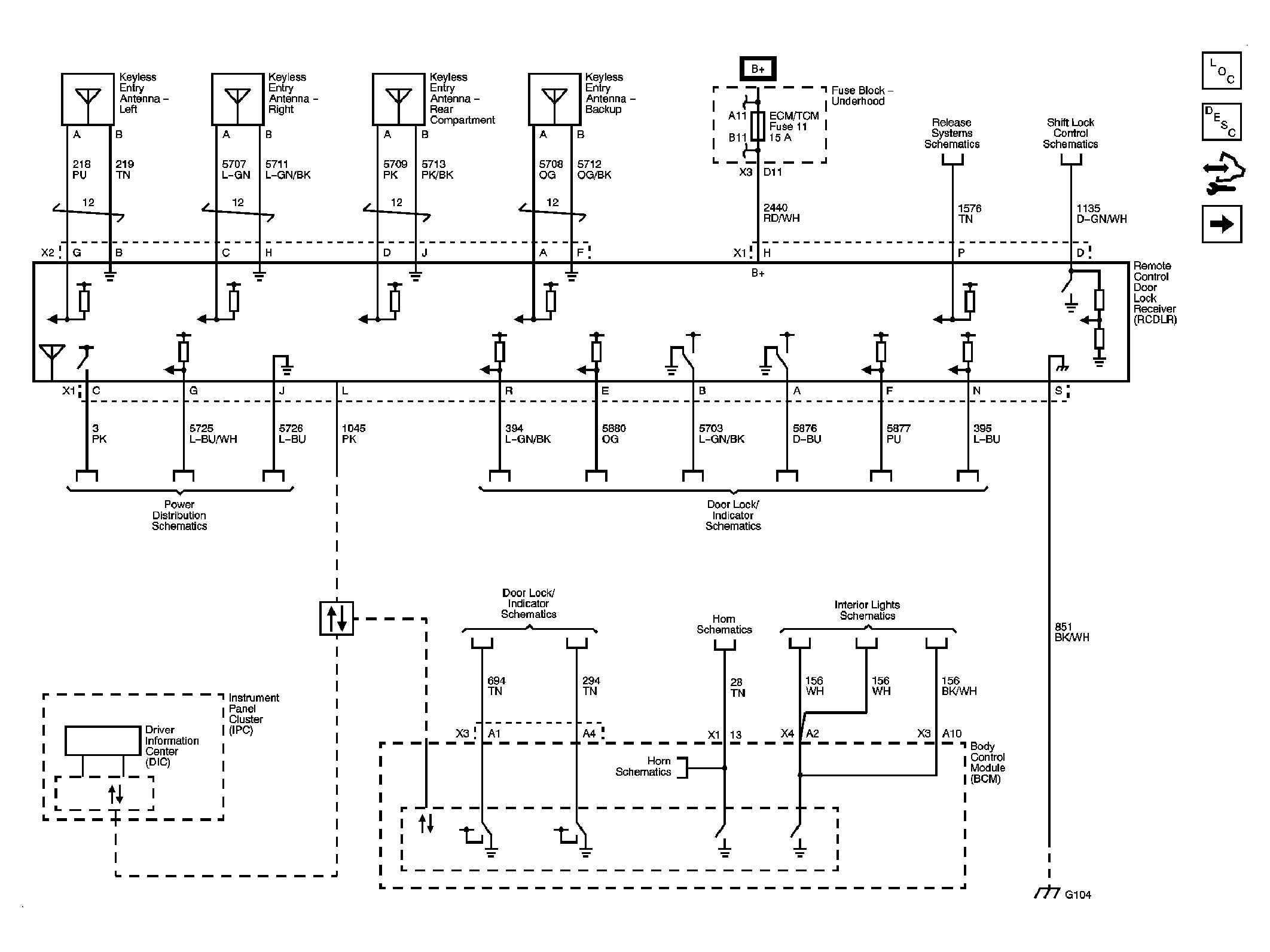

Fig 1: Keyless Entry
GM2075886Courtesy of GENERAL MOTORS CORP.

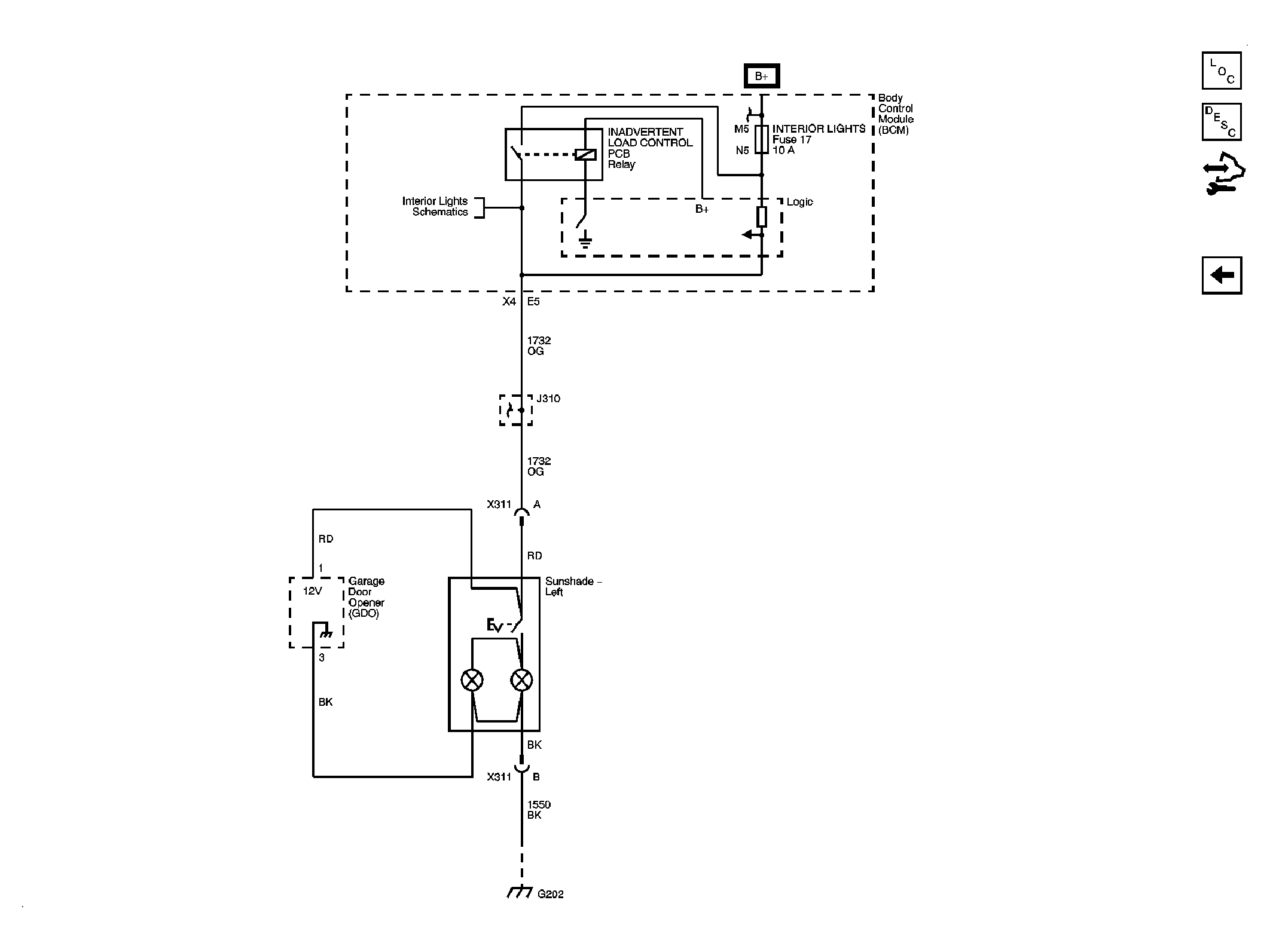

Fig 2: Garage Door Opener
GM2075892Courtesy of GENERAL MOTORS CORP.
