Data Communication Schematics

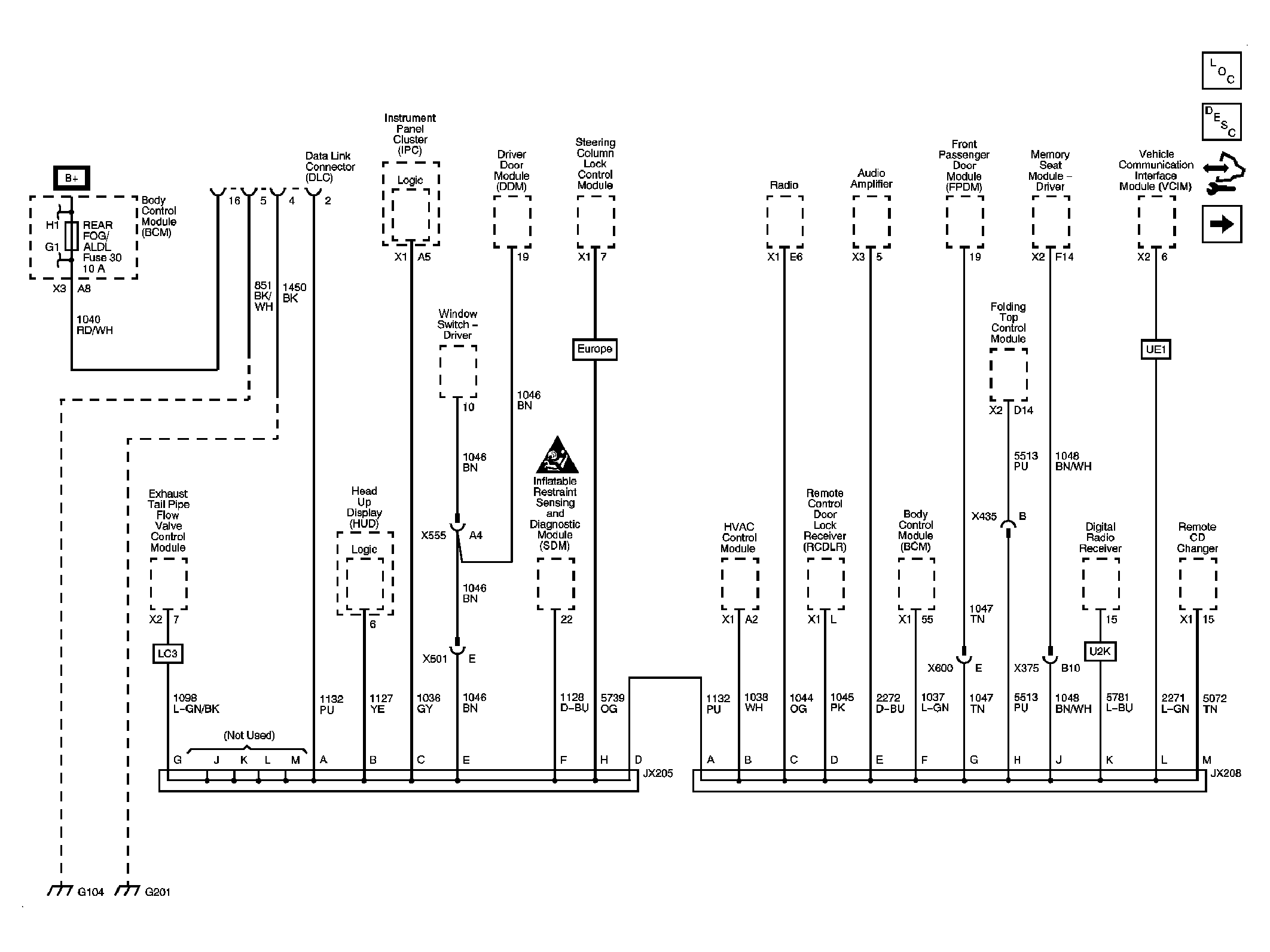

Fig 1: Power, Ground, & Class 2
GM2075595Courtesy of GENERAL MOTORS CORP.

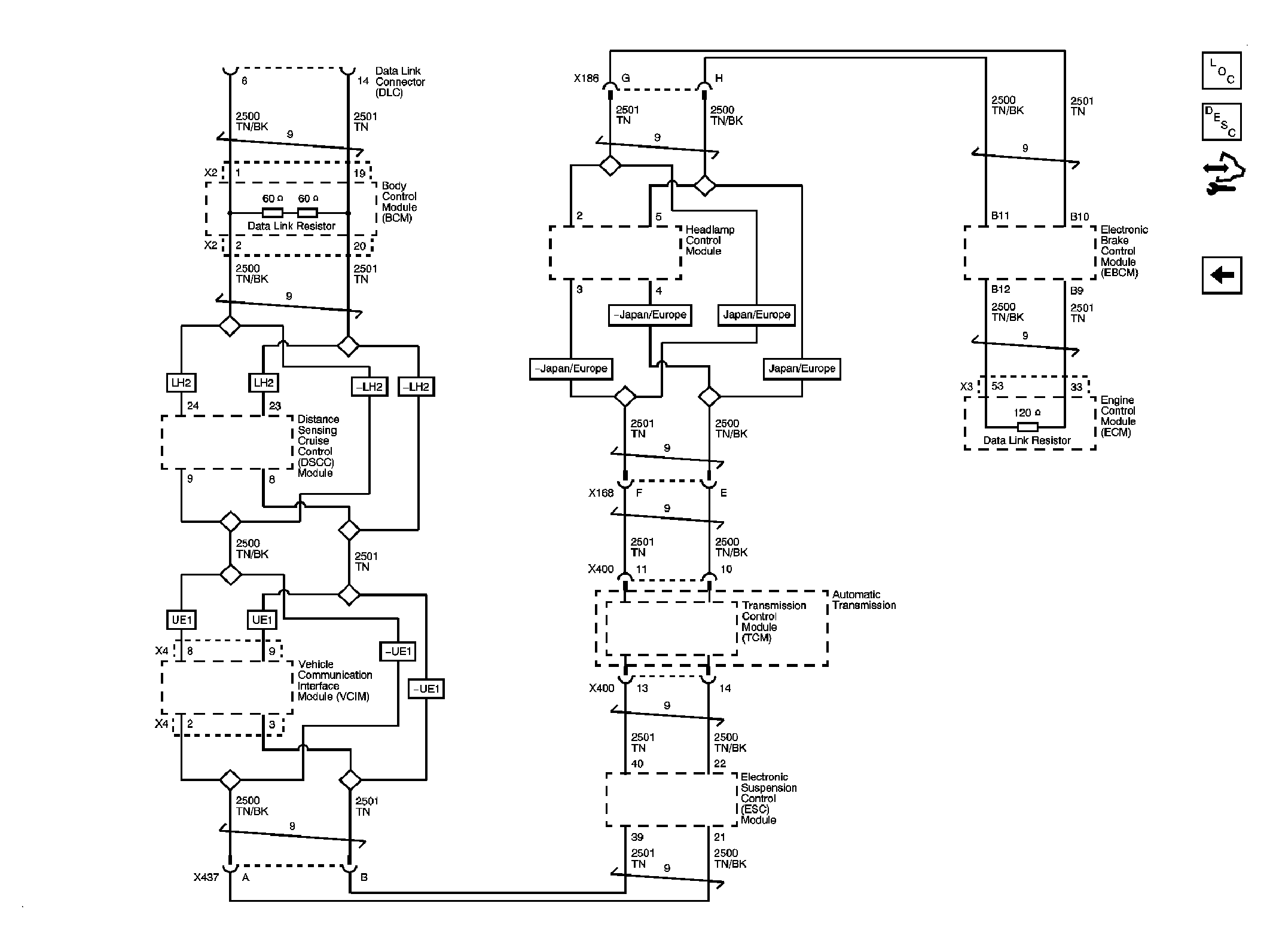

Fig 2: GMLAN
GM2075599Courtesy of GENERAL MOTORS CORP.
