Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

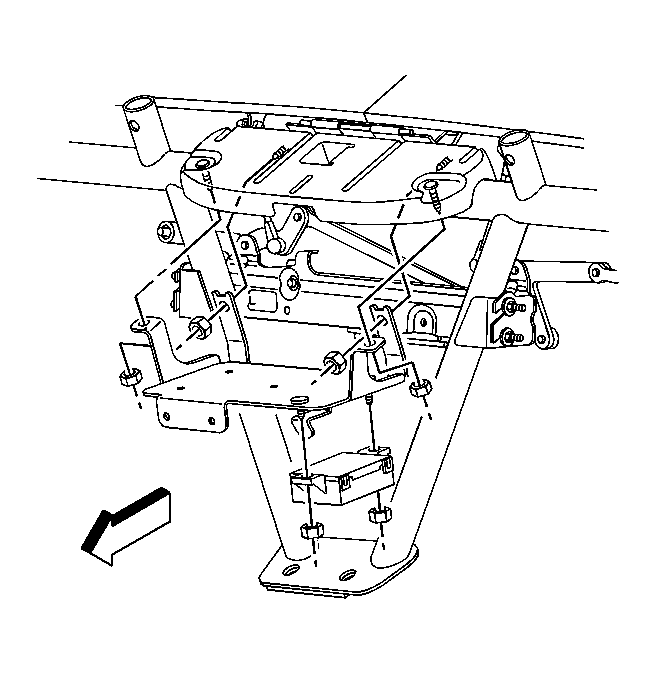

Fig 1: View Of Rear Object Alarm Detection Module & Nuts

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector.
Align the module to the bracket.

NOTE: Refer to Fastener Notice .

Install the nuts to the rear object alarm detection module.
Tighten: Tighten the nuts to 10 N.m (89 lb in).
Install the trim assembly to the rear compartment panel stowage. Refer to Body Rear Compartment Replacement .
