Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative

Paint the new rear object sensor. Refer to Basecoat/Clearcoat Paint Systems .
Ensure the paint thickness does not exceed 6 mils. Use a paint thickness gage suitable for non-ferrous metals. Refer to Paint Gages .

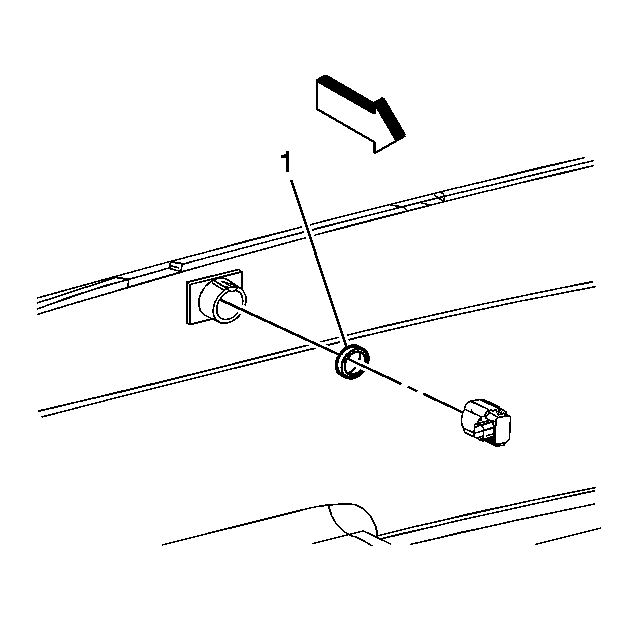

Fig 1: View Of Rear Object Sensor Retainer Ring

Courtesy of GENERAL MOTORS CORP.

Install the sensor retainer ring (1) to the sensor.

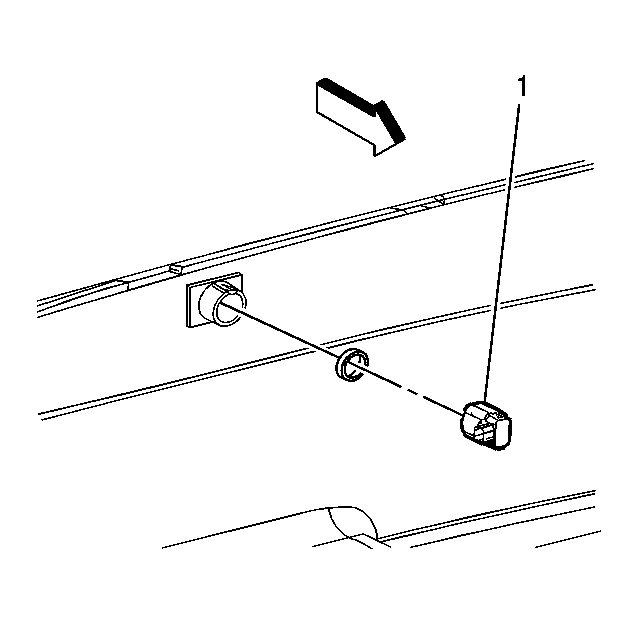

Fig 2: View Of Rear Object Sensor

Courtesy of GENERAL MOTORS CORP.

Position the sensor (1) to the sensor housing.

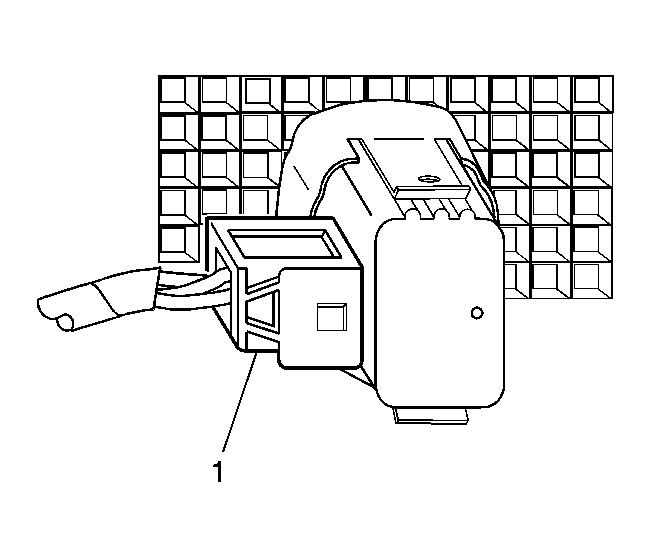

Fig 3: View Of Sensor Housing Locking Tabs

Courtesy of GENERAL MOTORS CORP.

Install the sensor to the sensor housing until the sensor (1) is fully seated.

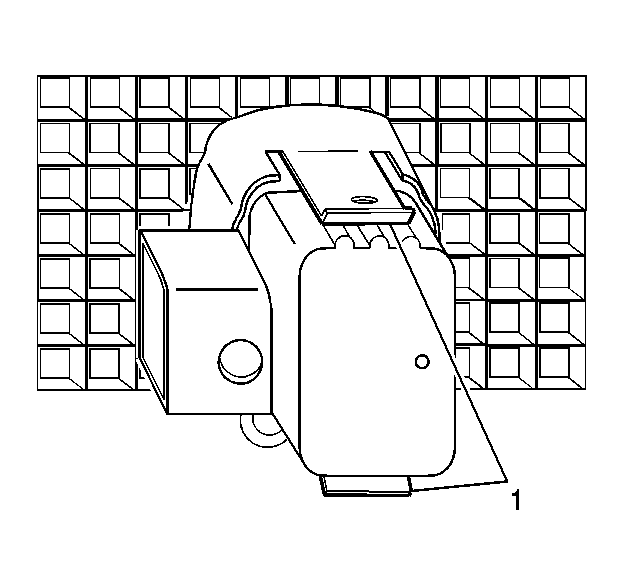

Fig 4: View Of Rear Object Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (1) to the sensor.
Install the rear fascia. Refer to Rear Bumper Fascia Replacement .
