Object Detection Schematics

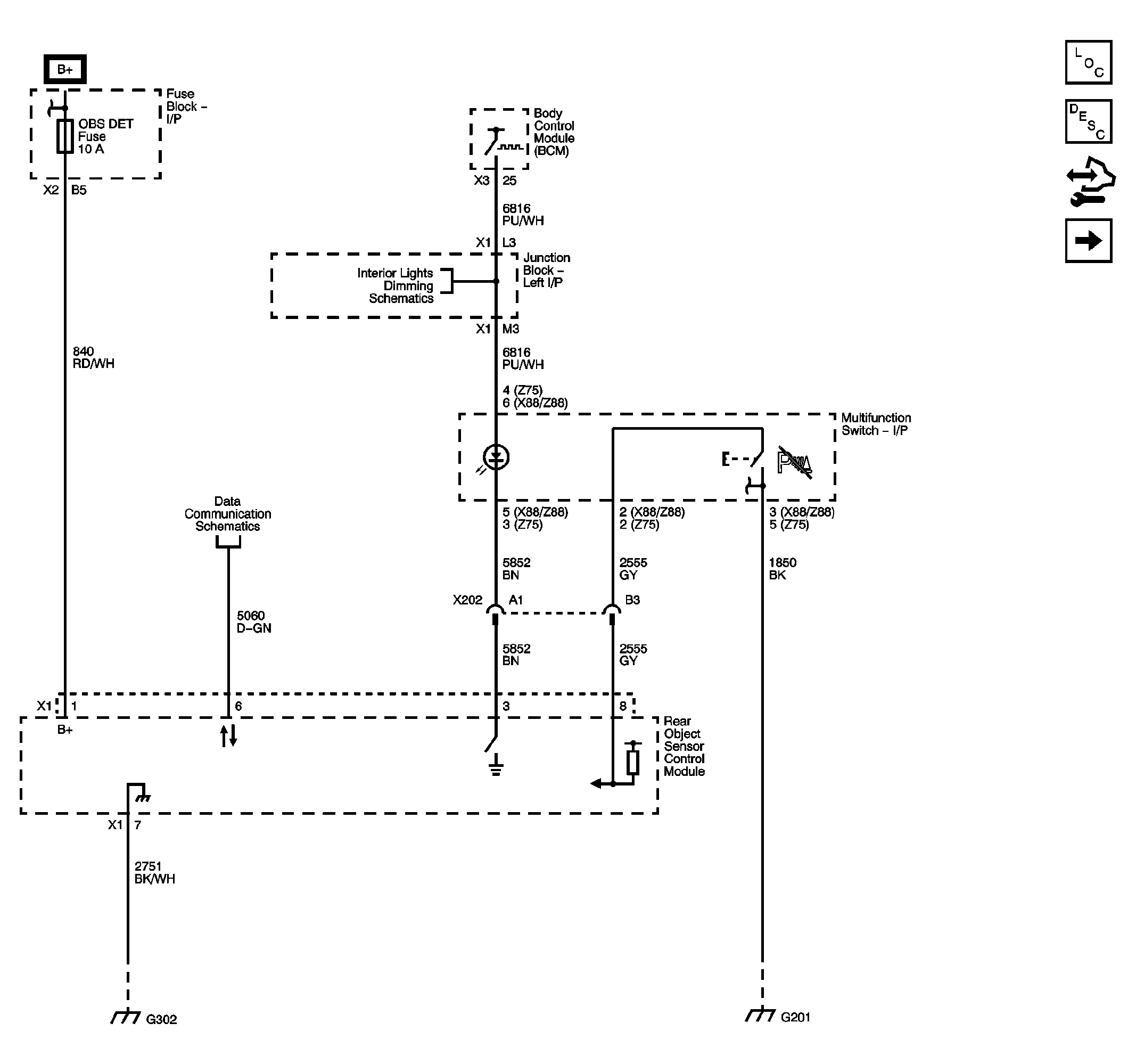

Fig 1: Rear Object Sensing (UD7)

GM2241626

Courtesy of GENERAL MOTORS CORP.

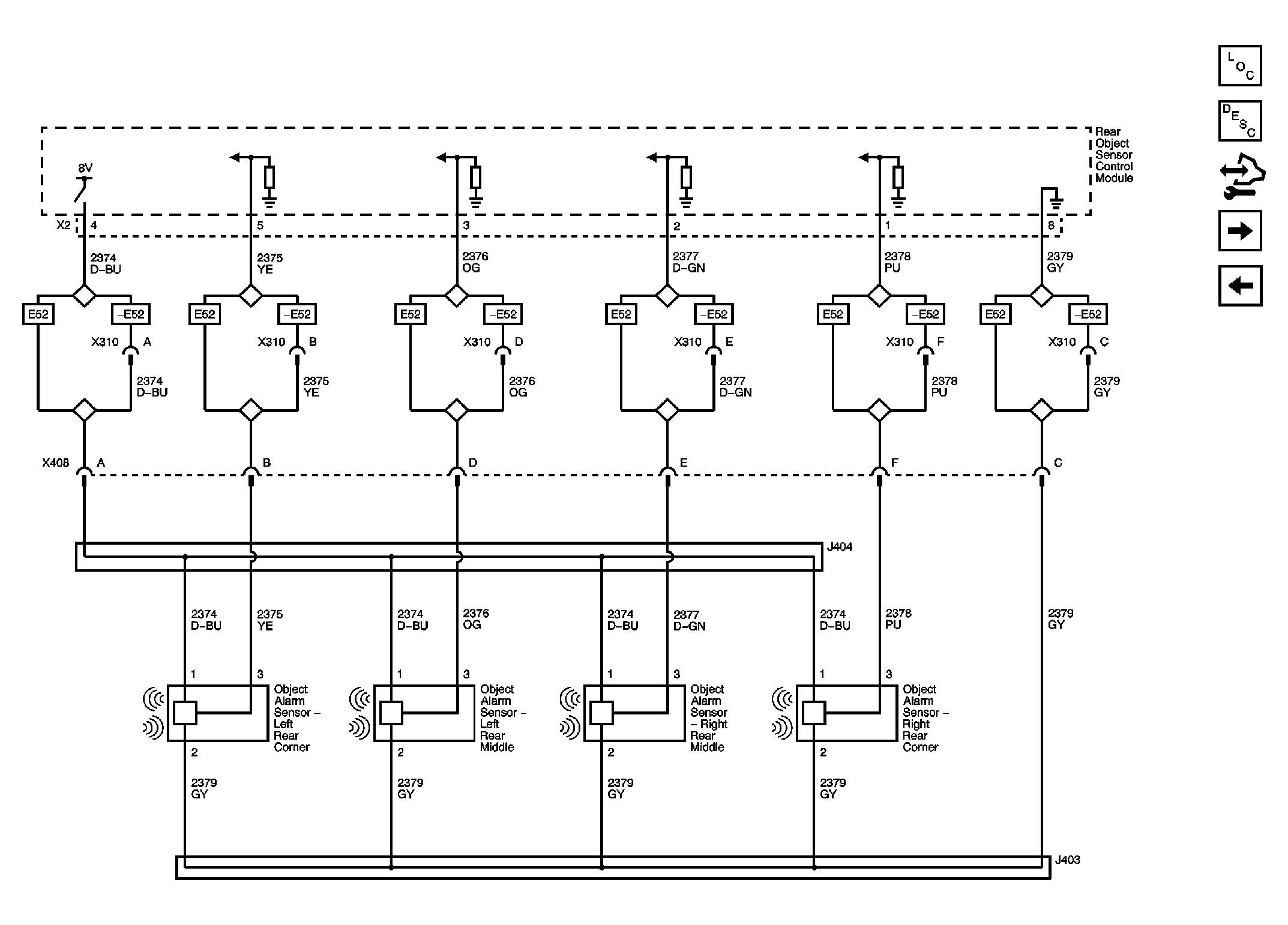

Fig 2: Rear Object Sensors (UD7)

GM2241628

Courtesy of GENERAL MOTORS CORP.

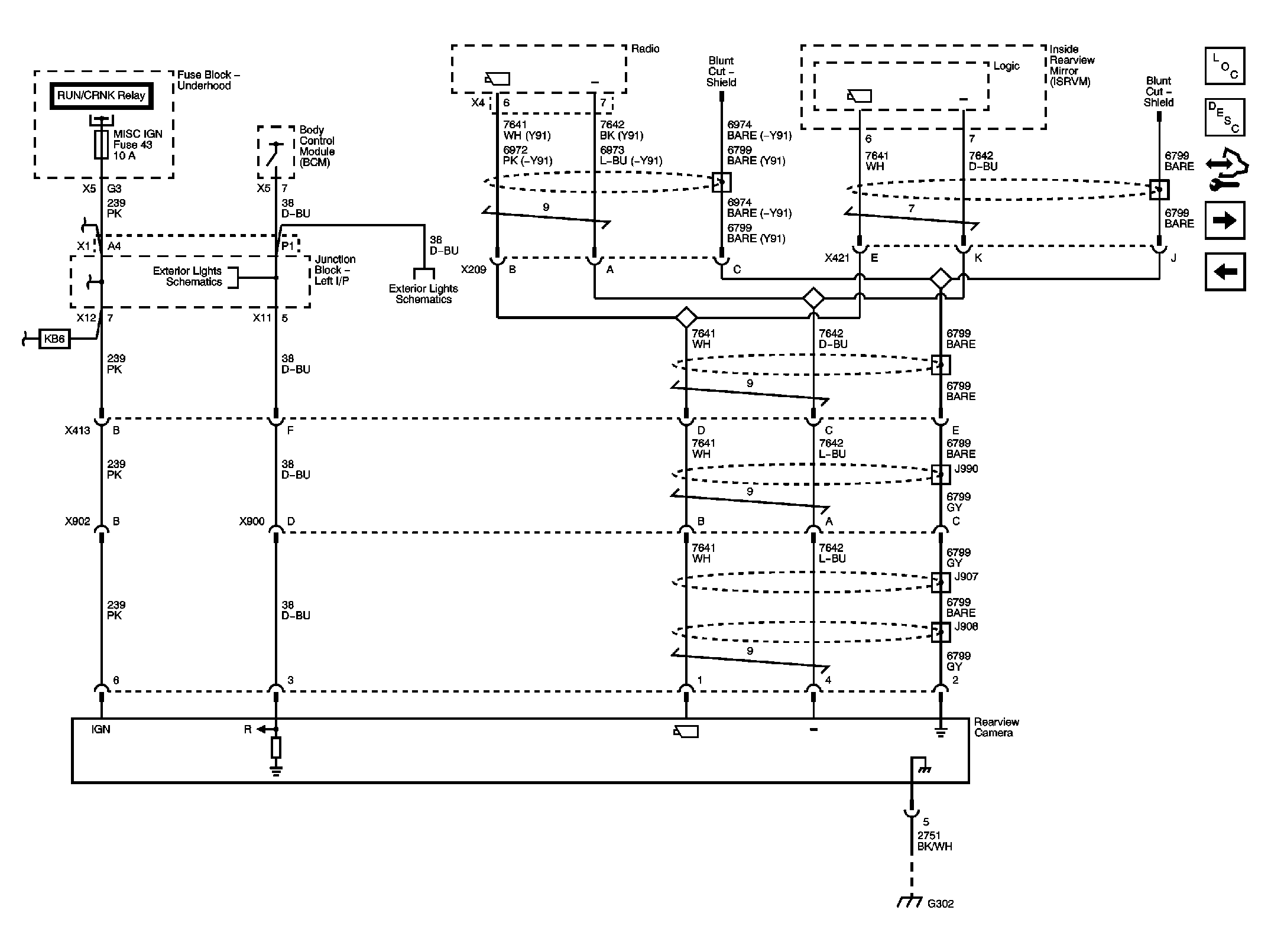

Fig 3: Rear Video Camera - 1 of 2 (UVC)

GM2241631

Courtesy of GENERAL MOTORS CORP.

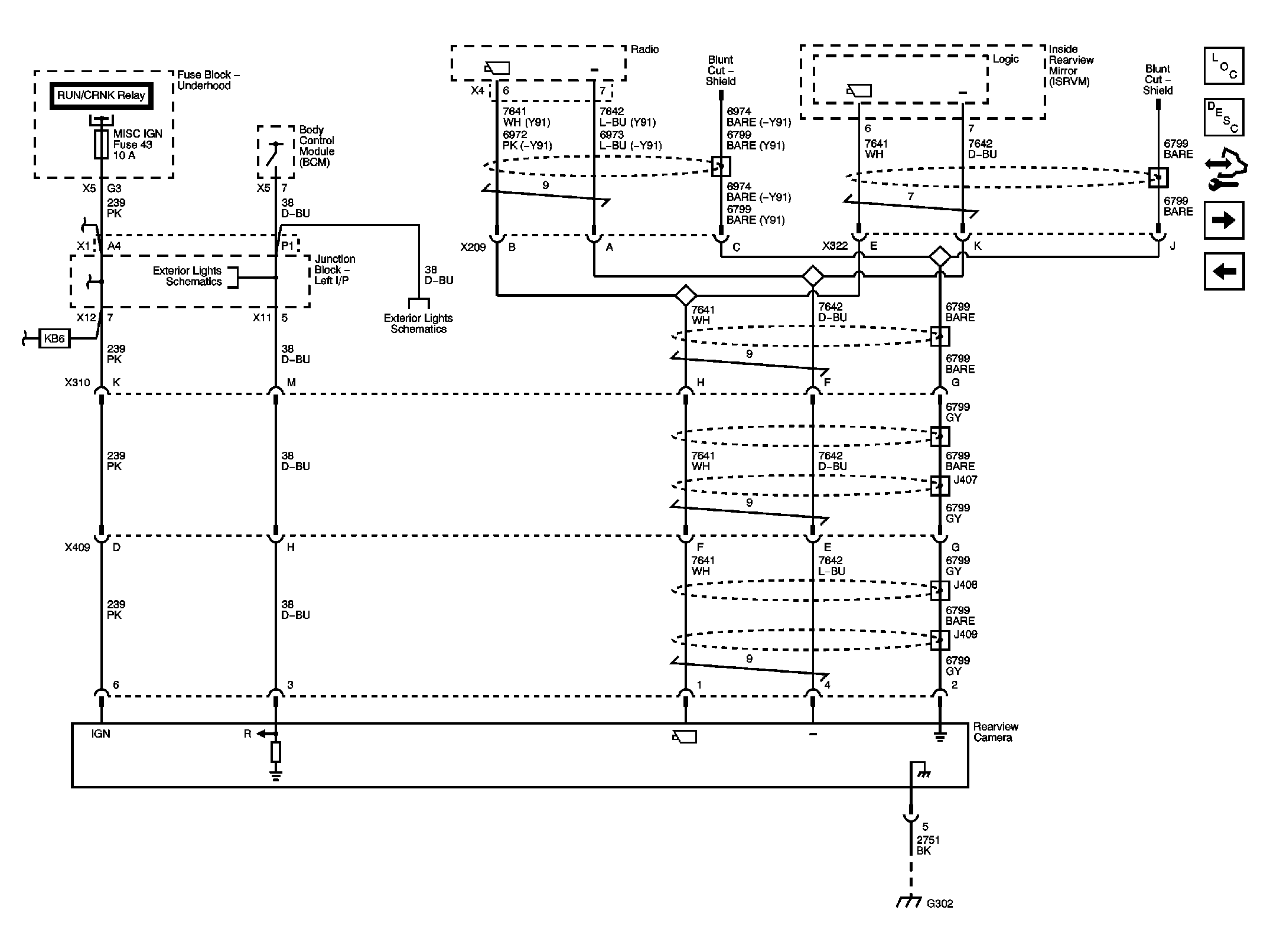

Fig 4: Rear Video Camera - 2 of 2 (UVC)

GM2241632

Courtesy of GENERAL MOTORS CORP.

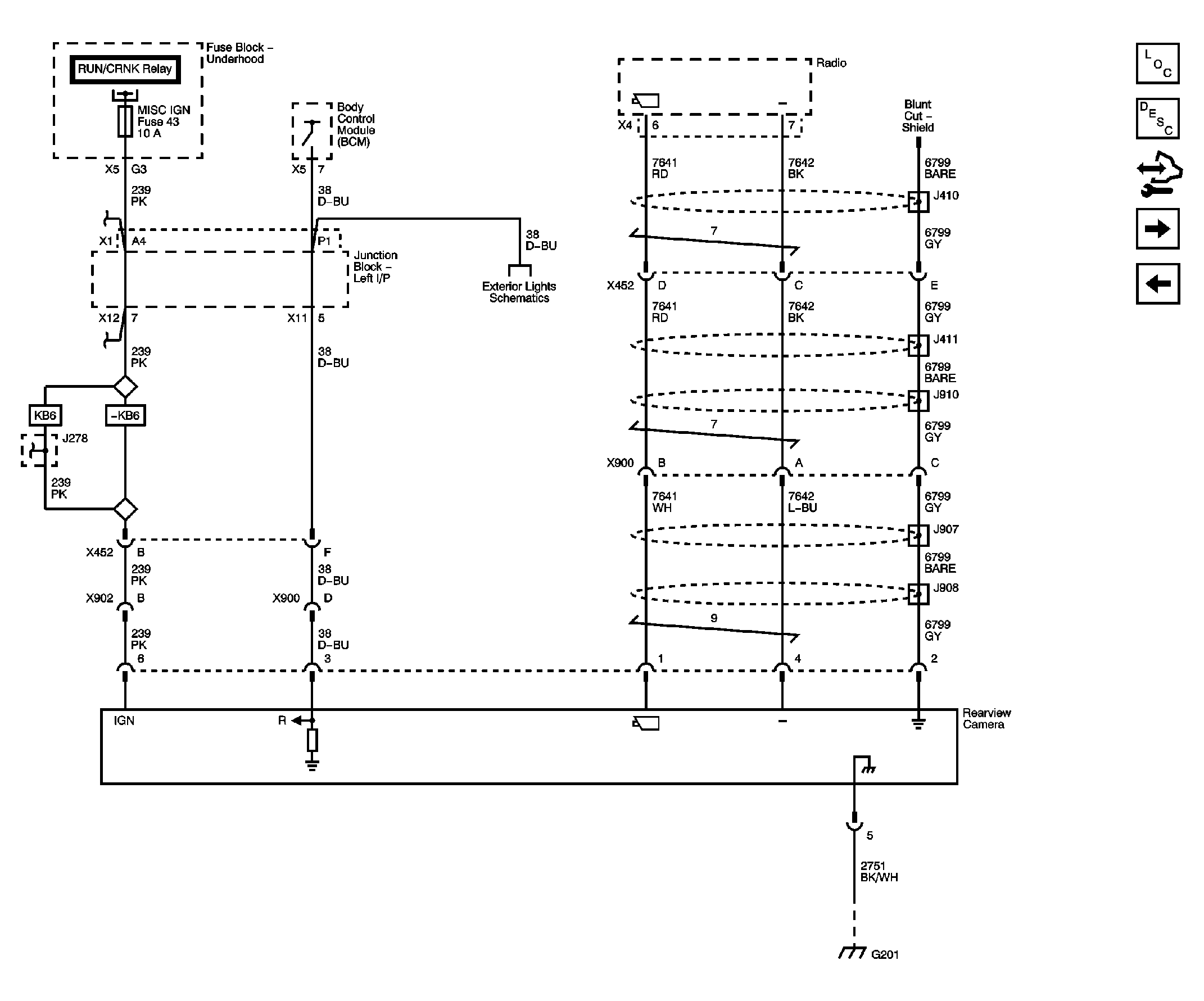

Fig 5: SPO Accessory Rear Vision Camera

GM2241633

Courtesy of GENERAL MOTORS CORP.

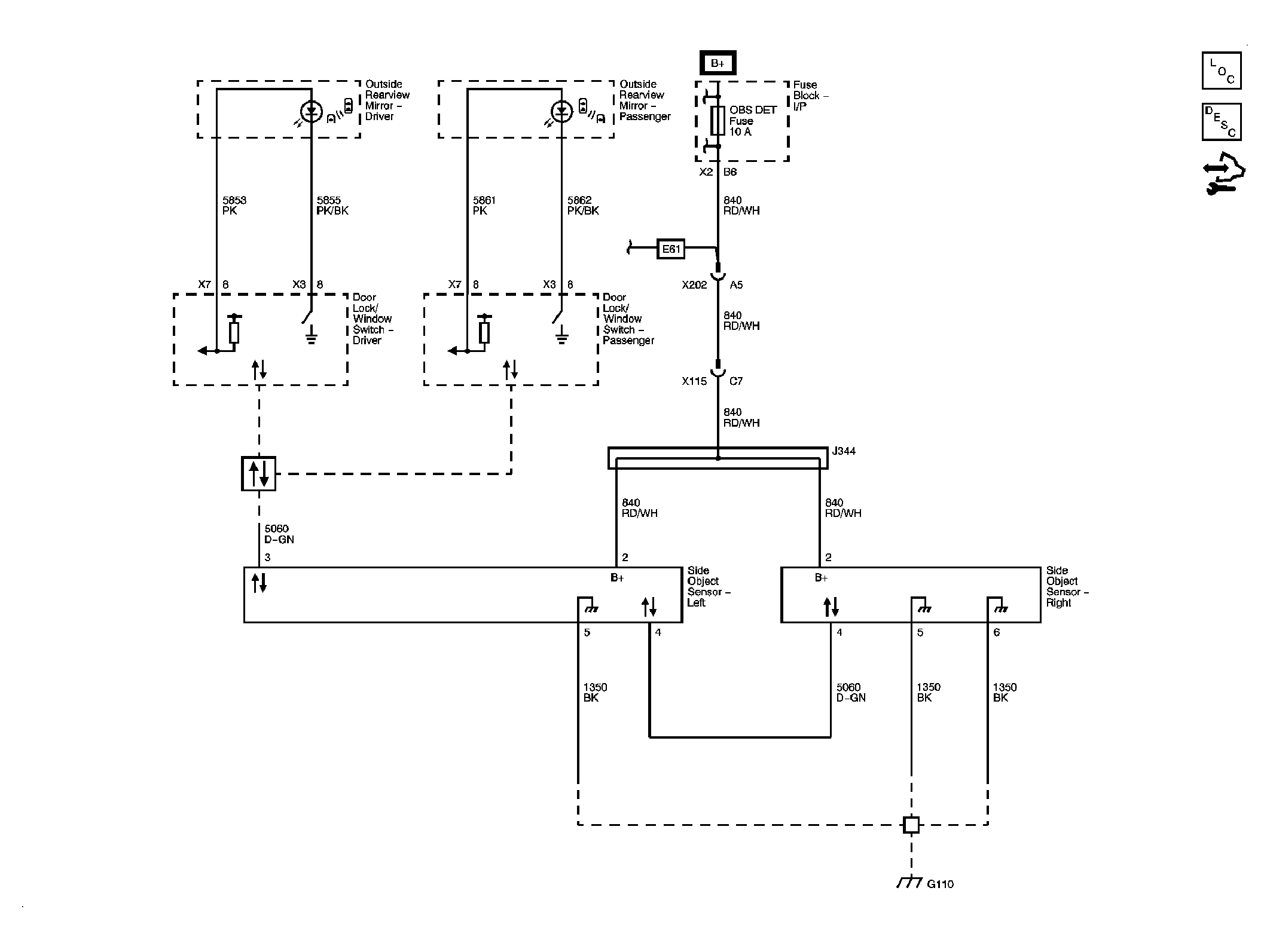

Fig 6: Side Object Detection (UFT)

GM2241635

Courtesy of GENERAL MOTORS CORP.
