Instrument Panel/Center Console Component Views

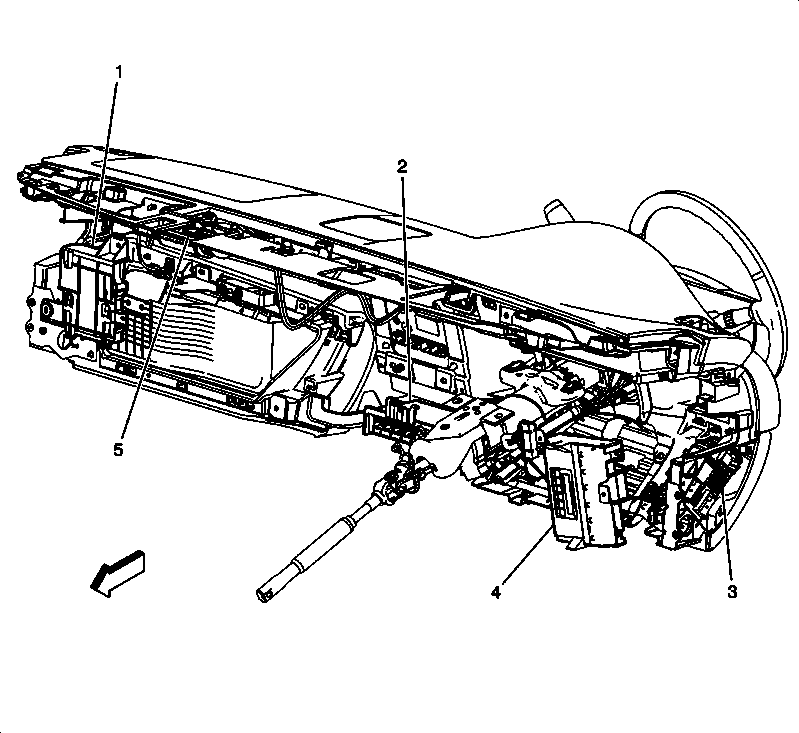

Fig 1: Behind the Instrument Panel Components (Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Vehicle Communication Interface Module (VCIM) (UE1)
3	Fuse Block - I/P
4	Body Control Module (BCM)
5	Navigation Antenna (UVB)

Fig 2: Serial Data Gateway (SDG) Module (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Serial Data Gateway (SDG) Module

Fig 3: HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Air Temperature Actuator - Right
3	Recirculation Actuator
4	Air Temperature Sensor - Lower Right (CJ2)
5	Air Temperature Actuator - Left
6	Blower Motor Control Module
7	Blower Motor
8	Air Temperature Sensor - Lower Left (CJ2)

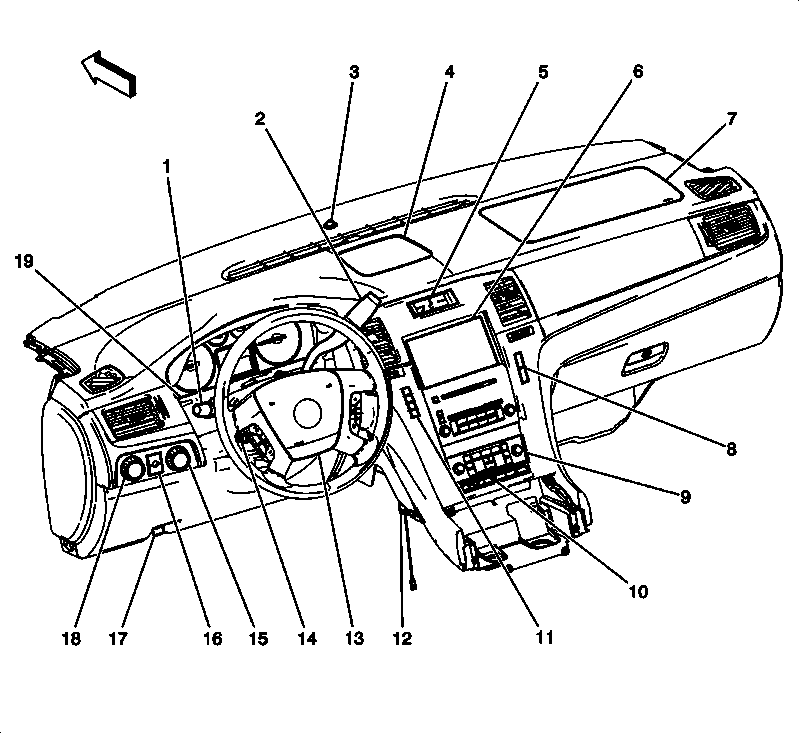

Fig 4: Instrument Panel Components (without YE9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Automatic Transmission Shift Lever
3	Ambient Light/Sunload Sensor (CJ2)
4	Speaker - Center I/P (UQS)
5	Clock (Z75)
6	Radio
7	Inflatable Restraint I/P Module
8	Traction Control Switch (Z75)
9	HVAC Control Module
10	Multifunction Switch - I/P
11	Driver Information Center (DIC) Switch (Z75)
12	Noise Compensation Microphone
13	Inflatable Restraint Steering Wheel Module
14	Steering Wheel/Column Tilt Switch (N48)
15	Transfer Case Shift Control Switch (NQH)
16	Headlamp and Panel Dimmer Switch
17	Headlamp and Panel Dimmer Switch
18	Instrument Panel Cluster (IPC)

Fig 5: Instrument Panel Components (YE9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Ambient Light/Sunload Sensor (CJ2)
3	Automatic Transmission Shift Lever
4	Radio
5	Inflatable Restraint I/P Module
6	HVAC Control Module
7	Accessory Power Outlet - I/P 2
8	Transfer Case Shift Control Switch (NQH)
9	Steering Wheel/Column Tilt Switch (N48)
10	Trailer Brake Control Switch (JL1)
11	Headlamp and Panel Dimmer Switch
12	Headlamp and Panel Dimmer Switch
13	Driver Information Center (DIC) Switch
14	Turn Signal/Multifunction Switch

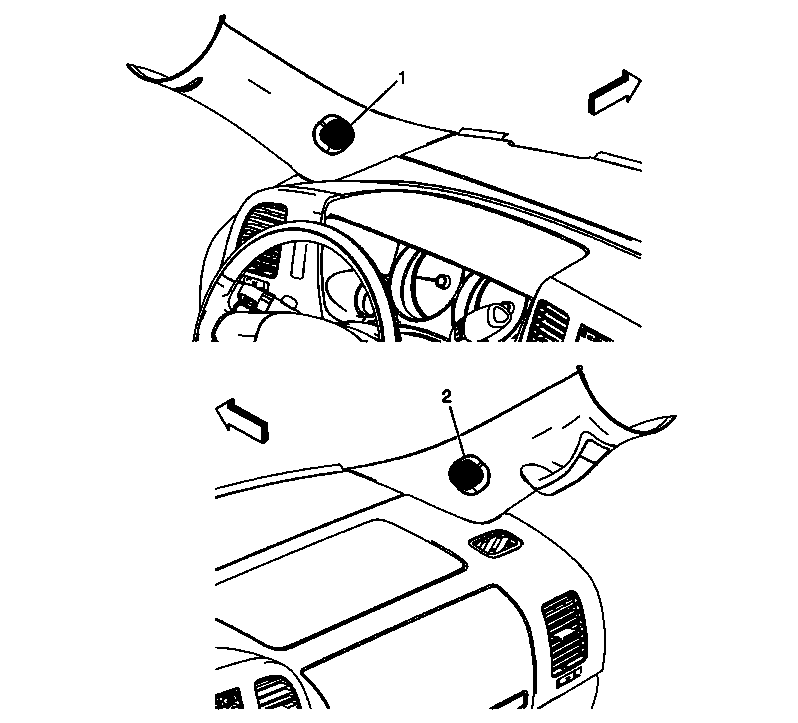

Fig 6: A - Pillar Speakers (UQ3/UQA)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Left Front Tweeter
2	Speaker - Right Front Tweeter

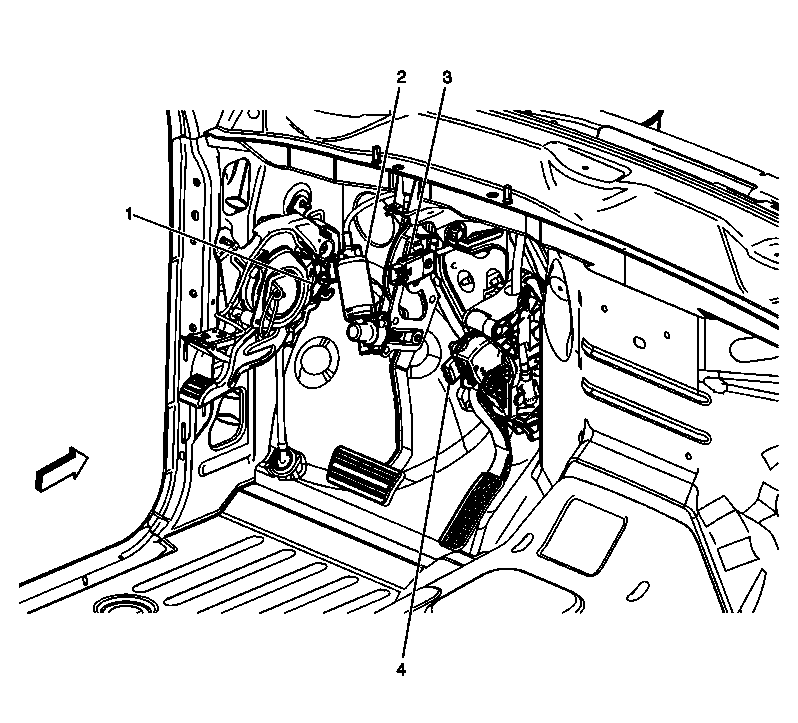

Fig 7: Left Hand Footwell Components (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Electronic Adjustable Pedal (EAP) Assembly (JF4)
3	Stop Lamp Switch
4	Accelerator Pedal Position (APP) Sensor

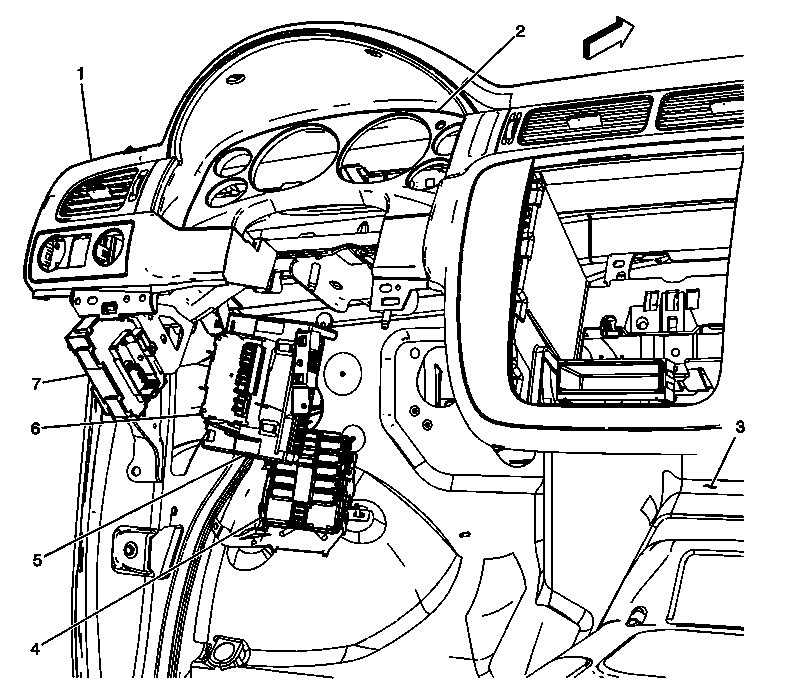

Fig 8: Left Hand Footwell Components (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	I/P Cluster Trim
3	Floor Panel
4	Junction Block - Left I/P
5	Body Control Module (BCM)
6	Transfer Case Shift Control Module (NQH)
7	Fuse Block - I/P

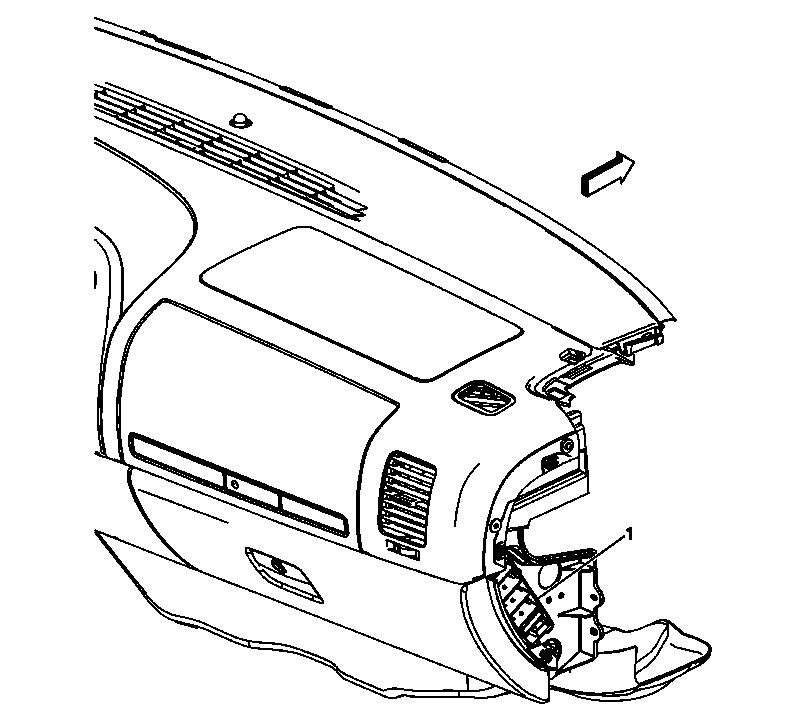

Fig 9: Junction Block - Right I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Junction Block - Right I/P

Fig 10: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Hazard Switch
3	Ignition Lock Cylinder
4	Automatic Transmission Manual Shift Switch (MYC, MYD or M99)
5	Automatic Transmission Shift Lever
6	Tow/Haul Switch (MYC or MYD)
7	Steering Angle Sensor (JL4)
8	Automatic Transmission Shift Lock Control Solenoid
9	Tilt Wheel Actuator
10	Theft Deterrent Module (TDM)
11	Ignition Switch
12	Inflatable Restraint Steering Wheel Module Coil

Fig 11: Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch
2	Heated Steering Wheel (KA9)
3	Heated Steering Wheel Control Module (KA9)
4	Steering Wheel Control Switch - Right (UK3)
5	Horn Switch
6	Steering Wheel Control Switch - Left (K34 or KA9)

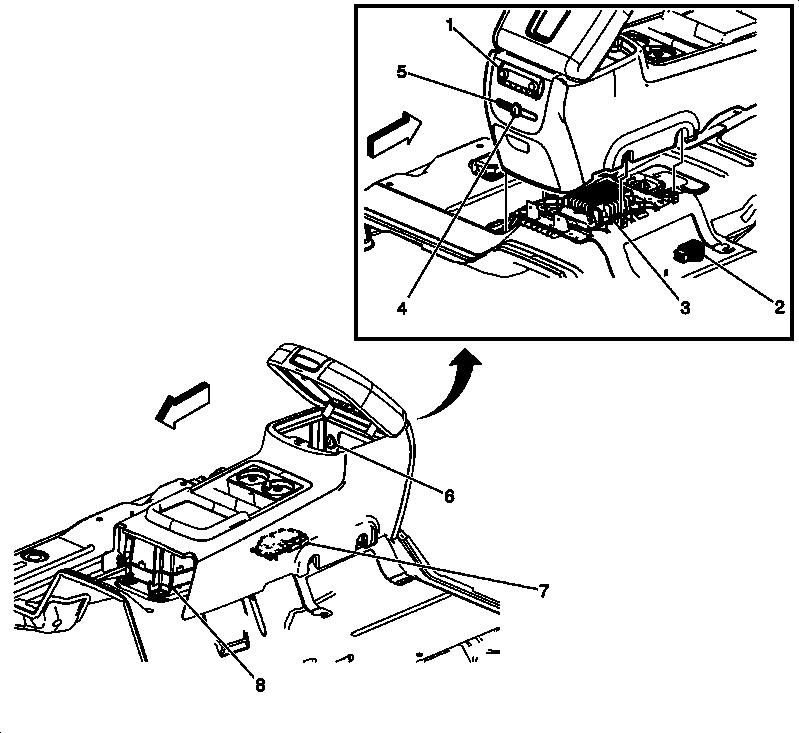

Fig 12: Front Floor Console Components (D07)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Audio (RSA) Control (UK6)
2	Yaw and Lateral Accelerometer Sensor
3	Inflatable Restraint Sensing and Diagnostic Module (SDM)
4	Audio Amplifier (UQA or UQS)
5	Speaker - Subwoofer (UQS)
6	Accessory Power Outlet - Console (D07)
7	Audio/Video Adapter (U42)

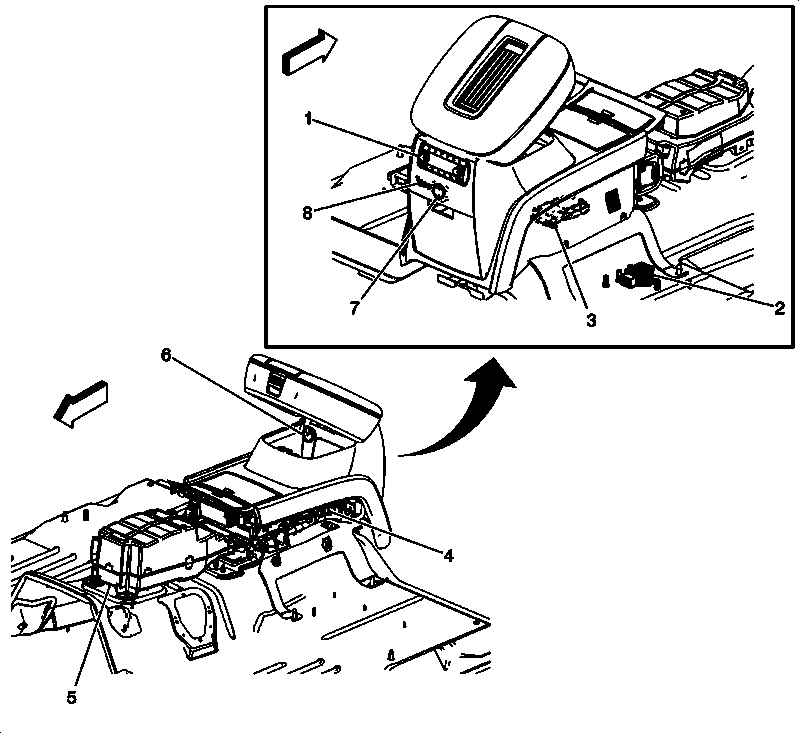

Fig 13: Front Floor Console Components (without D07)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Audio (RSA) Control (UK6)
2	Yaw and Lateral Accelerometer Sensor
3	Audio Amplifier (UQA or UQ3)
4	Accessory Power Outlet - Console (D07)
5	Audio/Video Adapter (U42)
6	Accessory Power Outlet - Center Console Compartment (D07)
7	Inflatable Restraint Sensing and Diagnostic Module (SDM)
8	Speaker - Subwoofer (UQS)
