Removal Procedure

CAUTION: Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.

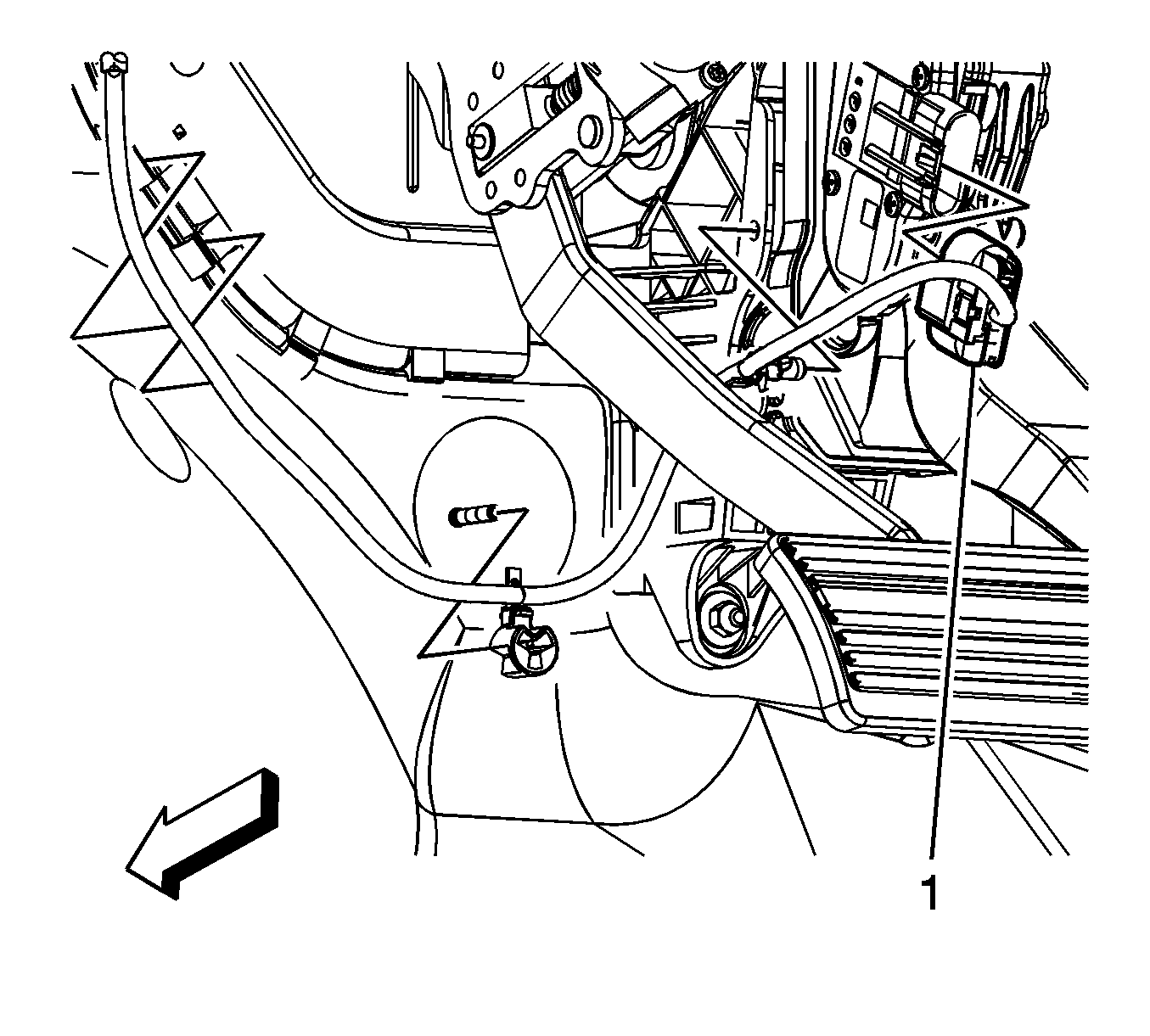

    Fig 1: View Of APP Sensor Electrical Connector
    GM1704152Courtesy of GENERAL MOTORS CORP.
  1. Push down the small tab and disconnect the accelerator pedal position (APP) sensor electrical connector (1).

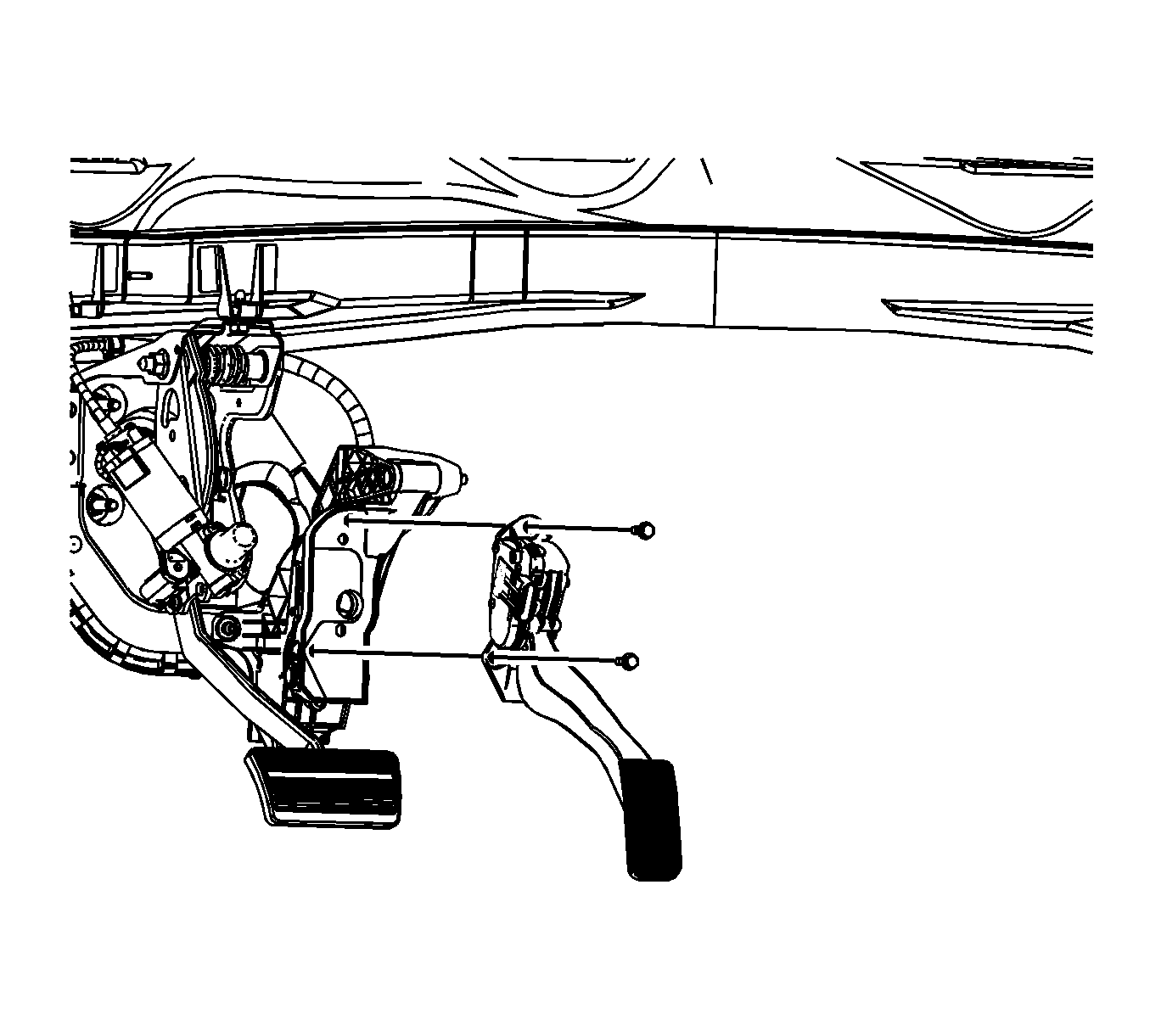

    2. Fig 2: View Of Accelerator Pedal Position Sensor Assembly
    GM1704147Courtesy of GENERAL MOTORS CORP.
  2. Remove the accelerator pedal bolts.
  3. Remove the accelerator pedal.
