Fuel Pump Flow Control Module Replacement

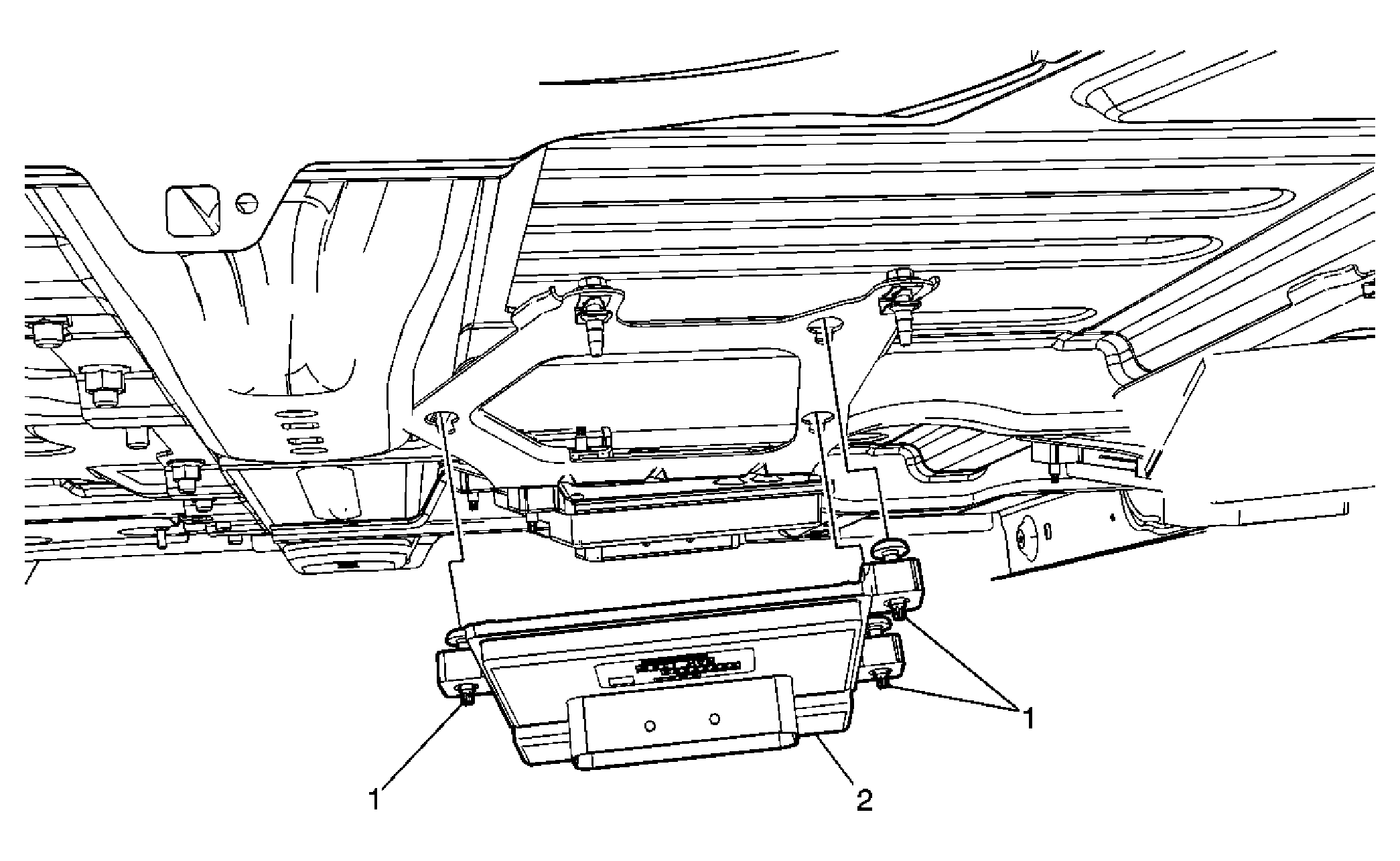

Fig 1: Fuel Pump Flow Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the spare tire. Refer to Spare Wheel Hoist Replacement .
1	Fuel Pump Flow Control Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution Tighten: 8 N.m(71 lb in) Procedure: Partially loosen the fasteners from the slotted bracket.
2	Fuel Pump Flow Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References

Callout

Component Name

Preliminary Procedure:
Remove the spare tire. Refer to Spare Wheel Hoist Replacement .

Fuel Pump Flow Control Module Fastener (Qty: 3)

CAUTION: Refer to Fastener Caution

Tighten: 8 N.m(71 lb in)

Procedure:
Partially loosen the fasteners from the slotted bracket.

Fuel Pump Flow Control Module

Procedure
