Body Control System Schematics

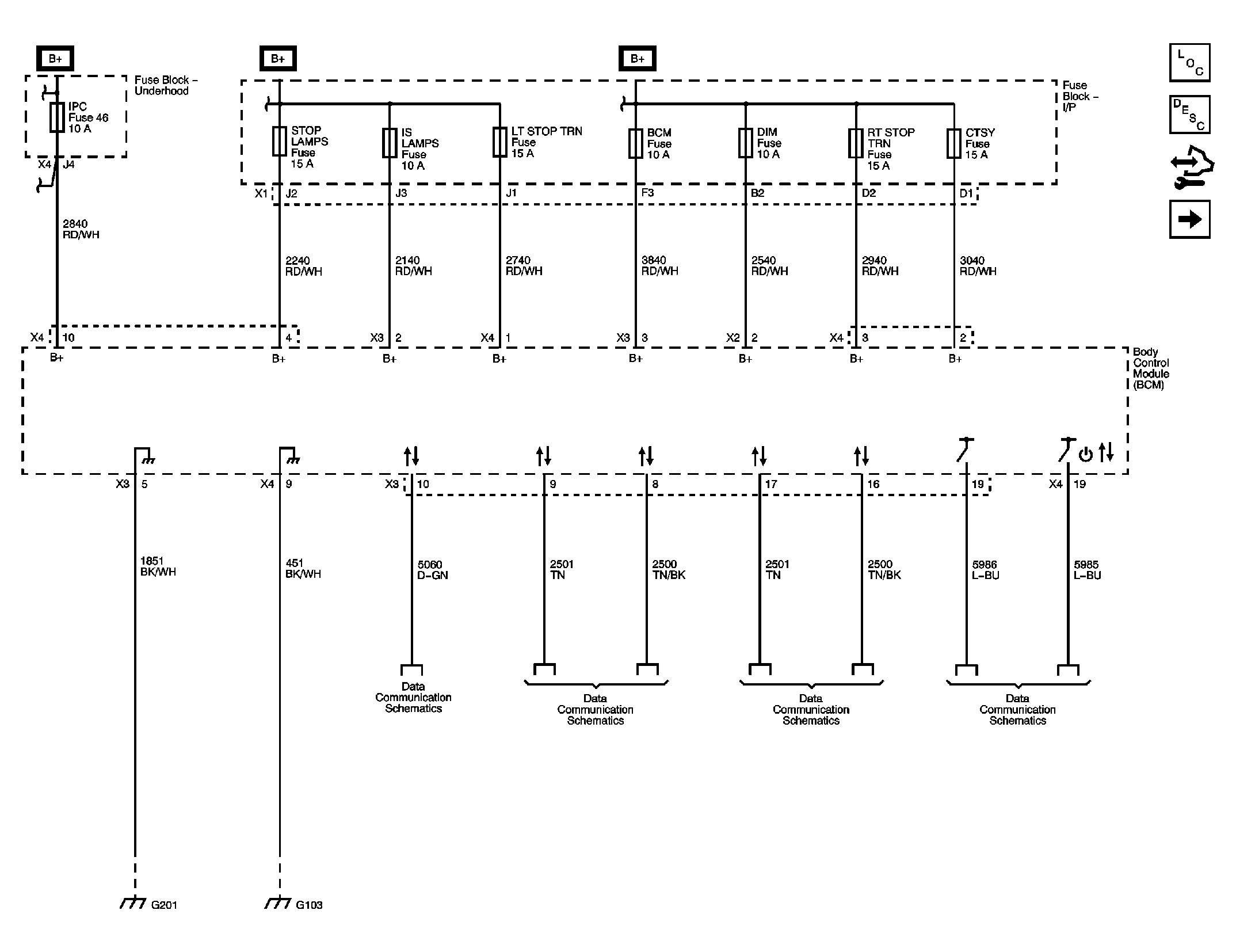

Fig 1: Module Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

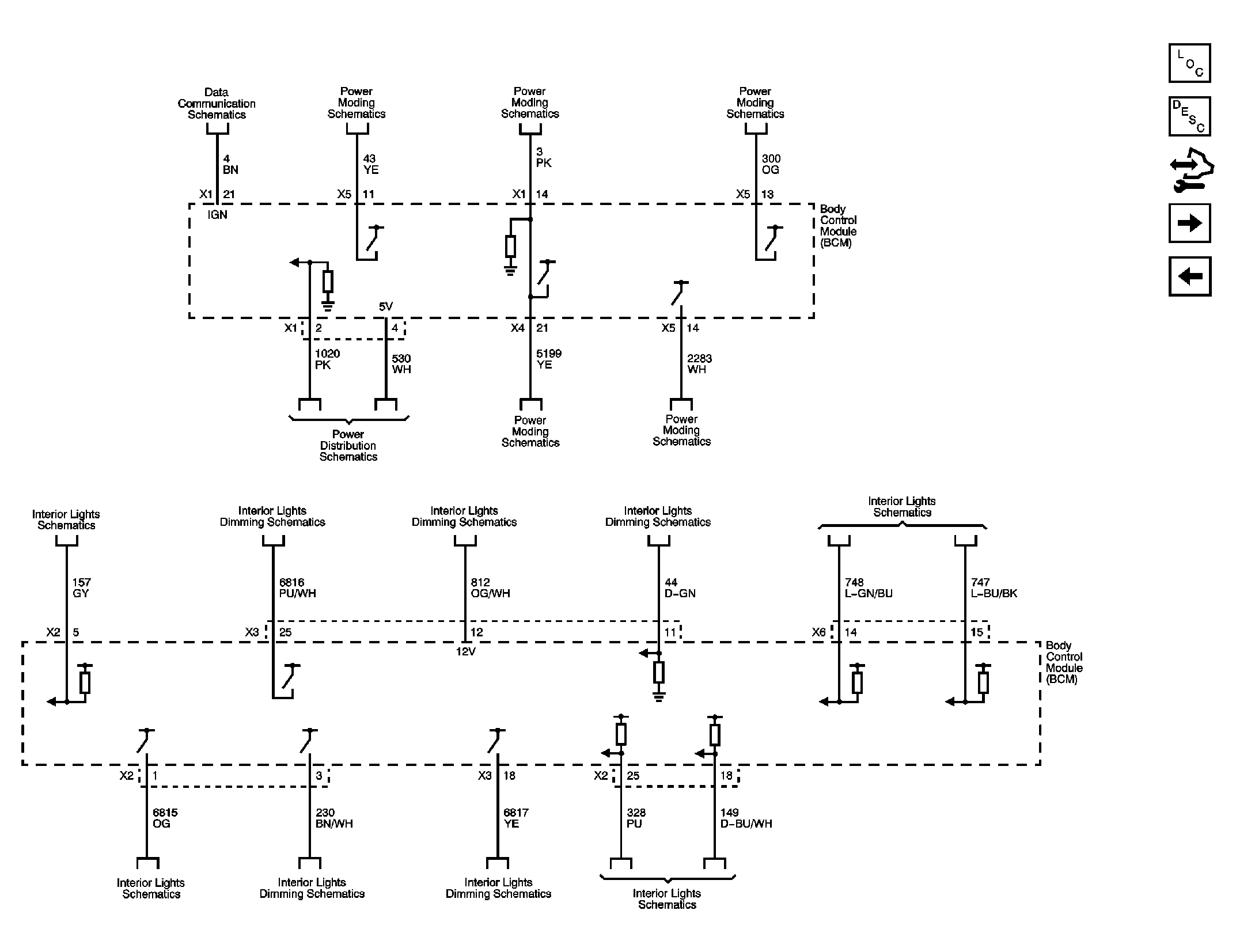

Fig 2: Power Moding and Interior Light References

Courtesy of GENERAL MOTORS CORP.

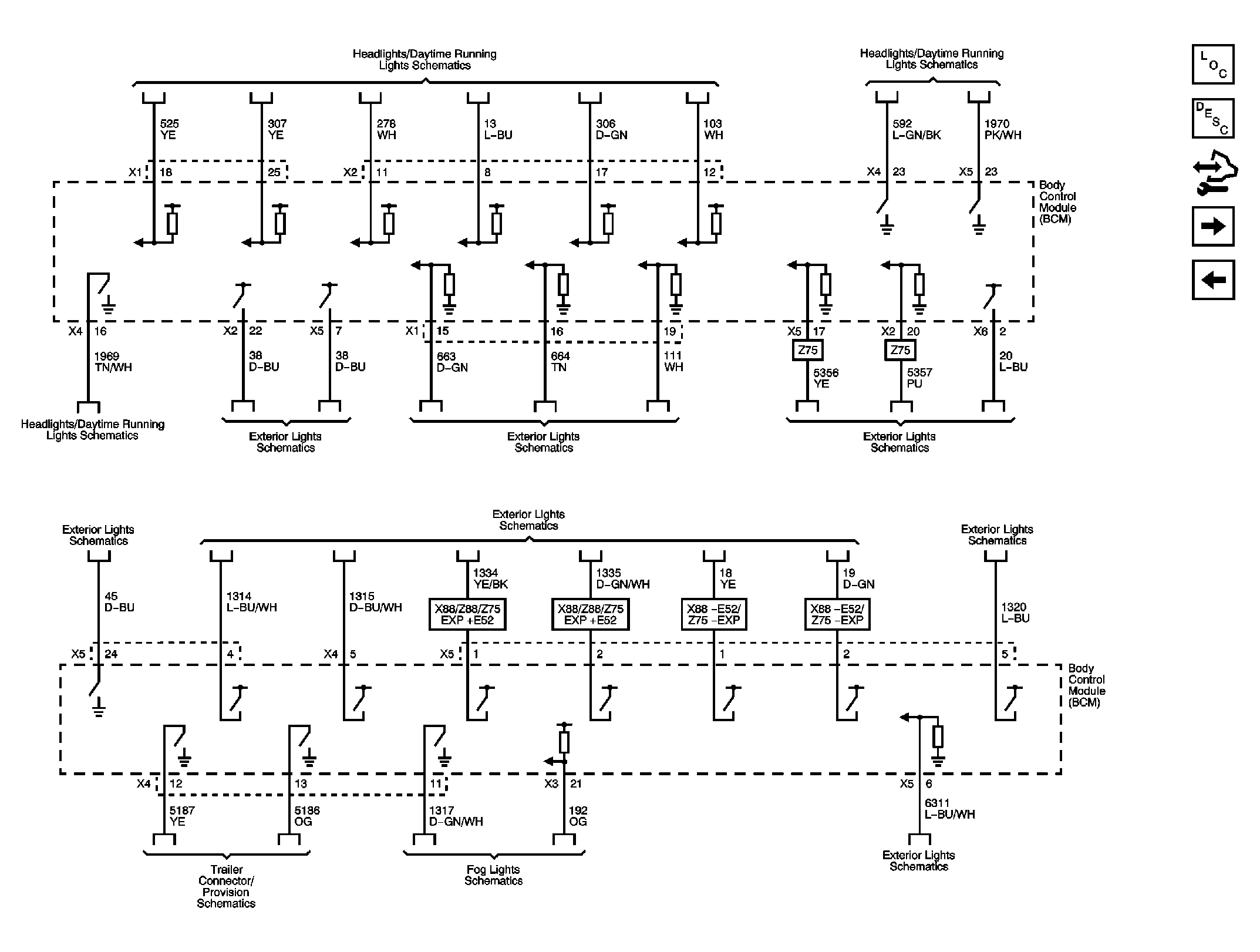

Fig 3: Exterior Light References

Courtesy of GENERAL MOTORS CORP.

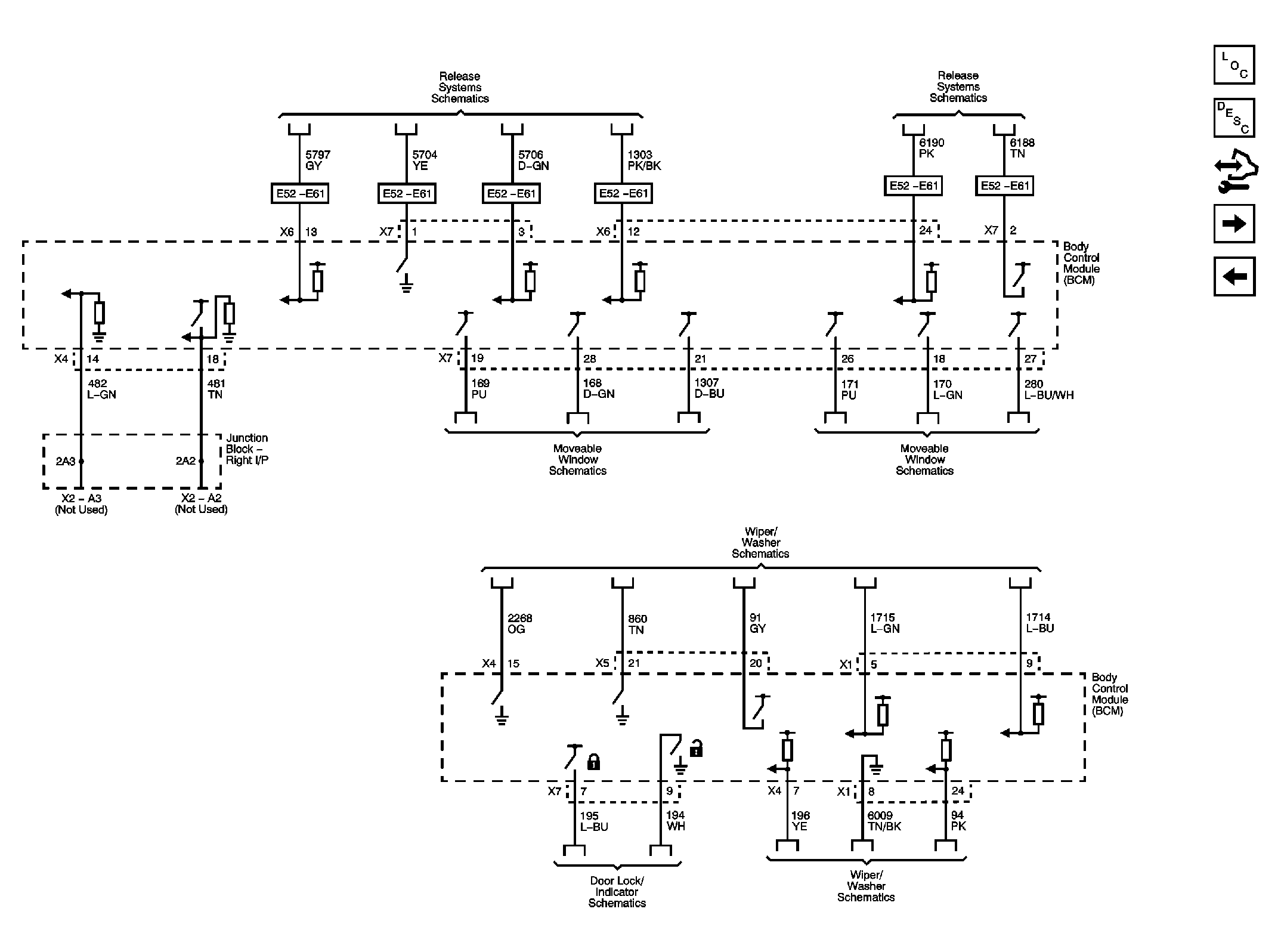

Fig 4: Vehicle Access and Wiper References

Courtesy of GENERAL MOTORS CORP.

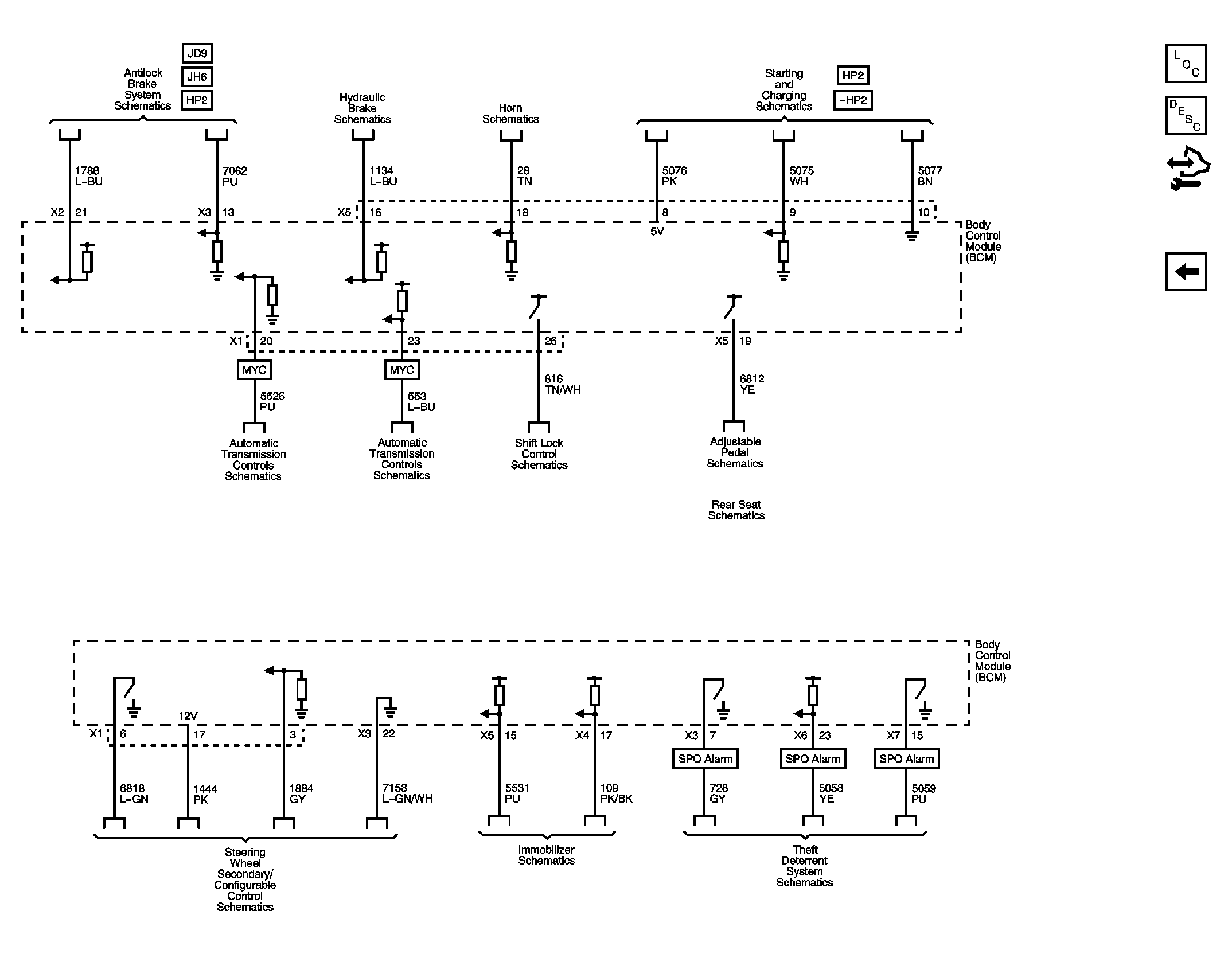

Fig 5: Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References

Courtesy of GENERAL MOTORS CORP.
