Data Communication Schematics

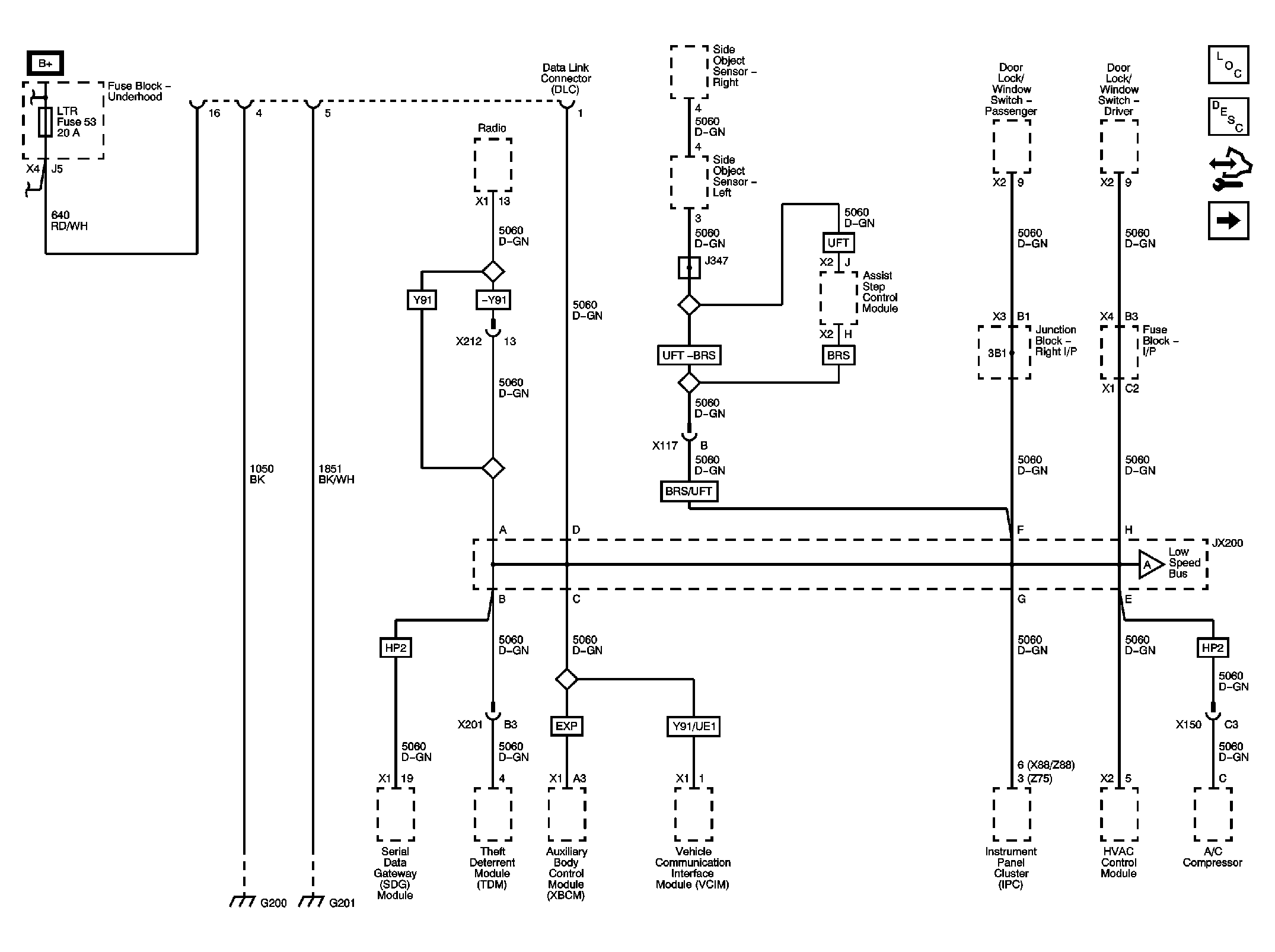

Fig 1: Low Speed Bus - JX200 - 1 of 3

Courtesy of GENERAL MOTORS CORP.

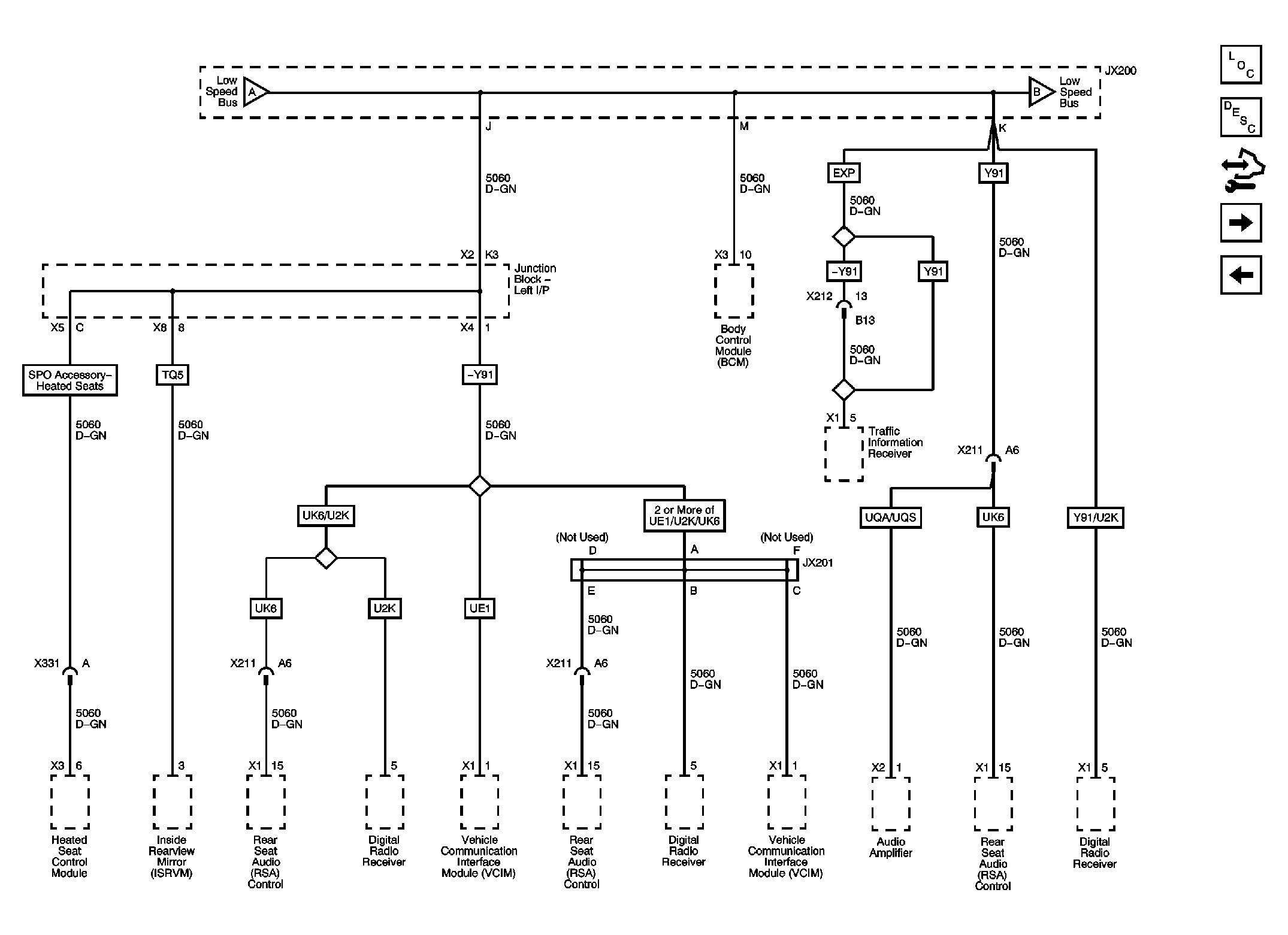

Fig 2: Low Speed Bus - JX200 - 2 of 3

Courtesy of GENERAL MOTORS CORP.

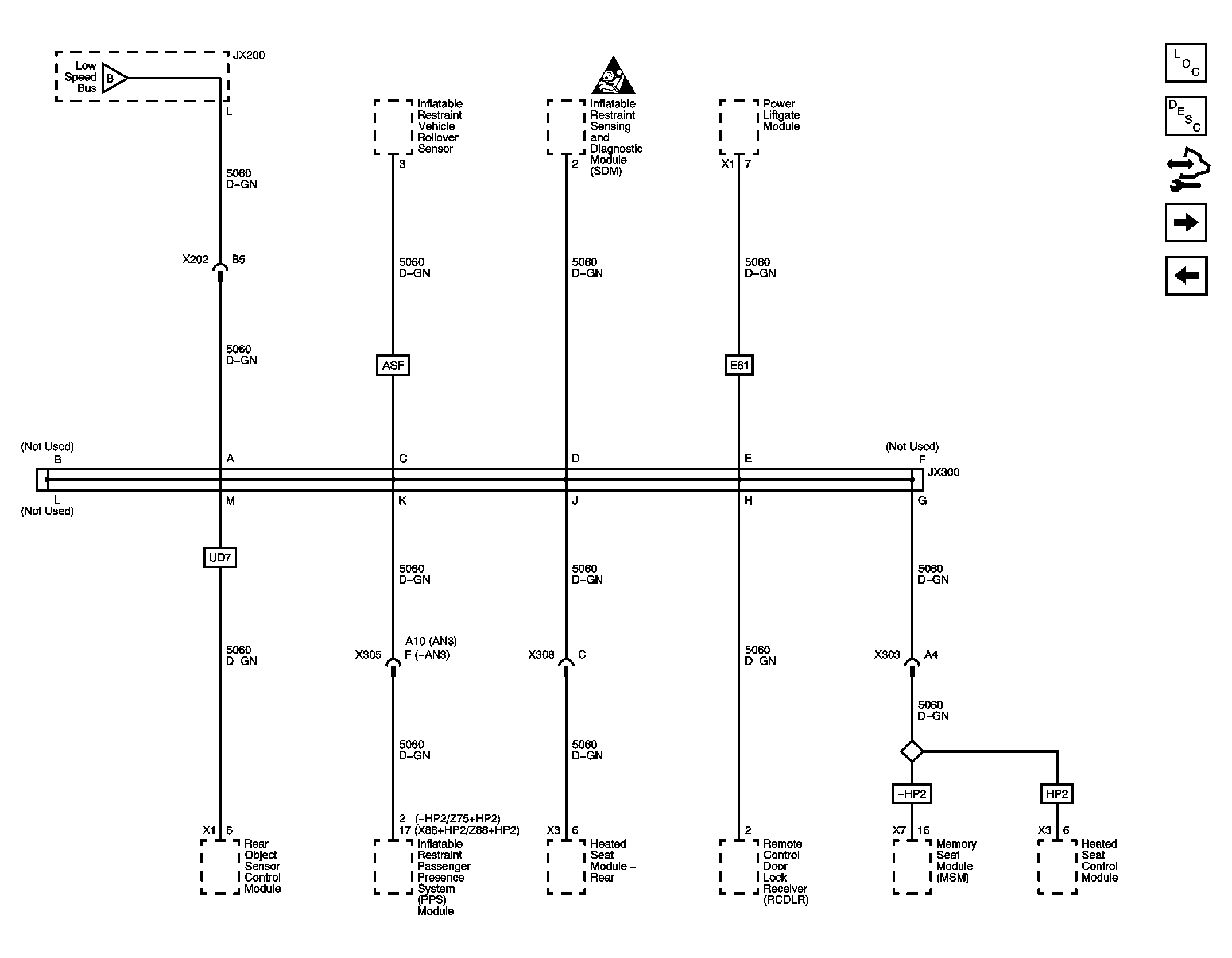

Fig 3: Low Speed Bus - JX200 - 3 of 3 and JX300

Courtesy of GENERAL MOTORS CORP.

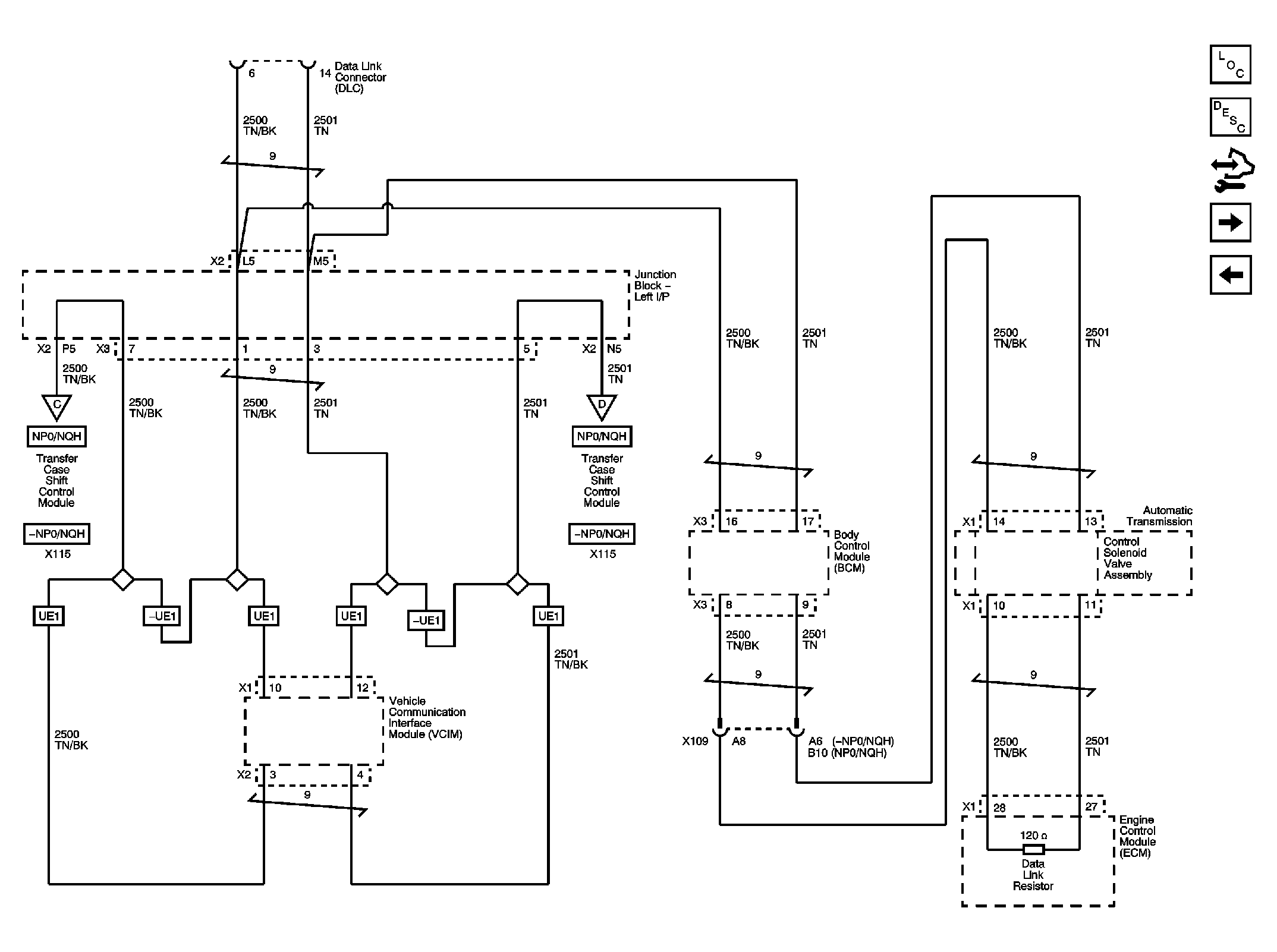

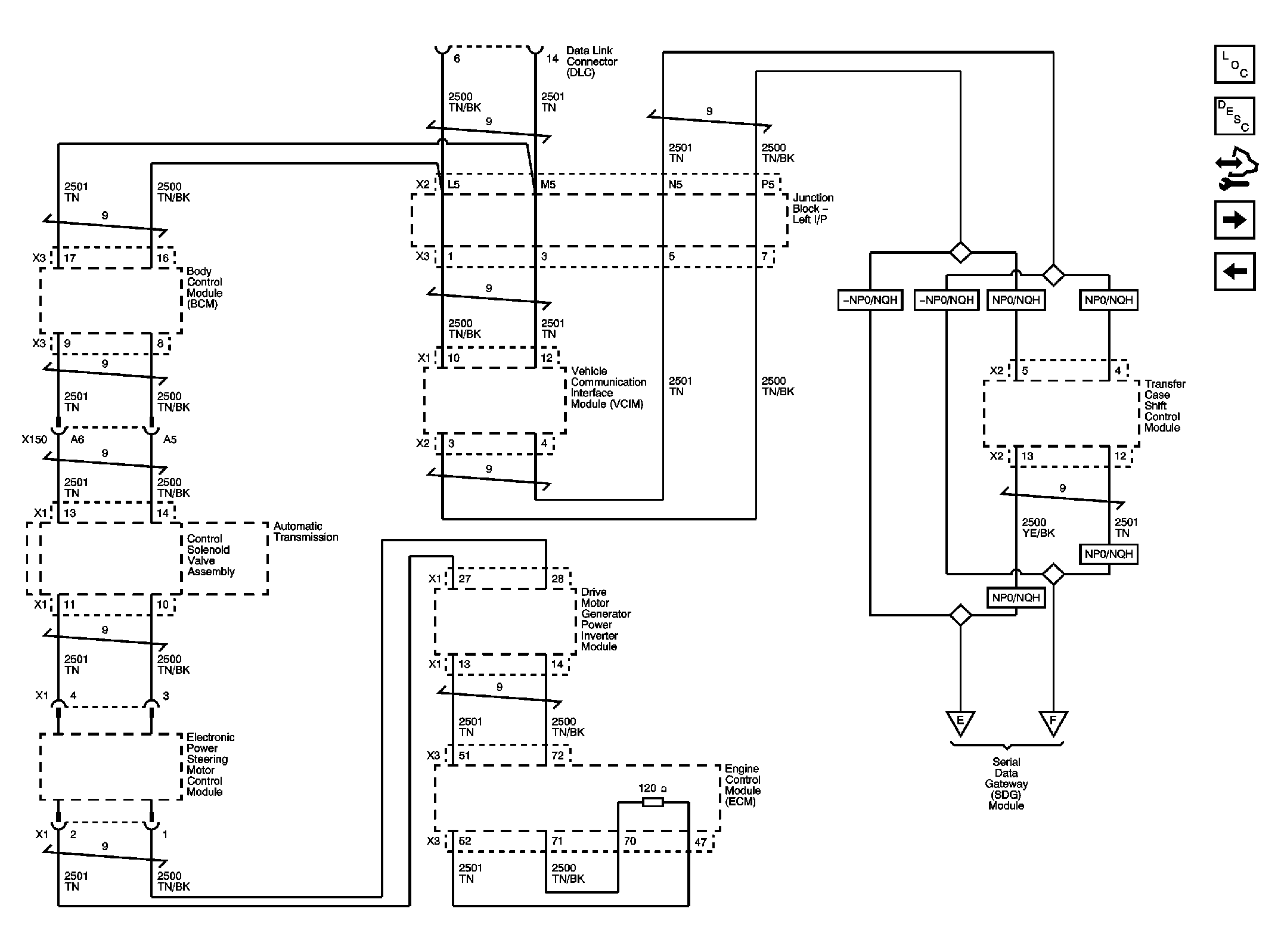

Fig 4: High Speed Bus - 1 of 2

Courtesy of GENERAL MOTORS CORP.

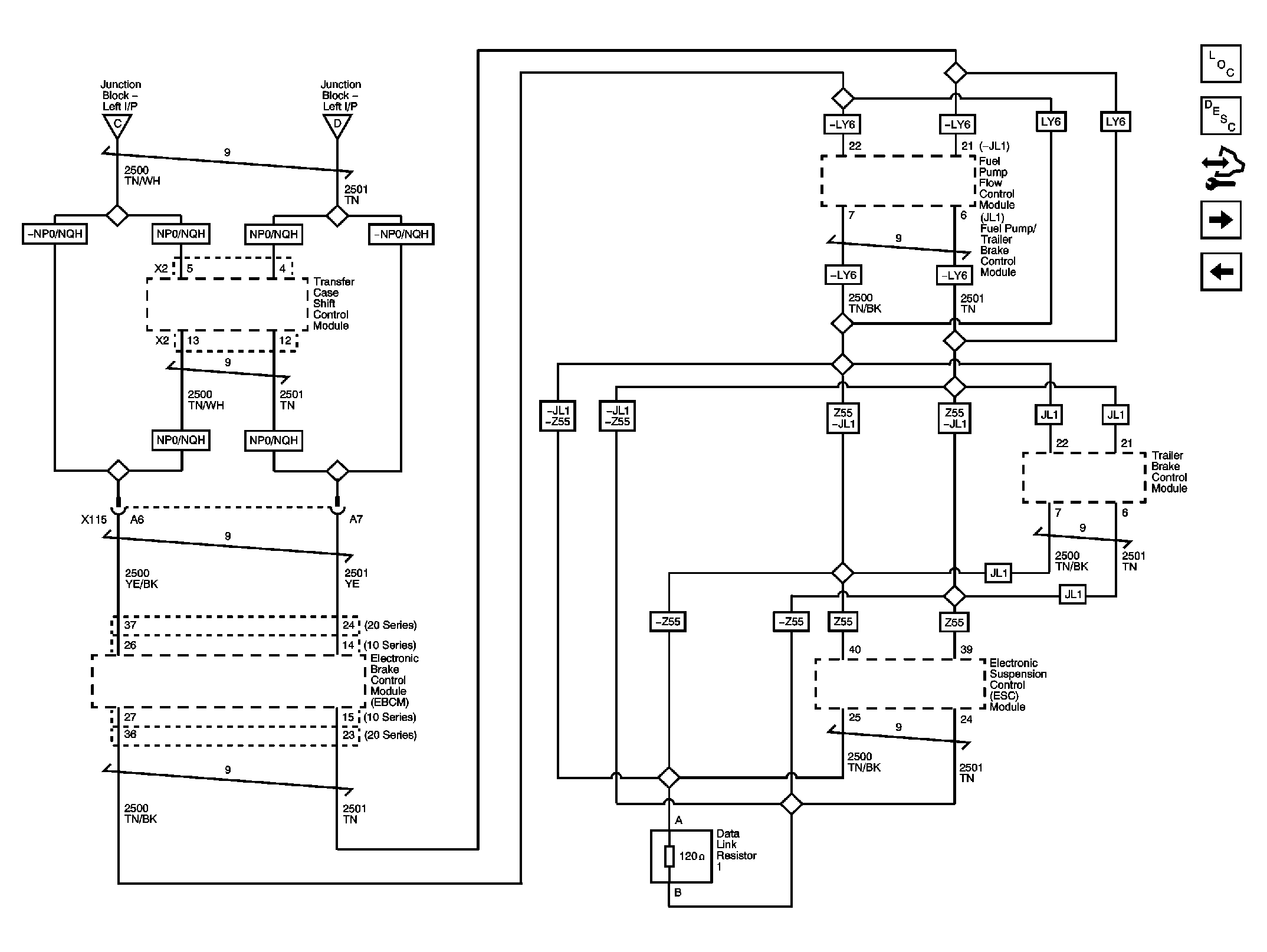

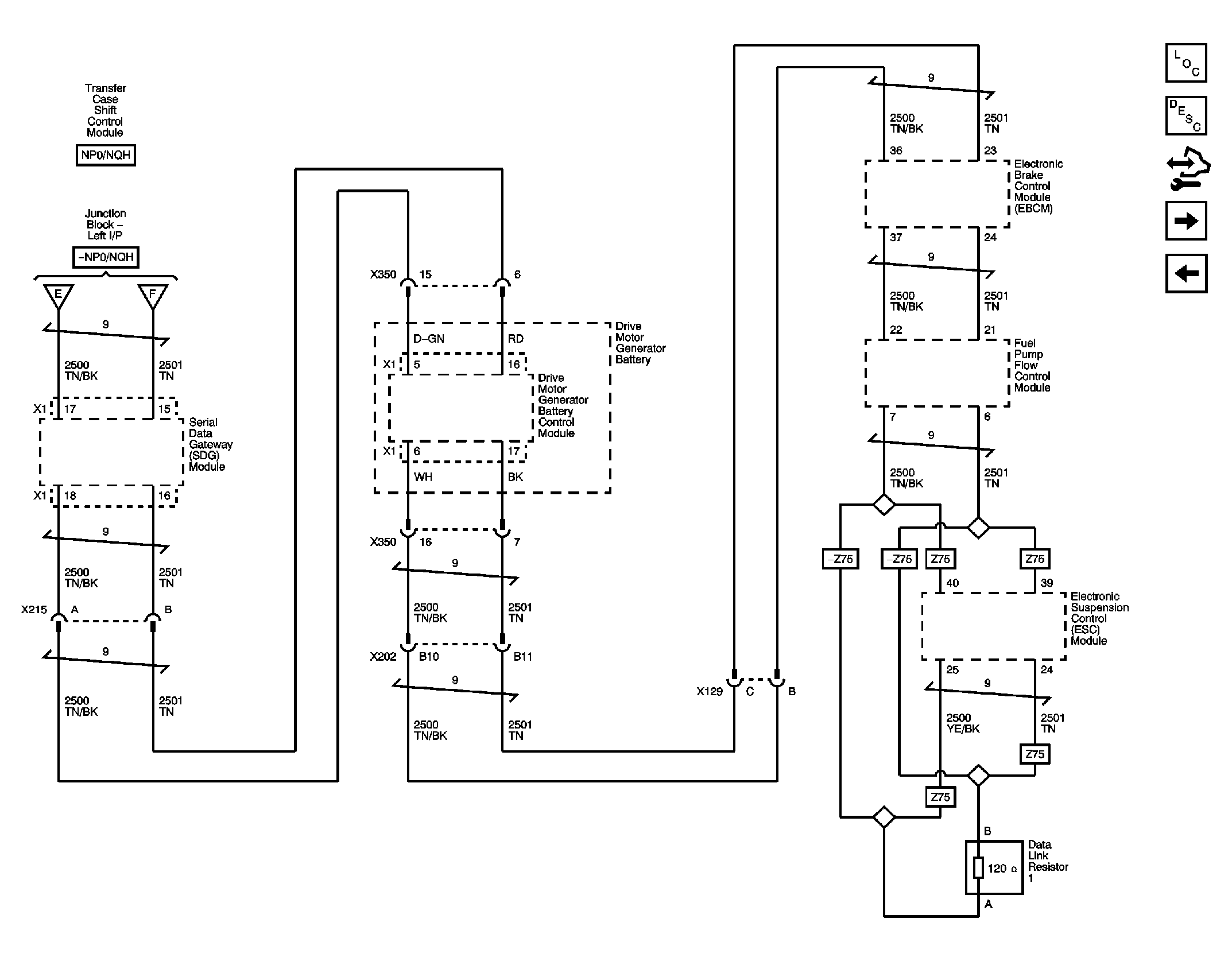

Fig 5: High Speed Bus - 2 of 2

Courtesy of GENERAL MOTORS CORP.

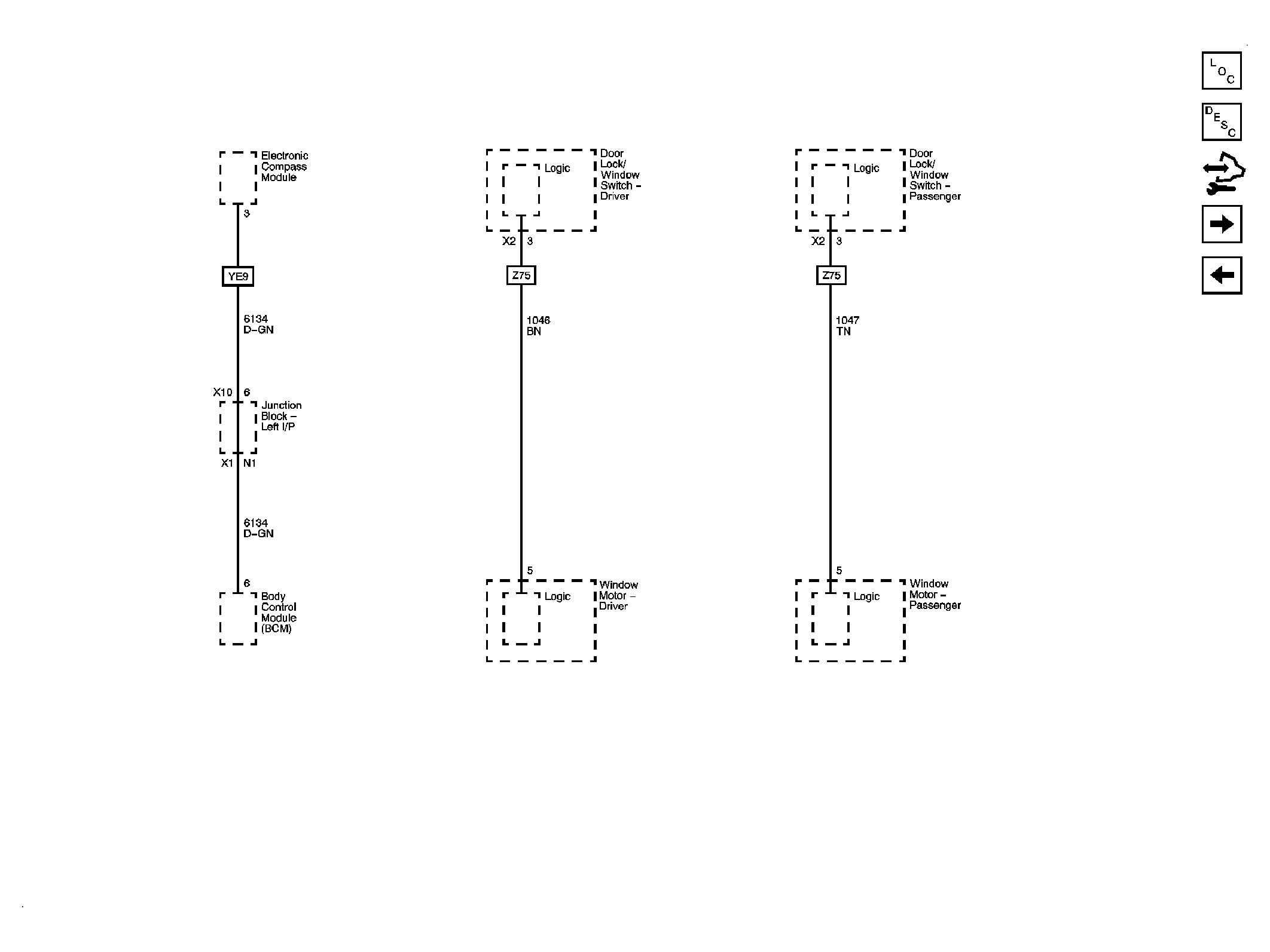

Fig 6: Local Interconnect Network Bus

Courtesy of GENERAL MOTORS CORP.

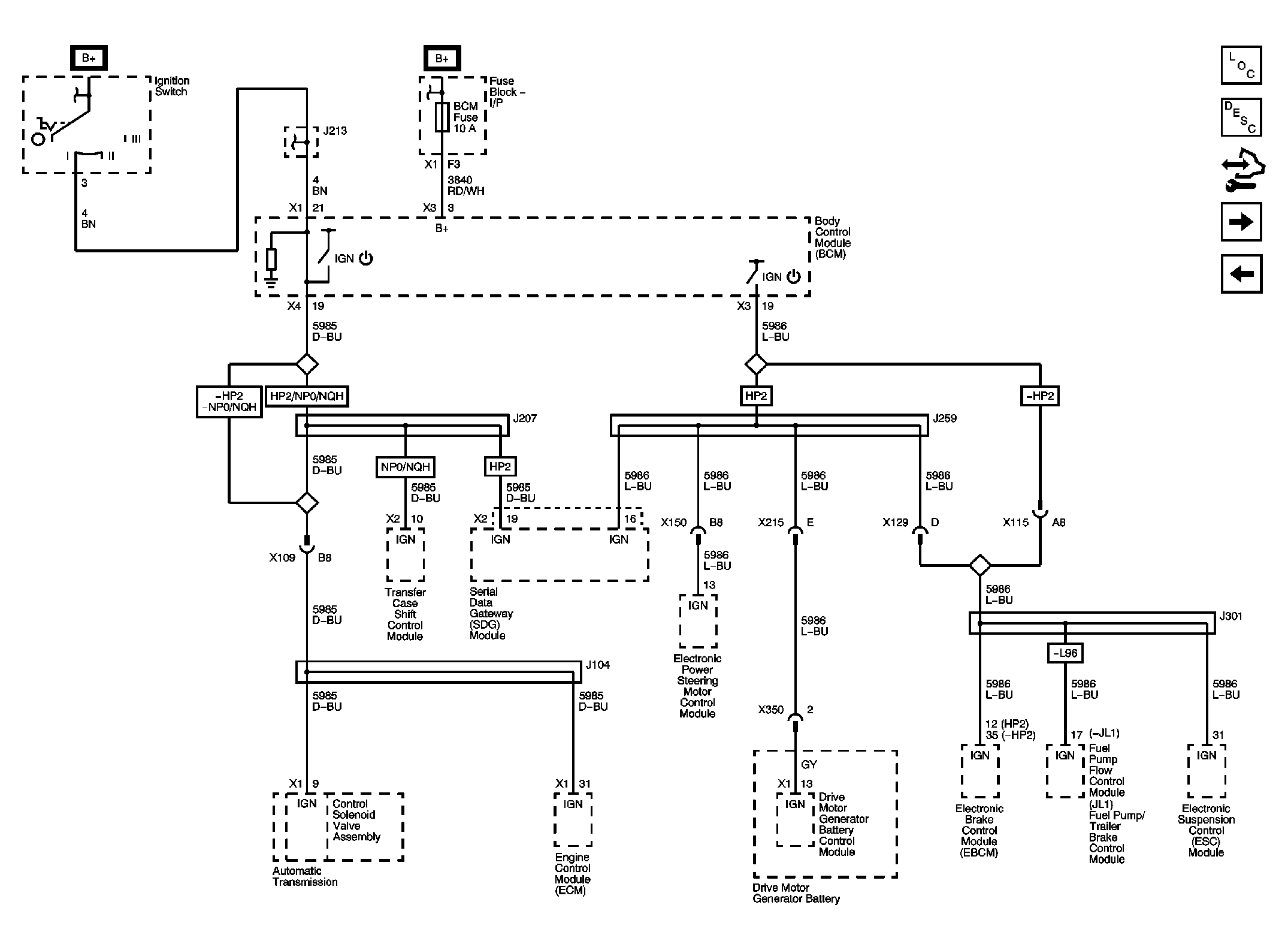

Fig 7: Serial Data Communication Enable and Wake-up Circuits

Courtesy of GENERAL MOTORS CORP.

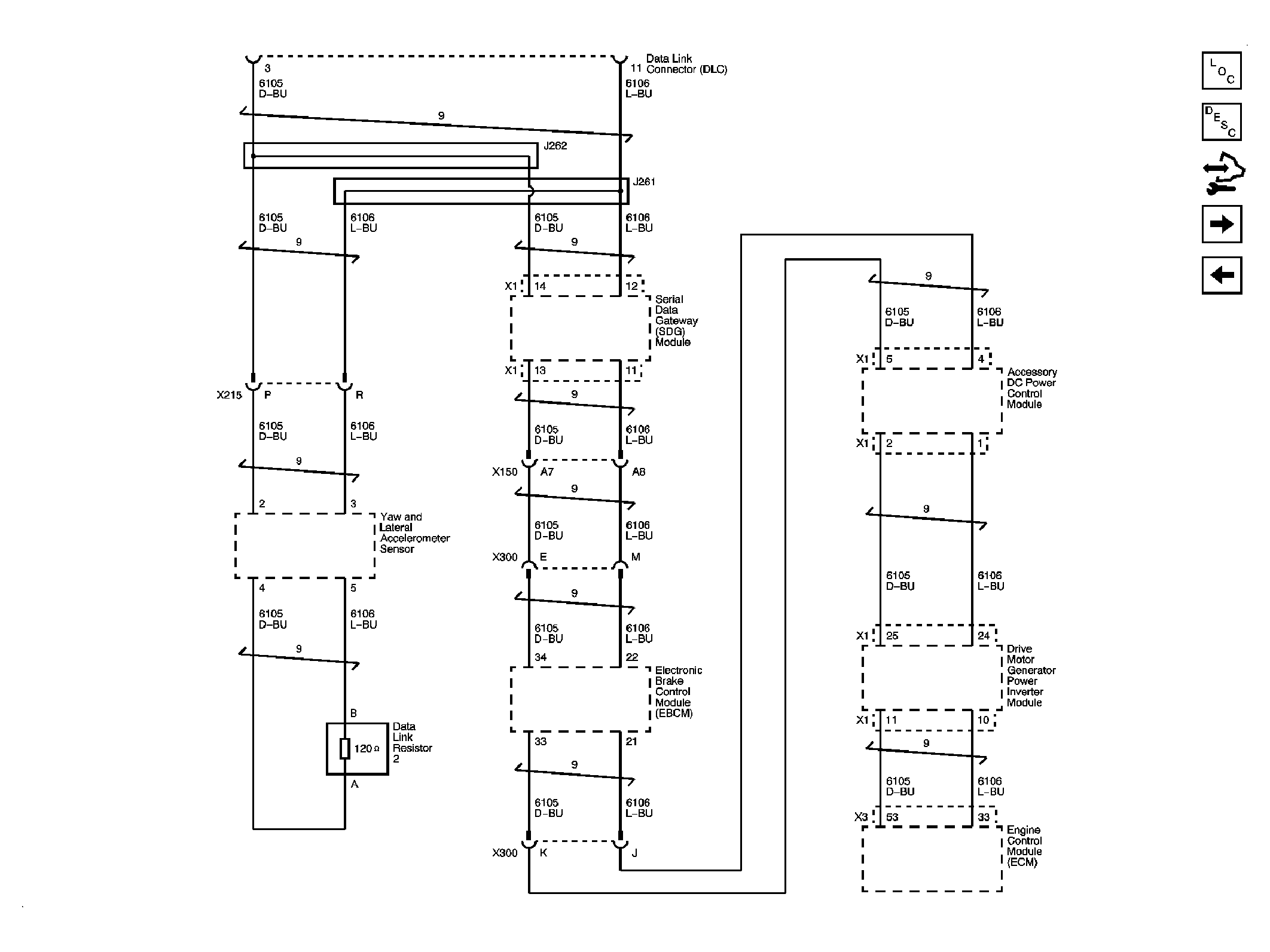

Fig 8: High Speed Bus - 1 of 2 (HP2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: High Speed Bus - 2 of 2 (HP2)

Courtesy of GENERAL MOTORS CORP.

Fig 10: Powertrain Expansion Bus (HP2)

Courtesy of GENERAL MOTORS CORP.

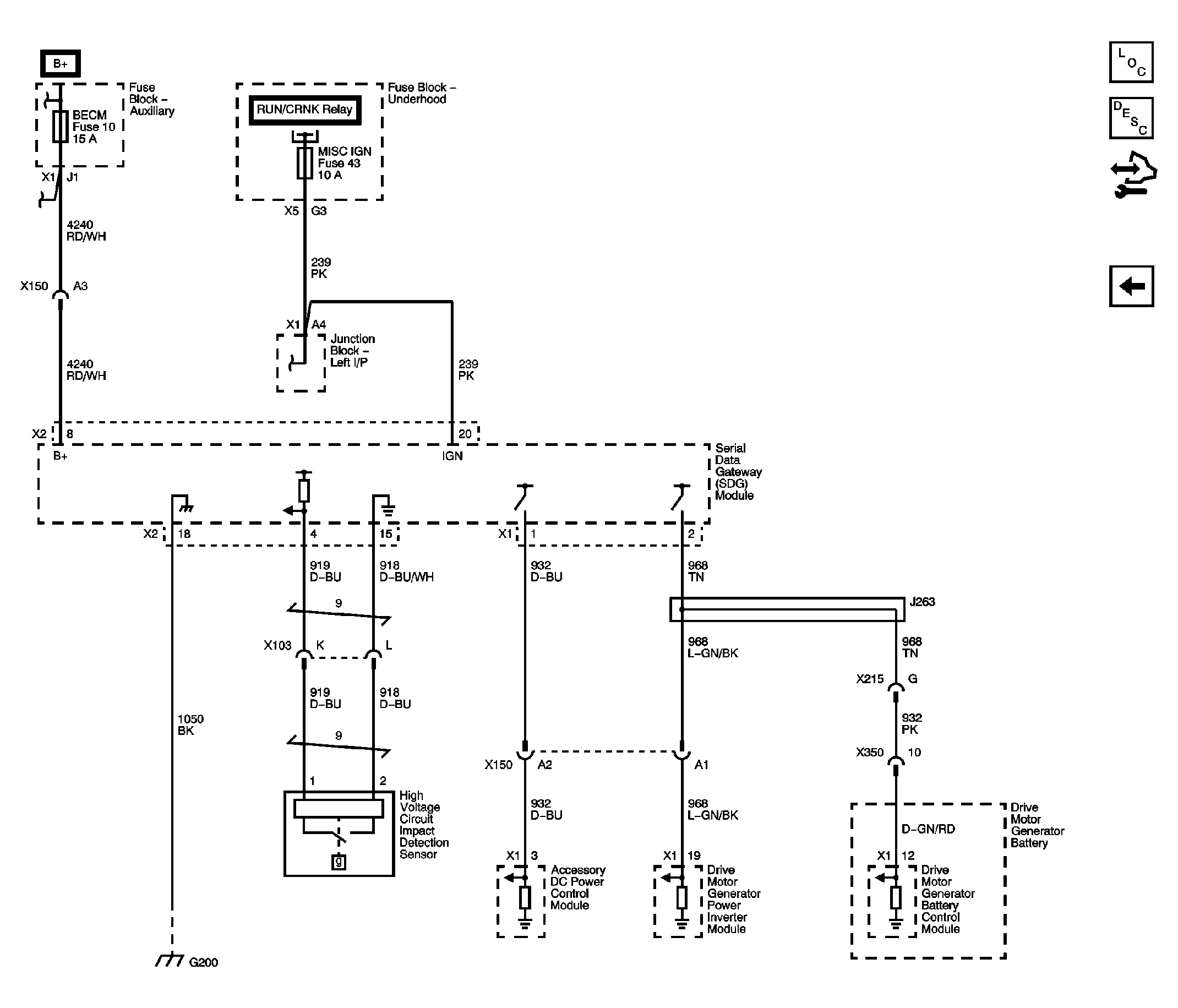

Fig 11: Serial Data Gateway (SDG) Module (HP2)

Courtesy of GENERAL MOTORS CORP.
