Installation Procedure

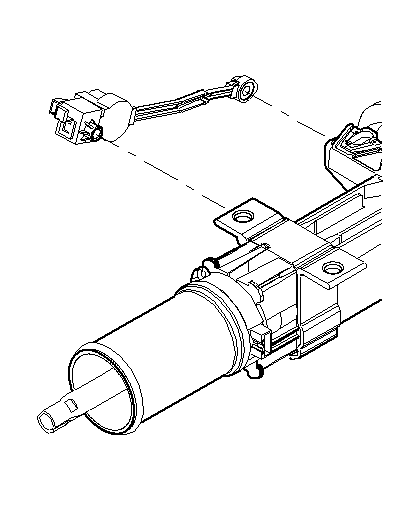

Fig 1: View of Automatic Transmission Shift Lock Control

GM420208

Courtesy of GENERAL MOTORS COMPANY

Install the automatic transmission shift lock control.
Put the column in the NEUTRAL position.

Fig 2: Adjusting Automatic Transmission Shift Lock Control Actuator

GM324912

Courtesy of GENERAL MOTORS COMPANY

Adjust the automatic transmission shift lock control.
1. Pull the tab (1) out on the block side (2) of the automatic transmission shift lock control.
2. Shift the column into the NEUTRAL position.
3. Press on the adjuster block (2) to compress the internal adjuster spring to disengage the adjuster teeth. Slide the adjuster block (2) as far away from the solenoid as possible.
4. Shift the column into the PARK position.
5. Lock in place by pushing the tab (1) back in.
Inspect the automatic transmission shift lock control.

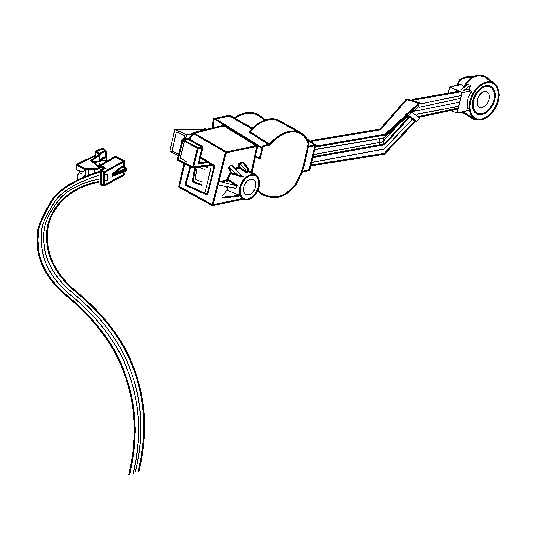

Fig 3: View of Automatic Transmission Shift Lock Control Connector

GM420205

Courtesy of GENERAL MOTORS COMPANY

Reconnect the automatic transmission shift lock control connector.
Install the steering column trim covers.
Install the knee bolster bracket. Refer to Driver Knee Bolster Replacement .
