Distance Sensor: Locations

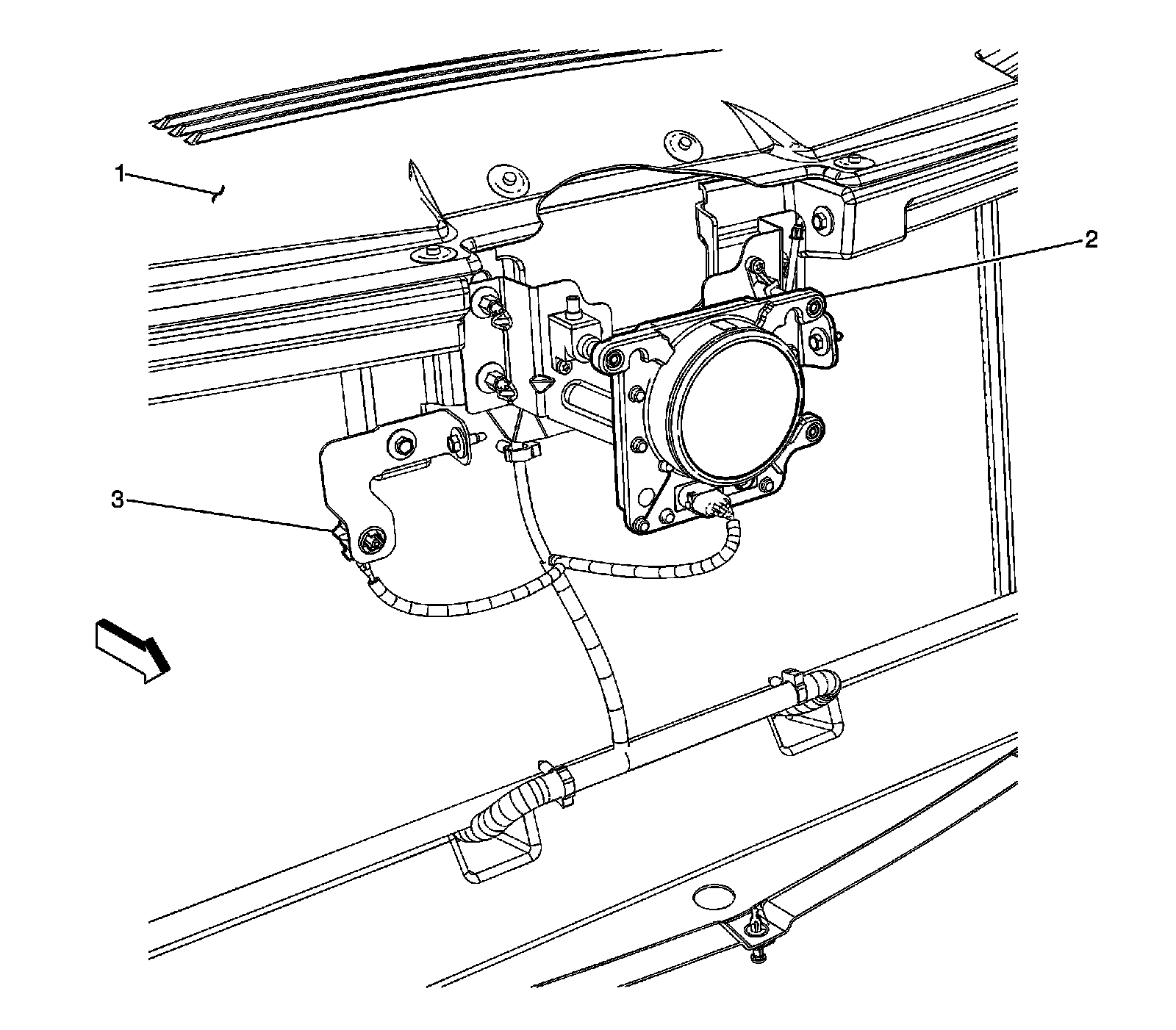

Front of Vehicle/Engine Compartment Component Views

Front of the Radiator




1 - Radiator Cover
2 - Distance Sensing Cruise Control Module (K59)
3 - Ambient Air Temperature Sensor
