Cellular Phone Microphone




Component Connector End Views

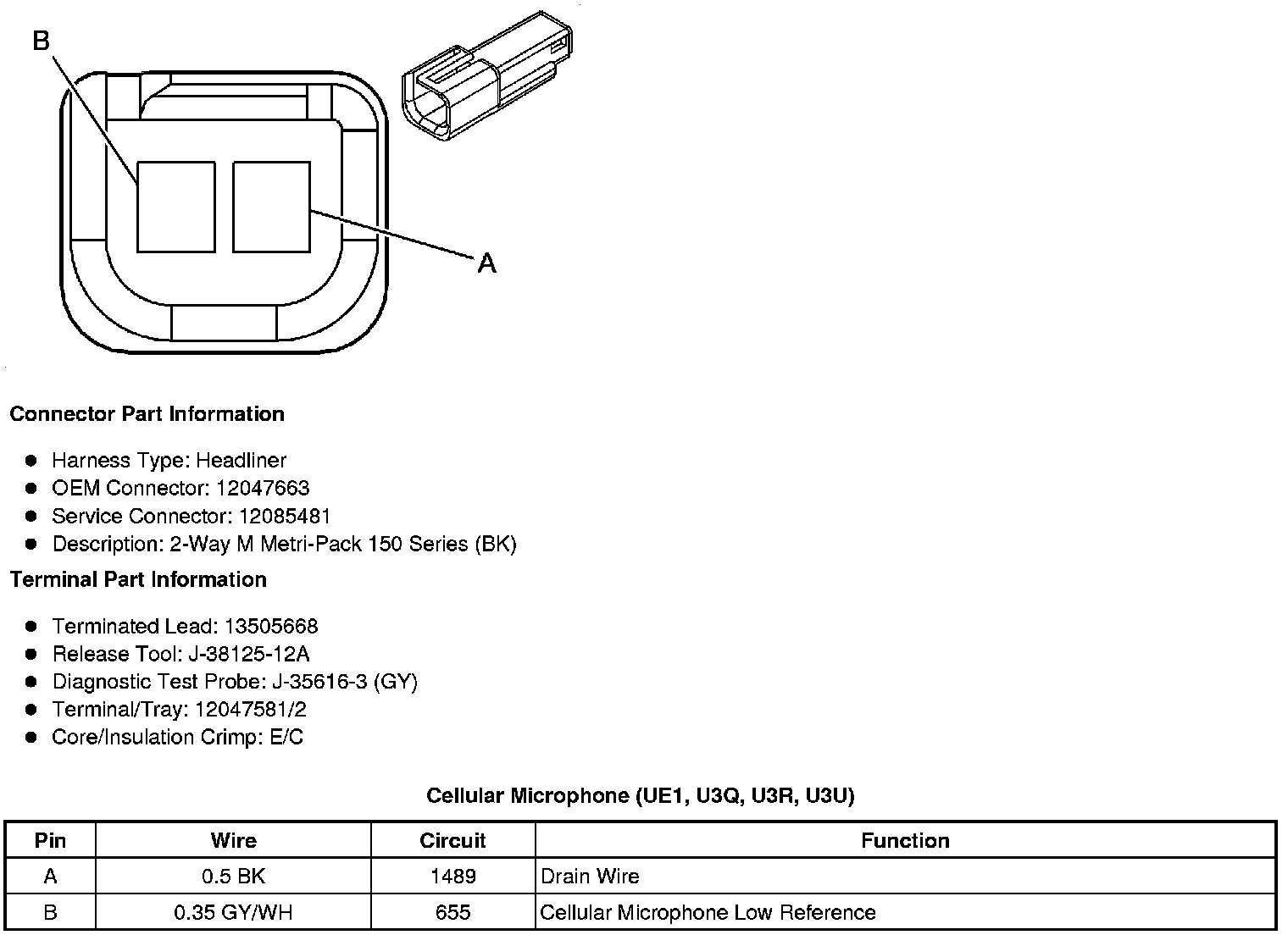

Cellular Microphone (UE1, U3Q, U3R, U3U)






Noise Compensation Microphone (UQA)
