Impact Sensor




Component Connector End Views

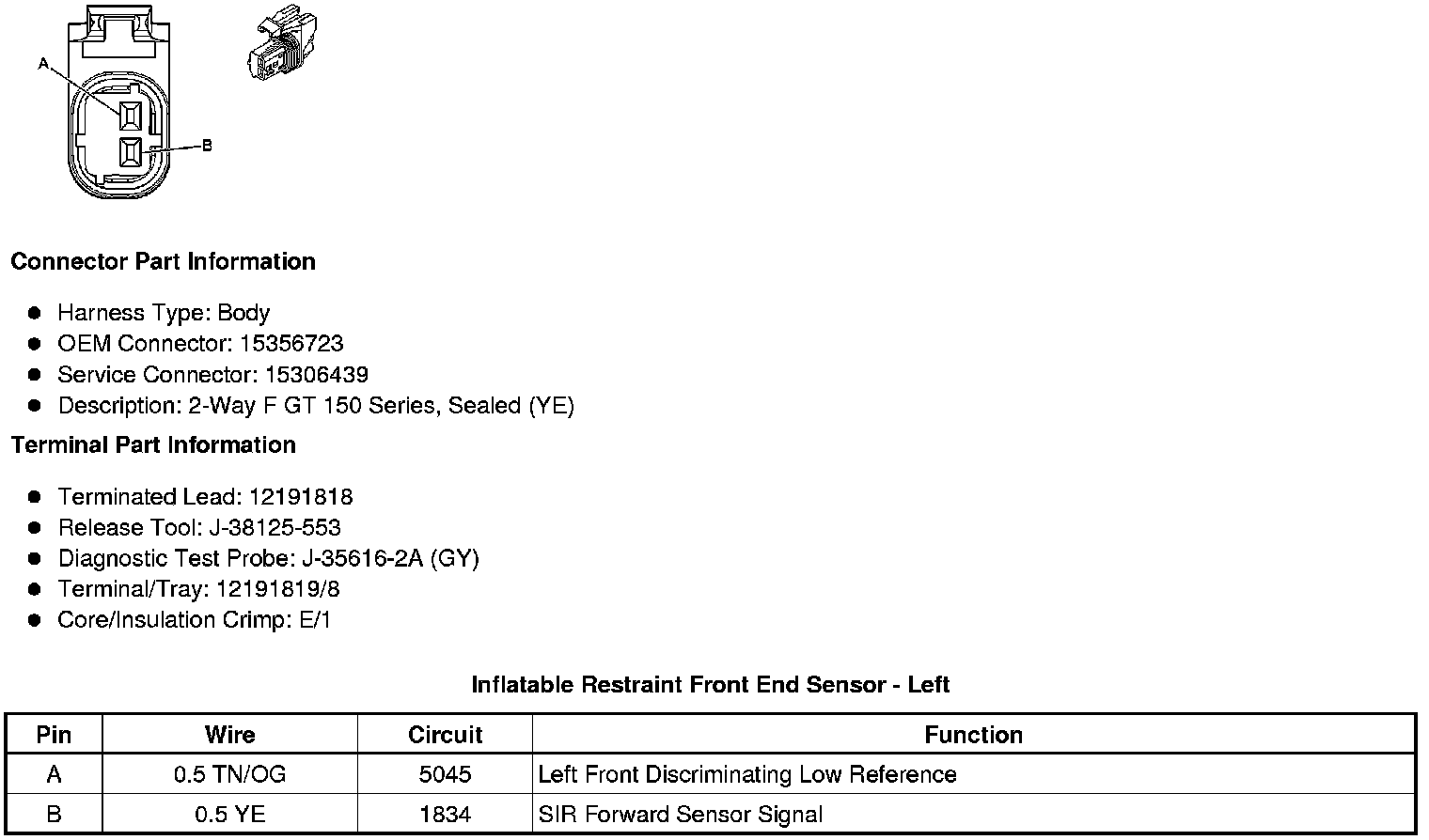

Inflatable Restraint Front End Sensor - Left

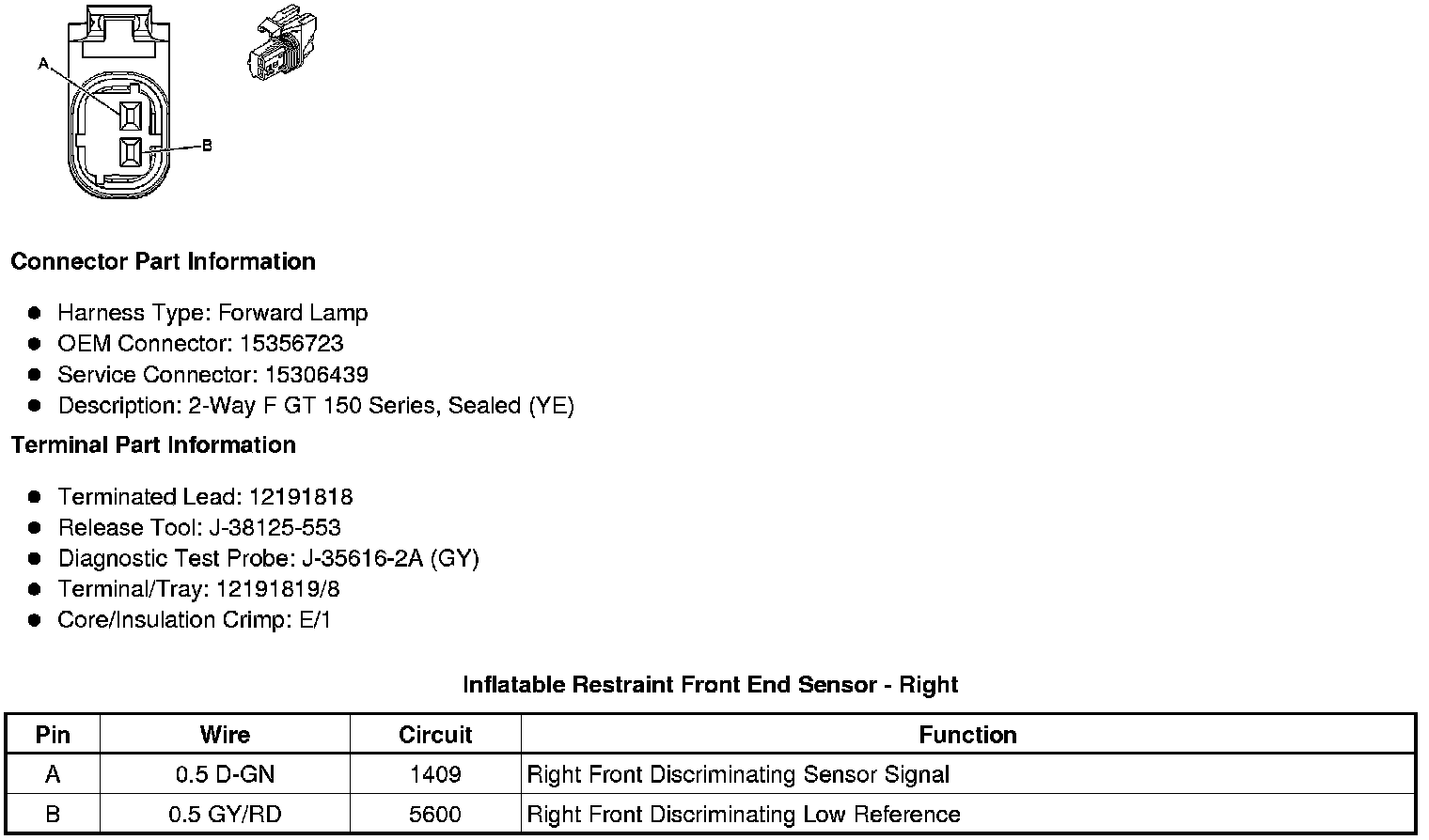

Inflatable Restraint Front End Sensor - Right

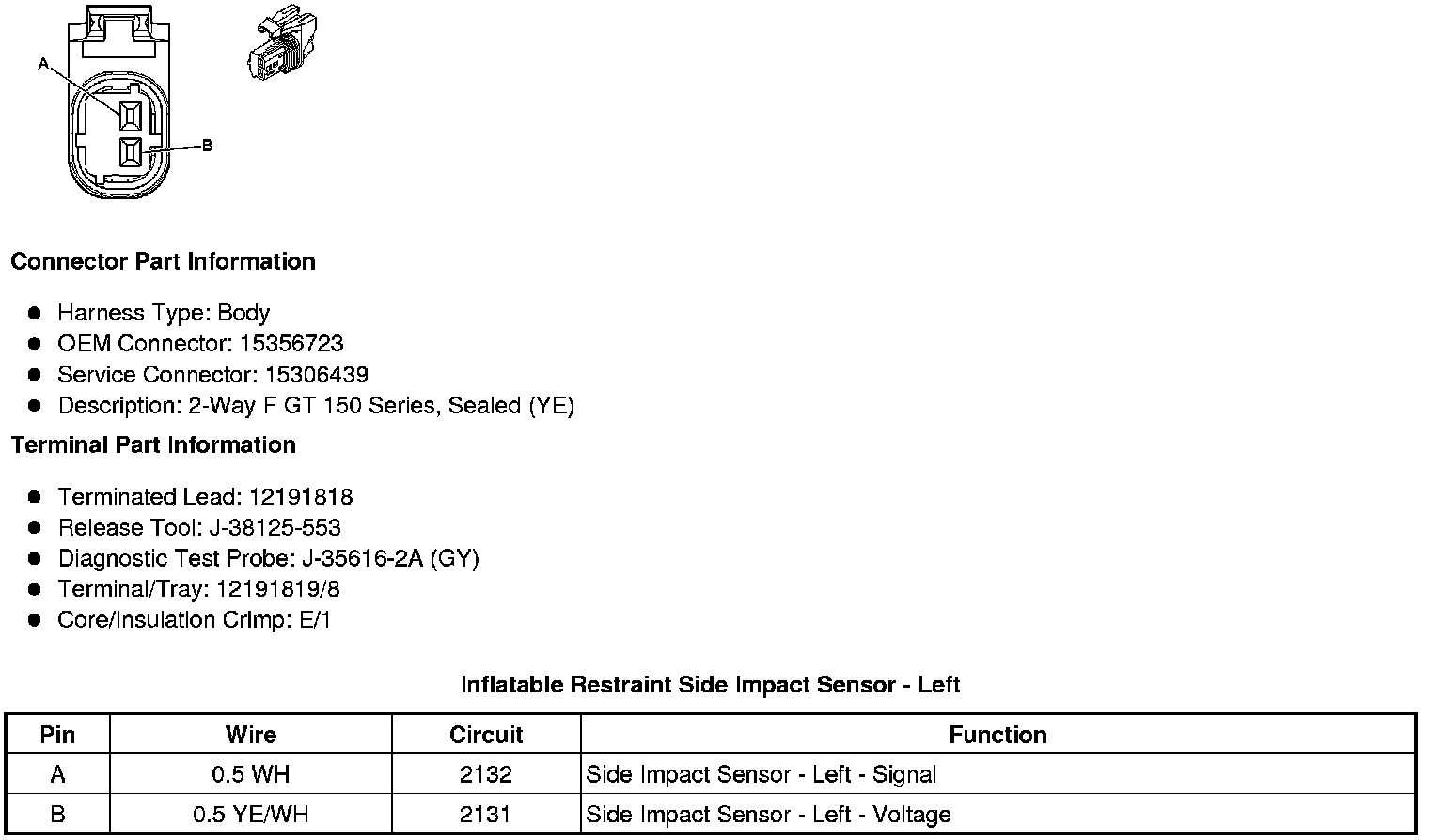

Inflatable Restraint Side Impact Sensor - Left

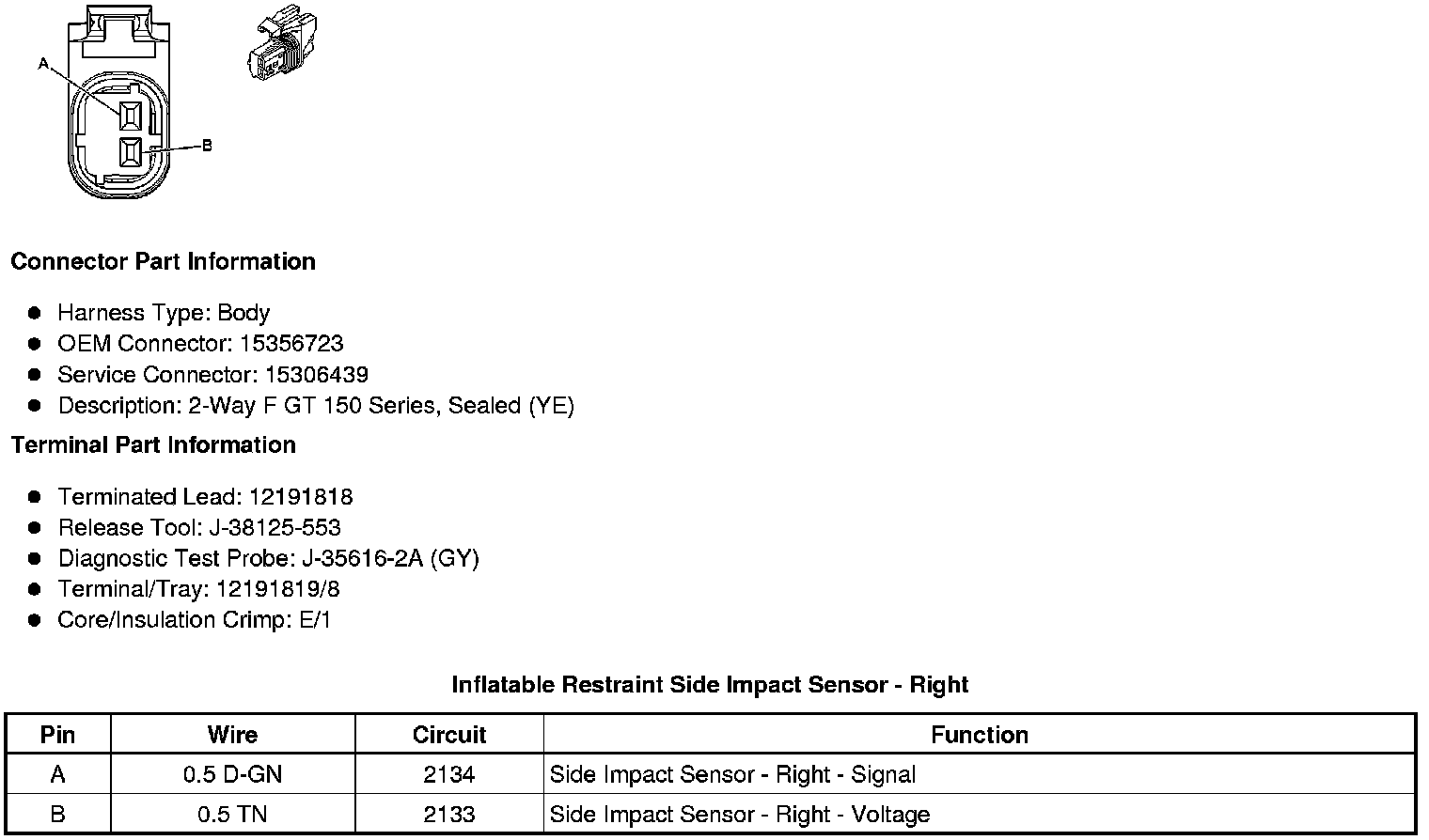

Inflatable Restraint Side Impact Sensor - Right
