System Diagram




Component Connector End Views

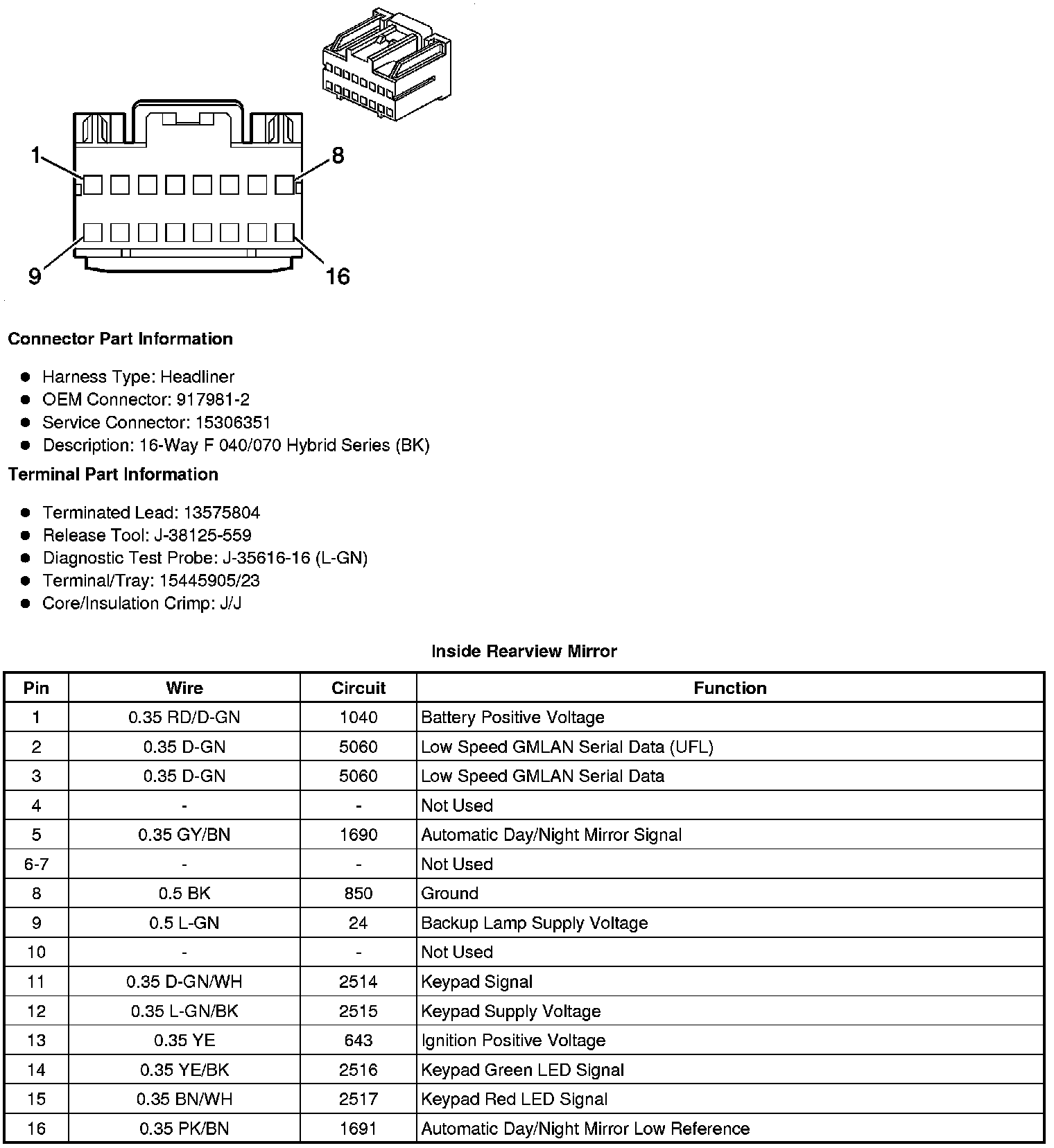

Inside Rearview Mirror

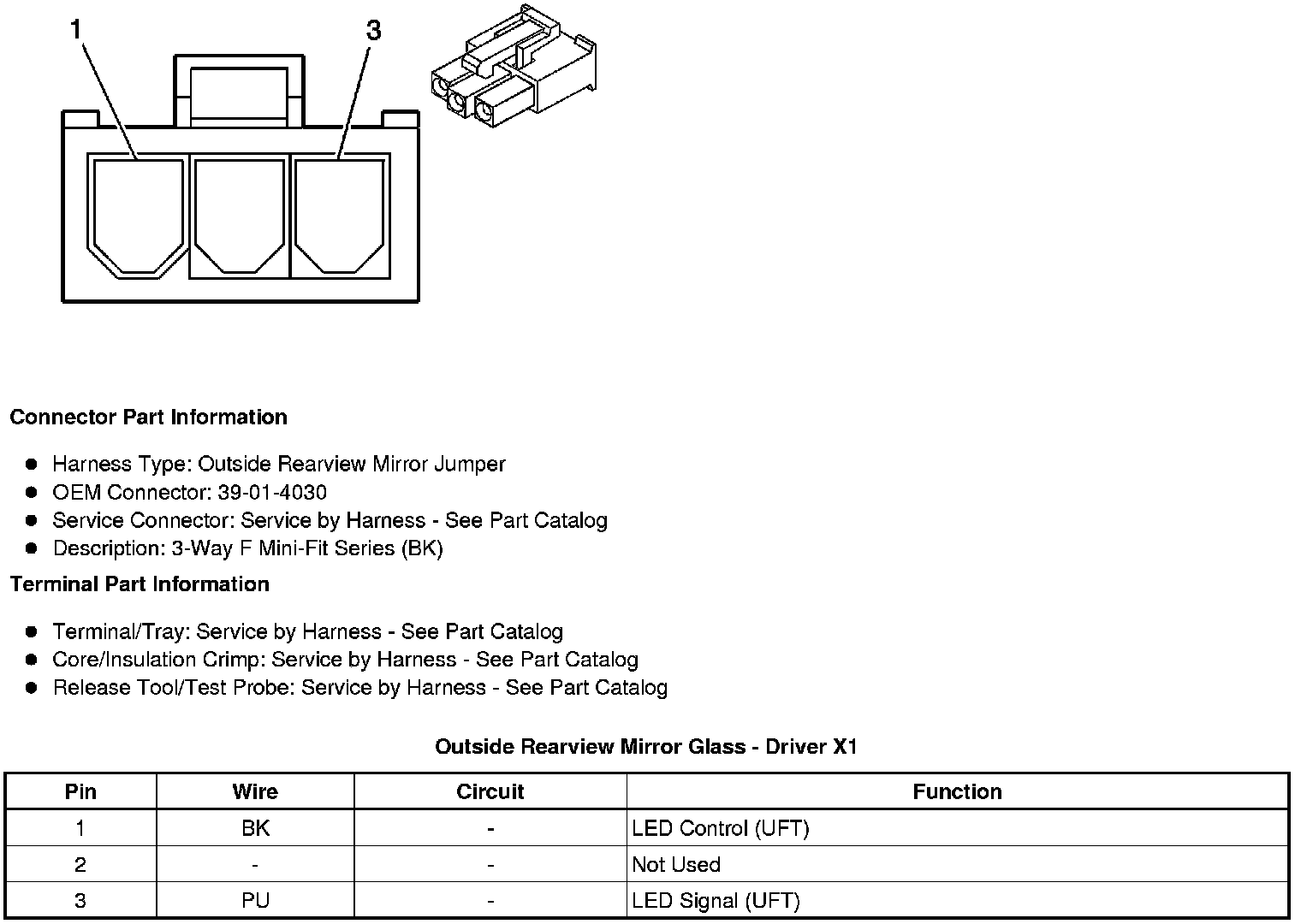

Outside Rearview Mirror Glass - Driver X1

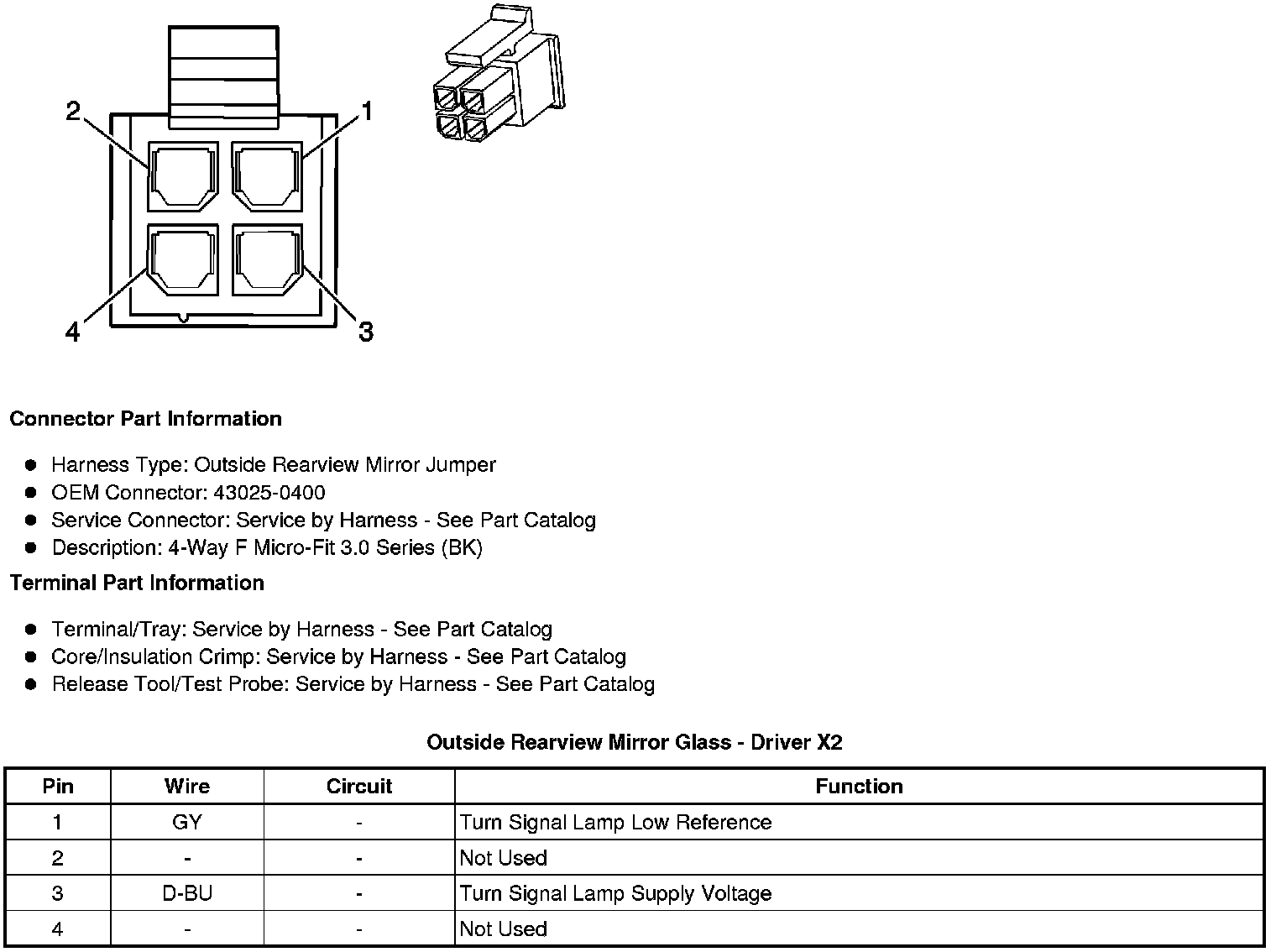

Outside Rearview Mirror Glass - Driver X2






Outside Rearview Mirror Glass - Driver X3






Outside Rearview Mirror Glass - Driver X4

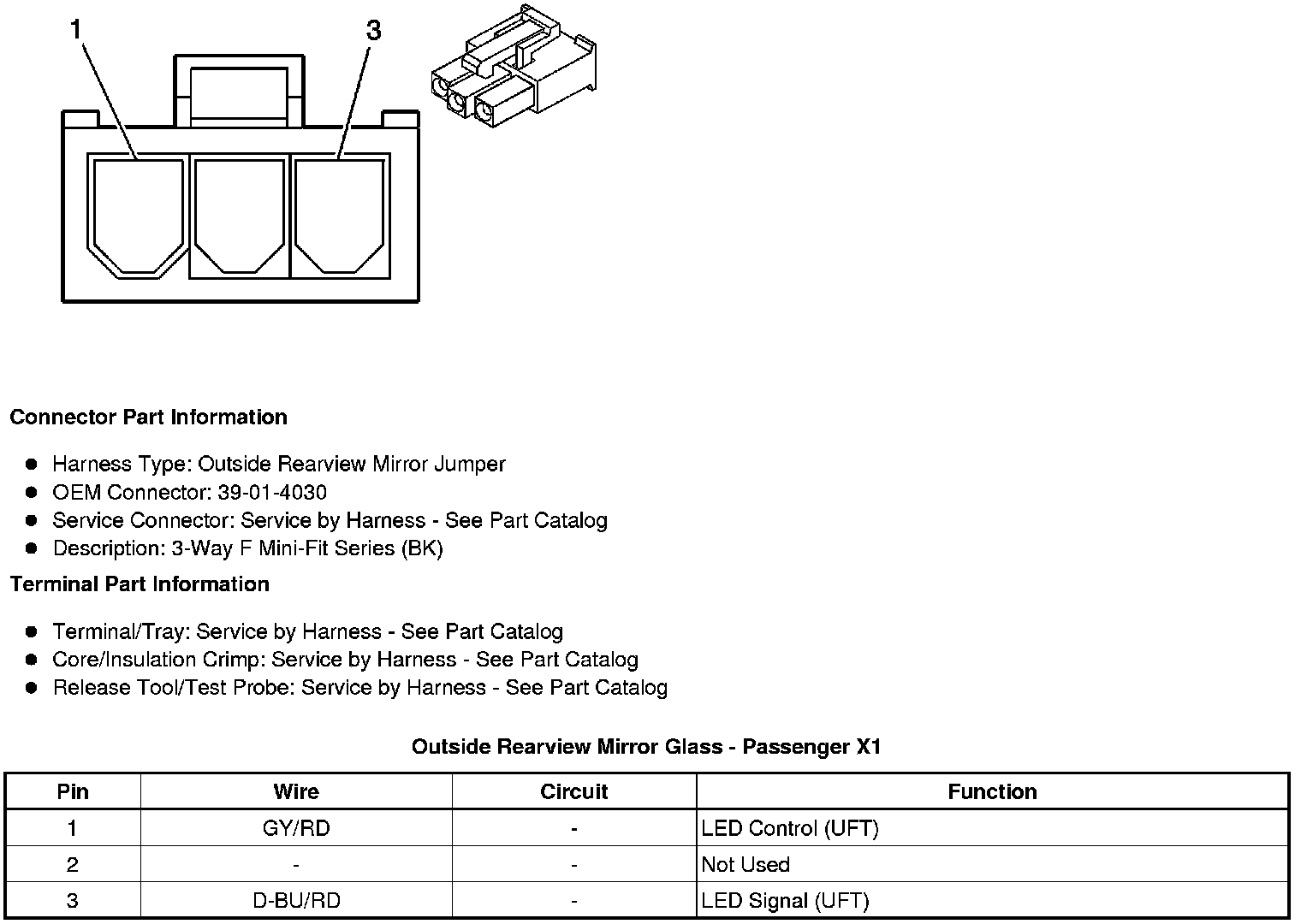

Outside Rearview Mirror Glass - Passenger X1

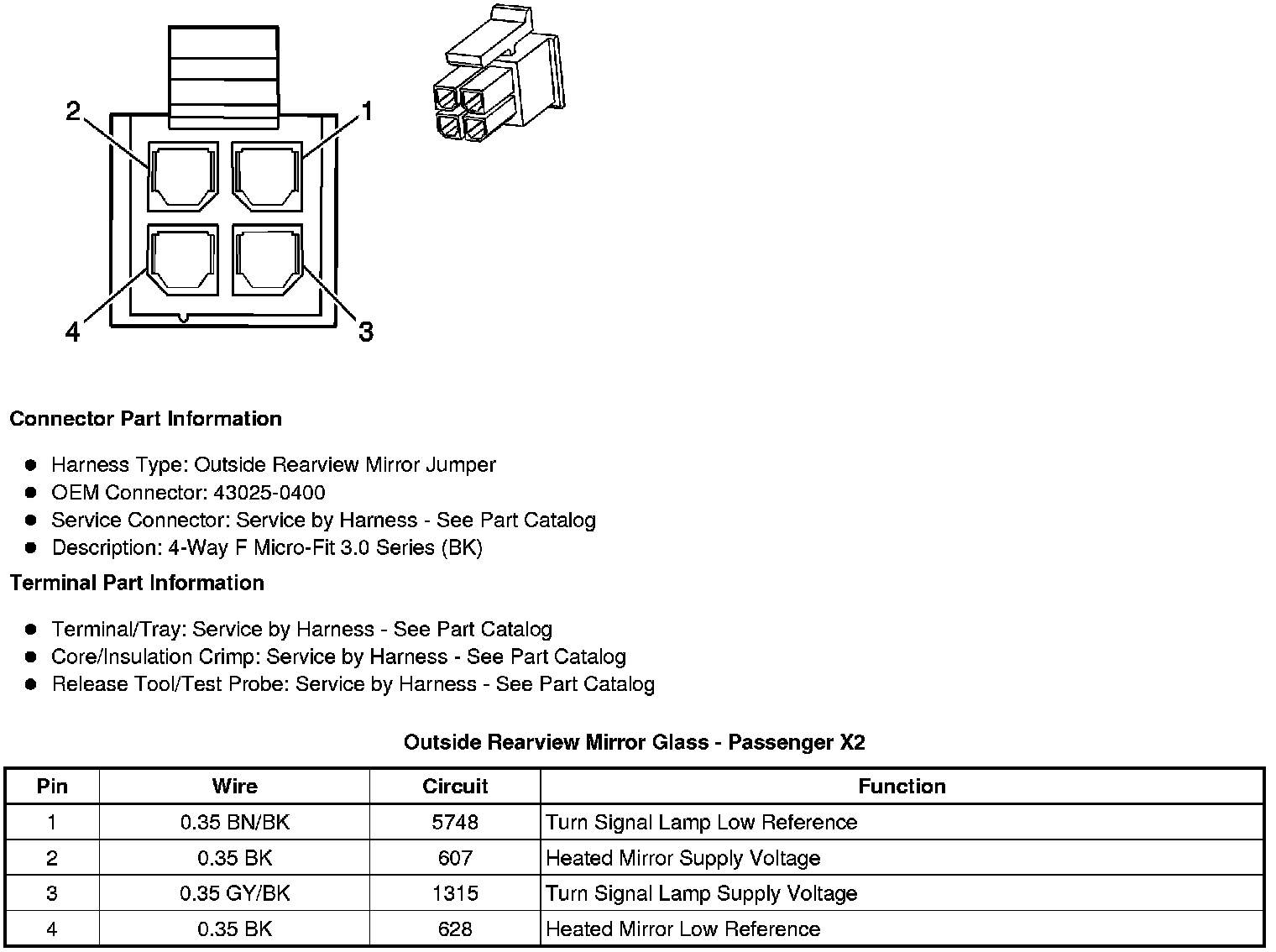

Outside Rearview Mirror Glass - Passenger X2
